arxiv: 2511.04320 · v2 · submitted 2025-11-06 · 💻 cs.RO

MacroNav: Multi-Task Context Representation Learning Enables Efficient Navigation in Unknown Environments

Kuankuan Sima , Longbin Tang , Zhenyu Yang , Haozhe Ma , Lin Zhao This is my paper

Pith reviewed 2026-05-18 01:06 UTC · model grok-4.3

classification 💻 cs.RO
keywords autonomous navigationself-supervised learningreinforcement learningspatial representationsunknown environmentscontext encodermulti-task learninggraph-based reasoning
0
0 comments X

The pith

A lightweight context encoder trained via multi-task self-supervised learning captures multi-scale spatial representations for efficient navigation in unknown environments.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper aims to establish that a lightweight context encoder, trained through multi-task self-supervised learning, can capture multi-scale navigation-centric spatial representations. These representations integrate with graph-based reasoning inside a reinforcement learning policy to support high-level decisions under partial observability. If correct, the approach would produce higher success rates and more efficient paths than existing methods while using less computation for real-time performance. A sympathetic reader cares because practical autonomous navigation requires both accurate multi-scale spatial understanding and low computational cost, a balance many current techniques miss.

Core claim

MacroNav is a learning-based navigation framework featuring a lightweight context encoder trained via multi-task self-supervised learning to capture multi-scale, navigation-centric spatial representations, which are integrated with graph-based reasoning in a reinforcement learning policy for efficient action selection, yielding significant gains over state-of-the-art methods in Success Rate and Success weighted by Path Length with superior computational efficiency.

What carries the argument

The lightweight context encoder trained via multi-task self-supervised learning, which captures multi-scale navigation-centric spatial representations to support high-level decision making.

If this is right

  • The representations enable robust environmental understanding for decisions under partial observability.
  • Seamless integration with graph-based reasoning produces efficient action selection.
  • Navigation achieves higher Success Rate and Success weighted by Path Length.
  • Computational demands drop enough to support real-time operation in unknown environments.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same multi-task training strategy could apply to other spatial tasks such as mapping or object search.
  • Self-supervised pretraining may reduce the need for large amounts of labeled navigation data.
  • Similar encoders might improve efficiency in related robotic planning problems that involve partial views.
  • Deployment across varied robot platforms could test how well the representations transfer.

Load-bearing premise

Multi-task self-supervised training on the context encoder will reliably produce navigation-centric multi-scale representations that support effective high-level decision making under partial observability.

What would settle it

Experiments showing no significant improvement in Success Rate or Success weighted by Path Length compared to state-of-the-art methods, or no gains in computational efficiency, would falsify the claim.

Figures

Figures reproduced from arXiv: 2511.04320 by Haozhe Ma, Kuankuan Sima, Lin Zhao, Longbin Tang, Zhenyu Yang.

Figure 1
Figure 1. Figure 1: Effective contextual representation facilitates cognition and reasoning [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Overall architecture of MacroNav. (a) The context map is tokenized and processed by the pre-trained context encoder to extract spatial representations. (b) Navigable nodes are encoded and fused with contextual features through cross-attention, followed by pointer attention to select the action node. (c) All encoders are based on the multi-layer multi-head attention mechanisms. Visible Tokens Mask Tokens En… view at source ↗
Figure 3
Figure 3. Figure 3: Overview of the multi-task self-supervised learning method comprising [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Dataset composition for training the context encoder. We use embedding di￾mension d = 512, L = 6 encoder layers, H = 4 attention heads, and patch size P = 8. Training uses AdamW optimizer with learning rate 1e − 4, batch size 256, and converges in ≈4 hours on an RTX-4090 GPU. RL Policy Training: We employ the simulation environ￾ment from [7] and leverage Ray [28] for distributed training. Policy parameters… view at source ↗
Figure 5
Figure 5. Figure 5: Trajectories of navigation policy with different context encoders in the unseen test environments. [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Comparison of training dynamics across different context encoders. [PITH_FULL_IMAGE:figures/full_fig_p006_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Attention visualization of different ViT-based context encoders. [PITH_FULL_IMAGE:figures/full_fig_p006_7.png] view at source ↗

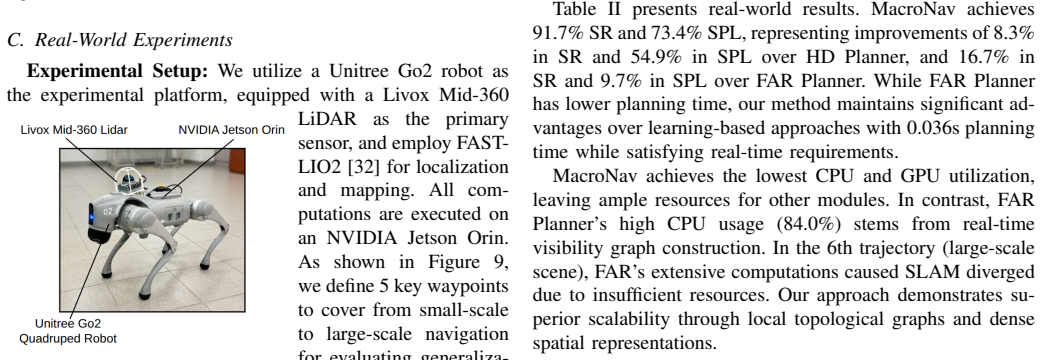

Figure 8
Figure 8. Figure 8: The robot platform. LiDAR as the primary sensor, and employ FAST￾LIO2 [32] for localization and mapping. All com￾putations are executed on an NVIDIA Jetson Orin. As shown in [PITH_FULL_IMAGE:figures/full_fig_p006_8.png] view at source ↗

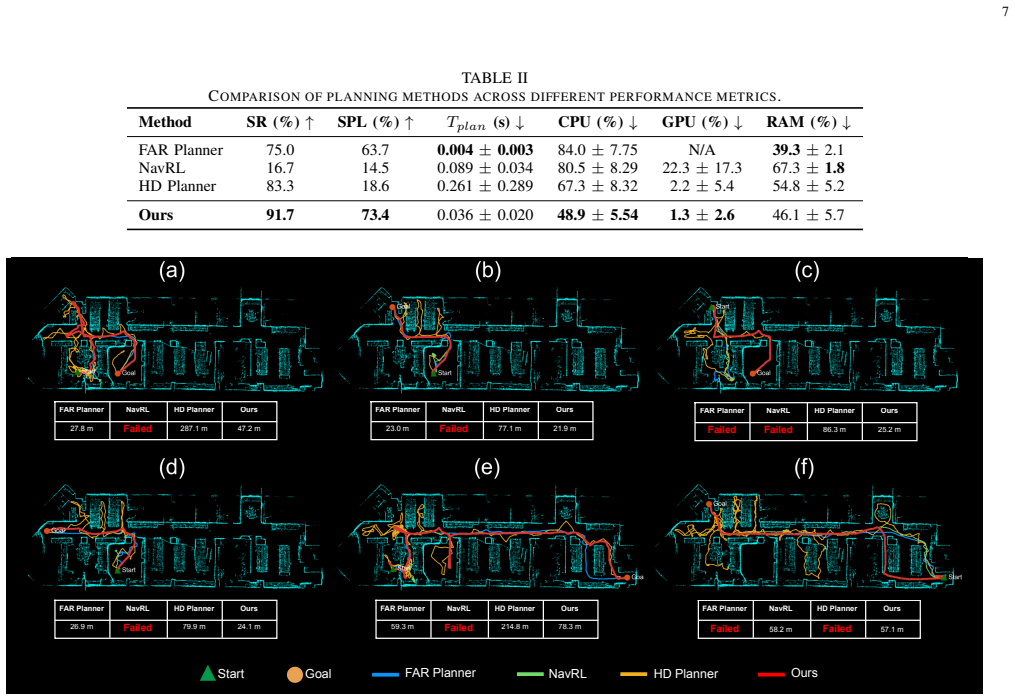

Figure 10
Figure 10. Figure 10: Comparison of navigation trajectories of different methods in the real-world experiments. [PITH_FULL_IMAGE:figures/full_fig_p007_10.png] view at source ↗
read the original abstract

Autonomous navigation in unknown environments requires multi-scale spatial understanding that captures geometric details, topological connectivity, and global structure to support high-level decision making under partial observability. Existing approaches struggle to efficiently capture such multi-scale spatial understanding while maintaining low computational cost for real-time navigation. We present MacroNav, a learning-based navigation framework featuring two key components: (1) a lightweight context encoder trained via multi-task self-supervised learning to capture multi-scale, navigation-centric spatial representations; and (2) a reinforcement learning policy that seamlessly integrates these representations with graph-based reasoning for efficient action selection. Extensive experiments demonstrate the context encoder's effective and robust environmental understanding. Real-world deployments further validate MacroNav's effectiveness, yielding significant gains over state-of-the-art navigation methods in both Success Rate (SR) and Success weighted by Path Length (SPL), with superior computational efficiency.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper presents MacroNav, a learning-based navigation framework for unknown environments consisting of (1) a lightweight context encoder trained via multi-task self-supervised learning to capture multi-scale, navigation-centric spatial representations (geometric, topological, and global structure) and (2) an RL policy that integrates these representations with graph-based reasoning for high-level action selection under partial observability. It claims that extensive experiments validate the encoder's robust environmental understanding and that real-world deployments yield significant gains over state-of-the-art methods in Success Rate (SR) and Success weighted by Path Length (SPL) while maintaining superior computational efficiency.

Significance. If the central claims hold after verification, the work would be significant for robotics navigation by showing that multi-task SSL can produce task-relevant multi-scale representations that improve RL-based decision making with low compute overhead. This addresses a key bottleneck in real-time autonomous systems operating under partial observability and could influence hybrid learning-graph approaches in the field.

major comments (2)
  1. Abstract: the central performance claims of 'significant gains' in SR and SPL with 'superior computational efficiency' are asserted without any reported experimental details, baselines, error bars, trial counts, or ablation results; this directly undermines verification of the claimed benefits of the context encoder over the graph-based RL module alone.
  2. Method (context encoder and integration sections): the claim that multi-task self-supervised training produces specifically navigation-centric multi-scale representations enabling effective high-level decisions is load-bearing for the integration benefit, yet no probing classifiers, feature visualizations, or ablations (multi-task SSL vs. single-task SSL or vs. supervised navigation objectives) are described to isolate this effect from the RL policy or graph reasoning.
minor comments (1)
  1. Abstract: the phrase 'seamlessly integrates' is vague and should be replaced with a concrete description of the fusion mechanism between the encoder outputs and the graph-based reasoning module.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the detailed and constructive feedback. The comments highlight opportunities to strengthen the presentation of experimental evidence and the isolation of the context encoder's contributions. We address each major comment below and commit to revisions that improve clarity and verifiability without altering the core technical claims.

read point-by-point responses

  1. Referee: Abstract: the central performance claims of 'significant gains' in SR and SPL with 'superior computational efficiency' are asserted without any reported experimental details, baselines, error bars, trial counts, or ablation results; this directly undermines verification of the claimed benefits of the context encoder over the graph-based RL module alone.

    Authors: We agree that the abstract, as a high-level summary, would benefit from additional specificity to allow readers to immediately assess the strength of the performance claims. The full experimental protocol—including baselines (e.g., prior navigation methods), number of trials, error bars, and direct comparisons isolating the context encoder from the graph-based RL policy—is reported in the Experiments section. In the revised manuscript we will expand the abstract to include concise references to these details (e.g., “evaluated over 500 episodes across three environments with reported mean ± std”) while preserving its brevity. This revision directly addresses the concern about verifiability. revision: yes

  2. Referee: Method (context encoder and integration sections): the claim that multi-task self-supervised training produces specifically navigation-centric multi-scale representations enabling effective high-level decisions is load-bearing for the integration benefit, yet no probing classifiers, feature visualizations, or ablations (multi-task SSL vs. single-task SSL or vs. supervised navigation objectives) are described to isolate this effect from the RL policy or graph reasoning.

    Authors: The primary evidence for the navigation-centric nature of the learned representations is the consistent improvement in downstream navigation metrics (SR and SPL) when the multi-task encoder is used versus ablated variants. We acknowledge that explicit probing classifiers, t-SNE visualizations of multi-scale features, or controlled ablations contrasting multi-task SSL against single-task SSL and supervised navigation objectives would provide more direct mechanistic insight. In the revised version we will add these analyses: (i) a set of linear probing classifiers trained on frozen encoder features for geometric, topological, and global navigation subtasks; (ii) qualitative feature visualizations; and (iii) quantitative ablations comparing multi-task versus single-task pre-training. These additions will better isolate the encoder’s contribution from the RL and graph components. revision: yes

Circularity Check

0 steps flagged

No significant circularity; empirical method with external validation

full rationale

The paper describes a learning-based navigation framework consisting of a multi-task self-supervised context encoder and an RL policy with graph reasoning. Claims rest on experimental results in simulation and real-world deployments rather than any derivation that reduces by construction to its own inputs. No equations, fitted parameters renamed as predictions, or self-citation chains are invoked to justify the core representation properties; the multi-scale navigation-centric nature is asserted as an outcome of training and then measured via performance metrics against baselines. This is a standard empirical pipeline with no load-bearing self-definitional steps.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Only the abstract is available, so the ledger is necessarily incomplete. The approach rests on the domain assumption that multi-task self-supervised objectives can extract navigation-relevant multi-scale features; no new entities are postulated and no explicit free parameters are named.

axioms (1)
  • domain assumption Multi-task self-supervised learning produces navigation-centric multi-scale spatial representations suitable for downstream RL policy integration
    Invoked in the design of the context encoder component described in the abstract.

pith-pipeline@v0.9.0 · 5687 in / 1228 out tokens · 45954 ms · 2026-05-18T01:06:54.923665+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

33 extracted references · 33 canonical work pages · 3 internal anchors

  1. [1]

    A review of motion planning algorithms for intelligent robots,

    C. Zhou, B. Huang, and P. Fr ¨anti, “A review of motion planning algorithms for intelligent robots,”Journal of Intelligent Manufacturing, vol. 33, no. 2, pp. 387–424, 2022

    work page 2022

  2. [2]

    A Novel Frontier-Based Exploration Algorithm for Mobile Robots,

    Daniel Louback da Silva Lubanco, M. Pichler-Scheder, and T. Schlechter, “A Novel Frontier-Based Exploration Algorithm for Mobile Robots,” in2020 6th International Conference on Mechatronics and Robotics Engineering (ICMRE), pp. 1–5

    work page

  3. [3]

    Evaluating the Efficiency of Frontier-based Exploration Strategies,

    D. Holz, N. Basilico, F. Amigoni, and S. Behnke, “Evaluating the Efficiency of Frontier-based Exploration Strategies,” inISR 2010 (41st International Symposium on Robotics) and ROBOTIK 2010 (6th German Conference on Robotics), pp. 1–8

    work page 2010

  4. [4]

    FAR planner: Fast, attemptable route planner using dynamic visibility update,

    F. Yang, C. Cao, H. Zhu, J. Oh, and J. Zhang, “FAR planner: Fast, attemptable route planner using dynamic visibility update,” in2022 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS), pp. 9–16

    work page

  5. [5]

    Decentralized distributed PPO: solving pointgoal navigation

    E. Wijmans, A. Kadian, A. Morcos, S. Lee, I. Essa, D. Parikh, M. Savva, and D. Batra, “Dd-ppo: Learning near-perfect pointgoal navigators from 2.5 billion frames,”arXiv preprint arXiv:1911.00357, 2019

    work page arXiv 1911

  6. [6]

    Navrl: Learning safe flight in dynamic environments,

    Z. Xu, X. Han, H. Shen, H. Jin, and K. Shimada, “Navrl: Learning safe flight in dynamic environments,”IEEE Robotics and Automation Letters, 2025

    work page 2025

  7. [7]

    Hdplanner: Advancing autonomous deployments in unknown environments through hierarchical decision networks,

    J. Liang, Y . Cao, Y . Ma, H. Zhao, and G. Sartoretti, “Hdplanner: Advancing autonomous deployments in unknown environments through hierarchical decision networks,”IEEE Robotics and Automation Letters, 2024

    work page 2024

  8. [8]

    Deep reinforce- ment learning-based large-scale robot exploration,

    Y . Cao, R. Zhao, Y . Wang, B. Xiang, and G. Sartoretti, “Deep reinforce- ment learning-based large-scale robot exploration,”IEEE Robotics and Automation Letters, vol. 9, no. 5, pp. 4631–4638, 2024

    work page 2024

  9. [9]

    Alpha: Attention- based long-horizon pathfinding in highly-structured areas,

    C. He, T. Yang, T. Duhan, Y . Wang, and G. Sartoretti, “Alpha: Attention- based long-horizon pathfinding in highly-structured areas,” in2024 IEEE International Conference on Robotics and Automation (ICRA). IEEE, 2024, pp. 14 576–14 582

    work page 2024

  10. [10]

    Vit-a*: Legged robot path planning using vision transformer a,

    J. Liu, S. Lyu, D. Hadjivelichkov, V . Modugno, and D. Kanoulas, “Vit-a*: Legged robot path planning using vision transformer a,” in 2023 IEEE-RAS 22nd International Conference on Humanoid Robots (Humanoids). IEEE, 2023, pp. 1–6

    work page 2023

  11. [11]

    Domain general- ization: A survey,

    K. Zhou, Z. Liu, Y . Qiao, T. Xiang, and C. C. Loy, “Domain general- ization: A survey,”IEEE transactions on pattern analysis and machine intelligence, vol. 45, no. 4, pp. 4396–4415, 2022

    work page 2022

  12. [12]

    Offline visual representation learning for embodied navigation,

    K. Yadav, R. Ramrakhya, A. Majumdar, V .-P. Berges, S. Kuhar, D. Batra, A. Baevski, and O. Maksymets, “Offline visual representation learning for embodied navigation,” inWorkshop on Reincarnating Reinforcement Learning at ICLR 2023, 2023

    work page 2023

  13. [13]

    Pre-trained masked image model for mobile robot navigation,

    V . D. Sharma, A. Singh, and P. Tokekar, “Pre-trained masked image model for mobile robot navigation,” in2024 IEEE International Confer- ence on Robotics and Automation (ICRA). IEEE, 2024, pp. 5126–5133

    work page 2024

  14. [14]

    DINOv2: Learning Robust Visual Features without Supervision

    M. Oquab, T. Darcet, T. Moutakanni, H. V o, M. Szafraniec, V . Khalidov, P. Fernandez, D. Haziza, F. Massa, A. El-Noubyet al., “Dinov2: Learning robust visual features without supervision,”arXiv preprint arXiv:2304.07193, 2023

    work page internal anchor Pith review Pith/arXiv arXiv 2023

  15. [15]

    Topological Frontier-Based Exploration and Map-Building Using Semantic Information,

    C. Gomez, A. C. Hernandez, and R. Barber, “Topological Frontier-Based Exploration and Map-Building Using Semantic Information,” vol. 19, no. 20, p. 4595

    work page

  16. [16]

    Navrep: Unsuper- vised representations for reinforcement learning of robot navigation in dynamic human environments,

    D. Dugas, J. Nieto, R. Siegwart, and J. J. Chung, “Navrep: Unsuper- vised representations for reinforcement learning of robot navigation in dynamic human environments,” in2021 IEEE international conference on robotics and automation (ICRA). IEEE, 2021, pp. 7829–7835

    work page 2021

  17. [17]

    The foreseeable future: Self- supervised learning to predict dynamic scenes for indoor navigation,

    H. Thomas, J. Zhang, and T. D. Barfoot, “The foreseeable future: Self- supervised learning to predict dynamic scenes for indoor navigation,” IEEE Transactions on Robotics, vol. 39, no. 6, pp. 4581–4599, 2023

    work page 2023

  18. [18]

    Attention is all you need,

    A. Vaswani, N. Shazeer, N. Parmar, J. Uszkoreit, L. Jones, A. N. Gomez, Ł. Kaiser, and I. Polosukhin, “Attention is all you need,”Advances in neural information processing systems, vol. 30, 2017

    work page 2017

  19. [19]

    Masked au- toencoders are scalable vision learners,

    K. He, X. Chen, S. Xie, Y . Li, P. Doll ´ar, and R. Girshick, “Masked au- toencoders are scalable vision learners,” inProceedings of the IEEE/CVF conference on computer vision and pattern recognition, 2022, pp. 16 000–16 009

    work page 2022

  20. [20]

    Multi-task learning with deep neural networks: A survey,

    M. Crawshaw, “Multi-task learning with deep neural networks: A survey,”arXiv preprint arXiv:2009.09796, 2020

    work page arXiv 2009

  21. [21]

    A Review of Recurrent Neural Networks: LSTM Cells and Network Architectures,

    Y . Yu, X. Si, C. Hu, and J. Zhang, “A Review of Recurrent Neural Networks: LSTM Cells and Network Architectures,” vol. 31, no. 7, pp. 1235–1270

    work page

  22. [22]

    Pointer networks,

    O. Vinyals, M. Fortunato, and N. Jaitly, “Pointer networks,”Advances in neural information processing systems, vol. 28, 2015

    work page 2015

  23. [23]

    arXiv:1910.07207 [cs, stat] , author =

    P. Christodoulou, “Soft actor-critic for discrete action settings,”arXiv preprint arXiv:1910.07207, 2019

    work page arXiv 1910

  24. [24]

    Habitat-Matterport 3D Dataset (HM3D): 1000 Large-scale 3D Environments for Embodied AI

    S. K. Ramakrishnan, A. Gokaslan, E. Wijmans, O. Maksymets, A. Clegg, J. Turner, E. Undersander, W. Galuba, A. Westbury, A. X. Changet al., “Habitat-matterport 3d dataset (hm3d): 1000 large-scale 3d environments for embodied ai,”arXiv preprint arXiv:2109.08238, 2021

    work page internal anchor Pith review Pith/arXiv arXiv 2021

  25. [25]

    Matterport3D: Learning from RGB-D Data in Indoor Environments

    A. Chang, A. Dai, T. Funkhouser, M. Halber, M. Niessner, M. Savva, S. Song, A. Zeng, and Y . Zhang, “Matterport3d: Learning from rgb-d data in indoor environments,”arXiv preprint arXiv:1709.06158, 2017

    work page internal anchor Pith review Pith/arXiv arXiv 2017

  26. [26]

    Gibson env: Real-world perception for embodied agents,

    F. Xia, A. R. Zamir, Z. He, A. Sax, J. Malik, and S. Savarese, “Gibson env: Real-world perception for embodied agents,” inProceedings of the IEEE conference on computer vision and pattern recognition, 2018, pp. 9068–9079

    work page 2018

  27. [27]

    Houseexpo: A large-scale 2d indoor layout dataset for learning-based algorithms on mobile robots,

    T. Li, D. Ho, C. Li, D. Zhu, C. Wang, and M. Q.-H. Meng, “Houseexpo: A large-scale 2d indoor layout dataset for learning-based algorithms on mobile robots,” in2020 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS). IEEE, 2020, pp. 5839–5846

    work page 2020

  28. [28]

    Ray: A distributed framework for emerging{AI}applications,

    P. Moritz, R. Nishihara, S. Wang, A. Tumanov, R. Liaw, E. Liang, M. Elibol, Z. Yang, W. Paul, M. I. Jordanet al., “Ray: A distributed framework for emerging{AI}applications,” in13th USENIX symposium on operating systems design and implementation (OSDI 18), 2018, pp. 561–577

    work page 2018

  29. [29]

    Deep residual learning for image recognition,

    K. He, X. Zhang, S. Ren, and J. Sun, “Deep residual learning for image recognition,” inProceedings of the IEEE conference on computer vision and pattern recognition, 2016, pp. 770–778

    work page 2016

  30. [30]

    Dosovitskiy, L

    A. Dosovitskiy, L. Beyer, A. Kolesnikov, D. Weissenborn, X. Zhai, T. Unterthiner, M. Dehghani, M. Minderer, G. Heigold, S. Gelly, J. Uszkoreit, and N. Houlsby. An Image is Worth 16x16 Words: Transformers for Image Recognition at Scale. arXiv.org

    work page

  31. [31]

    Training data-efficient image transformers & distillation through attention,

    H. Touvron, M. Cord, M. Douze, F. Massa, A. Sablayrolles, and H. J ´egou, “Training data-efficient image transformers & distillation through attention,” inInternational conference on machine learning. PMLR, 2021, pp. 10 347–10 357

    work page 2021

  32. [32]

    Fast-lio2: Fast direct lidar- inertial odometry,

    W. Xu, Y . Cai, D. He, J. Lin, and F. Zhang, “Fast-lio2: Fast direct lidar- inertial odometry,”IEEE Transactions on Robotics, vol. 38, no. 4, pp. 2053–2073, 2022

    work page 2053

  33. [33]

    Navigation2 documentation,

    Navigation2 Maintainers, “Navigation2 documentation,” https://docs. nav2.org/, accessed: 2025-10-24

    work page 2025
