arxiv: 2511.04868 · v2 · submitted 2025-11-06 · ❄️ cond-mat.soft

Unexpected Behavior of Ultra-Low-Crosslinked Microgels in Crowded Conditions

Susana Mar\'in-Aguilar , Emanuela Zaccarelli This is my paper

Pith reviewed 2026-05-17 23:20 UTC · model grok-4.3

classification ❄️ cond-mat.soft
keywords ultra-low-crosslinked microgelssoft colloidscrowded conditionsinterpenetrationdynamical arrestmonomer-resolved simulationspacking fractions
0
0 comments X

The pith

Ultra-low-crosslinked microgels behave as a distinct class of soft colloids where polymeric degrees of freedom predominate over colloidal ones.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper uses monomer-resolved simulations to study ultra-low-crosslinked microgels across a wide range of packing fractions. It shows that these particles lack faceting, permit dominant interpenetration between particles at high densities, and suppress the structural reentrance seen in Hertzian-like systems. The simulations also find no dynamical arrest transition even well above random close packing. Varying the crosslinker concentration and single-particle density strengthens the evidence that ULC microgels differ from regularly crosslinked ones. A reader would care because the work supplies a microscopic framework for interpreting the unusual crowding behavior observed in experiments.

Core claim

Using particle-resolved analyses in monomer-resolved simulations, the work shows the absence of faceting and the dominance of interpenetration between microgels at high densities. It further reports a strong suppression of the structural reentrance characteristic of Hertzian-like particles, accompanied by the lack of a dynamical arrest transition even well above random close packing. Lowering the crosslinker concentration and single-particle density produces additional changes that confirm the uniqueness of ULCs.

What carries the argument

Monomer-resolved simulations that track the role of outer chains in enabling interpenetration and suppressing colloidal-like transitions at high packing fractions.

If this is right

  • Interpenetration rather than faceting governs the structure at high densities.
  • Structural reentrance is strongly suppressed compared with Hertzian particles.
  • No dynamical arrest occurs even well above random close packing.
  • Lowering crosslinker concentration or particle density produces further distinct changes in behavior.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • These particles may serve as model systems for highly compressible soft matter where jamming is delayed.
  • The polymeric dominance could guide design of responsive materials that flow under extreme crowding.
  • Similar interpenetration mechanisms might appear in other ultra-soft objects such as polymer stars or vesicles.

Load-bearing premise

The chosen crosslinker concentrations, single-particle densities, and monomer-resolved model accurately represent real ULC microgels without omitting important solvent or interaction effects.

What would settle it

Direct experimental observation of faceting or a dynamical arrest transition in ULC microgel suspensions at packing fractions above random close packing would contradict the central claim.

Figures

Figures reproduced from arXiv: 2511.04868 by Emanuela Zaccarelli, Susana Mar\'in-Aguilar.

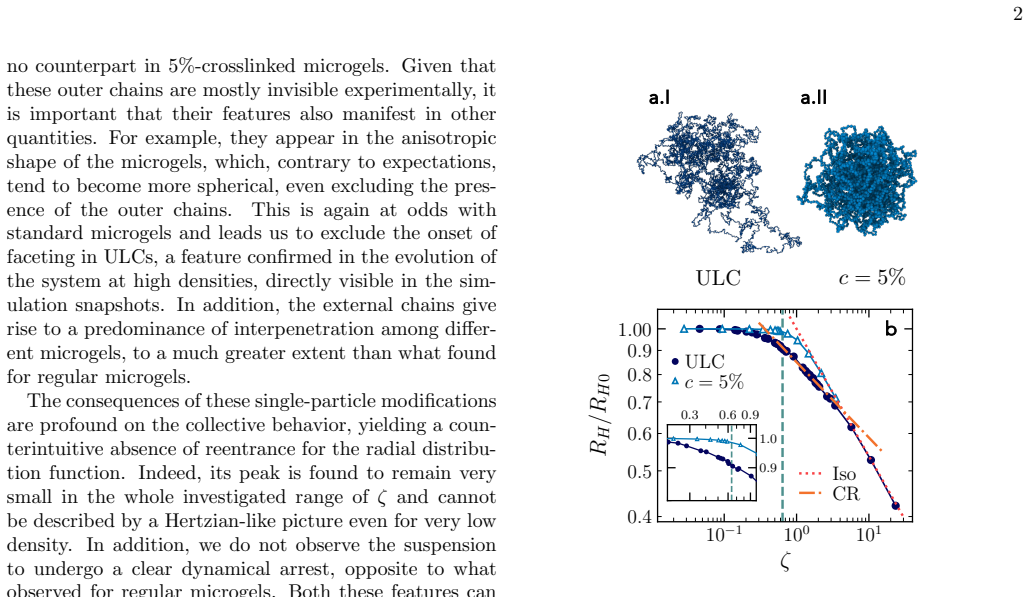

Figure 1
Figure 1. Figure 1: FIG. 1 [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗

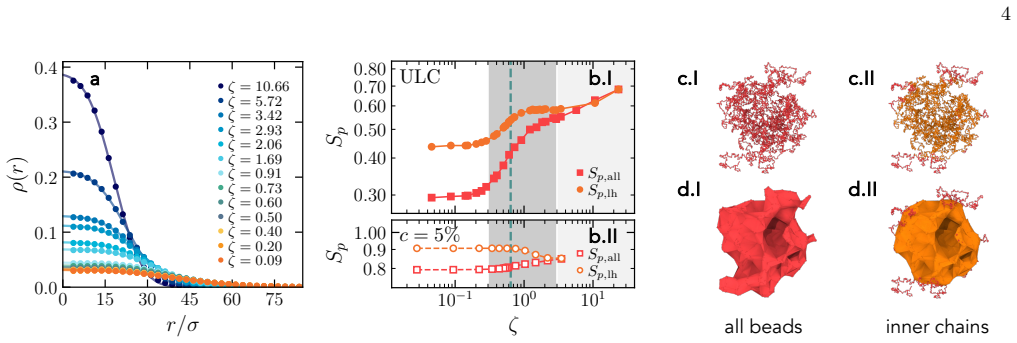

Figure 2
Figure 2. Figure 2: FIG. 2 [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗

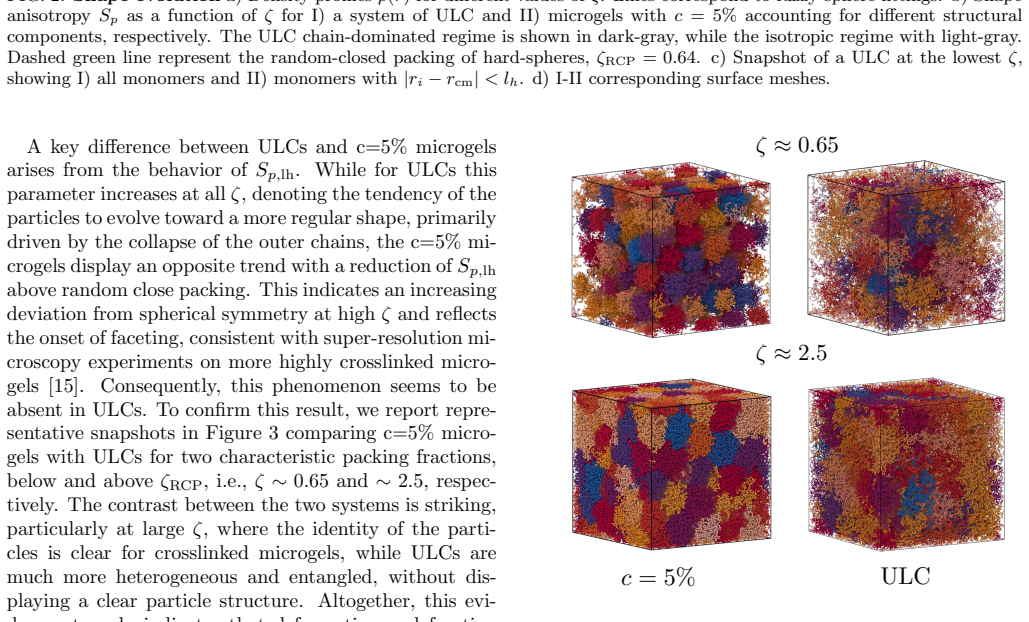

Figure 3
Figure 3. Figure 3: FIG. 3 [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗

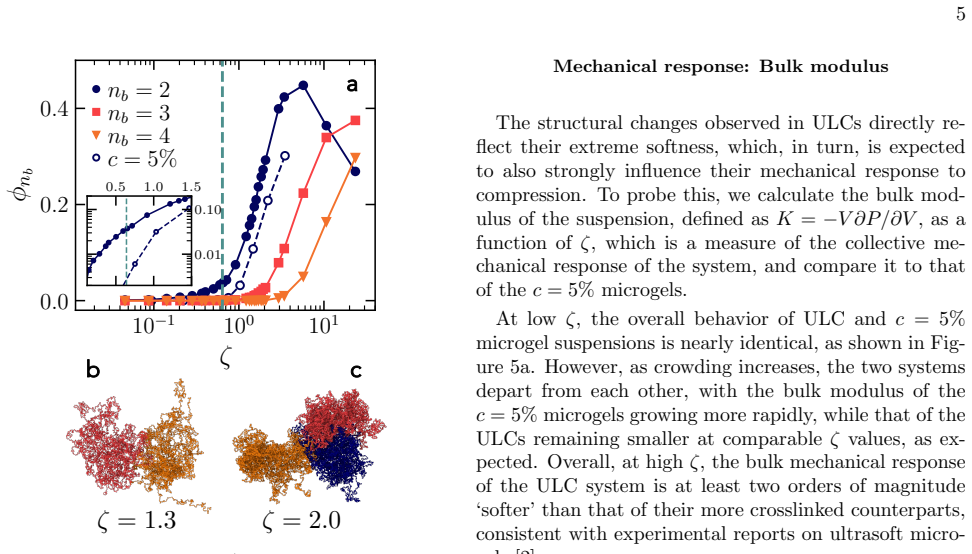

Figure 4
Figure 4. Figure 4: FIG. 4 [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗

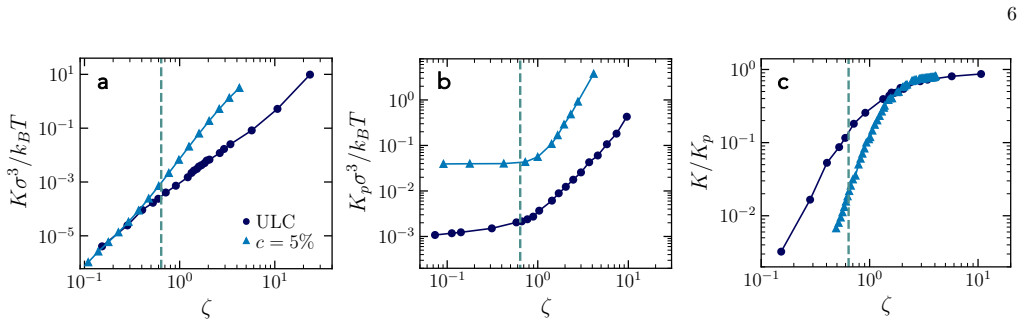

Figure 5
Figure 5. Figure 5: FIG. 5 [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗

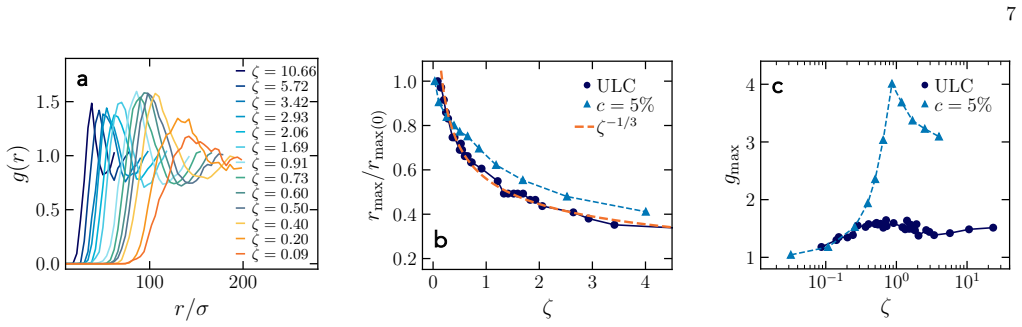

Figure 6
Figure 6. Figure 6: FIG. 6 [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗

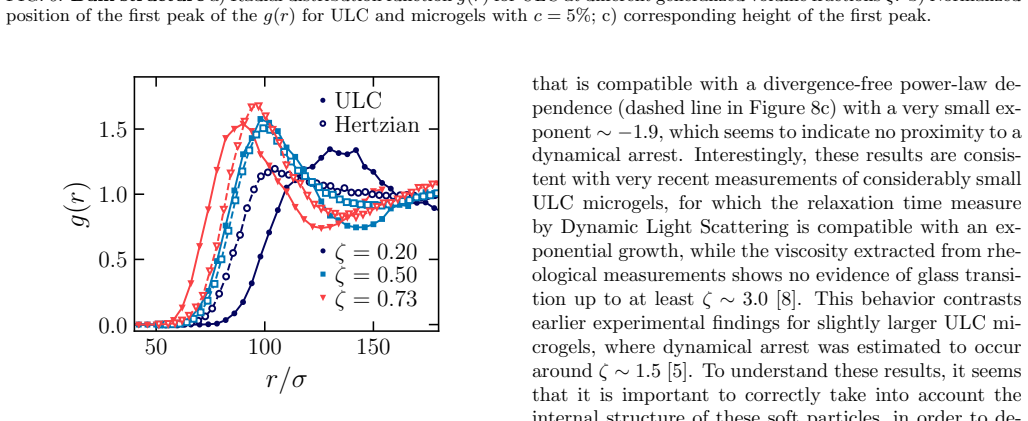

Figure 7
Figure 7. Figure 7: FIG. 7 [PITH_FULL_IMAGE:figures/full_fig_p007_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: FIG. 8 [PITH_FULL_IMAGE:figures/full_fig_p008_8.png] view at source ↗

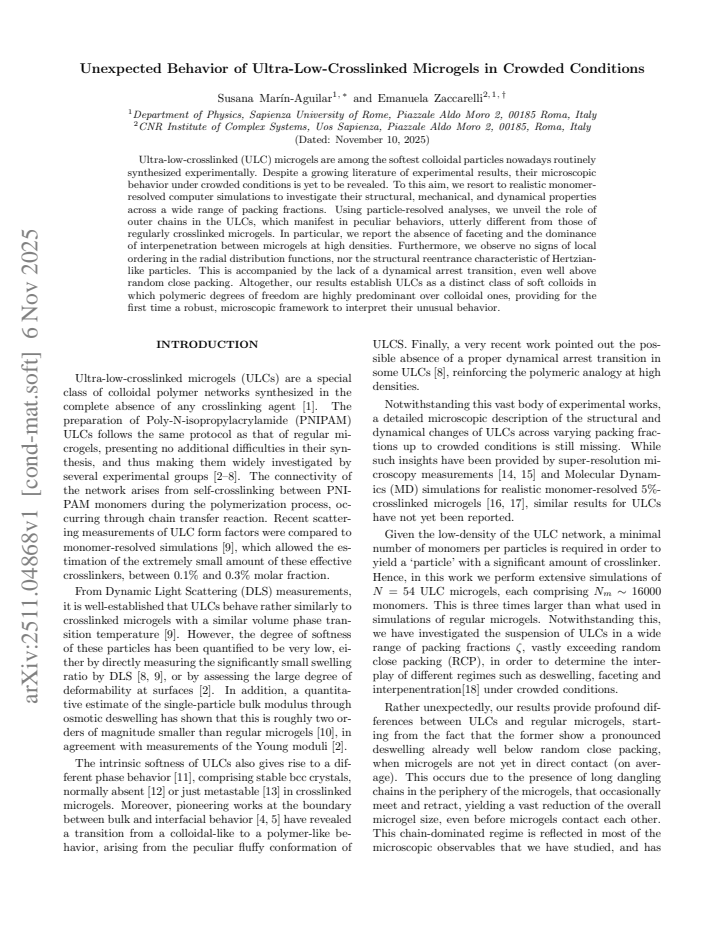

read the original abstract

Ultra-low-crosslinked (ULC) microgels are among the softest colloidal particles nowadays routinely synthesized experimentally. Despite a growing literature of experimental results, their microscopic behavior under crowded conditions is yet to be revealed. To this aim, we resort to realistic monomer-resolved computer simulations to investigate their structural, mechanical, and dynamical properties across a wide range of packing fractions. Using particle-resolved analyses, we unveil the role of outer chains in the ULCs, which manifest in peculiar behaviors, utterly different from those of regularly crosslinked microgels. In particular, we report the absence of faceting and the dominance of interpenetration between microgels at high densities. Furthermore, we observe a strong suppression of the structural reentrance characteristic of Hertzian-like particles, that is accompanied by the lack of a dynamical arrest transition, even well above random close packing. We further explore the change of behavior of the suspensions by lowering the crosslinker concentration and the single-particle density, providing strong evidence of the uniqueness of ULCs in the current landscape of microgels. Altogether, our results establish ULCs as a distinct class of soft colloids in which polymeric degrees of freedom are highly predominant over colloidal ones, providing for the first time a robust, microscopic framework to interpret their unusual behavior.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper uses monomer-resolved computer simulations to examine the structural, mechanical, and dynamical properties of ultra-low-crosslinked (ULC) microgels across a wide range of packing fractions. Key findings include the absence of faceting, dominance of interpenetration at high densities, strong suppression of the structural reentrance seen in Hertzian-like particles, and the lack of dynamical arrest even well above random close packing. By lowering crosslinker concentration and single-particle density, the authors argue that ULCs form a distinct class of soft colloids in which polymeric degrees of freedom predominate, offering a microscopic framework for their experimental behavior.

Significance. If the central observations hold, the work supplies a useful particle-resolved view of how outer chains in ULC microgels drive behaviors distinct from those of regularly crosslinked particles. The simulation approach is standard for the field and the trends are internally consistent, but the absence of quantitative experimental benchmarks at matched packing fractions limits the strength of the claim that the results furnish a robust framework for interpreting real ULC suspensions.

major comments (2)
  1. [§3.2 and Figure 4] §3.2 and Figure 4: the reported suppression of reentrance and the absence of dynamical arrest above RCP are presented as load-bearing distinctions, yet the manuscript supplies neither statistical error bars on the structure-factor or mean-squared-displacement curves nor a clear definition of the arrest criterion (e.g., a specific relaxation-time threshold or MSD plateau value).
  2. [Methods and §4] Methods and §4: the uniqueness claim for ULCs rests on the chosen crosslinker fractions and single-particle densities, but no quantitative comparison is made to experimental structure factors, radial distribution functions, or rheological moduli at the same packing fractions; without such validation the observed interpenetration dominance and lack of faceting could be model-specific rather than generic to real ULC microgels.
minor comments (2)
  1. [Abstract] Abstract: the wording 'utterly different' is informal; 'distinctly different' would better suit the tone of the journal.
  2. [Figure captions] Figure captions: several panels lack explicit legends indicating which curves correspond to the different crosslinker concentrations or densities explored.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their careful reading of the manuscript and for the constructive comments, which help us improve the clarity and robustness of our claims. We address each major point below and indicate the revisions we will make.

read point-by-point responses

  1. Referee: [§3.2 and Figure 4] §3.2 and Figure 4: the reported suppression of reentrance and the absence of dynamical arrest above RCP are presented as load-bearing distinctions, yet the manuscript supplies neither statistical error bars on the structure-factor or mean-squared-displacement curves nor a clear definition of the arrest criterion (e.g., a specific relaxation-time threshold or MSD plateau value).

    Authors: We agree that the lack of error bars and an explicit arrest criterion weakens the presentation of these central results. In the revised manuscript we will add statistical error bars to the structure-factor and MSD data in Figure 4, computed from at least five independent runs. We will also state the arrest criterion explicitly in the Methods section (e.g., structural relaxation time exceeding 10^4 reduced time units or long-time MSD plateau below 0.1 particle diameters squared). These changes will be incorporated in the next version. revision: yes

  2. Referee: [Methods and §4] Methods and §4: the uniqueness claim for ULCs rests on the chosen crosslinker fractions and single-particle densities, but no quantitative comparison is made to experimental structure factors, radial distribution functions, or rheological moduli at the same packing fractions; without such validation the observed interpenetration dominance and lack of faceting could be model-specific rather than generic to real ULC microgels.

    Authors: We acknowledge that direct quantitative matching to experimental observables at identical packing fractions would strengthen the validation. Our monomer-resolved model has been calibrated to experimental single-particle properties of ULC microgels, and the observed trends are consistent with published experimental reports of interpenetration and fluid-like behavior. In the revision we will expand the discussion in §4 with additional qualitative comparisons to experimental structure factors and moduli from the literature, while noting the practical difficulties in defining a common packing fraction. We maintain that the parameter variations we explore already demonstrate the distinct polymeric character of ULCs, but we accept that this remains partly model-dependent without further experimental benchmarks. revision: partial

Circularity Check

0 steps flagged

No circularity: simulation-based observations with no load-bearing derivations or self-referential reductions

full rationale

The manuscript reports direct results from monomer-resolved simulations across packing fractions, crosslinker concentrations, and densities. Structural, mechanical, and dynamical behaviors (absence of faceting, interpenetration dominance, suppressed reentrance, lack of arrest) are extracted from particle-resolved analyses rather than from any closed-form derivation, fitted parameter renamed as prediction, or uniqueness theorem imported via self-citation. No equations or ansatzes are introduced that reduce to the simulation inputs by construction; the central claim that ULCs form a distinct class follows from the observed differences in the computed trajectories themselves. External benchmarks or experimental matches are not required for the internal consistency of the reported simulation outcomes.

Axiom & Free-Parameter Ledger

2 free parameters · 1 axioms · 0 invented entities

The central claims rest on a standard coarse-grained polymer model whose parameters (crosslinker concentration, single-particle density) are varied systematically; no new entities are postulated and the only free parameters are the simulation control variables that are explicitly explored.

free parameters (2)
  • crosslinker concentration
    Varied to lower values to demonstrate uniqueness of ULC behavior; controls the softness and outer-chain freedom.
  • single-particle density
    Lowered to explore changes in behavior; affects the internal structure of each microgel.
axioms (1)
  • domain assumption Monomer-resolved simulations with implicit solvent capture the essential physics of real ULC microgels under crowding.
    Invoked throughout the particle-resolved analyses to interpret structural and dynamical properties.

pith-pipeline@v0.9.0 · 5530 in / 1397 out tokens · 25538 ms · 2026-05-17T23:20:06.819510+00:00 · methodology
