arxiv: 2601.20741 · v1 · submitted 2026-01-28 · ❄️ cond-mat.soft

Star-like microgels vs star polymers: similarities and differences

Tommaso Papetti , Elisa Ballin , Francesco Brasili , Emanuela Zaccarelli This is my paper

Pith reviewed 2026-05-16 09:47 UTC · model grok-4.3

classification ❄️ cond-mat.soft
keywords star-like microgelsstar polymerseffective potentialultrasoft colloidsvolume-phase transitionbulk modulusgyration radiushydrodynamic radius
0
0 comments X

The pith

Star-like microgels exhibit Gaussian effective potentials and low bulk moduli like star polymers, unlike standard microgels.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper uses monomer-resolved simulations to show that star-like microgels, thermoresponsive colloids with star-shaped internal structure, interact via a Gaussian effective potential over a wide distance range. This matches the potential of star polymers with partially covered cores but differs sharply from the Hertzian potential of ordinary microgels. The ratio of gyration to hydrodynamic radii also aligns qualitatively with star polymers and experiments through the volume-phase transition, while the bulk modulus is far lower than in standard microgels. A reader cares because the results position these particles as ultrasoft colloids whose dense-state behavior can be modeled with star-polymer concepts.

Core claim

Extensive simulations establish that the effective potential between star-like microgels is Gaussian for an extended range of distances, almost identical to that of star polymers but in stark contrast to the Hertzian-like potential of standard microgels. The gyration-to-hydrodynamic radius ratio shows qualitative agreement with both star polymers and experimental data across the volume-phase transition. The estimated bulk modulus is significantly smaller than for standard microgels and comparable to star polymers, demonstrating that star-like microgels behave as ultrasoft particles akin to star polymers.

What carries the argument

The effective pair potential extracted from monomer-resolved simulations, which takes a Gaussian form and closely matches the star-polymer reference, thereby carrying the analogy for both interaction shape and overall particle softness.

If this is right

  • Star-like microgels can be studied at high concentrations with packing and flow properties expected to resemble those of star-polymer solutions.
  • Their lower bulk modulus implies greater compressibility in bulk suspensions compared with standard microgels.
  • The volume-phase transition offers a route to tune effective softness in ways directly comparable to star-polymer responses.
  • Experimental realizations of star-like microgels can serve as test beds for theoretical predictions developed for star polymers.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Existing star-polymer theories could be adapted to forecast phase behavior or rheology of star-like microgels in crowded conditions without new simulations.
  • Other microgel architectures might be engineered to mimic different polymer topologies and thereby achieve targeted softness profiles.
  • Dense-suspension experiments on these particles could uncover colloidal phases or transitions driven primarily by the ultrasoft character rather than excluded-volume effects.

Load-bearing premise

The chosen monomer-resolved simulation model reproduces the true effective potential and mechanical response without significant artifacts from coarse-graining choices or system size.

What would settle it

An experimental measurement of the force-distance profile between two isolated star-like microgels that follows a Hertzian rather than Gaussian shape at intermediate separations would contradict the central claim.

Figures

Figures reproduced from arXiv: 2601.20741 by Elisa Ballin, Emanuela Zaccarelli, Francesco Brasili, Tommaso Papetti.

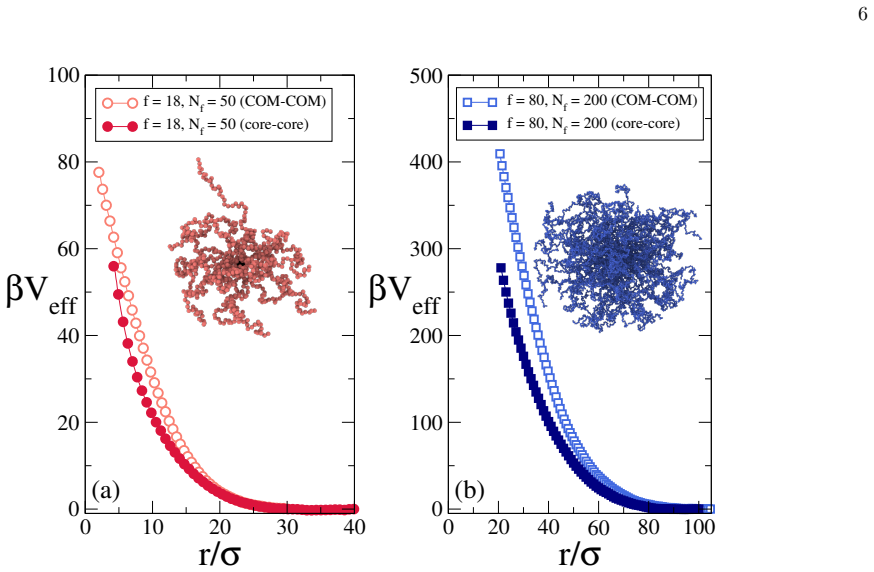

Figure 1
Figure 1. Figure 1: FIG. 1: Effective potential [PITH_FULL_IMAGE:figures/full_fig_p006_1.png] view at source ↗

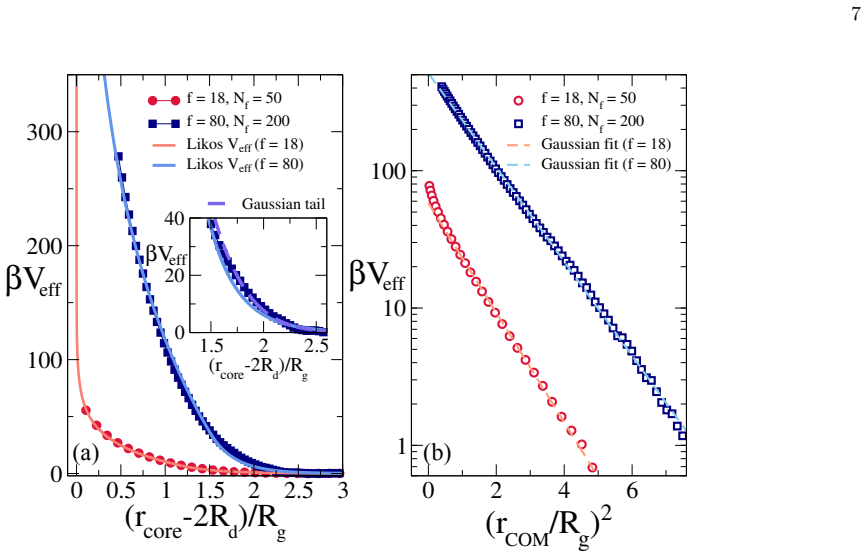

Figure 2
Figure 2. Figure 2: FIG. 2: (a): effective potential [PITH_FULL_IMAGE:figures/full_fig_p007_2.png] view at source ↗

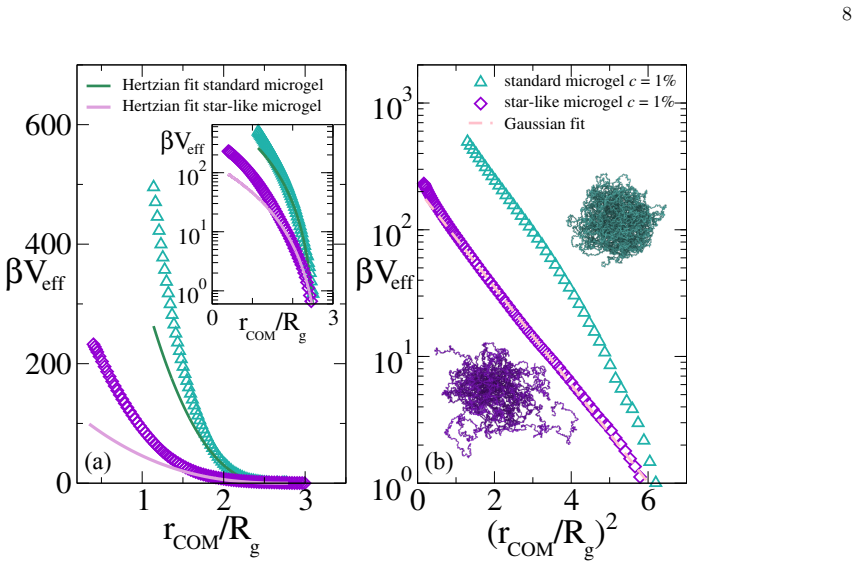

Figure 3
Figure 3. Figure 3: FIG. 3: Left panel: effective potential [PITH_FULL_IMAGE:figures/full_fig_p008_3.png] view at source ↗

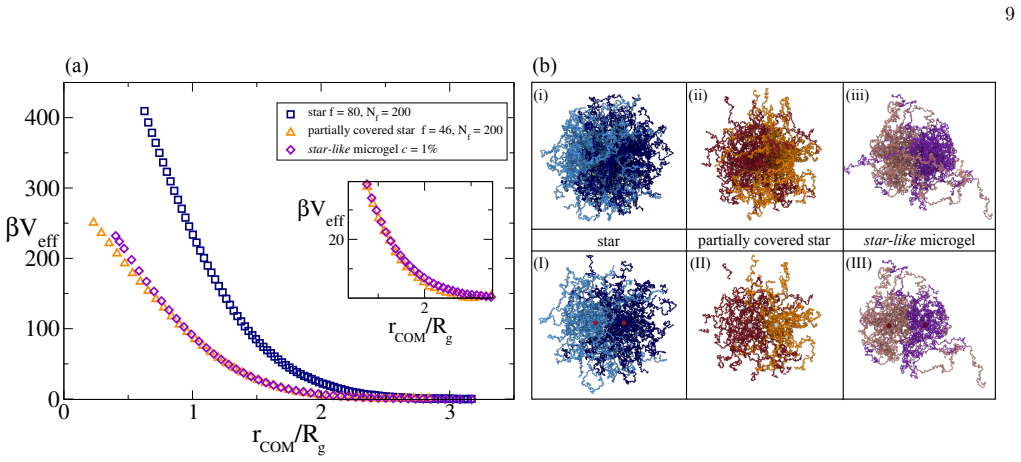

Figure 4
Figure 4. Figure 4: FIG. 4: (a) Effective potential [PITH_FULL_IMAGE:figures/full_fig_p009_4.png] view at source ↗

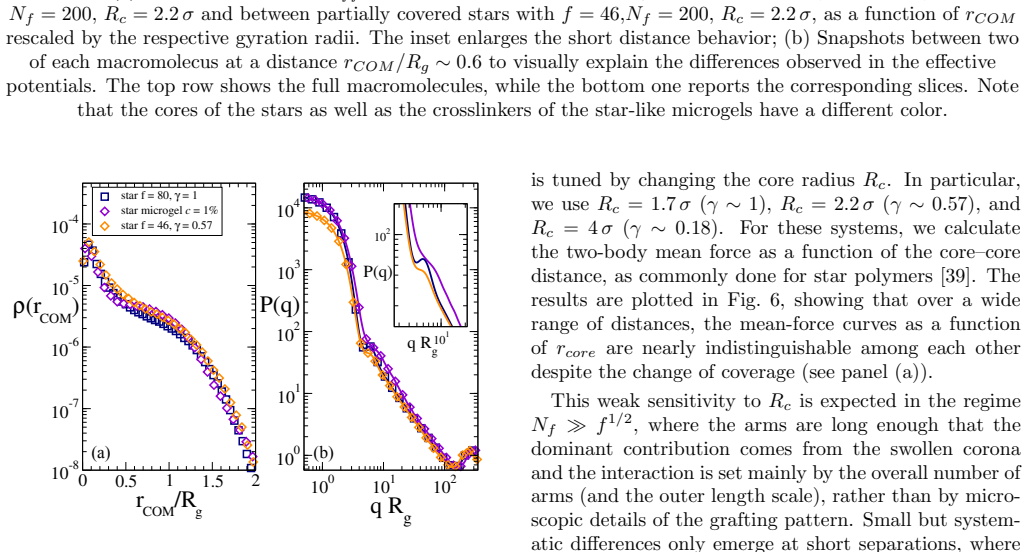

Figure 5
Figure 5. Figure 5: FIG. 5: (a) Density profiles [PITH_FULL_IMAGE:figures/full_fig_p009_5.png] view at source ↗

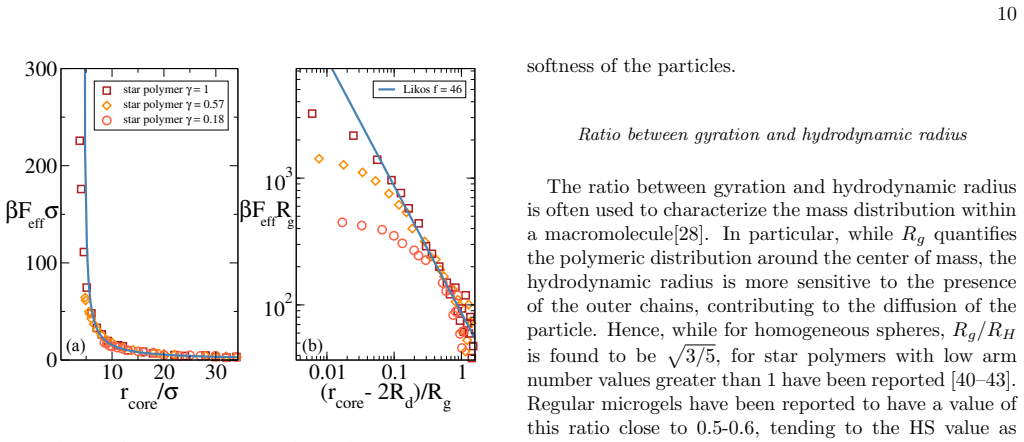

Figure 6
Figure 6. Figure 6: FIG. 6: Effective mean force [PITH_FULL_IMAGE:figures/full_fig_p010_6.png] view at source ↗
Figure 7

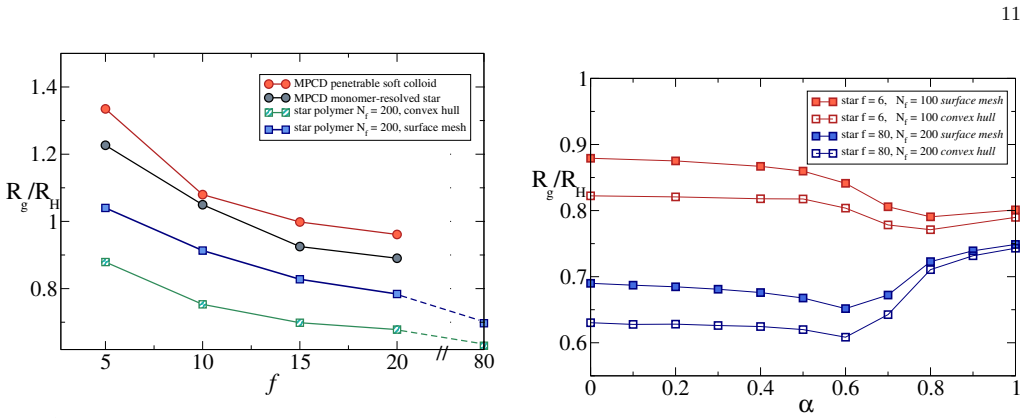

Figure 7. Figure 7: FIG. 7: Ratio between gyration and hydrodynamic [PITH_FULL_IMAGE:figures/full_fig_p011_7.png] view at source ↗

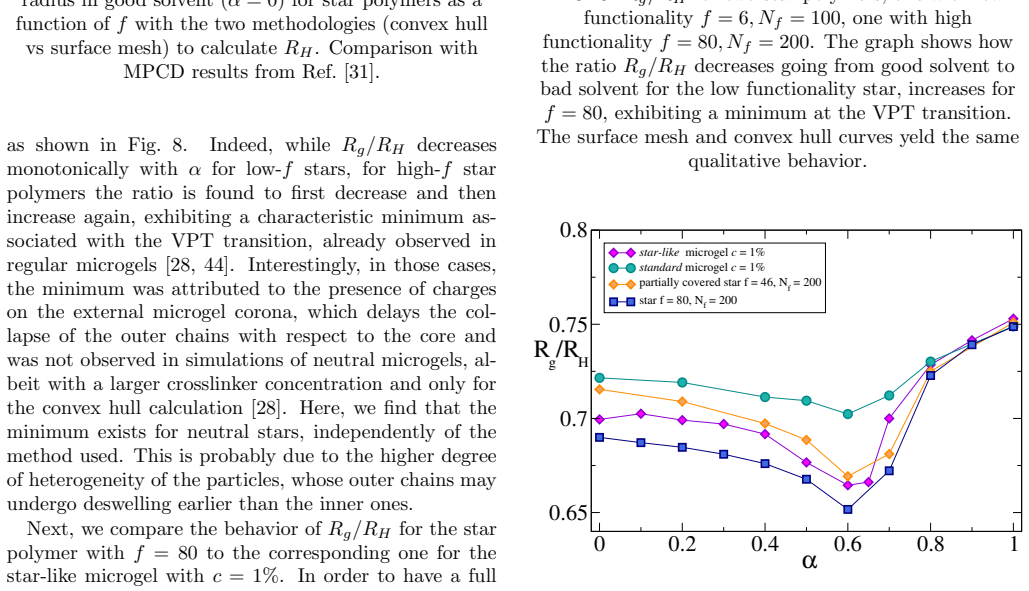

Figure 9
Figure 9. Figure 9: FIG. 9: Ratio [PITH_FULL_IMAGE:figures/full_fig_p011_9.png] view at source ↗
Figure 10

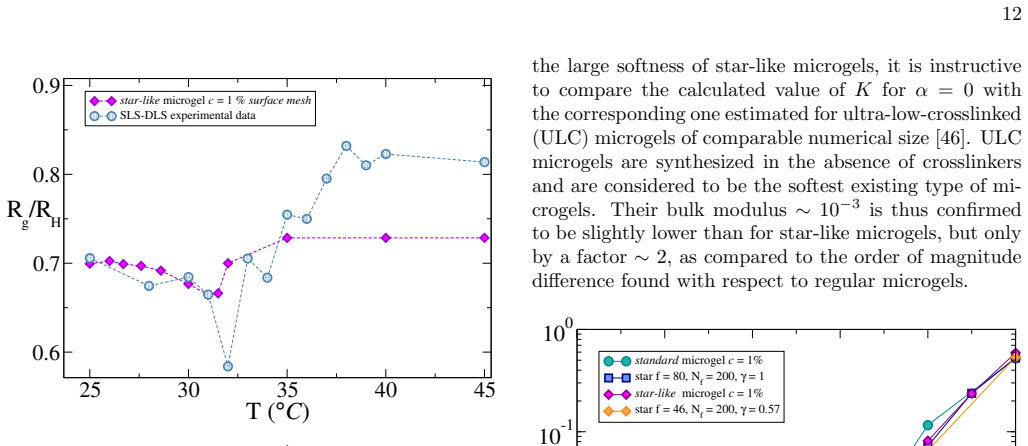

Figure 10. Figure 10: FIG. 10: Comparison for [PITH_FULL_IMAGE:figures/full_fig_p012_10.png] view at source ↗
Figure 11

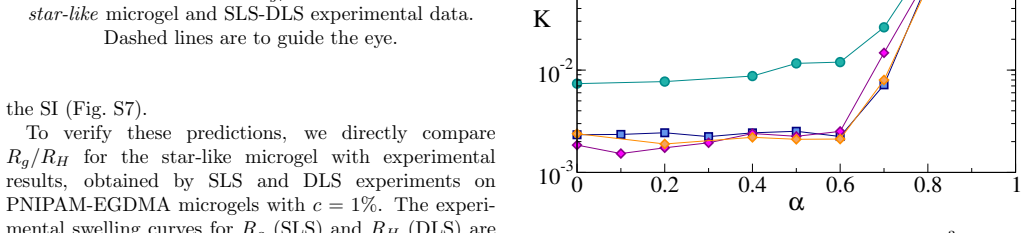

Figure 11. Figure 11: FIG. 11: Bulk modulus [PITH_FULL_IMAGE:figures/full_fig_p012_11.png] view at source ↗
read the original abstract

Star-like microgels have recently emerged as a promising class of thermoresponsive soft colloids, that have an internal architecture similar to that of star polymers. Here, we perform extensive monomer-resolved simulations to theoretically establish this analogy. First, we characterize the effective potential between star-like microgels, finding that it is Gaussian for an extended range of distances, in stark contrast to the Hertzian-like one of standard microgels, but almost identical to that of star polymers with a core partially covered by chains. Next, we investigate the ratio between gyration and hydrodynamic radii across the volume-phase transition, showing qualitative agreement with both star polymers and experimental data. Finally, we estimate the bulk modulus, finding star-like microgels significantly softer than standard microgels and comparable to star polymers. The present work thus demonstrates that star-like microgels behave as ultrasoft particles, akin to star polymers, paving the way for their exploration at high concentrations.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript uses monomer-resolved simulations to compare star-like microgels with star polymers. It reports that the effective pair potential between star-like microgels is Gaussian over an extended distance range (unlike the Hertzian form for standard microgels) and nearly identical to that of a star-polymer reference with a partially covered core. The gyration-to-hydrodynamic radius ratio across the volume-phase transition is shown to agree qualitatively with both star polymers and experiment. The bulk modulus is estimated to be much lower than for standard microgels and comparable to star polymers, supporting the conclusion that star-like microgels behave as ultrasoft particles analogous to star polymers and enabling future high-concentration studies.

Significance. If the reported simulation results hold without significant artifacts, the work establishes a clear theoretical analogy between star-like microgels and star polymers on the basis of effective interactions, single-particle metrics, and mechanical softness. This provides a foundation for treating star-like microgels as a distinct class of ultrasoft colloids, potentially opening routes to high-density phases and rheology not accessible with conventional microgels.

major comments (2)
  1. [effective potential extraction and comparison] The effective-potential results (abstract and corresponding results section) rest on monomer-resolved simulations whose force fields, equilibration protocols, and system sizes are not specified. Without these details or accompanying convergence tests, it is impossible to rule out finite-size or sampling artifacts that could affect the claimed Gaussian form and its quantitative match to the star-polymer reference.
  2. [bulk modulus estimation] The bulk-modulus comparison (final results paragraph) states that star-like microgels are 'significantly softer' and 'comparable' to star polymers, yet no error bars, statistical uncertainties, or sensitivity to simulation parameters are reported. This quantitative claim is load-bearing for the ultrasoft-particle conclusion and requires explicit uncertainty quantification.
minor comments (2)
  1. [simulation methods and reference system] The star-polymer reference architecture ('core partially covered by chains') should be defined more precisely (arm number, core size, coverage fraction) in the methods or comparison section to permit direct reproduction.
  2. [gyration/hydrodynamic radius results] The radius-ratio plots would benefit from explicit indication of the temperature or cross-link density range over which the qualitative agreement with experiment is claimed.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the positive assessment and constructive comments. We address each major comment below and will revise the manuscript accordingly.

read point-by-point responses

  1. Referee: The effective-potential results (abstract and corresponding results section) rest on monomer-resolved simulations whose force fields, equilibration protocols, and system sizes are not specified. Without these details or accompanying convergence tests, it is impossible to rule out finite-size or sampling artifacts that could affect the claimed Gaussian form and its quantitative match to the star-polymer reference.

    Authors: We agree that the original manuscript lacked sufficient specification of the simulation protocols. In the revised version we will add a dedicated Methods section that details the force fields (bead-spring model with explicit parameters for bonded and non-bonded interactions), equilibration and production protocols (thermostat, timestep, total simulation length), and system sizes (monomers per microgel, number of arms, box dimensions). We will also include explicit convergence tests varying system size and sampling time to demonstrate that the extracted effective potentials are robust and that the Gaussian form and quantitative match to the star-polymer reference are not affected by finite-size or sampling artifacts. revision: yes

  2. Referee: The bulk-modulus comparison (final results paragraph) states that star-like microgels are 'significantly softer' and 'comparable' to star polymers, yet no error bars, statistical uncertainties, or sensitivity to simulation parameters are reported. This quantitative claim is load-bearing for the ultrasoft-particle conclusion and requires explicit uncertainty quantification.

    Authors: We acknowledge that the bulk-modulus estimates were presented without reported uncertainties. In the revision we will add statistical error bars obtained from block averaging over multiple independent runs and will discuss the sensitivity of the results to key parameters such as cross-link density and swelling ratio. These additions will provide the required quantification while preserving the conclusion that star-like microgels are significantly softer than standard microgels and comparable to star polymers. revision: yes

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper establishes its central claims through direct monomer-resolved simulations that independently compute the effective pair potential (found to be Gaussian), the gyration-to-hydrodynamic radius ratio across the volume-phase transition, and the bulk modulus. These quantities are compared to separate star-polymer simulations and external experimental data without any parameter fitting to the target observables, without self-definitional loops, and without load-bearing reliance on prior self-citations. The derivation chain therefore remains self-contained and externally falsifiable.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claims rest on standard assumptions of classical molecular dynamics for soft-matter systems (pairwise additive potentials, Langevin thermostat, periodic boundaries) plus the modeling choice that star-like microgels can be represented by a core with grafted chains whose density profile matches experimental microgels.

axioms (1)
  • domain assumption Monomer-resolved molecular dynamics with implicit solvent accurately captures the effective pair potential and single-particle radii of star-like microgels.
    Invoked throughout the simulation protocol described in the abstract.
