X-IONet: Cross-Platform Inertial Odometry Network for Pedestrian and Legged Robot

Dehan Shen , Changhao Chen This is my paper

Pith reviewed 2026-05-17 23:50 UTC · model grok-4.3

classification 💻 cs.RO cs.LG
keywords inertial odometryIMU navigationpedestrian trackinglegged robotsexpert networksattention mechanismExtended Kalman Filter
0
0 comments X

The pith

X-IONet uses a single IMU with rule-based expert selection and dual-stage attention to deliver accurate odometry for both pedestrians and legged robots.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents X-IONet to address the drop in performance that learning-based inertial odometry models suffer when moving from human walking data to the faster, more varied motions of quadruped robots. It adds a rule-based module that first identifies the motion platform from the IMU sequence and then routes the data to a matching expert network. Each expert network applies a dual-stage attention mechanism to model both long sequences of motion over time and the relationships between the sensor's three axes, while also producing an uncertainty estimate for each displacement prediction. These outputs are combined in an Extended Kalman Filter to maintain a consistent state estimate. Experiments across three datasets show consistent error reductions, indicating that explicit platform separation inside one framework can unify navigation for very different dynamic systems.

Core claim

X-IONet incorporates a rule-based expert selection module to classify motion platforms and route IMU sequences to platform-specific expert networks. The displacement prediction network features a dual-stage attention architecture that jointly models long-range temporal dependencies and inter-axis correlations, enabling accurate motion representation. It outputs both displacement and associated uncertainty, which are further fused through an Extended Kalman Filter (EKF) for robust state estimation.

What carries the argument

rule-based expert selection module that classifies IMU data as pedestrian or legged-robot motion and routes it to dedicated expert networks equipped with dual-stage attention

If this is right

  • A single IMU-based system can replace separate pedestrian and robot navigation pipelines.
  • Uncertainty estimates from the attention network directly improve the stability of EKF-based state tracking.
  • Error reductions observed on RoNIN, GrandTour, and Go2 datasets follow from the platform-specific routing.
  • The same architecture supports deployment in environments that mix human and quadruped motion.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Extending the classification rules to wheeled platforms or mixed teams of humans and robots would test the framework's broader applicability.
  • The dual-stage attention may capture general motion invariants that could reduce reliance on hand-crafted motion models in other sensor fusion tasks.
  • Collecting a larger set of edge-case IMU sequences could reveal whether the expert networks truly generalize beyond the current training distributions.

Load-bearing premise

The rule-based expert selection module can reliably classify IMU sequences as pedestrian or legged-robot motion, and the platform-specific expert networks generalize to new motion patterns not seen during training.

What would settle it

Performance collapse or frequent misclassification when the system encounters unseen gaits, speeds, or surface conditions not represented in the training sets.

Figures

Figures reproduced from arXiv: 2511.08277 by Changhao Chen, Dehan Shen.

Figure 1
Figure 1. Figure 1: Cross-Platform Inertial Odometry Network for pedestri [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗

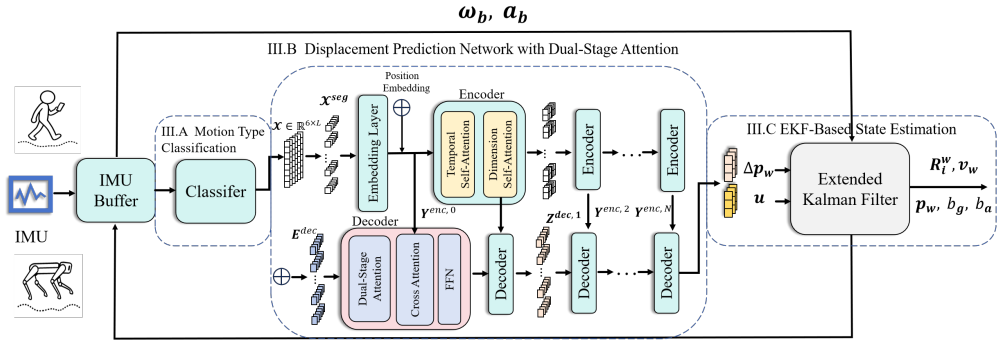

Figure 2
Figure 2. Figure 2: Overall framework of the proposed X-IONet framework. The raw inertial data are rotated using the attitude estimated by EKF [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗

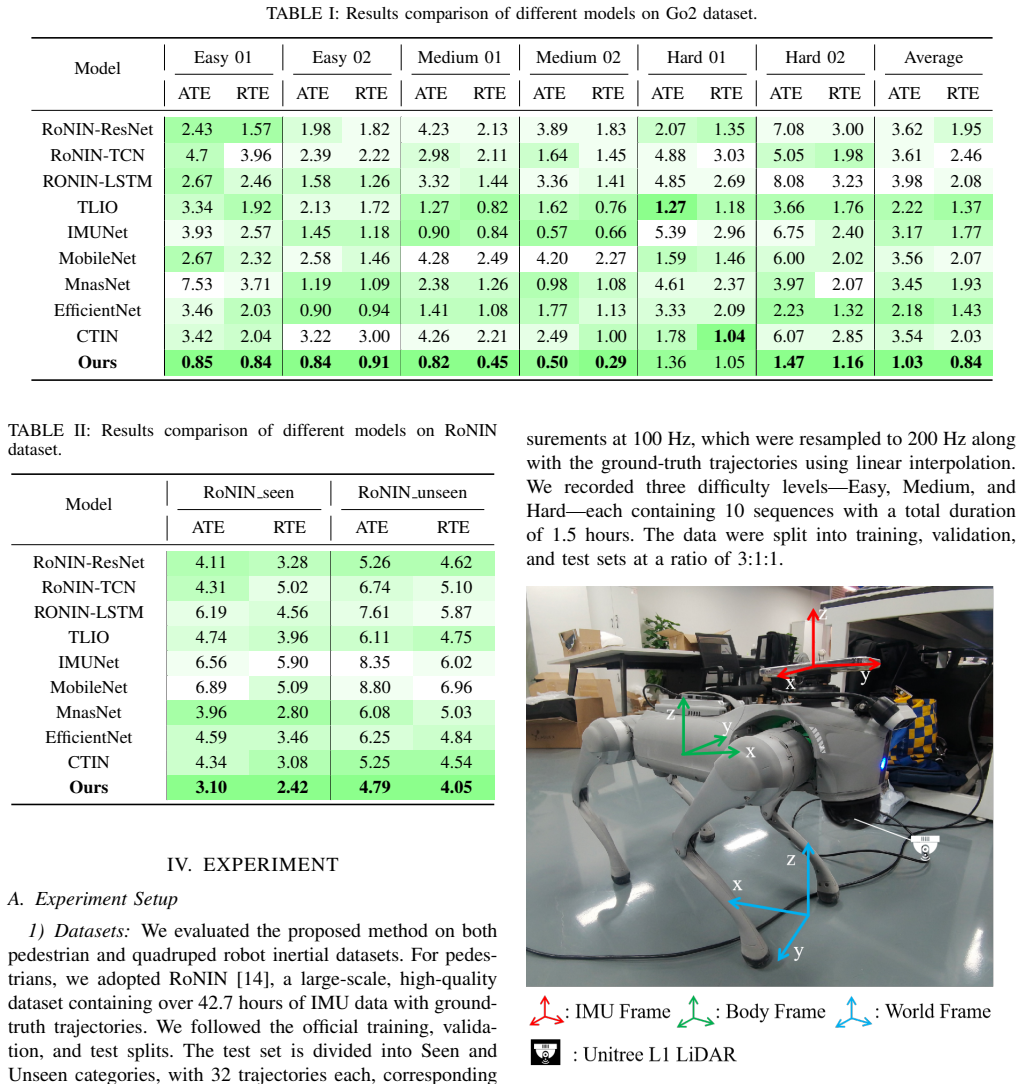

Figure 3
Figure 3. Figure 3: The quadruped robot used in the experiments. [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Trajectory comparisons of partial experimental results. The top three trajectory plots illustrate the comparisons of different methods [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: The trajectory of the quadruped robot predicted using the [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗
read the original abstract

Learning-based inertial odometry has achieved remarkable progress in pedestrian navigation. However, extending these methods to quadruped robots remains challenging due to their distinct and highly dynamic motion patterns. Models that perform well on pedestrian data often experience severe degradation when deployed on legged platforms. To tackle this challenge, we introduce X-IONet, a cross-platform inertial odometry framework that operates solely using a single Inertial Measurement Unit (IMU). X-IONet incorporates a rule-based expert selection module to classify motion platforms and route IMU sequences to platform-specific expert networks. The displacement prediction network features a dual-stage attention architecture that jointly models long-range temporal dependencies and inter-axis correlations, enabling accurate motion representation. It outputs both displacement and associated uncertainty, which are further fused through an Extended Kalman Filter (EKF) for robust state estimation. Extensive experiments on the public RoNIN pedestrian dataset, the GrandTour quadruped dataset, and a self-collected Go2 quadruped dataset demonstrate that X-IONet achieves state-of-the-art performance, reducing ATE and RTE by 14.3% and 11.4% on RoNIN, 11.8% and 9.7% on GrandTour, and 52.8% and 41.3% on Go2. These results highlight X-IONet's effectiveness for accurate and robust inertial navigation across both human and legged robot platforms.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper introduces X-IONet, a cross-platform inertial odometry framework using only a single IMU. It employs a rule-based expert selection module to classify motion platforms (pedestrian vs. legged robot) and route sequences to platform-specific expert networks. These networks use a dual-stage attention architecture to jointly model temporal dependencies and inter-axis correlations, predicting displacement and uncertainty that are fused via an Extended Kalman Filter. Experiments on the RoNIN pedestrian dataset, GrandTour quadruped dataset, and a self-collected Go2 quadruped dataset report state-of-the-art results with ATE/RTE reductions of 14.3%/11.4%, 11.8%/9.7%, and 52.8%/41.3% respectively.

Significance. If the performance gains are shown to be robust and not attributable to platform-specific routing artifacts or implementation details, the work would meaningfully extend learning-based inertial odometry to legged robots by addressing the domain gap in motion dynamics between humans and quadrupeds.

major comments (2)
  1. [Abstract and Method Description] The rule-based expert selection module is load-bearing for the cross-platform claim, yet the manuscript supplies no explicit classification rules, thresholds, accuracy metrics, or ablation on misclassification rates (e.g., on gait transitions or out-of-distribution IMU patterns). Without these, the reported ATE/RTE improvements cannot be confidently attributed to the dual-stage attention architecture rather than correct expert routing.
  2. [Experiments] The quantitative SOTA claims lack supporting details on baseline implementations, data splits, statistical testing, or controls for post-hoc tuning. This leaves the central performance improvements only partially supported, as the abstract provides no variance, absolute error values, or comparison methodology.
minor comments (1)
  1. [Abstract] The abstract reports percentage reductions without accompanying absolute ATE/RTE values or standard deviations, which would aid assessment of practical impact.

Simulated Author's Rebuttal

2 responses · 0 unresolved

Thank you for the constructive feedback on our manuscript. We appreciate the referee's careful reading and address each major comment below, outlining the revisions we will incorporate to improve clarity and rigor.

read point-by-point responses

  1. Referee: [Abstract and Method Description] The rule-based expert selection module is load-bearing for the cross-platform claim, yet the manuscript supplies no explicit classification rules, thresholds, accuracy metrics, or ablation on misclassification rates (e.g., on gait transitions or out-of-distribution IMU patterns). Without these, the reported ATE/RTE improvements cannot be confidently attributed to the dual-stage attention architecture rather than correct expert routing.

    Authors: We agree that the rule-based expert selection module is central to the cross-platform contribution and that its details must be made explicit. In the revised manuscript, we will add a dedicated subsection describing the classification rules, including the specific IMU-derived features (e.g., acceleration variance thresholds and dominant frequency bands) and decision thresholds used to route sequences to the pedestrian or quadruped expert. We will also report classification accuracy on all three evaluation datasets and include an ablation that quantifies the effect of misclassification rates, with particular attention to gait transitions and out-of-distribution IMU segments. These additions will allow readers to separate the contributions of the routing mechanism from those of the dual-stage attention architecture. revision: yes

  2. Referee: [Experiments] The quantitative SOTA claims lack supporting details on baseline implementations, data splits, statistical testing, or controls for post-hoc tuning. This leaves the central performance improvements only partially supported, as the abstract provides no variance, absolute error values, or comparison methodology.

    Authors: We acknowledge that the experimental section requires greater transparency to support the reported improvements. The revised manuscript will expand the experimental protocol with full specifications of all baseline implementations (including code references or hyperparameter settings), the exact train/validation/test splits for RoNIN, GrandTour, and the Go2 dataset, and absolute ATE/RTE values accompanied by standard deviations across repeated runs. We will add statistical significance testing (e.g., paired Wilcoxon tests) and explicitly state that no post-hoc tuning was performed on held-out test sequences. These changes will provide a clearer and more reproducible basis for the quantitative claims. revision: yes

Circularity Check

0 steps flagged

No circularity: empirical results from trained network on public datasets

full rationale

The paper presents an ML architecture (rule-based expert selection routing to platform-specific networks with dual-stage attention, plus EKF fusion) whose performance claims are measured via standard ATE/RTE metrics on held-out sequences from RoNIN, GrandTour, and Go2. No equations or derivations are supplied that reduce the reported gains to quantities defined by the authors' own fitted parameters or self-citations; the method description relies on conventional attention blocks and filtering without self-referential definitions or fitted-input-as-prediction patterns. The central claims therefore remain independent of the inputs by construction.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central claim rests on the domain assumption that IMU signals contain distinguishable platform-specific signatures and that learned attention can extract usable displacement information from raw inertial sequences.

free parameters (1)
  • rule-based classification thresholds
    Thresholds or rules used by the expert selection module are chosen or tuned to separate pedestrian from quadruped motion patterns.
axioms (1)
  • domain assumption IMU measurements provide sufficient information to distinguish motion platform type and to predict displacement
    Invoked by the design of the expert selection module and the displacement prediction network.
