arxiv: 2511.19084 · v3 · submitted 2025-11-24 · 📡 eess.SY · cs.SY· math.OC

PolyOCP.jl -- A Julia Package for Stochastic OCPs and MPC

Ruchuan Ou , Learta Januzi , Jonas Schie{\ss}l , Michael Heinrich Baumann , Lars Gr\"une , Timm Faulwasser This is my paper

Pith reviewed 2026-05-17 05:21 UTC · model grok-4.3

classification 📡 eess.SY cs.SYmath.OC
keywords stochastic optimal controlpolynomial chaos expansionsJulia packagemodel predictive controladditive disturbanceslinear systemsuncertainty handling
0
0 comments X

The pith

A Julia package uses polynomial chaos expansions to solve stochastic optimal control problems for linear systems with additive disturbances.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This paper introduces PolyOCP.jl, an open-source Julia toolbox for efficiently solving stochastic optimal control problems and model predictive control for linear systems subject to additive stochastic i.i.d. disturbances. It relies on Polynomial Chaos Expansions to convert the uncertain problems into deterministic optimization forms that standard solvers can handle. The authors outline the underlying mathematical transcription steps and demonstrate the package through two concrete examples. A sympathetic reader would care because prior to this, tailored open-source Julia codes for such stochastic OCPs were not available, limiting practical application of uncertainty-aware control methods.

Core claim

The paper presents PolyOCP.jl as a toolbox that enables efficient solution of stochastic OCPs for linear systems subject to a large class of disturbance distributions by using Polynomial Chaos Expansions to transcribe the stochastic optimal control problem into a solvable deterministic equivalent.

What carries the argument

Polynomial Chaos Expansions, which represent random disturbances as expansions in orthogonal polynomials to approximate stochastic effects and recast the OCP as a deterministic optimization problem.

If this is right

  • Practitioners gain an accessible Julia tool to incorporate stochastic disturbances directly into optimal control and MPC designs without custom PCE implementations.
  • The approach supports a broad range of disturbance probability distributions for additive i.i.d. noise in linear dynamics.
  • The deterministic transcription allows reuse of existing numerical solvers for the converted optimization problems.
  • Illustrative examples confirm that the package handles both the transcription and solution steps in practice.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same PCE transcription idea could extend to problems with uncertain system parameters if the toolbox is adapted accordingly.
  • Scalability tests on higher state dimensions or longer horizons would reveal practical limits for real-time MPC use.
  • Linking PolyOCP.jl outputs to other Julia control packages could streamline end-to-end stochastic control pipelines.

Load-bearing premise

Polynomial Chaos Expansions must deliver accurate enough approximations of the disturbance effects so that the resulting deterministic problem produces control solutions that remain valid under the original stochastic uncertainty.

What would settle it

Compare closed-loop trajectories and costs from PolyOCP.jl solutions against statistical results from many Monte Carlo simulations of the same linear system with sampled disturbances; large consistent mismatches would show the transcription fails to capture the stochastic behavior.

Figures

Figures reproduced from arXiv: 2511.19084 by Jonas Schie{\ss}l, Lars Gr\"une, Learta Januzi, Michael Heinrich Baumann, Ruchuan Ou, Timm Faulwasser.

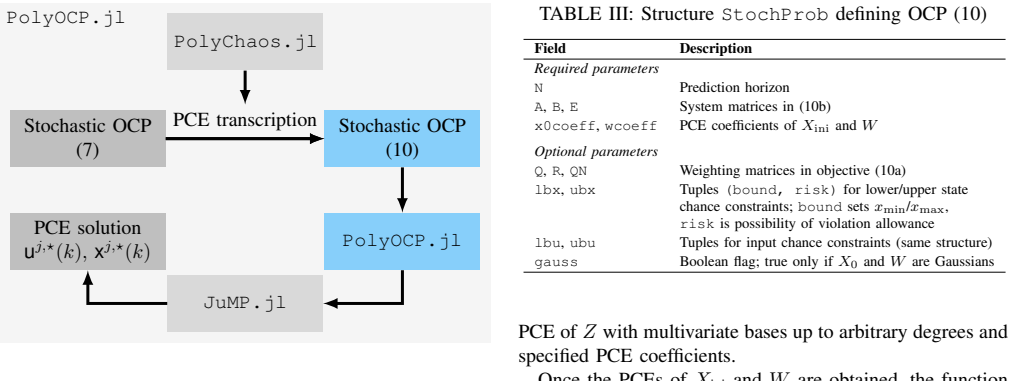

Figure 1
Figure 1. Figure 1: Flow chart of solving stochastic OCPs using [PITH_FULL_IMAGE:figures/full_fig_p005_1.png] view at source ↗

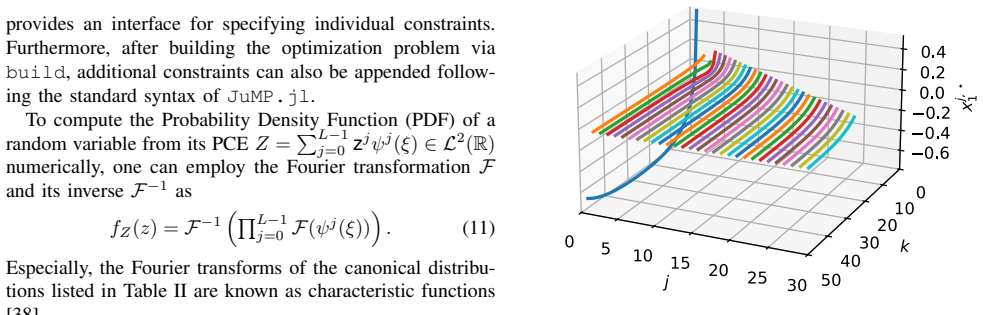

Figure 2
Figure 2. Figure 2: Trajectories of the first 30 PCE coefficients of [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗

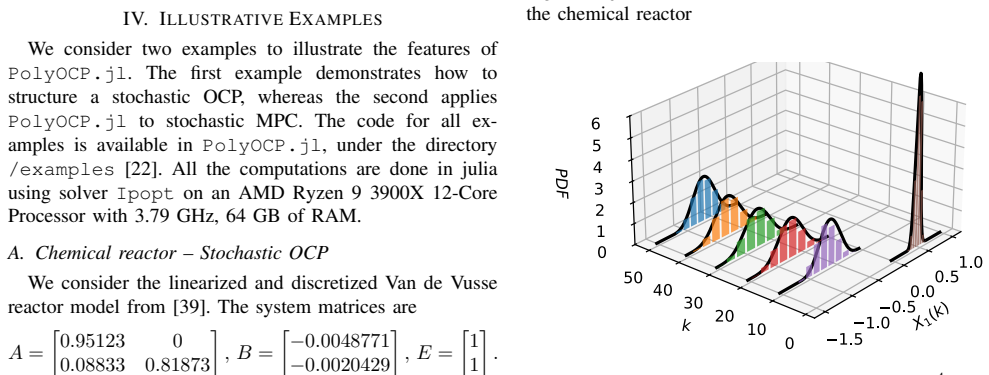

Figure 3
Figure 3. Figure 3: Comparison of PDFs and histograms of 104 samples for the chemical reactor PCE coefficients. Solving the OCP 1000 times and observe an average computation time of 159.68 ms. The trajectories of the first 30 PCE coefficients of the state component X1, i.e. x j 1 for j = I[0,29], are depicted in [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗

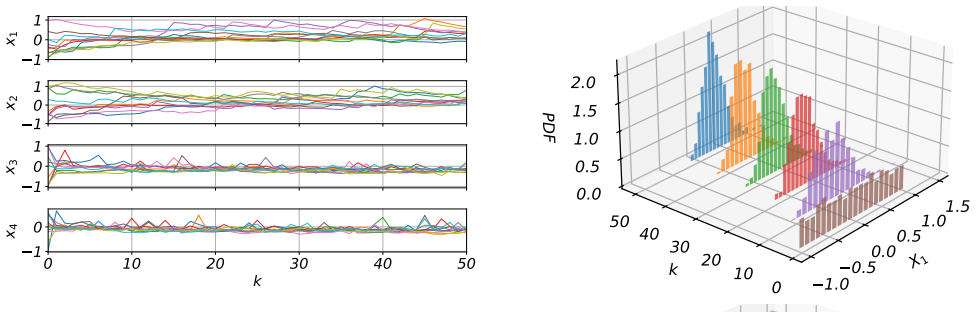

Figure 4
Figure 4. Figure 4: 10 different closed-loop realizations of state trajecto [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗

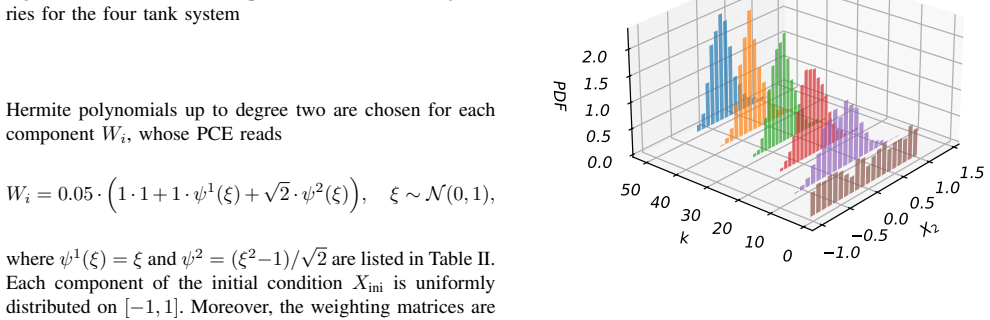

Figure 5
Figure 5. Figure 5: Time evolution of empirical distributions of [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗
read the original abstract

The consideration of stochastic uncertainty in optimal and predictive control is a well-explored topic. Recently Polynomial Chaos Expansions (PCE) have received considerable attention for problems involving stochastically uncertain system parameters and also for problems with additive stochastic i.i.d. disturbances. While there exist a number of open-source PCE toolboxes, tailored open-source codes for the solution of OCPs involving additive stochastic i.i.d. disturbances in julia are not available. Hence, this paper introduces the toolbox PolyOCP$.$jl which enables to efficiently solve stochastic OCPs for linear systems subject to a large class of disturbance distributions. We explain the main mathematical concepts between the PCE transcription of stochastic OCPs and how they are provided in the toolbox. We draw upon two examples to illustrate the functionalities of PolyOCP$.$jl.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript introduces PolyOCP.jl, an open-source Julia package for solving stochastic optimal control problems (OCPs) and model predictive control (MPC) for linear systems subject to additive i.i.d. stochastic disturbances. It employs Polynomial Chaos Expansions (PCE) to transcribe the stochastic OCP into a deterministic form and explains the main mathematical concepts of this transcription. Functionalities are illustrated via two examples.

Significance. If the implementation correctly realizes the PCE transcription for the claimed class of disturbances without hidden truncation or scaling issues, the package would provide a useful specialized tool in the Julia ecosystem for stochastic control. Existing PCE toolboxes are noted as not tailored for additive disturbances in OCPs, so this fills a gap and supports reproducibility through open-source code. The Julia choice may aid numerical efficiency for the resulting quadratic programs.

major comments (2)
  1. [Abstract and §2] Abstract and §2 (Mathematical Concepts): The claim that the toolbox 'enables to efficiently solve stochastic OCPs for linear systems subject to a large class of disturbance distributions' lacks any specification of the supported distribution class (e.g., Askey-scheme matching or generalized chaos), error bounds on the PCE approximation, or analysis of coefficient growth with prediction horizon. This is load-bearing for the efficiency and tractability assertions.
  2. [Examples] Examples section: The two examples illustrate functionalities but report no quantitative metrics such as approximation error versus Monte Carlo, solve times, or basis sizes. Without these, it is not possible to verify that the Julia implementation avoids the exponential growth or poor convergence risks for multi-step OCPs under non-standard distributions.
minor comments (2)
  1. [Package Description] Clarify the exact interface for specifying custom disturbance distributions and the default truncation strategy in the package documentation or code examples.
  2. [§2] Ensure all equations in the PCE transcription section use consistent notation for the number of terms and multi-index sets.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed comments on our manuscript. We address each major comment point by point below, agreeing where revisions are warranted to improve clarity and completeness.

read point-by-point responses

  1. Referee: [Abstract and §2] Abstract and §2 (Mathematical Concepts): The claim that the toolbox 'enables to efficiently solve stochastic OCPs for linear systems subject to a large class of disturbance distributions' lacks any specification of the supported distribution class (e.g., Askey-scheme matching or generalized chaos), error bounds on the PCE approximation, or analysis of coefficient growth with prediction horizon. This is load-bearing for the efficiency and tractability assertions.

    Authors: We agree that the abstract and Section 2 would benefit from explicit specification of the supported distributions and related analysis. PolyOCP.jl implements PCE using the Askey scheme for standard distributions (Hermite for Gaussian, Legendre for uniform) and generalized polynomial chaos for others via user-specified orthogonal polynomials. For linear systems with additive i.i.d. disturbances, the mean and covariance propagate exactly without truncation in the stochastic component. We will revise the abstract and expand §2 to specify the supported classes, reference standard error bounds from the PCE literature, and discuss coefficient growth with horizon length along with truncation options. revision: yes

  2. Referee: [Examples] Examples section: The two examples illustrate functionalities but report no quantitative metrics such as approximation error versus Monte Carlo, solve times, or basis sizes. Without these, it is not possible to verify that the Julia implementation avoids the exponential growth or poor convergence risks for multi-step OCPs under non-standard distributions.

    Authors: We acknowledge the value of quantitative metrics for verifying performance. In the revised manuscript we will augment the examples with tables reporting approximation errors relative to Monte Carlo benchmarks, solve times for the transcribed quadratic programs, and the basis sizes employed. We will also note any observed scaling behavior for multi-step horizons under the tested distributions. revision: yes

Circularity Check

0 steps flagged

No circularity: toolbox implements known PCE transcription methods

full rationale

The paper presents PolyOCP.jl as an open-source Julia implementation of established Polynomial Chaos Expansion techniques for transcribing stochastic OCPs into deterministic forms for linear systems with additive i.i.d. disturbances. It draws on existing mathematical concepts from the PCE literature without introducing new derivations, fitted parameters, or predictions that reduce to the paper's own inputs by construction. No self-definitional steps, fitted-input predictions, or load-bearing self-citations appear in the abstract or described structure; the contribution is the software realization and example usage of prior methods. This is a standard non-circular software/toolbox paper whose claims rest on external PCE theory and code correctness rather than internal reduction.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The contribution is a software implementation of established mathematical concepts; the abstract introduces no new free parameters, ad-hoc axioms, or invented entities.

axioms (1)
  • standard math Polynomial Chaos Expansions can represent stochastic variables and convert stochastic OCPs into deterministic equivalents
    Invoked when describing the PCE transcription of stochastic OCPs
