Recognition: 1 theorem link
· Lean TheoremObservation and investigation of the T_{cbar{c}1}(4430)⁺ structure in B⁺ to psi(2S) K_{S}⁰ π⁺ decays
Pith reviewed 2026-05-17 04:40 UTC · model grok-4.3
The pith
B+ decay data to psi(2S) K pi requires an exotic T structure in addition to K* contributions for a good description.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The first four-dimensional amplitude analysis of the B^{+} → ψ(2S) K_S^0 π^{+} decay is performed with proton-proton collision data collected by the LHCb experiment at √s = 13 TeV, corresponding to an integrated luminosity of 5.4 fb^{-1}. The data cannot be fully explained by B^{+} → ψ(2S) K^{*+} contributions alone. A significantly better description of the data is obtained by adding a T_{c bar c}^{+} contribution decaying to ψ(2S)π^{+}. The properties of the T_{c bar c}^{+} structure are consistent with the exotic state T_{c bar c 1}(4430)^{+} reported in the isospin-related B-bar^0 → ψ(2S) K^{-} π^{+} decay. Effects of a possible T_{c bar c 1}(4430)^{+} → D_1^{*}(2600)^0 D^{+} decay mode,
What carries the argument
Four-dimensional amplitude fit that tests whether adding a T_{c bar c 1}(4430)+ resonance decaying to ψ(2S)π+ improves the description of the observed kinematics over K* contributions alone.
If this is right
- The T structure must be included to describe the ψ(2S)π+ mass distribution in this isospin channel.
- A Flatté parametrization of a possible T decay to D1* D constrains the relative branching fraction to that mode.

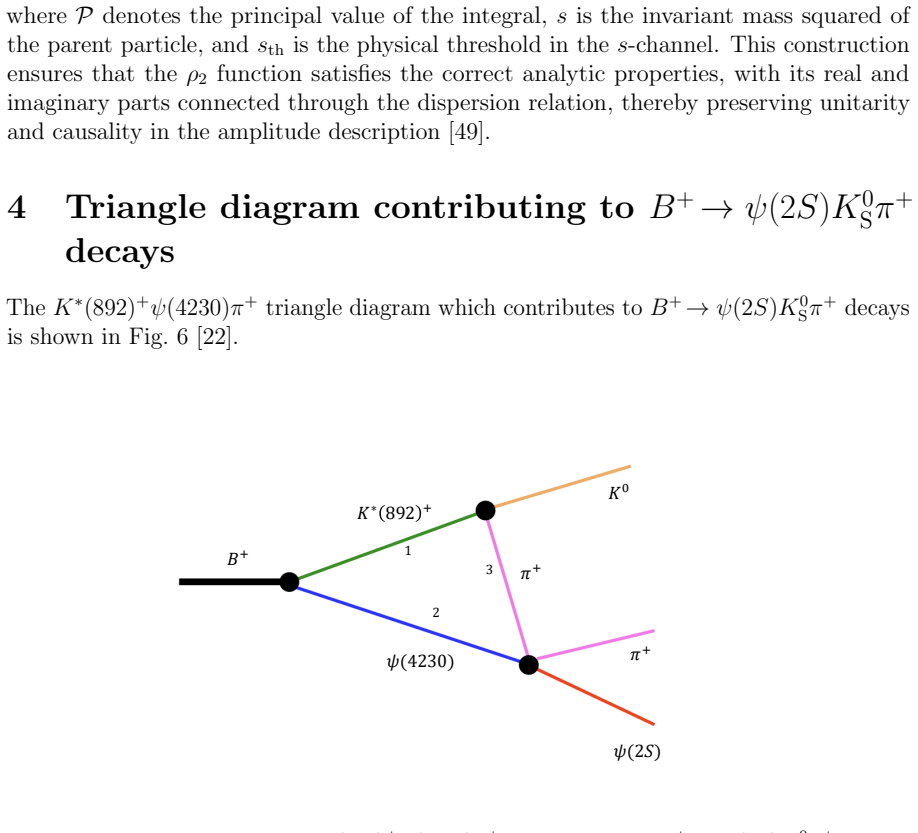

- A triangle-singularity mechanism for the T structure also reproduces the observed lineshape.
Where Pith is reading between the lines
- Consistency of the T properties across the two isospin-related B decays reduces the chance that the structure is an artifact of one particular final state.
- If the same structure appears in still other decay channels, it would favor interpretations as a genuine exotic hadron rather than a channel-specific kinematic effect.
Load-bearing premise
The chosen amplitude model contains every important resonance and background component, so that no missing terms or interference patterns could imitate the improvement from the T structure.
What would settle it
An independent dataset or re-analysis in which the fit quality remains equally good when the T contribution is removed would show that the extra structure is not required.
Figures
read the original abstract
The first four-dimensional amplitude analysis of the $B^{+} \to \psi(2S) K_{\text{S}}^{0} \pi^{+}$ decay is performed with proton-proton collision data collected by the LHCb experiment at $\sqrt{s} = 13~\rm{TeV}$, corresponding to an integrated luminosity of $5.4~\rm{fb^{-1}}$. The data cannot be fully explained by $B^{+} \to \psi(2S) K^{*+}$ contributions alone. A significantly better description of the data is obtained by adding a $T_{c\bar{c}}^{+}$ contribution decaying to $\psi(2S)\pi^{+}$. The properties of the $T_{c\bar{c}}^{+}$ structure are consistent with the exotic state $T_{c\bar{c}1}(4430)^{+}$ reported in the isospin-related $\bar{B}^{0} \to \psi(2S) K^{-} \pi^{+}$ decay. Effects of a possible $T_{c\bar{c}1}(4430)^{+} \to \bar{D}_{1}^{*}(2600)^{0} D^{+}$ decay mode on the $T_{c\bar{c}1}(4430)^{+} \to \psi(2S)\pi^{+}$ mass distribution are investigated through a Flatt\'e parametrization, providing constraints on the relative decay strength. A description of the $T_{c\bar{c}1}(4430)^{+}$ structure using the triangle singularity mechanism is studied and also found to be consistent with the data.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript reports the first four-dimensional amplitude analysis of B^{+} → ψ(2S) K_S^0 π^{+} decays using 5.4 fb^{-1} of LHCb data at √s = 13 TeV. It claims that B^{+} → ψ(2S) K^{*+} contributions alone cannot fully describe the data, while adding a T_{c c-bar 1}^{+} resonance decaying to ψ(2S)π^{+} yields a significantly better fit. The extracted mass and width are consistent with the T_{c c-bar 1}(4430)^{+} reported in the isospin-related channel, and the analysis explores a Flatté parametrization for a possible D_1^*(2600)^0 D^{+} decay mode as well as a triangle-singularity description.
Significance. If the central result holds, this work supplies independent confirmation of the exotic T_{c c-bar 1}(4430)^{+} state in a new isospin channel and decay mode, together with quantitative constraints on its couplings via the Flatté study. The four-dimensional amplitude fit and explicit consistency check with the isospin partner are clear strengths; the investigation of the triangle-singularity alternative adds useful context for interpreting the structure.
major comments (1)
- [Amplitude analysis and model construction] The central claim rests on the statement that the baseline B^{+} → ψ(2S) K^{*+} model fails to describe the data while the model augmented by T_{c c-bar 1}^{+} succeeds. The manuscript does not present an exhaustive variation of the K^* resonance content (higher-mass states, additional partial waves, or non-resonant terms) to demonstrate that the fit improvement survives such changes. This is load-bearing because residual structures in the ψ(2S)π^{+} projection could be absorbed by an incomplete baseline model without invoking the exotic resonance.
minor comments (2)

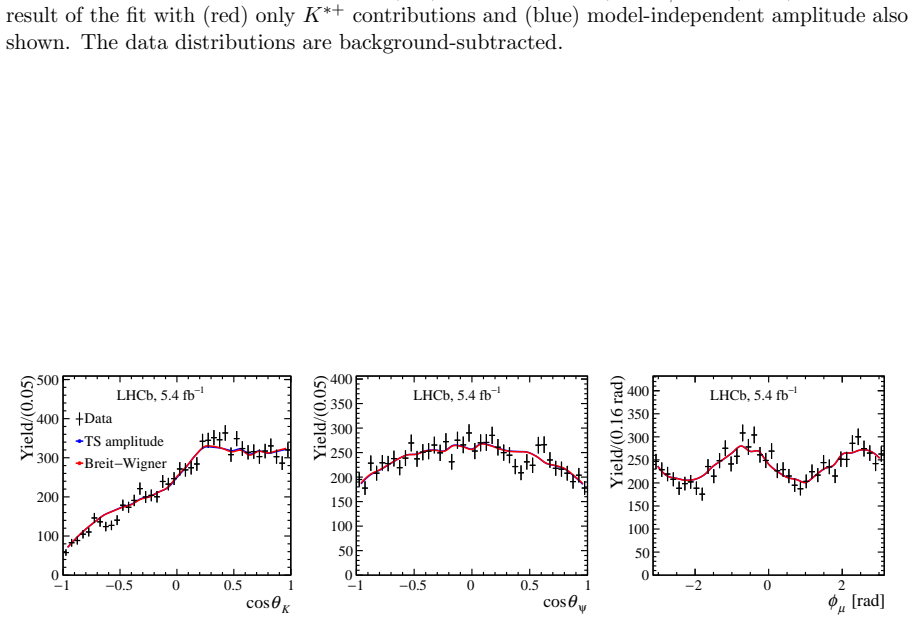

- [Results and fit projections] In the projection plots of the four-dimensional fit, inclusion of pull distributions would allow a more quantitative assessment of local fit quality in the ψ(2S)π^{+} and K_S^0 π^{+} regions.
- [Flatté parametrization subsection] Notation for the Flatté coupling parameters should be defined explicitly in the text rather than only in the figure captions to improve readability.
Simulated Author's Rebuttal
We thank the referee for the careful reading of our manuscript, the positive assessment of its significance, and the recommendation for minor revision. We address the major comment point by point below, providing the strongest honest defense of the analysis while acknowledging where additional material will strengthen the presentation.
read point-by-point responses
-
Referee: [Amplitude analysis and model construction] The central claim rests on the statement that the baseline B^{+} → ψ(2S) K^{*+} model fails to describe the data while the model augmented by T_{c c-bar 1}^{+} succeeds. The manuscript does not present an exhaustive variation of the K^* resonance content (higher-mass states, additional partial waves, or non-resonant terms) to demonstrate that the fit improvement survives such changes. This is load-bearing because residual structures in the ψ(2S)π^{+} projection could be absorbed by an incomplete baseline model without invoking the exotic resonance.
Authors: We agree that demonstrating robustness against variations in the baseline K^* model is important for the central claim. The baseline model in the manuscript includes all established K^{*+} resonances with significant contributions in the accessible mass range, selected on the basis of prior measurements in related B decays and the observed projections in the current dataset. The four-dimensional amplitude analysis incorporates full angular information and interference effects, which provide additional constraints that reduce the possibility of an incomplete baseline absorbing the structure seen in the ψ(2S)π^{+} mass projection. The extracted T_{c c-bar 1}^{+} parameters are consistent with the isospin-related channel, further supporting the interpretation. Nevertheless, we acknowledge that an explicit presentation of alternative baseline models would address the referee's concern directly. In the revised manuscript we will add a dedicated study (new appendix or subsection) showing fits with extended K^* content, additional partial waves, and non-resonant terms; these checks confirm that the likelihood improvement and significance of the T_{c c-bar 1}^{+} contribution remain stable under such variations. revision: yes
Circularity Check
Minor self-citation to prior LHCb result on isospin partner; analysis driven by new 4D fit to independent dataset
full rationale
The paper reports a data-driven 4D amplitude analysis of new LHCb data. Model comparison shows improved description when adding the T structure, with properties stated as consistent with the prior observation in the isospin-related B0 channel. This prior result uses a separate dataset and is externally falsifiable; it is not used to define or force any fitted parameter or central claim in the present work. No equations reduce a prediction to a fitted input by construction, no ansatz is smuggled via self-citation, and the baseline model completeness is an explicit assumption rather than a definitional loop. This qualifies as at most one minor non-load-bearing self-citation.
Axiom & Free-Parameter Ledger
free parameters (3)
- T_{c c-bar 1} mass and width
- relative amplitudes and phases
- Flatté coupling parameters
axioms (2)
- domain assumption Isospin symmetry relating B+ and B0 decay amplitudes
- standard math Standard resonance lineshapes and Blatt-Weisskopf barrier factors
Reference graph
Works this paper leans on
-
[1]
Gell-Mann, A schematic model of baryons and mesons , Phys
M. Gell-Mann, A schematic model of baryons and mesons , Phys. Lett. 8 (1964) 214
work page 1964
-
[2]
F.-K. Guo et al., Hadronic molecules, Rev. Mod. Phys. 90 (2018) 015004, Erratum ibid. 94 (2022) 029901, arXiv:1705.00141
work page internal anchor Pith review arXiv 2018
-
[3]
Chen et al., An updated review of the new hadron states , Rept
H.-X. Chen et al., An updated review of the new hadron states , Rept. Prog. Phys. 86 (2023) 026201, arXiv:2204.02649
-
[4]
Pentaquark and Tetraquark states
Y.-R. Liu et al., Pentaquark and tetraquark states , Prog. Part. Nucl. Phys. 107 (2019) 237, arXiv:1903.11976
work page internal anchor Pith review Pith/arXiv arXiv 2019
-
[5]
S. L. Olsen, T. Skwarnicki, and D. Zieminska,Nonstandard heavy mesons and baryons: Experimental evidence, Rev. Mod. Phys. 90 (2018) 015003, arXiv:1708.04012
work page internal anchor Pith review Pith/arXiv arXiv 2018
-
[6]
D. Johnson, I. Polyakov, T. Skwarnicki, and M. Wang, Exotic hadrons at LHCb , Annu. Rev. Nucl. Part. Sci. 74 (2024) 583, arXiv:2403.04051
-
[7]
N. H¨ usken, E. S. Norella, and I. Polyakov, A brief guide to exotic hadrons , Mod. Phys. Lett. A40 (2024) 2530002, arXiv:2410.06923
-
[8]
Wang, Review of the QCD sum rules for exotic states , Front
Z.-G. Wang, Review of the QCD sum rules for exotic states , Front. Phys. 21 (2025) 016300, arXiv:2502.11351
-
[9]
Belle collaboration, S. K. Choi et al., Observation of a resonance-like structure in the π+−ψ′ mass distribution in exclusive B → Kπ +−ψ′ decays, Phys. Rev. Lett. 100 (2008) 142001, arXiv:0708.1790
work page internal anchor Pith review Pith/arXiv arXiv 2008
-
[10]
R. M. e. a. Belle Collaboration, Dalitz analysis of b → kπ+ψ′ decays and the z(4430)+, Phys. Rev. D80 (2009) 031104
work page 2009
-
[11]
Observation of the resonant character of the $Z(4430)^-$ state
LHCb collaboration, R. Aaij et al. , Observation of the resonant character of the Z(4430)− state, Phys. Rev. Lett. 112 (2014) 222002, arXiv:1404.1903
work page internal anchor Pith review Pith/arXiv arXiv 2014
-
[12]
Experimental constraints on the spin and parity of the Z(4430)+
Belle collaboration, K. Chilikin et al., Experimental constraints on the spin and parity of the Z(4430)+, Phys. Rev. D88 (2013) 074026, arXiv:1306.4894
work page internal anchor Pith review Pith/arXiv arXiv 2013
-
[13]
Beiter, Amplitude analysis of B0 decays to J/ψπ −K+ and ψ(2S)π−K+, PhD thesis, Syracuse U., 2023
A. Beiter, Amplitude analysis of B0 decays to J/ψπ −K+ and ψ(2S)π−K+, PhD thesis, Syracuse U., 2023
work page 2023
-
[14]
$Z^+(4430)$ as a resonance in the $D_1(D_1^\prime)D^*$ channel
C. Meng and K.-T. Chao, Z+(4430) as a resonance in the D1(D′ 1)D∗ channel, arXiv:0708.4222
work page internal anchor Pith review Pith/arXiv arXiv
-
[15]
Is Z^+(4430) a loosely bound molecular state?
X. Liu, Y.-R. Liu, W.-Z. Deng, and S.-L. Zhu, Is Z+(4430) a loosely bound molecular state?, Phys. Rev. D77 (2008) 034003, arXiv:0711.0494
work page internal anchor Pith review Pith/arXiv arXiv 2008
-
[16]
G.-J. Ding, W. Huang, J.-F. Liu, and M.-L. Yan, Z+(4430) and analogous heavy flavor molecules, Phys. Rev. D79 (2009) 034026, arXiv:0805.3822
work page internal anchor Pith review Pith/arXiv arXiv 2009
-
[17]
The Z(4430) and a New Paradigm for Spin Interactions in Tetraquarks
L. Maiani, F. Piccinini, A. D. Polosa, and V. Riquer, The Z(4430) and a new paradigm for spin interactions in tetraquarks , Phys. Rev. D89 (2014) 114010, arXiv:1405.1551. 17
work page internal anchor Pith review Pith/arXiv arXiv 2014
-
[18]
C. Deng, J. Ping, H. Huang, and F. Wang, Systematic study of Z+ c family from a multiquark color flux-tube model , Phys. Rev. D92 (2015) 034027, arXiv:1507.06408
work page internal anchor Pith review Pith/arXiv arXiv 2015
-
[19]
Analysis of the $Z(4430)$ as the first radial excitation of the $Z_c(3900)$
Z.-G. Wang, Analysis of the Z(4430) as the first radial excitation of the Zc(3900), Commun. Theor. Phys. 63 (2015) 325, arXiv:1405.3581
work page internal anchor Pith review Pith/arXiv arXiv 2015
-
[20]
S. Coleman and R. E. Norton, Singularities in the physical region , Nuovo Cim. 38 (1965) 438
work page 1965
- [21]
- [22]
-
[23]
Bicudo, Tetraquarks and pentaquarks in lattice QCD with light and heavy quarks , Phys
P. Bicudo, Tetraquarks and pentaquarks in lattice QCD with light and heavy quarks , Phys. Rept. 1039 (2023) 1, arXiv:2212.07793
-
[24]
LHCb collaboration, A. A. Alves Jr. et al., The LHCb detector at the LHC , JINST 3 (2008) S08005
work page 2008
-
[25]
LHCb collaboration, R. Aaij et al., LHCb detector performance, Int. J. Mod. Phys. A30 (2015) 1530022, arXiv:1412.6352
work page internal anchor Pith review Pith/arXiv arXiv 2015
-
[26]
Navas et al., Review of particle physics , Phys
Particle Data Group, S. Navas et al., Review of particle physics , Phys. Rev. D110 (2024) 030001
work page 2024
-
[27]
L. Breiman, J. H. Friedman, R. A. Olshen, and C. J. Stone, Classification and regression trees, Wadsworth international group, Belmont, California, USA, 1984
work page 1984
-
[28]
Y. Freund and R. E. Schapire, A decision-theoretic generalization of on-line learning and an application to boosting , J. Comput. Syst. Sci. 55 (1997) 119
work page 1997
-
[29]
H. Voss, A. Hoecker, J. Stelzer, and F. Tegenfeldt, TMVA - Toolkit for Multivariate Data Analysis with ROOT , PoS ACAT (2007) 040
work page 2007
-
[30]
TMVA - Toolkit for Multivariate Data Analysis
A. Hoecker et al., TMVA 4 — Toolkit for Multivariate Data Analysis with ROOT. Users Guide., arXiv:physics/0703039
work page internal anchor Pith review Pith/arXiv arXiv
-
[31]
A Brief Introduction to PYTHIA 8.1
T. Sj¨ ostrand, S. Mrenna, and P. Skands,A brief introduction to PYTHIA 8.1, Comput. Phys. Commun. 178 (2008) 852, arXiv:0710.3820
work page internal anchor Pith review Pith/arXiv arXiv 2008
-
[32]
D. J. Lange, The EvtGen particle decay simulation package , Nucl. Instrum. Meth. A462 (2001) 152
work page 2001
-
[33]
Allison et al., Geant4 developments and applications , IEEE Trans
Geant4 collaboration, J. Allison et al., Geant4 developments and applications , IEEE Trans. Nucl. Sci. 53 (2006) 270
work page 2006
-
[34]
See Supplemental Material at [URL will be inserted by publisher] for additional derivations and figures. 18
-
[35]
T. Skwarnicki, A study of the radiative cascade transitions between the Upsilon-prime and Upsilon resonances , PhD thesis, Institute of Nuclear Physics, Krakow, 1986, DESY-F31-86-02
work page 1986
-
[36]
sPlot: a statistical tool to unfold data distributions
M. Pivk and F. R. Le Diberder, sPlot: A statistical tool to unfold data distributions , Nucl. Instrum. Meth. A555 (2005) 356, arXiv:physics/0402083
work page internal anchor Pith review Pith/arXiv arXiv 2005
-
[37]
H. Dembinski, M. Kenzie, C. Langenbruch, and M. Schmelling, Custom orthogonal weight functions (COWs) for event classification , Nucl. Instr. Meth. A1040 (2022) 167270
work page 2022
-
[38]
sFit: a method for background subtraction in maximum likelihood fit
Y. Xie, sFit: a method for background subtraction in maximum likelihood fit , arXiv:0905.0724
work page internal anchor Pith review Pith/arXiv arXiv
-
[39]
Langenbruch, Parameter uncertainties in weighted unbinned maximum likelihood fits, Eur
C. Langenbruch, Parameter uncertainties in weighted unbinned maximum likelihood fits, Eur. Phys. J. C82 (2022) 393, arXiv:1911.01303
-
[40]
M. Jacob and G. C. Wick, On the general theory of collisions for particles with spin , Annals Phys. 7 (1959) 404
work page 1959
-
[41]
S. J. Lindenbaum and R. M. Sternheimer, Isobaric nucleon model for pion production in nucleon-nucleon collisions, Phys. Rev. 105 (1957) 1874
work page 1957
-
[42]
LHCb collaboration, R. Aaij et al., Observation of J/ ψpresonances consistent with pentaquark states in Λ0 b → J/ ψpK− decays, Phys. Rev. Lett. 115 (2015) 072001, arXiv:1507.03414
work page internal anchor Pith review Pith/arXiv arXiv 2015
-
[43]
J. M. Blatt and V. F. Weisskopf, Theoretical nuclear physics, Springer, New York, 1952
work page 1952
-
[44]
V. A. Alessandrini, P. G. O. Freund, R. Oehme, and E. J. Squires, Argand diagrams and resonances, Phys. Lett. B27 (1968) 456
work page 1968
-
[45]
A model-independent confirmation of the $Z(4430)^-$ state
LHCb collaboration, R. Aaij et al., Model-independent confirmation of the Z(4430)− state, Phys. Rev. D92 (2015) 112009, arXiv:1510.01951
work page internal anchor Pith review Pith/arXiv arXiv 2015
-
[46]
D. Aston et al. , A study of K −π+ scattering in the reaction K −p → K −π+n at 11GeV/c, Nucl. Phys. D296 (1988) 493
work page 1988
-
[47]
S. M. Flatt´ e,Coupled-channel analysis of the πη and K ¯K systems near K ¯K threshold, Phys. Lett. B63 (1976) 224
work page 1976
-
[48]
V. Gribov, Strong interactions of hadrons at high energies: Gribov lectures on theoretical physics, Oxford University Press, 2009
work page 2009
-
[49]
M. Mikhasenko et al., Three-body scattering: ladders and resonances, JHEP 08 (2019) , arXiv:1904.11894, Open Access, Published for SISSA by Springer. 19 LHCb collaboration R. Aaij38 , A.S.W. Abdelmotteleb 57 , C. Abellan Beteta 51 , F. Abudin´ en57 , T. Ackernley61 , A. A. Adefisoye 69 , B. Adeva47 , M. Adinolfi55 , P. Adlarson85 , C. Agapopoulou 14 , C.A...
