Formation of Light-Emitting Defects in Ag-based Memristors

Diana Singh , Maciej \'Cwierzona , R\'egis Parvaud , Sebastian Ma\'ckowski , Alexandre Bouhelier This is my paper

Pith reviewed 2026-05-17 04:31 UTC · model grok-4.3

classification ❄️ cond-mat.mes-hall
keywords memristorselectroluminescencephotoluminescencedefectsoptical memristorsneuromorphic circuitsAg-based devicesin-plane memristors
0
0 comments X

The pith

Defects formed during initial activation in silver-based memristors produce the observed light emission.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper examines how light-emitting defects appear and evolve in the early stages of operation in Ag-based in-plane memristors. These devices add light emission to standard memory functions, opening routes to neuromorphic networks that handle both electrical and optical signals. Electrical stimulation is paired with simultaneous measurements of emitted light and photoluminescence to follow the creation of the emitting species from the first moments after switching begins. If the formation process is mapped this way, engineers gain a route to adjust when and how strongly the devices glow. This adjustment matters for building consistent light-emitting elements that can serve as building blocks in brain-inspired computing hardware.

Core claim

In Ag-based in-plane memristors the electroluminescence originates from defects generated inside the switching matrix during device activation, and the early-stage formation together with the subsequent evolution of these defects can be followed by combining electrical stimulation with correlated electroluminescence and photoluminescence measurements.

What carries the argument

Correlated electrical stimulation with electroluminescence and photoluminescence measurements that track defect formation and evolution from the first activation cycle.

If this is right

  • Tuning the activation voltage or pulse duration can adjust the density of light-emitting defects and thereby the emission brightness.
  • Stabilizing the defects at an early stage enables repeatable multilevel optical memory states.
  • Controlling defect formation supports integration of light emission into neuromorphic circuits that combine memory and optical signaling.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same early-defect mechanism may operate in other metal-ion memristors, pointing to a general route for adding optical output to resistive switching devices.
  • Repeating the correlated measurements over many switching cycles could show whether the defects anneal, migrate, or accumulate and thereby limit device lifetime.
  • Material choices that slow or accelerate defect creation could be tested to set the emission wavelength range for specific neuromorphic applications.

Load-bearing premise

The observed electroluminescence is produced by defects created inside the switching matrix specifically during the initial device activation.

What would settle it

No detectable change in photoluminescence spectra that matches the onset of electroluminescence when electrical switching first occurs.

Figures

Figures reproduced from arXiv: 2511.21555 by Alexandre Bouhelier, Diana Singh, Maciej \'Cwierzona, R\'egis Parvaud, Sebastian Ma\'ckowski.

Figure 1

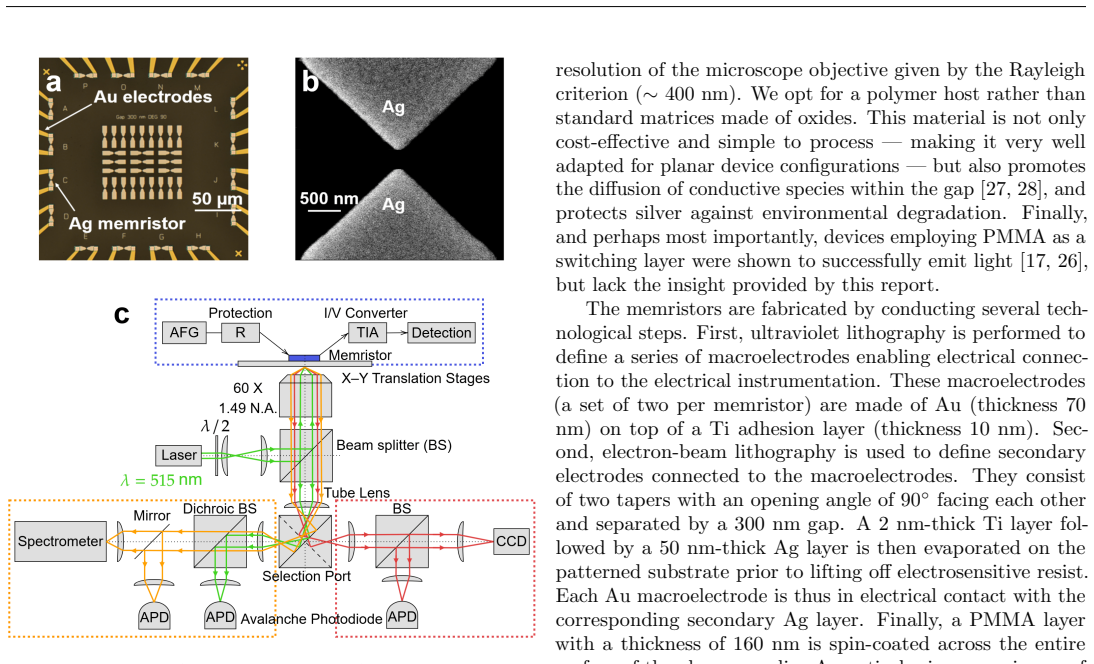

Figure 1. Figure 1: a Bright-field optical image of the sample. It con￾tains 16 connected memristors (labeled A to P), and a series of isolated structures at the center for characterization purpose. The entire coverslip is covered by a 160 nm-thick Poly(methyl methacrylate) layer. b Scanning electron micrograph of a typical memristive gap. It consists of the two Ag tapered elec￾trodes separated by a gap of 300 nm. c Experimen… view at source ↗
Figure 2

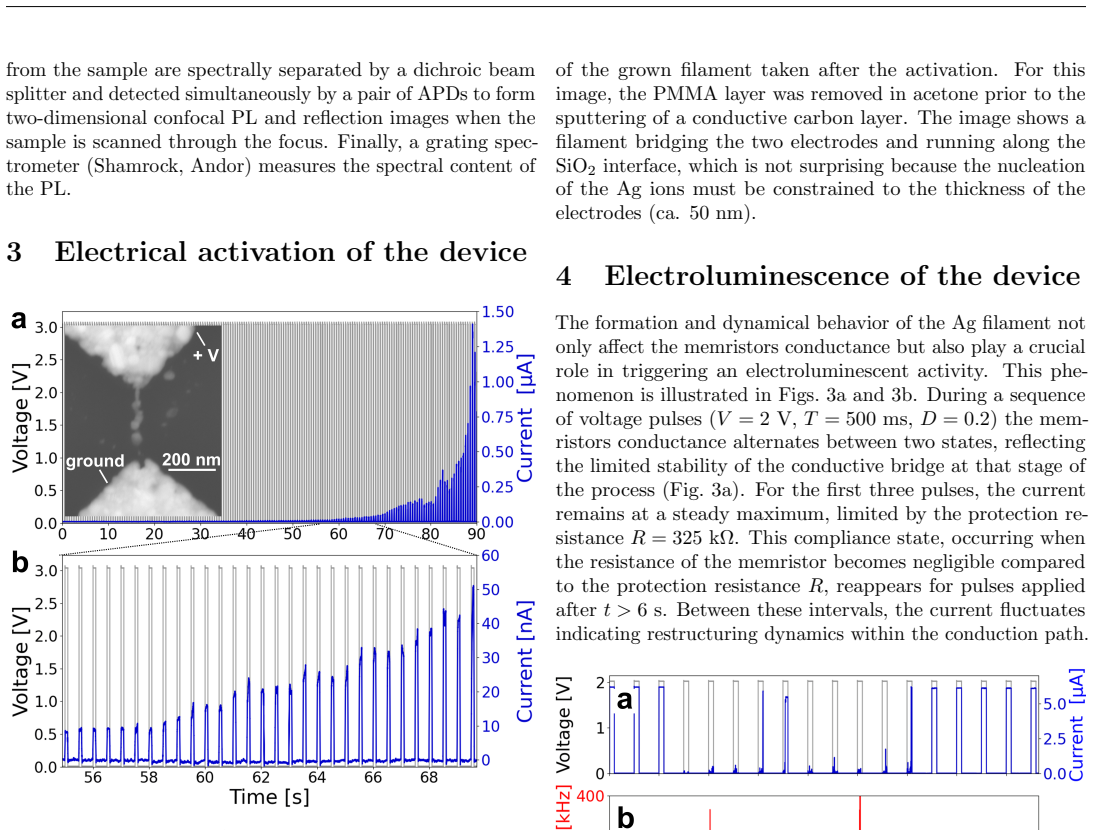

Figure 2. Figure 2: a Time plot of the voltage and the current at the end of the activation phase. V = 3 V, T = 500 ms, and D = 0.2. Inset: SEM image revealing a filamentary structure between the two Ag electrodes formed during the activation of the device. b Zoomed-in showing the rise of the current (i.e. the potentiation) during 30 consecutive pulses. Before the activation, the 300 nm gap separating the two electrodes preve… view at source ↗
Figure 3

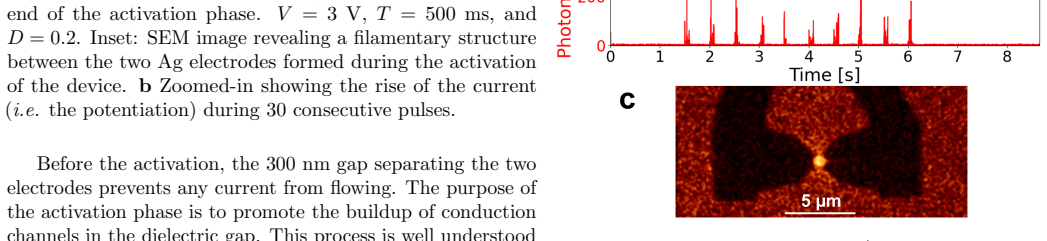

Figure 3. Figure 3: a Time plot of the voltage/current during a sequence of voltage pulses following the activation phase. V = 2 V, T = 500 ms and D = 0.2,. b Corresponding electroluminescent trace. c Composite false-color CCD image of the memristor during operation. The overlay consists of an image acquired during the pulse sequence combined with an image of the sample observed under a weak illumination and in absence of an … view at source ↗
Figure 4

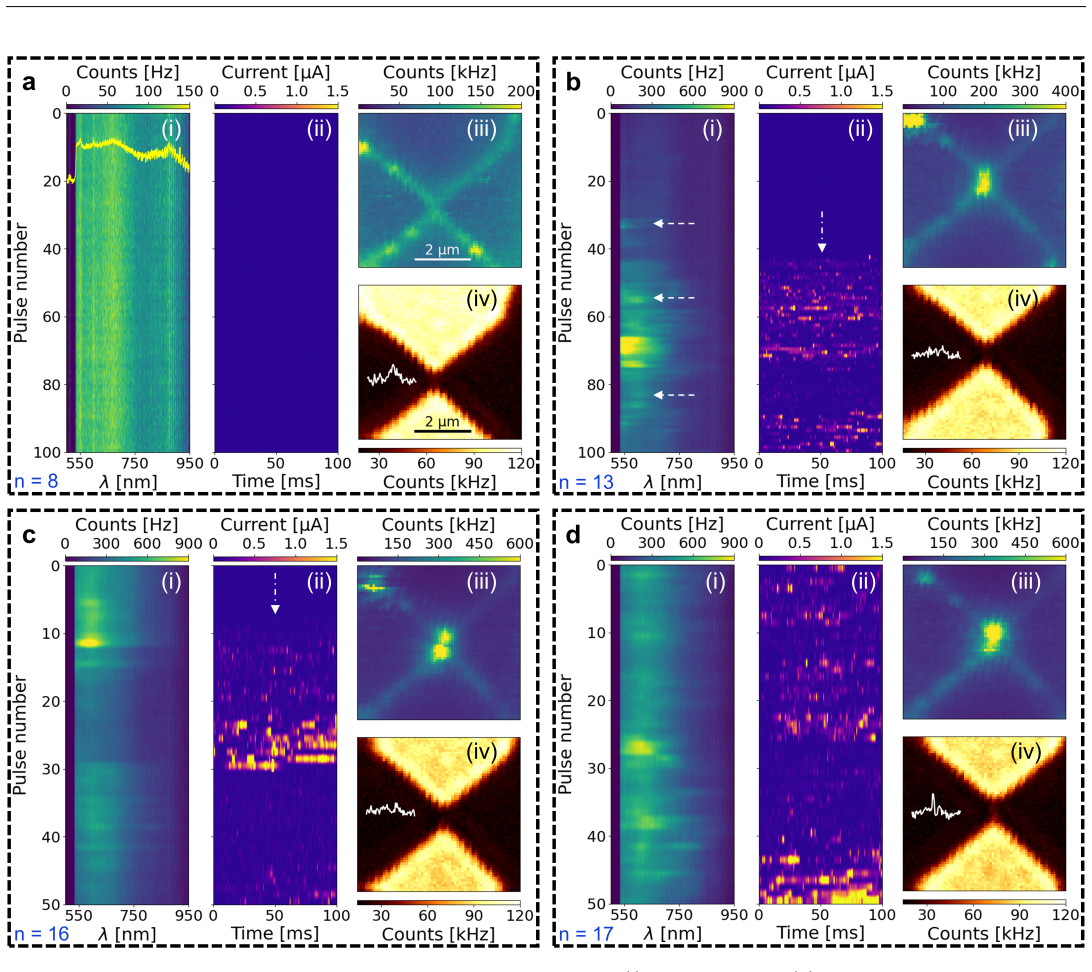

Figure 4. Figure 4: a Reconstructed pulse-to-pulse evolution of the PL spectrum (i) and the current (ii) during the activation sequence n = 8. The laser power is P = 50 µW and the integration time is equal to the duration of the voltage pulse (100 ms). All spectra are corrected for the background noise of the CCD and the quantum efficiency of the detection path (transmission of the objective, CCD and grating efficiencies). Th… view at source ↗
Figure 5

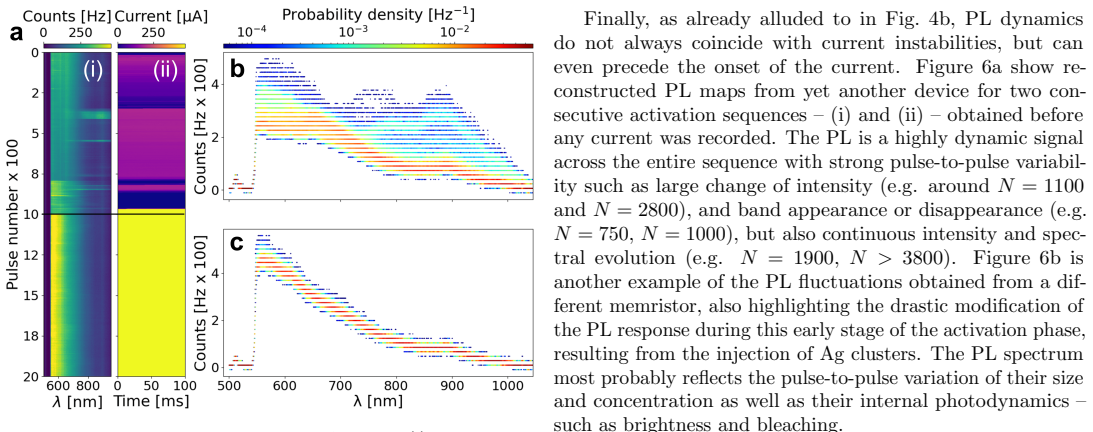

Figure 5. Figure 5: a Pulse-to-pulse evolution of the PL (i) and current (ii) measured during a regime of unstable current level (N < 980) and while current is at compliance (N > 980). b,c Probability densities of the spectral PL fluctuations measured under unstable current conditions, and at current compliance, respectively. by the dashed horizontal lines) transitioning from an unstable current to a compliance level determin… view at source ↗
Figure 6

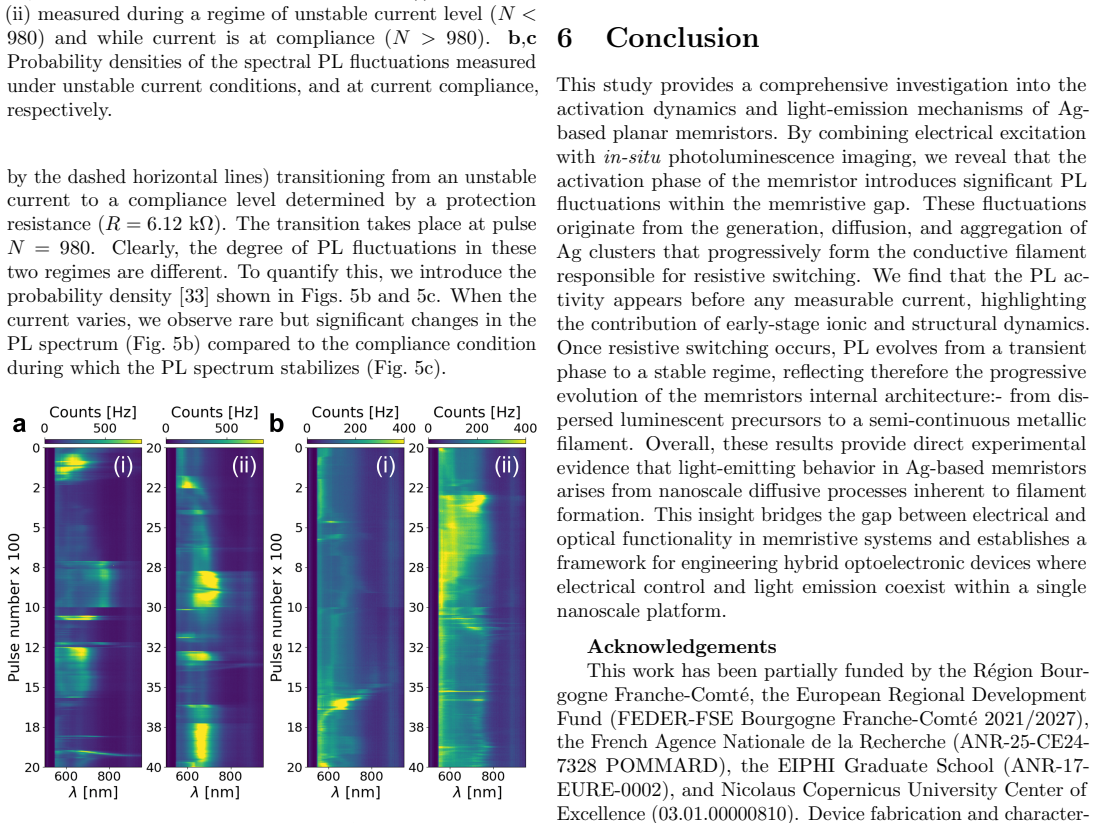

Figure 6. Figure 6: a Pulse-to-pulse evolution of the PL obtained by concatenating four activation sequences of 1000 pulses each, with V = 3 V, T = 500 ms and D = 0.2, all measured before the onset of current. Subfigure (i) shows pulses 0 ≤ N ≤ 2000, and (ii) shows pulses 2000 < N ≤ 4000. b Pulse-to￾pulse evolution measured on a different device also before the detection of a current flow. Finally, as already alluded to in Fi… view at source ↗
read the original abstract

Optical memristors are innovative devices that enable the integration of electro-optical functionalities - such as light modulation, multilevel optical memory, and nonvolatile reprogramming - into neuromorphic networks. Recently, their capabilities have expanded with the development of light-emitting memristors, which operate through various emission mechanisms. One notable process involves the electroluminescence of defects generated within the switching matrix during device activation. In this study, we explore the early-stage formation and evolution of the species responsible for light emission in Ag-based in-plane memristors. Our approach combines electrical stimulation with correlated optical electroluminescence and photoluminescence measurements. The findings provide valuable insights into controlling emission processes in memristors, paving the way for their integration as essential components in neuromorphic circuits.
