A Concatenated Dual Displacement Code for Continuous-Variable Quantum Error Correction
Pith reviewed 2026-05-17 03:21 UTC · model grok-4.3
The pith
Concatenating GKP-based Gaussian suppression with an outer analog Steane code reduces displacement error variance by up to 50 percent in continuous-variable systems and corrects lattice-crossing events without bias.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
Under infinite squeezing the concatenated code suppresses the variance of Gaussian displacement errors across all qumodes by up to 50 percent while enabling unbiased correction of lattice-crossing events, with success probability determined by the ratio between the residual Gaussian error standard deviation and the lattice-crossing magnitude. Even with finite squeezing the architecture continues to deliver both Gaussian-error suppression and lattice-crossing correction, and the presence of the outer analog Steane code relaxes the squeezing requirement of the inner GKP states.
What carries the argument
The concatenated dual displacement code, which places a Gaussian-noise-suppression circuit based on GKP ancillas inside an outer analog Steane code that detects and corrects lattice-crossing and abrupt displacement errors.
If this is right
- Gaussian-error suppression and lattice-crossing correction persist even when squeezing is finite.
- The outer Steane layer lowers the squeezing threshold needed for the inner GKP states.
- The construction supplies a viable architecture for fault-tolerant continuous-variable quantum computation.
- The approach keeps the encoding continuous rather than mapping to discrete qubits or qudits.
Where Pith is reading between the lines
- Similar inner-outer pairings could be explored for other continuous-variable error types such as loss or dephasing.
- Resource estimates for near-term experiments could be refined by quantifying how much the outer code reduces total squeezing overhead.
- The success-probability formula could be evaluated at realistic finite-squeezing levels to predict observable correction rates.
Load-bearing premise
The outer analog Steane code can reliably detect and correct lattice-crossing events and other abrupt displacements without introducing uncorrectable errors or biasing the continuous encoding.
What would settle it
A high-squeezing numerical simulation or experiment that measures the post-correction variance of displacement noise on all qumodes and checks whether it reaches exactly half the uncorrected value while lattice-crossing corrections remain unbiased.
Figures

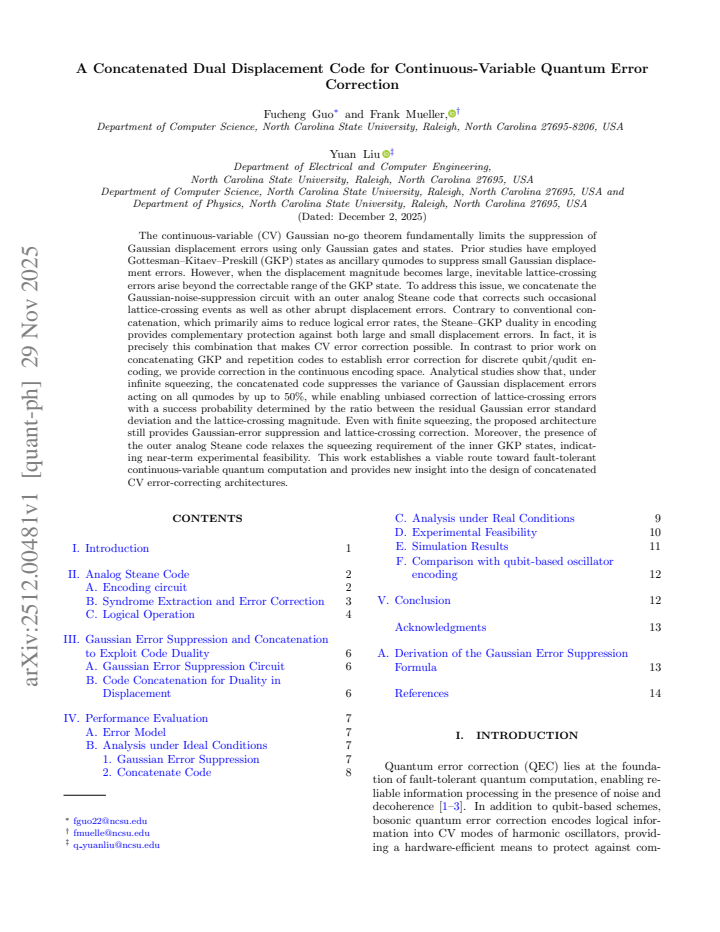

read the original abstract
The continuous-variable (CV) Gaussian no-go theorem fundamentally limits the suppression of Gaussian displacement errors using only Gaussian gates and states. Prior studies have employed Gottesman-Kitaev-Preskill (GKP) states as ancillary qumodes to suppress small Gaussian displacement errors, but when the displacement magnitude becomes large, lattice-crossing events arise beyond the correctable range of the GKP state. To address this issue, we concatenate a Gaussian-noise-suppression circuit with an outer analog Steane code that corrects such occasional lattice-crossing events as well as other abrupt displacement errors. Unlike conventional concatenation, which primarily aims to reduce logical error rates, the Steane-GKP duality in encoding provides complementary protection against both large and small displacement errors, enabling CV error correction within the continuous encoding space and contrasting with earlier approaches that concatenate GKP states with repetition codes for discrete qubit or qudit encodings. Analytical results show that, under infinite squeezing, the concatenated code suppresses the variance of Gaussian displacement errors across all qumodes by up to 50 percent while enabling unbiased correction of lattice-crossing events, with a success probability determined by the ratio between the residual Gaussian error standard deviation and the lattice-crossing magnitude. Even with finite squeezing, the proposed architecture continues to provide Gaussian-error suppression together with lattice-crossing correction, and the presence of the outer analog Steane code relaxes the squeezing requirement of the inner GKP states, indicating near-term experimental feasibility. This work establishes a viable route toward fault-tolerant continuous-variable quantum computation and provides new insight into the design of concatenated CV error-correcting architectures.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript proposes a concatenated dual displacement code for continuous-variable quantum error correction, combining an inner GKP code for small Gaussian displacement errors with an outer analog Steane code to handle large lattice-crossing events. Under infinite squeezing, analytical results claim up to 50% suppression of Gaussian error variance across qumodes and unbiased correction of crossings, with success probability set by the ratio of residual Gaussian std dev to crossing magnitude. The work also addresses finite squeezing, relaxed inner squeezing requirements, and near-term feasibility for fault-tolerant CV quantum computation.
Significance. If the central claims hold, the construction offers a route to complementary protection against both small Gaussian and large abrupt displacements within continuous encodings, potentially bypassing the CV Gaussian no-go theorem via Steane-GKP duality. The reported variance suppression factor and the relaxation of squeezing thresholds would be relevant for experimental CV error correction.
major comments (2)
- [Concatenated code construction and Steane-GKP duality section] The central claim of unbiased lattice-crossing correction and the associated success probability (abstract) rests on the outer analog Steane code acting as a perfect, non-disturbing detector that introduces neither residual displacements nor correlations across qumodes; however, the manuscript provides no explicit error-propagation analysis or circuit-level derivation showing the absence of back-action on the inner GKP encoding.
- [Analytical results under infinite squeezing] The 50% Gaussian variance suppression under infinite squeezing (abstract) is presented as an analytical result derived from the code structure, but without the full set of defining equations for the concatenated operations or the explicit calculation of the residual error after Steane correction, it is not possible to confirm that the factor is parameter-free or independent of post-hoc assumptions.
minor comments (2)
- [Abstract] Clarify whether the 'up to 50 percent' suppression is a worst-case, average, or maximum value and under precisely which error model it is attained.
- [Introduction] The introduction would benefit from additional references to prior GKP concatenation schemes and CV no-go theorem results to better situate the novelty of the Steane-GKP duality approach.
Simulated Author's Rebuttal
We thank the referee for their thorough review and valuable feedback on our manuscript. We address each of the major comments below and outline the revisions we will make to strengthen the presentation of the concatenated code construction and the analytical results.
read point-by-point responses
-
Referee: [Concatenated code construction and Steane-GKP duality section] The central claim of unbiased lattice-crossing correction and the associated success probability (abstract) rests on the outer analog Steane code acting as a perfect, non-disturbing detector that introduces neither residual displacements nor correlations across qumodes; however, the manuscript provides no explicit error-propagation analysis or circuit-level derivation showing the absence of back-action on the inner GKP encoding.
Authors: We agree with the referee that an explicit error-propagation analysis would clarify the non-disturbing nature of the outer code. In the revised manuscript, we will add a new subsection providing a circuit-level derivation. This will include the measurement operators for the analog Steane code and demonstrate through error tracking that no additional displacements or correlations are introduced to the inner GKP-encoded qumodes, thereby supporting the unbiased correction and the stated success probability. revision: yes
-
Referee: [Analytical results under infinite squeezing] The 50% Gaussian variance suppression under infinite squeezing (abstract) is presented as an analytical result derived from the code structure, but without the full set of defining equations for the concatenated operations or the explicit calculation of the residual error after Steane correction, it is not possible to confirm that the factor is parameter-free or independent of post-hoc assumptions.
Authors: The 50% suppression factor arises directly from the structure of the concatenated code in the infinite squeezing limit, where the outer Steane code effectively averages the residual displacements over the logical basis without adding variance. The defining equations for the concatenated operations are given in Section II of the manuscript, and the residual error calculation is outlined in the analytical results section. To address the concern, we will include an expanded derivation in the appendix, explicitly computing the post-correction variance and confirming its parameter-free nature in this limit. revision: yes
Circularity Check
Low circularity; 50% variance suppression derived from concatenated code structure under infinite squeezing
full rationale
The paper's central analytical claim of up to 50% Gaussian variance suppression under infinite squeezing follows from the structural properties of the inner GKP states concatenated with the outer analog Steane code, as stated in the abstract. This result is obtained by direct analysis of the dual displacement encoding rather than by fitting parameters to data or by self-referential definitions that rename inputs as outputs. The invocation of Steane-GKP duality for complementary protection is presented as a known encoding feature enabling unbiased lattice-crossing correction, without reducing the derivation to a load-bearing self-citation chain or an ansatz smuggled from prior author work. No equations or steps in the provided text exhibit the patterns of self-definitional closure, fitted inputs called predictions, or uniqueness imported from the authors themselves. The derivation is therefore self-contained against the stated assumptions and external benchmarks for CV error correction.
Axiom & Free-Parameter Ledger
axioms (2)
- domain assumption GKP states suppress small Gaussian displacements within their correctable range
- ad hoc to paper The analog Steane code can correct lattice-crossing events as discrete-like errors in the continuous space
Lean theorems connected to this paper
-
IndisputableMonolith/Foundation/RealityFromDistinction.leanreality_from_one_distinction unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
concatenated code suppresses the variance of Gaussian displacement errors across all qumodes by up to 50 percent while enabling unbiased correction of lattice-crossing events
What do these tags mean?
- matches
- The paper's claim is directly supported by a theorem in the formal canon.
- supports
- The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
- extends
- The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
- uses
- The paper appears to rely on the theorem as machinery.
- contradicts
- The paper's claim conflicts with a theorem or certificate in the canon.
- unclear
- Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.
Reference graph
Works this paper leans on
-
[1]
Gaussian Error Suppression 7
-
[2]
A Concatenated Dual Displacement Code for Continuous-Variable Quantum Error Correction
Concatenate Code 8 ∗ fguo22@ncsu.edu † fmuelle@ncsu.edu ‡ q yuanliu@ncsu.edu C. Analysis under Real Conditions 9 D. Experimental Feasibility 10 E. Simulation Results 11 F. Comparison with qubit-based oscillator encoding 12 V. Conclusion 12 Acknowledgments 13 A. Derivation of the Gaussian Error Suppression Formula 13 References 14 I. INTRODUCTION Quantum e...
work page internal anchor Pith review Pith/arXiv arXiv 2025
-
[3]
Gaussian Error Suppression After the feedforward operation shown in Fig. 4, the residual displacement errors on the data and GKP qumodes are given by ξ(out) x,data =ϵ x,data − 1 2 R2√π(ϵx,data +ϵ x,GKP),(20) 8 ξ(out) p,data =ϵ p,data − 1 2 R2√π(ϵp,data +ϵ p,GKP),(21) ξ(out) x,GKP =ϵ x,GKP − 1 2 R2√π(ϵx,data +ϵ x,GKP),(22) ξ(out) p,GKP =ϵ p,GKP − 1 2 R2√π(...
-
[4]
Concatenate Code The lattice structure of the GKP states enables the suppression of small displacement errors by correcting shifts within each unit cell. However, when the displace- ment magnitude exceeds half of the lattice spacing, a lattice-crossing event occurs. For the proposed concate- nated code, the outer analog Steane code is responsible for corr...
-
[5]
P. W. Shor, Scheme for reducing decoherence in quantum computer memory, Phys. Rev. A52, R2493 (1995)
work page 1995
-
[6]
A. M. Steane, Error correcting codes in quantum theory, Phys. Rev. Lett.77, 793 (1996)
work page 1996
-
[7]
Stabilizer Codes and Quantum Error Correction
D. Gottesman,Stabilizer Codes and Quantum Error Cor- rection, Ph.D. thesis, California Institute of Technology (1997), arXiv:quant-ph/9705052
work page internal anchor Pith review Pith/arXiv arXiv 1997
-
[8]
W. Cai, Y. Ma, W. Wang, C.-L. Zou, and L. Sun, Bosonic quantum error correction codes in superconducting quan- tum circuits, Fundam. Res.1, 50 (2021)
work page 2021
-
[9]
A. G. Fowler, M. Mariantoni, J. M. Martinis, and A. N. Cleland, Surface codes: Towards practical large-scale quantum computation, Phys. Rev. A86, 032324 (2012)
work page 2012
-
[10]
G. Q. AI, Suppressing quantum errors by scaling a sur- face code logical qubit, Nature614, 676 (2023)
work page 2023
-
[12]
M. P. Stafford and N. C. Menicucci, Biased gottesman- kitaev-preskill repetition code, Phys. Rev. A108, 052428 (2023)
work page 2023
- [13]
-
[14]
S. L. Braunstein and P. van Loock, Quantum informa- tion with continuous variables, Rev. Mod. Phys.77, 513 (2005)
work page 2005
-
[15]
C. Weedbrook, S. Pirandola, R. Garc´ ıa-Patr´ on, N. J. Cerf, T. C. Ralph, J. H. Shapiro, and S. Lloyd, Gaussian quantum information, Rev. Mod. Phys.84, 621 (2012)
work page 2012
- [16]
- [17]
-
[18]
B. M. Terhal, Quantum error correction for quantum memories, Rev. Mod. Phys.87, 307 (2015)
work page 2015
-
[19]
Y. Xu, Y. Wang, E.-J. Kuo, and V. V. Albert, Qubit- oscillator concatenated codes: Decoding formalism and code comparison, PRX Quantum4, 020342 (2023)
work page 2023
-
[20]
D. Gottesman, A. Kitaev, and J. Preskill, Encoding a qubit in an oscillator, Phys. Rev. A64, 012310 (2001)
work page 2001
-
[21]
S. Glancy and E. Knill, Error analysis for encoding a qubit in an oscillator, Phys. Rev. A73, 012325 (2006)
work page 2006
- [22]
-
[23]
K. Noh, S. M. Girvin, and L. Jiang, Encoding an oscilla- tor into many oscillators, Phys. Rev. Lett.125, 080503 (2020)
work page 2020
-
[24]
S. L. Braunstein, Error correction for continuous quan- tum variables, Phys. Rev. Lett.80, 4084 (1998)
work page 1998
-
[25]
T. Aoki, G. Takahashi, T. Kajiya, J. Yoshikawa, S. L. Braunstein, P. van Loock, and A. Furusawa, Quantum error correction beyond qubits, Nat. Phys.5, 541 (2009)
work page 2009
-
[26]
A. Schuckert, E. Crane, A. V. Gorshkov, M. Hafezi, and M. J. Gullans, Fault-tolerant fermionic quan- tum computing, arXiv preprint arXiv:2411.08955 10.48550/arXiv.2411.08955 (2024)
- [27]
-
[28]
C. Chamberland, K. Noh, P. Arrangoiz-Arriola, E. T. Campbell, C. T. Hann, J. Iverson, H. Putterman, T. C. Bohdanowicz, S. T. Flammia,et al., Building a fault-tolerant quantum computer using concatenated cat codes, PRX Quantum3, 010329 (2022)
work page 2022
-
[29]
Steane, Multiple-particle interference and quantum er- ror correction, Proc
A. Steane, Multiple-particle interference and quantum er- ror correction, Proc. R. Soc. A452, 2551 (1996)
work page 1996
-
[30]
T. Kalajdzievski and J. M. Arrazola, Exact gate decom- positions for photonic quantum computing, Phys. Rev. A99, 022341 (2019)
work page 2019
-
[31]
D. Su, C. Weedbrook, and K. Br´ adler, Correcting fi- nite squeezing errors in continuous-variable cluster states, Phys. Rev. A98, 042304 (2018)
work page 2018
-
[32]
Y. Liu, S. Singh, K. C. Smith, E. Crane, J. M. Mar- tyn, A. Eickbusch, A. Schuckert, R. D. Li, J. Sinanan- Singh, M. B. Soley, T. Tsunoda, I. L. Chuang, N. Wiebe, and S. M. Girvin, Hybrid oscillator-qubit quantum pro- cessors: Instruction set architectures, abstract machine models, and applications, PRX Quantum 10.1103/4rf7- 9tfx (2025)
-
[33]
J. i. Yoshikawa, Y. Miwa, A. Huck, U. L. Andersen, P. van Loock, and A. Furusawa, Demonstration of a quantum nondemolition sum gate, Phys. Rev. Lett.101, 250501 (2008)
work page 2008
-
[34]
E. Knill and R. Laflamme, Theory of quantum error- correcting codes, Phys. Rev. A55, 900 (1997)
work page 1997
-
[35]
S. Lloyd and J.-J. E. Slotine, Analog quantum error cor- rection, Phys. Rev. Lett.80, 4088 (1998)
work page 1998
-
[36]
E. T. Hockings, A. C. Doherty, and R. Harper, Scal- able noise characterization of syndrome-extraction cir- cuits with averaged circuit eigenvalue sampling, PRX Quantum6, 010334 (2025)
work page 2025
- [37]
-
[38]
C. Gonz´ alez-Arciniegas, P. Nussenzveig, M. Martinelli, and O. Pfister, Cluster states from gaussian states: Es- sential diagnostic tools for continuous-variable one-way quantum computing, PRX Quantum2, 030343 (2021)
work page 2021
-
[39]
B. W. Walshe, B. Q. Baragiola, R. N. Alexander, and N. C. Menicucci, Continuous-variable gate teleportation and bosonic-code error correction, Phys. Rev. A102, 062411 (2020)
work page 2020
-
[40]
L. Hu, Y. Ma, W. Cai, X. Mu, Y. Xu, W. Wang, Y. Wu, H. Wang, Y. Song, C. Zou, S. M. Girvin, L.-M. Duan, and L. Sun, Demonstration of quantum error correction and universal gate set on a binomial bosonic logical qubit, Nat. Phys.15, 503 (2019)
work page 2019
-
[41]
S. Hao, X. Deng, X. Su, X. Jia, C. Xie, and K. Peng, Gates for one-way quantum computation based on einstein-podolsky-rosen entanglement, Phys. Rev. A89, 032311 (2014)
work page 2014
-
[42]
T. Kalajdzievski and N. Quesada, Exact and approxi- mate continuous-variable gate decompositions, Quantum 5, 394 (2021)
work page 2021
-
[43]
Walschaers, Non-gaussian quantum states and where to find them, PRX Quantum2, 030204 (2021)
M. Walschaers, Non-gaussian quantum states and where to find them, PRX Quantum2, 030204 (2021)
work page 2021
- [44]
-
[45]
T. C. Ralph, Quantum error correction of continuous- variable states against gaussian noise, Phys. Rev. A84, 022339 (2011)
work page 2011
- [46]
-
[47]
X. Li, J. Wang, Y.-Y. Jiang, G.-M. Xue, X. Cai, J. Zhou, M. Gong, Z.-F. Liu, S.-Y. Zheng, D.-K. Ma, M. Chen, W.-J. Sun, S. Yang, F. Yan, Y.-R. Jin, S.-P. Zhao, X.-F. Ding, and H.-F. Yu, Cosmic-ray-induced correlated errors in superconducting qubit array, Nat. Commun.16, 4677 (2025)
work page 2025
- [48]
-
[49]
Schnabel, Squeezed states of light and their applica- tions in laser interferometers, Phys
R. Schnabel, Squeezed states of light and their applica- tions in laser interferometers, Phys. Rep.684, 1 (2017)
work page 2017
- [50]
- [51]
-
[52]
R. J. Epstein, S. Seidelin, D. Leibfried, J. H. Wesenberg, J. J. Bollinger, J. M. Amini, R. B. Blakestad, J. Britton, J. P. Home, D. Lucas, D. Stick, P. K. Ghosh, C. Mon- roe, and D. J. Wineland, Simplified motional heating rate measurements of trapped ions, Phys. Rev. A76, 033411 (2007)
work page 2007
-
[53]
N. Ofek, A. Petrenko, R. Heeres, P. Reinhold, Z. Leghtas, B. Vlastakis, Y. Liu, L. Frunzio, S. M. Girvin, L. Jiang, M. Mirrahimi, M. H. Devoret, and R. J. Schoelkopf, Ex- tending the lifetime of a quantum bit with error correc- tion in superconducting circuits, Nature536, 441 (2016)
work page 2016
-
[54]
N. Wang, S. Du, W. Liu, X. Wang, Y. Li, and K. Peng, Long-distance continuous-variable quantum key distri- bution with entangled states, Phys. Rev. Applied10, 064028 (2018)
work page 2018
-
[55]
Y. Lu, A. Maiti, J. W. O. Garmon, S. Ganjam, Y. Zhang, J. Claes, L. Frunzio, S. M. Girvin, and R. J. Schoelkopf, High-fidelity parametric beamsplitting with a parity- protected converter, Nature Communications14, 5767 (2023)
work page 2023
-
[56]
Z. Leghtas, S. Touzard, I. M. Pop, A. Kou, B. Vlastakis, A. Petrenko, K. M. Sliwa, A. Narla, S. Shankar, and M. H. Devoret, Confining the state of light to a quantum manifold by engineered two-photon loss, Science347, 853 (2015)
work page 2015
-
[57]
C. C. Bultink, B. Tarasinski, N. Haandbæk, S. Poletto, N. Haider, D. J. Michalak, A. Bruno, and L. DiCarlo, General method for extracting the quantum efficiency of dispersive qubit readout in circuit qed, Applied Physics Letters112, 092601 (2018)
work page 2018
-
[58]
L. H¨ anggli and R. K¨ onig, Oscillator-to-oscillator codes do not have a threshold, IEEE Transactions on Information Theory68, 1068 (2022)
work page 2022
-
[59]
P. C. Encinar, A. Agust´ ı, and C. Sab´ ın, Digital quan- tum simulation of beam splitters and squeezing with ibm quantum computers, Phys. Rev. A104, 052609 (2021)
work page 2021
