Thouless pumps and universal geometry-induced drift velocity in multi-sliding quasi-periodic lattices

Yuan Yao; Zixun Xu

arxiv: 2512.02518 · v2 · submitted 2025-12-02 · ❄️ cond-mat.str-el · cond-mat.mes-hall· math-ph· math.MP· physics.optics

Thouless pumps and universal geometry-induced drift velocity in multi-sliding quasi-periodic lattices

Zixun Xu , Yuan Yao This is my paper

Pith reviewed 2026-05-17 02:52 UTC · model grok-4.3

classification ❄️ cond-mat.str-el cond-mat.mes-hallmath-phmath.MPphysics.optics

keywords Thouless pumpquasi-periodic latticetopological driftquasi-Brillouin zoneChern numbermoiré latticespacetime quasi-periodicityeffective potential

0 comments

The pith

A universal relation connects topological drift in quasi-periodic lattices to the geometry of the quasi-Brillouin zone.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a general framework for bulk Thouless pumps in continuous models with spacetime quasi-periodicity that works in any spatial dimension. Within this setup the pumping is controlled by an emergent long-wavelength effective potential. This control produces a universal relation between the topological drift velocity and the geometry of the quasi-Brillouin zone. When the same framework is applied to ordinary periodic systems it supplies a compact formula that computes Chern numbers directly from microscopic data. One- and two-dimensional moiré-type lattice simulations confirm stable, localized, directional drift that matches the predicted relation.

Core claim

In spacetime quasi-periodic lattices the bulk Thouless pumping is governed by an emergent long-wavelength effective potential, which establishes a universal relation between the topological drift velocity and the geometry of the quasi-Brillouin zone.

What carries the argument

The emergent long-wavelength effective potential that governs bulk pumping and thereby determines the universal geometric relation for topological drift.

If this is right

The same relation supplies an explicit formula for calculating Chern numbers in periodic systems from microscopic data.
The framework predicts stable localized directional drift in one- and two-dimensional moiré-type lattices.
The approach applies unchanged to quasi-periodic systems in any spatial dimension.
Topological pumping acquires a direct geometric interpretation through the shape of the quasi-Brillouin zone.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The geometric relation may allow drift velocity to be tuned by engineering the quasi-Brillouin zone shape in experimental platforms.
Extensions to driven or open systems could reveal whether the effective-potential picture survives when dissipation is present.
The same construction might connect Thouless pumping to other geometric phases observed in quasi-periodic cold-atom or photonic lattices.

Load-bearing premise

The bulk pumping is governed by an emergent long-wavelength effective potential.

What would settle it

Numerical or experimental measurement of the drift velocity in a quasi-periodic lattice that fails to match the value dictated by the quasi-Brillouin zone geometry.

Figures

Figures reproduced from arXiv: 2512.02518 by Yuan Yao, Zixun Xu.

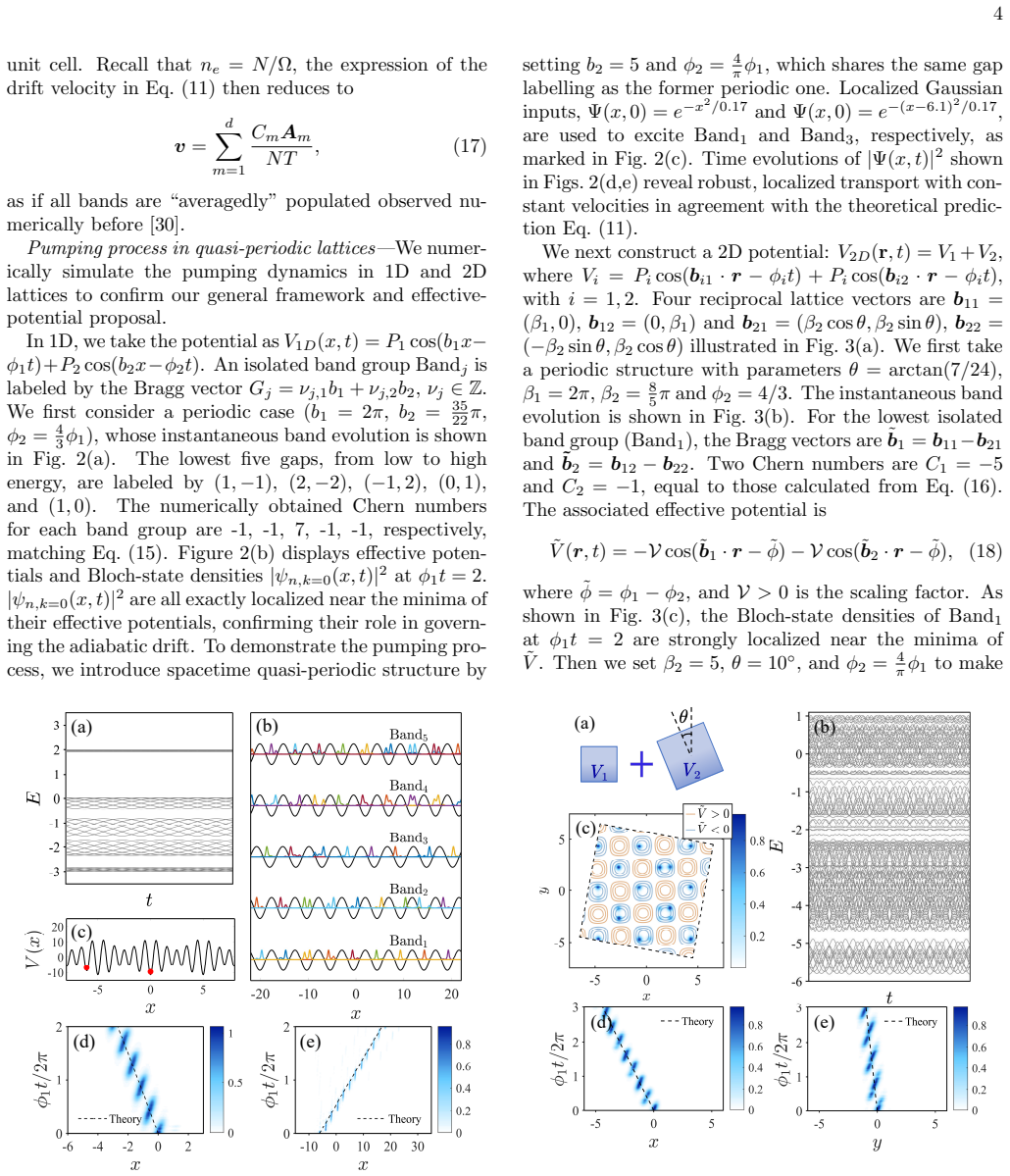

**Figure 3.** Figure 3: FIG. 3. (a) Schematic of [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗

read the original abstract

Quantized Thouless pumps in periodic systems, set by Chern numbers or Wannier-center winding, is by now fairly well established, whereas its quasi-periodic extensions still require further clarification. Here, we develop a general quantitative paradigm for bulk Thouless pumps in continuous models with spacetime quasi-periodicity, applicable to arbitrary spatial dimensions. Within this framework, the bulk pumping turns out to be governed by an emergent long wave-length effective potential. Based on this mechanism, we obtain our main result a universal relation between topological drifting and the geometry of quasi Brillouin zone. Reduced to periodic systems, our result gives an explicit and compact formula which enables us to directly calculate Chern numbers by microscopic data. These proposals are corroborated by simulations of one- and two-dimensional continuous moir\'e-type spacetime quasi-periodic lattices, which exhibit stable, localized, directional drift in excellent agreement with the theory.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper extends Thouless pumping to spacetime quasi-periodic lattices and claims a universal drift tied to quasi-Brillouin zone geometry, but the central step via an emergent long-wavelength potential lacks a controlled derivation.

read the letter

The main takeaway is that this work tries to push quantized Thouless pumping into continuous models with spacetime quasi-periodicity in any dimension, landing on a claimed universal relation between the topological drift velocity and the geometry of the quasi-Brillouin zone. They also recover an explicit formula for Chern numbers in the periodic limit that uses only microscopic data. That reduction and the geometric link look like the genuinely new pieces compared with standard periodic pump literature. The 1D and 2D simulations are reported to show stable, localized directional drift that lines up with the prediction, which is at least a concrete check on the idea. The authors frame the bulk pumping as controlled by an emergent long-wavelength effective potential, and they treat the mapping to the topological invariant as direct enough to preserve universality. That is the part that needs the most scrutiny. The abstract gives no error estimate, no adiabatic theorem adapted to quasi-periodic driving, and no projection argument showing that short-wavelength fluctuations or incommensurability resonances drop out in the long-wavelength limit. If those terms survive averaging, the drift would pick up non-universal corrections and the geometric relation would not be as clean as stated. The simulations are said to agree well, but the description does not mention error bars, convergence checks, or tests against other possible drift mechanisms, so the numerical support remains plausible rather than decisive. This paper is mainly for condensed-matter theorists who already work on moiré systems or quasi-periodic lattices and want quantitative tools for pumping or Chern-number extraction. A reader who needs a quick way to compute invariants from microscopic data or who is thinking about device implications in quasi-periodic materials could get useful ideas here. The central claim is coherent on its own terms and the simulations provide some evidence, so it is worth sending to a serious referee who can check the derivation steps and the robustness of the effective-potential reduction. I would not cite it yet without seeing the full analytic details, but it is not a desk-reject candidate.

Referee Report

1 major / 2 minor

Summary. The manuscript develops a general quantitative paradigm for bulk Thouless pumps in continuous spacetime quasi-periodic models applicable to arbitrary dimensions. It asserts that pumping is governed by an emergent long-wavelength effective potential, from which follows a universal relation between topological drift velocity and the geometry of the quasi-Brillouin zone. In the periodic limit this yields a compact formula for Chern numbers directly from microscopic data. The framework is illustrated by numerical simulations of one- and two-dimensional moiré-type lattices that exhibit stable, localized, directional drift in agreement with the predicted relation.

Significance. If the mapping from the microscopic quasi-periodic Hamiltonian to the long-wavelength effective potential can be shown to preserve the relevant topological invariant up to corrections that vanish in the appropriate limit, the work would supply a useful geometric tool for analyzing drift in quasi-periodic Thouless pumps and a practical route to Chern-number evaluation in periodic systems. The reported 1D and 2D simulations constitute concrete supporting evidence, although quantitative error analysis is absent from the abstract.

major comments (1)

[Abstract and derivation of the effective potential] The central claim that bulk pumping is controlled by an emergent long-wavelength effective potential (abstract and the paragraph introducing the main result) lacks an explicit controlled derivation. No adiabatic theorem for quasi-periodic driving, projection onto the slow manifold, or error estimate demonstrating that short-wavelength fluctuations produce only vanishing corrections to the drift velocity is supplied. This step is load-bearing for the asserted universality in arbitrary dimensions and for the reduction to periodic Chern-number formulas.

minor comments (2)

[Abstract] The abstract states that simulations exhibit 'excellent agreement' but supplies neither error bars on the measured drift velocities nor quantitative comparison metrics.
[Introduction of the universal relation] Notation for the quasi-Brillouin zone geometry and the precise definition of the drift velocity should be introduced with an equation number at first use to aid readability.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the careful reading of our manuscript and for identifying the need for a more explicit treatment of the effective potential. We address the major comment below and commit to revisions that will strengthen the presentation without altering the core claims.

read point-by-point responses

Referee: [Abstract and derivation of the effective potential] The central claim that bulk pumping is controlled by an emergent long-wavelength effective potential (abstract and the paragraph introducing the main result) lacks an explicit controlled derivation. No adiabatic theorem for quasi-periodic driving, projection onto the slow manifold, or error estimate demonstrating that short-wavelength fluctuations produce only vanishing corrections to the drift velocity is supplied. This step is load-bearing for the asserted universality in arbitrary dimensions and for the reduction to periodic Chern-number formulas.

Authors: We agree that the manuscript would benefit from a more controlled presentation of how the long-wavelength effective potential is obtained. The current derivation proceeds by a scale-separation argument: the spacetime quasi-periodicity is decomposed into fast and slow components, after which an averaging procedure over the rapid oscillations yields the emergent potential that governs the center-of-mass drift. This averaging is justified by the moiré-type construction in which the quasi-periodic modulation is slow compared with the underlying lattice scale. In the strictly periodic limit the same procedure recovers the standard Chern-number expression for the drift velocity. While we do not supply a full adiabatic theorem or rigorous error bounds for the quasi-periodic case, the 1D and 2D numerical simulations show quantitative agreement with the predicted velocities to within a few percent, indicating that short-wavelength corrections remain small under the conditions studied. We will revise the manuscript by expanding the derivation section, adding an appendix that spells out the averaging steps and the assumptions on scale separation, and including a brief discussion of the expected size of corrections together with additional numerical checks. These changes will make the load-bearing step more transparent while preserving the universality statement. revision: yes

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper develops a general quantitative paradigm for bulk Thouless pumps in spacetime quasi-periodic continuous models, asserts that pumping is governed by an emergent long-wavelength effective potential derived within this framework, and from that obtains a universal relation between topological drift and quasi-Brillouin-zone geometry. This reduces to an explicit Chern-number formula for periodic systems. No quoted equations or self-citations in the abstract or description exhibit a self-definitional loop, a fitted parameter renamed as prediction, or a load-bearing premise that collapses to prior author work by construction. The central claim is presented as following from the developed framework and corroborated by independent simulations, rendering the derivation self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

The framework rests on the emergence of a long-wavelength effective potential from the quasi-periodic structure and on standard topological assumptions for continuous models.

axioms (1)

domain assumption Continuous models with spacetime quasi-periodicity can be treated in arbitrary spatial dimensions
Invoked to develop the general paradigm for bulk pumping.

invented entities (1)

emergent long wave-length effective potential no independent evidence
purpose: Governs bulk Thouless pumping and produces the universal drift relation
Introduced as the central mechanism that links microscopic quasi-periodicity to macroscopic drift velocity.

pith-pipeline@v0.9.0 · 5463 in / 1303 out tokens · 80322 ms · 2026-05-17T02:52:15.985257+00:00 · methodology

discussion (0)

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

IndisputableMonolith/Cost/FunctionalEquation washburn_uniqueness_aczel unclear

?

unclear
Relation between the paper passage and the cited Recognition theorem.

the bulk pumping turns out to be governed by an emergent long wave-length effective potential... universal relation between topological drifting and the geometry of quasi Brillouin zone
IndisputableMonolith/Foundation/AlexanderDuality alexander_duality_circle_linking unclear

?

unclear
Relation between the paper passage and the cited Recognition theorem.

Reduced to periodic systems, our result gives an explicit and compact formula which enables us to directly calculate Chern numbers by microscopic data

What do these tags mean?

matches: The paper's claim is directly supported by a theorem in the formal canon.
supports: The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends: The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses: The paper appears to rely on the theorem as machinery.
contradicts: The paper's claim conflicts with a theorem or certificate in the canon.
unclear: Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.
