arxiv: 2512.05014 · v4 · submitted 2025-12-04 · ❄️ cond-mat.mes-hall · quant-ph

Transverse response from anisotropic Fermi surfaces

Abhiram Soori This is my paper

Pith reviewed 2026-05-17 00:55 UTC · model grok-4.3

classification ❄️ cond-mat.mes-hall quant-ph
keywords anisotropic Fermi surfacetransverse conductivitysymmetry breakingzero magnetic fieldBüttiker probelattice modelmultiterminal transportFermi contour rotation
0
0 comments X

The pith

Anisotropic and rotated Fermi surfaces generate finite transverse voltage without magnetic field or Berry curvature.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that breaking the symmetry between positive and negative momenta along one axis in an anisotropic band structure produces a nonzero transverse conductivity. This occurs when the Fermi surface is rotated away from the principal transport directions. Both a continuum model and a lattice model with direction-dependent hoppings are used to compute the effect in a multiterminal geometry via the Büttiker-probe method. The resulting transverse voltage scales with the strength of anisotropy and disappears when rotation restores mirror symmetry. This mechanism supplies a purely symmetry-based route to transverse responses in ordinary materials.

Core claim

An anisotropic and rotated Fermi surface generates a finite transverse response in electron transport even in the absence of a magnetic field or Berry curvature. Broken k_y to -k_y symmetry inherent to anisotropic bandstructures leads to a nonzero transverse conductivity, shown first in a two-dimensional continuum model. A lattice model with direction-dependent nearest- and next-nearest-neighbor hoppings reproduces the continuum dispersion and permits controlled rotation of the Fermi contour. Multiterminal Büttiker-probe calculations yield a transverse voltage that matches the continuum result, increases with anisotropy, and vanishes at angles restoring mirror symmetry. The response varies-1

What carries the argument

Broken k_y to -k_y symmetry arising from an anisotropic and rotated Fermi surface, which permits a nonzero transverse conductivity in the absence of external fields.

Load-bearing premise

The lattice model with direction-dependent hoppings faithfully reproduces the continuum dispersion and the Büttiker-probe calculation isolates the transverse voltage arising solely from the broken symmetry.

What would settle it

Measuring zero transverse voltage in zero magnetic field for a material with a rotated anisotropic Fermi surface, or finding that the voltage does not increase with anisotropy or vanish at symmetry-restoring angles, would falsify the central claim.

Figures

Figures reproduced from arXiv: 2512.05014 by Abhiram Soori.

Figure 1

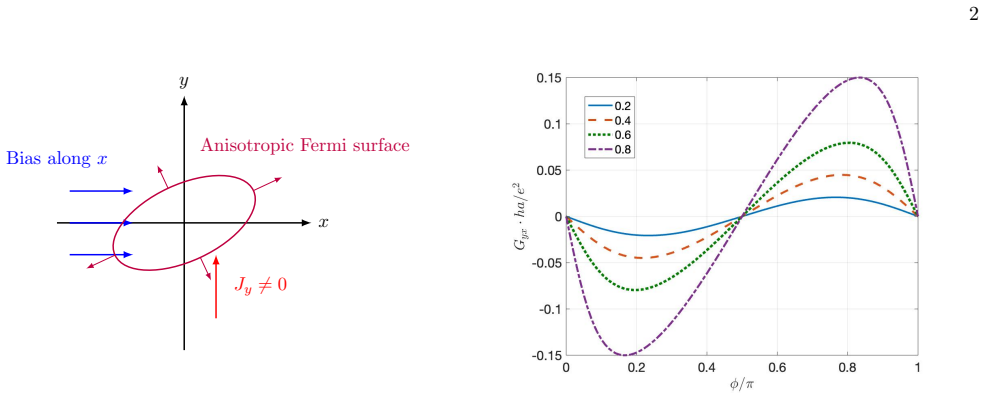

Figure 1. Figure 1: FIG. 1. A two-dimensional electron gas with an anisotropic [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3. Schematic of the lattice-based setup used to probe the transverse response arising from an anisotropic Fermi con [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4. (a) Transverse voltage as a function of [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗

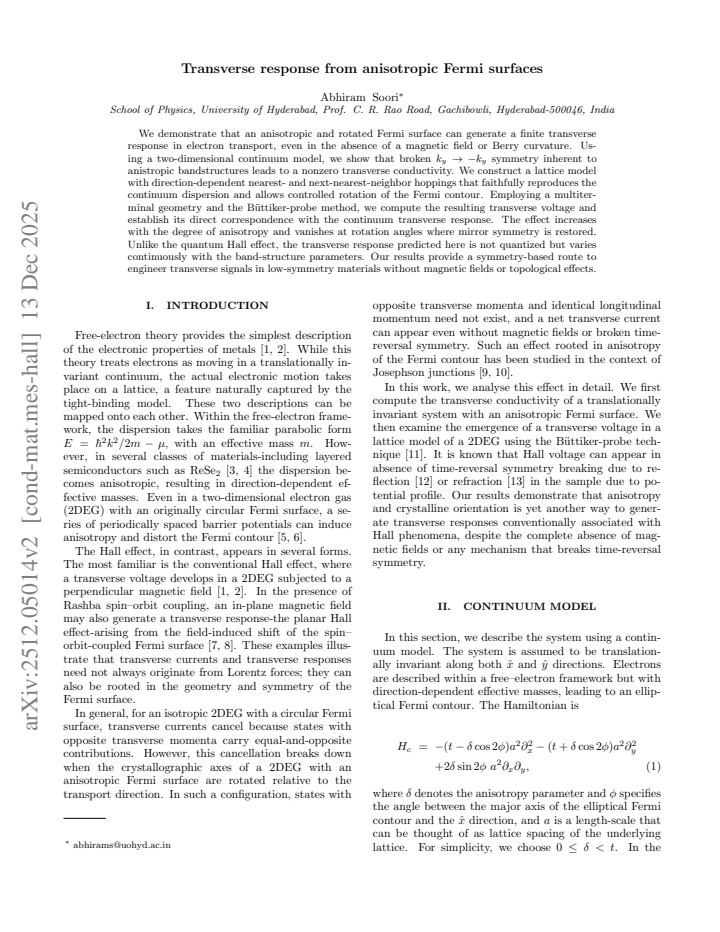

read the original abstract

We demonstrate that an anisotropic and rotated Fermi surface can generate a finite transverse response in electron transport, even in the absence of a magnetic field or Berry curvature. Using a two-dimensional continuum model, we show that broken $k_y \to -k_y$ symmetry inherent to anistropic bandstructures leads to a nonzero transverse conductivity. We construct a lattice model with direction-dependent nearest- and next-nearest-neighbor hoppings that faithfully reproduces the continuum dispersion and allows controlled rotation of the Fermi contour. Employing a multiterminal geometry and the B\"uttiker-probe method, we compute the resulting transverse voltage and establish its direct correspondence with the continuum transverse response. The effect increases with the degree of anisotropy and vanishes at rotation angles where mirror symmetry is restored. Unlike the quantum Hall effect, the transverse response predicted here is not quantized but varies continuously with the band-structure parameters. Our results provide a symmetry-based route to engineer transverse signals in low-symmetry materials without magnetic fields or topological effects.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper claims that an anisotropic and rotated Fermi surface in a 2D electron system generates a finite transverse response in multiterminal transport even without magnetic field or Berry curvature. A continuum model shows that broken k_y to -k_y symmetry produces nonzero transverse conductivity; a lattice model with direction-dependent hoppings is constructed to reproduce the continuum dispersion and allow controlled Fermi-contour rotation; a Büttiker-probe calculation in a multiterminal geometry is used to extract the transverse voltage and demonstrate its direct correspondence to the continuum result. The response grows with anisotropy strength and vanishes when mirror symmetry is restored.

Significance. If the numerical results unambiguously isolate the bulk effect from geometric artifacts, the work supplies a symmetry-based mechanism for engineering continuous, non-quantized transverse signals in low-symmetry 2D materials. It complements existing routes (quantum Hall, anomalous Hall, Berry curvature) and could be relevant for anisotropic heterostructures or engineered lattices where rotation and anisotropy are tunable.

major comments (2)
  1. [Lattice model construction] The central claim rests on the lattice model faithfully reproducing the continuum dispersion (including higher-order terms that affect the Fermi contour shape). The manuscript must supply explicit quantitative comparisons—e.g., overlaid dispersion plots or Fermi-surface contours for representative anisotropy strengths and rotation angles—otherwise mismatches could generate spurious transverse voltages unrelated to the intended k_y → -k_y breaking.
  2. [Multiterminal transport calculation] The Büttiker-probe implementation in the multiterminal geometry must be shown to enforce current conservation and ideal voltage-probe conditions without introducing effective scattering or contact-induced symmetry breaking that mimics the bulk off-diagonal conductivity. Explicit checks (lead-parameter independence, current-sum verification, comparison to direct Kubo or Landauer-Büttiker formulas) are required to attribute the computed transverse voltage solely to the rotated anisotropic dispersion.
minor comments (1)
  1. [Abstract] The abstract contains the typographical error 'anistropic' (should be 'anisotropic').

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading of our manuscript and the constructive suggestions. We address each major comment below and will revise the manuscript to incorporate additional explicit validations and comparisons.

read point-by-point responses

  1. Referee: [Lattice model construction] The central claim rests on the lattice model faithfully reproducing the continuum dispersion (including higher-order terms that affect the Fermi contour shape). The manuscript must supply explicit quantitative comparisons—e.g., overlaid dispersion plots or Fermi-surface contours for representative anisotropy strengths and rotation angles—otherwise mismatches could generate spurious transverse voltages unrelated to the intended k_y → -k_y breaking.

    Authors: We agree that explicit quantitative comparisons are necessary to substantiate the claim that the lattice model reproduces the continuum dispersion, including higher-order terms. The original manuscript states that the lattice model with direction-dependent hoppings faithfully reproduces the continuum dispersion and permits controlled Fermi-contour rotation, but we acknowledge that overlaid plots were not included. In the revised manuscript we will add figures displaying overlaid energy dispersions along principal directions and Fermi-surface contours for multiple anisotropy strengths and rotation angles. These comparisons will quantify the agreement and confirm that the transverse response arises from the broken mirror symmetry rather than any unintended mismatch between models. revision: yes

  2. Referee: [Multiterminal transport calculation] The Büttiker-probe implementation in the multiterminal geometry must be shown to enforce current conservation and ideal voltage-probe conditions without introducing effective scattering or contact-induced symmetry breaking that mimics the bulk off-diagonal conductivity. Explicit checks (lead-parameter independence, current-sum verification, comparison to direct Kubo or Landauer-Büttiker formulas) are required to attribute the computed transverse voltage solely to the rotated anisotropic dispersion.

    Authors: We appreciate the referee’s request for explicit numerical validation of the transport setup. Our Büttiker-probe implementation was designed to model ideal voltage probes while preserving current conservation. To make these properties transparent, the revised manuscript will include: (i) explicit verification that the sum of currents through all terminals vanishes within numerical tolerance, (ii) results demonstrating that the extracted transverse voltage is independent of lead coupling strength over a suitable range, and (iii) a direct comparison of the transverse conductivity obtained from the multiterminal geometry with the Landauer–Büttiker formula applied to the same lattice model. These checks will establish that the observed signal originates from the bulk rotated anisotropic dispersion. revision: yes

Circularity Check

0 steps flagged

No significant circularity detected in the derivation chain.

full rationale

The paper starts from an explicit continuum dispersion with rotated anisotropy that breaks k_y to -k_y symmetry by construction, computes the resulting nonzero transverse conductivity via direct integration over the Fermi surface, then builds a lattice Hamiltonian whose hoppings are chosen to reproduce that same dispersion, and finally evaluates the multiterminal voltages with the Büttiker-probe formalism. Each step is an independent forward calculation from the chosen band parameters; the transverse voltage is not obtained by fitting to itself, by renaming a prior result, or by a self-citation that supplies the central claim. The numerical output therefore constitutes genuine evidence for the symmetry-based mechanism rather than a tautology.

Axiom & Free-Parameter Ledger

2 free parameters · 2 axioms · 0 invented entities

The claim rests on standard single-particle band theory and semiclassical transport; the new elements are the explicit anisotropy and rotation parameters introduced to break k_y symmetry.

free parameters (2)
  • anisotropy strength
    Parameter controlling the ellipticity of the Fermi contour; effect size increases with this parameter.
  • rotation angle
    Angle that orients the principal axes of the ellipse relative to the transport direction; response vanishes at symmetry-restoring angles.
axioms (2)
  • domain assumption A square-lattice tight-binding model with direction-dependent hoppings can reproduce any desired elliptical continuum dispersion.
    Invoked when constructing the lattice model that allows controlled rotation.
  • domain assumption The Büttiker-probe method in a multiterminal geometry isolates the transverse voltage arising purely from band anisotropy.
    Used to compute the observable voltage from the lattice model.

pith-pipeline@v0.9.0 · 5460 in / 1503 out tokens · 50260 ms · 2026-05-17T00:55:20.642408+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

17 extracted references · 17 canonical work pages · 1 internal anchor

  1. [1]

    Kittel,Introduction to Solid State Physics(Wiley In- dia, Noida, 2004)

    C. Kittel,Introduction to Solid State Physics(Wiley In- dia, Noida, 2004)

    work page 2004

  2. [2]

    N. W. Ashcroft and N. D. Mermin,Solid State Physics (Holt-Saunders, 1976)

    work page 1976

  3. [3]

    Lin, H.-P

    Y.-C. Lin, H.-P. Komsa, C.-H. Yeh, T. Bj¨ orkman, Z.- Y. Liang, C.-H. Ho, Y.-S. Huang, P.-W. Chiu, A. V. Krasheninnikov, and K. Suenaga, Single-layer ReS 2: Two-dimensional semiconductor with tunable in-plane anisotropy, ACS Nano9, 11249 (2015)

    work page 2015

  4. [4]

    X. Liu, Y. Yuan, Z. Wang, R. S. Deacon, W. J. Yoo, J. Sun, and K. Ishibashi, Directly probing effective-mass anisotropy of two-dimensional ReSe 2 in Schottky tunnel transistors, Phys. Rev. Applied13, 044056 (2020)

    work page 2020

  5. [5]

    Ismail, W

    K. Ismail, W. Chu, D. A. Antoniadis, and H. I. Smith, Surface-superlattice effects in a grating-gate GaAs/GaAlAs modulation doped field-effect transistor, App. Phys. Lett.52, 1071 (1988)

    work page 1988

  6. [6]

    C. W. J. Beenakker and H. van Houten, Quantum trans- port in semiconductor nanostructures, inSemiconduc- tor Heterostructures and Nanostructures, Solid State Physics, Vol. 44, edited by H. Ehrenreich and D. Turnbull (Academic Press, 1991) pp. 1–228

    work page 1991

  7. [7]

    Wadehra, R

    N. Wadehra, R. Tomar, R. M. Varma, R. K. Gopal, Y. Singh, S. Dattagupta, and S. Chakraverty, Planar Hall effect and anisotropic magnetoresistance in polar-polar interface of LaVO3 −KTaO 3 with strong spin-orbit cou- pling, Nat. Commun.11, 874 (2020)

    work page 2020

  8. [8]

    A. Soori, Finite transverse conductance and anisotropic magnetoconductance under an applied in-plane mag- netic field in two-dimensional electron gases with strong spin–orbit coupling, J. Phys.: Condens. Matter33, 335303 (2021)

    work page 2021

  9. [9]

    B. K. Sahoo and A. Soori, Four-terminal Josephson junc- tions: diode effects, anomalous currents and transverse currents, J. Phys.: Condens. Matter37, 305302 (2025)

    work page 2025

  10. [10]

    Enhanced Andreev Reflection in Flat-Band Systems: Wave Packet Dynamics, DC Transport and the Josephson Effect

    S. Mazumdar, A. Mukherjee, K. Saha, and S. Das, En- hanced Andreev reflection in flat-band systems: Wave packet dynamics, dc transport and the Josephson effect (2025), arXiv:2507.06327 [cond-mat.supr-con]

    work page internal anchor Pith review Pith/arXiv arXiv 2025

  11. [11]

    Soori and U

    A. Soori and U. Khanna, Decoherence in electron trans- port: back-scattering, effect on interference and rectifi- cation, Physica Scripta99, 115957 (2024)

    work page 2024

  12. [12]

    A. M. Song, A. Lorke, A. Kriele, J. P. Kotthaus, W. Wegscheider, and M. Bichler, Nonlinear electron transport in an asymmetric microjunction: A ballistic rectifier, Phys. Rev. Lett.80, 3831 (1998)

    work page 1998

  13. [13]

    Sarkar, A

    R. Sarkar, A. Bandyopadhyay, A. Narayan, and D. Sen, Refraction Hall effect (2025), arXiv:2511.15337 [cond- mat.mes-hall]

    work page arXiv 2025

  14. [14]

    Sharma and M

    L. Sharma and M. Thakurathi, Tunable Josephson 6 diode effect in singlet superconductor-altermagnet-triplet superconductor junctions, Phys. Rev. B112, 104506 (2025)

    work page 2025

  15. [15]

    K. v. Klitzing, G. Dorda, and M. Pepper, New method for high-accuracy determination of the fine-structure con- stant based on quantized Hall resistance, Phys. Rev. Lett. 45, 494 (1980)

    work page 1980

  16. [16]

    ˇSmejkal, J

    L. ˇSmejkal, J. Sinova, and T. Jungwirth, Emerging re- search landscape of altermagnetism, Phys. Rev. X12, 040501 (2022)

    work page 2022

  17. [17]

    C. Song, H. Bai, Z. Zhou, L. Han, H. Reichlova, J. H. Dil, J. Liu, X. Chen, and F. Pan, Altermagnets as a new class of functional materials, Nature Reviews Materials 10, 473 (2025)

    work page 2025
