Probing spatially resolved spin density correlations with trapped excitons

Aleksi Julku; G. M. Bruun; Jose Antonio Valerrama Botia; Shanshan Ding; Zhigang Wu

arxiv: 2512.14144 · v1 · submitted 2025-12-16 · ❄️ cond-mat.mes-hall

Probing spatially resolved spin density correlations with trapped excitons

Shanshan Ding , Jose Antonio Valerrama Botia , Aleksi Julku , Zhigang Wu , G. M. Bruun This is my paper

Pith reviewed 2026-05-16 22:23 UTC · model grok-4.3

classification ❄️ cond-mat.mes-hall

keywords excitonsmoiré latticespin density correlationsvan der Waals materialsoptical probeantiferromagnetismsuperconducting pairing

0 comments

The pith

Excitons trapped in a moiré lattice measure spatially resolved electron spin density correlations via spectroscopic energy shifts.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that excitons trapped in a moiré lattice act as an optical probe for electron spin density correlations in two-dimensional van der Waals materials. Electrons virtually tunnel to the lattice, scatter on the excitons, and return, inducing an effective interaction that produces energy shifts proportional to the two-point spin density-density correlation function at the exciton positions. A sympathetic reader would care because standard probes are inefficient in these atomically thin systems, and this approach provides a spectroscopic route to local spin properties that define many predicted quantum phases.

Core claim

Using second order perturbation theory combined with a solution to the exciton-electron scattering problem, we show that the electrons mediate an interaction between two excitons resulting in an energy shift proportional to their two-point spin density-density correlation function evaluated at the exciton positions. This framework is then applied to show that quantum phase transitions between different in-plane antiferromagnetic orders produce large measurable shifts near critical points, and that different pairing symmetries in superconducting phases yield distinct signatures in the exciton spectrum.

What carries the argument

The effective spin-dependent and spatially localised potential felt by electrons due to virtual tunneling to the moiré lattice and scattering on trapped excitons, which translates into measurable energy shifts in the exciton spectrum.

If this is right

Quantum phase transitions between different in-plane antiferromagnetic orders produce large and measurable shifts in the exciton spectrum near the critical regions.
Different pairing symmetries of superconducting phases lead to distinct signatures in the exciton energy shifts that can be used to identify them.
The scheme provides a new optical method to probe electron spin density correlations, a key property of many quantum phases predicted to exist in 2D materials.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Positioning trapped excitons at variable locations within the moiré lattice could map the spatial dependence of spin correlations across the sample.
The perturbative tunneling-scattering mechanism might generalize to probe other types of electron correlations if the exciton-electron interaction is modified.
Combining this optical readout with electrical gating could allow dynamic tuning of the probe sensitivity in real time.

Load-bearing premise

The virtual tunneling of electrons to the moiré lattice and their scattering on excitons can be accurately captured by second-order perturbation theory without significant higher-order corrections or back-action on the electron system.

What would settle it

An experimental measurement showing that exciton energy shifts fail to match the predicted proportionality to the two-point spin density-density correlation function, or that shifts appear even in regimes where spin correlations are independently known to vanish.

Figures

Figures reproduced from arXiv: 2512.14144 by Aleksi Julku, G. M. Bruun, Jose Antonio Valerrama Botia, Shanshan Ding, Zhigang Wu.

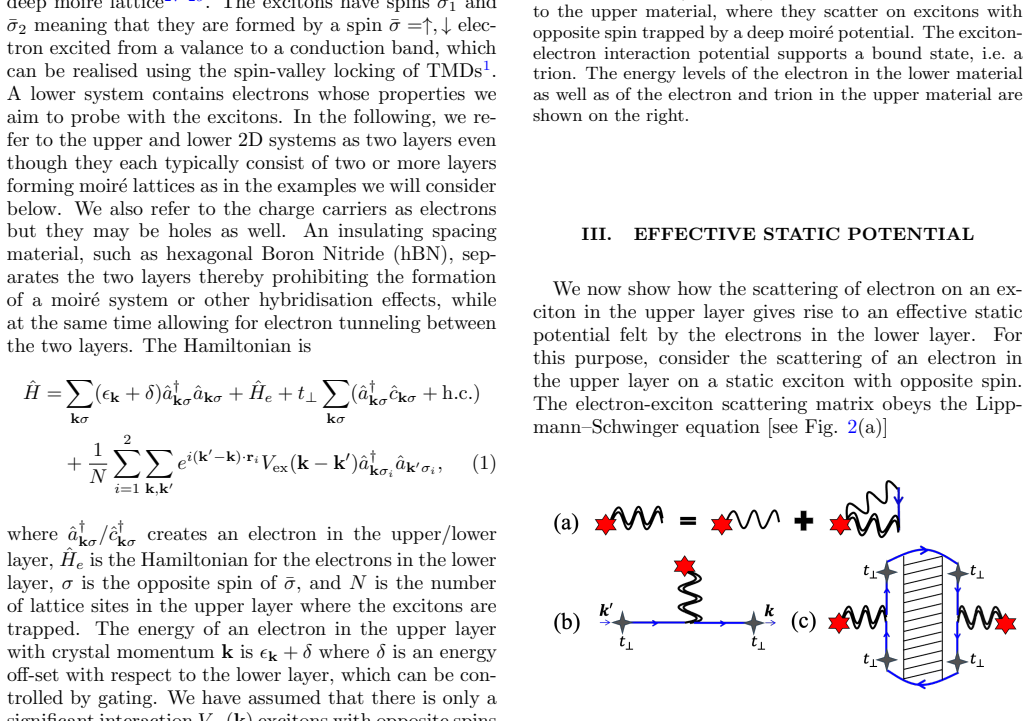

**Figure 2.** Figure 2: FIG. 2. (a) Diagrams for electron-exciton scattering matrix in [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗

**Figure 3.** Figure 3: FIG. 3. The second order energy shift of the spin model given [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗

**Figure 4.** Figure 4: FIG. 4. The second order energy shift for two excitons with [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗

**Figure 5.** Figure 5: FIG. 5. The energy shift of two excitons with anti-parallel [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗

**Figure 6.** Figure 6: FIG. 6. The second order energy shift of two excitons with [PITH_FULL_IMAGE:figures/full_fig_p006_6.png] view at source ↗

**Figure 7.** Figure 7: FIG. 7. Tunneling of an electron(green ball) between two [PITH_FULL_IMAGE:figures/full_fig_p007_7.png] view at source ↗

**Figure 8.** Figure 8: FIG. 8. Tunneling amplitude as a function of the rela [PITH_FULL_IMAGE:figures/full_fig_p008_8.png] view at source ↗

**Figure 9.** Figure 9: FIG. 9. Tunneling amplitudes between chains [PITH_FULL_IMAGE:figures/full_fig_p008_9.png] view at source ↗

**Figure 10.** Figure 10: FIG. 10 [PITH_FULL_IMAGE:figures/full_fig_p009_10.png] view at source ↗

read the original abstract

The rapidly growing class of atomically thin and tunable van der Waals materials is intensely investigated both in the context of fundamental science and for new technologies. There is in this connection a widespread need for new ways to probe the electronic properties of these layered materials, since their two-dimensional (2D) character make conventional probes less efficient. Here, we show how excitons trapped in a moir\'e lattice can be used as an optical probe for spatially resolved electron spin density correlations in such materials. The electrons in the material of interest virtually tunnel to the moir\'e lattice where they scatter on the excitons after which they tunnel back. This gives rise to an effective spin-dependent and spatially localised potential felt by the electrons, which in turn leads to energy shifts that can be measured spectroscopically in the exciton spectrum. Using second order perturbation theory combined with a solution to the exciton-electron scattering problem, we show that the electrons mediate an interaction between two excitons resulting in an energy shift proportional to their two-point spin density-density correlation function evaluated at the exciton positions. We then discuss two specific applications of our setup. First, we show that quantum phase transitions between different in-plane anti-ferromagnetic orders in a 2D lattice give rise to large and measurable shifts in the exciton spectrum in the critical regions. Second, we analyse how different pairing symmetries of superconducting phases can be probed. This demonstrates that our scheme opens up new ways to probe electron spin density correlations, which is a key property of many quantum phases predicted to exist in the new 2D materials.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

This proposes a clean perturbative mapping from moiré-trapped exciton shifts to electron spin-density correlations, but the second-order treatment looks shaky exactly where the authors want to apply it.

read the letter

The paper's central move is to trap excitons in a moiré lattice and use their mutual energy shift, induced by virtual electron tunneling and scattering, as a direct readout of the two-point spin-density correlation function at the exciton sites. They solve the exciton-electron scattering problem and then apply second-order perturbation theory to obtain an effective interaction whose strength is proportional to that correlator. The derivation is straightforward and the applications are spelled out: large spectral shifts near in-plane antiferromagnetic transitions and sensitivity to superconducting pairing symmetries. That mapping is new enough to be worth noticing, and the authors do a decent job connecting the scattering solution to the measurable shift without introducing extra parameters. The math on the page is internally consistent and the cited background on exciton-electron interactions is standard. The soft spot is the regime of validity. The stress-test note is on target: the authors target critical regions and soft superconducting states where correlation lengths diverge and the electron response is strong. In those places the small-tunneling expansion parameter is no longer obviously small, so fourth-order processes or back-action on the electrons could renormalize the simple proportionality. The abstract does not show any estimate of those corrections or a clear window where the second-order formula remains accurate. This is a theoretical proposal aimed at people working on optical probes of 2D quantum phases. A reader who needs concrete ideas for measuring spin correlations will get a usable recipe and two worked examples. It is coherent on its own terms and the central claim is falsifiable in principle, so it deserves a serious referee who can press on the perturbative limits and ask for numerical checks on the scattering solution. I would send it to review rather than desk-reject.

Referee Report

2 major / 1 minor

Summary. The manuscript proposes using excitons trapped in a moiré lattice as an optical probe for spatially resolved electron spin-density correlations in 2D van der Waals materials. Electrons virtually tunnel to the moiré lattice, scatter off the excitons, and tunnel back, generating an effective spin-dependent potential. Second-order perturbation theory combined with a solution of the exciton-electron scattering problem yields an exciton energy shift proportional to the two-point spin density-density correlation function evaluated at the exciton positions. Applications to antiferromagnetic phase transitions and superconducting pairing symmetries are discussed.

Significance. If the perturbative mapping holds, this offers a new spectroscopic tool for spin correlations in 2D materials, particularly useful in regimes where conventional probes are inefficient, with potential to distinguish AFM orders and pairing symmetries. The clean second-order derivation linking scattering to the correlation function is a strength.

major comments (2)

The applications to critical regions of AFM transitions assume the second-order perturbative result remains accurate when correlation lengths diverge, but higher-order terms (O(t^4) and beyond) and back-action on the electron system may become significant, potentially invalidating the direct proportionality to the bare two-point correlator.
Similar issue in the analysis of superconducting pairing symmetries: the soft electron response in those phases may invalidate the neglect of higher-order corrections and back-action assumed in the second-order derivation.

minor comments (1)

The range of validity of the perturbative expansion should be stated more explicitly, including estimates of the tunneling amplitude t relative to other energy scales.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading and the important comments on the range of validity of the second-order perturbative mapping. We address each point below and will revise the manuscript to include a more explicit discussion of the perturbative regime and its limitations.

read point-by-point responses

Referee: The applications to critical regions of AFM transitions assume the second-order perturbative result remains accurate when correlation lengths diverge, but higher-order terms (O(t^4) and beyond) and back-action on the electron system may become significant, potentially invalidating the direct proportionality to the bare two-point correlator.

Authors: We agree that the divergence of the correlation length near an AFM critical point can enhance the importance of higher-order terms in t and of back-action on the electronic system. The leading (second-order) contribution to the exciton energy shift remains strictly proportional to the bare two-point spin-density correlator; higher-order corrections enter as O(t^4) and are parametrically small when the interlayer tunneling amplitude t is sufficiently weak compared with the relevant electronic energy scales. We will add a dedicated paragraph in the revised manuscript that (i) states the perturbative condition explicitly, (ii) provides a rough estimate of the size of O(t^4) corrections using the correlation length as a cutoff, and (iii) notes that the leading term still encodes the symmetry of the AFM order even if quantitative accuracy is reduced near the critical point. revision: partial
Referee: Similar issue in the analysis of superconducting pairing symmetries: the soft electron response in those phases may invalidate the neglect of higher-order corrections and back-action assumed in the second-order derivation.

Authors: We acknowledge that soft collective modes in a superconductor can in principle amplify higher-order virtual processes. Within our framework the exciton-electron scattering amplitude is treated non-perturbatively while the coupling to the electronic system is kept to second order in t; the resulting energy shift is still proportional to the static two-point correlator evaluated at the exciton positions. We will revise the superconducting section to (i) emphasize that the mapping holds in the weak-tunneling limit, (ii) note that the distinct momentum-space structure of different pairing symmetries remains visible in the leading term, and (iii) add a brief remark on the expected breakdown scale set by the superconducting gap and the tunneling strength. revision: partial

Circularity Check

0 steps flagged

No significant circularity; derivation follows from standard second-order perturbation theory and scattering solution

full rationale

The central result is obtained by applying second-order perturbation theory to virtual electron tunneling between the material and the moiré lattice, combined with an explicit solution of the exciton-electron scattering problem. This produces an effective interaction whose energy shift is proportional to the two-point spin density-density correlator evaluated at the exciton positions. No equation reduces by construction to a fitted parameter, self-citation chain, or ansatz imported from prior work by the same authors; the proportionality emerges directly from the perturbative expansion and scattering amplitudes, which are independent of the target correlator. The framework remains self-contained against external benchmarks such as standard many-body perturbation theory and does not invoke uniqueness theorems or load-bearing self-citations.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The derivation rests on standard second-order perturbation theory and a solvable exciton-electron scattering problem; no free parameters or new entities are introduced in the abstract description.

axioms (2)

domain assumption Second-order perturbation theory accurately describes the virtual tunneling and scattering process
Invoked to connect electron tunneling to the effective exciton interaction
domain assumption The exciton-electron scattering problem admits a solution that yields a spin-dependent potential
Required to obtain the proportionality to the spin-density correlation function
