arxiv: 2512.15387 · v2 · submitted 2025-12-17 · 💻 cs.CR

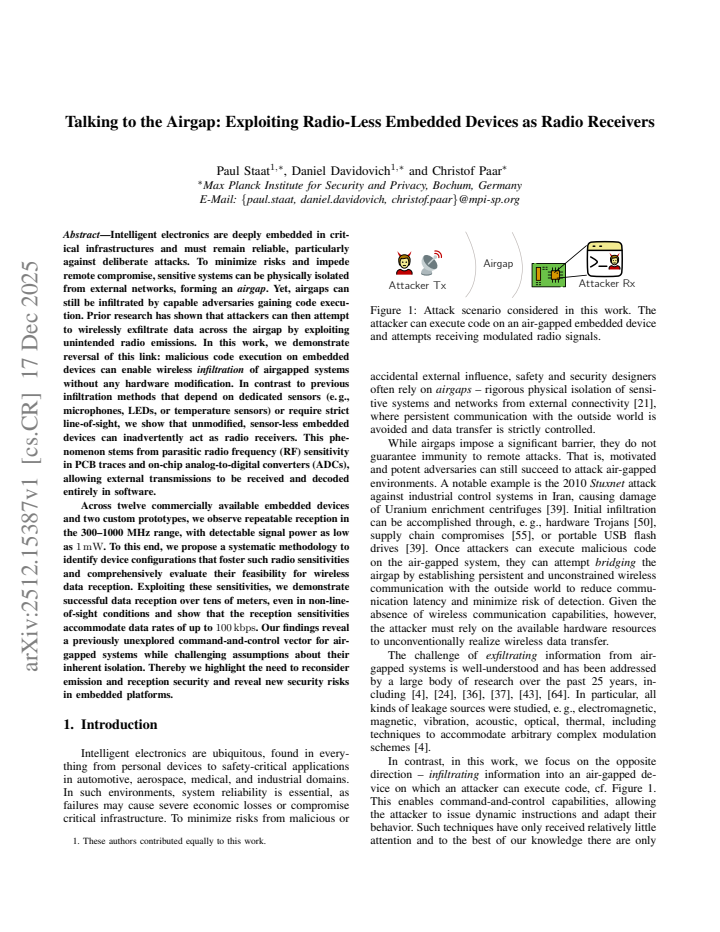

Talking to the Airgap: Exploiting Radio-Less Embedded Devices as Radio Receivers

Paul Staat , Daniel Davidovich , Christof Paar This is my paper

Pith reviewed 2026-05-16 22:04 UTC · model grok-4.3

classification 💻 cs.CR
keywords airgapembedded devicesRF sensitivityparasitic receptionwireless infiltrationcommand and controlelectromagnetic interferencemicrocontrollers
0
0 comments X

The pith

Malicious code turns ordinary microcontrollers into radio receivers by exploiting unintended RF sensitivity in their circuitry.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that air-gapped embedded devices can receive wireless commands even without any radio hardware. Malicious code leverages parasitic sensitivity in printed circuit board traces and analog-to-digital converters to detect radio signals from a distance. This creates an inbound wireless path for attackers to send instructions without line of sight or extra sensors. The work evaluates twelve commercial devices and finds all of them can recover signals in the 300-1000 MHz range at up to 100 kbps from tens of meters. It directly challenges the assumption that devices lacking radios have no way to accept external wireless input.

Core claim

Leveraging physical effects previously studied in the context of electromagnetic interference, we show that parasitic radio frequency sensitivity in printed circuit board traces and on-chip analog-to-digital converters turns commodity embedded devices into inadvertent radio receivers. Malicious code on an embedded device enables wireless infiltration of air-gapped systems, granting attackers command-and-control over compromised targets. Unlike prior infiltration techniques, our approach requires no dedicated sensors and works in non-line-of-sight scenarios. In our evaluation, an ordinary microcontroller evaluation board reliably recovers communication signals from tens of meters at data rate

What carries the argument

Parasitic RF sensitivity in PCB traces and on-chip ADCs, which converts external radio signals into detectable voltage changes without dedicated hardware.

If this is right

  • Air-gapped systems containing embedded devices become vulnerable to wireless command injection without physical access or line of sight.
  • Security models for isolated systems must now treat unintended reception as a first-class threat alongside emission-based data leaks.
  • Attackers can establish command-and-control channels on compromised targets using only commodity radio transmitters.
  • All evaluated devices in the 300-1000 MHz band exhibit usable reception capabilities without modification.
  • Data rates up to 100 kbps are achievable over tens of meters using existing device hardware alone.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Defensive designs could add simple low-pass filters on ADC inputs or trace shielding to reduce this sensitivity.
  • The same parasitic effects might allow bidirectional communication if paired with existing emission techniques on the same device.
  • Similar sensitivities could appear in other non-radio components such as power regulators or sensor interfaces not tested here.
  • Attack range and reliability might improve with better modulation schemes or by targeting specific frequency bands identified in the device survey.

Load-bearing premise

The observed parasitic RF sensitivity remains reliable and strong enough for practical signal recovery in real-world non-line-of-sight conditions.

What would settle it

Failure to recover modulated signals from a standard transmitter at 50 meters distance using any of the twelve tested commercial devices in a typical indoor non-line-of-sight setup.

Figures

Figures reproduced from arXiv: 2512.15387 by Christof Paar, Daniel Davidovich, Paul Staat.

Figure 1
Figure 1. Figure 1: Attack scenario considered in this work. The [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2

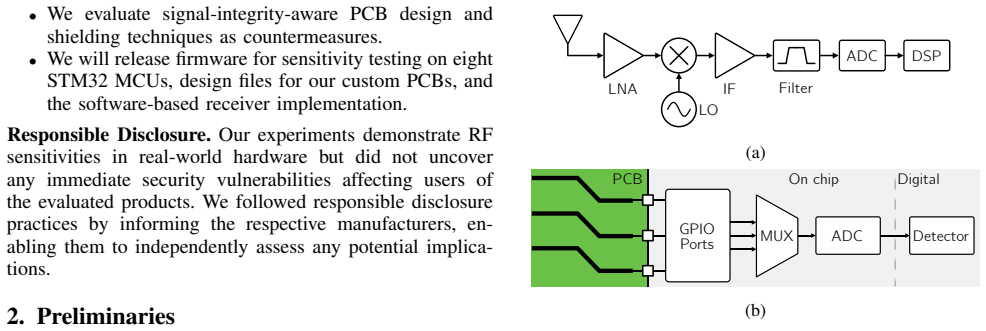

Figure 2. Figure 2: (a) Classical frequency-tuned RF receiver. (b) Em [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3

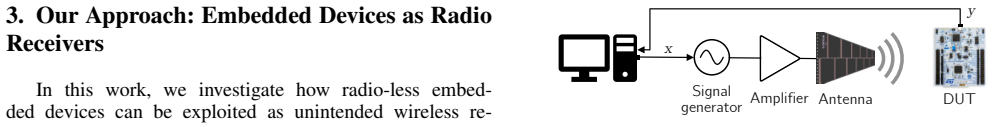

Figure 3. Figure 3: Illustration of our experimental setup. Transmit Signal. Given that an RF sensitivity on a particu￾lar combination of a reception path and configuration exists, the incident RF waveform must match in terms of carrier frequency and signal power. We can denote the stimulus signal x(t) as follows: x(t) = p PT x m(t) cos(2πfT xt) (1) where PT x is the transmit power, m(t) is an amplitude￾modulation, and fT x d… view at source ↗
Figure 4

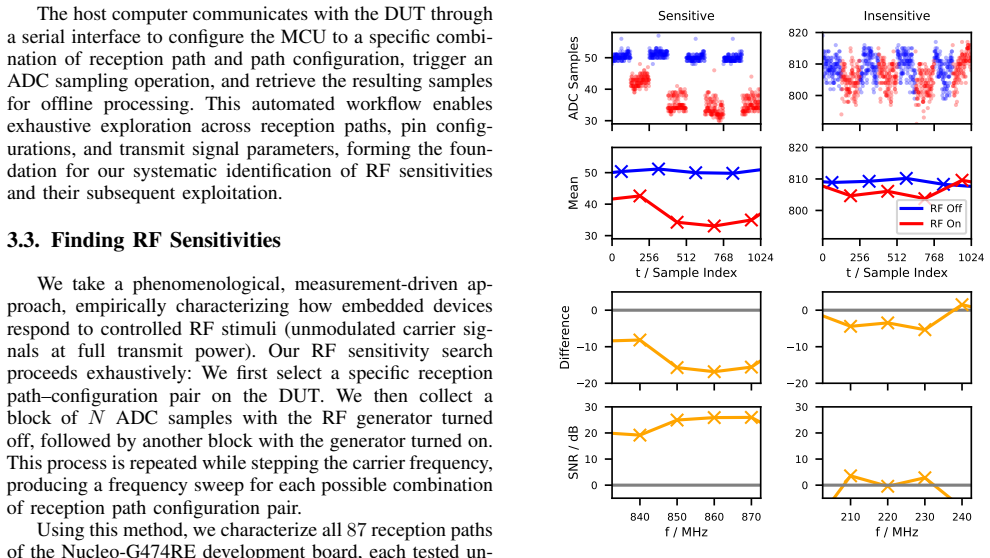

Figure 4. Figure 4: Processing for RF sensitivity testing. First row: [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 8
Figure 8. Figure 8: All tested devices. 8 recommended choices, varying the GPIO input mode and pull-up/down configurations. For the cryptocurrency wallets, we de-soldered the orig￾inal MCUs and replaced them with identical, blank parts to obtain full firmware control over the hardware platform. Our goal in doing so was strictly to evaluate RF reception characteristics—not to target secure boot or similar protec￾tion mechanism… view at source ↗
Figure 6
Figure 6. Figure 6: Full sensitivity testing experiment results for the [PITH_FULL_IMAGE:figures/full_fig_p006_6.png] view at source ↗
Figure 7

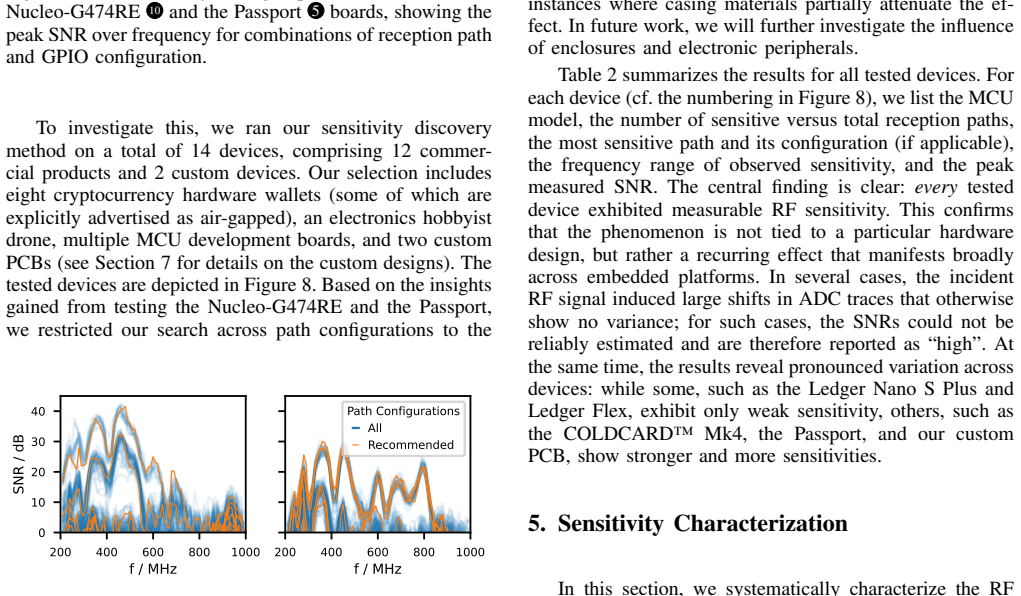

Figure 7. Figure 7: SNR over frequency on two reception paths for all [PITH_FULL_IMAGE:figures/full_fig_p006_7.png] view at source ↗
Figure 9
Figure 9. Figure 9: SNR over estimated arrival signal power for three [PITH_FULL_IMAGE:figures/full_fig_p007_9.png] view at source ↗
Figure 12

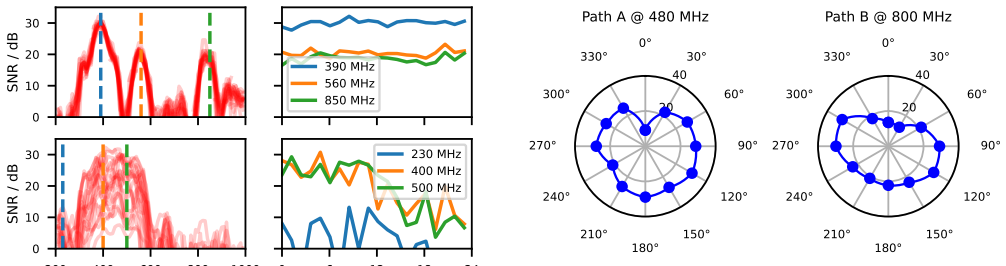

Figure 12. Figure 12: SNRs at a single frequency for two reception [PITH_FULL_IMAGE:figures/full_fig_p008_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: With and without common ground between trans [PITH_FULL_IMAGE:figures/full_fig_p008_13.png] view at source ↗
Figure 14
Figure 14. Figure 14: Raw ADC recordings with USB connection (left) [PITH_FULL_IMAGE:figures/full_fig_p009_14.png] view at source ↗
Figure 15
Figure 15. Figure 15: BER for a number of reception paths on the [PITH_FULL_IMAGE:figures/full_fig_p010_15.png] view at source ↗
Figure 16

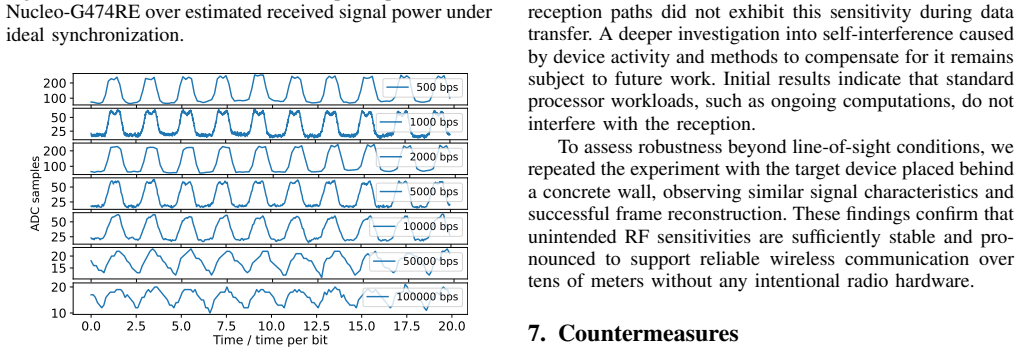

Figure 16. Figure 16: Illustration of receive signal waveform over [PITH_FULL_IMAGE:figures/full_fig_p010_16.png] view at source ↗
Figure 17
Figure 17. Figure 17: Real-world bit transmission experiment towards the Nucleo-G474RE board at [PITH_FULL_IMAGE:figures/full_fig_p011_17.png] view at source ↗
Figure 19
Figure 19. Figure 19: Custom PCB sensitivity testing peak SNR results [PITH_FULL_IMAGE:figures/full_fig_p011_19.png] view at source ↗
Figure 20
Figure 20. Figure 20: Comparison of reception SNR over frequency [PITH_FULL_IMAGE:figures/full_fig_p012_20.png] view at source ↗
Figure 21
Figure 21. Figure 21: Effect of the ADC oversampling ratio on recep [PITH_FULL_IMAGE:figures/full_fig_p017_21.png] view at source ↗
Figure 22
Figure 22. Figure 22: SNR over frequency for two reception paths with [PITH_FULL_IMAGE:figures/full_fig_p017_22.png] view at source ↗
read the original abstract

Physical isolation from external networks - an airgap - aims to minimize exposure to remote attacks. Yet capable adversaries still achieve code execution on air-gapped systems, and prior work has shown that they can then wirelessly exfiltrate data via unintended emissions. In this work, we demonstrate the reverse direction: malicious code on an embedded device enables wireless infiltration of air-gapped systems, granting attackers command-and-control over compromised targets. Leveraging physical effects previously studied in the context of electromagnetic interference (EMI), we show that parasitic radio frequency (RF) sensitivity in printed circuit board (PCB) traces and on-chip analog-to-digital converters (ADCs) turns commodity embedded devices into inadvertent radio receivers. Unlike prior infiltration techniques, our approach requires no dedicated sensors (e.g., microphones, LEDs, or temperature sensors) and works in non-line-of-sight scenarios. In our evaluation, an ordinary microcontroller evaluation board reliably recovers communication signals from tens of meters at data rates of up to 100 kbps. Applying a systematic methodology to discover such device-intrinsic RF sensitivity, we evaluate twelve commercial embedded devices and two custom prototypes, finding that all exhibit reception capabilities in the 300-1000 MHz range. Our findings challenge the assumption that embedded devices without radios lack an inbound radio paths and call for air-gap threat models that account for both emission-based leakage and unintended reception.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The manuscript claims that parasitic RF sensitivity in PCB traces and on-chip ADCs allows commodity embedded devices without dedicated radios to act as inadvertent receivers for 300-1000 MHz signals, enabling wireless command-and-control infiltration of air-gapped systems. The authors describe a systematic discovery methodology and report that all twelve evaluated commercial devices plus two prototypes successfully recover signals at up to 100 kbps from tens of meters in NLOS conditions, without requiring additional sensors or attacker-unavailable post-processing.

Significance. If the results hold, the work is significant for air-gap security research because it identifies a practical inbound radio path in radio-less MCUs that prior emission-focused threat models have overlooked. The evaluation across twelve devices and the emphasis on no dedicated hardware are strengths; the systematic methodology for discovering device-intrinsic sensitivities is also a useful contribution that could be extended to other hardware.

major comments (3)
  1. [Evaluation] Evaluation section: the claim of reliable recovery at 100 kbps on all twelve devices is load-bearing for the central thesis, yet no bit-error rates, packet error rates, or SNR measurements are reported, nor are error bars or exclusion criteria for the 'successful recovery' metric provided.
  2. [Methodology] Methodology and signal-processing description: the manuscript does not specify the ADC sampling configuration (rate, resolution, aliasing vs. direct sampling), the modulation scheme employed, or the exact demodulation algorithm applied to the sampled traces, all of which are required to substantiate that standard MCU ADCs can demodulate 300-1000 MHz signals at the stated rates.
  3. [Evaluation] Range and channel claims: the 'tens of meters' NLOS performance is central to the practical C&C argument, but the evaluation provides no details on transmit power, antenna gain, or how performance varies with multipath, firmware constraints, or device-specific clocking, leaving the weakest assumption unverified.
minor comments (2)
  1. [Abstract] Abstract: the frequency range '300-1000 MHz' is stated without indicating which sub-bands were actually tested on each device or whether performance is uniform across the band.
  2. [Introduction] Notation: the term 'parasitic radio frequency (RF) sensitivity' is used repeatedly without a concise definition or reference to the prior EMI literature that the authors say they leverage.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the detailed and constructive review. The comments correctly identify areas where additional quantitative details and methodological clarity will strengthen the paper. We have revised the manuscript to address each point and provide the requested measurements, configurations, and experimental parameters.

read point-by-point responses

  1. Referee: [Evaluation] Evaluation section: the claim of reliable recovery at 100 kbps on all twelve devices is load-bearing for the central thesis, yet no bit-error rates, packet error rates, or SNR measurements are reported, nor are error bars or exclusion criteria for the 'successful recovery' metric provided.

    Authors: We agree that the absence of quantitative error metrics weakens the central claim. In the revised manuscript we have added a new table (Table 2) reporting measured BER and PER for every device at 100 kbps, together with SNR estimates obtained from the received trace amplitude. 'Successful recovery' is now formally defined as BER < 10^{-3} sustained over at least 10^5 bits; we also report the fraction of trials meeting this threshold and include error bars from five independent runs per device. Exclusion criteria (no detectable signal above the measured noise floor) are stated explicitly in Section 4.2. revision: yes

  2. Referee: [Methodology] Methodology and signal-processing description: the manuscript does not specify the ADC sampling configuration (rate, resolution, aliasing vs. direct sampling), the modulation scheme employed, or the exact demodulation algorithm applied to the sampled traces, all of which are required to substantiate that standard MCU ADCs can demodulate 300-1000 MHz signals at the stated rates.

    Authors: We have expanded Section 3.2 with the missing parameters: all devices were sampled at 2 MSPS with 12-bit resolution, deliberately exploiting aliasing to fold the 300-1000 MHz carriers into the first Nyquist zone. The modulation is binary FSK with 200 kHz deviation; the demodulator consists of a digital down-converter, 4th-order CIC filter, envelope detector, and simple threshold slicer. We now include both the exact C implementation used on the MCU and a reference MATLAB script that reproduces the same bit decisions from the raw ADC traces. revision: yes

  3. Referee: [Evaluation] Range and channel claims: the 'tens of meters' NLOS performance is central to the practical C&C argument, but the evaluation provides no details on transmit power, antenna gain, or how performance varies with multipath, firmware constraints, or device-specific clocking, leaving the weakest assumption unverified.

    Authors: We have added a dedicated experimental-setup subsection (4.1) that specifies transmit power (23 dBm conducted, 2 dBi antenna, 25 dBm EIRP), exact antenna models, and the NLOS geometry (two interior walls, 15-40 m). New figures plot BER versus distance for three representative devices, showing graceful degradation up to 45 m. We also report that firmware clock rates and peripheral configurations were varied across the twelve devices with negligible effect on reception, because the mechanism relies on parasitic coupling rather than intentional RF circuitry. revision: yes

Circularity Check

0 steps flagged

No circularity: experimental demonstration of parasitic RF reception

full rationale

The paper is an empirical study that directly measures and demonstrates unintended RF reception in commodity MCUs and PCBs via parasitic sensitivity in traces and ADCs. It reports experimental results across 12 devices and 2 prototypes in the 300-1000 MHz range at up to 100 kbps from tens of meters, without any derivation chain, fitted parameters renamed as predictions, or load-bearing self-citations. Claims rest on physical testing rather than equations or prior fitted values that reduce to the inputs by construction. No self-definitional loops, ansatz smuggling, or renaming of known results appear in the provided text.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the domain assumption that parasitic RF sensitivity exists and is exploitable in standard PCB and ADC hardware; no free parameters are introduced and no new entities are postulated.

axioms (1)
  • domain assumption Commodity embedded devices exhibit usable parasitic RF sensitivity in PCB traces and on-chip ADCs within the 300-1000 MHz range
    Invoked as the physical basis for turning devices into receivers; drawn from prior EMI literature but treated as given for the attack demonstration.
