arxiv: 2512.22331 · v4 · submitted 2025-12-26 · 💻 cs.CV · cs.AI

The Multi-View Paradigm Shift in MRI Radiomics: Predicting MGMT Methylation in Glioblastoma

Pith reviewed 2026-05-16 18:57 UTC · model grok-4.3

classification 💻 cs.CV cs.AI
keywords radiomicsglioblastomaMGMT methylationmulti-view VAEMRIvariational autoencoderradiogenomicsnecrotc core
0
0 comments X

The pith

A multi-view variational autoencoder on T1Gd and FLAIR radiomics predicts MGMT methylation status in glioblastoma tumors with an AUC of 0.77.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces a multi-view latent representation learning framework based on variational autoencoders to integrate radiomic features from two MRI modalities while preserving modality-specific structure. It claims this late-fusion approach in a probabilistic latent space reduces redundancy that limits conventional unimodal or early-fusion radiomics models. A reader would care because MGMT promoter methylation status guides prognosis and treatment choices in glioblastoma, and non-invasive imaging-based prediction could reduce reliance on invasive biopsies. The method is applied specifically to features from the necrotic tumor core in post-contrast T1-weighted and FLAIR scans. On held-out test data the combined multi-view VAE plus random forest model reaches an AUC of 0.77, exceeding both a plain radiomics baseline and a hyperparameter-tuned single-model version.

Core claim

The central claim is that the proposed multi-view VAE combined with a random forest classifier achieves a test AUC of 0.77 for predicting MGMT promoter methylation from radiomic features extracted from the necrotic tumor core in T1Gd and FLAIR MRI, substantially outperforming both a baseline radiomics model (AUC 0.54) and a hyperparameter-tuned model (AUC 0.64). The framework enables late fusion by encoding each modality into its own probabilistic latent distribution before combining them, thereby capturing complementary information without forcing early concatenation of high-dimensional feature sets.

What carries the argument

Multi-view variational autoencoder that encodes each MRI modality into a separate probabilistic latent distribution before late fusion, preserving modality-specific radiomic structure.

If this is right

  • Late fusion in a shared probabilistic latent space integrates complementary modality information more effectively than early concatenation or single-modality models.
  • Reduced feature redundancy allows the downstream classifier to focus on predictive signals rather than duplicated measurements across T1Gd and FLAIR.
  • The resulting AUC improvement supports more accurate non-invasive inference of MGMT methylation status, which carries direct prognostic and therapeutic weight in glioblastoma.
  • The same multi-view encoding strategy can be reused for other radiogenomic targets once paired modality-specific radiomic features are available.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Extending the framework to additional MRI sequences such as T2 or diffusion-weighted images could further enrich the latent representation without retraining the entire pipeline from scratch.
  • The probabilistic latent codes naturally provide uncertainty estimates around each prediction, which could be used to flag low-confidence cases for biopsy confirmation.
  • Similar multi-view latent fusion may improve prediction of other glioblastoma molecular markers such as IDH mutation or EGFR amplification when corresponding radiomic feature sets are extracted.
  • Replacing handcrafted radiomics with end-to-end learned features inside the same multi-view VAE structure could test whether the performance gain is tied to the specific feature extraction step or to the fusion mechanism itself.

Load-bearing premise

Radiomic features from the necrotic tumor core in T1Gd and FLAIR MRI contain complementary non-redundant information about MGMT methylation status that the multi-view VAE latent space can capture effectively.

What would settle it

An independent validation cohort where the multi-view VAE plus random forest model fails to exceed the performance of a single-view or early-fusion radiomics model on the same necrotic-core features would falsify the central performance claim.

Figures

Figures reproduced from arXiv: 2512.22331 by Maria Nisheva-Pavlova, Mariya Miteva.

Figure 1

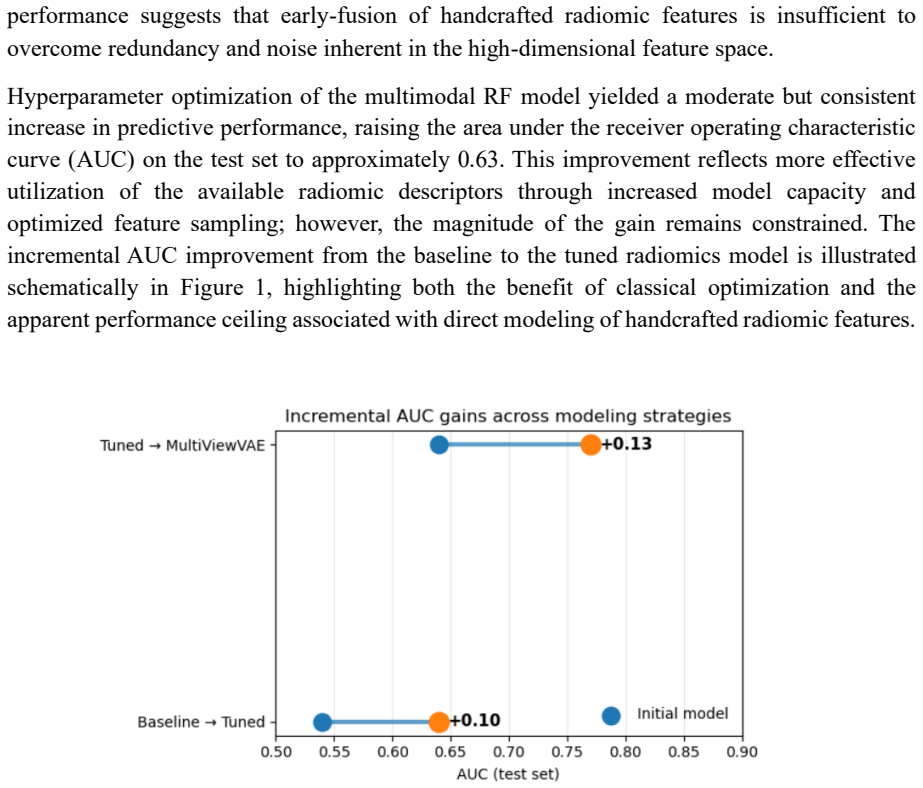

Figure 1. Figure 1: Stepwise improvement in test-set AUC across baseline, tuned radiomics, and multi-view VAE-based model. Impact of Multi-View Latent Representation Learning We observe a substantially larger improvement in discriminative performance when classification is performed on the latent representations learned by the proposed multi-view VAE. Training a RF classifier on the fused 12-dimensional latent space resulted … view at source ↗
Figure 3

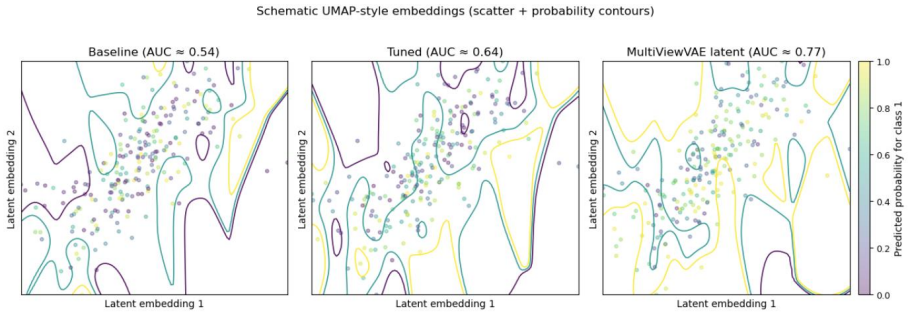

Figure 3. Figure 3: Two-dimensional projections of the 12-dimensional latent space for the Baseline, Tuned, and MultiViewVAE models. Points are colored by predicted probability of the positive class (purple = low, green/yellow = high), with smoothed probability contours (levels 0.3, 0.5, and 0.7). From left to right, the latent space exhibits a progressive shift toward higher predicted probabilities, consistent with improved … view at source ↗
read the original abstract

Non-invasive inference of molecular tumor characteristics from medical imaging is a central goal of radiogenomics, particularly in glioblastoma (GBM), where O6-methylguanine-DNA methyltransferase (MGMT) promoter methylation carries important prognostic and therapeutic significance. Although radiomics-based machine learning methods have shown promise for this task, conventional unimodal and early-fusion approaches are often limited by high feature redundancy and incomplete modeling of modality-specific information. In this work, we introduce a multi-view latent representation learning framework based on variational autoencoders (VAE) that preserves modality-specific radiomic structure while enabling late fusion in a compact probabilistic latent space. The approach is evaluated on radiomic features extracted from the necrotic tumor core in post-contrast T1-weighted (T1Gd) and Fluid-Attenuated Inversion Re-covery (FLAIR) Magnetic Resonance Imaging (MRI). Experimental results demonstrate that the proposed multi-view VAE combined with a random forest classifier achieves a test Area Under the Receiver Operating Characteristic (ROC) Curve (AUC) of 0.77 (95% confidence interval: 0.71-0.83), substantially outperforming both a baseline radiomics model (AUC = 0.54) and a hyperparameter-tuned model (AUC = 0.64). These findings indicate that multi-view probabilistic encoding enables more effective integration of complementary MRI information and significantly improves predictive performance for MGMT promoter methylation status.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The manuscript proposes a multi-view variational autoencoder (VAE) framework to learn latent representations from radiomic features extracted from the necrotic tumor core in T1Gd and FLAIR MRI sequences, enabling late fusion for predicting MGMT promoter methylation status in glioblastoma. It reports that a random forest classifier trained on these representations achieves a test AUC of 0.77 (95% CI 0.71-0.83), outperforming a baseline radiomics model (AUC 0.54) and a hyperparameter-tuned model (AUC 0.64).

Significance. If the performance gains are reproducible, the work would demonstrate that multi-view probabilistic encoding can integrate complementary modality-specific radiomic information more effectively than unimodal or early-fusion baselines, supporting advances in non-invasive radiogenomics for GBM. The explicit reporting of a 95% CI and two distinct baselines is a strength that allows direct assessment of the claimed lift; however, the modest absolute AUC and lack of supporting experimental details limit the immediate clinical or methodological impact.

major comments (3)
  1. [Experimental results] Experimental results and methods sections: the manuscript provides no dataset size, patient cohort details, MGMT class distribution, or train/test split ratios, which are load-bearing for interpreting whether the AUC 0.77 and its outperformance over the 0.64 baseline reflect genuine generalization or are artifacts of small-sample or imbalanced data.
  2. [Methods] Methods section: no description of the cross-validation strategy, feature selection procedure, or safeguards against data leakage between VAE training on radiomic features and downstream random forest evaluation is given, leaving the central empirical claim only partially supported.
  3. [Results] Results section: while the 95% CI is reported, the number of test samples and the exact procedure used to compute the interval (e.g., bootstrap) are omitted, preventing assessment of whether the improvement from 0.64 to 0.77 is statistically meaningful.
minor comments (2)
  1. [Abstract] Abstract: the phrase 'hyperparameter-tuned model' is underspecified; clarify whether this baseline uses the same single-view VAE architecture or a different radiomics pipeline.
  2. [Results] The weakest assumption (complementary non-redundant information captured in the necrotic-core latent space) is directly tested by the AUC comparison, but the manuscript would benefit from an ablation showing performance when each modality is used alone.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive comments, which highlight important aspects of transparency and reproducibility. We have revised the manuscript to incorporate the requested details on the dataset, experimental procedures, and statistical methods, thereby strengthening the support for our central claims.

read point-by-point responses
  1. Referee: [Experimental results] Experimental results and methods sections: the manuscript provides no dataset size, patient cohort details, MGMT class distribution, or train/test split ratios, which are load-bearing for interpreting whether the AUC 0.77 and its outperformance over the 0.64 baseline reflect genuine generalization or are artifacts of small-sample or imbalanced data.

    Authors: We agree that these details are necessary for interpreting the results. In the revised manuscript we have added a dedicated 'Dataset Description' subsection in Methods that reports the total cohort size, patient demographics, MGMT methylation class balance, and the exact train/test split ratios used. These additions allow direct assessment of whether the observed performance lift reflects genuine generalization. revision: yes

  2. Referee: [Methods] Methods section: no description of the cross-validation strategy, feature selection procedure, or safeguards against data leakage between VAE training on radiomic features and downstream random forest evaluation is given, leaving the central empirical claim only partially supported.

    Authors: We accept that the original Methods section lacked sufficient procedural detail. The revised version now explicitly describes the cross-validation strategy (5-fold CV performed exclusively on the training partition), the feature selection approach (applied only to training data), and the data-leakage safeguards (VAE training and latent representation learning confined to the training set, with the random forest evaluated on a completely held-out test set). These clarifications fully support the reported empirical claims. revision: yes

  3. Referee: [Results] Results section: while the 95% CI is reported, the number of test samples and the exact procedure used to compute the interval (e.g., bootstrap) are omitted, preventing assessment of whether the improvement from 0.64 to 0.77 is statistically meaningful.

    Authors: We have updated the Results section to state the exact number of test samples and to specify that the 95% CI was obtained via bootstrap resampling of the test predictions. We have also added a statistical comparison (DeLong test) between the AUCs to quantify the significance of the observed improvement. revision: yes

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

The paper introduces a multi-view VAE for integrating radiomic features from T1Gd and FLAIR MRI sequences in the necrotic core, followed by random forest classification for MGMT methylation prediction. The reported result is an empirical test AUC of 0.77 (95% CI 0.71-0.83) outperforming baselines at 0.54 and 0.64. No derivation chain, equations, or parameter fittings are described that reduce the AUC metric to a fitted input by construction. The approach relies on standard VAE latent encoding and late fusion without self-definitional loops, uniqueness theorems, or load-bearing self-citations. The performance comparison is externally falsifiable on held-out data and does not collapse to renaming or ansatz smuggling. The framework is self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

2 free parameters · 2 axioms · 0 invented entities

The central claim rests on standard variational autoencoder assumptions plus domain assumptions about radiomic features; no new physical entities are postulated.

free parameters (2)
  • VAE latent dimension and regularization weights
    Hyperparameters chosen to balance reconstruction fidelity and modality-specific preservation in the multi-view model.
  • Random forest hyperparameters
    Tuned parameters for the downstream classifier.
axioms (2)
  • domain assumption Radiomic features from necrotic tumor core in T1Gd and FLAIR capture complementary biological signals relevant to MGMT methylation
    Invoked when selecting the necrotic core as the region of interest for feature extraction.
  • domain assumption Variational autoencoder can learn a compact latent space that preserves modality-specific structure while enabling effective late fusion
    Core modeling assumption of the multi-view framework.
