A Multimodal Data Collection Framework for Dialogue-Driven Assistive Robotics to Clarify Ambiguities: A Wizard-of-Oz Pilot Study

Guangping Liu , Nicholas Hawkins , Billy Madden , Tipu Sultan , Flavio Esposito , Madi Babaiasl This is my paper

Pith reviewed 2026-05-16 11:53 UTC · model grok-4.3

classification 💻 cs.RO
keywords multimodal data collectionassistive roboticsWizard-of-Ozdialogue-driven interactionambiguity clarificationhuman-robot interactionwheelchair robotic arms
0
0 comments X

The pith

A Wizard-of-Oz framework collects multimodal data on user clarifications during dialogue-driven assistive robot tasks.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper proposes a multimodal data collection framework using a two-room Wizard-of-Oz setup to simulate robot autonomy and elicit natural user behavior in assistive robotics. It records five synchronized modalities including RGB-D video, conversational audio, IMU signals, end-effector pose, and joint states across five tasks. A pilot study with five participants and 53 trials validates the framework through motion analysis and feedback, showing it captures diverse ambiguity types effectively. This approach addresses the lack of datasets for training AI to handle conversational ambiguities in human-robot interaction. Scaling it would enable development of more intuitive, dialogue-driven control interfaces for users with motor limitations.

Core claim

The framework effectively captures diverse ambiguity types and supports natural dialogue-driven interaction in a pilot dataset, demonstrating its suitability for scaling to a larger dataset for learning, benchmarking, and evaluation of ambiguity-aware assistive control.

What carries the argument

The two-room Wizard-of-Oz setup combined with synchronized recording of five modalities (RGB-D video, audio, IMU, pose, joint states) and a dialogue-based protocol to simulate autonomous behavior.

If this is right

  • Supports training of machine learning models for detecting and clarifying ambiguities in assistive robot commands.
  • Enables benchmarking and evaluation of different ambiguity resolution strategies.
  • Facilitates development of flexible interfaces that increase user independence beyond rigid control methods.
  • Provides a template for collecting similar data in other dialogue-driven robotics applications.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If scaled, the dataset could reveal common patterns in how ambiguities arise across different assistive tasks.
  • Data from this method might generalize to real robot deployments if user behavior remains consistent.
  • Combining this with existing HRI datasets could accelerate progress in ambiguity-aware control systems.

Load-bearing premise

The Wizard-of-Oz simulation elicits user behavior sufficiently similar to interaction with a real autonomous robot.

What would settle it

Direct comparison of user dialogues and task performance between the WoZ setup and a fully autonomous robot system on the same tasks.

Figures

Figures reproduced from arXiv: 2601.16870 by Billy Madden, Flavio Esposito, Guangping Liu, Madi Babaiasl, Nicholas Hawkins, Tipu Sultan.

Figure 1
Figure 1. Figure 1: Overview of the Multimodal Assistive Data Collection Framework: Our assistive data collection framework comprises a Virtual Reality (VR) based teleoperation system for a wheelchair and robotic arm, and a real-time multimodal data recording pipeline. The experimental setup spans two physically separated spaces (Room A and Room B). Room A is arranged with five assistive tasks, including door opening, drawer … view at source ↗
Figure 3

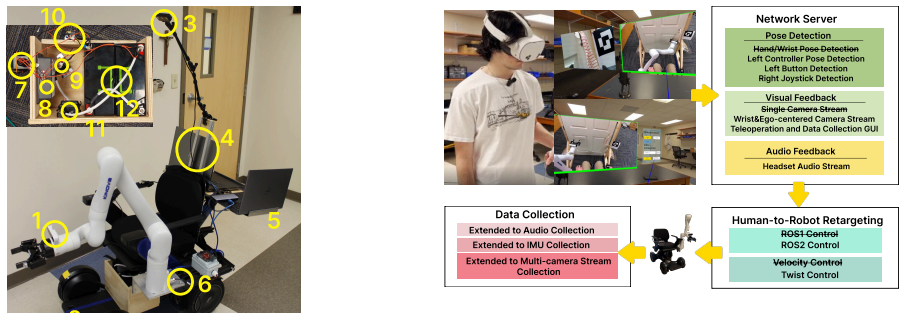

Figure 3. Figure 3: Teleoperation and data collection framework. Strikethrough [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figure 4

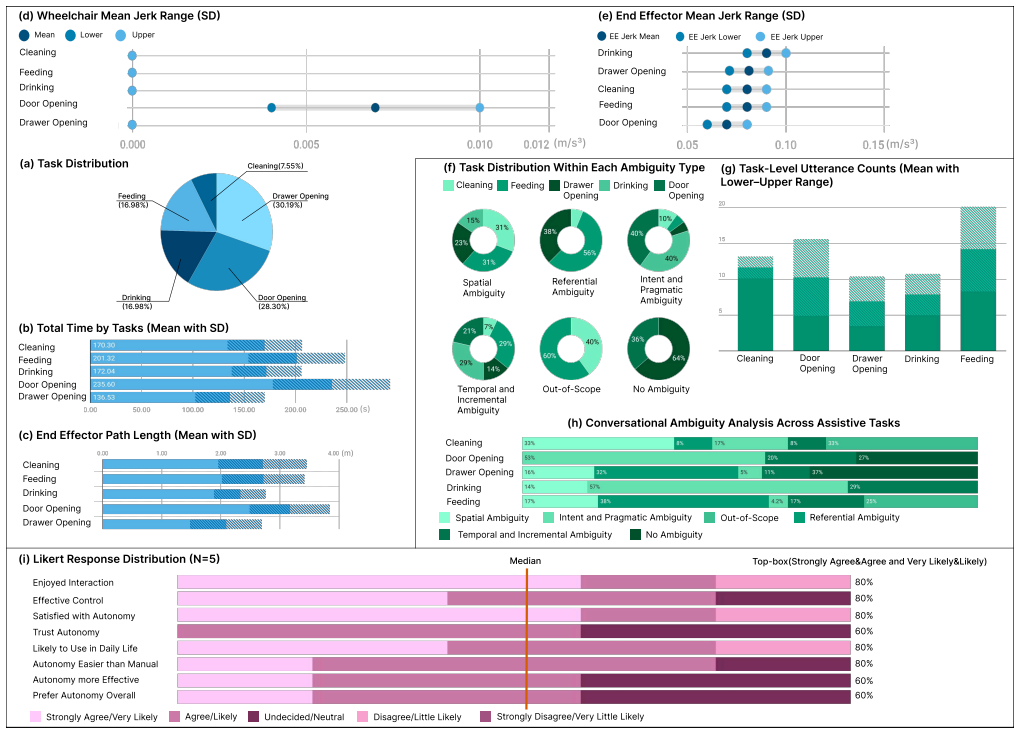

Figure 4. Figure 4: Quantitative Analysis: (a-e) Task Performance Analysis: (a) is the task distribution in the pilot dataset, (b) is total completion time (mean [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5

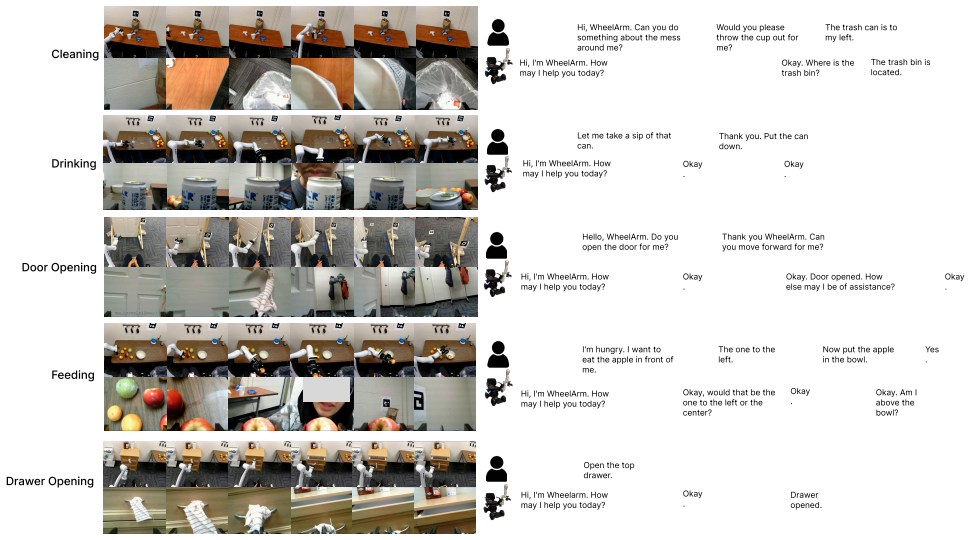

Figure 5. Figure 5: Task Performance Qualitative Demonstration. [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗
read the original abstract

Integrated control of wheelchairs and wheelchair-mounted robotic arms (WMRAs) has strong potential to increase independence for users with severe motor limitations, yet existing interfaces often lack the flexibility needed for intuitive assistive interaction. Although data-driven AI methods show promise, progress is limited by the lack of multimodal datasets that capture natural Human-Robot Interaction (HRI), particularly conversational ambiguity in dialogue-driven control. To address this gap, we propose a multimodal data collection framework that employs a dialogue-based interaction protocol and a two-room Wizard-of-Oz (WoZ) setup to simulate robot autonomy while eliciting natural user behavior. The framework records five synchronized modalities: RGB-D video, conversational audio, inertial measurement unit (IMU) signals, end-effector Cartesian pose, and whole-body joint states across five assistive tasks. Using this framework, we collected a pilot dataset of 53 trials from five participants and validated its quality through motion smoothness analysis and user feedback. The results show that the framework effectively captures diverse ambiguity types and supports natural dialogue-driven interaction, demonstrating its suitability for scaling to a larger dataset for learning, benchmarking, and evaluation of ambiguity-aware assistive control.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper proposes a multimodal data collection framework for dialogue-driven control of wheelchairs and wheelchair-mounted robotic arms. It uses a two-room Wizard-of-Oz setup and a dialogue protocol to elicit natural user behavior while recording five synchronized modalities (RGB-D video, audio, IMU, end-effector pose, joint states) across five assistive tasks. A pilot dataset of 53 trials from five participants is collected and validated via motion-smoothness metrics plus user feedback; the authors conclude that the framework captures diverse ambiguity types and is suitable for scaling to train ambiguity-aware clarification policies.

Significance. If the collected traces prove representative of real autonomous interactions, the framework would address a clear gap in multimodal HRI datasets for assistive robotics, enabling data-driven methods for ambiguity resolution that could improve independence for users with severe motor impairments. The pilot demonstrates a feasible protocol and the value of synchronized multimodal recording.

major comments (2)
  1. [Results] Results section (pilot validation): the claim that the framework 'effectively captures diverse ambiguity types' rests only on motion-smoothness analysis and subjective user feedback; no quantitative breakdown of ambiguity categories, their frequency across the 53 trials, or inter-rater reliability is reported, leaving the central suitability claim unsupported by direct evidence.
  2. [Methods] Methods (WoZ setup description): the assumption that the two-room Wizard-of-Oz simulation elicits ambiguity patterns and user behavior sufficiently similar to interaction with a real autonomous robot is stated but not tested; no comparison condition or quantitative similarity metric is provided, which is load-bearing for the downstream claim that the data can train clarification policies.
minor comments (2)
  1. [Abstract] Abstract and Section 3: the five assistive tasks are referenced but never enumerated; a brief list or table would improve reproducibility.
  2. [Framework Description] Notation: the description of the five modalities would benefit from an explicit table listing sensor rates, synchronization method, and storage format.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments, which help clarify the scope and limitations of our pilot study. We address each major comment below and indicate the revisions we will make to strengthen the manuscript.

read point-by-point responses

  1. Referee: [Results] Results section (pilot validation): the claim that the framework 'effectively captures diverse ambiguity types' rests only on motion-smoothness analysis and subjective user feedback; no quantitative breakdown of ambiguity categories, their frequency across the 53 trials, or inter-rater reliability is reported, leaving the central suitability claim unsupported by direct evidence.

    Authors: We agree that the current validation relies on indirect metrics and that a direct quantitative analysis of ambiguity types would provide stronger support for the central claim. In the revised manuscript we will add a section reporting the observed ambiguity categories (e.g., referential, temporal, spatial), their frequencies across the 53 trials, and the inter-rater reliability of the categorization performed by two independent annotators. This addition will directly address the referee’s concern while remaining within the scope of the pilot dataset. revision: yes

  2. Referee: [Methods] Methods (WoZ setup description): the assumption that the two-room Wizard-of-Oz simulation elicits ambiguity patterns and user behavior sufficiently similar to interaction with a real autonomous robot is stated but not tested; no comparison condition or quantitative similarity metric is provided, which is load-bearing for the downstream claim that the data can train clarification policies.

    Authors: We acknowledge that the behavioral similarity between the WoZ setup and a fully autonomous robot is an untested assumption. As this is explicitly a pilot study whose primary goal is to demonstrate a feasible multimodal collection protocol, a controlled comparison with an autonomous system lies outside the present scope. We will revise the Methods and Discussion sections to explicitly state this limitation, reference prior WoZ validation literature in HRI, and outline planned future experiments that will include such a comparison once the larger dataset is collected. revision: partial

Circularity Check

0 steps flagged

No significant circularity in derivation chain

full rationale

The paper presents a descriptive multimodal data collection framework and reports results from a Wizard-of-Oz pilot study with 53 trials. It contains no equations, fitted parameters, predictions, or mathematical derivations. Validation relies on direct motion smoothness analysis and participant feedback rather than any self-referential reduction or self-citation chain. The central claims rest on empirical observation of the collected traces, with no load-bearing step that reduces to its own inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the domain assumption that a Wizard-of-Oz operator can faithfully elicit natural ambiguity-handling behavior; no free parameters or invented entities are introduced.

axioms (1)
  • domain assumption Wizard-of-Oz simulation produces user behavior representative of interaction with a future autonomous robot
    Invoked to justify collecting data that will train real AI controllers.
