arxiv: 2601.18569 · v2 · submitted 2026-01-26 · 💻 cs.RO · cs.AI· cs.LG

Attention-Based Neural-Augmented Kalman Filter for Legged Robot State Estimation

Seokju Lee , Kyung-Soo Kim This is my paper

Pith reviewed 2026-05-16 11:20 UTC · model grok-4.3

classification 💻 cs.RO cs.AIcs.LG
keywords legged robotsstate estimationinvariant extended Kalman filterneural augmentationattention mechanismfoot slip compensationpose estimation
0
0 comments X

The pith

An attention-based neural compensator augments the invariant extended Kalman filter to correct slip-induced biases after each update in legged robot state estimation.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces AttenNKF, which augments an Invariant Extended Kalman Filter with a neural network that uses attention to detect and compensate for foot-slip errors. Slip violates the no-slip assumption in kinematic measurements and adds bias during the filter update. The compensator is trained in latent space to produce a correction term that is applied to the InEKF state estimate after the standard recursion completes. Experiments show lower estimation error than prior legged-robot filters, with the largest gains on slippery surfaces.

Core claim

The central claim is that a neural compensator conditioned on foot-slip severity via attention can infer the slip-induced bias in latent space and apply it as post-update compensation to the InEKF state, improving pose and velocity estimates while leaving the original invariant recursion unchanged.

What carries the argument

The attention-based neural compensator, which takes foot velocity and slip-severity features, infers a latent correction vector, and adds it to the InEKF state after the measurement update.

If this is right

  • The compensated state estimate remains consistent with the Lie-group invariants of the original InEKF.
  • Accuracy improvements appear mainly when slip occurs, with little change on firm ground.
  • Training in latent space reduces sensitivity to the magnitude of raw sensor inputs.
  • The method can be added to existing InEKF implementations as a modular post-processing step.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same post-update compensation pattern could be applied to other Kalman-filter variants that rely on violated assumptions, such as visual-inertial odometry under dynamic motion.
  • Combining the compensator with learned contact models might reduce the need for explicit slip detection thresholds.
  • Transfer tests across different legged platforms would reveal whether the latent-space attention generalizes without retraining.

Load-bearing premise

The trained neural compensator can reliably estimate the exact slip bias without adding new errors or breaking the stability of the InEKF recursion.

What would settle it

Measure pose drift on a legged robot walking over a surface with precisely controlled slip events and compare ground-truth error when the compensator is disabled versus enabled.

Figures

Figures reproduced from arXiv: 2601.18569 by Kyung-Soo Kim, Seokju Lee.

Figure 1

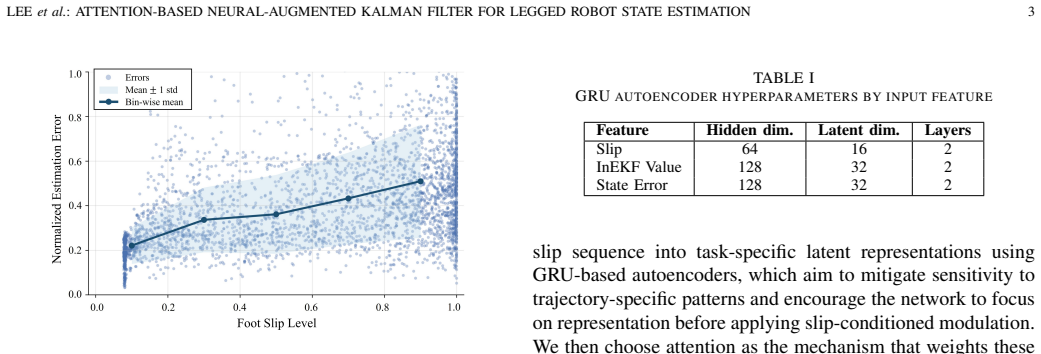

Figure 1. Figure 1: Relationship between foot slip level and normalized state estimation [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

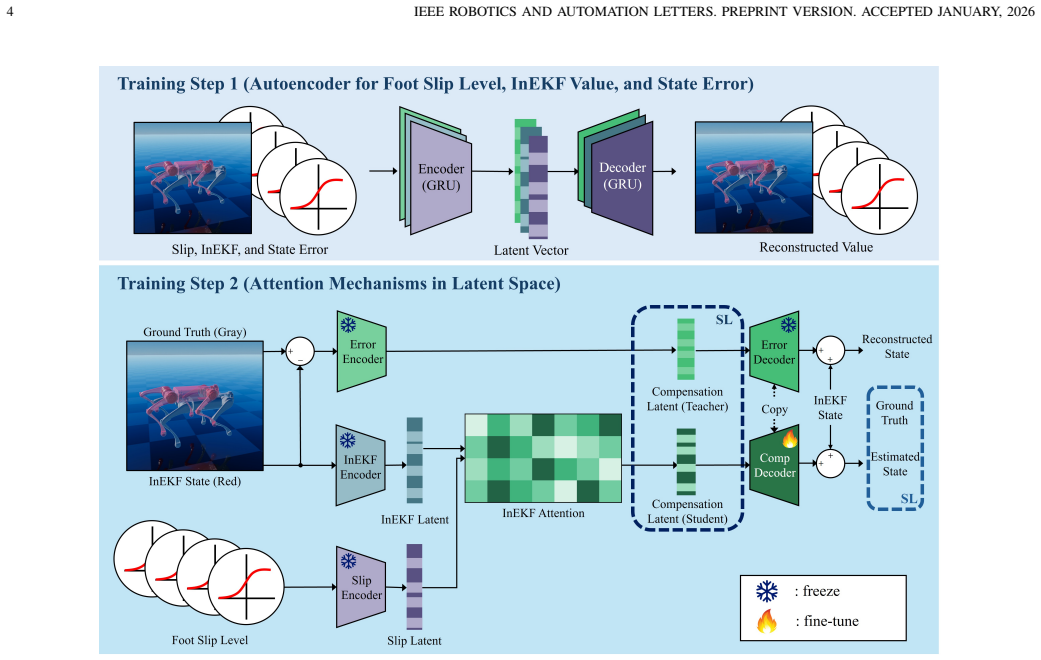

Figure 2. Figure 2: Training process of the Neural Compensator. It consists of two steps: Step 1 corresponds to autoencoder training, and Step 2 represents attention [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3

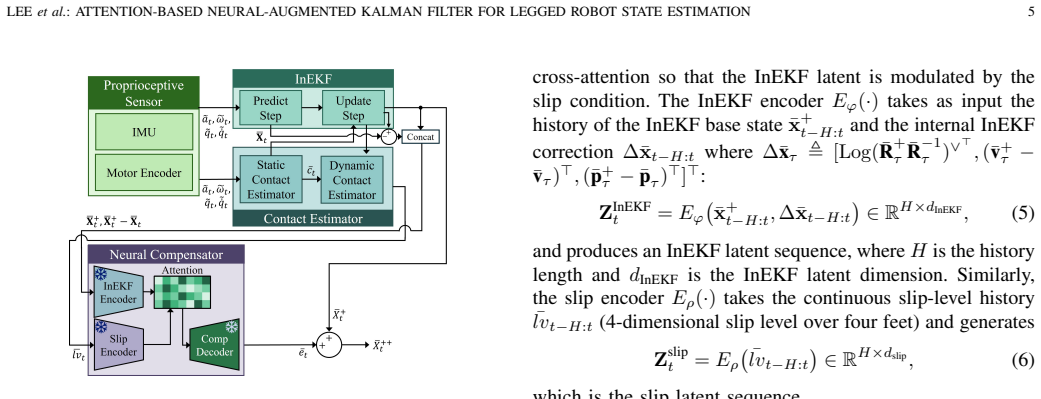

Figure 3. Figure 3: Structure of the AttenNKF. The Neural Compensator, composed [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4

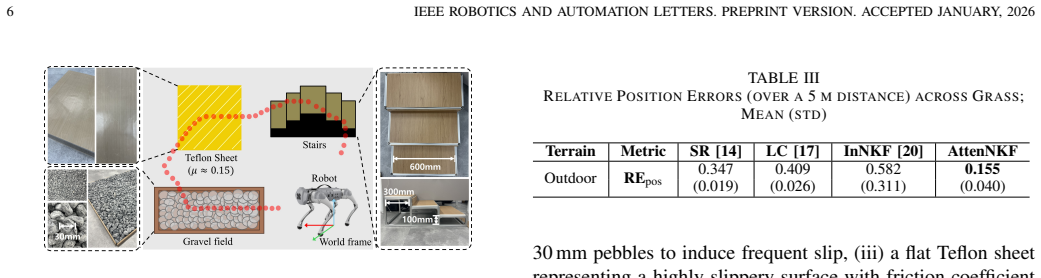

Figure 4. Figure 4: Real-world scenario of the indoor experimental environment, consist [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: In particular, the right-hand plots show that, unlike [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
Figure 5

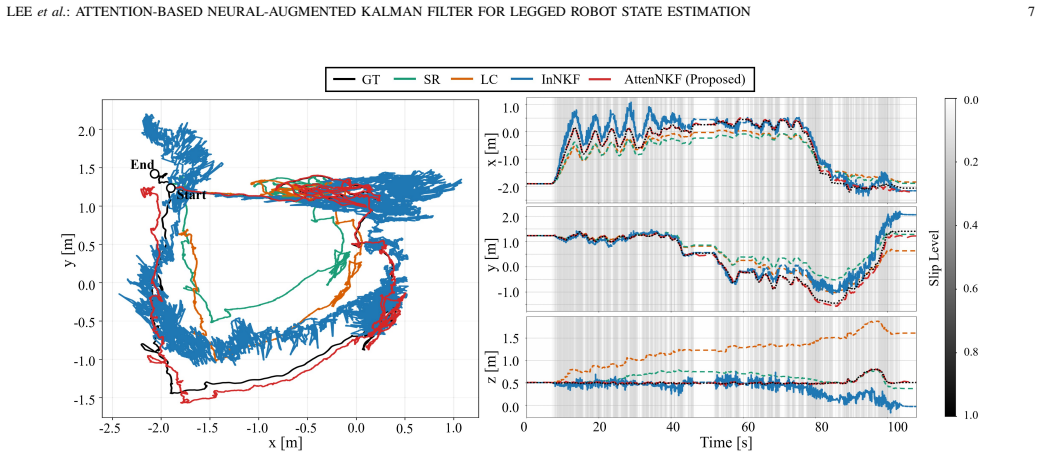

Figure 5. Figure 5: The state estimation results of the indoor experiments. Left: trajectories on the [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗
Figure 6

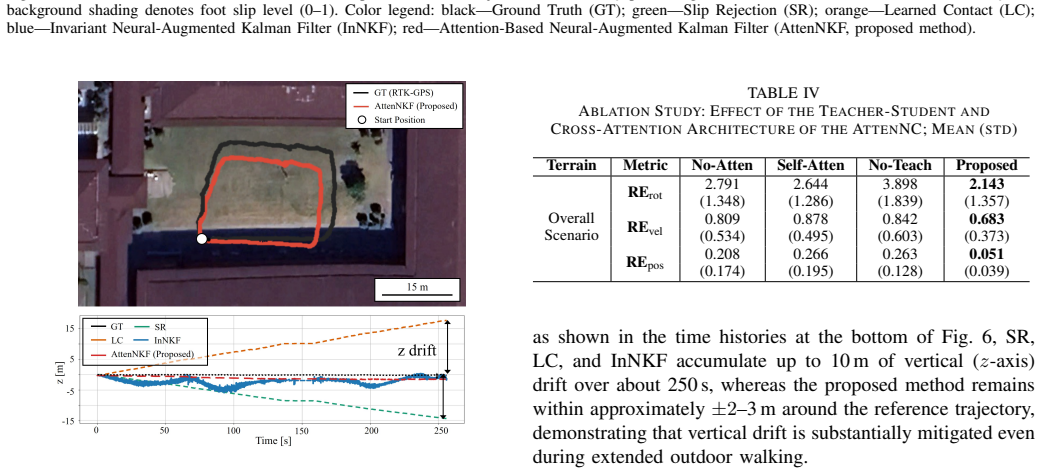

Figure 6. Figure 6: Outdoor experiment results. Top: Google Earth view of the trajectory. [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗
read the original abstract

In this letter, we propose an Attention-Based Neural-Augmented Kalman Filter (AttenNKF) for state estimation in legged robots. Foot slip is a major source of estimation error: when slip occurs, kinematic measurements violate the no-slip assumption and inject bias during the update step. Our objective is to estimate this slip-induced error and compensate for it. To this end, we augment an Invariant Extended Kalman Filter (InEKF) with a neural compensator that uses an attention mechanism to infer error conditioned on foot-slip severity and then applies this estimate as a post-update compensation to the InEKF state (i.e., after the filter update). The compensator is trained in a latent space, which aims to reduce sensitivity to raw input scales and encourages structured slip-conditioned compensations, while preserving the InEKF recursion. Experiments demonstrate improved performance compared to existing legged-robot state estimators, particularly under slip-prone conditions.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript proposes an Attention-Based Neural-Augmented Kalman Filter (AttenNKF) for legged-robot state estimation. It augments an Invariant Extended Kalman Filter (InEKF) with an attention-based neural compensator that infers slip-induced bias in a latent space and applies the correction as a post-update additive compensation to the state estimate. The design is intended to improve accuracy under foot-slip conditions while preserving the InEKF recursion; experiments are claimed to show superior performance relative to existing legged-robot estimators, especially in slip-prone regimes.

Significance. If the central claim is substantiated, the work supplies a practical hybrid filtering architecture that augments invariant Kalman filters with learned compensators for unmodeled dynamics without altering the core recursion. The latent-space attention mechanism offers a structured route to slip-specific corrections that could generalize across legged platforms and improve downstream control robustness.

major comments (2)
  1. [Method (post-update compensation paragraph)] The abstract and method description assert that applying the neural compensator strictly after the InEKF update preserves the recursion, yet no derivation, orthogonality argument, or covariance-consistency bound is supplied. It remains unclear whether the learned correction is guaranteed to be orthogonal to the invariant error or whether it injects unmodeled correlation into the innovation sequence, which would undermine long-term filter consistency in intermittent-slip scenarios.
  2. [Experiments] The experimental claims of improved performance under slip-prone conditions rest on comparisons whose quantitative details (training loss, slip-severity labeling, RMSE or NEES metrics versus baselines, and statistical significance) are not reported with sufficient granularity to verify that the observed gains are attributable to slip-specific compensation rather than other unmodeled effects.
minor comments (2)
  1. Notation for the latent-space variables and attention weights should be introduced with explicit definitions and dimensions to avoid ambiguity when the compensator output is added to the InEKF state.
  2. The manuscript would benefit from a short discussion of related neural-augmented filtering work (e.g., learned process-noise models or residual corrections) to clarify the precise novelty of the attention-based latent-space design.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed feedback. We address each major comment below and indicate the revisions planned for the manuscript.

read point-by-point responses

  1. Referee: [Method (post-update compensation paragraph)] The abstract and method description assert that applying the neural compensator strictly after the InEKF update preserves the recursion, yet no derivation, orthogonality argument, or covariance-consistency bound is supplied. It remains unclear whether the learned correction is guaranteed to be orthogonal to the invariant error or whether it injects unmodeled correlation into the innovation sequence, which would undermine long-term filter consistency in intermittent-slip scenarios.

    Authors: We appreciate the referee highlighting the need for stronger justification. The post-update placement is chosen precisely so that the InEKF prediction and measurement-update recursions (including the invariant error propagation and covariance update) remain exactly as in the original filter; the neural output is added only to the final state estimate. This guarantees that the core recursion is preserved by construction. While we do not supply a formal orthogonality proof or covariance bound (which would require assumptions on the learned mapping that are difficult to verify a priori), the compensator is trained in latent space to target residual slip bias after the InEKF update has already incorporated all available measurements. In the revision we will add a short discussion paragraph and an empirical plot of innovation statistics before versus after compensation to show that the correction does not visibly degrade consistency in the reported experiments. We acknowledge that a complete theoretical guarantee for arbitrary learned post-corrections remains an open question. revision: partial

  2. Referee: [Experiments] The experimental claims of improved performance under slip-prone conditions rest on comparisons whose quantitative details (training loss, slip-severity labeling, RMSE or NEES metrics versus baselines, and statistical significance) are not reported with sufficient granularity to verify that the observed gains are attributable to slip-specific compensation rather than other unmodeled effects.

    Authors: We agree that the current experimental reporting lacks the granularity needed for full verification. In the revised manuscript we will add: (i) training and validation loss curves for the attention-based compensator, (ii) an explicit description of how slip-severity labels were derived from motion-capture ground truth, (iii) tabulated RMSE and NEES values for position, velocity, and orientation against all baselines under each slip regime, and (iv) results of statistical significance tests (paired t-tests across repeated trials) to quantify whether the observed improvements are attributable to the slip-specific compensation. These additions will be placed in an expanded experimental section and supplementary material. revision: yes

Circularity Check

0 steps flagged

No circularity: neural compensator trained separately and applied post-update

full rationale

The derivation augments a standard InEKF with an attention-based neural network whose parameters are learned from data in latent space to produce a post-update additive correction for slip bias. This correction is not defined in terms of the InEKF output itself, nor is any 'prediction' obtained by fitting a parameter to the same quantity it is later claimed to forecast. No self-citation chain is invoked to establish uniqueness or to smuggle an ansatz; the InEKF recursion is preserved by construction through the post-update placement. Experimental validation on legged-robot data supplies the performance claim, which does not reduce to a tautology or a fitted input renamed as a prediction. The method is therefore self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The approach rests on the standard InEKF recursion plus a separately trained neural network; no new physical entities are introduced.

free parameters (1)
  • Neural network parameters
    Weights of the attention-based compensator are fitted during training on slip data.
axioms (1)
  • domain assumption Post-update compensation preserves InEKF recursion and invariance properties
    The paper assumes adding the neural correction after the update step does not invalidate the filter's mathematical guarantees.

pith-pipeline@v0.9.0 · 5460 in / 1191 out tokens · 25568 ms · 2026-05-16T11:20:43.859817+00:00 · methodology
