Stacked quantum Ising systems and quantum Ashkin-Teller model
Pith reviewed 2026-05-16 10:21 UTC · model grok-4.3
The pith
Two identical stacked quantum Ising subsystems coupled by a symmetry-preserving term become equivalent to the quantum Ashkin-Teller model.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
For identical stacked quantum Ising subsystems the global Hamiltonian is equivalent to the quantum Ashkin-Teller model. In one dimension this produces a critical line on which the length-scale exponent nu changes continuously with the intercoupling strength w. In two dimensions the same construction yields quantum multicritical points whose critical modes display an effective O(2) symmetry instead of the microscopic Z2⊕Z2 symmetry.
What carries the argument
The intercoupling parameter w that tunes the strength of the local term coupling the two subsystems while preserving each Z2 symmetry, thereby realizing the Ashkin-Teller equivalence.
If this is right
- One-dimensional stacked systems exhibit a line of critical points where the exponent nu varies continuously with w.
- Two-dimensional stacked systems display multicritical points whose critical modes enlarge from Z2⊕Z2 to O(2) symmetry.
- Ground-state correlations inside one subsystem depend on the state of the second subsystem and on the value of w.
Where Pith is reading between the lines
- The construction supplies a concrete route to realize tunable Ashkin-Teller criticality in quantum simulators built from coupled Ising chains.
- Symmetry enlargement at the two-dimensional multicritical points may connect to other models in which emergent continuous symmetries appear at criticality.
- Varying w offers a single parameter that interpolates between pure Ising and Ashkin-Teller universality classes.
Load-bearing premise
The coupling term must preserve the individual Z2 symmetries of each subsystem and the ground-state analysis must capture the long-range critical correlations.
What would settle it
Direct numerical extraction of the correlation-length exponent along the critical line of a one-dimensional stacked Ising chain for several values of w, checking whether the exponent changes continuously.

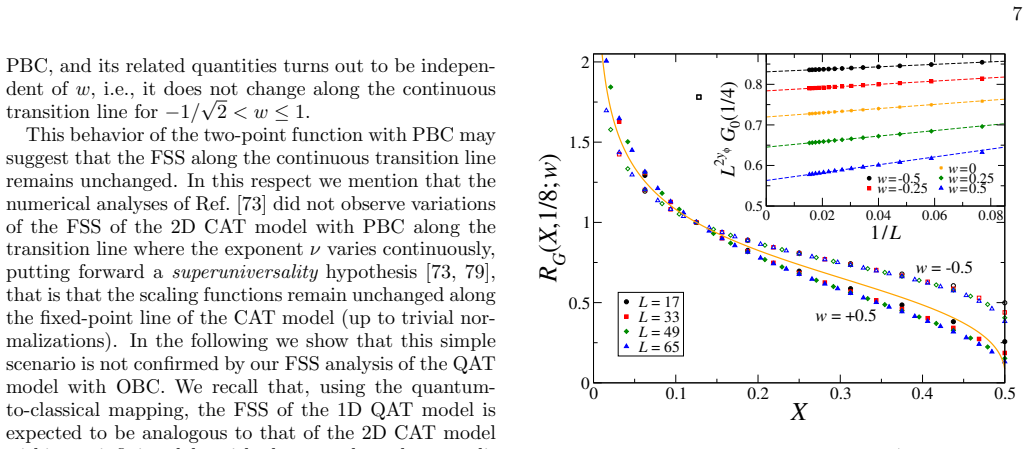

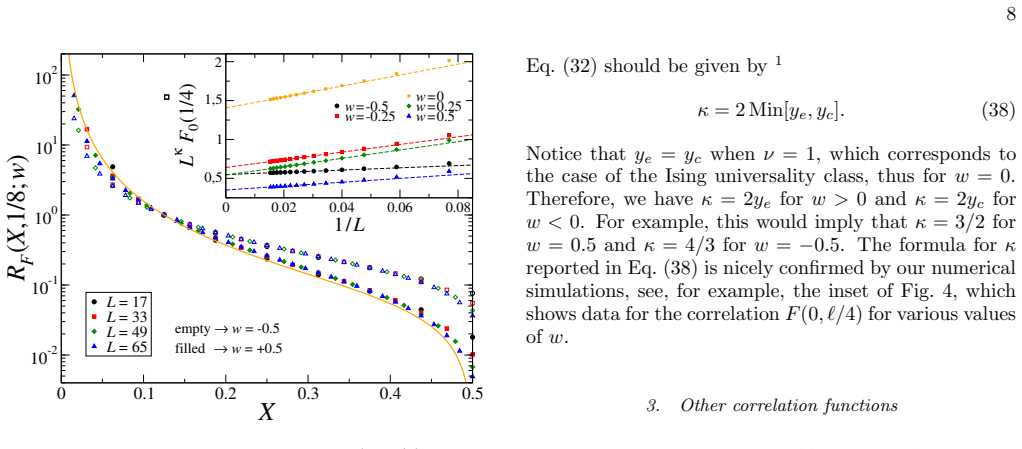

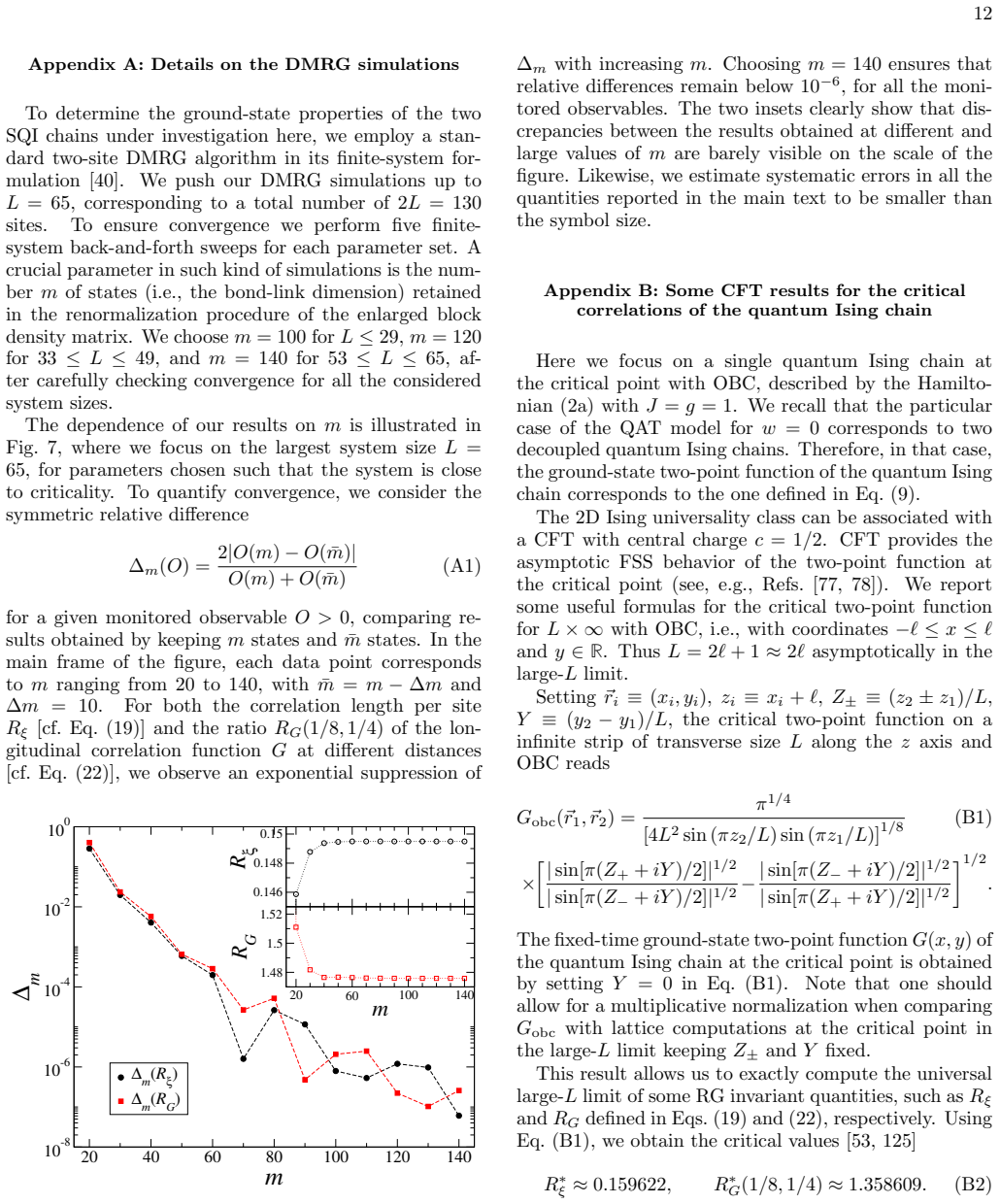

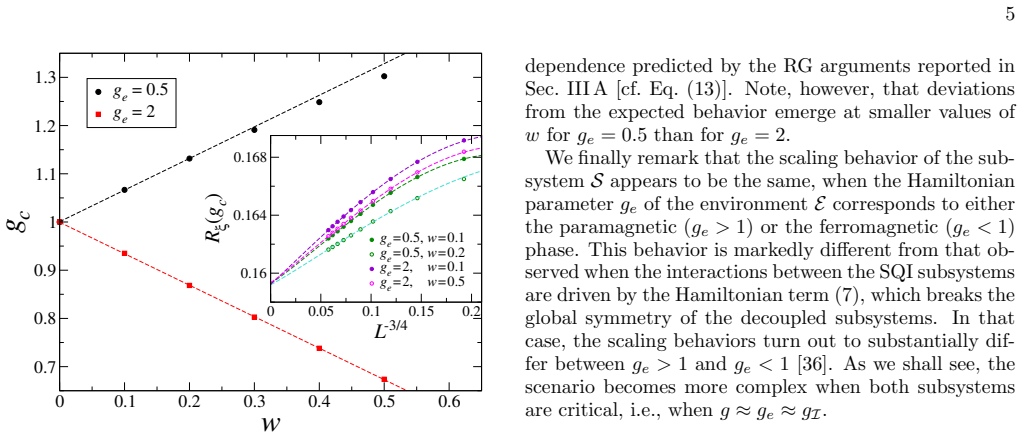

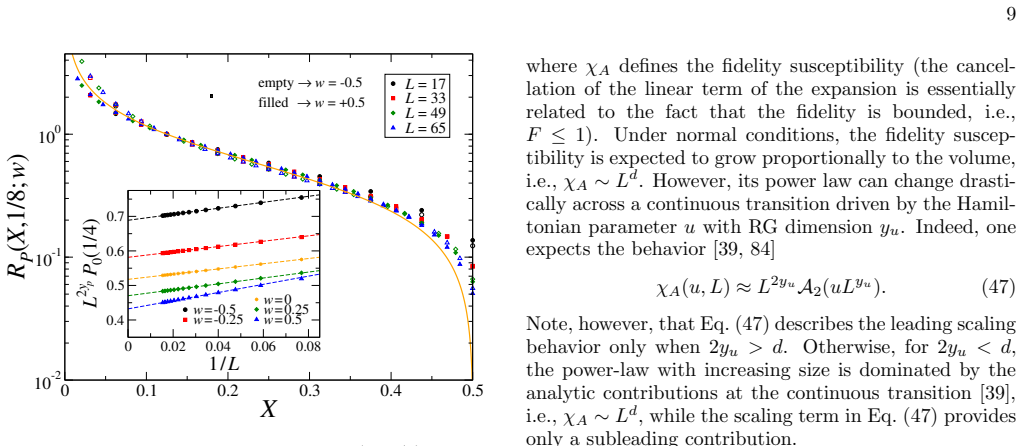

Figures
read the original abstract
We analyze the quantum states of an isolated composite system consisting of two stacked quantum Ising (SQI) subsystems, coupled by a local Hamiltonian term that preserves the $Z_2$ symmetry of each subsystem. The coupling strength is controlled by an intercoupling parameter $w$, with $w=0$ corresponding to decoupled quantum Ising systems. We focus on the quantum correlations of one of the two SQI subsystems, $S$, in the ground state of the global system, and study their dependence on both the state of the weakly-coupled complementary part $E$ and the intercoupling strength. We concentrate on regimes in which $S$ develops critical long-range correlations. The most interesting physical scenario arises when both SQI subsystems are critical. In particular, for identical SQI subsystems, the global system is equivalent to the quantum Ashkin-Teller model, characterized by an additional $Z_2$ interchange symmetry between the two subsystem operators. In this limit, one-dimensional SQI systems exhibit a peculiar critical line along which the length-scale critical exponent $\nu$ varies continuously with $w$, while two-dimensional systems develop quantum multicritical behaviors characterized by an effective enlargement of the symmetry of the critical modes, from the actual $Z_2\oplus Z_2$ symmetry to a continuous O(2) symmetry.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript analyzes the ground-state quantum correlations in a composite system of two stacked quantum Ising (SQI) subsystems coupled by a local Z₂-preserving term controlled by intercoupling strength w (with w=0 recovering decoupled Ising systems). For identical subsystems the global Hamiltonian is equivalent to the quantum Ashkin-Teller model via an additional Z₂ interchange symmetry. In one dimension this produces a critical line on which the correlation-length exponent ν varies continuously with w; in two dimensions the critical modes exhibit an effective enlargement from Z₂⊕Z₂ to O(2) symmetry.
Significance. The explicit construction of the Ashkin-Teller Hamiltonian from stacked Ising layers supplies a concrete, tunable realization of the model that may facilitate numerical or experimental studies of subsystem correlations and the known Ashkin-Teller critical line. The ground-state analysis is appropriate for zero-temperature criticality, and the reported behaviors (continuously varying ν in 1D, O(2) enlargement in 2D) are standard once the mapping is established.
major comments (1)
- [Hamiltonian definition / Section 2] The central claim that identical SQI subsystems map exactly onto the quantum Ashkin-Teller model rests on rewriting the composite Hamiltonian; the manuscript must display this rewriting (including the explicit four-spin interaction generated by the intercoupling term) in the section that introduces the global Hamiltonian, together with a verification that both individual Z₂ symmetries are preserved.
minor comments (2)
- Clarify whether the one-dimensional results refer to chains or to higher-dimensional strips; the abstract uses “one-dimensional SQI systems” without specifying the lattice geometry.
- The statement that “ground-state analysis fully captures the long-range critical correlations” should be supported by a brief remark on why excited-state contributions can be neglected for the scaling statements of interest.
Simulated Author's Rebuttal
We thank the referee for the careful reading of the manuscript and the positive recommendation for minor revision. We address the major comment below.
read point-by-point responses
-
Referee: [Hamiltonian definition / Section 2] The central claim that identical SQI subsystems map exactly onto the quantum Ashkin-Teller model rests on rewriting the composite Hamiltonian; the manuscript must display this rewriting (including the explicit four-spin interaction generated by the intercoupling term) in the section that introduces the global Hamiltonian, together with a verification that both individual Z₂ symmetries are preserved.
Authors: We agree that the explicit rewriting should be displayed for clarity. In the revised manuscript we will insert, in the section introducing the global Hamiltonian, the full algebraic rewriting of the composite Hamiltonian for identical subsystems. This will explicitly isolate the four-spin interaction generated by the intercoupling term proportional to w and will include a direct verification that each individual Z₂ symmetry remains intact. revision: yes
Circularity Check
No significant circularity; equivalence follows from direct Hamiltonian rewriting
full rationale
The paper derives the equivalence of identical stacked quantum Ising subsystems to the quantum Ashkin-Teller model by rewriting the composite Hamiltonian with the intercoupling term, which introduces the four-spin interaction while preserving individual Z2 symmetries. This is an algebraic identity, not a fit or self-definition. Critical exponents and symmetry enlargement (Z2⊕Z2 to O(2)) are then standard consequences of the resulting Ashkin-Teller universality class. No load-bearing step reduces to a self-citation chain, fitted input renamed as prediction, or ansatz smuggled via prior work; ground-state analysis is justified by the zero-temperature wavefunction encoding the correlations. The derivation chain is self-contained.
Axiom & Free-Parameter Ledger
axioms (2)
- domain assumption The intercoupling term preserves the Z₂ symmetry of each subsystem
- domain assumption Ground-state properties of the composite system determine the critical correlations of subsystem S
Lean theorems connected to this paper
-
IndisputableMonolith/Cost/FunctionalEquation.leanwashburn_uniqueness_aczel unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
for identical SQI subsystems, the global system is equivalent to the quantum Ashkin-Teller model... one-dimensional SQI systems exhibit a peculiar critical line along which the length-scale critical exponent ν varies continuously with w
-
IndisputableMonolith/Foundation/AlexanderDuality.leanalexander_duality_circle_linking unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
two-dimensional systems develop quantum multicritical behaviors characterized by an effective enlargement of the symmetry of the critical modes, from the actual Z₂⊕Z₂ symmetry to a continuous O(2) symmetry
What do these tags mean?
- matches
- The paper's claim is directly supported by a theorem in the formal canon.
- supports
- The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
- extends
- The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
- uses
- The paper appears to rely on the theorem as machinery.
- contradicts
- The paper's claim conflicts with a theorem or certificate in the canon.
- unclear
- Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.
Reference graph
Works this paper leans on
-
[1]
The longitudinal correlation function Sincewis a marginal parameter along the continuous transition line, due to the fact that its RG dimension vanishes, the two-point function along the critical line, i.e., varyingwwithin [−1/ √ 2,1] and keepingg= 1 fixed, is expected to show the FSS behavior G(x1, x2;w)≈L −2yϕ G(X1, X2;w),(27) whereX i ≈x i/Landy ϕ =η/2...
-
[2]
The transverse correlation function One may also study the scaling behavior of the two- point function of the transverse spin operator ˆσ (3) x , de- fined in Eq. (12). We expect that its FSS behavior along the QAT transition lineg= 1 andw∈[−1/ √ 2,1] can be written as F(x 1, x2;w)≈L −κF(X 1, X2;w),(32) with an appropriate exponentκthat should be related ...
-
[3]
Other correlation functions We have also computed the FSS behavior of correlation functions involving the spin operator of the environment E. In partcular, we verified the FSS of the connected correlation function of the energy operator ˆEx defined in Eq. (35), E(x1, x2)=⟨Ψ 0| ˆEx1 ˆEx2 |Ψ0⟩ − ⟨Ψ0| ˆEx1 |Ψ0⟩ ⟨Ψ0| ˆEx2 |Ψ0⟩, (39) where|Ψ 0⟩is the ground st...
-
[4]
W. H. Zurek, Environment-induced superselection rules, Phys. Rev. D26, 1862 (1982)
work page 1982
-
[5]
W. H. Zurek, Decoherence, einselection, and the quan- tum origins of the classical, Rev. Mod. Phys.75, 715 (2003)
work page 2003
-
[6]
Gaudin, Diagonalisation d’une classe d’Hamiltoniens de spin, J
M. Gaudin, Diagonalisation d’une classe d’Hamiltoniens de spin, J. Phys. (Paris)37, 1087 (1976)
work page 1976
-
[7]
N. V. Prokof’ev and P. C. E. Stamp, Theory of the spin bath, Rep. Prog. Phys.63, 669 (2000)
work page 2000
-
[8]
F. M. Cucchietti, J. P. Paz, and W. H. Zurek, Decoher- ence from spin environments, Phys. Rev. A72, 052113 (2005)
work page 2005
-
[9]
H. T. Quan, Z. Song, X. F. Liu, P. Zanardi, and C. P. Sun, Decay of Loschmidt echo enhanced by quantum criticality, Phys. Rev. Lett.96, 140604 (2006)
work page 2006
-
[10]
D. Rossini, T. Calarco, V. Giovannetti, S. Montangero, and R. Fazio, Decoherence induced by interacting quan- tum spin baths, Phys. Rev. A75, 032333 (2007)
work page 2007
-
[11]
F. M. Cucchietti, S. Fernandez-Vidal, and J. P. Paz, Universal decoherence induced by an environmental quantum phase transition, Phys. Rev. A75, 032333 (2007)
work page 2007
-
[12]
Z.-G. Yuan, P. Zhang, and S.-S. Li, Loschmidt echo and Berry phase of a quantum system coupled to anXYspin chain: Proximity to a quantum phase transition, Phys. Rev. A 75, 012102 (2007)
work page 2007
-
[13]
C. Cormick and J. P. Paz, Decoherence induced by a dynamic spin environment: The universal regime, Phys. Rev. A77, 022317 (2008)
work page 2008
-
[14]
W. H. Zurek, Quantum Darwinism, Nat. Phys.5, 181 (2009)
work page 2009
- [15]
- [16]
-
[17]
B.-B. Wei and R.-B. Liu, Lee-Yang zeros and critical times in decoherence of a probe spin coupled to a bath, Phys. Rev. Lett.109, 185701 (2012)
work page 2012
-
[18]
T. Nag, U. Divakaran, and A. Dutta, Scaling of the decoherence factor of a qubit coupled to a spin chain driven across quantum critical points, Phys. Rev. B86, 020401(R) (2012)
work page 2012
- [19]
-
[20]
R. Jafari, and H. Johannesson, Decoherence from spin environments: Loschmidt echo and quasiparticle excita- tions, Phys. Rev. B96, 224302 (2017)
work page 2017
-
[21]
Vicari, Decoherence dynamics of qubits coupled to systems at quantum transitions, Phys
E. Vicari, Decoherence dynamics of qubits coupled to systems at quantum transitions, Phys. Rev. A98, 052127 (2018)
work page 2018
-
[22]
E. Fiorelli, A. Cuccoli, and P. Verrucchi, Critical slowing down and entanglement protection, Phys. Rev. A100, 032123 (2019)
work page 2019
-
[23]
D. Rossini and E. Vicari, Scaling of decoherence and energy flow in interacting quantum many-body systems, Phys. Rev. A99, 052113 (2019)
work page 2019
- [24]
-
[25]
F. Liu, X. Zhou, and Z.-W. Zhou, Memory effect and non-Markovian dynamics in an open quantum system, Phys. Rev. A99, 052119 (2019)
work page 2019
- [26]
-
[27]
H.-Y. Yang, K. Zhang, X.-H. Wang, and H.-L. Shi, Op- timal energy storage and collective charging speedup in the central-spin quantum battery, Phys. Rev. B111, 085410 (2025)
work page 2025
- [28]
-
[29]
R. Vasseur, S. A. Parameswaran, and J. E. Moore, Quantum revivals and many-body localization, Phys. Rev. B91, 140202(R) (2015)
work page 2015
-
[30]
C.-Z. Yao and W.-M. Zhang, Probing topological states through the exact non-Markovian decoherence dynam- ics of a spin coupled to a spin bath in the real-time domain, Phys. Rev. B102, 035133 (2020)
work page 2020
-
[31]
A. Franchi, D. Rossini, and E. Vicari, Quantum many- body spin rings coupled to ancillary spins: The sunburst quantum Ising model, Phys. Rev. E105, 054111 (2022)
work page 2022
-
[32]
A. Franchi, D. Rossini, and E. Vicari, Decoherence and energy flow in the sunburst quantum Ising model, J. Stat. Mech. (2022) 083103
work page 2022
-
[33]
A. Mitra and S. C. L. Srivastava, Sunburst quantum Ising model under interaction quench: entanglement and role of initial state coherence, Phys. Rev. E108, 054114 (2023)
work page 2023
-
[34]
A. Franchi and F. Tarantelli, Liouvillian gap and out-of- equilibrium dynamics of a sunburst Kitaev ring: from local to uniform dissipation, Phys. Rev. B108, 094114 (2023)
work page 2023
-
[35]
A. Mitra and S. C. L. Srivastava, Sunburst quantum Ising battery, Phys. Rev. A110, 012227 (2024)
work page 2024
-
[36]
S. Barbarino, J. Yu, P. Zoller, and J. C. Budich, Prepar- ing atomic topological quantum matter by adiabatic nonunitary dynamics, Phys. Rev. Lett.124, 010401 (2020)
work page 2020
-
[37]
S. Bhattacharjee, S. Bandyopadhyay, D. Sen, and A. Dutta, Bilayer Haldane system: Topological characteri- zation and adiabatic passages connecting Chern phases, 14 Phys. Rev. B103, 224304 (2021)
work page 2021
-
[38]
M. Manna¨ ı, J.-N. Fuchs, F. Pi´ echon, and S. Haddad, Stacking-induced Chern insulator, Phys. Rev. B107, 045117 (2023)
work page 2023
-
[39]
A. Franchi, A. Pelissetto, and E. Vicari, Quantum crit- ical behaviors and decoherence of weakly coupled quan- tum Ising models within an isolated global system, Phys. Rev. E107, 014113 (2023)
work page 2023
-
[40]
S. L. Sondhi, S. M. Girvin, J. P. Carini, and D. Sha- har, Continuous quantum phase transitions, Rev. Mod. Phys.69, 315 (1997)
work page 1997
-
[41]
Sachdev,Quantum Phase Transitions, 2nd ed
S. Sachdev,Quantum Phase Transitions, 2nd ed. (Cam- bridge University Press, Cambridge, 2011)
work page 2011
-
[42]
D. Rossini and E. Vicari, Coherent and dissipative dy- namics at quantum phase transitions, Phys. Rep.936, 1 (2021)
work page 2021
-
[43]
Schollw¨ ock, The density-matrix renormalization group, Rev
U. Schollw¨ ock, The density-matrix renormalization group, Rev. Mod. Phys.77, 259 (2005)
work page 2005
-
[44]
M. Kohmoto, M. den Nijs, and L. P. Kadanoff, Hamil- tonian studies of thed= 2 Ashkin-Teller model, Phys. Rev. B24, 5229 (1981)
work page 1981
-
[45]
F. Igloi and J. Solyom, Phase diagram and critical prop- erties of the (1+1)-dimensional Ashkin-Teller model, J. Phys. A17, 1531 (1984)
work page 1984
-
[46]
F. C. Alcaraz and J. R. Drugowich de Felicio, Finite size studies of the Ashkin-Teller model, J. Phys. A17L651 (1984)
work page 1984
-
[47]
Fradkin,N-Color Ashkin-Teller model in two dimen- sions: Solution in the large-Nlimit, Phys
E. Fradkin,N-Color Ashkin-Teller model in two dimen- sions: Solution in the large-Nlimit, Phys. Rev. Lett. 53, 1967 (1984)
work page 1967
-
[48]
Shankar, Ashkin-Teller and Gross-Neveu models: New relations and results, Phys
R. Shankar, Ashkin-Teller and Gross-Neveu models: New relations and results, Phys. Rev. Lett.55, 453 (1985)
work page 1985
-
[49]
G. von Gehlen and V. Rittenberg, The Ashkin-Teller quantum chain and conformal invariance, J. Phys. A 20, 227 (1987)
work page 1987
-
[50]
F. C. Alcaraz, M. N. Barber, and M. T. Batchelor, Fi- nite size studies of the Ashkin-Teller model, Ann. Phys. 182, 280 (1988)
work page 1988
-
[51]
J. Ashkin and E. Teller, Statistics of Two-Dimensional Lattices with Four Components, Phys. Rev.64, 178 (1943)
work page 1943
-
[52]
F. Y. Wu and K. Y. Liu, Two phase transitions in the Ashkin-Teller model, J. Phys. C: Solid State Phys.7, L181 (1974)
work page 1974
- [53]
-
[54]
Pfeuty, The one-dimensional Ising model with a transverse field, Ann
P. Pfeuty, The one-dimensional Ising model with a transverse field, Ann. Phys.57, 79 (1970)
work page 1970
-
[55]
M. Campostrini, A. Pelissetto, and E. Vicari, Quantum Ising chains with boundary fields, J. Stat. Mech. P11015 (2015)
work page 2015
-
[56]
M. Campostrini, A. Pelissetto, and E. Vicari, Finite- size scaling at quantum transitions, Phys. Rev. B89, 094516 (2014)
work page 2014
-
[57]
A. Pelissetto and E. Vicari, Critical phenomena and renormalization group theory, Phys. Rep.368, 549 (2002)
work page 2002
-
[58]
M. Caselle, M. Hasenbusch, A. Pelissetto, and E. Vicari, Irrelevant operators in the two-dimensional Ising model, J. Phys. A35, 4861 (2002)
work page 2002
-
[59]
M. Baake, G. von Gehlen and V. Rittenberg, Op- erator content of the Ashkin-Teller quantum chain- superconformal and Zamolodchikov-Fateev invariance: I. Free boundary conditions, J. Phys20, L479 (1987); Operator content of the Ashkin-Teller quantum chain, superconformal and Zamolodchikov-Fateev invariance. II. Boundary conditions compatible with the torus...
work page 1987
-
[60]
S. Yang, Modular invariant partition function of the Ashkin-Teller model on the critical line and N = 2 su- perconformal invariance, Nucl. Phys. B285, 183 (1987)
work page 1987
-
[61]
S. Yang and H. Zheng, Superconformal invariance in the two-dimensional Ashkin-Teller model, Nuc. Phys. B 285, 410 (1987)
work page 1987
-
[62]
M. Yamanaka, Y. Hatsugai, and M. Kohmoto, Phase diagram of the Ashkin-Teller quantum spin chain, Phys. Rev. B50, 559 (1994)
work page 1994
-
[63]
M. Yamanaka and M. Kohmoto, Line of continuously varying criticality in the Ashkin-Teller quantum chain, Phys. Rev. B52, 1138 (1995)
work page 1995
-
[64]
J. C. Bridgeman, A O’Brien, S. D. Barlett, and A. C. Doherty, Multiscale entanglement renormalization ansatz for spin chains with continuously varying crit- icality, Phys. Rev. B91, 165129 (2015)
work page 2015
-
[65]
A O’Brien, S. D. Barlett, A. C. Doherty, and S. T. Flammia, Symmetry-respecting real-space renormaliza- tion for the quantum Ashkin-Teller model, Phys. Rev. E92, 042163 (2015)
work page 2015
-
[66]
B. E. L¨ uscher, F. Mila, and N. Chepiga, Critical prop- erties of the quantum Ashkin-Teller chain with chiral perturbations, Phys. Rev. B108, 184425 (2023)
work page 2023
-
[67]
Y. Liu, N. Chepiga, Y. Fukusumi, and M. Oshikawa, Boundary critical phenomena in the quantum Ashkin- Teller model, arXiv:2601.16951
work page internal anchor Pith review Pith/arXiv arXiv
-
[68]
F. Y. Wu, Ashkin-Teller Model as a Vertex Problem, J. Math. Phys.18, 611 (1977)
work page 1977
-
[69]
R. J. Baxter,Exactly solvable models in statistical me- chanics, Academic Press, New York (1982)
work page 1982
-
[70]
E. Domany and E. K. Riedel, Two-dimensional anisotropicN-vector models, Phys. Rev. B19, 5817 (1979)
work page 1979
-
[71]
J. R. Drugowich de Fel´ ıcio and R. K¨ oberle, Critical ex- ponents of the Ashkin-Teller model, Phys. Rev. B25, 511 (1982)
work page 1982
-
[72]
S. Wiseman and E. Domany, A Cluster Method for the Ashkin–Teller Model, Phys. Rev. E48, 4080 (1993)
work page 1993
-
[73]
G. Kamieniarz, P. Kozlowski, and R. Dekeyser, Critical Ising lines of thed= 2 Ashkin-Teller model, Phys. Rev. E55, 3724 (1997)
work page 1997
-
[74]
G. Delfino and P. Grinza, Universal ratios along a line of critical points. The Ashkin-Teller model, Nucl. Phys. B682, 521 (2004)
work page 2004
-
[75]
A. Giuliani and V. Mastropietro, Anomalous universal- ity in the anisotropic Ashkin-Teller model, Commun. Math. Phys.256, 681 (2005)
work page 2005
-
[76]
I. Mukherjee and P. K. Mohanty, Hidden superuniver- sality in systems with continuous variation of critical exponents, Phys. Rev. B108, 174417 (2023)
work page 2023
-
[77]
I. Kecoglu and A. N. Berker, Global Ashkin-Teller Phase Diagrams in Two and Three Dimensions: Multicriti- cal Bifurcation versus Double Tricriticality - Endpoint, Physica A630, 129248 (2023)
work page 2023
-
[78]
Y. Aoun, M. Dober, and A. Glazman, Phase diagram of the Ashkin-Teller model, Commun. Math. Phys. 405, 15 37 (2024)
work page 2024
-
[79]
Dober, On antiferromagnetic regimes in the Ashkin- Teller model, Electron
M. Dober, On antiferromagnetic regimes in the Ashkin- Teller model, Electron. J. Probab.30, 1 (2025)
work page 2025
-
[80]
C. Itzykson and J. M. Drouffe,Statistical Field Theory (Cambridge Univ. Press, Cambridge 1989)
work page 1989
