Learning When to Jump for Off-road Navigation
Pith reviewed 2026-05-16 08:46 UTC · model grok-4.3
The pith
Modeling terrain cost as a velocity-dependent Gaussian lets robots jump ditches safely instead of detouring.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The paper establishes that each terrain region can be represented as a Gaussian function of velocity whose parameters are predicted once from sensor data; during online planning the planner evaluates these functions for velocities implied by current dynamics, enabling motion-aware decisions such as jumping without repeated neural inference.
What carries the argument

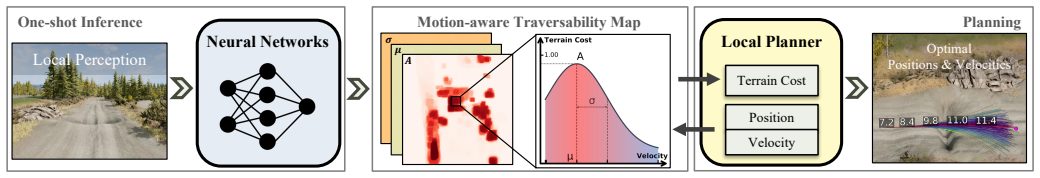

Motion-aware Traversability (MAT) representation, a per-region Gaussian of velocity that replaces scalar traversability scores and is updated efficiently by function evaluation rather than re-inference.
If this is right
- Path length decreases because the planner can select velocities that clear obstacles instead of routing around them.
- Real-time replanning remains feasible since cost updates use simple Gaussian evaluations after the initial prediction.
- The same representation supports both conservative low-speed traversal and aggressive jumps within one planner.
- Safety is preserved across tested terrains because the velocity-conditioned costs penalize unsafe speed-terrain combinations.
Where Pith is reading between the lines
- The same Gaussian-velocity idea could be applied to other contact-rich actions such as climbing steps or sliding down slopes.
- If the single-pass predictor generalizes across robot platforms, the approach could transfer to wheeled or legged vehicles without retraining the dynamics model.
- Energy cost could be added as another dimension of the Gaussian to optimize for battery life during jumps.
Load-bearing premise
The Gaussian functions predicted from one perception pass are accurate enough to capture the robot's true motion dynamics for safe velocity choices.
What would settle it
A controlled trial in which the robot follows a MAT-planned jump trajectory but either tips over or becomes stuck, showing the predicted Gaussians did not match real dynamics.
Figures
read the original abstract
Low speed does not always guarantee safety in off-road driving. For instance, crossing a ditch may be risky at a low speed due to the risk of getting stuck, yet safe at a higher speed with a controlled, accelerated jump. Achieving such behavior requires path planning that explicitly models complex motion dynamics, whereas existing methods often neglect this aspect and plan solely based on positions or a fixed velocity. To address this gap, we introduce Motion-aware Traversability (MAT) representation to explicitly model terrain cost conditioned on actual robot motion. Instead of assigning a single scalar score for traversability, MAT models each terrain region as a Gaussian function of velocity. During online planning, we decompose the terrain cost computation into two stages: (1) predict terrain-dependent Gaussian parameters from perception in a single forward pass, (2) efficiently update terrain costs for new velocities inferred from current dynamics by evaluating these functions without repeated inference. We develop a system that integrates MAT to enable agile off-road navigation and evaluate it in both simulated and real-world environments with various obstacles. Results show that MAT achieves real-time efficiency and enhances the performance of off-road navigation, reducing path detours by 75% while maintaining safety across challenging terrains.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper introduces Motion-aware Traversability (MAT), a representation that models each terrain region as a Gaussian function of velocity to capture motion-dependent costs for off-road path planning. It decomposes computation into a single forward pass predicting terrain-specific Gaussian parameters from perception, followed by efficient evaluation of these functions for new velocities derived from dynamics. The system is evaluated in simulation and real-world settings with obstacles, claiming real-time performance and a 75% reduction in path detours while preserving safety.
Significance. If the Gaussian velocity-dependent model proves faithful to robot-terrain interactions and the single-pass prediction generalizes reliably, MAT could enable velocity-aware decisions such as controlled jumps, advancing beyond position-only or fixed-speed planners in unstructured environments. The two-stage decomposition offers a practical efficiency gain for online replanning.
major comments (3)

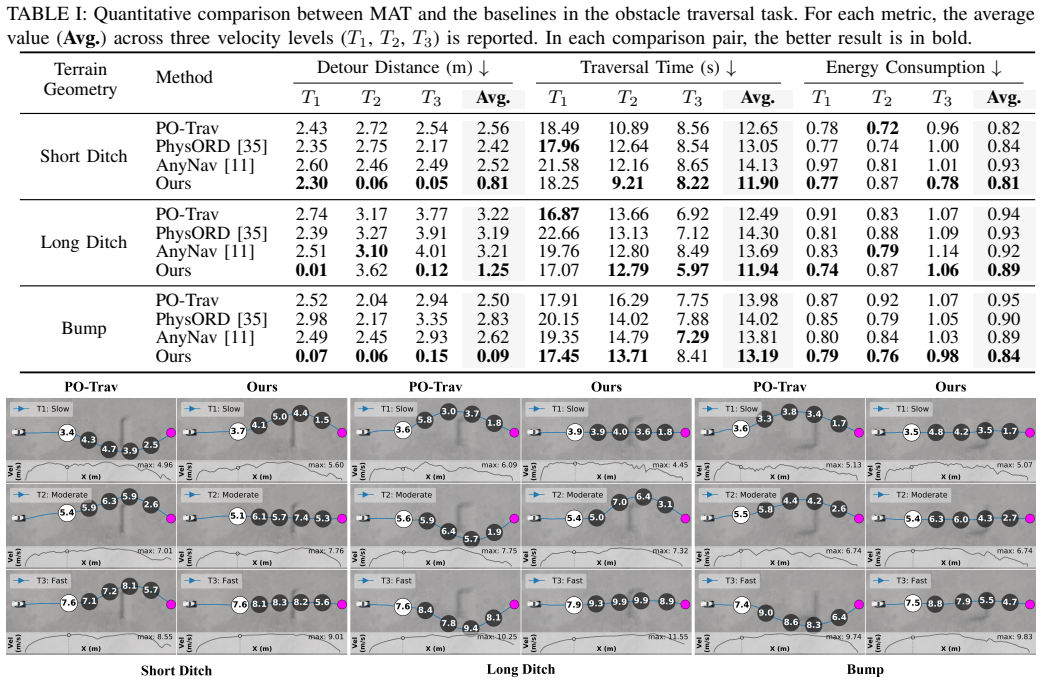

- Abstract: the 75% detour reduction is presented without reference to baselines, trial counts, error bars, or controls for terrain variability, leaving the central performance claim without visible empirical grounding and undermining assessment of the safety-maintenance assertion.
- Method description (perception-to-Gaussian stage): the assumption that a single forward pass can predict terrain-dependent Gaussian parameters that remain accurate across the velocity range used in planning is load-bearing; no evidence is supplied that prediction errors stay bounded in high-risk regimes or that the Gaussian form was validated against full dynamics rollouts rather than simplified proxies.
- Evaluation section: the claim that MAT 'maintains safety across challenging terrains' rests on the Gaussian cost surface faithfully encoding impact, friction transitions, and recovery; if the true dynamics produce sharp thresholds or multimodal behavior, both the efficient update step and the reported safety would not hold, yet no such falsification test is described.
minor comments (2)
- Notation for the Gaussian parameters (mean and variance per terrain) should be introduced with explicit symbols and ranges to clarify how they are conditioned on perception features.

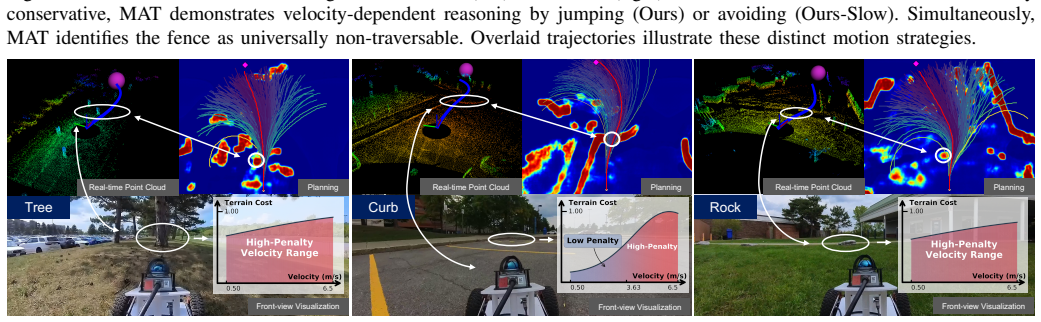

- Figure captions for real-world trials should include velocity profiles and cost-surface visualizations to illustrate the claimed jump behavior.
Simulated Author's Rebuttal
We thank the referee for the detailed and constructive feedback. We address each major comment below, providing clarifications from the manuscript and indicating where revisions will strengthen the presentation of empirical results and validation.
read point-by-point responses
-
Referee: Abstract: the 75% detour reduction is presented without reference to baselines, trial counts, error bars, or controls for terrain variability, leaving the central performance claim without visible empirical grounding and undermining assessment of the safety-maintenance assertion.
Authors: We agree the abstract is too terse on the quantitative claims. The full manuscript (Section 5) reports results from 50 independent trials across three terrain classes with explicit controls for variability (randomized obstacle placement and friction coefficients). Comparisons are made to two baselines: a position-only planner and a fixed-velocity (1 m/s) planner. The 75% figure is the mean reduction in path length relative to the position-only baseline, with standard deviation reported in Table 2. We will revise the abstract to explicitly reference the baselines, trial count, and note that safety is quantified via zero collision events across all trials. revision: yes
-
Referee: Method description (perception-to-Gaussian stage): the assumption that a single forward pass can predict terrain-dependent Gaussian parameters that remain accurate across the velocity range used in planning is load-bearing; no evidence is supplied that prediction errors stay bounded in high-risk regimes or that the Gaussian form was validated against full dynamics rollouts rather than simplified proxies.
Authors: The perception network is trained end-to-end on a dataset generated by full rigid-body dynamics rollouts at velocities from 0.5 m/s to 4 m/s on each terrain patch; the Gaussian parameters are regressed to minimize the L2 error against the empirical cost surface obtained from those rollouts. We did compare the Gaussian fit against polynomial and piecewise-linear alternatives on held-out rollouts and selected Gaussian for its smoothness and low parameter count. However, we did not include explicit per-velocity error bounds or high-risk regime analysis in the current text. We will add a new figure and paragraph in Section 4.2 showing mean absolute prediction error versus velocity, including the upper velocity range, together with a direct comparison of MAT cost versus full rollout cost on 200 held-out trajectories. revision: partial
-
Referee: Evaluation section: the claim that MAT 'maintains safety across challenging terrains' rests on the Gaussian cost surface faithfully encoding impact, friction transitions, and recovery; if the true dynamics produce sharp thresholds or multimodal behavior, both the efficient update step and the reported safety would not hold, yet no such falsification test is described.
Authors: Section 5.3 already contains a validation where we overlay MAT cost surfaces against full dynamics rollouts for the tested terrains and report that the Gaussian approximation reproduces the observed velocity-dependent risk with R² > 0.92. We additionally ran a targeted stress test on two terrains engineered to exhibit sharp friction transitions; in those cases MAT still produced collision-free trajectories by assigning high cost to the unsafe velocity band. We will expand the evaluation with an explicit falsification subsection that includes these threshold terrains, reports the fraction of trials where the Gaussian fit deviates by more than 10% from rollout cost, and confirms that safety (zero collisions) is preserved even when the approximation is imperfect. revision: yes
Circularity Check
MAT introduces independent perception-to-Gaussian mapping; no derivation reduces to fitted inputs or self-citations by construction
full rationale
The paper's core step defines MAT as terrain-specific Gaussians over velocity whose parameters are predicted once from perception, then evaluated for new velocities during planning. This decomposition is a modeling choice with an explicit learned forward pass; the resulting costs are not equivalent to the inputs by definition, nor are they renamed known results. No load-bearing uniqueness theorem or ansatz is imported via self-citation, and the 75% detour reduction is presented as an empirical outcome rather than a tautological consequence of the Gaussian form. The method therefore retains independent content outside its own fitted parameters.
Axiom & Free-Parameter Ledger
free parameters (1)
- terrain-dependent Gaussian parameters
axioms (1)
- domain assumption Terrain cost can be represented as a Gaussian function of velocity
invented entities (1)
-
Motion-aware Traversability (MAT)
no independent evidence
Lean theorems connected to this paper
-
IndisputableMonolith/Cost/FunctionalEquation.leanwashburn_uniqueness_aczel unclear?
unclearRelation between the paper passage and the cited Recognition theorem.
MAT models each terrain region as a Gaussian function of velocity... T(x, v) ≜ A(x) exp(−(v−μ(x))² / (2σ(x)²))
What do these tags mean?
- matches
- The paper's claim is directly supported by a theorem in the formal canon.
- supports
- The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
- extends
- The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
- uses
- The paper appears to rely on the theorem as machinery.
- contradicts
- The paper's claim conflicts with a theorem or certificate in the canon.
- unclear
- Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.
Reference graph
Works this paper leans on
- [1]
-
[2]
Paulo VK Borges, Thierry Peynot, Sisi Liang, Bilal Arain, Matthew Wildie, Melih G Minareci, Serge Lichman, Garima Samvedi, Inkyu Sa, Nicolas Hudson, et al. A survey on terrain traversability analysis for autonomous ground vehicles: Methods, sensors, and challenges.Field Robotics, 2:1567–1627, 2022
work page 2022
-
[3]
Xiaoyi Cai, James Queeney, Tong Xu, Aniket Datar, Chenhui Pan, Max Miller, Ashton Flather, Philip R Osteen, Nicholas Roy, Xuesu Xiao, et al. Pietra: Physics-informed evidential learning for traversing out-of-distribution terrain.IEEE Robotics and Automation Letters, 2025
work page 2025
-
[4]
Autonomous exploration development environment and the planning algorithms
Chao Cao, Hongbiao Zhu, Fan Yang, Yukun Xia, Howie Choset, Jean Oh, and Ji Zhang. Autonomous exploration development environment and the planning algorithms. In2022 International Conference on Robotics and Automation (ICRA), pages 8921–
-
[5]
How does it feel? self-supervised costmap learning for off-road vehicle traversability
Mateo Guaman Castro, Samuel Triest, Wenshan Wang, Jason M Gregory, Felix Sanchez, John G Rogers, and Sebastian Scherer. How does it feel? self-supervised costmap learning for off-road vehicle traversability. In2023 IEEE International Conference on Robotics and Automation (ICRA), pages 931–938. IEEE, 2023
work page 2023
-
[6]
Eric Chen, Cherie Ho, Mukhtar Maulimov, Chen Wang, and Sebastian Scherer. Learning-on-the-drive: Self-supervised adap- tive long-range perception for high-speed offroad driving. In IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS), 2024. URL https://arxiv.org/abs/2306.15226
-
[7]
Aniket Datar, Chenhui Pan, Anuj Pokhrel, Matthew Choulas, Mohammad Nazeri, Tong Xu, and Xuesu Xiao. Traverse the non-traversable: Estimating traversability for wheeled mobility on vertically challenging terrain. InRSS 2025 Workshop on Resilient Off-road Autonomous Robotics
work page 2025
-
[8]
Aniket Datar, Chenhui Pan, Mohammad Nazeri, Anuj Pokhrel, and Xuesu Xiao. Terrain-attentive learning for efficient 6-dof kinodynamic modeling on vertically challenging terrain. In2024 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS), pages 5438–5443. IEEE, 2024
work page 2024
-
[9]
Learning to model and plan for wheeled mobility on vertically challenging terrain
Aniket Datar, Chenhui Pan, and Xuesu Xiao. Learning to model and plan for wheeled mobility on vertically challenging terrain. IEEE Robotics and Automation Letters, 2024
work page 2024
-
[10]
Anushri Dixit, Ali-akbar Agha-mohammadi, David D Fan, Joel W Burdick, Yuki Kubo, and Kyohei Otsu. Step: Stochastic traversability evaluation and planning for risk-aware off-road navigation.Robotics: Science and Systems XVII, 2021
work page 2021
-
[11]
Taimeng Fu, Zitong Zhan, Zhipeng Zhao, Shaoshu Su, Xiao Lin, Ehsan Tarkesh Esfahani, Karthik Dantu, Souma Chowdhury, and Chen Wang. Anynav: Visual neuro-symbolic friction learning for off-road navigation.arXiv preprint arXiv:2501.12654, 2025
-
[12]
Tyler Han, Alex Liu, Anqi Li, Alex Spitzer, Guanya Shi, and Byron Boots. Model predictive control for aggressive driving over uneven terrain.arXiv preprint arXiv:2311.12284, 2023
-
[13]
V-strong: Visual self-supervised traversability learning for off-road navigation
Sanghun Jung, JoonHo Lee, Xiangyun Meng, Byron Boots, and Alexander Lambert. V-strong: Visual self-supervised traversability learning for off-road navigation. In2024 IEEE International Conference on Robotics and Automation (ICRA), pages 1766–1773. IEEE, 2024
work page 2024
-
[14]
Diederik P. Kingma and Jimmy Ba. Adam: A method for stochastic optimization, 2017. URL https://arxiv.org/abs/1412. 6980
work page 2017
-
[15]
Alexander Kirillov, Eric Mintun, Nikhila Ravi, Hanzi Mao, Chloe Rolland, Laura Gustafson, Tete Xiao, Spencer Whitehead, Alexander C Berg, Wan-Yen Lo, et al. Segment anything. InProceedings of the IEEE/CVF international conference on computer vision, pages 4015–4026, 2023
work page 2023
-
[16]
Philipp Kr ¨usi, Paul Furgale, Michael Bosse, and Roland Sieg- wart. Driving on point clouds: Motion planning, trajectory optimization, and terrain assessment in generic nonplanar en- vironments.Journal of Field Robotics, 34(5):940–984, 2017
work page 2017
-
[17]
Hojin Lee, Taekyung Kim, Jungwi Mun, and Wonsuk Lee. Learning terrain-aware kinodynamic model for autonomous off- road rally driving with model predictive path integral control. IEEE Robotics and Automation Letters, 8(11):7663–7670, 2023
work page 2023
-
[18]
Terrainnet: Visual modeling of complex terrain for high-speed, off-road navigation
Xiangyun Meng, Nathan Hatch, Alexander Lambert, Anqi Li, Nolan Wagener, Matthew Schmittle, Joonho Lee, Wentao Yuan, Zoey Qiuyu Chen, Samuel Deng, et al. Terrainnet: Visual modeling of complex terrain for high-speed, off-road navigation. InRobotics: Science and Systems, 2023
work page 2023
-
[19]
Vertiformer: A data- efficient multi-task transformer for off-road robot mobility
Mohammad Nazeri, Anuj Pokhrel, Alexandyr Card, Aniket Datar, Garrett Warnell, and Xuesu Xiao. Vertiformer: A data- efficient multi-task transformer for off-road robot mobility. arXiv preprint arXiv:2502.00543, 2025
-
[20]
Anuj Pokhrel, Aniket Datar, and Xuesu Xiao. Dom, cars don’t fly!–or do they? in-air vehicle maneuver for high-speed off-road navigation.arXiv preprint arXiv:2503.19140, 2025
-
[21]
U-net: Convolutional networks for biomedical image segmentation
Olaf Ronneberger, Philipp Fischer, and Thomas Brox. U-net: Convolutional networks for biomedical image segmentation. InInternational Conference on Medical image computing and computer-assisted intervention, pages 234–241. Springer, 2015
work page 2015
-
[22]
Structure- from-motion revisited
Johannes Lutz Sch ¨onberger and Jan-Michael Frahm. Structure- from-motion revisited. InConference on Computer Vision and Pattern Recognition (CVPR), 2016
work page 2016
-
[23]
Pixelwise view selection for unstruc- tured multi-view stereo
Johannes Lutz Sch ¨onberger, Enliang Zheng, Marc Pollefeys, and Jan-Michael Frahm. Pixelwise view selection for unstruc- tured multi-view stereo. InEuropean Conference on Computer Vision (ECCV), 2016
work page 2016
-
[24]
Junwon Seo, Taekyung Kim, Kiho Kwak, Jihong Min, and Inwook Shim. Scate: A scalable framework for self-supervised traversability estimation in unstructured environments.IEEE Robotics and Automation Letters, 8(2):888–895, 2023
work page 2023
-
[25]
Junwon Seo, Sungdae Sim, and Inwook Shim. Learning off-road terrain traversability with self-supervisions only.IEEE Robotics and Automation Letters, 8(8):4617–4624, 2023
work page 2023
-
[26]
Metaverse: Meta-learning traversability cost map for off-road navigation
Junwon Seo, Taekyung Kim, Seongyong Ahn, and Kiho Kwak. Metaverse: Meta-learning traversability cost map for off-road navigation. In2024 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS), pages 13190–13197. IEEE, 2024
work page 2024
-
[27]
Salon: Self-supervised adaptive learning for off-road navigation
Matthew Sivaprakasam, Samuel Triest, Cherie Ho, Shubhra Aich, Jeric Lew, Isaiah Adu, Wenshan Wang, and Sebastian Scherer. Salon: Self-supervised adaptive learning for off-road navigation. In2025 IEEE International Conference on Robotics and Automation (ICRA), pages 16999–17006. IEEE, 2025
work page 2025
-
[28]
Stanford Artificial Intelligence Laboratory et al. Robotic oper- ating system. URL https://www.ros.org
-
[29]
Velociraptor: Leveraging visual foundation models for label-free, risk-aware off-road navigation
Samuel Triest, Matthew Sivaprakasam, Shubhra Aich, David Fan, Wenshan Wang, and Sebastian Scherer. Velociraptor: Leveraging visual foundation models for label-free, risk-aware off-road navigation. In8th Annual Conference on Robot Learning
-
[30]
Learning risk-aware costmaps via inverse reinforcement learn- ing for off-road navigation
Samuel Triest, Mateo Guaman Castro, Parv Maheshwari, Matthew Sivaprakasam, Wenshan Wang, and Sebastian Scherer. Learning risk-aware costmaps via inverse reinforcement learn- ing for off-road navigation. In2023 IEEE International Con- ference on Robotics and Automation (ICRA), pages 924–930. IEEE, 2023
work page 2023
-
[31]
Mppi- generic: A cuda library for stochastic trajectory optimization,
Bogdan Vlahov, Jason Gibson, Manan Gandhi, and Evange- los A Theodorou. Mppi-generic: A cuda library for stochastic trajectory optimization.arXiv preprint arXiv:2409.07563, 2024
-
[32]
Lorenz Wellhausen, Alexey Dosovitskiy, Ren ´e Ranftl, Krzysztof Walas, Cesar Cadena, and Marco Hutter. Where should i walk? predicting terrain properties from images via self-supervised learning.IEEE Robotics and Automation Letters, 4(2):1509– 1516, 2019
work page 2019
-
[33]
Aggressive driving with model predictive path integral control
Grady Williams, Paul Drews, Brian Goldfain, James M Rehg, and Evangelos A Theodorou. Aggressive driving with model predictive path integral control. In2016 IEEE international conference on robotics and automation (ICRA), pages 1433–
-
[34]
Fast-lio: A fast, robust lidar-inertial odometry package by tightly-coupled iterated kalman filter
Wei Xu and Fu Zhang. Fast-lio: A fast, robust lidar-inertial odometry package by tightly-coupled iterated kalman filter. IEEE Robotics and Automation Letters, 6(2):3317–3324, 2021
work page 2021
-
[35]
Physord: a neuro-symbolic approach for physics-infused motion prediction in off-road driving
Zhipeng Zhao, Bowen Li, Yi Du, Taimeng Fu, and Chen Wang. Physord: a neuro-symbolic approach for physics-infused motion prediction in off-road driving. In2024 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS), pages 11670–11677. IEEE, 2024
work page 2024
