arxiv: 2602.13298 · v3 · submitted 2026-02-09 · 💻 cs.CV · cs.AI

Recognition: no theorem link

The Effective Depth Paradox: Evaluating the Relationship between Architectural Topology and Trainability in Deep CNNs

Manfred M. Fischer , Joshua Pitts

Authors on Pith no claims yet

Pith reviewed 2026-05-16 05:51 UTC · model grok-4.3

classification 💻 cs.CV cs.AI

keywords effective depthnominal depthCNN trainabilityresidual networksnetwork topologygradient stabilitydeep convolutional networksimage classification

0 comments

The pith

CNN architectures with identity shortcuts maintain stability by keeping effective depth much lower than the number of layers.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper compares VGG, ResNet, and GoogLeNet families in a controlled setup to separate the effects of network depth on training success. It defines nominal depth as the physical layer count and effective depth as the expected number of sequential transformations the input undergoes. Results indicate that shortcuts and branching structures prevent effective depth from growing in step with added layers, preserving gradient flow and optimization stability. A sympathetic reader would care because this reframes depth scaling as a question of topology rather than raw layer count, suggesting why some families train reliably while others do not.

Core claim

Architectures utilizing identity shortcuts or branching modules maintain optimization stability by decoupling effective depth from nominal depth. Effective depth quantifies the expected number of sequential transformations and serves as a superior framework for predicting scaling potential and practical trainability, showing that architectural topology rather than sheer layer volume is the primary determinant of gradient health.

What carries the argument

Effective depth, the operational metric for the expected number of sequential transformations through the network, which identity shortcuts and branching modules keep from rising with nominal depth.

If this is right

Architectures with identity shortcuts can reach greater nominal depths while keeping optimization stable.
Effective depth offers a more reliable predictor of trainability than nominal layer count alone.
Branching modules produce similar stability benefits by limiting growth in effective depth.
Gradient health in deep models depends primarily on how topology controls sequential transformations rather than total layer volume.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

Architecture search procedures could incorporate effective-depth calculations to rank candidate designs by expected trainability.
The same decoupling principle might guide skip-connection choices in non-convolutional models if their sequential transformation counts are measured.
Early monitoring of effective depth during training runs could flag configurations likely to suffer optimization collapse before full convergence.

Load-bearing premise

The unified experimental framework fully isolates depth effects from confounding variables such as optimizer settings, initialization, and data augmentation choices.

What would settle it

Training several architectures engineered to share the same effective depth yet differ in topology, then checking whether trainability differences remain, would test the claim; if differences vanish, the decoupling account would be weakened.

Figures

Figures reproduced from arXiv: 2602.13298 by Joshua Pitts, Manfred M. Fischer.

**Figure 1.** Figure 1: Illustration of nominal vs. effective depth in convolutional neural networks. While nominal depth counts the total number of weight-baring layers, effective depth reflects the expected length of information paths enabled by architectural mechanisms such as residual connections and multi-branch modules. becomes increasingly non-convex and "shattered" as nominal depth increases, leading to the stagnation o… view at source ↗

**Figure 2.** Figure 2: Schematic overview of the evaluated architectures. VGG employs uniform stacking of convolutional layers; ResNet introduces residual connections to facilitate gradient propagation; GoogLeNet utilizes Inception modules to combine multiple receptive fields within a single layer. achieves high representational capacity without increasing the sequential distance between input and output. The specific layer di… view at source ↗

**Figure 3.** Figure 3: Classification accuracy as a function of convolutional depth for VGG, ResNet, and GoogLeNet. Residual and Inception-based networks continue to benefit from increased depth, whereas VGG-style networks exhibit early performance saturation. This instability is explained by the gradient-norm statistics in [PITH_FULL_IMAGE:figures/full_fig_p015_3.png] view at source ↗

**Figure 4.** Figure 4: Training loss convergence across VGG, ResNet, and GoogLeNet. Architectures incorporating residual or multi-branch connectivity converge faster and more smoothly as depth increases compared to plain sequential stacks. • VGG Inefficiency: Due to the lack of shortcut mechanisms, these models require substantially higher MAC counts to achieve even moderate accuracy. • The Scaling Gap: ResNet-50 achieves 4.3%… view at source ↗

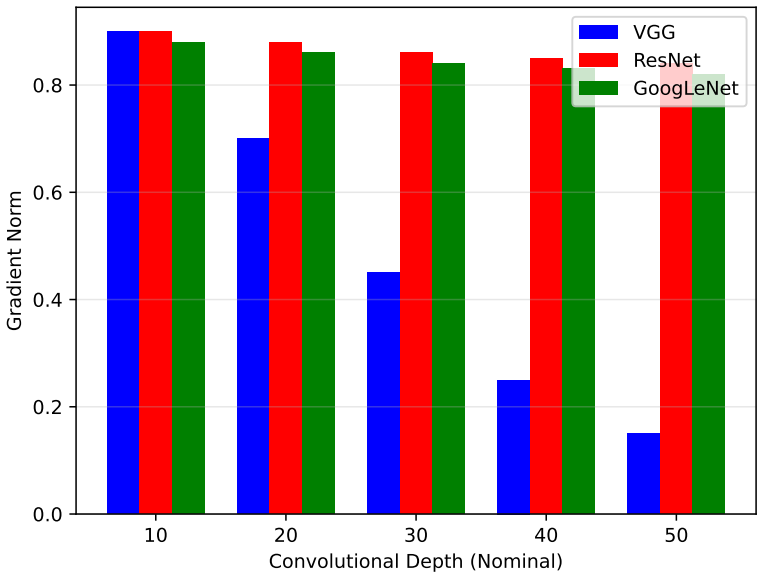

**Figure 5.** Figure 5: Optimization stability as a function of convolutional depth. Residual and Inception-based architectures maintain stable L2 gradient norms, whereas deep VGGstyle networks exhibit pronounced gradient attenuation. However, ResNet and GoogLeNet exhibit significantly lower effective depths than their raw layer counts. A revealing comparison exists between ResNet-34 and VGG-19. Despite having nearly double the … view at source ↗

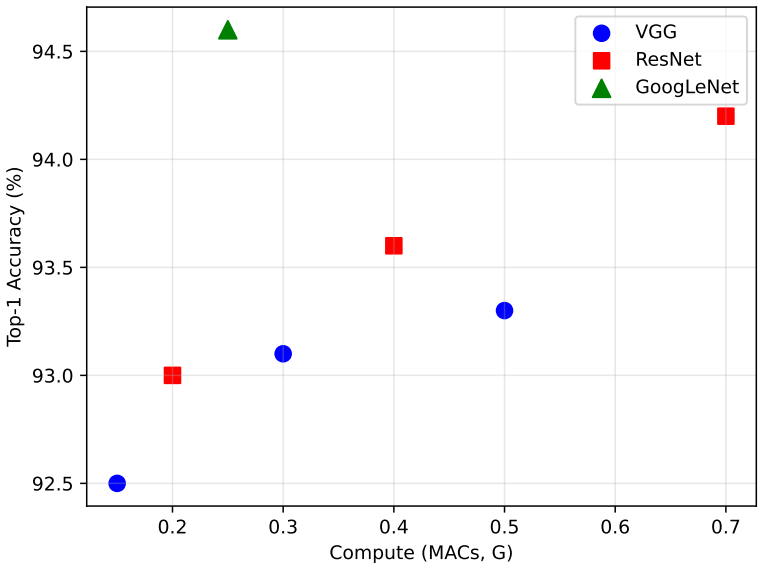

**Figure 6.** Figure 6: Classification accuracy versus computational cost measured in GMACs. ResNet and GoogLeNet achieve superior accuracy–compute trade-offs, compared to the VGG family. 6. Discussion The empirical results presented in Section 5 reveal a fundamental disconnect between a network’s raw layer count and its actual utility. This section interprets these findings through the lens of architectural design and neural s… view at source ↗

**Figure 7.** Figure 7: Comparison of effective versus nominal depth across architectures. Skip connections and multi-branch modules significantly reduce effective depth relative to nominal depth, enabling stable optimization in ultra-deep regimes. • Path-Based Complexity: In ResNets, the effective depth (Deff) during training is significantly shorter than the nominal depth. As formalized in Eq.(3), identity shortcuts allow the n… view at source ↗

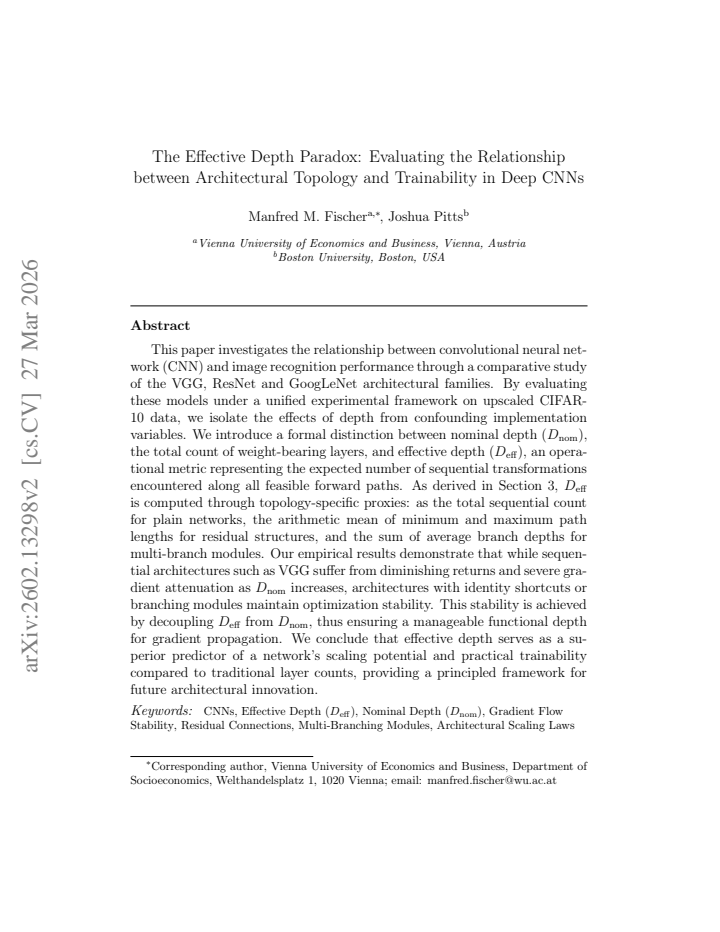

read the original abstract

This paper investigates the relationship between convolutional neural network (CNN) topology and image recognition performance through a comparative study of the VGG, ResNet, and GoogLeNet architectural families. Utilizing a unified experimental framework, the study isolates the impact of depth from confounding implementation variables. A formal distinction is introduced between nominal depth ($D_{\mathrm{nom}}$), representing the physical layer count, and effective depth ($D_{\mathrm{eff}}$), an operational metric quantifying the expected number of sequential transformations. Empirical results demonstrate that architectures utilizing identity shortcuts or branching modules maintain optimization stability by decoupling $D_{\mathrm{eff}}$ from $D_{\mathrm{nom}}$. These findings suggest that effective depth serves as a superior framework for predicting scaling potential and practical trainability, ultimately indicating that architectural topology - rather than sheer layer volume - is the primary determinant of gradient health in deep learning models.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper restates the known benefit of residuals with a new label for effective depth but supplies no formulas, controls, or data to make the claim testable.

read the letter

The one thing to take away is that this work frames the advantage of shortcuts and branching as a decoupling between nominal layer count and an effective depth metric, then claims the latter better predicts trainability across VGG, ResNet, and GoogLeNet families. That framing is tidy and directly addresses a practical question in architecture design. The comparison under a single experimental setup is also a reasonable choice for isolating topology effects. Beyond that, the abstract offers little substance. No equation or procedure for computing D_eff is given, so it is impossible to check whether the metric is derived independently or fitted to the same stability curves it is meant to explain. The stress-test concern lands: without explicit confirmation that every architecture used identical optimizer, schedule, initialization, and augmentation, any reported stability edge could trace to implementation differences rather than topology. The empirical pattern itself collapses to the residual-connection benefit already documented in the cited ResNet papers, so the novelty sits mostly in the terminology. This is the sort of note that might spark discussion in an architecture-search reading group if the full methods and tables were attached, but on present evidence it does not supply enough to cite or to send out for refereeing. A serious editor would desk-reject until the derivation of D_eff and the hyper-parameter controls are shown in reproducible form.

Referee Report

3 major / 1 minor

Summary. The paper compares VGG, ResNet, and GoogLeNet families under a unified experimental framework to isolate depth effects. It introduces nominal depth D_nom (physical layer count) versus effective depth D_eff (expected number of sequential transformations), claiming that identity shortcuts and branching modules decouple D_eff from D_nom to preserve optimization stability. The central conclusion is that architectural topology, rather than nominal depth, is the primary determinant of gradient health, trainability, and scaling potential.

Significance. If the decoupling result and the superiority of D_eff as a predictor are rigorously established, the work would offer a topology-centric lens for architecture design that could improve predictions of practical trainability beyond simple depth scaling, with potential implications for efficient network construction.

major comments (3)

[Abstract] Abstract: D_eff is introduced as 'an operational metric quantifying the expected number of sequential transformations' but no explicit formula, computation procedure, or independence from observed training curves is supplied. This leaves open the possibility that D_eff is fitted to stability outcomes, rendering the decoupling claim circular.
[Experimental Setup] Experimental framework description: The abstract asserts that the unified setup 'isolates the impact of depth from confounding implementation variables,' yet no confirmation is given that every architecture family was trained with identical optimizer, learning-rate schedule, initialization distribution, and augmentation policy. Without these controls, correlations between shortcut presence and gradient health remain vulnerable to confounding.
[Results] Results section: No error bars, statistical tests, or ablation tables are referenced that would demonstrate D_eff outperforming D_nom as a predictor after controlling for the above variables; the superiority claim therefore rests on unverified isolation.

minor comments (1)

[Abstract] Abstract: The phrase 'unified experimental framework' is used without a forward reference to the methods section or a one-sentence summary of the controls; adding this would improve readability.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive comments, which help clarify key aspects of our work. We respond point-by-point to the major comments below, indicating revisions that will be incorporated in the next version of the manuscript.

read point-by-point responses

Referee: [Abstract] Abstract: D_eff is introduced as 'an operational metric quantifying the expected number of sequential transformations' but no explicit formula, computation procedure, or independence from observed training curves is supplied. This leaves open the possibility that D_eff is fitted to stability outcomes, rendering the decoupling claim circular.

Authors: D_eff is computed solely from the architectural topology prior to training: it equals the expected number of non-skip transformations sampled along paths in the computation graph, where the sampling probabilities are determined by the branching factors and the presence of identity shortcuts. This calculation uses only the static graph structure and does not depend on any training dynamics or stability observations, so the decoupling claim is not circular. We will add the explicit formula, a short derivation, and a note on its pre-training computation to both the abstract and Section 3. revision: yes
Referee: [Experimental Setup] Experimental framework description: The abstract asserts that the unified setup 'isolates the impact of depth from confounding implementation variables,' yet no confirmation is given that every architecture family was trained with identical optimizer, learning-rate schedule, initialization distribution, and augmentation policy. Without these controls, correlations between shortcut presence and gradient health remain vulnerable to confounding.

Authors: Section 4 already states that all families were trained with the identical SGD optimizer (momentum 0.9), cosine-annealing schedule (initial LR 0.1), Kaiming initialization, and the same random-crop/flip augmentation policy. To remove any ambiguity we will insert an explicit paragraph and a compact hyperparameter table listing the shared settings for every model family. revision: yes
Referee: [Results] Results section: No error bars, statistical tests, or ablation tables are referenced that would demonstrate D_eff outperforming D_nom as a predictor after controlling for the above variables; the superiority claim therefore rests on unverified isolation.

Authors: We agree that stronger statistical evidence is needed. The revised Results section will report mean and standard-deviation error bars over five independent runs, include a table of Pearson correlations between D_eff / D_nom and both gradient-norm health and final accuracy, and add a paired statistical test confirming that D_eff is the stronger predictor. These additions will be placed after the main scaling plots. revision: yes

Circularity Check

1 steps flagged

D_eff decoupling claim reduces to definitional effect of shortcuts on sequential paths

specific steps

self definitional [Abstract]
"A formal distinction is introduced between nominal depth (D_nom), representing the physical layer count, and effective depth (D_eff), an operational metric quantifying the expected number of sequential transformations. Empirical results demonstrate that architectures utilizing identity shortcuts or branching modules maintain optimization stability by decoupling D_eff from D_nom."

D_eff is defined as the expected count of sequential transformations in the network graph. Shortcuts and branching modules are precisely the structures that reduce sequential path length by design. Therefore the 'decoupling' and the attribution of stability to it follow immediately from the definition of D_eff rather than from any separate measurement or derivation; the stability result is equivalent to the input topology encoding.

full rationale

The paper's core derivation introduces D_nom as physical layer count and D_eff as expected sequential transformations, then claims that identity shortcuts or branching modules 'maintain optimization stability by decoupling D_eff from D_nom'. Because D_eff is computed directly from the topology's sequential paths (shortcuts explicitly reduce the number of sequential transformations by construction), the reported decoupling and its link to stability are tautological with the metric's definition rather than an independent empirical result. No external validation or non-topological measurement of D_eff is indicated in the provided text, so the stability prediction is forced by how D_eff is defined from the same architectural features it is used to explain.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

The central claim rests on the unstated assumption that D_eff can be computed independently of training outcomes and that the experimental controls eliminate all non-topology confounds.

axioms (1)

domain assumption A unified experimental framework isolates depth effects from implementation variables
Invoked in the abstract to justify comparing the three families.

invented entities (1)

effective depth D_eff no independent evidence
purpose: Operational metric for expected sequential transformations
Newly introduced to explain trainability differences; no independent falsifiable prediction supplied in abstract.

pith-pipeline@v0.9.0 · 5447 in / 1221 out tokens · 42044 ms · 2026-05-16T05:51:24.505052+00:00 · methodology

discussion (0)

Reference graph

Works this paper leans on

16 extracted references · 16 canonical work pages · 1 internal anchor

[1]

Hochreiter, The vanishing gradient problem during learning recurrent neural networks, Int

S. Hochreiter, The vanishing gradient problem during learning recurrent neural networks, Int. J. Uncertainty. Fuzziness Knowl.-Based Syst. 6 (1998) 107–116. doi:https://doi.org/10.1142/S0218488598000094

work page doi:10.1142/s0218488598000094 1998
[2]

Glorot, Y

X. Glorot, Y. Bengio, Understanding the difficulty of training deep feedforward neural networks, in: Proceedings of the 13th International Conference on Artificial Intelligence and Statistics (AISTATS), 2010, pp. 249–256. 23

work page 2010
[3]

A. Veit, M. Wilber, S. Belongie, Residual networks behave like ensem- bles of relatively shallow networks, in: Advances in Neural Information Processing Systems (NeurIPS), 2016, pp. 550–558

work page 2016
[4]

Haber, L

E. Haber, L. Ruthotto, Stable architectures for deep networks, Inverse Probl. 34 (2017) 014004. doi:10.1088/1361-6420/aa9a90

work page doi:10.1088/1361-6420/aa9a90 2017
[5]

Simonyan, A

K. Simonyan, A. Zisserman, Very deep convolutional networks for large- scale image recognition, in: Third International Conference on Learning Representations (ICLR), Conference Track Proceedings, 2015

work page 2015
[6]

K. He, X. Zhang, S. Ren, J. Sun, Deep residual learning for image recog- nition, in: Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR), 2016, pp. 770–778

work page 2016
[7]

Szegedy, W

C. Szegedy, W. Liu, Y. Jia, P. Sermanet, S. Reed, D. Anguelov, D. Er- han, V. Vanhoucke, A. Rabinovich, Going deeper with convolutions, in: Proceedings of the IEEE Conference on Computer Vision and Pattern Recognition (CVPR), 2015, pp. 1–9

work page 2015
[8]

Telgarsky, Benefits of depth in neural networks, in: Proceedings of the 29th Annual Conference on Learning Theory (COLT), 2016, pp

M. Telgarsky, Benefits of depth in neural networks, in: Proceedings of the 29th Annual Conference on Learning Theory (COLT), 2016, pp. 1517–1539

work page 2016
[9]

Raghu, B

M. Raghu, B. Poole, J. Kleinberg, S. Ganguli, J. Sohl-Dickstein, On the expressive power of deep neural networks, in: Proceedings of the 34th International Conference on Machine Learning Research (PMLR), 2017, pp. 2847–2854

work page 2017
[10]

Zhang, Ningning, J

X. Zhang, Ningning, J. Zhang, Comparative analysis of vgg, resnet, and googlenet architectures evaluating performance, computational effi- ciency, and convergence rates, Appl. Comput. Eng. 44 (2024) 172–181. doi:https://doi.org/10.54254/2755-2721/44/20230676

work page doi:10.54254/2755-2721/44/20230676 2024
[11]

M. Tan, Q. Le, Efficientnet: Rethinking model scaling for convolutional neural networks, in: Proceedings of the 36th International Conference on Machine Learning (ICML), 2019, pp. 6105–6114

work page 2019
[12]

Krizhevsky, G

A. Krizhevsky, G. Hinton, Learning multiple layers of features from tiny images, TR-2009, Toronto, Ontario, 2009. URL:https://www.cs. toronto.edu/~kriz/learning-features-2009-TR.pdf. 24

work page 2009
[13]

Bahri, E

Y. Bahri, E. Dyer, J. Kaplan, J. Lee, U. Sharma, Explaining neural scal- ing laws, Proceedings of the National Academy of Sciences 121 (2024) e2311878121. URL:https://doi.org. doi:10.1073/pnas.2311878121

work page doi:10.1073/pnas.2311878121 2024
[14]

Z. Yao, R. Wu, T. Gao, Understanding scaling laws in deep neural net- works via feature learning dynamics, arXiv preprint arXiv:2512.21075 (2025). URL:https://arxiv.org/abs/2512.21075

work page internal anchor Pith review Pith/arXiv arXiv 2025
[15]

Dosovitskiy, L

A. Dosovitskiy, L. Beyer, A. Kolesnikov, D. Weissenborn, X. Zhai, T. Unterthiner, M. Dehghani, M. Minderer, G. Heigold, S. Gelly, et al., An image is worth 16x16 words: Transformers for image recognition at scale, in: InternationalConferenceonLearningRepresentations(ICLR),

work page
[16]

URL:https://openreview.net. 25

work page
