Tensor Polarizability of the Nucleus and Angular Mixing in Muonic Deuterium

G. S. Adkins , U. D. Jentschura This is my paper

Pith reviewed 2026-05-15 21:49 UTC · model grok-4.3

classification ⚛️ physics.atom-ph hep-phnucl-th
keywords tensor polarizabilitymuonic deuteriumhyperfine structureangular momentum mixingbound-state energy levelsnuclear effectstwo-body systems
0
0 comments X

The pith

Tensor polarizability of the nucleus mixes states with different orbital angular momenta in two-body bound systems.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper derives a general formula for how the tensor polarizability of a nucleus shifts energy levels in two-body atoms. It shows that this term produces mixing between states whose orbital angular momenta differ. The authors compute the size of the resulting corrections for the hyperfine components of P states and for S-D mixing specifically in muonic deuterium. A reader would care because these nuclear-structure effects enter precision spectroscopy of exotic atoms and can alter the extraction of fundamental constants or nuclear moments from measured spectra.

Core claim

We obtain a general formula for the contribution of the tensor polarizability to the energy levels in two-body bound systems. In particular, it is demonstrated that the tensor polarizability leads to mixing between states with different orbital angular momenta. The effect of tensor polarizability is evaluated for the hyperfine-structure components of P states and for the mixing of S and D states in muonic deuterium.

What carries the argument

The tensor polarizability contribution to the interaction energy, which generates off-diagonal matrix elements connecting states of unequal orbital angular momentum L in the perturbative expansion of the two-body bound-state energies.

If this is right

  • Energy levels of P states in muonic deuterium acquire tensor-polarizability corrections to each hyperfine component.
  • S and D states become mixed, producing additional energy shifts that appear in the overall spectrum.
  • The general formula applies to any two-body system containing a nucleus with nonzero tensor polarizability.
  • These mixing and shift terms must be included when interpreting high-precision spectroscopic data from muonic atoms.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Precision data on muonic deuterium could be inverted to extract the tensor polarizability of the deuteron.
  • Similar angular-momentum mixing should appear in other muonic atoms once experimental resolution reaches the required level.
  • The effect connects nuclear-structure physics to the spectroscopy of light exotic atoms and may influence tests of bound-state QED.
  • A fully relativistic treatment of the same polarizability operator could reveal whether higher-order corrections modify the mixing amplitudes.

Load-bearing premise

The tensor polarizability can be treated as a small perturbative correction inside the non-relativistic two-body Schrödinger framework without dominant higher-order or relativistic terms.

What would settle it

A measurement of muonic deuterium transition frequencies that shows zero S-D mixing amplitude and no additional tensor-polarizability shifts in the P-state hyperfine intervals, once all other QED and nuclear-finite-size contributions are subtracted, would falsify the predicted effect.

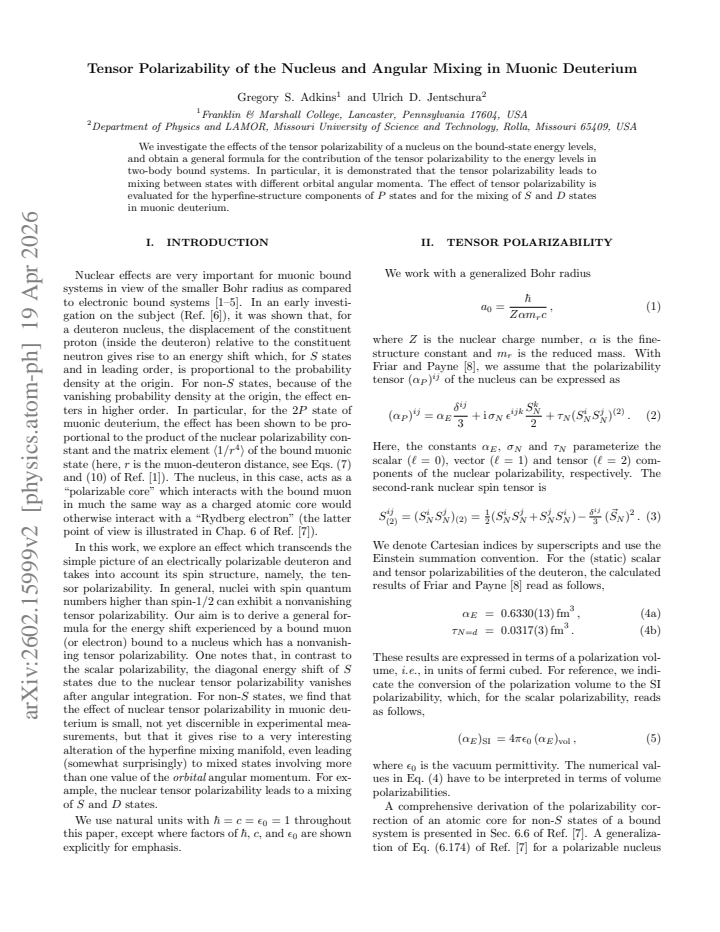

read the original abstract

We investigate the effects of the tensor polarizability of a nucleus on the bound-state energy levels, and obtain a general formula for the contribution of the tensor polarizability to the energy levels in two-body bound systems. In particular, it is demonstrated that the tensor polarizability leads to mixing between states with different orbital angular momenta. The effect of tensor polarizability is evaluated for the hyperfine-structure components of P states and for the mixing of S and D states in muonic deuterium.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 1 minor

Summary. The manuscript derives a general formula for the contribution of nuclear tensor polarizability to the energy levels of two-body bound systems. It demonstrates that this term induces mixing between states of different orbital angular momenta and evaluates the effect on the hyperfine-structure components of P states as well as the S-D mixing amplitude in muonic deuterium.

Significance. If the derivation is sound, the result supplies a previously unaccounted correction relevant to precision spectroscopy of muonic atoms, where nuclear finite-size effects dominate. The explicit demonstration of angular mixing offers a concrete mechanism that could affect the interpretation of hyperfine intervals and transition frequencies used to extract nuclear radii and polarizabilities.

major comments (1)
  1. [Evaluation for muonic deuterium] The central claim that tensor polarizability produces observable S-D mixing rests on first-order perturbation theory applied to the effective two-body Hamiltonian. No quantitative bound is supplied on the size of the neglected quadratic polarizability terms, relativistic wave-function corrections, or modifications to the multipole expansion, even though the muon Bohr radius in deuterium is comparable to the nuclear size. This omission directly limits in the reported mixing amplitude.
minor comments (1)
  1. The abstract states that a general formula is obtained but does not indicate whether the formula is expressed in closed form or requires numerical integration over the nuclear charge distribution.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their careful reading of the manuscript and for highlighting the need for explicit bounds on higher-order corrections. We address the concern below and have prepared a revised version that incorporates quantitative estimates of the neglected terms.

read point-by-point responses

  1. Referee: The central claim that tensor polarizability produces observable S-D mixing rests on first-order perturbation theory applied to the effective two-body Hamiltonian. No quantitative bound is supplied on the size of the neglected quadratic polarizability terms, relativistic wave-function corrections, or modifications to the multipole expansion, even though the muon Bohr radius in deuterium is comparable to the nuclear size. This omission directly limits in the reported mixing amplitude.

    Authors: We agree that explicit bounds on the neglected contributions are necessary to support the perturbative treatment. In the revised manuscript we have added a new subsection (Section IV C) that estimates the quadratic polarizability correction as suppressed by a factor (r_N/a_μ)^2 ≈ 5×10^{-4} relative to the linear term for muonic deuterium, where r_N is the deuteron rms radius and a_μ the muon Bohr radius. Relativistic corrections to the wave functions are shown to enter at O((Zα)^2) ≈ 1.3×10^{-3} and remain smaller than the numerical precision of the reported mixing amplitude. The multipole expansion is justified by the condition k r_N ≪ 1, which holds for the virtual-photon momenta relevant to the bound-state problem. These additions directly address the referee’s concern and strengthen the reliability of the S-D mixing result. revision: yes

Circularity Check

0 steps flagged

Derivation of tensor polarizability mixing uses independent perturbation theory

full rationale

The paper derives a general first-order perturbative formula for the tensor-polarizability contribution to bound-state energies in two-body systems and shows that the tensor operator produces non-zero off-diagonal matrix elements between states of different orbital angular momentum. This follows directly from the angular-momentum algebra of the rank-2 tensor interaction and standard degenerate perturbation theory; the resulting mixing amplitudes for the P-state hyperfine components and the 2S–2D mixing in muonic deuterium are obtained by explicit evaluation of those matrix elements. No parameter is fitted to the target observable and then re-labeled as a prediction, no self-citation supplies a uniqueness theorem or ansatz that is load-bearing for the central claim, and the derivation remains self-contained against external benchmarks. The perturbative truncation itself is an assumption about smallness, not a circular reduction of the formula to its inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on standard perturbative quantum mechanics for bound states and the conventional definition of nuclear tensor polarizability; no new free parameters or invented entities are introduced in the abstract.

axioms (1)
  • domain assumption Perturbative treatment of tensor polarizability in two-body bound systems
    Standard assumption in atomic-physics calculations for small corrections to energy levels.

pith-pipeline@v0.9.0 · 5379 in / 1105 out tokens · 21403 ms · 2026-05-15T21:49:05.219465+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

29 extracted references · 29 canonical work pages

  1. [1]

    =   2P F=1/2 1/2 2P F=1/2 3/2 2P F=1/2 1/2 0− √ 2 3 2P F=1/2 3/2 − √ 2 3 − 1 3   ,(28) 5 and G(F= 3

    work page

  2. [2]

    We note that the average eigenvalue for theF= 1/2 states (the trace of the 2×2 matrix) is −1/3, and the average for theF= 3/2 states is 4/15

    =   2P F=3/2 1/2 2P F=3/2 3/2 2P F=3/2 1/2 0 1 3 √ 5 2P F=3/2 3/2 1 3 √ 5 4 15   .(29) The matrix forF= 5/2 is a 1×1 matrix and is discon- nected from the rest. We note that the average eigenvalue for theF= 1/2 states (the trace of the 2×2 matrix) is −1/3, and the average for theF= 3/2 states is 4/15. Tensor polarizability contributions to the hyperfi...

    work page

  3. [3]

    = 0.0356(4)µeV.(35) C. Mixing of 3Sand 3DStates The new feature that tensor polarizability introduces into the theory of the hyperfine structure is the inclusion of states with different values of orbital angular momen- tumLinto the same hyperfine multiplet. This effect first manifests forn= 3 where there is mixing of S and D states. The matrices of angul...

    work page

  4. [4]

    =   3SF=1/2 1/2 3DF=1/2 3/2 3SF=1/2 1/2 0− √ 2 3 3DF=1/2 3/2 − √ 2 3 − 1 3   ,(36) while forF= 3/2, the matrix is 3×3 and reads as follows (in the basis spanned by the states 3S F=3/2 1/2 , 3D F=3/2 3/2 and 3D F=3/2 5/2 ) G(F= 3

    work page

  5. [5]

    =   0 1 3 √ 5 1√ 5 1 3 √ 5 4 15 − 1 5 1√ 5 − 1 5 − 4 15   .(37) Finally, forF= 5/2, one obtains G(F= 5

    work page

  6. [6]

    =   3DF=5/2 3/2 3DF=5/2 5/2 3DF=5/2 3/2 − 1 15 √ 2 5 √ 7 3DF=5/2 5/2 √ 2 5 √ 7 32 105   .(38) The angular factor for the 3DF=7/2 5/2 state is− 2

    work page

  7. [7]

    Off-diagonalI n L′L factors withL ′ ̸=Ldo not affect the trace of theG matrix and, hence, do not change this conclusion

    In view of the trivial algebraic identity, 2 − 1 3 +4 4 15 − 4 15 +6 − 1 15 + 32 105 −8 2 21 = 0,(39) we confirm that the hyperfine-averaged energy shift for the (3S; 3D)-state manifold vanishes. Off-diagonalI n L′L factors withL ′ ̸=Ldo not affect the trace of theG matrix and, hence, do not change this conclusion. Also, the radial matrix element does not...

    work page

  8. [8]

    =   3SF=3/2 1/2 3DF=3/2 3/2 3DF=3/2 5/2 3SF=3/2 1/2 0−0.00332(3)−0.00995(10) 3DF=3/2 3/2 −0.00332(3)−0.00188(2) 0.00141(2) 3DF=3/2 5/2 −0.00995(10) 0.00141(2) 0.00188(2)   µeV.(41) ForF= 5/2, the result reads as follows (in the basis of states{3D F=5/2 3/2 ,3D F=5/2 5/2 }) E τ(F= 5 2) µeV = 0.000469(5)−0.000752(7) −0.000752(7)−0.00214(2) ! .(42)...

    work page

  9. [9]

    Pachucki,Nuclear Structure Corrections in Muonic Deuterium, Phys

    K. Pachucki,Nuclear Structure Corrections in Muonic Deuterium, Phys. Rev. Lett.106, 193007 (2011)

    work page 2011

  10. [10]

    Pachucki and A

    K. Pachucki and A. Wienczek,Nuclear Structure in Deu- terium, Phys. Rev. A91, 040503(R) (2015)

    work page 2015

  11. [11]

    Kalinowski, K

    M. Kalinowski, K. Pachucki, and V. A. Yerokhin, Nuclear-structure corrections to the hyperfine splitting in muonic deuterium, Phys. Rev. A98, 062513 (2018)

    work page 2018

  12. [12]

    Pachucki, V

    K. Pachucki, V. Lensky, F. Hagelstein, S. S. Li Muli, S. Bacca, and R. Pohl,Comprehensive theory of the Lamb shift in light muonic atoms, Rev. Mod. Phys.96, 015001 (2024)

    work page 2024

  13. [13]

    C. Ji, X. Zhang, and L. Platter,Nuclear Structure Effects on Hyperfine Splittings in Ordinary and Muonic Deu- terium, Phys. Rev. Lett.133, 042502 (2024)

    work page 2024

  14. [14]

    Pachucki, D

    K. Pachucki, D. Leibfried, and T. W. H¨ ansch,Nuclear- structure correction to the Lamb shift, Phys. Rev. A48, R1–R4 (1993)

    work page 1993

  15. [15]

    U. D. Jentschura and G. S. Adkins,Quantum Electro- dynamics: Atoms, Lasers and Gravity(World Scientific, Singapore, 2022)

    work page 2022

  16. [16]

    J. L. Friar and G. L. Payne,Deuteron dipole polarizabil- ities and sum rules, Phys. Rev. C72, 014004 (2005)

    work page 2005

  17. [17]

    Pirenne,Le champ propre et l’interaction des partic- ules de Dirac suivant l’´ electrodynamique quantique

    J. Pirenne,Le champ propre et l’interaction des partic- ules de Dirac suivant l’´ electrodynamique quantique. III. Le syst` eme ´ electron-positron, Arch. Sci. Phys. Nat.29, 265–300 (1947)

    work page 1947

  18. [18]

    Gordon,Zur Berechnung der Matrizen beim Wasser- stoffatom, Ann

    W. Gordon,Zur Berechnung der Matrizen beim Wasser- stoffatom, Ann. Phys. (Leipzig)394, 1031–1056 (1929)

    work page 1929

  19. [19]

    Matsumoto,Multipole Matrix Elements for Hydrogen Atom, Phys

    A. Matsumoto,Multipole Matrix Elements for Hydrogen Atom, Phys. Scr.44, 154–157 (1991)

    work page 1991

  20. [20]

    Tarasov,W

    V. Tarasov,W. Gordon’s Integral (1929) and its Repre- sentations by means of Appell’s functionsF 2,F 1 andF 3, Mod. Phys. Lett. B16, 895–899 (2002)

    work page 1929

  21. [21]

    S. Wolfram,The Mathematica Book, 4th Edition (Cam- bridge University Press, Cambridge, UK, 1999); 5th Edi- tion (Wolfram Media Inc., Champaign, Illinois, 2003); see also Wolfram Research, Inc.,Mathematica 14.0, (Cham- paign, Illinois, 2024)

    work page 1999

  22. [22]

    A. R. Edmonds,Angular Momentum in Quantum Me- chanics(Princeton University Press, Princeton, New Jer- sey, 1957)

    work page 1957

  23. [23]

    R. Pohl, F. Nez, F. D. Amaro, F. Biraben, J. M. R. Car- doso, D. S. Covita, A. Dax, S. Dhawan, M. Diepold, A. Giesen, A. L. Gouvea, T. Graf, T. W. H¨ ansch, P. Indeli- cato, L. Julien, P. Knowles, F. Kottmann, E.-O. Le Bigot, Y.-W. Liu, J. A. M. Lopes, L. Ludhova, C. M. B. Mon- teiro, F. Mulhauser, T. Nebel, P. Rabinowitz, J. M. F. dos Santos, L. A. Schal...

    work page 2016

  24. [24]

    H. Liu, B. Ohayon, O. Shtaif, and Y. Soreq,Probing New Hadronic Forces with Heavy Exotic Atoms, Phys. Rev. Lett.135, 131803 (2025)

    work page 2025

  25. [25]

    J. J. Krauth, M. Diepold, B. Franke, A. Antognini, F. Kottmann, and R. Pohl,Theory of then= 2levels in muonic deuterium, Ann. Phys. (N.Y.)366, 168–196 (2016)

    work page 2016

  26. [26]

    M. A. Bouchiat and C. C. Bouchiat,Weak Neutral Cur- rents in Atomic Physics, Phys. Lett. B48, 111–114 (1974)

    work page 1974

  27. [27]

    C. S. Wood, S. C. Bennett, D. Cho, B. P. Masterson, J. L. Roberts, C. E. Tanner, and C. E. Wieman,Measurement of Parity Nonconservation and an Anapole Moment in Cesium, Science275, 1759–1763 (1997)

    work page 1997

  28. [28]

    S. C. Bennett and C. E. Wieman,Measurement of the 6S→7STransition Polarizability in Atomic Cesium and an Improved Test of the Standard Model, Phys. Rev. Lett. 82, 2484–2487 (1999), [Errata: Phys. Rev. Lett.82, 4153 (1999); Phys. Rev. Lett.83, 889 (1999)]

    work page 1999

  29. [29]

    S. L. Gilbert and C. E. Wieman,Atomic-beam measure- ment of parity nonconservation in cesium, Phys. Rev. A 34, 792–803 (1986)

    work page 1986
