TimeOmni-VL: Unified Models for Time Series Understanding and Generation

Cesare Alippi; Johan Barthelemy; Ming Jin; Sheng Pan; Shirui Pan; Tong Guan; Yujun Cai; Zhao Li

REVIEW 4 major objections 5 minor 3 cited by

TimeOmni-VL: Unified Models for Time Series Understanding and Generation

T0 review · 4 major / 5 minor · reviewed 2026-08-02 · deepseek-v4-flash

Challenge this review Re-run · record.json Download PDF Read on arXiv ↗ Review JSON

Pith's one-line read TimeOmni-VL makes one multimodal model both read and generate time series as images.

desk verdict A serious vision-centric unification attempt for time series understanding and generation, with a real leakage risk in the CoT-conditioning chain that the authors need to close before the main ablation is interpretable. read the letter →

arxiv 2602.17149 v2 pith:SP7V3MJX submitted 2026-02-19 cs.LG cs.AI

Tong Guan , Sheng Pan , Johan Barthelemy , Zhao Li , Yujun Cai , Cesare Alippi , Ming Jin , Shirui Pan This is my paper · ORCID

classification cs.LGcs.AI

keywords timeseriesmultimodalvision-languagemodelforecastingimputationchain-of-thoughttime-series-to-imageunderstanding-guidedgeneration

verification ladder T0 review T1 audit T2 compute T3 formal

The pith

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The reading

The paper argues that time series can be treated as images for a unified multimodal model, letting a single system answer semantic questions about a series and also generate high-fidelity forecasts and imputations. It introduces a bidirectional time-series-to-image conversion designed to be near-lossless, so no numerical information is thrown away before the model sees it. It then builds a benchmark that derives six understanding tasks from the same instances used for forecasting and imputation, and uses the answers as a chain-of-thought that conditions generation. The central claim is that understanding can serve as an explicit control signal for numerical generation, and the reported experiments show the base model moving from near-zero to near-perfect understanding scores on four tasks while matching or beating specialist forecasters and imputation models.

What carries the argument

The central object is the TS-image: a time series folded into a periodic grid, rendered as horizontal variable bands with pixel brightness encoding normalized values. The Bi-TSI converter maps series to images and back with a deterministic round trip, and the generation chain-of-thought composes the answers to layout-level and signal-level understanding questions into a reasoning chain that conditions the diffusion-based generation module. The chain is what carries the paper's core claim: structured semantic understanding, expressed as text, guides numerical generation.

What would settle it

Take the training data and recompute every QA and CoT label using only the unmasked context. If any label requires a value inside the masked forecast or imputation region, the chain is not a pure control signal. Then retrain with context-only chains and rerun the CoT ablation: if nMASE stays flat, the reported gains were not carrying semantics.

Watch

Extended reading notes

Core claim

On the paper's own terms, TimeOmni-VL is the first vision-centric framework that unifies time series understanding and generation. The key innovation is treating forecasting and imputation as image-editing problems in a unified multimodal model, with a textual chain-of-thought acting as a conditioning signal between the two. Two technical fixes make this work: robust fidelity normalization, which combines median and standard-deviation scaling with a bounded tanh map so spikes and step-like signals are rendered without washout or noise amplification, and encoding-capacity control, which uses a larger canvas and explicit resolution constraints so the image holds at least one pixel per timestep

Load-bearing premise

The generation chain-of-thought must be computable from the observable, unmasked part of the input image alone; if any QA or reasoning label reveals the masked target values during training, the 8.2% gain would be evidence of leakage rather than semantic control over generation.

Editorial extensions

If this is right

A single multimodal model can answer temporal questions and produce forecasts or imputations in the same forward pass, so time series capabilities can inherit improvements from general vision-language models.
Forecasting and imputation become image-editing problems, meaning visual inpainting techniques and pretrained image generation losses transfer to temporal signals without a custom time series architecture.
The six-task understanding suite gives a concrete test for whether a model interprets the image as a periodic signal rather than matching textures.
The reported 8.2% average nMASE gain from the generation chain-of-thought indicates textual reasoning summaries improve generation quality under this training scheme.
Because the pipeline is backbone-agnostic, swapping in a stronger unified multimodal backbone may improve both understanding and generation without changing the conversion.

Reading between the lines

Editorial extensions of the paper, not claims the author makes directly.

If the reasoning chain is genuinely computed from the unmasked context alone, the approach offers a recipe: any future vision UMM can gain time series skills by adding these conversions and QA pairs.
A strong stress test would corrupt or randomize the CoT at inference: if generation quality drops, the model actually uses semantics; if not, the chain is a training-time scaffold.
The periodicity-based folding suggests the model may learn seasonal structure as spatial alignment, so probing whether it transfers to series with unknown or varying periods would clarify how general the learned understanding is.
Scaling the 5k-sample-per-task training set to the full 40k and longer horizons could show whether the observed gains are data-limited or architecture-limited.

Share X Bluesky LinkedIn Reddit HN

Signed reviews

No signed human review yet.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, and a circularity audit.

Desk Editor's Note

read the letter

I read TimeOmni-VL carefully. The core idea is sound and reasonably novel: instead of bolting a time series head onto an LLM, they treat the series as an image and use a hybrid UMM (Bagel) to both answer questions about it and regenerate masked regions. The Bi-TSI mapping is a genuine engineering contribution — the RFN normalization and the capacity constraints fix real failure modes in VisionTS++, and the paper documents them with concrete examples rather than hand-waving. The TSUMM-SUITE benchmark, coupling six understanding tasks to forecasting and imputation instances, is a useful testbed even if it is co-designed with their own representation. The experiments are broad, and the main empirical claims are plausible: the model goes from near-zero to high accuracy on four understanding tasks, and the forecasting/imputation numbers are competitive on the GIFT-Eval subset.

The soft spots are real, though. The biggest one is the leakage worry. The paper says the 9,409 understanding QAs are 'constructed on the same generation instances,' and that the generation CoT R_gen is composed from those QAs. The published examples in Figure 4/Table 14 show answers that use full-series information — denormalized cycle values, global means, anomaly thresholds, recovered peaks. If the QA/CoT generator runs on the unmasked series, then R_gen for a forecasting sample is literally telling the model the answer: 'cycle 10 rises to a peak of 3.22 at t=5.' The 8.2% nMASE gain from adding that CoT then measures how well the generation module can copy numbers from text, not whether understanding semantically guides generation. The paper never states the invariant that every QA answer must be computable from the masked source image I_src alone, and nothing in the appendix suggests it holds. This is load-bearing, because understanding-guided generation is the stated main contribution.

Second, the evaluation is filtered: metrics are computed only on outputs with valid extractable answers, and SR below 10% is omitted. That can be okay for comparing within a family, but it means the reported nMASE for text-based baselines is conditional on the model managing to output the right length at all. No error bars or seeds are shown, and the GIFT-Eval subset is called 'representative' without a description of how it was drawn. These are easy to fix and I would not reject a paper for them alone.

What would make me comfortable: release code and checkpoints, state and enforce the I_src-only invariant for QA construction, and re-run the CoT ablation with a scrambled or non-informative CoT control.

Who this is for: researchers working on multimodal time series foundation models, especially people thinking about vision-centric interfaces. It deserves a serious referee — the architecture and benchmark are worth community scrutiny even if the CoT mechanism needs tightening. I would not cite it in its current form, but I would bring it to a reading group to hash out the leakage question. With the invariant stated and the ablation re-run, it could become a solid systems paper.

My recommendation: send it to peer review, but tell the authors up front that the leakage concern is the central question and that they need to address it with a control experiment, not just a sentence.

Referee Report

4 major / 5 minor

Summary. TimeOmni-VL proposes a vision-centric unified model for time series understanding and generation. Raw series are converted into periodic banded TS-images via a Bi-TSI mapping with robust fidelity normalization and encoding-capacity control, then processed by a Bagel-based UMM. A new dataset, TSUMM-SUITE, defines six understanding tasks and two generation tasks (forecasting and imputation). The model is trained with a generation Chain-of-Thought composed from the understanding QAs, which is then used as textual conditioning for a diffusion-based image generation module. Experiments on a GIFT-Eval subset report near-perfect scores on four understanding tasks, top-tier forecasting, state-of-the-art imputation, and an average 8.2% nMASE improvement from the generation CoT.

Significance. If the proposed mechanism works as described, the paper would make a significant contribution by showing that a single multimodal model can both interpret time series images semantically and generate high-fidelity forecasts and imputations, with the textual reasoning chain acting as an explicit control signal. The strengths are the explicit formulation of understanding-guided generation, the deterministic near-lossless round-trip claim, the size of the proposed dataset, and the zero-shot evaluation setting. However, the main empirical claims rest on a generation-CoT construction whose mask-awareness is not established, and the evaluation protocol censors low-success-rate outputs without reporting success rates. The absence of released code, data, and checkpoints further limits verification. The central idea is worth pursuing, but the current evidence is not yet sufficient to support the advertised mechanism.

major comments (4)

[§3.2, Eq. (7), Tables 14 and 15] The understanding-guided generation mechanism requires that every QA/CoT label used to compose R_gen be computable from the unmasked source image I_src plus public metadata. The paper does not state or enforce this invariant. Section 3.2 says the 9,409 understanding QAs are constructed on the same generation instances and R_gen is composed from them, but the published examples are not mask-aware: Table 14 reports exact recovered values (peak 3.22 at t=5, min -0.01 at t=16) for the rightmost cycle, the same region that is masked in the forecasting example of Table 15. If such QAs are included in R_gen during training, Eq. (7) gives the diffusion module access to ground-truth target tokens, so the reported 8.2% nMASE gain in §4.2 can be a copying shortcut rather than evidence of semantic control. The authors must either prove and enforce that all understanding labels are derived from obser
[§4, Evaluation Metrics] All metrics are computed only on model outputs that yield a valid extractable answer, and results with success rate below 10% are omitted. This protocol can systematically favor methods that produce few but easy outputs. Without reporting success rates for every method, the nMASE comparisons in Tables 1–2 are not interpretable as expected performance. The paper should report SR alongside nMASE for all methods, including TimeOmni-VL, and provide an unconditional metric or a sensitivity analysis showing that the ranking is unchanged under different extraction rules.
[§4.1, Forecasting Setup] The evaluation uses a 'representative subset' of GIFT-Eval of 685 instances split 419/137/129 by horizon, but no sampling procedure is given. If the subset is selected ex post to favor the proposed model, the top-tier forecasting claim in Table 1 is not supported. The authors should release the exact instance IDs or a deterministic sampling rule, and ideally report results on the full GIFT-Eval benchmark or a pre-registered random subset with confidence intervals. Without this, the forecasting and imputation numbers cannot be independently assessed.
[§4.2, Ablation on Understanding Model] The main evidence for the central claim is the 8.2% average degradation when the understanding model is frozen and CoT is disabled. This comparison is only meaningful if the CoT is the only thing being changed. The paper does not report whether the 'without understanding' variant also removes the shared self-attention pathway between the understanding and generation modules, or whether the observed gain could come from simply providing extra text that correlates with the target through dataset statistics. A control with non-informative or shuffled CoTs should be included to isolate semantic guidance from a generic text-conditioning effect.

minor comments (5)

[Appendix B.1] The prompt template contains unrendered f-string elements such as '{arr.min():.3f}' and '{valley i}'. These appear to be artifacts of the writing process and should be fixed.
[Figure 2] The figure has two panels labeled '(b)', which is confusing. The panel labels should be unique or reorganized.
[Table 3] The understanding testbed is reported as 685 instances, while Section 4.1 states six understanding tasks are evaluated. It would help to clarify whether the same 685 instances are used for all six tasks or whether task-specific subsets are created.
[Appendix F, Table 14] The user prompt states 'Denorm: val=tanh(norm)·4.0·σ+μ', which is inconsistent with the inverse RFN formula in Eq. (10)–(11) and the κ parameter introduced in Eq. (6). Please make the recovery formula consistent throughout the paper.
[General] The paper does not mention any plans to release code, data, or checkpoints. Given the novelty claims and the difficulty of reproducing UMM training, stating a release plan would strengthen the paper significantly.

Circularity Check

1 steps flagged · score 6.0 of 10

Generation-CoT is derived from the same full series (including masked targets), so the 8.2% CoT gain is confounded by target leakage.

self definitional [Section 3.2, Eq. (7); Section 4.2; Appendix B.1; Table 14]
"To implement understanding-guided generation, we derive the generation CoT Rgen by composing the analytical logic from the understanding tasks (Figure 4). This is feasible because our understanding QAs are constructed on the same generation instances ... We structure the training samples as an interleaved sequence: seq = Psys ⊕ Isrc ⊕ Cgen ⊕ Rgen ⊕ Itgt, (7)"

The 'control signal' Rgen is composed from understanding QAs that are 'constructed on the same generation instances' (i.e., the full series, including the masked target region), not from the unmasked source image Isrc. Appendix B.1 shows the QA generator is given the raw single-cycle time series, and Table 14's QA6 reports exact recovered target numbers ('prominent peak of 3.22 at t=5 ... minimum of -0.01 at t=16') for a rightmost cycle. Eq. (7) inserts this Rgen as conditioning before the ground-truth target image Itgt, and Section 4.2 attributes the 8.2% nMASE improvement to 'understanding.' Since Rgen's labels are by construction a function of the target, the CoT gain is not evidence of source-only semantic control; the generation module can copy target content from the CoT. The paper n

full rationale

No equation-level circularity appears in Bi-TSI: RFN (Eqs. 5–6), the fold/unfold map (Eqs. 8–9), and inverse denormalization (Eqs. 10–11) are deterministic, and forecasting/imputation nMASE is scored against external GIFT-Eval targets, so the numerical results are not fitted to the metric. The circularity is concentrated in the central understanding-guided-generation mechanism. Section 3.2 states that Rgen is composed from understanding QAs 'constructed on the same generation instances,' while Appendix B.1 and Table 14 show those QAs are generated from the full raw series—including, for right-side-masked forecasting/imputation samples, the target region's exact peak/min values. Eq. (7) feeds this target-derived Rgen as conditioning for Itgt. The Section 4.2 ablation (8.2% nMASE gain with CoT) therefore cannot distinguish genuine semantic control from a shortcut in which the generation module relies on target statistics embedded in the CoT. The paper never imposes the needed invariant that every QA/CoT label be computable from the unmasked Isrc. This is a partial, construction-level circularity of the paper's core claim. Separately, the understanding benchmark is deliberately tailored to TimeOmni-VL's own TS-images, which limits external significance, but that is a benchmarking issue rather than circularity. No code, data, or checkpoints are released, so the leakage cannot currently be ruled out.

Assumptions & free parameters 3 free parameters · 6 assumptions · 2 invented entities

The central claim rests on a small set of hand-chosen normalization and loss-balance constants, plus several domain assumptions about periodicity, near-lossless image round trips, automated label quality, representative subsets, and unbiased output filtering. The invented entities are representational rather than physical, and neither has independent evidence outside the paper's own testbed.

free parameters (3)

α (RFN mixing weight)
In Eq. 5, α blends MAD-based and Std-based scaling; no value is given in the paper. It changes how spikes and flat regions are rendered and is a hand-chosen design constant.
κ (RFN saturation scale)
In Eq. 6, κ controls tanh saturation of normalized values; no value is given. The choice affects spike geometry and hence what the vision model can recover.
λ_und and λ_gen loss weights
The final training objective in Eq. 4 is a weighted sum of understanding loss and generation loss; the weights are never reported, yet they set the balance between text reasoning and diffusion generation.

assumptions (6)

domain assumption Periodicity f is known and every sequence length is an exact multiple of f, otherwise the series is truncated.
TS2I folds each variable into an f×C grid in Appendix C.1. This limits the method to periodic, frequency-known series; GIFT-Eval supplies such metadata, but many real-world series do not.
ad hoc to paper The TS2I/I2TS round trip is near-lossless, with residual error only from spatial interpolation and finite numerical precision.
Stated in Appendix C.2 without any quantitative reconstruction error measurement. The entire high-fidelity generation claim depends on information surviving the image round trip.
domain assumption Question and CoT labels in TSUMM-SUITE generated by rules and Gemini are correct and complete.
The 9,409 QA pairs are supervised by automated generation; no human verification rate or label error analysis is reported.
ad hoc to paper Evaluating only model outputs with valid extractable answers does not bias comparisons.
The paper explicitly adopts this protocol in §4. If failure modes correlate with model quality, such as counting failures, the reported rankings can be distorted.
domain assumption Bagel's shared self-attention allows the textual CoT to condition the diffusion generation module.
Used in §4.2 to explain why freezing the understanding model and disabling CoT degrades generation; no direct evidence beyond the ablation.
domain assumption The 685- and 855-instance GIFT-Eval subsets are representative of the full benchmark.
The subsets are called 'representative' in §4.1 but no sampling method is described. Zero-shot results may not generalize to the full 140k+ sequence benchmark.

invented entities (2)

TS-image (periodic banded image representation)
purpose: Encodes multivariate time series as colored periodic bands so a pretrained UMM can process numerical series as images.
Internal representation with no external falsifiable handle beyond the paper's own benchmark tasks.
Generation CoT (R_gen)
purpose: Textual reasoning chain used to condition image generation for forecasting and imputation.
Training signal and control mechanism; it depends on understanding-QA construction and could conceal target leakage if labels use ground-truth future values.

how reviews work

0 comments

Cite this review

Pith. "Pith review of TimeOmni-VL: Unified Models for Time Series Understanding and Generation." pith.science (2026). https://pith.science/paper/SP7V3MJX

@misc{pith2026260217149,
  author       = {Pith},
  title        = {Pith review of: TimeOmni-VL: Unified Models for Time Series Understanding and Generation},
  year         = {2026},
  howpublished = {\url{https://pith.science/paper/SP7V3MJX}},
  note         = {Machine review of arXiv:2602.17149}
}

read the original abstract

Recent time series modeling faces a sharp divide between numerical generation and semantic understanding, with research showing that generation models often rely on superficial pattern matching, while understanding-oriented models struggle with high-fidelity numerical output. Although unified multimodal models (UMMs) have bridged this gap in vision, their potential for time series remains untapped. We propose TimeOmni-VL, the first vision-centric framework that unifies time series understanding and generation through two key innovations: (1) Fidelity-preserving bidirectional mapping between time series and images (Bi-TSI), which advances Time Series-to-Image (TS2I) and Image-to-Time Series (I2TS) conversions to ensure near-lossless transformations. (2) Understanding-guided generation. We introduce TSUMM-Suite, a novel dataset consisting of six understanding tasks rooted in time series analytics and coupled with two generation tasks. With a calibrated Chain-of-Thought, TimeOmni-VL is the first to leverage time series understanding as an explicit control signal for high-fidelity generation. Experiments confirm that this unified approach significantly improves semantic understanding and numerical precision, establishing a new frontier for multimodal time series modeling.

Figures

Figures reproduced from arXiv: 2602.17149 by the authors.

**Figure 1.** Comparison of architectures for (a) time series understanding model that produce textual answer only, (b) time series generation model that output time series only, and (c) unified time series understanding and generation model that support both answering queries and generating time series. (1) Generation models. Led by time series foundation models (TSFMs), this thread prioritizes high-fidelity numerical sequenc… view at source ↗

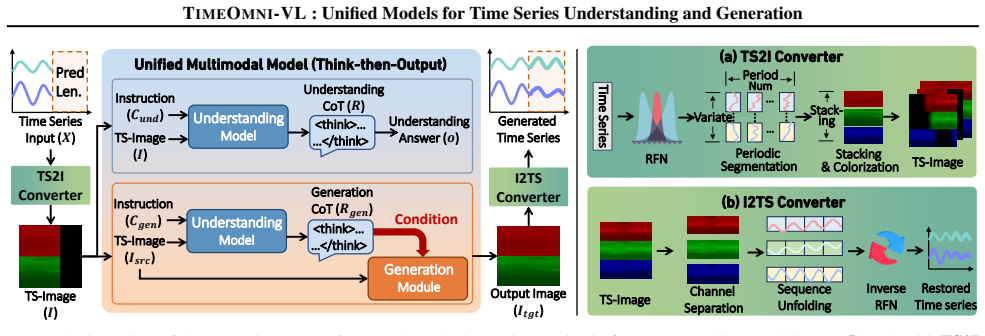

**Figure 2.** Overview of the TIMEOMNI-VL framework. The input time series is first converted into a TS-image I by the (a) TS2I Converter. For understanding tasks, the understanding model directly produces CoT R and the final answer. For generation tasks, the understanding model first generates CoT R as conditions for the generation module to generate the target image Itgt, which is then converted back to a time series by the (b)… view at source ↗

**Figure 3.** Illustration of improvements in Bi-TSI. (a) Robust fidelity normalization enables lossless rendering of high-dynamic-range time series by keeping values within the valid pixel range, whereas the baseline in VisionTS++ (Shen et al., 2025) can overflow this range and fail to represent spike. (b) Encoding capacity control prevents implicit downsampling when encoding high-dimensional time series, ensuring that the resul… view at source ↗

Figures from the paper (4 more)

**Figure 4.** Figure 4: Illustrative examples of the proposed TSUMM-SUITE, consisting of six time series understanding tasks and two generation tasks. The generation CoT is directly derived from the understanding tasks, explicitly bridging the two task families. denormalization to recover num…

**Figure 5.** Figure 5 [PITH_FULL_IMAGE:figures/full_fig_p007_5.png]

**Figure 8.** Figure 8: Ablation on the understanding model. Comparison between generation-only and understanding-guided generation for forecasting (left) and imputation (right). (context + prediction) exceeds the TS-image width (896), the heatmap must downsample along the temporal axis, whic…

**Figure 7.** Figure 7: Visual comparison of TS-image construction. Original time series (left). Our TS2I strategy (middle), which aligns periodic cycles explicitly.Standard heatmap representation (right). Short Med Long 0.6 0.8 1.0 1.2 nMASE 0.046 0.055 0.021 w understanding (Ours) w/o unde…
