arxiv: 2602.18023 · v3 · submitted 2026-02-20 · 🌀 gr-qc · cs.MS· physics.comp-ph

Recognition: no theorem link

Observer-robust energy condition verification for warp drive spacetimes

An T. Le
Authors on Pith no claims yet

Pith reviewed 2026-05-15 21:12 UTC · model grok-4.3

classification 🌀 gr-qc cs.MSphysics.comp-ph
keywords energy conditionswarp drivesobserver optimizationHawking-Ellis classificationAlcubierre metricstress-energy tensornumerical relativity
0
0 comments X

The pith

Single-frame checks systematically underestimate energy-condition violations in warp drive spacetimes

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces a method that replaces discrete sampling of observer directions with continuous optimization over the entire timelike observer manifold. At most points the algebraic classification of the stress-energy tensor gives an exact answer without any search; at the remaining points the optimizer supplies a rapidity-capped diagnostic. When the method is run on the Alcubierre, Lentz, Van Den Broeck, Natário, Rodal, and warp-shell metrics, the usual Eulerian-frame evaluation misses a substantial fraction of the violated grid points and reports violation strengths that can be orders of magnitude too small. The work keeps the invariant eigenvalue of the stress-energy tensor distinct from any single-observer projection.

Core claim

Single-frame evaluation can systematically underestimate both the spatial extent and severity of energy-condition violations; continuous gradient-based optimization over the rapidity-capped timelike observer manifold, combined with Hawking-Ellis classification, reveals the larger and stronger violations that exist in the tested warp-drive geometries.

What carries the argument

Gradient-based optimization over the rapidity-capped timelike observer manifold together with Hawking-Ellis algebraic classification that supplies an exact eigenvalue check at Type-I points.

If this is right

  • For several standard metrics the set of points that violate energy conditions is substantially larger than the Eulerian-frame set.
  • At points where both methods detect a violation, the optimized magnitude can exceed the Eulerian value by orders of magnitude.
  • At Type-I points the check reduces to a simple eigenvalue comparison independent of any observer search.
  • All reported results hold only for subluminal bubble velocities; superluminal cases produce metric signature changes outside the present assumptions.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Earlier single-frame studies of warp-drive energy conditions may have under-counted both the volume and the strength of violations.
  • The same observer-robust procedure can be applied directly to any other spacetime whose stress-energy tensor is available via automatic differentiation.
  • Designs that aim to minimize exotic matter must now minimize the worst-case observer-dependent projection rather than only the Eulerian projection.

Load-bearing premise

The optimizer reliably locates the global minimum violation on the allowed observer manifold at every non-Type-I point and the algebraic classification correctly flags all Type-I points.

What would settle it

An exhaustive or independent search that returns a smaller violation value than the optimizer at any non-Type-I grid point.

Figures

Figures reproduced from arXiv: 2602.18023 by An T. Le.

Figure 1
Figure 1. Figure 1: NEC evaluation for the Alcubierre metric (503 grid, vs = 0.5; see [PITH_FULL_IMAGE:figures/full_fig_p012_1.png] view at source ↗
Figure 2

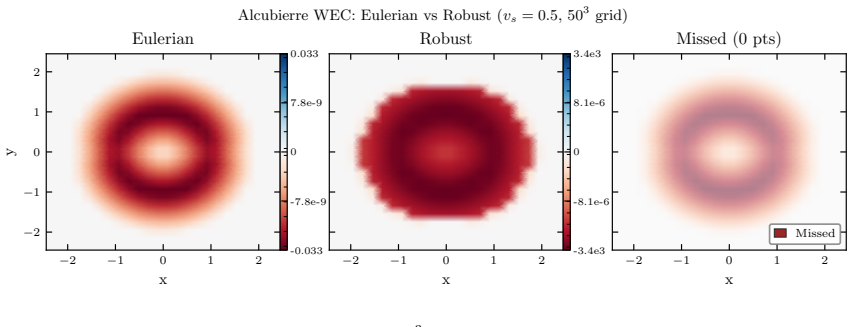

Figure 2. Figure 2: WEC evaluation for the Alcubierre metric (503 grid, vs = 0.5; see [PITH_FULL_IMAGE:figures/full_fig_p013_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: NEC evaluation for the Van Den Broeck metric (503 grid, vs = 0.5; see [PITH_FULL_IMAGE:figures/full_fig_p013_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: SEC evaluation for the Van Den Broeck metric (503 grid, vs = 0.5; see [PITH_FULL_IMAGE:figures/full_fig_p014_4.png] view at source ↗
Figure 5

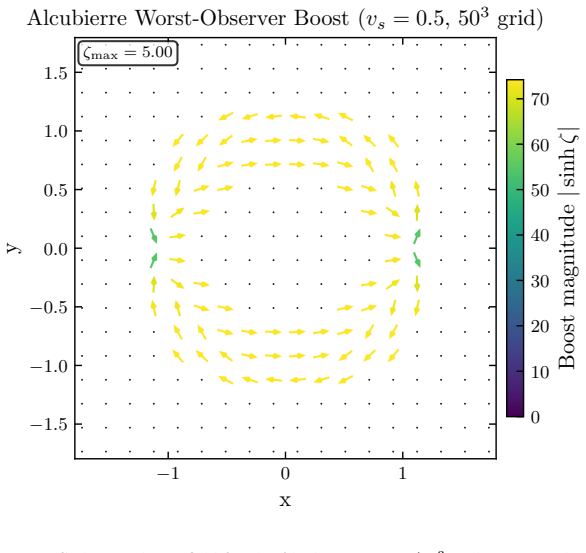

Figure 5. Figure 5: Worst-case WEC observer boost field for the Alcubierre metric (503 grid, vs = 0.5, ζmax = 5; see [PITH_FULL_IMAGE:figures/full_fig_p015_5.png] view at source ↗
Figure 6

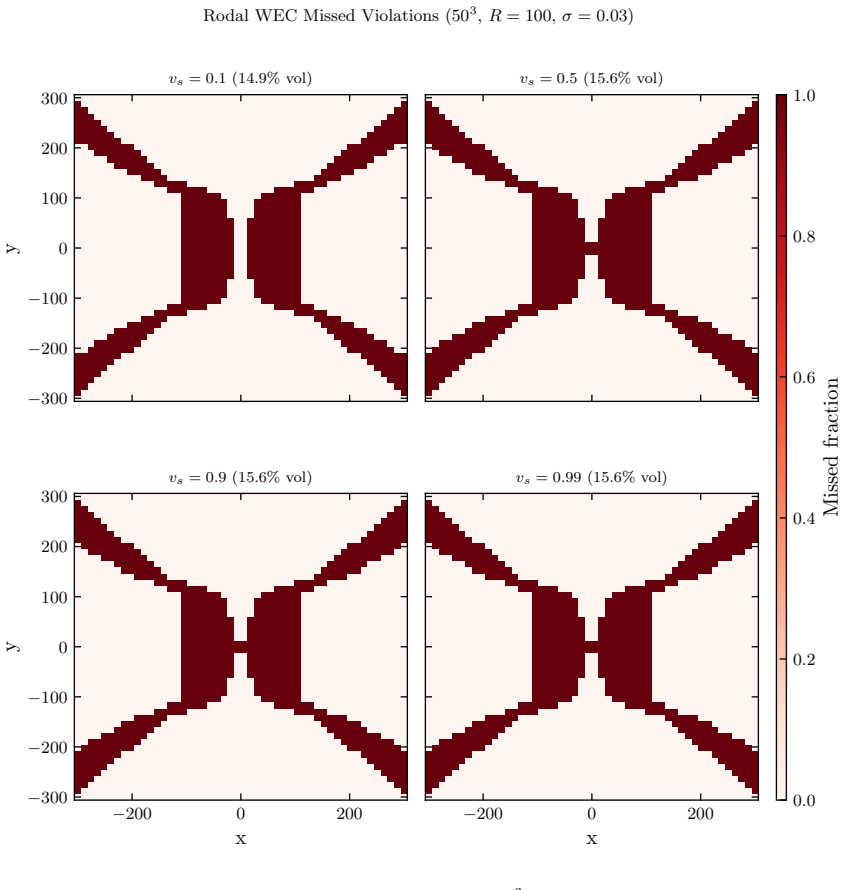

Figure 6. Figure 6: Energy condition violations missed by Eulerian analysis (503 grid, ζmax = 5) across four bubble velocities vs ∈ {0.1, 0.5, 0.9, 0.99}. Red regions indicate points where a condition appears satisfied for the Eulerian observer but is violated for the worst-case observer. The missed violation fraction is most pronounced for the DEC and WEC conditions. expectation that thinner bubble walls produce more extreme… view at source ↗
Figure 7
Figure 7. Figure 7: (a) Minimum NEC margin as a function of bubble velocity for the Alcubierre metric (503 grid; see [PITH_FULL_IMAGE:figures/full_fig_p018_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Tidal eigenvalue evolution along a radial timelike geodesic through the Alcubierre bubble (vs = 0.5, Rb = 1, σ = 8; ODE integration via Tsit5; see [PITH_FULL_IMAGE:figures/full_fig_p018_8.png] view at source ↗
Figure 9

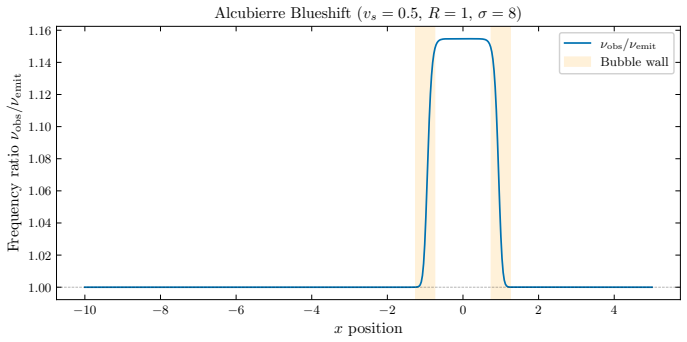

Figure 9. Figure 9: Photon frequency ratio along a null geodesic through the Alcubierre bubble (vs = 0.5, Rb = 1, σ = 8; ODE integration via Tsit5; see [PITH_FULL_IMAGE:figures/full_fig_p019_9.png] view at source ↗
Figure 10
Figure 10. Figure 10: Kinematic scalars for the Alcubierre metric (503 grid, vs = 0.5; see [PITH_FULL_IMAGE:figures/full_fig_p019_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: Kinematic scalars for the Lentz metric (503 grid, vs = 0.5; see [PITH_FULL_IMAGE:figures/full_fig_p020_11.png] view at source ↗
Figure 12

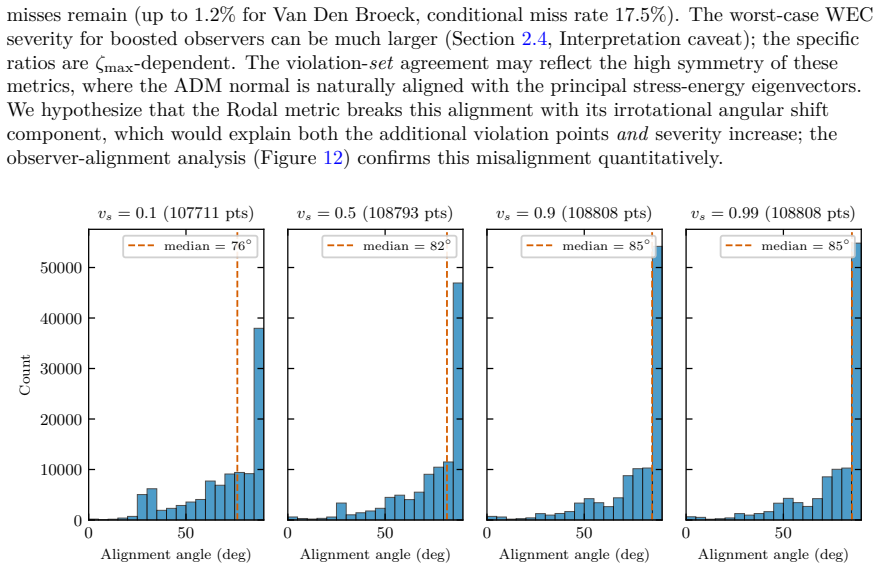

Figure 12. Figure 12: Histogram of the alignment angle θ = arccos |sˆ · eˆspatial| between the optimizer boost direction sˆ (unit spatial 3-vector of the worst-case observer’s velocity) and the spatial part eˆspatial of the DEC-worst eigenvector of T a b (the eigenvector whose principal pressure |pi| most exceeds ρ), for the Rodal metric (503 grid, ζmax = 5; see [PITH_FULL_IMAGE:figures/full_fig_p025_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: Fibonacci-lattice DEC sampling convergence for the Rodal metric (253 grid, ζmax = 5; see [PITH_FULL_IMAGE:figures/full_fig_p027_13.png] view at source ↗
Figure 14

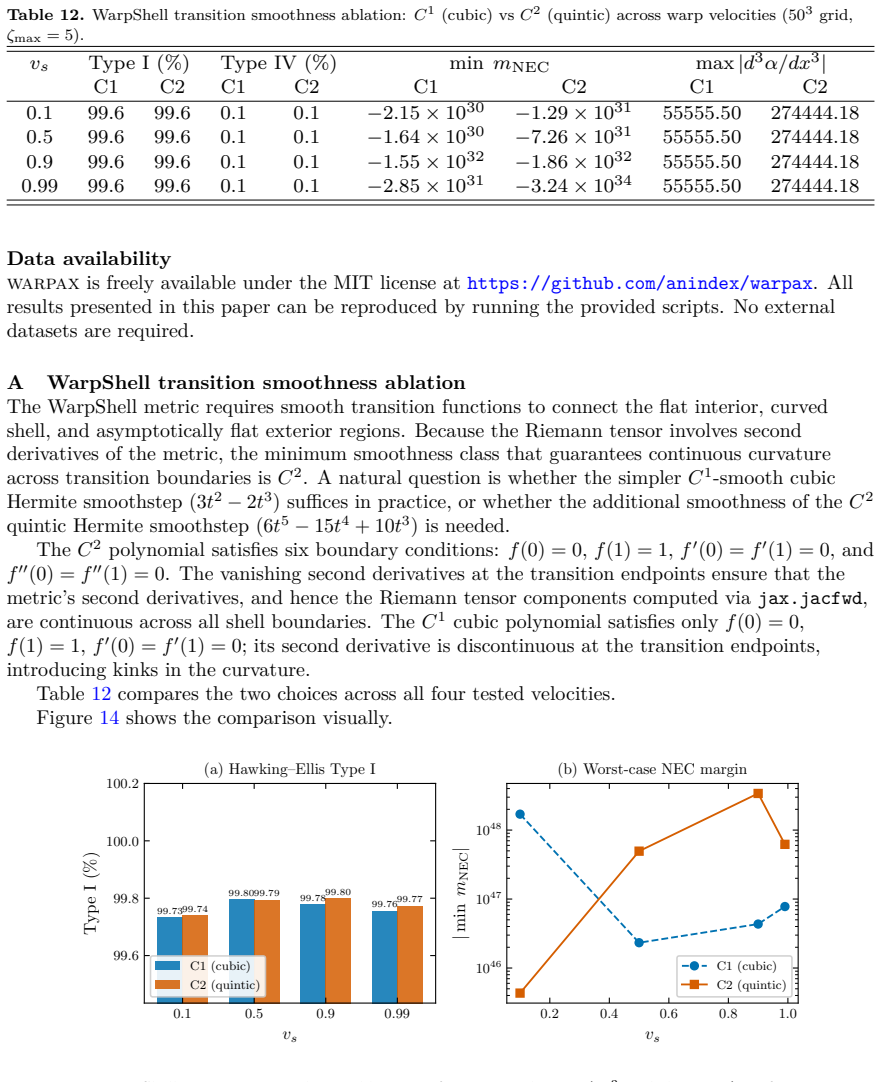

Figure 14. Figure 14: shows the comparison visually. 0.1 0.5 0.9 0.99 vs 99.6 99.8 100.0 100.2 Type I (%) 99.73 99.80 99.78 99.76 99.74 99.79 99.80 99.77 (a) Hawking–Ellis Type I C1 (cubic) C2 (quintic) 0.2 0.4 0.6 0.8 1.0 vs 1046 1047 1048 | min mNEC| (b) Worst-case NEC margin C1 (cubic) C2 (quintic) [PITH_FULL_IMAGE:figures/full_fig_p030_14.png] view at source ↗
Figure 15

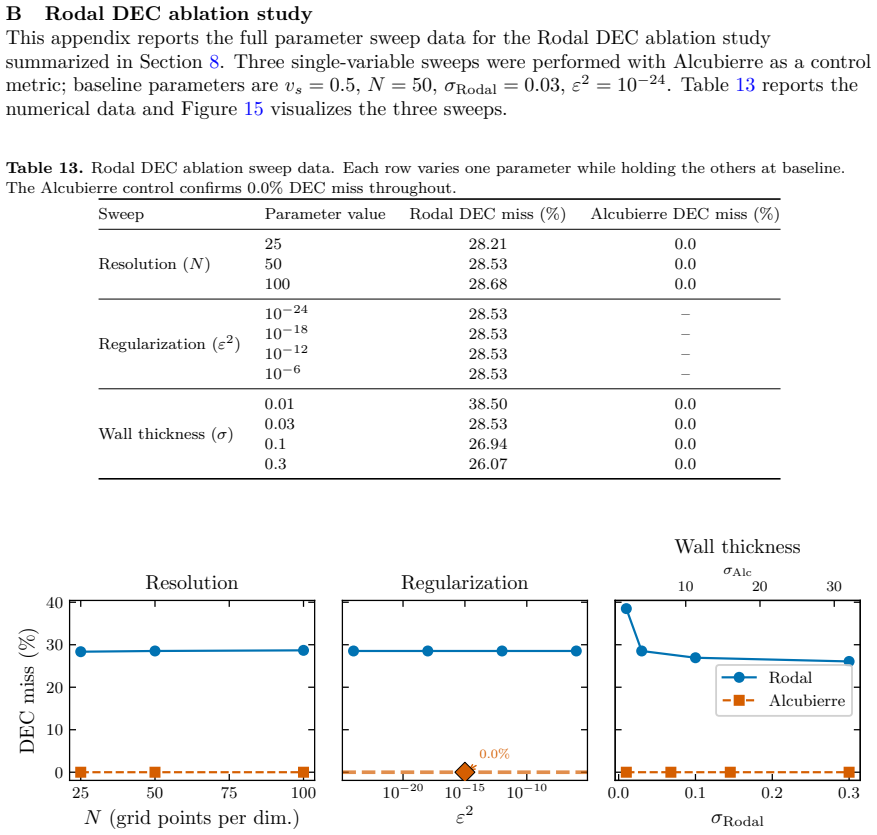

Figure 15. Figure 15: Rodal DEC ablation study: three single-variable parameter sweeps with Alcubierre control (red, dashed). Left: resolution (N = 25, 50, 100). Center: regularization (ε 2 = 10−24 to 10−6 ). Right: wall thickness (σ = 0.01 to 0.3; Alcubierre uses proportionally scaled σ). The DEC miss rate is insensitive to resolution and regularization but varies by 12.43 pp across wall-thickness values. The sigma sweep reve… view at source ↗
read the original abstract

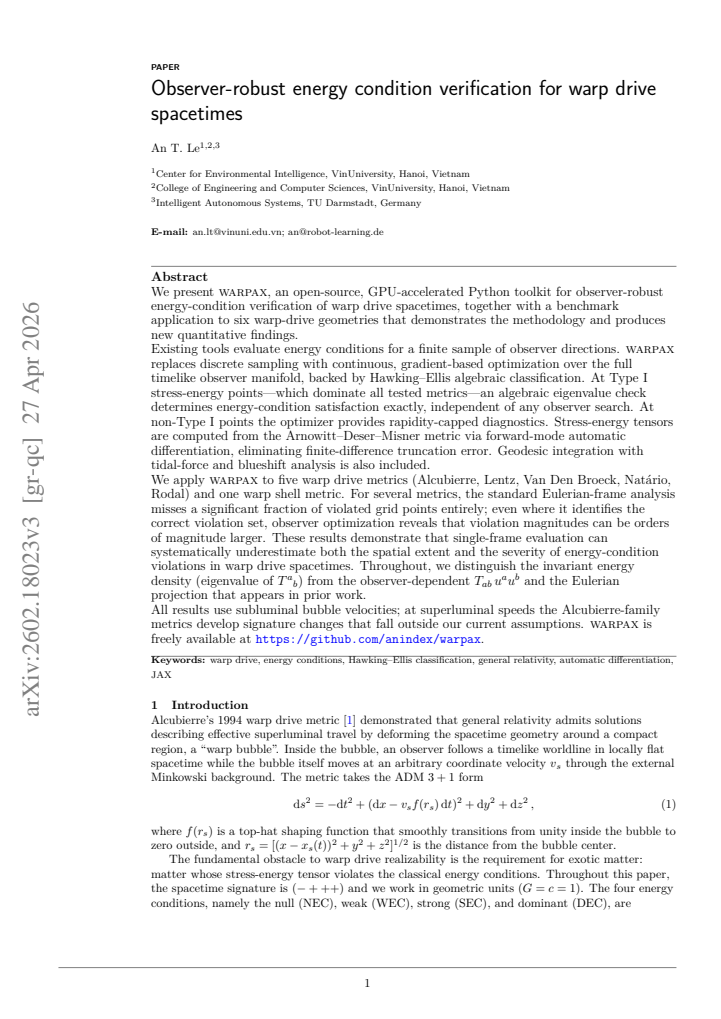

We present warpax, an open-source, GPU-accelerated Python toolkit for observer-robust energy-condition verification of warp drive spacetimes, together with a benchmark application to six warp-drive geometries that demonstrates the methodology and produces new quantitative findings. Existing tools evaluate energy conditions for a finite sample of observer directions. warpax replaces discrete sampling with continuous, gradient-based optimization over the full timelike observer manifold, backed by Hawking--Ellis algebraic classification. At Type~I stress-energy points, which dominate all tested metrics, an algebraic eigenvalue check determines energy-condition satisfaction exactly, independent of any observer search. At non-Type~I points, the optimizer provides rapidity-capped diagnostics. Stress-energy tensors are computed from the Arnowitt--Deser--Misner metric via forward-mode automatic differentiation, eliminating finite-difference truncation error. We apply warpax to five warp drive metrics (Alcubierre, Lentz, Van~Den~Broeck, Nat'ario, Rodal) and one warp shell metric. For several metrics, the standard Eulerian-frame analysis misses a significant fraction of violated grid points; even where it identifies the correct violation set, observer optimization reveals violation magnitudes can be orders of magnitude larger. These results demonstrate that single-frame evaluation can systematically underestimate both the spatial extent and severity of energy-condition violations. Throughout, we distinguish the invariant energy density (eigenvalue of $T^a{}b$) from the observer-dependent $T{ab},u^a u^b$ and the Eulerian projection. All results use subluminal bubble velocities; at superluminal speeds, the Alcubierre-family metrics develop signature changes outside our assumptions. warpax is freely available at https://github.com/anindex/warpax

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 2 minor

Summary. The manuscript presents warpax, an open-source GPU-accelerated Python toolkit for observer-robust energy-condition verification in warp drive spacetimes. It replaces discrete sampling of observer directions with continuous gradient-based optimization over the timelike observer manifold, using forward-mode automatic differentiation for the stress-energy tensor and Hawking-Ellis algebraic classification for exact checks at Type-I points. Application to six warp-drive geometries (Alcubierre, Lentz, Van Den Broeck, Natário, Rodal, and a warp shell) shows that Eulerian-frame analysis systematically underestimates both the spatial extent and severity of energy-condition violations.

Significance. If the numerical results are reliable, this work offers a substantial methodological advance for assessing energy conditions in exotic spacetimes by providing observer-independent diagnostics where possible and more complete searches otherwise. The open-source code, elimination of finite-difference errors via automatic differentiation, and distinction between invariant energy density and observer-dependent quantities are notable strengths. The findings challenge the sufficiency of single-frame evaluations commonly used in the literature.

major comments (1)
  1. [Numerical implementation and optimizer description] The central claim that single-frame evaluation underestimates both extent and severity of violations rests on the gradient-based optimizer locating the global minimum of T_ab u^a u^b over the rapidity-capped timelike manifold at non-Type-I points. No validation (e.g., multiple random starts, basin-hopping comparisons, or subset grid searches) is reported to confirm global convergence rather than local minima, which would understate violation magnitudes and miss points.
minor comments (2)
  1. [Abstract] Abstract states application to 'five warp drive metrics' but enumerates Alcubierre, Lentz, Van Den Broeck, Nat'ario, Rodal plus one warp shell (six total); rephrase for consistency.
  2. [Figures and captions] Ensure figure captions explicitly list the metric, velocity parameter, and grid resolution used so that the reported violation fractions and magnitude ratios are immediately reproducible from the open-source repository.

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for their positive assessment of the manuscript and for identifying a key point regarding numerical validation of the optimizer. We address the major comment below and will strengthen the presentation accordingly in revision.

read point-by-point responses

  1. Referee: The central claim that single-frame evaluation underestimates both extent and severity of violations rests on the gradient-based optimizer locating the global minimum of T_ab u^a u^b over the rapidity-capped timelike manifold at non-Type-I points. No validation (e.g., multiple random starts, basin-hopping comparisons, or subset grid searches) is reported to confirm global convergence rather than local minima, which would understate violation magnitudes and miss points.

    Authors: We agree that documenting convergence to global minima is essential to support the central claims. The manuscript does not report explicit multi-start or basin-hopping tests, which is a genuine omission. In the revised version we will add a new subsection on optimizer validation. This will include: (i) results from 50 random initial conditions per grid point on representative slices, (ii) direct comparison against dense uniform sampling on low-dimensional submanifolds, and (iii) basin-hopping runs on a subset of the parameter space. These checks will be presented for the Alcubierre and Natário cases where non-Type-I points appear. We expect the additional material to confirm that the reported minima are global and that the underestimation relative to the Eulerian frame remains robust. revision: yes

Circularity Check

0 steps flagged

Numerical verification tool produces independent diagnostics with no circular reduction

full rationale

The paper introduces warpax, an open-source toolkit that computes T_ab via forward-mode automatic differentiation on the ADM metric and performs gradient-based optimization over the rapidity-capped timelike observer manifold at non-Type-I points, with exact algebraic eigenvalue checks at Type-I points. All reported findings (underestimation of violation extent and severity by Eulerian-frame analysis) are direct numerical outputs from applying this code to the standard Alcubierre, Lentz, Van Den Broeck, Natário, Rodal, and warp-shell metrics. No parameters are fitted to data and then relabeled as predictions; no self-citations support load-bearing uniqueness or ansatz claims; the derivation chain consists of standard GR operations (ADM decomposition, Hawking-Ellis classification, constrained optimization) whose results are falsifiable by re-running the publicly available code. The central claim therefore does not reduce to its inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The work rests on standard general-relativity definitions of the stress-energy tensor and the Hawking-Ellis algebraic classification of energy conditions; no new free parameters, ad-hoc axioms, or postulated entities are introduced.

axioms (1)
  • standard math Hawking-Ellis algebraic classification applies to the stress-energy tensor at each spacetime point
    Invoked to decide when an exact eigenvalue check suffices instead of numerical optimization.

pith-pipeline@v0.9.0 · 5611 in / 1223 out tokens · 16770 ms · 2026-05-15T21:12:41.810886+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

43 extracted references · 43 canonical work pages · 6 internal anchors

  1. [1]

    Quantum Grav.11L73–L77 (Preprintgr-qc/0009013)

    Alcubierre M 1994Class. Quantum Grav.11L73–L77 (Preprintgr-qc/0009013)

    work page arXiv

  2. [2]

    Santiago J, Schuster S and Visser M 2022Phys. Rev. D105064038 (Preprint2105.03079)

    work page arXiv

  3. [3]

    Hawking S W and Ellis G F R 1973The Large Scale Structure of Space-Time(Cambridge University Press)

    work page

  4. [4]

    Bradbury J, Frostig R, Hawkins P, Johnson M J, Leary C, Maclaurin D, Necula G, Paszke A, VanderPlas J, Wanderman-Milne S and Zhang Q 2018 JAX: composable transformations of Python+NumPy programshttps://github.com/jax-ml/jax, version 0.9.0

    work page 2018

  5. [5]

    Kidger P and Garcia C 2021 (Preprint2111.00254)

    work page arXiv 2021

  6. [6]

    Quantum Grav.41095009 (Preprint2404.03095) 33

    Helmerich Cet al.2024Class. Quantum Grav.41095009 (Preprint2404.03095) 33

    work page arXiv

  7. [7]

    Helmerich C, Fuchs J, Bobrick A, Sellers L, Dangelo S, Martire G and Agnew J F 2023 Warp Factory: A numerical toolkit for the analysis and optimization of warp drive geometriesAIAA SCITECH 2023 Forum(Preprint2404.10855)

    work page arXiv 2023

  8. [8]

    Essential core of the Hawking--Ellis types

    Martín-Moruno P and Visser M 2018Class. Quantum Grav.35125003 (Preprint1802.00865)

    work page internal anchor Pith review Pith/arXiv arXiv

  9. [9]

    Hawking-Ellis type III spacetime geometry

    Martín-Moruno P and Visser M 2018Class. Quantum Grav.35185004 (Preprint1806.02094)

    work page internal anchor Pith review Pith/arXiv arXiv

  10. [10]

    Generalized Rainich conditions, generalized stress-energy conditions, and the Hawking-Ellis classification

    Martín-Moruno P and Visser M 2017Class. Quantum Grav.34225014 (Preprint1707.04172)

    work page internal anchor Pith review Pith/arXiv arXiv

  11. [11]

    Martín-Moruno P and Visser M 2021Phys. Rev. D103124003 (Preprint2102.13551)

    work page arXiv

  12. [12]

    Celmaster B and Rubin S 2025 (Preprint2511.18251)

    work page arXiv 2025

  13. [13]

    Quantum Grav.38105009 (Preprint2102.06824)

    Bobrick A and Martire G 2021Class. Quantum Grav.38105009 (Preprint2102.06824)

    work page arXiv

  14. [14]

    Quantum Grav.38155020 (Preprint2104.06488)

    Fell S D B and Heisenberg L 2021Class. Quantum Grav.38155020 (Preprint2104.06488)

    work page arXiv

  15. [15]

    Quantum Grav.191157–1166 (Preprintgr-qc/0110086)

    Natário J 2002Class. Quantum Grav.191157–1166 (Preprintgr-qc/0110086)

    work page arXiv

  16. [16]

    Quantum Grav.163973–3979 (Preprintgr-qc/9905084)

    Van Den Broeck C 1999Class. Quantum Grav.163973–3979 (Preprintgr-qc/9905084)

    work page arXiv

  17. [17]

    Quantum Grav.38075015 (Preprint2006.07125)

    Lentz E W 2021Class. Quantum Grav.38075015 (Preprint2006.07125)

    work page arXiv

  18. [18]

    Rodal J 2026Gen. Relativ. Gravit.581 (Preprint2512.18008)

    work page arXiv

  19. [19]

    Rodal J 2023Gen. Relativ. Gravit.55134

    work page

  20. [20]

    Rodal J 2024Int. J. Theor. Phys.63168

    work page

  21. [21]

    Quantum Grav.(Preprint2405.02709)

    Fuchs C, Helmerich Jet al.2024Class. Quantum Grav.(Preprint2405.02709)

    work page arXiv

  22. [22]

    Garattini R and Zatrimaylov K 2024Phys. Lett. B856138910 (Preprint2408.04495)

    work page arXiv

  23. [23]

    Garattini R and Zatrimaylov K 2025 (Preprint2502.13153)

    work page arXiv 2025

  24. [24]

    Clough K, Dietrich T and Khan A 2024The Open Journal of Astrophysics(Preprint 2406.02466)

    work page arXiv

  25. [25]

    Rodal J 2025 (Preprint2507.09724)

    work page arXiv 2025

  26. [26]

    Rodal J 2026 (Preprint2603.21352)

    work page arXiv 2026

  27. [27]

    Santos-Pereira O L, Abreu E M C and Ribeiro M B 2026Eur. Phys. J. C8646 (Preprint 2512.12541)

    work page arXiv

  28. [28]

    Barzegar H and Buchert T 2025Universe11293 (Preprint2407.00720)

    work page arXiv

  29. [29]

    Barzegar H, Buchert T and Vigneron Q 2026 (Preprint2602.16495)

    work page arXiv 2026

  30. [30]

    Relativ.216

    MacCallum M A H 2018Living Rev. Relativ.216

    work page

  31. [31]

    Martín-García J M 2008Comput. Phys. Commun.179597–603 (Preprint0803.0862)

    work page internal anchor Pith review Pith/arXiv arXiv

  32. [32]

    Gourgoulhon É and Mancini M 2018Les cours du CIRM6(Preprint1804.07346)

    work page internal anchor Pith review Pith/arXiv arXiv

  33. [33]

    Einstein Toolkit Consortium 2024 The Einstein Toolkit: a community computational infrastructure for relativistic astrophysicshttps://einsteintoolkit.org

    work page 2024

  34. [34]

    Cranganore S S, Bodnar A, Berzins A and Brandstetter J 2025 ICLR 2026 (Preprint 2507.11589)

    work page arXiv 2025

  35. [35]

    Applied Physics 2024 WarpFactory documentation: energy conditions analysishttps:// applied-physics.gitbook.io/warp-factory/examples/analysis/a1-energy-conditions

    work page 2024

  36. [36]

    Coogan A 2024 diffjeom: differential geometry with JAX https://github.com/adam-coogan/diffjeom

    work page 2024

  37. [37]

    Bara M 2025 (Preprint2507.09379) 34

    work page arXiv 2025

  38. [38]

    Kidger P 2024 Optimistix: modular optimisation in JAX https://github.com/patrick-kidger/optimistix

    work page 2024

  39. [39]

    Kidger P 2022 Diffrax: numerical differential equation solvers in JAX https://github.com/patrick-kidger/diffrax

    work page 2022

  40. [40]

    Ford L H and Roman T A 1995Phys. Rev. D514277–4286 (Preprintgr-qc/9410043)

    work page arXiv

  41. [41]

    The unphysical nature of "Warp Drive"

    Pfenning M J and Ford L H 1997Class. Quantum Grav.141743–1751 (Preprint gr-qc/9702026)

    work page internal anchor Pith review Pith/arXiv arXiv

  42. [42]

    Nocedal J and Wright S J 2006Numerical Optimization2nd ed (Springer)

    work page

  43. [43]

    Tsitouras C 2011Comput. Math. Appl.62770–775 35

    work page
