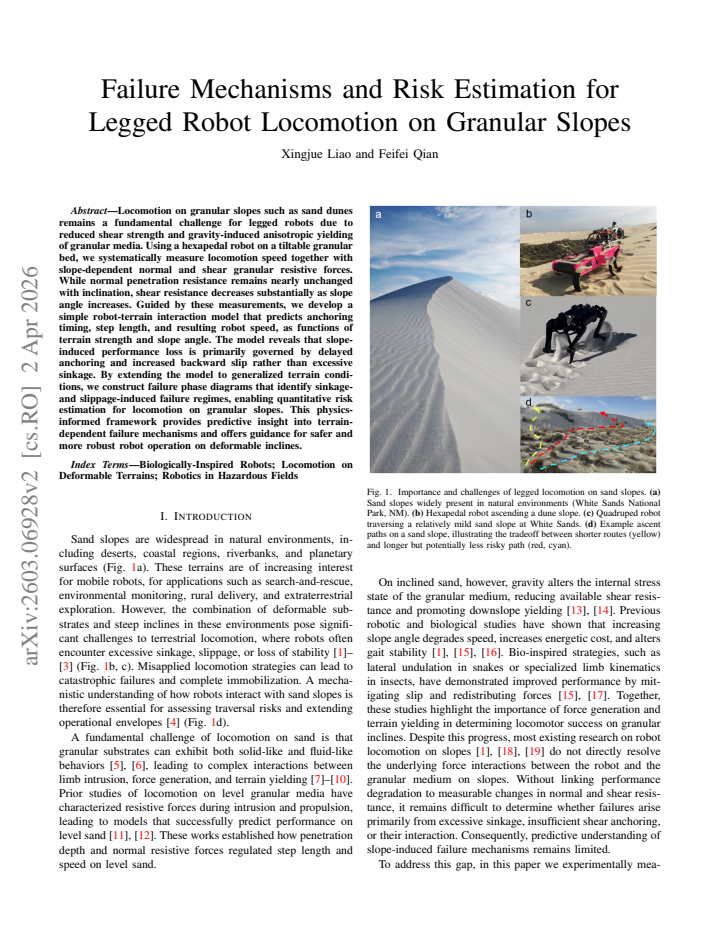

Failure Mechanisms and Risk Estimation for Legged Robot Locomotion on Granular Slopes

Xingjue Liao , Feifei Qian This is my paper

Pith reviewed 2026-05-15 14:26 UTC · model grok-4.3

classification 💻 cs.RO
keywords legged robotsgranular mediaslope locomotionfailure mechanismsanchoringsliprisk estimationrobot-terrain model
0
0 comments X

The pith

Locomotion speed loss on granular slopes for legged robots stems primarily from delayed anchoring and increased backward slip rather than excessive sinkage.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Researchers tested a hexapedal robot on a tiltable bed of granular material to measure how slope affects movement. They found that while the force resisting leg penetration stayed roughly constant, the shear force opposing sideways motion dropped sharply as the slope steepened. Using these data, they built a basic model linking terrain properties to when legs anchor, how far each step moves the robot, and overall speed. The model shows that the main reasons for slower travel are legs taking longer to grip and slipping backward more, not the robot sinking deeper into the material. Extending the model produces diagrams that map out when robots fail due to sinking or slipping on different slopes and materials.

Core claim

The paper's central claim is that a physics-based robot-terrain interaction model, informed by force measurements on inclined granular beds, demonstrates that slope-induced reductions in locomotion speed are governed mainly by delays in leg anchoring and increases in backward slip, rather than by increased sinkage, and that this model can be extended to create failure phase diagrams for risk estimation.

What carries the argument

A simple robot-terrain interaction model that calculates anchoring timing, step length, and resulting speed as functions of terrain strength and slope angle.

If this is right

  • Failure phase diagrams identify distinct regimes of sinkage-induced and slippage-induced failure for different terrain strengths and slopes.
  • Quantitative risk estimation becomes possible for legged robot locomotion on granular slopes.
  • The framework offers guidance for safer and more robust robot operation on deformable inclines.
  • Predictive insight is provided into terrain-dependent failure mechanisms.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Control algorithms could be designed to compensate for predicted anchoring delays on slopes.
  • The approach might extend to wheeled or tracked robots on similar terrains.
  • Field tests on real dunes could validate the phase diagrams for practical risk assessment.
  • Similar models may help predict performance limits for animals or humans moving on sand slopes.

Load-bearing premise

The simple robot-terrain interaction model calibrated on measured force trends remains predictive when extended to generalized terrain conditions and other robot morphologies without additional fitting.

What would settle it

Experiments showing that changes in sinkage depth correlate more strongly with speed loss than changes in anchoring timing or backward slip across a range of slopes would falsify the primary mechanism identified by the model.

Figures

Figures reproduced from arXiv: 2603.06928 by Feifei Qian, Xingjue Liao.

Figure 1
Figure 1. Figure 1: Importance and challenges of legged locomotion on sand slopes. [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Robot and experimental setup for studying locomotion on granular [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Robot locomotion on sand slopes of varying inclinations. [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Sand resistive force measurements on inclined granular surfaces. [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Predictive model to link anchoring timing to robot step length. [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Model-predicted robot performance on (a) level sand when the total [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗
read the original abstract

Locomotion on granular slopes such as sand dunes remains a fundamental challenge for legged robots due to reduced shear strength and gravity-induced anisotropic yielding of granular media. Using a hexapedal robot on a tiltable granular bed, we systematically measure locomotion speed together with slope-dependent normal and shear granular resistive forces. While normal penetration resistance remains nearly unchanged with inclination, shear resistance decreases substantially as slope angle increases. Guided by these measurements, we develop a simple robot-terrain interaction model that predicts anchoring timing, step length, and resulting robot speed, as functions of terrain strength and slope angle. The model reveals that slope-induced performance loss is primarily governed by delayed anchoring and increased backward slip rather than excessive sinkage. By extending the model to generalized terrain conditions, we construct failure phase diagrams that identify sinkage- and slippage-induced failure regimes, enabling quantitative risk estimation for locomotion on granular slopes. This physics-informed framework provides predictive insight into terrain-dependent failure mechanisms and offers guidance for safer and more robust robot operation on deformable inclines.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The paper reports systematic experiments with a hexapedal robot on a tiltable granular bed, measuring locomotion speed together with slope-dependent normal and shear resistive forces. Normal penetration resistance remains nearly constant with inclination while shear resistance decreases substantially. Guided by these data, the authors construct a simple robot-terrain interaction model that predicts anchoring timing, step length, and forward speed as functions of terrain strength and slope angle. The model attributes slope-induced speed loss primarily to delayed anchoring and increased backward slip rather than excessive sinkage. The model is then extended to generalized terrain conditions to generate failure phase diagrams that delineate sinkage- versus slippage-dominated regimes and support quantitative risk estimation.

Significance. If the calibrated force trends and resulting anchoring/slip dynamics prove transferable, the work supplies a compact, physics-informed framework for predicting and mitigating locomotion failure on granular inclines. This would be valuable for field robotics, offering both mechanistic insight and practical risk-assessment tools that go beyond purely empirical tuning.

major comments (2)
  1. [Abstract / model extension] Abstract and model-extension paragraph: the claim that the model enables quantitative risk estimation for arbitrary terrain conditions rests on the assumption that the measured normal/shear resistance trends (normal unchanged, shear decreasing with angle) and the derived anchoring/slip relations transfer without re-calibration to different particle-size distributions, packing densities, or leg geometries. This assumption is load-bearing for the failure phase diagrams; the manuscript should either provide supporting sensitivity analysis or explicitly bound the domain of validity.
  2. [Experimental results] Experimental results section: while the force measurements are described as systematic, the manuscript does not appear to include a quantitative error analysis or cross-validation against held-out trials. This weakens in the reported trends for anchoring delay and backward slip that underpin the central mechanistic claim.
minor comments (2)
  1. [Model formulation] Clarify the exact functional forms used for normal and shear resistance in the model equations and ensure all parameters are defined before first use.
  2. [Figures] Add scale bars or explicit units to any force-versus-angle plots to improve readability.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the insightful comments, which have helped us improve the clarity and rigor of our work. We address each major comment below and have made revisions accordingly.

read point-by-point responses

  1. Referee: [Abstract / model extension] Abstract and model-extension paragraph: the claim that the model enables quantitative risk estimation for arbitrary terrain conditions rests on the assumption that the measured normal/shear resistance trends (normal unchanged, shear decreasing with angle) and the derived anchoring/slip relations transfer without re-calibration to different particle-size distributions, packing densities, or leg geometries. This assumption is load-bearing for the failure phase diagrams; the manuscript should either provide supporting sensitivity analysis or explicitly bound the domain of validity.

    Authors: We agree that the generalizability of the observed force trends is crucial for the risk estimation claims. While the original manuscript focused on the specific experimental conditions, we have revised the model-extension section to explicitly state the domain of validity: the trends are expected to hold for granular media with similar particle sizes (0.2-0.8 mm) and bulk densities as tested, and for leg designs with comparable foot geometry. To support this, we added a sensitivity analysis in the supplementary material varying the shear resistance coefficient by ±15% and particle friction angle, demonstrating that the phase diagram boundaries shift quantitatively but the identification of sinkage- vs. slippage-dominated regimes remains robust. We have also updated the abstract to reflect these bounds rather than claiming arbitrary conditions. revision: yes

  2. Referee: [Experimental results] Experimental results section: while the force measurements are described as systematic, the manuscript does not appear to include a quantitative error analysis or cross-validation against held-out trials. This weakens in the reported trends for anchoring delay and backward slip that underpin the central mechanistic claim.

    Authors: We appreciate this point and have strengthened the experimental results section in the revision. We now include quantitative error analysis by reporting the standard deviation across 10 repeated trials for each slope angle and force measurement. Error bars are added to all plots in Figures 3 and 4. Furthermore, we conducted a cross-validation by randomly partitioning the dataset into 80% training and 20% validation sets, refitting the model parameters on the training data, and evaluating prediction accuracy on the validation set. The mean absolute error for predicted speed was 8.2% of the measured value, confirming the reliability of the anchoring delay and backward slip trends. revision: yes

Circularity Check

0 steps flagged

Model parameters from direct force measurements; attribution of loss to anchoring/slip follows measured trends without redefinition

full rationale

The derivation begins with direct experimental measurements of slope-dependent normal and shear resistive forces on the hexapedal robot. The simple interaction model is constructed from these measured trends (normal resistance nearly constant, shear decreasing with angle) to compute anchoring timing, step length, and speed. The central claim—that performance loss is governed by delayed anchoring and backward slip rather than sinkage—emerges from inspecting the model's outputs under the measured force laws, without fitting parameters to the final speed data or redefining inputs as predictions. Extension to generalized phase diagrams assumes the measured trends transfer but does not create a self-referential loop. No load-bearing step reduces by construction to its own inputs, and no self-citation chain is invoked to justify uniqueness.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The framework rests on standard granular mechanics assumptions and direct experimental calibration; no new entities are postulated.

axioms (1)
  • domain assumption Granular shear resistance decreases with increasing slope angle while normal penetration resistance remains approximately constant
    Directly stated from the systematic measurements on the tiltable bed

pith-pipeline@v0.9.0 · 5476 in / 1189 out tokens · 44875 ms · 2026-05-15T14:26:15.721953+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

35 extracted references · 35 canonical work pages

  1. [1]

    Learning granular media avalanche behavior for indirectly manipulating obstacles on a granular slope,

    H. Hu, F. Qian, and D. Seita, “Learning granular media avalanche behavior for indirectly manipulating obstacles on a granular slope,” in Conference on Robot Learning. PMLR, 2025, pp. 3225–3241

    work page 2025

  2. [2]

    A terradynamics of legged locomotion on granular media,

    C. Li, T. Zhang, and D. I. Goldman, “A terradynamics of legged locomotion on granular media,”science, vol. 339, no. 6126, pp. 1408– 1412, 2013

    work page 2013

  3. [3]

    The dynamics of legged locomotion in heterogeneous terrain: universality in scattering and sensitivity to initial conditions

    F. Qian and D. I. Goldman, “The dynamics of legged locomotion in heterogeneous terrain: universality in scattering and sensitivity to initial conditions.” inRobotics: Science and Systems, vol. 11, 2015

    work page 2015

  4. [4]

    Insight robotic arm testing activities for hp3 mole anomaly recovery on mars,

    C. Sorice, K. S. Ali, A. Trebi-Ollennu, P. Mishra, G. Lim, P. Bailey, T. L. Hudson, E. Marteau, and J. Kim, “Insight robotic arm testing activities for hp3 mole anomaly recovery on mars,” in2021 IEEE Aerospace Conference (50100). IEEE, 2021, pp. 1–19

    work page 2021

  5. [5]

    Physics of the granular state,

    H. M. Jaeger and S. R. Nagel, “Physics of the granular state,”Science, vol. 255, no. 5051, pp. 1523–1531, 1992

    work page 1992

  6. [6]

    R. M. Neddermanet al.,Statics and kinematics of granular materials. Cambridge University Press Cambridge, 1992, vol. 352

    work page 1992

  7. [7]

    Theory of land locomotion,

    M. G. Bekker, “Theory of land locomotion,” 1956

    work page 1956

  8. [8]

    J. Y . Wonget al.,Terramechanics and off-road vehicles.Elsevier, 1989

    work page 1989

  9. [9]

    A dynamic foot–terrain interaction model for biped walking on granular media,

    X. Chen, X. Huang, J. Yi, J. W. Shan, and T. Liu, “A dynamic foot–terrain interaction model for biped walking on granular media,” IEEE/ASME Transactions on Mechatronics, 2025

    work page 2025

  10. [10]

    Energy efficient foot-shape design for bipedal walkers on granular terrain,

    X. Chen, J. Yi, and H. Wang, “Energy efficient foot-shape design for bipedal walkers on granular terrain,”IFAC-PapersOnLine, vol. 56, no. 3, pp. 601–606, 2023
