On the Derivation of Tightly-Coupled LiDAR-Inertial Odometry with VoxelMap

Zhihao Zhan

Authors on Pith no claims yet

Pith reviewed 2026-05-15 10:11 UTC · model grok-4.3

classification 💻 cs.RO eess.SP

keywords LiDAR-inertial odometryVoxelMaperror-state Kalman filtertightly-coupled fusioniterated estimationgeometric modelingprobabilistic derivation

0 comments

The pith

A concise derivation unifies geometric LiDAR modeling with probabilistic estimation in VoxelMap-based iterated error-state Kalman filter.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper supplies a self-contained mathematical formulation for tightly-coupled LiDAR-inertial odometry rather than introducing a new algorithm. It uses consistent notation to connect point-cloud geometry inside a VoxelMap to the update and propagation steps of an iterated error-state Kalman filter. A sympathetic reader would value the work as a technical reference that makes the full system architecture and estimation equations explicit and accessible.

Core claim

The derivation presents explicit equations for state propagation from IMU measurements, LiDAR point-to-plane residuals expressed in the VoxelMap, and the iterated error-state Kalman filter update that fuses both sensors while maintaining consistent covariance and Jacobian terms throughout.

What carries the argument

VoxelMap representation of LiDAR points combined with the iterated error-state Kalman filter that carries the geometric and probabilistic fusion.

If this is right

The explicit Jacobians and residual formulations allow direct reproduction of the filter without re-deriving the geometry-to-probability mapping.
Consistent notation across IMU integration and LiDAR residuals reduces implementation errors when extending the system to new platforms.
The iterated update structure supports higher accuracy in nonlinear regimes compared with single-step filters.
The VoxelMap representation decouples map maintenance from the filter equations, permitting independent optimization of voxel resolution.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The unified notation could serve as a template for deriving similar tightly-coupled estimators that replace VoxelMap with other map representations such as surfels or octrees.
Because the paper stops at the derivation, a natural next step is to quantify how the iterated filter reduces linearization error relative to non-iterated versions on standard benchmarks.
The self-contained equations lower the barrier for researchers who wish to add new measurement models while preserving the existing error-state structure.

Load-bearing premise

Standard geometric and noise models for LiDAR points and inertial measurements remain valid inside the VoxelMap and filter without additional unmodeled effects or sensor-specific biases.

What would settle it

Implement the derived state-transition, measurement, and covariance equations in code and compare the resulting trajectory estimates against an independent LiDAR-inertial reference on the same dataset; mismatch in estimated states or covariance growth would indicate an inconsistency in the derivation.

Figures

Figures reproduced from arXiv: 2603.15471 by Zhihao Zhan.

**Figure 1.** Figure 1: System overview of the VoxelMap-based LIO framework. LiDAR and IMU measurements are preprocessed and fused within an iterated error-state Kalman filter. The estimated pose registers points to the global frame and incrementally updates the VoxelMap. 2 [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗

**Figure 2.** Figure 2: The uncertainty model of the registered point. Using the ⊞ operation encapsulated in S 2 [16], define the relation between the true bearing direction ϕ gt i and its measurement ϕi as below ϕ gt i = ϕi ⊞S 2 δϕi ≜ Exp (N (ϕi) δϕi ) ϕi ≈ (I + ⌊N (ϕi) δϕi ⌋∧) ϕi (11) 5 [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗

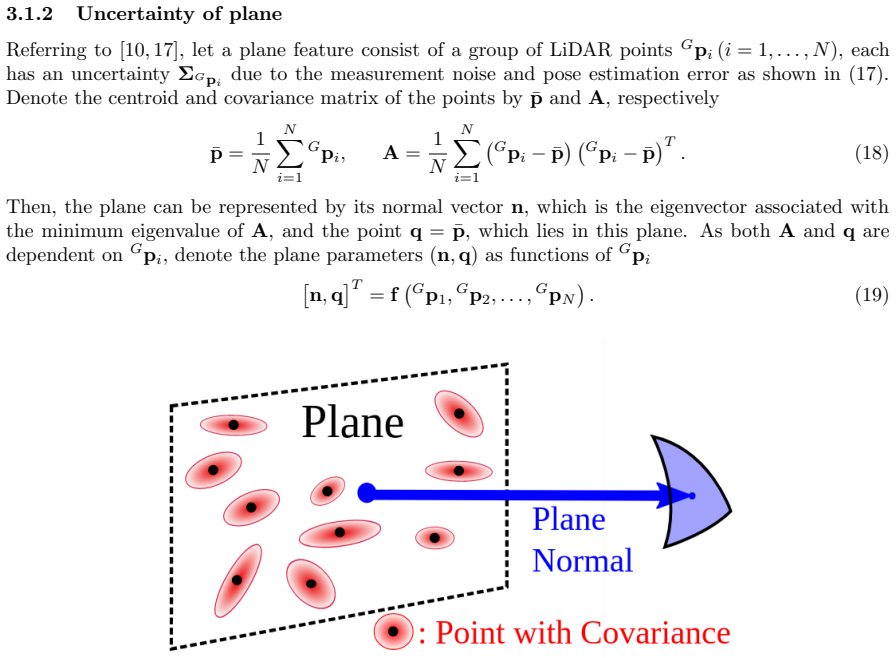

**Figure 3.** Figure 3: The Uncertainty model of the plane normal. Next, we derive the uncertainty of plane shown in [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗

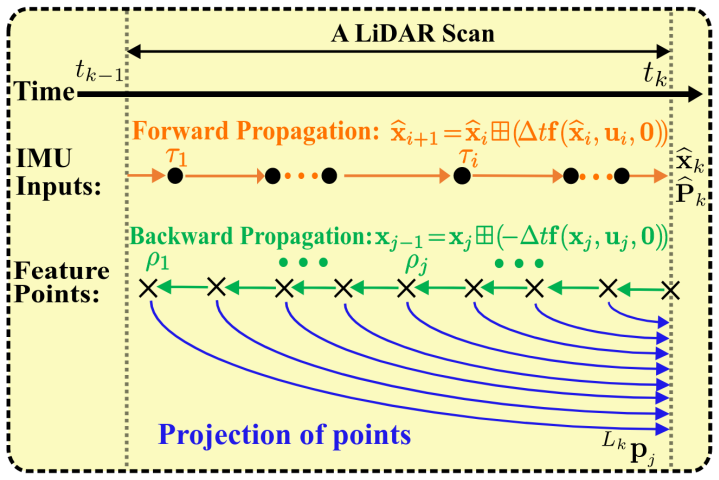

**Figure 4.** Figure 4: The forward and backward propagation. 4.1 IMU Forward Propagation The forward propagation is performed upon receiving each IMU measurement (see [PITH_FULL_IMAGE:figures/full_fig_p011_4.png] view at source ↗
