Peltier cooling in Corbino-geometry quantum Hall systems

Akira Endo , Yoshiaki Hashimoto
Authors on Pith no claims yet

Pith reviewed 2026-05-15 08:23 UTC · model grok-4.3

classification ❄️ cond-mat.mes-hall
keywords Peltier effectCorbino geometryquantum Hall effectLandau levelsthermoelectric transportself-consistent Born approximation
0
0 comments X

The pith

The radial Peltier coefficient in Corbino-geometry quantum Hall systems reaches large negative or positive values just above or below integer Landau-level fillings.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper derives an analytic formula for the radial Peltier coefficient Π_rr from the spectral conductivity obtained in the self-consistent Born approximation. Π_rr takes large negative values just above an integer filling factor and large positive values just below it, with the absolute magnitude growing as temperature or disorder strength is lowered. In the clean limit the coefficient approaches the sawtooth form determined by the energy of the highest occupied Landau level relative to the chemical potential. When a radial dc current is passed through a real Corbino disk the measured temperature at the outer perimeter rises or falls exactly as the sign of Π_rr requires, including cooling below the bath temperature.

Core claim

The radial Peltier coefficient Π_rr exhibits large negative (positive) values just above (below) integer Landau-level filling factors. Its absolute magnitude increases with decreasing temperature or disorder strength and converges to the saw-tooth profile −(E_{N_F σ_F} − ζ)/e when disorder vanishes. Application of a radial dc current in a real Corbino device produces corresponding heating or cooling at the outer edge, with the electron temperature falling below the bath temperature when the current direction matches the sign of Π_rr.

What carries the argument

The radial Peltier coefficient Π_rr, obtained from the spectral conductivity calculated in the self-consistent Born approximation, which sets the thermoelectric response to radial current between concentric electrodes in Corbino geometry.

If this is right

  • Temperature at the outer perimeter changes in the direction required by the sign of Π_rr when radial current is applied.
  • The magnitude of the temperature change grows as temperature or disorder is reduced.
  • In the vanishing-disorder limit Π_rr recovers the exact sawtooth dependence on chemical potential set by the highest occupied Landau level.
  • Observable cooling below bath temperature occurs for appropriate current directions near integer fillings.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • This mechanism could enable localized cooling at the edges of mesoscopic quantum Hall devices without additional refrigeration stages.
  • The same radial-current geometry might be used to probe Landau-level spectral properties through thermoelectric response.
  • Analogous Peltier effects may appear in other two-dimensional systems that support Landau levels under perpendicular magnetic fields.

Load-bearing premise

The measured temperature change at the outer perimeter is produced solely by the radial Peltier effect and is not contaminated by Joule heating, contact resistance, or phonon contributions.

What would settle it

No temperature drop below the bath temperature when a radial outward current is applied in the filling-factor region where Π_rr is predicted negative would falsify the central claim.

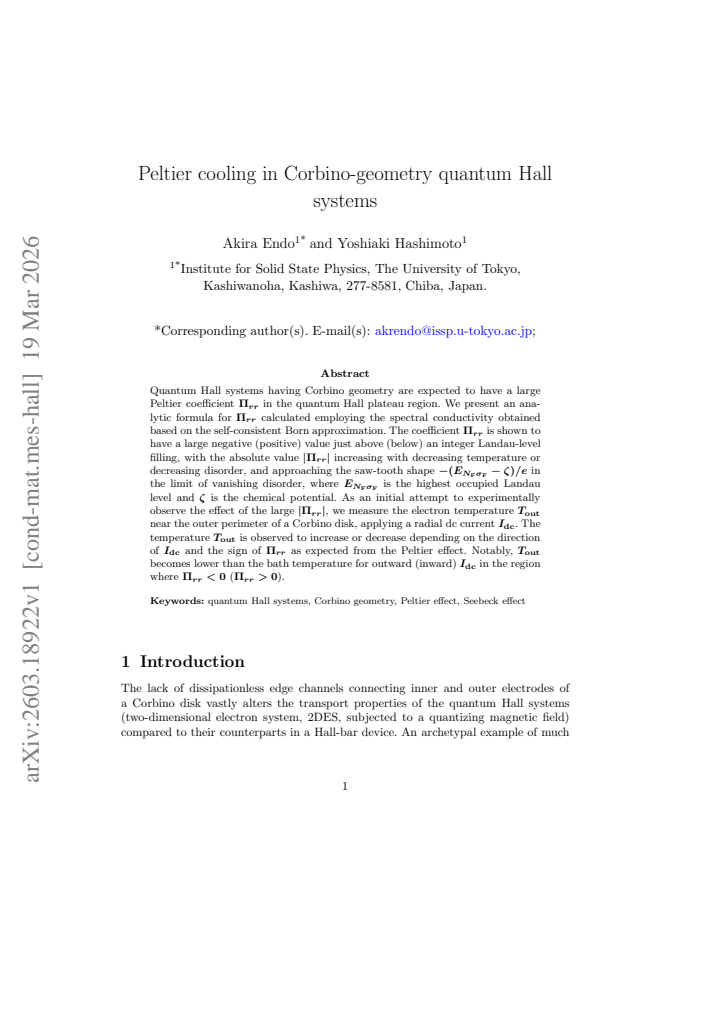

read the original abstract

Quantum Hall systems having Corbino geometry are expected to have a large Peltier coefficient $\Pi_{rr}$ in the quantum Hall plateau region. We present an analytic formula for $\Pi_{rr}$ calculated employing the spectral conductivity obtained based on the self-consistent Born approximation. The coefficient $\Pi_{rr}$ is shown to have a large negative (positive) value just above (below) an integer Landau-level filling, with the absolute value $|\Pi_{rr}|$ increasing with decreasing temperature or decreasing disorder, and approaching the saw-tooth shape $- (E_{N_\mathrm{F} \sigma_\mathrm{F}}-\zeta)/e$ in the limit of vanishing disorder, where $E_{N_\mathrm{F} \sigma_\mathrm{F}}$ is the highest occupied Landau level and $\zeta$ is the chemical potential. As an initial attempt to experimentally observe the effect of the large $|\Pi_{rr}|$, we measure the electron temperature $T_\mathrm{out}$ near the outer perimeter of a Corbino disk, applying a radial dc current $I_\mathrm{dc}$. The temperature $T_\mathrm{out}$ is observed to increase or decrease depending on the direction of $I_\mathrm{dc}$ and the sign of $\Pi_{rr}$ as expected from the Peltier effect. Notably, $T_\mathrm{out}$ becomes lower than the bath temperature for outward (inward) $I_\mathrm{dc}$ in the region where $\Pi_{rr} < 0$ ($\Pi_{rr} > 0$).

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The paper derives an analytic formula for the radial Peltier coefficient Π_rr in Corbino-geometry quantum Hall systems using spectral conductivity from the self-consistent Born approximation (SCBA). It predicts that Π_rr takes large negative (positive) values just above (below) integer Landau-level fillings, with |Π_rr| growing as temperature or disorder decreases and approaching the saw-tooth form −(E_{N_F σ_F}−ζ)/e in the clean limit. Experimentally, the authors apply radial DC current I_dc to a Corbino disk and report that the outer-perimeter electron temperature T_out drops below the bath temperature precisely where the calculated Π_rr < 0 (or rises where Π_rr > 0), interpreting this as direct evidence of radial Peltier cooling.

Significance. If the observed temperature changes are shown to arise solely from the radial Peltier term without appreciable contamination, the work would establish a new, geometrically tunable thermoelectric effect in the quantum Hall regime. The closed-form SCBA expression supplies a concrete, parameter-light prediction that can be tested quantitatively, and the Corbino geometry isolates the radial thermoelectric response from edge-state complications.

major comments (3)
  1. [Experimental results] Experimental results (section describing T_out measurements): the reported cooling T_out < T_bath lacks error bars, quantitative fits to the expected Π_rr I_r magnitude, or any subtraction of possible Joule-heating backgrounds from finite σ_rr or contacts; without these, the central claim that the sign change is produced by the Peltier effect remains only qualitative.
  2. [Theory / SCBA derivation] Theory section deriving Π_rr via SCBA: the analytic formula assumes the SCBA spectral conductivity remains accurate throughout the experimental density and temperature window, yet SCBA is known to overestimate extended-state conductivity near integer fillings where localization dominates; this directly affects the predicted |Π_rr| and its temperature dependence.
  3. [Experimental methods and results] Experimental section: no control data are shown at exact integer filling factors (where Π_rr should vanish) or with zero radial current, nor is a radial temperature profile presented that would localize the cooling to the expected Corbino edge rather than contacts or bulk heating.
minor comments (2)
  1. [Theory] Notation: the definition of the chemical potential ζ and its relation to the Fermi level in the saw-tooth limit should be stated explicitly in the theory section to avoid ambiguity with the Landau-level index N_F.
  2. [Figures] Figure captions: the experimental traces of T_out vs. filling factor should include the corresponding theoretical Π_rr curve on the same plot for direct visual comparison.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the thorough review and constructive suggestions. We address each major comment below and will revise the manuscript to incorporate clarifications and additional data where feasible.

read point-by-point responses

  1. Referee: Experimental results (section describing T_out measurements): the reported cooling T_out < T_bath lacks error bars, quantitative fits to the expected Π_rr I_r magnitude, or any subtraction of possible Joule-heating backgrounds from finite σ_rr or contacts; without these, the central claim that the sign change is produced by the Peltier effect remains only qualitative.

    Authors: We agree that the current experimental presentation is qualitative, consistent with the manuscript's description of this as an 'initial attempt.' In the revised manuscript we will add error bars to the T_out data points, include order-of-magnitude quantitative comparisons between the observed ΔT and the expected Peltier cooling magnitude using the calculated Π_rr and the applied I_r (accounting for the thermal conductance of the device), and explicitly discuss subtraction of Joule-heating contributions arising from finite σ_rr and contact resistances. These additions will make the evidence for the Peltier origin more quantitative. revision: yes

  2. Referee: Theory section deriving Π_rr via SCBA: the analytic formula assumes the SCBA spectral conductivity remains accurate throughout the experimental density and temperature window, yet SCBA is known to overestimate extended-state conductivity near integer fillings where localization dominates; this directly affects the predicted |Π_rr| and its temperature dependence.

    Authors: The referee correctly identifies a known limitation of the SCBA. Our derivation is performed entirely within the SCBA, which yields the closed-form analytic expression for Π_rr. We will revise the theory section to add an explicit discussion of the SCBA's regime of validity, noting that it tends to overestimate the extended-state conductivity near integer fillings where localization effects become important, and that the predicted |Π_rr| should therefore be viewed as an upper bound in those regions. We will also emphasize that the clean-limit sawtooth form −(E_{N_F σ_F}−ζ)/e is recovered independently of the SCBA details. revision: partial

  3. Referee: Experimental section: no control data are shown at exact integer filling factors (where Π_rr should vanish) or with zero radial current, nor is a radial temperature profile presented that would localize the cooling to the expected Corbino edge rather than contacts or bulk heating.

    Authors: We acknowledge that the present manuscript does not include these control measurements or a radial temperature profile. In the revised version we will add data taken at exact integer filling factors and with I_dc = 0 to demonstrate the absence of temperature excursions, and we will include (or describe) a radial temperature profile that localizes the observed cooling to the outer perimeter, consistent with the Corbino geometry and the radial Peltier term. revision: yes

Circularity Check

0 steps flagged

No significant circularity; Π_rr formula derived independently via SCBA and experiment is separate observable

full rationale

The analytic expression for Π_rr is obtained by direct application of the self-consistent Born approximation to the spectral conductivity, yielding the stated sign changes, temperature/disorder dependence, and clean-limit saw-tooth form −(E_{N_F σ_F}−ζ)/e. This is a standard theoretical calculation whose output is not equivalent to its inputs by construction. The Corbino-disk temperature measurements are reported as an independent experimental check whose sign matches the calculated Π_rr; no parameter fitting, background subtraction, or self-citation chain reduces the observed T_out behavior to the theoretical input. No load-bearing self-citations, self-definitional steps, or fitted-input predictions appear in the derivation chain.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the validity of the self-consistent Born approximation for the spectral conductivity and on the assumption that the measured temperature change is produced by the Peltier effect alone.

axioms (1)
  • domain assumption Self-consistent Born approximation accurately describes the spectral conductivity in disordered quantum Hall systems
    Invoked to obtain the conductivity used in the Peltier-coefficient formula

pith-pipeline@v0.9.0 · 5578 in / 1278 out tokens · 51845 ms · 2026-05-15T08:23:46.501018+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

36 extracted references · 36 canonical work pages

  1. [1]

    Jonson, M., Girvin, S.M.: Thermoelectric effect in a weakly disordere d inver- sion layer subject to a quantizing magnetic field. Phys. Rev. B 29, 1939 (1984) https://doi.org/10.1103/PhysRevB.29.1939

    work page doi:10.1103/physrevb.29.1939 1939

  2. [2]

    Ying, X., Bayot, V., Santos, M.B., Shayegan, M.: Observation of co mposite- fermion thermopower at half-filled Landau levels. Phys. Rev. B 50, 4969 (1994) https://doi.org/10.1103/PhysRevB.50.4969

    work page doi:10.1103/physrevb.50.4969 1994

  3. [3]

    Barlas, Y., Yang, K.: Thermopower of quantum Hall states in Corb ino geom- etry as a measure of quasiparticle entropy. Phys. Rev. B 85, 195107 (2012) https://doi.org/10.1103/PhysRevB.85.195107

    work page doi:10.1103/physrevb.85.195107 2012

  4. [4]

    Kobayakawa, S., Endo, A., Iye, Y.: Diffusion thermopower of quan tum Hall states measured in Corbino geometry. J. Phys. Soc. Jpn. 82(5), 053702 (2013) https://doi.org/10.7566/jpsj.82.053702

    work page doi:10.7566/jpsj.82.053702 2013

  5. [5]

    Real, M., Gresta, D., Reichl, C., Weis, J., Tonina, A., Giudici, P., Arrachea, L., Wegscheider, W., Dietsche, W.: Thermoelectricity in qu an- tum Hall Corbino structures. Phys. Rev. Appl. 14, 034019 (2020) https://doi.org/10.1103/PhysRevApplied.14.034019

    work page doi:10.1103/physrevapplied.14.034019 2020

  6. [6]

    Guttman, G.D., Ben-Jacob, E., Bergman, D.J.: Thermopower of me so- scopic and disordered systems. Phys. Rev. B 51, 17758–17766 (1995) https://doi.org/10.1103/PhysRevB.51.17758

    work page doi:10.1103/physrevb.51.17758 1995

  7. [7]

    Yamamoto, K., Aharony, A., Entin-Wohlman, O., Hatano, N.: Therm oelectric- ity near Anderson localization transitions. Phys. Rev. B 96, 155201 (2017) https://doi.org/10.1103/PhysRevB.96.155201

    work page doi:10.1103/physrevb.96.155201 2017

  8. [8]

    Dey, M., Chakraborty, S., Maiti, S.K.: New route to enhanced figur e of merit at nano scale: effect of Aubry-Andre-Harper modulation. J. Phys. D : Appl. Phys. 55(8), 085302 (2021) https://doi.org/10.1088/1361-6463/ac360d

    work page doi:10.1088/1361-6463/ac360d 2021

  9. [9]

    Bauer, G.E.W., Saitoh, E., Wees, B.J.: Spin caloritronics. Nat. Mater . 11, 391 (2012) https://doi.org/10.1038/NMAT3301

    work page doi:10.1038/nmat3301 2012

  10. [10]

    Uchida, K.: Transport phenomena in spin caloritronics. Proc. Jp n. Acad., Ser. B 97, 69 (2021) https://doi.org/10.2183/pjab.97.004 15

    work page doi:10.2183/pjab.97.004 2021

  11. [11]

    Nat Rev Phys 482, 466–482 (2023) https://doi.org/10.1038/s42254-023-00604-0

    Yang, G., Sang, L., Zhang, C., Ye, N., Hamilton, A., Michael, Fuhrer , S., Wang, X.: The role of spin in thermoelectricity. Nat Rev Phys 482, 466–482 (2023) https://doi.org/10.1038/s42254-023-00604-0

    work page doi:10.1038/s42254-023-00604-0 2023

  12. [12]

    Nature 455, 778 (2008) https://doi.org/10.1038/nature07321

    Uchida, K., Takahashi, S., Harii, K., Ieda, J., Koshibae, W., Ando, K ., Maekawa, S., Saitoh, E.: Observation of the spin seebeck effect. Nature 455, 778 (2008) https://doi.org/10.1038/nature07321

    work page doi:10.1038/nature07321 2008

  13. [13]

    Benenti, G., Casati, G., Saito, K., Whitney, R.: Fundamental aspe cts of steady- state conversion of heat to work at the nanoscale. Phys. Rep. 694, 1–124 (2017) https://doi.org/10.1016/j.physrep.2017.05.008

    work page doi:10.1016/j.physrep.2017.05.008 2017

  14. [14]

    Trocha, P., Siuda, E.: Spin-thermoelectric effects in a quantum d ot hybrid system with magnetic insulator. Sci. Rep. 12, 5348 (2022) https://doi.org/10.1038/s41598-022-09105-z

    work page doi:10.1038/s41598-022-09105-z 2022

  15. [15]

    Trocha, P., Siuda, E.: Spin caloritronics of a quantum dot coupled to a magnetic insulator and normal metal. Sci. Rep. 15, 23208 (2025) https://doi.org/10.1038/s41598-025-04413-6

    work page doi:10.1038/s41598-025-04413-6 2025

  16. [16]

    Oxford University Press, N ew York (1960)

    Ziman, J.M.: Electrons and Phonons. Oxford University Press, N ew York (1960)

    work page 1960

  17. [17]

    Ando, T., Uemura, Y.: Theory of quantum transport in a two-dim ensional electron system under magnetic fields. I. Characteristics of level broaden- ing and transport under strong fields. J. Phys. Soc. Jpn. 36, 959 (1974) https://doi.org/10.1143/jpsj.36.959

    work page doi:10.1143/jpsj.36.959 1974

  18. [18]

    Gornik, E., Lassnig, R., Strasser, G., St¨ ormer, H.L., Gossard, A.C., Wiegmann, W.: Specific heat of two-dimensional electrons in GaAs-GaAlAs multilay ers. Phys. Rev. Lett. 54, 1820–1823 (1985) https://doi.org/10.1103/PhysRevLett.54.1820

    work page doi:10.1103/physrevlett.54.1820 1985

  19. [19]

    Solid State Commun

    Berendschot, T.T.J.M., Reinen, H.A.J.M., Bluyssen, H.J.A.: Density of states of a two dimensional electron gas in a high magnetic field stud- ied with photoluminescence. Solid State Commun. 63(10), 873–876 (1987) https://doi.org/10.1016/0038-1098(87)90329-2

    work page doi:10.1016/0038-1098(87)90329-2 1987

  20. [20]

    Solid State Commu n

    Ashoori, R.C., Silsbee, R.H.: The Landau level density of states as a function of fermi energy in the two dimensional electron gas. Solid State Commu n. 81(10), 821–825 (1992) https://doi.org/10.1016/0038-1098(92)90545-K

    work page doi:10.1016/0038-1098(92)90545-k 1992

  21. [21]

    Nature 448, 176 (2007) https://doi.org/10.1038/nature05982

    Dial, O.E., Ashoori, R.C., Pfeiffer, L.N., West, K.W.: High-resolution sp ec- troscopy of two-dimensional electron systems. Nature 448, 176 (2007) https://doi.org/10.1038/nature05982

    work page doi:10.1038/nature05982 2007

  22. [22]

    Eisenstein, J.P., Stormer, H.L., Narayanamurti, V., Cho, A.Y., Gos sard, A.C., Tu, C.W.: Density of states and de Haas-van Alphen effect in two-dimensional electron systems. Phys. Rev. Lett. 55, 875–878 (1985) 16 https://doi.org/10.1103/PhysRevLett.55.875

    work page doi:10.1103/physrevlett.55.875 1985

  23. [23]

    Potts, A., Shepherd, R., Herrenden-Harker, W.G., Elliott, M., Jo nes, C.L., Usher, A., Jones, G.A.C., Ritchie, D.A., Linfield, E.H., Grimshaw, M.: Magnetization studies of Landau level broadening in two-dimensio nal electron systems. J. Phys. Condens. Matter 8(28), 5189 (1996) https://doi.org/10.1088/0953-8984/8/28/004

    work page doi:10.1088/0953-8984/8/28/004 1996

  24. [24]

    Zhu, M., Usher, A., Matthews, A.J., Potts, A., Elliott, M., Herrend en-Harker, W.G., Ritchie, D.A., Simmons, M.Y.: Magnetization measurements of high- mobility two-dimensional electron gases. Phys. Rev. B 67, 155329 (2003) https://doi.org/10.1103/PhysRevB.67.155329

    work page doi:10.1103/physrevb.67.155329 2003

  25. [25]

    Endo, A., Iye, Y.: The effect of oscillating Fermi energy on the line shape of the Shubnikov-de Haas oscillation in a two-dimensional electron gas. J. P hys. Soc. Jpn. 77, 064713 (2008) https://doi.org/10.1143/JPSJ.77.064713

    work page doi:10.1143/jpsj.77.064713 2008

  26. [26]

    Coleridge, P.T.: Small-angle scattering in two-dimensional electro n gases. Phys. Rev. B 44, 3793–3801 (1991) https://doi.org/10.1103/physrevb.44.3793

    work page doi:10.1103/physrevb.44.3793 1991

  27. [27]

    Ando, T., Uemura, Y.: Theory of oscillatory g factor in an MOS inve r- sion layer under strong magnetic fields. J. Phys. Soc. Jpn. 37, 1044 (1974) https://doi.org/10.1143/JPSJ.37.1044

    work page doi:10.1143/jpsj.37.1044 1974

  28. [28]

    Semicond

    Fletcher, R.: Magnetothermoelectric effects in semiconductor systems. Semicond. Sci. Technol. 14, 1 (1999) https://doi.org/10.1088/0268-1242/14/4/002

    work page doi:10.1088/0268-1242/14/4/002 1999

  29. [29]

    Endo, A., Katsumoto, S., Iye, Y.: Anisotropic behavior of the th ermoelectric power and the thermal conductivity in a unidirectional lateral supe rlattice: A typical anisotropic system exhibiting two distinct Nernst coefficien ts. J. Phys. Soc. Jpn. 92(4), 044705 (2023) https://doi.org/10.7566/JPSJ.92.044705 https://doi.org/10.7566/JPSJ.92.044705

    work page doi:10.7566/jpsj.92.044705 2023

  30. [30]

    Nizhankovskii, V.I., Mokerov, V.G., Medvedev, B.K., Shaldin, Y.V.: An inves- tigation of the effect of a magnetic field on the chemical potential of electrons in bismuth and in a GaAs-Al xGa1− xAs heterojunction. Sov. Phys. JETP 63(4), 776–781 (1986)

    work page 1986

  31. [31]

    Dabiran, A.M., Zeller, R.T., Fang, F.F., Wright, S.L., Stiles, P.J.: Electr ochem- ical potential oscillations of the two-dimensional electron gas in GaA s/AlGaAs heterostructures in high magnetic fields. Surf. Sci. 196(1), 712–718 (1988) https://doi.org/10.1016/0039-6028(88)90767-4

    work page doi:10.1016/0039-6028(88)90767-4 1988

  32. [32]

    Goodall, R.K., Higgins, R.J., Harrang, J.P.: Capacitance measureme nts of a quan- tized two-dimensional electron gas in the regime of the quantum Hall effect. Phys. Rev. B 31, 6597–6608 (1985) https://doi.org/10.1103/PhysRevB.31.6597 17

    work page doi:10.1103/physrevb.31.6597 1985

  33. [33]

    Oto, K., Takaoka, S., Murase, K.: Evaluation of edge channel wid th by frequency dependence of capacitance minima in quantum Hall regime. Jpn. J. Ap pl. Phys. 34(8S), 4332 (1995) https://doi.org/10.1143/JJAP.34.4332

    work page doi:10.1143/jjap.34.4332 1995

  34. [34]

    Physica B 227(1), 189–191 (1996) https://doi.org/10.1016/0921-4526(96)00396-1

    Oto, K., Takaoka, S., Murase, K.: Bulk conductivity at quantum H all plateaux by magnetocapacitance measurement. Physica B 227(1), 189–191 (1996) https://doi.org/10.1016/0921-4526(96)00396-1

    work page doi:10.1016/0921-4526(96)00396-1 1996

  35. [35]

    Endo, A., Kajioka, T., Iye, Y.: Commensurability oscillations in the r adio- frequency conductivity of unidirectional lateral superlattices: M easurement of anisotropic conductivity by coplanar waveguide. J. Phys. Soc. Jpn . 82(5), 054710 (2013) https://doi.org/10.7566/JPSJ.82.054710

    work page doi:10.7566/jpsj.82.054710 2013

  36. [36]

    Endo, A., Katsumoto, S., Iye, Y.: Joule heating and the thermal conduc- tivity of a two-dimensional electron gas at cryogenic temperature s stud- ied by modified 3 ω method. J. Appl. Phys. 132(10), 104302 (2022) https://doi.org/10.1063/5.0104518 18

    work page doi:10.1063/5.0104518 2022
