Dynamic Constrained Stabilization on the n-sphere

Mayur Sawant , Abdelhamid Tayebi

Authors on Pith no claims yet

Pith reviewed 2026-05-14 21:41 UTC · model grok-4.3

classification 🧮 math.OC cs.SYeess.SY

keywords constrained stabilizationn-spheredynamic dampingstar-shaped constraintsalmost global stabilitysecond-order systemsrigid-body attitude control

0 comments

The pith

A constraint proximity-based dynamic damping term achieves safe almost-global asymptotic stabilization for second-order systems on the n-sphere under star-shaped constraints.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper addresses the problem of stabilizing second-order dynamics on the n-sphere while respecting star-shaped forbidden regions. It introduces a control law that augments a nominal stabilizer with a dynamic damping term whose strength increases with proximity to the constraint boundary. This combination is shown to keep trajectories inside the safe region and drive them to the target from almost every initial condition. The same construction is applied to rigid-body attitude stabilization on the sphere. Numerical examples on the 2-sphere illustrate avoidance of various star-shaped obstacles during convergence.

Core claim

A control strategy that uses a constraint-proximity-based dynamic damping mechanism guarantees that second-order systems on the n-sphere converge asymptotically to a prescribed target point while remaining inside the complement of any given star-shaped constraint set, except for a set of measure zero in the state space; the same law also solves the corresponding constrained attitude stabilization problem for rigid bodies.

What carries the argument

The constraint proximity-based dynamic damping mechanism, which continuously modulates damping gain according to a measure of distance to the boundary of star-shaped constraint sets to enforce forward invariance of the safe domain.

If this is right

The same damping construction directly yields a safe controller for rigid-body attitude stabilization with star-shaped attitude constraints.
Almost-global convergence holds on any n-sphere, not only the familiar 2-sphere case.
Safety is obtained without switching or projection, preserving smoothness of the closed-loop vector field.
The approach applies to any second-order mechanical system whose configuration space is an n-sphere.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The damping term could be combined with other nominal controllers on the sphere, such as those derived from potential functions with different equilibria.
If a real-time distance-to-boundary oracle is available, the method could be implemented on spherical robots or spacecraft with attitude obstacles.
The star-shaped restriction might be relaxed to other classes of sets if a suitable proximity function can be constructed.

Load-bearing premise

The forbidden regions must be star-shaped so that a continuous proximity function can be defined and the dynamic damping can repel trajectories before they cross the boundary.

What would settle it

A numerical trajectory starting arbitrarily close to a star-shaped constraint boundary that enters the forbidden region despite the damping term, or an initial condition set of positive measure from which the closed-loop system fails to converge to the target.

Figures

Figures reproduced from arXiv: 2603.27382 by Abdelhamid Tayebi, Mayur Sawant.

**Figure 1.** Figure 1: Star-shaped sets on S n. where θ = arccos(a ⊤b) ∈ [0, π]. Since P(g(λ; a, b)) d 2 g(λ;a,b) dλ2 = 0n+1 for all λ ∈ [0, 1], using [13, Chap. 3, Def. 2.1], one can confirm that G(a, b) is a geodesic and is the curve on S n with the smallest path length, connecting a and b. If a = b, then the geodesic G(a, b) is trivially the point itself i.e., G(a, a) = {a}. Star-shaped sets on S n: A set A ⊂ S n is a star-sh… view at source ↗

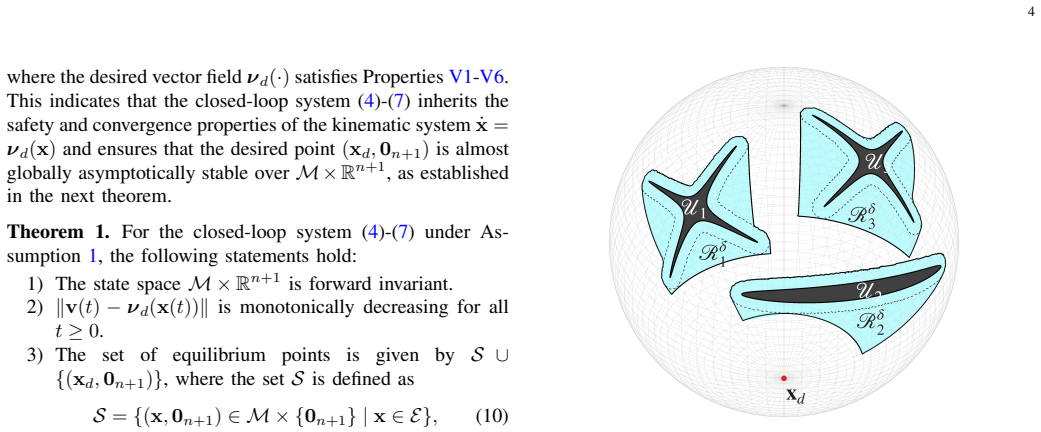

**Figure 2.** Figure 2: Example of three constraint sets satisfying Assumption [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗

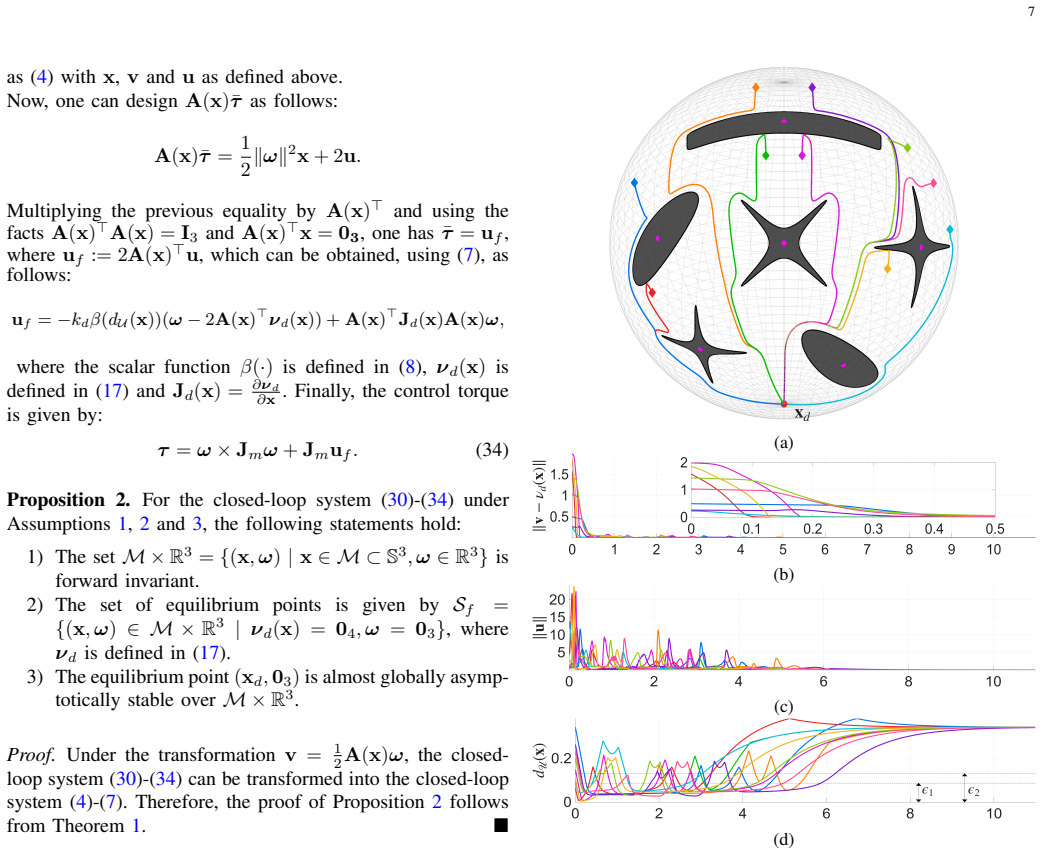

**Figure 3.** Figure 3: a. Additionally, Fig. 3b shows that the norm ∥v−νd(x)∥ decreases monotonically along system trajectories, as stated in Claim 2 of Theorem 1. Furthermore, Fig. 3c illustrates that the control input remains bounded for all time t ≥ 0, as established in Claim 3 of Lemma 1. (a) (b) (c) (d) [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗

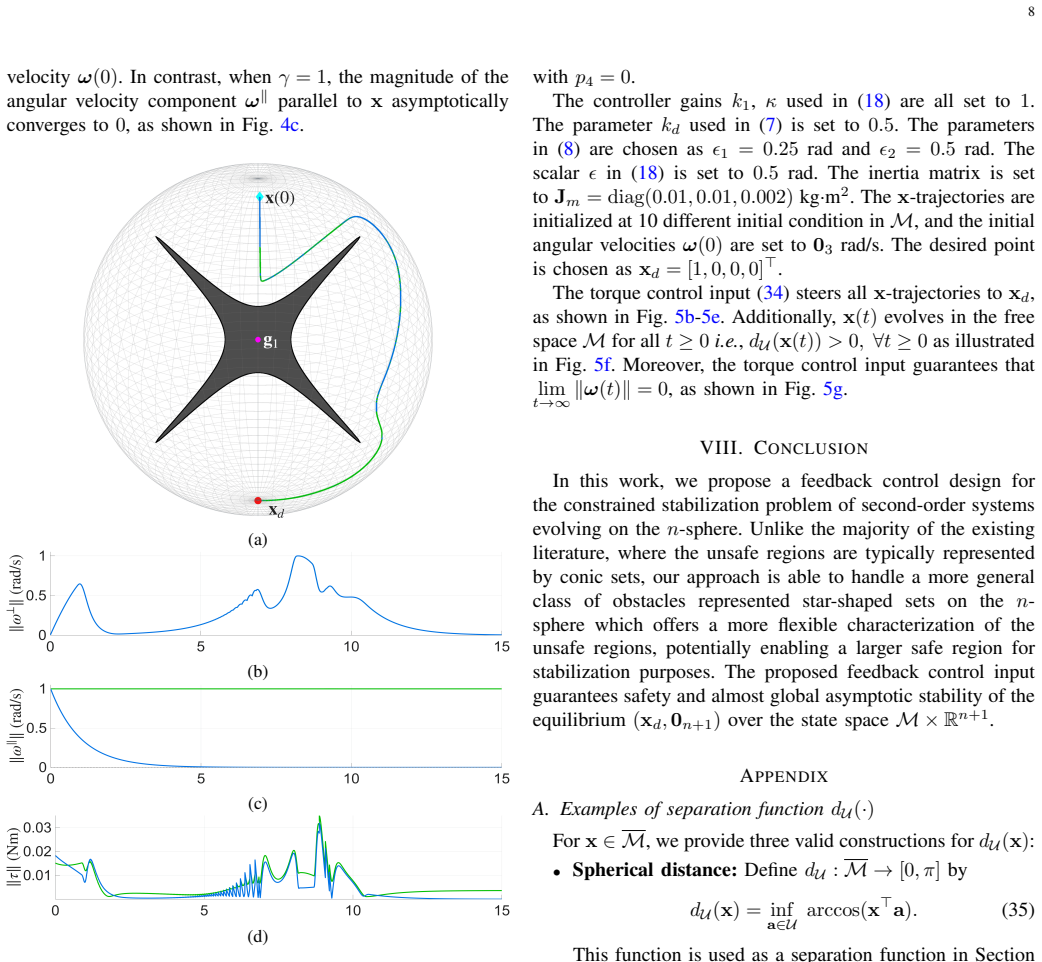

**Figure 4.** Figure 4: Simulation of the closed-loop system (21)-(29) with νd defined in (17) for two different values of γ. Green trajectories are obtained with γ = 0, and the blue trajectories are obtained with γ = 1. (a) x-trajectories safely converging to xd, (b) ω ⊥ versus time, (c) ω ∥ versus time, (d) ∥τ ∥ versus time. C. Full attitude constrained stabilization The closed-loop system (30)-(34) is simulated with the desire… view at source ↗

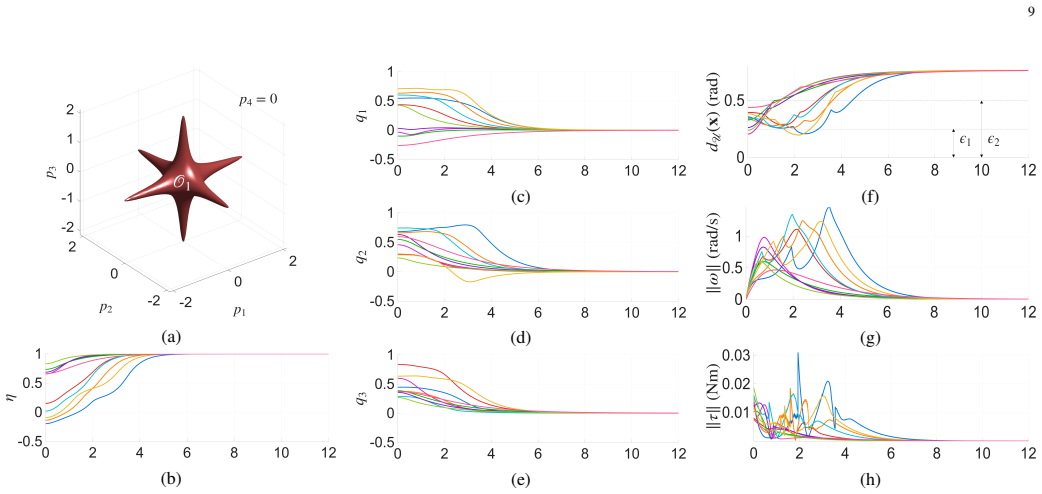

**Figure 5.** Figure 5: Simulation of the closed-loop system (30)-(34) with νd defined in (17). (a) A star-shaped set O1, (b)-(e) x-trajectories converging to xd = [1, 0, 0, 0]⊤, (f) dU (x) versus time, (g) ∥τ ∥ versus time. (h) ∥ω∥ versus time. This separation function satisfies Property D1. Furthermore, using Assumption 1, one can show that this dU (x) satisfies Property D2. • Product of spherical distances: Another example of… view at source ↗

read the original abstract

We consider the constrained stabilization problem of second-order systems evolving on the n-sphere. We propose a control strategy with a constraint proximity-based dynamic damping mechanism that ensures safe and almost global asymptotic stabilization of the target point in the presence of star-shaped constraints on the n-sphere. It is also shown that the proposed approach can be used to deal with the constrained rigid-body attitude stabilization. The effectiveness of the proposed approach is demonstrated through simulation results on the 2-sphere in the presence of star-shaped constraint sets.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper presents a dynamic damping control for constrained stabilization on the n-sphere, but the forward-invariance under velocity needs stronger support.

read the letter

The main takeaway is a new control strategy that uses a proximity-based dynamic damping mechanism to achieve safe, almost-global asymptotic stabilization for second-order systems on the n-sphere under star-shaped constraints. It extends this to rigid-body attitude stabilization and backs it with simulations on the 2-sphere. The novelty lies in tailoring the dynamic damping specifically to the spherical geometry and the star-shaped obstacles, which allows for a navigation-like behavior without explicit potential functions in all cases. This seems to build on existing damping ideas but applies them in a manifold setting with the second-order dynamics in mind. The simulations appear to show the system avoiding the constraints while converging to the target, which is a practical plus. On the downside, the central safety claim rests on the damping term making the unsafe set's complement forward-invariant. As the stress-test points out, with velocity states in the second-order model, it's possible for high speeds toward the boundary to outpace the damping response, especially if the gain doesn't increase rapidly enough. The paper would need a solid argument, perhaps using a barrier certificate or direct analysis of the radial component on the boundary, to close this. Without that detail visible in the abstract, it's the part that needs the most checking in the full proofs. The star-shaped assumption is reasonable as it permits simple radial projections, but it limits the class of constraints compared to more general obstacles. This work is for researchers in nonlinear control on manifolds, particularly those dealing with attitude control or spherical robotics. Someone looking for methods to handle constraints in such systems could find the construction useful. Overall, the idea has enough substance and the simulations add some evidence, so it should go to peer review rather than a desk reject. The referees can probe the invariance step and see if the almost-global property holds as claimed.

Referee Report

2 major / 2 minor

Summary. The manuscript proposes a control strategy for second-order systems evolving on the n-sphere that incorporates a constraint proximity-based dynamic damping mechanism. This is claimed to ensure both safety (forward invariance of the complement of star-shaped constraint sets) and almost global asymptotic stabilization to a target point. The approach is extended to rigid-body attitude stabilization, with supporting simulation results presented for the 2-sphere.

Significance. If the safety invariance and stability claims are rigorously established, the work would offer a useful dynamic-damping technique for constrained navigation on spheres, extending navigation-function ideas to second-order dynamics. The rigid-body application and 2-sphere simulations add practical value, though the absence of explicit Lyapunov constructions or invariance lemmas in the abstract limits immediate assessment of novelty relative to existing manifold control literature.

major comments (2)

[Safety analysis section (likely §3 or §4)] Safety invariance (central claim): the proximity-based dynamic damping must be shown to render the safe set forward-invariant under second-order closed-loop dynamics. For systems whose state includes velocity, a damping gain that activates only with proximity can be overcome by sufficiently large inward velocity before the damping ODE has time to act; the manuscript must prove that the vector field on the boundary has non-positive radial component (or that the damping forces this in finite time) for almost all initial conditions.
[Stability analysis section (likely §4)] Almost-global asymptotic stability: the proof must confirm that the only invariant sets of the augmented closed-loop system (including the dynamic damping state) are the desired equilibrium, with the star-shaped geometry and navigation-function properties excluding other equilibria. The interaction between the damping dynamics and the sphere geometry needs explicit treatment to rule out limit cycles or escape trajectories.

minor comments (2)

[Simulation results] The simulation section would benefit from quantitative metrics (e.g., minimum distance to constraint boundary, convergence time statistics over multiple initial conditions) rather than qualitative trajectory plots alone.
[Preliminaries] Notation for the n-sphere, tangent spaces, and the dynamic damping variable should be introduced once and used consistently; avoid redefining symbols across sections.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback on our manuscript. We have revised the safety and stability sections to provide more explicit arguments and additional lemmas addressing the concerns raised.

read point-by-point responses

Referee: [Safety analysis section (likely §3 or §4)] Safety invariance (central claim): the proximity-based dynamic damping must be shown to render the safe set forward-invariant under second-order closed-loop dynamics. For systems whose state includes velocity, a damping gain that activates only with proximity can be overcome by sufficiently large inward velocity before the damping ODE has time to act; the manuscript must prove that the vector field on the boundary has non-positive radial component (or that the damping forces this in finite time) for almost all initial conditions.

Authors: We appreciate the referee pointing out the need for greater clarity on this central claim. The original manuscript establishes forward invariance of the safe set in Theorem 3.1 by showing that the Lie derivative of the proximity function along the closed-loop vector field is non-positive on the boundary. The dynamic damping ODE is constructed to respond instantaneously in the limit, ensuring the radial component remains non-positive for almost all initial conditions via a comparison lemma that bounds the velocity growth. We have added an explicit computation of the radial component in the revised Section 3 and a supporting Lemma 3.2 that rules out finite-time escape, leveraging the star-shaped geometry to control the inward velocity term. revision: yes
Referee: [Stability analysis section (likely §4)] Almost-global asymptotic stability: the proof must confirm that the only invariant sets of the augmented closed-loop system (including the dynamic damping state) are the desired equilibrium, with the star-shaped geometry and navigation-function properties excluding other equilibria. The interaction between the damping dynamics and the sphere geometry needs explicit treatment to rule out limit cycles or escape trajectories.

Authors: We agree that the interaction between the damping dynamics and the manifold geometry requires explicit treatment. In the revised Section 4, we employ a composite Lyapunov function incorporating the navigation function, kinetic energy, and damping state. Using an invariance principle adapted to the sphere, we prove that the only invariant sets are the target equilibrium by showing that the navigation function's critical points are excluded in the safe set due to its star-shaped property. A new Proposition 4.3 explicitly analyzes the damping-sphere coupling, demonstrating that the damping state converges to a strictly positive value and that any potential limit cycle would violate the strict decrease of the Lyapunov function outside the equilibrium. Escape trajectories are precluded by the safety result from Section 3. revision: yes

Circularity Check

0 steps flagged

No circularity: derivation from control-Lyapunov principles remains independent of target claims

full rationale

The paper derives a proximity-based dynamic damping control law for second-order dynamics on the n-sphere, claiming almost-global asymptotic stability and forward invariance of the safe set for star-shaped constraints. No equations reduce the safety or stability claims to fitted parameters, self-definitions, or prior self-citations that themselves assume the result. The dynamic damping term is introduced as a new mechanism whose invariance properties are asserted via the closed-loop vector field analysis rather than by construction or renaming. The extension to rigid-body attitude is presented as a direct application without circular load-bearing. This is the standard case of an independent derivation in nonlinear control; the skeptic concern about velocity overshoot is a potential proof gap, not a circularity.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claim rests on standard assumptions about manifold dynamics and constraint geometry; no free parameters or invented entities are mentioned in the abstract.

axioms (2)

domain assumption The system evolves according to second-order dynamics on the n-sphere
Explicitly stated as the problem setup in the abstract.
domain assumption Constraints are star-shaped
Required for the safety and stabilization guarantees claimed.
