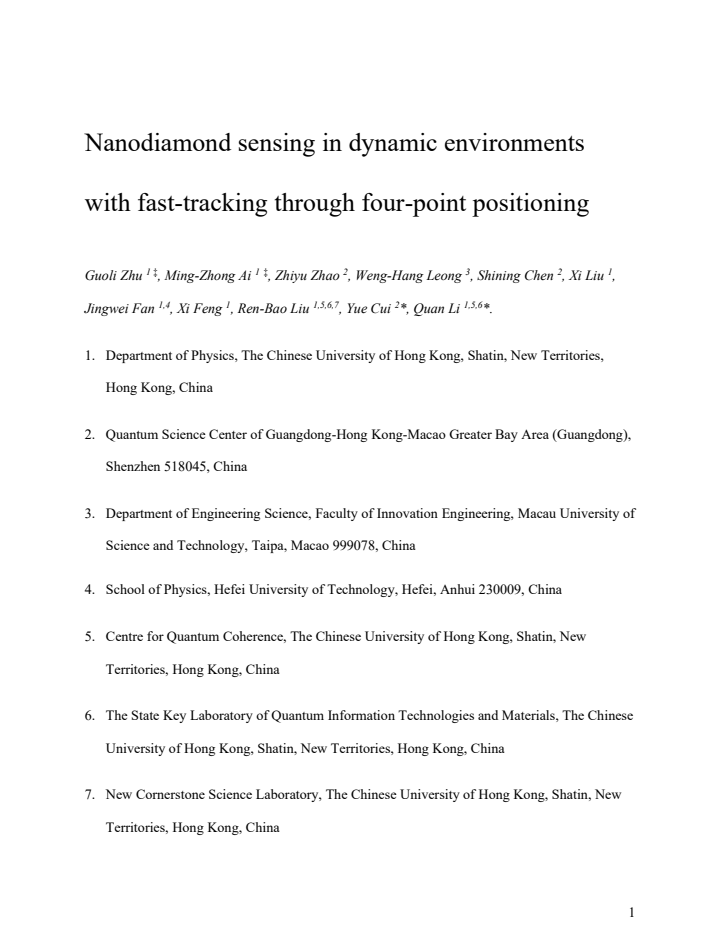

Nanodiamond sensing in dynamic environments with fast-tracking through four-point positioning

Guoli Zhu , Ming-Zhong Ai , Zhiyu Zhao , Weng-Hang Leong , Shining Chen , Xi Liu , Jingwei Fan , Xi Feng
show 3 more authors
Ren-Bao Liu Yue Cui Quan Li
Authors on Pith no claims yet

Pith reviewed 2026-05-13 19:00 UTC · model grok-4.3

classification ⚛️ physics.app-ph physics.bio-ph
keywords nanodiamondNV centersingle-particle trackingoptically detected magnetic resonancediffusion coefficientthermorheologylive-cell sensingrotation tracking
0
0 comments X

The pith

Four simultaneous detectors let nanodiamonds be tracked in three dimensions at roughly ten times the speed of prior single-detector methods.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a single-particle tracking technique that places four avalanche photodiodes at the corners of a tetrahedron to collect fluorescence light in parallel. This geometry converts measured intensity ratios directly into the nanodiamond's instantaneous three-dimensional position without scanning, removing the time lag of sequential detection. The same light stream feeds optically detected magnetic resonance on the embedded nitrogen-vacancy centers, so temperature and three-axis rotation can be read out while the particle diffuses. Experiments in glycerol-water mixtures and inside live cells confirm that sensing precision remains stable across the newly accessible range of diffusion coefficients.

Core claim

Replacing sequential single-detector scanning with simultaneous four-point collection yields an order-of-magnitude gain in temporal resolution and extends the upper limit of measurable diffusion coefficients by about the same factor. The tetrahedral intensity ratios supply continuous 3D position estimates that are integrated with optically detected magnetic resonance to deliver simultaneous temperature and rotation sensing; the quantum readout shows no measurable loss of sensitivity within the demonstrated diffusion range.

What carries the argument

Tetrahedral four-point intensity ratios that convert parallel fluorescence signals from four fixed avalanche photodiodes into real-time three-dimensional position.

If this is right

  • Continuous thermorheology measurements become feasible in fluids whose viscosity changes with temperature.
  • Simultaneous translation and rotation tracking can be performed inside living cells without sacrificing quantum-sensing fidelity.
  • Multi-parameter nanoscale sensing extends to any environment whose particles diffuse up to an order of magnitude faster than previous single-APD limits.
  • The same optical layout supports real-time correlation of mechanical and magnetic or thermal properties during rapid motion.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The four-detector geometry could be retrofitted to other fluorescent or quantum probes that currently rely on single-detector scanning.
  • Feedback loops that steer the excitation beam or stage position could be added to keep the particle centered and further increase tracking duration.
  • Background subtraction or adaptive calibration per particle may be required when the method is applied in highly scattering or crowded cellular environments.
  • The absence of sensitivity loss with increasing diffusion suggests the optically detected resonance signal remains robust against motion blur within the tested window.

Load-bearing premise

The four-detector intensity ratios continue to map accurately to the nanodiamond's true three-dimensional location even when the particle moves rapidly through heterogeneous backgrounds.

What would settle it

Position errors measured against a calibrated high-speed piezo stage trajectory that exceed the reported localization precision once diffusion coefficients enter the newly claimed range.

Figures

Figures reproduced from arXiv: 2604.02658 by Guoli Zhu, Jingwei Fan, Ming-Zhong Ai, Quan Li, Ren-Bao Liu, Shining Chen, Weng-Hang Leong, Xi Feng, Xi Liu, Yue Cui, Zhiyu Zhao.

Figure 1
Figure 1. Figure 1: Single particle tracking for quantum sensing based on nanodiamond. (a) Schematic of the confocal microscope optics for 3D single particle tracking (SPT). The optical detection paths are configured to form a 3D tetrahedron-like detection volume in sample space. (b) Schematic of the ODMR-based sensing performed simultaneously with SPT. The emitted fluorescence from NV centers is collected at the four locatio… view at source ↗
Figure 2
Figure 2. Figure 2: Evaluation of the translational tracking performance. (a) The comparison between the tracking trajectory (orange lines) and the reference particle trajectory (blue lines) measured by the 4PPT system with a diffusion coefficient of 𝐷 = 0.5 μm2 /s . The corresponding difference between the two trajectories is shown in the lower panel (green lines). (b) The same comparison performed on the 1-APD based trackin… view at source ↗
Figure 3
Figure 3. Figure 3: Evaluation of the temperature and rotation sensing performance of ND during real￾time tracking based on the 4PPT system. (a) The trajectory and (b) the zero-field ODMR spectrum (blue dots) with fitting (orange line) of an ND undergoing a generated Brownian motion with 𝐷 = 0.8 μm2 /s, tracked by the 4PPT based system. (c) The measured 𝐷ZFS -shift sensitivity as a function of the diffusion coefficient of Bro… view at source ↗
Figure 4
Figure 4. Figure 4: Simultaneous nanothermometry and nanorheometry in glycerol/water solution. (a) The temperature measured by RTD (grey dashed curve) and the 𝐷ZFS-shift extracted from ODMR (orange dots) of an ND under a continuous heating process. (b) The instant velocity obtained from the tracking trajectory of the ND during heating. (c) Box plots comparing the diffusion coefficients of multiple NDs measured at three differ… view at source ↗
Figure 5
Figure 5. Figure 5: Translation and rotation tracking of a nanodiamond on the membrane of a live MCF￾7 cell. (a) xy-cross of the confocal fluorescence image of the MCF-7 cell (enclosed by the white dashed lines). An ND attached on the plasma membrane is indicated by the intersection of two blue dashed lines. (b) Translational trajectory of the ND on the membrane (time shown in color scale), together with 2D projections to the… view at source ↗
read the original abstract

Nitrogen-vacancy (NV) centers in nanodiamonds are excellent nanoscale sensors for measuring parameters such as temperature, magnetic field, and viscosity in complex fluidic environments, including living cells. However, the rapid motion of nanodiamonds in such dynamic systems imposes a significant challenge for continuous, real-time tracking and sensing measurements. Here, we present a fast single particle tracking (SPT) method featuring a tetrahedral detection geometry for time-efficient parallel fluorescence collection using four avalanche photodiodes (4-APDs), which eliminates the temporal latency of traditional sequential scanning. We demonstrate an improvement of about an order of magnitude in the temporal resolution and the upper limit of measurable diffusion coefficient compared to previously reported nanodiamond tracking methods based on single APD. The SPT is integrated with multi-parameter quantum sensing based on optically detected magnetic resonance (ODMR) of NV centers. The sensitivities of ODMR-based temperature and 3D rotation sensing are evaluated at different diffusion coefficients, which shows no significant degradation within our measurement range. We apply the system for thermorheology measurements in glycerol/water mixtures under thermal ramps. Additionally, we perform simultaneous translation and rotation tracking in live cells, revealing correlated translational and rotational dynamics. This approach advances multi-parameter nanoscale sensing for soft matter and biological applications, paving the way for real-time nanoscale sensing in highly dynamic fluidic environments.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript presents a fast single-particle tracking (SPT) method for nanodiamonds containing NV centers that uses a tetrahedral four-APD detection geometry for parallel fluorescence collection, removing the latency of sequential scanning. This tracking is integrated with ODMR-based quantum sensing of temperature and 3D rotation. The central claim is an approximately order-of-magnitude improvement in temporal resolution and upper measurable diffusion coefficient relative to prior single-APD nanodiamond tracking, with demonstrations in thermorheology of glycerol/water mixtures under thermal ramps and simultaneous translation-rotation tracking in live cells showing correlated dynamics and no significant ODMR sensitivity degradation within the tested range.

Significance. If the position-reconstruction accuracy under rapid motion is validated, the work would advance real-time multi-parameter nanoscale sensing in dynamic fluidic and biological environments by enabling higher-speed tracking while preserving quantum sensing performance. The live-cell application demonstrating correlated translational and rotational dynamics would be a notable experimental contribution.

major comments (2)
  1. [Abstract] Abstract: The order-of-magnitude improvement in temporal resolution and measurable diffusion coefficient is predicated on the tetrahedral four-point intensity ratios mapping to accurate 3D positions. No quantitative error bounds, validation against known trajectories, or analysis of crosstalk/background effects at the highest claimed diffusion coefficients are supplied, leaving the support for the performance gain incomplete.
  2. [Results (tracking and sensing integration)] Results on tracking performance: The statement of 'no significant degradation' in ODMR sensitivity must be accompanied by explicit position-uncertainty measurements at the upper diffusion-coefficient limit; without these, it is not possible to confirm that localization errors do not degrade the sensing at the speeds where the new temporal-resolution advantage is claimed.
minor comments (2)
  1. [Abstract] Abstract and main text: Provide specific numerical values (with uncertainties) for the achieved temporal resolution, diffusion-coefficient range, and ODMR sensitivities rather than qualitative statements such as 'about an order of magnitude' and 'no significant degradation'.
  2. [Figures and Methods] Figure captions and methods: Include raw data traces or representative position-reconstruction residuals for the highest-speed trajectories to allow readers to assess the mapping fidelity.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive comments and positive assessment of the significance of our work. We address the two major comments point by point below, agreeing that additional quantitative validation will strengthen the manuscript.

read point-by-point responses

  1. Referee: [Abstract] Abstract: The order-of-magnitude improvement in temporal resolution and measurable diffusion coefficient is predicated on the tetrahedral four-point intensity ratios mapping to accurate 3D positions. No quantitative error bounds, validation against known trajectories, or analysis of crosstalk/background effects at the highest claimed diffusion coefficients are supplied, leaving the support for the performance gain incomplete.

    Authors: We agree that the abstract's performance claims would be better supported by explicit quantification of position-reconstruction accuracy. In the revised manuscript we will add quantitative error bounds on the 3D localization (derived from the four-APD intensity ratios), validation against simulated trajectories with known diffusion coefficients, and an analysis of crosstalk and background contributions at the upper end of the claimed diffusion range. These additions will be placed in the Results section on tracking performance and briefly referenced in the abstract. revision: yes

  2. Referee: [Results (tracking and sensing integration)] Results on tracking performance: The statement of 'no significant degradation' in ODMR sensitivity must be accompanied by explicit position-uncertainty measurements at the upper diffusion-coefficient limit; without these, it is not possible to confirm that localization errors do not degrade the sensing at the speeds where the new temporal-resolution advantage is claimed.

    Authors: We concur that the claim of preserved ODMR sensitivity requires explicit position-uncertainty data at the highest diffusion coefficients. The revised manuscript will include direct measurements of localization error versus diffusion coefficient up to the reported upper limit, together with propagated uncertainty estimates for the extracted temperature and 3D rotation parameters. This will be presented in the section discussing integration of tracking with ODMR sensing. revision: yes

Circularity Check

0 steps flagged

No circularity: experimental claims rest on measured performance, not self-referential fits or derivations

full rationale

The manuscript reports an experimental SPT system using tetrahedral 4-APD geometry for nanodiamond tracking, with performance gains (temporal resolution, diffusion coefficient range) presented as measured outcomes rather than predictions derived from fitted parameters. No equations, ansatzes, or uniqueness theorems are invoked that reduce the central result to its own inputs by construction. The ODMR sensitivity evaluation at varying diffusion coefficients is likewise an empirical check, not a self-definition. Self-citations, if present, are not load-bearing for the reported improvements. The derivation chain is therefore self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claims rest on standard NV-center photophysics and optical detection principles established in prior literature; no new free parameters, ad-hoc axioms, or invented entities are introduced in the abstract.

axioms (1)
  • domain assumption NV centers in nanodiamonds exhibit stable ODMR spectra under optical excitation in fluidic environments
    Invoked implicitly when claiming temperature and rotation sensing remain accurate during motion.
