arxiv: 2604.03451 · v1 · submitted 2026-04-03 · 💻 cs.RO · cs.CY· cs.HC

Do Robots Need Body Language? Comparing Communication Modalities for Legible Motion Intent in Human-Shared Spaces

Jonathan Albert Cohen , Kye Shimizu , Allen Song , Vishnu Bharath , Kent Larson , Pattie Maes This is my paper

Pith reviewed 2026-05-13 18:20 UTC · model grok-4.3

classification 💻 cs.RO cs.CYcs.HC
keywords human-robot interactionlegible motionsignaling modalitiesquadruped robotnavigation intentimplicit vs explicit cuesmultimodal communication
0
0 comments X

The pith

Expressive robot motion predicts navigation intent as well as lights, text, or audio.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper tests whether a quadruped robot can communicate upcoming navigation actions through its natural movements or needs added explicit signals. Researchers ran an online video study with a Boston Dynamics Spot robot across four common scenarios. They presented expressive motion alone or paired with lights, text, and audio, then measured prediction accuracy, confidence, and trust in safe behavior. Results indicate that implicit motion cues perform comparably to explicit ones, with aligned multimodal signals improving outcomes and conflicts reducing them. A sympathetic reader would care because better intent communication could make robots safer and less disruptive in shared human spaces.

Core claim

Expressive motions enable humans to predict a quadruped robot's upcoming navigation actions with accuracy comparable to lights, text, or audio. Aligned combinations of modalities raise prediction confidence and trust in safe behavior, while conflicting cues lower both. The study supplies initial evidence that implicit signaling strategies can match explicit channels for conveying motion intent in shared environments.

What carries the argument

Video comparison of four signaling modalities (expressive motion, lights, text, audio) on a quadruped robot's navigation behaviors, evaluated by prediction accuracy, confidence, and trust.

Load-bearing premise

Participants' responses to video clips of robot behavior accurately reflect how they would perceive and react during actual physical interactions in shared spaces.

What would settle it

A live physical interaction study using the same scenarios and measures that shows substantially lower prediction accuracy or trust for expressive motion than the video results.

Figures

Figures reproduced from arXiv: 2604.03451 by Allen Song, Jonathan Albert Cohen, Kent Larson, Kye Shimizu, Pattie Maes, Vishnu Bharath.

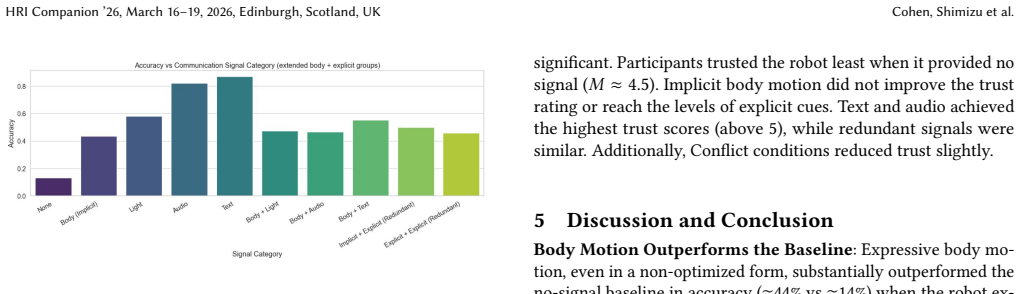

Figure 2
Figure 2. Figure 2: Accuracy vs. Communication Signal Category produced moderate accuracy (≈58%). Redundancy did not increase accuracy for any explicit channels [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗

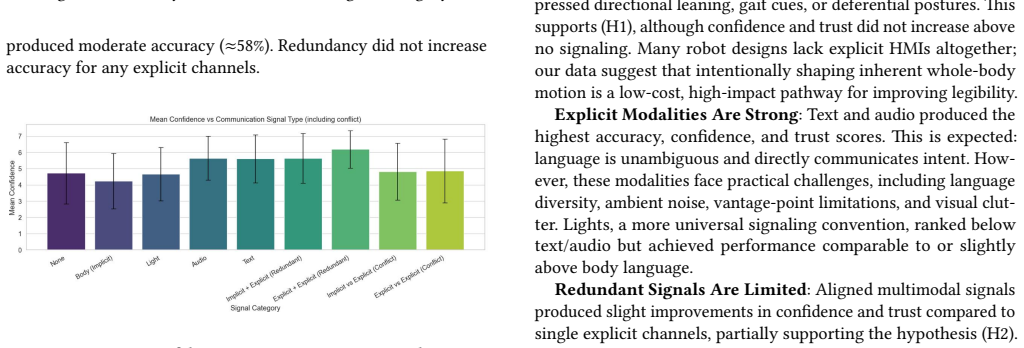

Figure 3
Figure 3. Figure 3: Mean Confidence vs. Communication Signal Type Confidence Ratings: Mean confidence ratings ( [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗

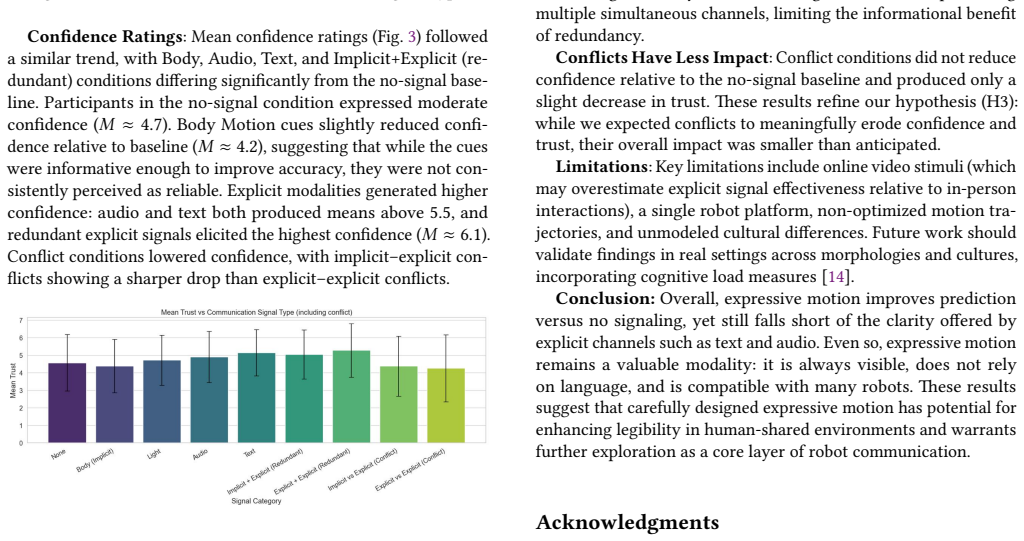

Figure 4
Figure 4. Figure 4: Mean Trust vs. Communication Signal Type Trust Ratings: Trust ratings ( [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
read the original abstract

Robots in shared spaces often move in ways that are difficult for people to interpret, placing the burden on humans to adapt. High-DoF robots exhibit motion that people read as expressive, intentionally or not, making it important to understand how such cues are perceived. We present an online video study evaluating how different signaling modalities, expressive motion, lights, text, and audio, shape people's ability to understand a quadruped robot's upcoming navigation actions (Boston Dynamics Spot). Across four common scenarios, we measure how each modality influences humans' (1) accuracy in predicting the robot's next navigation action, (2) confidence in that prediction, and (3) trust in the robot to act safely. The study tests how expressive motions compare to explicit channels, whether aligned multimodal cues enhance interpretability, and how conflicting cues affect user confidence and trust. We contribute initial evidence on the relative effectiveness of implicit versus explicit signaling strategies.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript reports an online video study with a Boston Dynamics Spot quadruped that compares four signaling modalities—expressive motion, lights, text, and audio—across four navigation scenarios. It measures participants' accuracy in predicting the robot's next action, their confidence in those predictions, and their trust in the robot's safe behavior, while also testing effects of aligned versus conflicting multimodal cues.

Significance. If the relative-effectiveness findings hold under more realistic conditions, the work supplies initial empirical data on implicit versus explicit channels that could inform legible-motion design guidelines for robots operating in human-shared spaces.

major comments (2)
  1. [Methods / Discussion] The central claim that the video results inform real shared-space behavior rests on the untested assumption that offline ratings of pre-recorded clips generalize to live physical interactions; the manuscript does not report any validation against embodied or risk-bearing conditions (e.g., §4 or §5).
  2. [Results] Participant counts, exact statistical tests, effect sizes, and raw data or preregistration details are not provided in the abstract or visible sections, leaving the degree of support for modality comparisons unverifiable.
minor comments (2)
  1. [Methods] Clarify the exact wording of the prediction questions and the timing of modality presentation in each video clip.
  2. [Discussion] Add a limitations paragraph explicitly addressing the absence of real-time timing, embodiment, and collision risk.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive comments on our manuscript. Below we provide point-by-point responses to the major comments and describe the revisions made.

read point-by-point responses

  1. Referee: The central claim that the video results inform real shared-space behavior rests on the untested assumption that offline ratings of pre-recorded clips generalize to live physical interactions; the manuscript does not report any validation against embodied or risk-bearing conditions (e.g., §4 or §5).

    Authors: We agree that the study is limited to video-based evaluations and does not provide direct evidence from live physical interactions. The original manuscript already frames the results as initial evidence from an online video study rather than claiming direct generalization. To address this, we have revised the Discussion section (§5) to more explicitly discuss the limitations of video studies and the need for future embodied validation in risk-bearing conditions. revision: yes

  2. Referee: Participant counts, exact statistical tests, effect sizes, and raw data or preregistration details are not provided in the abstract or visible sections, leaving the degree of support for modality comparisons unverifiable.

    Authors: The full manuscript reports participant counts, statistical tests, and effect sizes in the Results section. However, to improve visibility, we have revised the abstract to include these key details. Additionally, we have added explicit references to the preregistration and data availability in the abstract and methods section. We believe this makes the support for the comparisons verifiable. revision: yes

Circularity Check

0 steps flagged

No circularity: purely empirical video study with direct participant data

full rationale

The paper reports an online video-based user study measuring prediction accuracy, confidence, and trust from participant responses to pre-recorded robot navigation clips across modalities. No equations, derivations, fitted parameters, or self-citation chains appear in the provided text or abstract. All claims reduce directly to collected empirical responses rather than any constructed or self-referential quantities, satisfying the criteria for a self-contained non-circular empirical result.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

Empirical human-subjects study with no mathematical models, free parameters, or invented entities. Relies only on standard domain assumptions from experimental HRI and psychology.

axioms (1)
  • domain assumption Video stimuli sufficiently represent real robot behavior for intent perception
    Common assumption in HRI video studies but may not capture all physical cues or dynamic context.
