Recurrent Quantum Feature Maps for Reservoir Computing

Pith reviewed 2026-05-13 18:27 UTC · model grok-4.3

classification 🪐 quant-ph cs.LG
keywords reservoir computingquantum feature mapsrecurrent quantum circuitsMackey-Glass time seriestime series predictionquantum machine learningnoise robustnessmemory capacity
0
0 comments X

The pith

A recurrent quantum feature map reservoir achieves lower error than classical networks on Mackey-Glass time-series prediction with compact qubit and depth requirements.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper introduces a reservoir computing approach that reuses a fixed quantum circuit to encode both the current input and a classical feedback signal drawn from prior outputs. This recurrent quantum feature map is tested on the Mackey-Glass chaotic time-series forecasting task. It produces lower mean squared error than echo state networks and multilayer perceptrons while keeping circuit depth and qubit count small. Memory capacity analysis shows the model retains temporal information consistent with its accuracy. The construction remains robust to several noise channels but degrades under two-qubit gate errors, marking a concrete near-term constraint.

Core claim

The central claim is that recurrent quantum feature maps formed by feeding a classical signal derived from previous outputs back into a fixed quantum circuit alongside the current input create an effective high-dimensional reservoir. On the Mackey-Glass prediction task this yields lower mean squared error than standard classical baselines while preserving compact resources, with memory capacity measurements confirming retention of temporal structure and noise studies identifying two-qubit gate errors as the dominant limitation.

What carries the argument

Recurrent quantum feature map: a fixed quantum circuit reused to encode both the current input and a classical feedback signal from earlier outputs.

If this is right

  • Lower mean squared error on Mackey-Glass forecasting than echo state networks or multilayer perceptrons.
  • Effective retention of temporal information confirmed by explicit memory capacity measurements.
  • Robustness to several single-qubit noise channels while remaining limited by two-qubit gate errors.
  • Compact circuit depth and qubit count that fit near-term hardware constraints.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Hybrid feedback loops of this kind could allow quantum reservoirs to handle longer sequences without scaling qubit number.
  • The same recurrent encoding might extend to other sequential tasks such as speech or sensor streams once two-qubit error rates improve.
  • Targeted error mitigation focused on two-qubit gates would directly address the identified performance bottleneck.

Load-bearing premise

The classical feedback signal derived from previous outputs can be fed back into the fixed quantum circuit without destroying any quantum advantage or requiring coherence times beyond those available on near-term devices.

What would settle it

Running the Mackey-Glass task with the quantum circuit replaced by an equivalent classical feature map and finding no reduction in mean squared error, or observing that two-qubit gate noise eliminates the accuracy gain, would falsify the claimed benefit.

Figures

Figures reproduced from arXiv: 2604.03469 by Aaron Z. Goldberg, Christoph Simon, Khabat Heshami, Utkarsh Singh.

Figure 1
Figure 1. Figure 1: FIG. 1: Schematic representation of the classical reservoir [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2

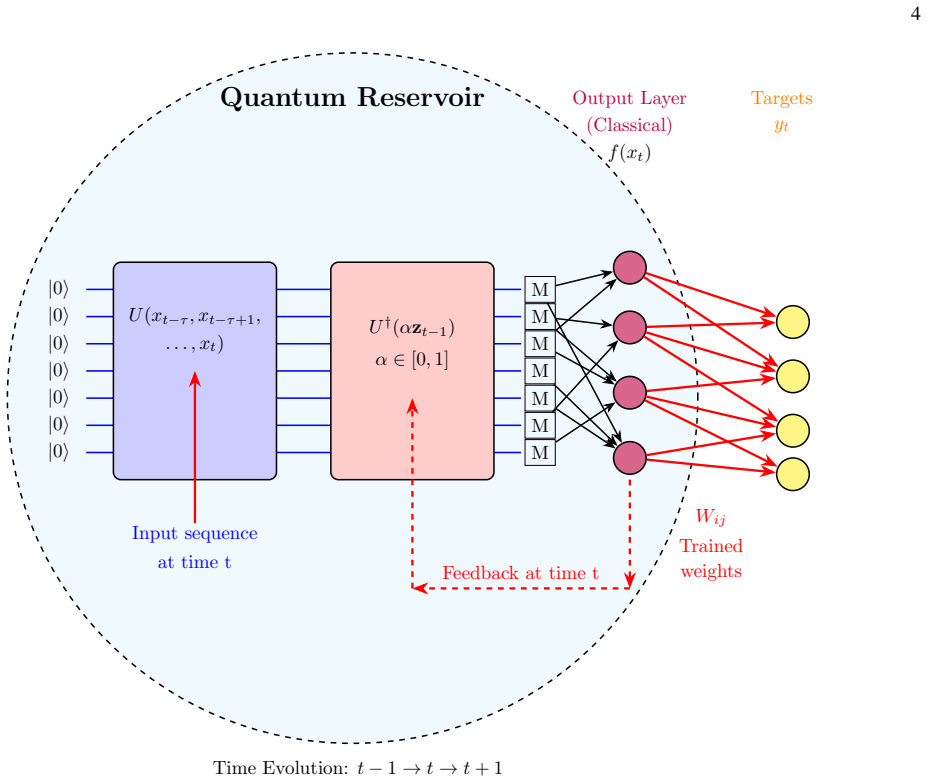

Figure 2. Figure 2: FIG. 2: Schematic of proposed feedback-driven quantum reservoir computing model. At each timestep [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3: Model comparison on the Mackey–Glass dataset at [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4: Predicted vs. true signal for the quantum reservoir [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
Figure 6
Figure 6. Figure 6: FIG. 6: Impact of quantum circuit parameter [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗
Figure 8
Figure 8. Figure 8: FIG. 8: Performance (MSE score) of the quantum reservoir [PITH_FULL_IMAGE:figures/full_fig_p007_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: FIG. 9: Worst-case MSE for each noise type at the maximum [PITH_FULL_IMAGE:figures/full_fig_p008_9.png] view at source ↗
Figure 11
Figure 11. Figure 11: FIG. 11: Dynamical analysis of the quantum reservoir. (a) [PITH_FULL_IMAGE:figures/full_fig_p010_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: FIG. 12: MSE as a function of relaxation time [PITH_FULL_IMAGE:figures/full_fig_p011_12.png] view at source ↗
read the original abstract

Reservoir computing promises a fast method for handling large amounts of temporal data. This hinges on constructing a good reservoir--a dynamical system capable of transforming inputs into a high-dimensional representation while remembering properties of earlier data. In this work, we introduce a reservoir based on recurrent quantum feature maps where a fixed quantum circuit is reused to encode both current inputs and a classical feedback signal derived from previous outputs. We evaluate the model on the Mackey-Glass time-series prediction task using our recently introduced CP feature map, and find that it achieves lower mean squared error than standard classical baselines, including echo state networks and multilayer perceptrons, while maintaining compact circuit depth and qubit requirements. We further analyze memory capacity and show that the model effectively retains temporal information, consistent with its forecasting accuracy. Finally, we study the impact of realistic noise and find that performance is robust to several noise channels but remains sensitive to two-qubit gate errors, identifying a key limitation for near-term implementations.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The manuscript proposes a recurrent quantum reservoir computing architecture based on fixed quantum circuits that encode both new inputs and a classical feedback signal derived from prior outputs via the CP feature map. It evaluates the model on the Mackey-Glass chaotic time-series prediction task, reporting lower mean squared error than classical echo state networks and multilayer perceptrons while using compact circuit depth and qubit count. Additional analyses cover memory capacity and robustness to several noise channels, with the key limitation identified as sensitivity to two-qubit gate errors.

Significance. If the empirical MSE advantage is confirmed with proper statistical controls, the recurrent construction offers a concrete route to near-term quantum advantage in temporal processing tasks by reusing a fixed circuit and avoiding deep variational optimization. The noise analysis usefully flags two-qubit gate errors as the dominant limitation, which is directly actionable for hardware implementations. The work is incremental rather than foundational, but the combination of recurrent feedback with a parameter-free feature map is a clear technical contribution.

major comments (3)
  1. [Abstract / Results] Abstract and results section: the reported lower MSE versus ESN and MLP baselines is presented without error bars, cross-validation details, or statistical significance tests. This makes it impossible to determine whether the advantage is robust or could be explained by hyperparameter tuning differences.
  2. [Methods / Recurrent construction] Recurrent construction (described in the methods): the classical feedback signal is re-encoded into the same fixed circuit, yet the manuscript provides no quantitative estimate of the additional state-preparation overhead, cumulative decoherence, or effective coherence time required per recurrent step. This directly affects whether the compact depth claim survives on near-term hardware with T1/T2 ~50-100 µs.
  3. [Noise robustness analysis] Noise analysis: while sensitivity to two-qubit gate errors is noted, the paper does not simulate or bound the error accumulation rate across multiple recurrent steps, which is load-bearing for the claim that performance remains usable on NISQ devices.
minor comments (2)
  1. [Methods] Notation for the CP feature map and the feedback encoding should be defined explicitly in a single location rather than referenced to prior work without restatement.
  2. [Results] Figure captions for the Mackey-Glass predictions should include the exact train/test split sizes and the number of independent runs used to generate the plotted curves.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive and detailed comments. We address each major point below and will incorporate revisions to improve statistical rigor, hardware feasibility estimates, and noise analysis.

read point-by-point responses
  1. Referee: [Abstract / Results] Abstract and results section: the reported lower MSE versus ESN and MLP baselines is presented without error bars, cross-validation details, or statistical significance tests. This makes it impossible to determine whether the advantage is robust or could be explained by hyperparameter tuning differences.

    Authors: We agree that the current results lack sufficient statistical controls. In the revised manuscript we will add error bars computed from multiple independent runs with different random seeds, provide explicit details on the cross-validation procedure used for hyperparameter selection, and include statistical significance tests (e.g., paired t-tests) comparing the recurrent quantum feature map against the ESN and MLP baselines. These additions will appear in the results section and, where space allows, in the abstract. revision: yes

  2. Referee: [Methods / Recurrent construction] Recurrent construction (described in the methods): the classical feedback signal is re-encoded into the same fixed circuit, yet the manuscript provides no quantitative estimate of the additional state-preparation overhead, cumulative decoherence, or effective coherence time required per recurrent step. This directly affects whether the compact depth claim survives on near-term hardware with T1/T2 ~50-100 µs.

    Authors: We acknowledge the absence of quantitative overhead estimates. The revised manuscript will include a new paragraph (or short subsection) in the methods that calculates the additional gate count and depth required to re-encode the classical feedback signal at each step, together with an estimate of cumulative decoherence under typical T1/T2 times of 50–100 µs. This will directly address the viability of the compact-depth claim on near-term hardware. revision: yes

  3. Referee: [Noise robustness analysis] Noise analysis: while sensitivity to two-qubit gate errors is noted, the paper does not simulate or bound the error accumulation rate across multiple recurrent steps, which is load-bearing for the claim that performance remains usable on NISQ devices.

    Authors: We agree that error accumulation over recurrent steps must be quantified. In the revision we will extend the noise section with explicit simulations of two-qubit gate error accumulation across increasing numbers of recurrent steps and will provide analytic bounds on the resulting degradation in prediction accuracy. These results will be presented alongside the existing single-step noise channels. revision: yes

Circularity Check

0 steps flagged

No circularity: empirical performance claims rest on independent measurements

full rationale

The paper constructs a recurrent quantum feature map reservoir by reusing a fixed circuit to encode both new inputs and classical feedback from prior outputs, then reports measured mean squared error on the Mackey-Glass task that is lower than echo state networks and multilayer perceptrons. No derivation step equates a claimed prediction or uniqueness result to its own fitted inputs or prior self-citation by construction; the CP feature map reference is a modular building block whose definition is external to the present performance numbers. The central claims are therefore falsifiable via hardware runs or classical re-implementations and do not reduce to self-referential fitting or renaming.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the domain assumption that the CP feature map combined with classical feedback yields a sufficiently expressive reservoir; no free parameters or invented entities are explicitly introduced in the abstract.

axioms (1)
  • domain assumption The CP feature map provides a suitable high-dimensional encoding for both inputs and feedback signals
    Referenced as the encoding method used in the recurrent circuit.

pith-pipeline@v0.9.0 · 5467 in / 1116 out tokens · 41956 ms · 2026-05-13T18:27:53.225118+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

36 extracted references · 36 canonical work pages · 1 internal anchor

  1. [1]

    Jaeger and H

    H. Jaeger and H. Haas, Harnessing nonlinearity: Predicting chaotic systems and saving energy in wireless communication, Science304, 78 (2004). 9

  2. [2]

    Schrauwen, D

    B. Schrauwen, D. Verstraeten, and J. Van Campenhout, An overview of reservoir computing: theory, applications and im- plementations, inProceedings of the 15th European Symposium on Artificial Neural Networks(2007) pp. 471–482

  3. [3]

    Tanaka, T

    G. Tanaka, T. Yamane, J. B. H´eroux, R. Nakane, N. Kanazawa, S. Takeda, H. Numata, D. Nakano, and A. Hirose, Recent ad- vances in physical reservoir computing: A review, Neural Net- works115, 100 (2019)

  4. [4]

    Maass, T

    W. Maass, T. Natschl¨ager, and H. Markram, Real-time comput- ing without stable states: A new framework for neural com- putation based on perturbations, Neural computation14, 2531 (2002)

  5. [6]

    Verstraeten, B

    D. Verstraeten, B. Schrauwen, M. D’Haene, and D. Stroobandt, An experimental unification of reservoir computing methods, Neural Networks20, 391 (2007), echo State Networks and Liq- uid State Machines

  6. [7]

    Fujii and K

    K. Fujii and K. Nakajima, Harnessing disordered-ensemble quantum dynamics for machine learning, Physical Review Ap- plied8, 024030 (2017)

  7. [8]

    Negoro, K

    M. Negoro, K. Mitarai, K. Fujii, K. Nakajima, and M. Kita- gawa, Machine learning with controllable quantum dynam- ics of a nuclear spin ensemble in a solid, arXiv preprint arXiv:1806.10910 (2018)

  8. [9]

    J. e. a. Nokkala, Gaussian states of continuous-variable quan- tum systems provide universal and versatile reservoir comput- ing, Communications Physics4, 53 (2021)

  9. [10]

    J.-D. Chen, H. I. Nurdin, and N. Yamamoto, Temporal infor- mation processing on noisy quantum computers via reservoir computing, Physical Review Applied14, 024065 (2020)

  10. [11]

    Nurdin, and Naoki Yamamoto

    H. Yasuda and N. Yamamoto, Quantum reservoir computing with repeated measurements on superconducting devices, arXiv preprint arXiv:2310.06706 (2023)

  11. [12]

    arXiv preprint arXiv:2407.02553 , year=

    M. Kornja ˇca, H.-Y . Hu, C. Zhao, J. Wurtz, P. Weinberg, M. Hamdan, A. Zhdanov, S. H. Cantu, H. Zhou, R. A. Bravo, K. Bagnall, J. I. Basham, J. Campo, A. Choukri, R. DeAngelo, P. Frederick, D. Haines, J. Hammett, N. Hsu, M.-G. Hu, F. Hu- ber, P. N. Jepsen, N. Jia, T. Karolyshyn, M. Kwon, J. Long, J. Lopatin, A. Lukin, T. Macr `ı, O. Markovi´c, L. A. Mart...

  12. [13]

    A. e. a. Sannia, Dissipation as a resource for quantum reservoir computing, Quantum8, 1291 (2024)

  13. [14]

    L. C. Goviaet al., Quantum reservoir computing with a sin- gle nonlinear oscillator, Physical Review Research3, 013077 (2021)

  14. [15]

    Mujal, J

    P. Mujal, J. Guerrero, D. Garcia-Beni, G. F. Calvo, and A. Alarcon, Time-series quantum reservoir computing with weak and projective measurements, npj Quantum Information 9, 16 (2023)

  15. [16]

    Murauer, A

    T. Murauer, A. Matsuura, and Y . Yamamoto, Feedback connec- tions in quantum reservoir computing with mid-circuit mea- surements, arXiv preprint (2025), arXiv:2503.22380 [quant- ph]

  16. [17]

    Kobayashi, K

    K. Kobayashi, K. Fujii, and Y . Yamamoto, Feedback-driven quantum reservoir computing for time-series analysis, PRX Quantum5, 040325 (2024)

  17. [18]

    Kobayashi, K

    K. Kobayashi, K. Fujii, and N. Yamamoto, Feedback-driven quantum reservoir computing for time-series analysis, PRX Quantum5, 040325 (2024)

  18. [19]

    Feedback-driven recurrent quantum neural network universality, 2026

    L. Gonon, R. Mart ´ınez-Pe˜na, and J.-P. Ortega, Feedback- driven recurrent quantum neural network universality (2026), arXiv:2506.16332 [quant-ph]

  19. [20]

    Feedback-enhanced quantum reservoir com- puting with weak measurements, 2025

    R. Monomi, Y . Yamamoto, and K. Fujii, Feedback-enhanced quantum reservoir computing with weak measurements, arXiv preprint (2025), arXiv:2503.17939 [quant-ph]

  20. [21]

    M. e. a. Domingo, Taking advantage of noise in quantum reser- voir computing, Scientific Reports13, 11591 (2023)

  21. [22]

    L. e. a. ˇCindrak, Enhancing the performance of quantum reser- voir computing and solving the time-complexity problem by artificial memory restriction, Physical Review Research6, 013076 (2024)

  22. [23]

    H. Goto, M. C. Tran, and K. Nakajima, Universal approxima- tion property of quantum machine learning models in quantum- enhanced feature spaces, Physical Review Letters127, 090506 (2021)

  23. [24]

    Iterative Quantum Feature Maps

    K. Matsumoto and M. C. Tran, Iterative quantum feature maps, arXiv preprint (2025), arXiv:2506.19461 [quant-ph]

  24. [25]

    Jaeger,The ”echo state” approach to analysing and train- ing recurrent neural networks-with an erratum note, Tech

    H. Jaeger,The ”echo state” approach to analysing and train- ing recurrent neural networks-with an erratum note, Tech. Rep. (Bonn, Germany: German National Research Center for Infor- mation Technology GMD Technical Report, 2001)

  25. [26]

    Luko ˇseviˇcius and H

    M. Luko ˇseviˇcius and H. Jaeger, Reservoir computing ap- proaches to recurrent neural network training, Computer Sci- ence Review3, 127 (2009)

  26. [27]

    I. B. Yildiz, H. Jaeger, and S. J. Kiebel, Re-visiting the echo state property, Neural networks35, 1 (2012)

  27. [28]

    Boyd and L

    S. Boyd and L. O. Chua,Fading memory and the problem of approximating nonlinear operators with Volterra series(IEEE Transactions on circuits and systems, 1985)

  28. [29]

    Grigoryeva and J.-P

    L. Grigoryeva and J.-P. Ortega, Echo state networks are univer- sal, Neural Networks108, 495 (2018)

  29. [30]

    Gonc ¸alves, N

    L. Gonc ¸alves, N. Marques, R. Marques, and R. Rego, Reser- voir computing universality with stochastic inputs, IEEE Trans- actions on Neural Networks and Learning Systems31, 4749 (2020)

  30. [31]

    Jaeger,Short term memory in echo state networks, Tech

    H. Jaeger,Short term memory in echo state networks, Tech. Rep. (GMD-Forschungszentrum Informationstechnik, 2002)

  31. [32]

    M. C. Mackey and L. Glass, Oscillation and chaos in physio- logical control systems, Science197, 287 (1977)

  32. [33]

    Singh, J.-F

    U. Singh, J.-F. Laprade, A. Z. Goldberg, and K. Heshami, A resource efficient quantum kernel (2025), arXiv:2507.03689 [quant-ph]

  33. [34]

    Havl´ıˇcek, A

    V . Havl´ıˇcek, A. D. C´orcoles, K. Temme, A. W. Harrow, A. Kan- dala, J. M. Chow, and J. M. Gambetta, Supervised learning with quantum-enhanced feature spaces, Nature567, 209 (2019)

  34. [35]

    Qiskit contributors, Qiskit: An open-source framework for quantum computing (2023)

  35. [36]

    Asfaw, L

    A. Asfaw, L. Bello, Y . Ben-Haim, S. Bravyi, L. Capelluto, A. C. Vazquez, J. Ceroni, R. Chen, A. Frisch, J. Gambetta, S. Gar- ion, L. Gil, S. D. L. P. Gonzalez, F. Harkins, T. Imamichi, D. McKay, A. Mezzacapo, Z. Minev, R. Movassagh, G. Nan- nicini, P. Nation, A. Phan, M. Pistoia, A. Rattew, J. Schaefer, J. Shabani, J. Smolin, K. Temme, M. Tod, and S. Woo...

  36. [37]

    Dambre, D

    J. Dambre, D. Verstraeten, B. Schrauwen, and S. Massar, In- formation processing capacity of dynamical systems, Scientific reports2, 514 (2012). 10 A. Effect of Feedback Strength and Readout Truncation We next examine how two core parameters—feedback strengthαand readout limitλ—influence forecasting perfor- mance. As described previously,αcontrols the con...
