Advanced Modelling Methodologies for Anisotropic Magnetic Colloids

Jorge L. C. Domingos This is my paper

Pith reviewed 2026-05-13 17:35 UTC · model grok-4.3

classification ❄️ cond-mat.soft physics.comp-ph
keywords anisotropic magnetic colloidsdipole-particle misalignmentself-assemblyparticle-based modelingdipolar interactionsnumerical simulationsmachine learning potentials
0
0 comments X

The pith

Modeling methods for anisotropic magnetic colloids identify dipole-particle misalignment as a key control on interaction landscapes and self-assembly pathways.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

This review surveys particle-based numerical strategies for simulating anisotropic magnetic colloids that carry permanent dipoles. It examines how single-site, multi-bead, shifted-dipole, and multicore representations handle the combined effects of particle shape, long-range dipolar forces, and anisotropic steric constraints. The central thread is that misalignment between the dipole moment and the particle's geometric axis functions as a tunable parameter that reshapes energy landscapes and steers assembly routes under external fields. The work also notes emerging machine-learning methods for deriving effective potentials from these models. The comparison of approaches clarifies current capabilities and remaining challenges in predicting field-responsive behavior in such systems.

Core claim

Different levels of particle description capture distinct physical mechanisms in anisotropic magnetic colloids, from basic steric constraints and directional binding in simpler models to internal magnetic structure and nonequilibrium dynamics in more detailed ones, with dipole-particle misalignment acting as the parameter that most strongly modulates interaction landscapes and self-assembly outcomes.

What carries the argument

Dipole-particle misalignment, treated as a control parameter that alters dipolar interaction energies and binding directions across single-site, multi-bead, shifted-dipole, and multicore particle representations.

If this is right

  • Simulations can systematically vary misalignment to predict new field-tunable assembly pathways.
  • Machine-learning potentials derived from detailed models can accelerate large-scale runs while retaining key anisotropy effects.
  • Limitations in handling complex steric interactions point to the need for hybrid representations in future work.
  • Nonequilibrium dynamics under time-varying fields become more predictable once misalignment is explicitly parameterized.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same misalignment parameter could be used to design switchable colloidal actuators or responsive gels.
  • Hybrid models that switch between representations depending on length scale might reduce computational cost for multicomponent mixtures.
  • Experimental synthesis routes that fix or vary dipole orientation relative to shape would provide direct tests of the reviewed interaction landscapes.

Load-bearing premise

The reviewed set of methodologies and cited studies together give a sufficiently complete account of geometry, dipolar interactions, and anisotropic steric effects.

What would settle it

A controlled experiment or high-resolution simulation that produces a stable self-assembled structure or dynamical response in anisotropic magnetic colloids which none of the four reviewed model classes can reproduce.

Figures

Figures reproduced from arXiv: 2604.03692 by Jorge L. C. Domingos.

Figure 1
Figure 1. Figure 1: Representative modeling strategies for rod-like magnetic colloids. (a) Gay-Berne single-site model, where anisotropy is incorporated through an e [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

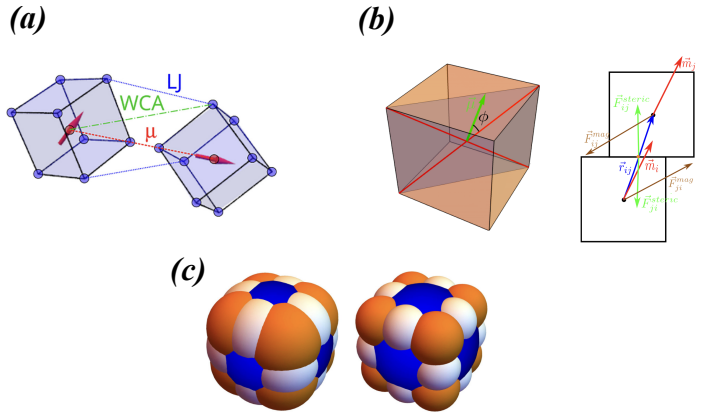

Figure 2. Figure 2: Modeling strategies for cubic magnetic colloids highlighting di [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3

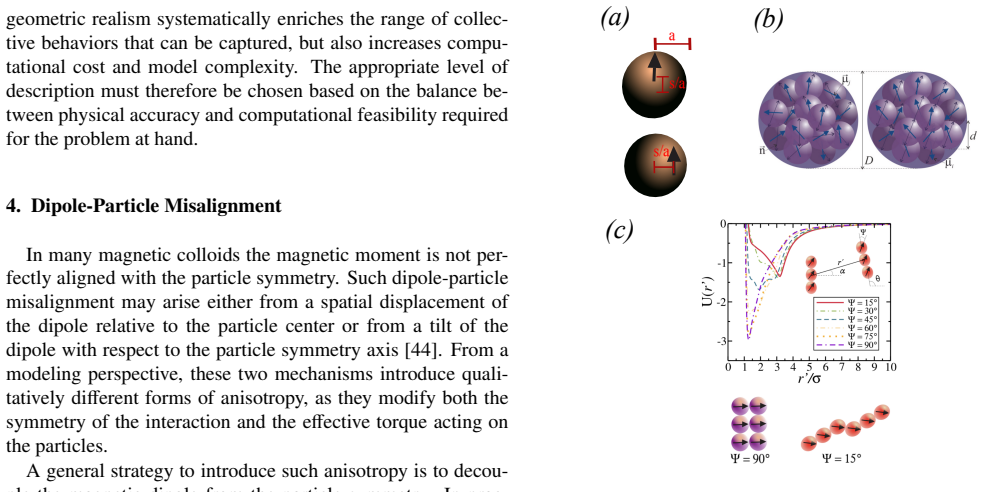

Figure 3. Figure 3: Modeling strategies for dipole-particle misalignment. (a) Radial and [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗
Figure 4

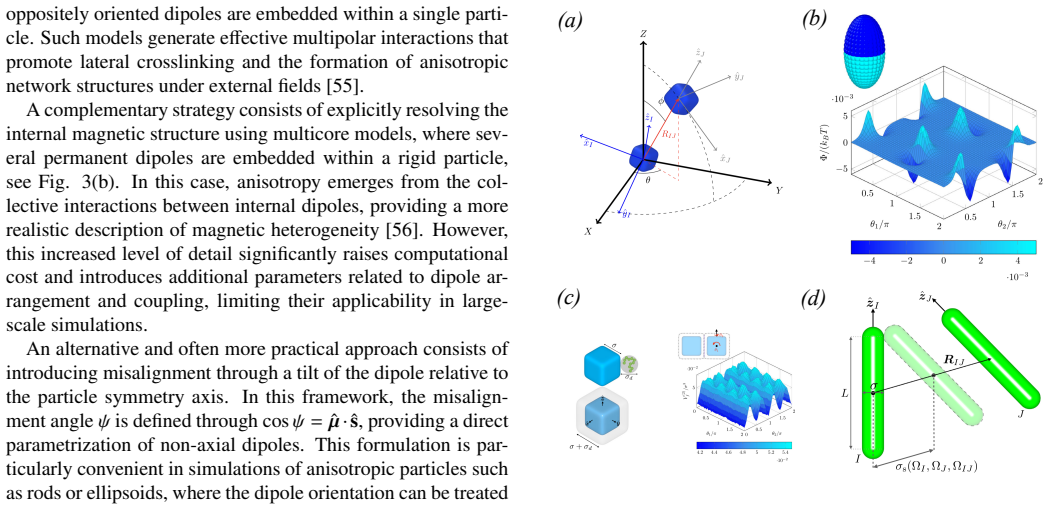

Figure 4. Figure 4: Machine learning-based, physically informed descriptors for [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
read the original abstract

Anisotropic magnetic colloids with permanent dipole moments exhibit rich field-responsive behavior arising from the interplay between particle geometry, dipolar interactions, and external driving. Modeling these systems remains challenging due to the long-range nature of dipolar forces, geometric anisotropy, dipole--particle misalignment, and the complexity of implementing anisotropic steric interactions. This review discusses particle-based numerical strategies to model such systems, including single-site, multi-bead, shifted-dipole, and multicore representations. We analyze how different levels of description capture key physical mechanisms, from steric constraints and directional binding to internal magnetic structure and nonequilibrium dynamics. Particular emphasis is placed on dipole--particle misalignment as a control parameter that strongly affects interaction landscapes and self-assembly pathways. We also highlight recent machine learning approaches as emerging tools to construct effective interaction potentials and accelerate simulations. By comparing the main methodologies and their limitations, this review outlines current challenges and perspectives toward more predictive and efficient modeling of anisotropic magnetic colloids.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 2 minor

Summary. The manuscript is a review that discusses particle-based numerical strategies for modeling anisotropic magnetic colloids, including single-site, multi-bead, shifted-dipole, and multicore representations. It analyzes how these levels of description capture physical mechanisms like steric constraints and directional binding, with particular emphasis on dipole-particle misalignment as a control parameter affecting interaction landscapes and self-assembly pathways. The review also covers recent machine learning approaches for effective interaction potentials and outlines challenges and perspectives.

Significance. If the synthesis is accurate, this review provides a structured overview of modeling methodologies in a specialized area of soft condensed matter. Highlighting dipole-particle misalignment as a key factor and discussing machine learning tools could help advance predictive modeling of these systems. The comparison of methodologies and their limitations is a strength for guiding future work.

minor comments (2)
  1. A summary table comparing the four main representations (single-site, multi-bead, shifted-dipole, multicore) in terms of computational cost, accuracy for different phenomena, and applicability would enhance clarity and utility.
  2. Ensure consistent use of terminology for 'dipole-particle misalignment' throughout the manuscript to avoid any potential confusion for readers.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for their careful reading and positive assessment of our manuscript, as well as for recommending minor revision. The referee's summary accurately captures the scope and emphasis of our review on particle-based modeling strategies for anisotropic magnetic colloids, including the role of dipole-particle misalignment and emerging machine-learning approaches.

Circularity Check

0 steps flagged

No significant circularity detected

full rationale

This is a review paper that organizes and compares existing particle-based modeling approaches (single-site, multi-bead, shifted-dipole, multicore) drawn from external literature. No new derivations, equations, fitted parameters, or quantitative predictions are introduced; the emphasis on dipole-particle misalignment as a control parameter is presented as a synthesis of prior cited work rather than an internal reduction. The manuscript contains no self-definitional steps, fitted-input predictions, or load-bearing self-citations that collapse the central claims to the paper's own inputs. The derivation chain is therefore absent, and the content remains self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

This is a review paper with no original derivations, data fits, or postulates; it draws entirely on prior literature for descriptions of particle representations and physical mechanisms.

pith-pipeline@v0.9.0 · 5455 in / 1119 out tokens · 61109 ms · 2026-05-13T17:35:05.227710+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.
