arxiv: 2604.04009 · v1 · submitted 2026-04-05 · 💻 cs.SE

Recognition: no theorem link

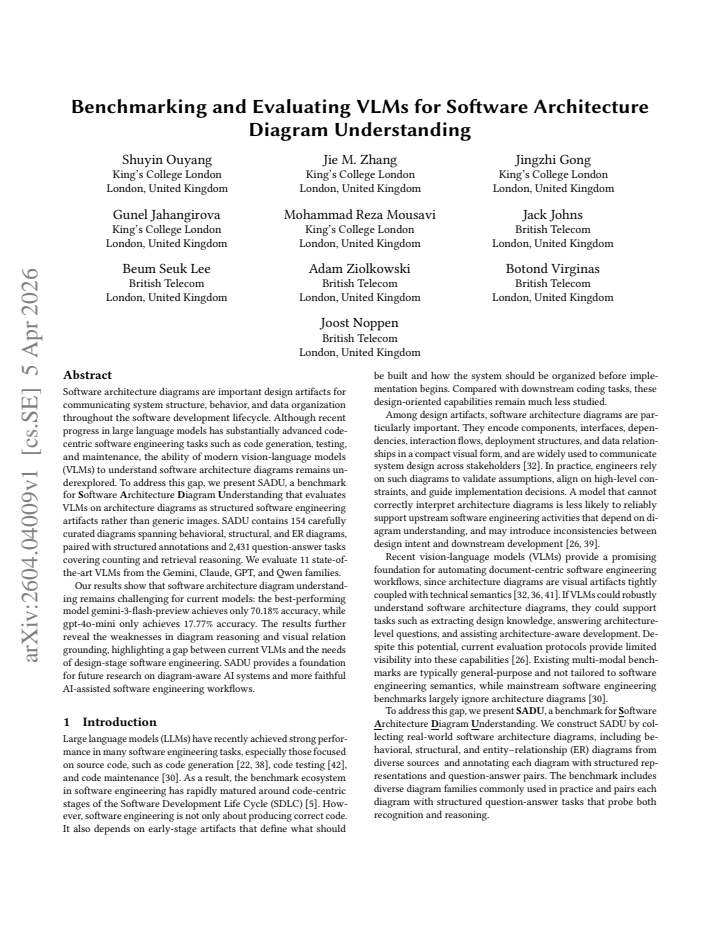

Benchmarking and Evaluating VLMs for Software Architecture Diagram Understanding

Shuyin Ouyang , Jie M. Zhang , Jingzhi Gong , Gunel Jahangirova , Mohammad Reza Mousavi , Jack Johns , Beum Seuk Lee , Adam Ziolkowski

show 2 more authors

Botond Virginas Joost Noppen

Authors on Pith no claims yet

Pith reviewed 2026-05-13 17:11 UTC · model grok-4.3

classification 💻 cs.SE

keywords SADU benchmarksoftware architecture diagramsvision-language modelsdiagram understandingVLMssoftware engineeringvisual relation groundingbenchmark evaluation

0 comments

The pith

Vision-language models reach at most 70 percent accuracy on software architecture diagram tasks in a new benchmark.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Software architecture diagrams serve as key artifacts for communicating system structure, behavior, and data throughout development, yet vision-language models have received little targeted testing on them. The paper introduces the SADU benchmark, built from 154 curated diagrams across behavioral, structural, and ER types together with 2,431 structured question-answer pairs focused on counting and retrieval. Evaluation of eleven current VLMs shows the strongest result at 70.18 percent accuracy for gemini-3-flash-preview and only 17.77 percent for gpt-4o-mini. The performance gap traces to specific shortfalls in diagram reasoning and visual relation grounding. This establishes a concrete baseline for measuring progress toward diagram-aware systems that can support design-stage engineering work.

Core claim

The paper presents SADU as a benchmark containing 154 carefully curated software architecture diagrams of behavioral, structural, and ER types, each paired with structured annotations and 2,431 question-answer tasks focused on counting and retrieval reasoning. Evaluation across 11 state-of-the-art VLMs from the Gemini, Claude, GPT, and Qwen families demonstrates that even the top performer, gemini-3-flash-preview, attains only 70.18 percent accuracy while gpt-4o-mini reaches just 17.77 percent, exposing clear limitations in diagram reasoning and visual relation grounding.

What carries the argument

The SADU benchmark of 154 diagrams and 2,431 counting and retrieval questions that probes VLMs on structured software engineering artifacts rather than generic images.

If this is right

Software architecture diagram understanding remains challenging for all tested state-of-the-art VLMs.
Models show particular weaknesses in visual relation grounding and structured diagram reasoning.
SADU supplies a repeatable test for tracking improvements in diagram-aware AI systems.
Current performance levels fall short of the reliability needed for faithful AI assistance in design-stage workflows.
Progress on SADU tasks would directly support more consistent AI use across the software development lifecycle.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

SADU-style questions could be added to VLM pre-training mixtures to reduce the domain gap between general images and engineering diagrams.
Hybrid pipelines that combine diagram parsing with code analysis might compensate for the isolated weaknesses shown here.
Extending the benchmark to include sequence or deployment diagrams would test whether the same relation-grounding shortfalls appear in other standard software notations.
Low scores on ER diagrams suggest that data-modeling understanding may lag behind structural understanding in current VLMs.

Load-bearing premise

The 154 curated diagrams and 2,431 questions sufficiently represent the range of real-world software architecture diagrams and the reasoning skills needed by practicing engineers.

What would settle it

A VLM achieving over 90 percent accuracy on the full SADU set after training only on general image-text data would indicate that the observed limitations are not inherent to current architectures.

Figures

Figures reproduced from arXiv: 2604.04009 by Adam Ziolkowski, Beum Seuk Lee, Botond Virginas, Gunel Jahangirova, Jack Johns, Jie M. Zhang, Jingzhi Gong, Joost Noppen, Mohammad Reza Mousavi, Shuyin Ouyang.

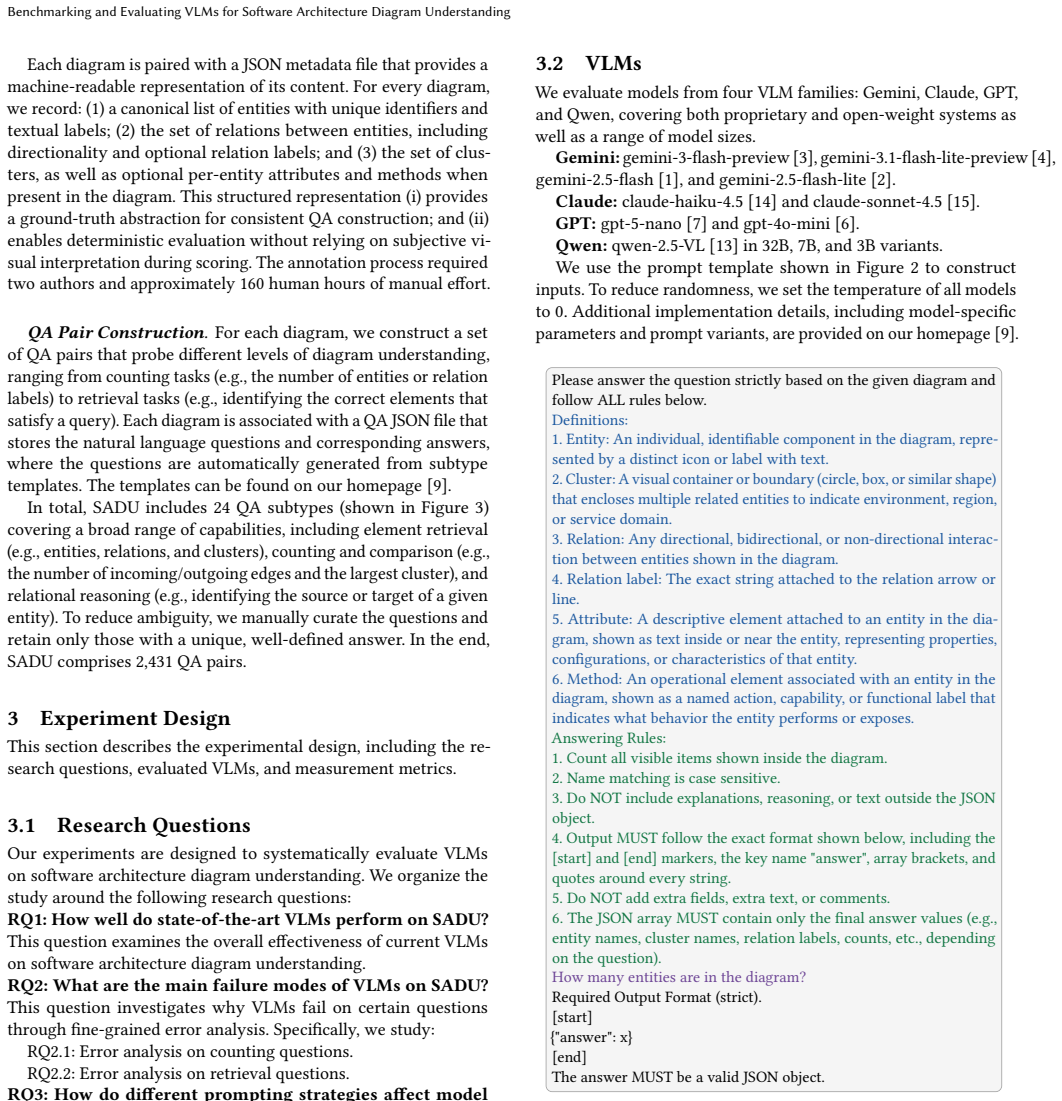

**Figure 2.** Figure 2: Example prompt used for requesting VLMs. The [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗

**Figure 4.** Figure 4: RQ1: Model accuracy across diagram complexity. [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗

**Figure 3.** Figure 3: RQ1: Performance across question subtypes. [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗

read the original abstract

Software architecture diagrams are important design artifacts for communicating system structure, behavior, and data organization throughout the software development lifecycle. Although recent progress in large language models has substantially advanced code-centric software engineering tasks such as code generation, testing, and maintenance, the ability of modern vision-language models (VLMs) to understand software architecture diagrams remains underexplored. To address this gap, we present SADU, a benchmark for Software Architecture Diagram Understanding that evaluates VLMs on architecture diagrams as structured software engineering artifacts rather than generic images. SADU contains 154 carefully curated diagrams spanning behavioral, structural, and ER diagrams, paired with structured annotations and 2,431 question-answer tasks covering counting and retrieval reasoning. We evaluate 11 state-of-the-art VLMs from the Gemini, Claude, GPT, and Qwen families. Our results show that software architecture diagram understanding remains challenging for current models: the best-performing model gemini-3-flash-preview achieves only 70.18\% accuracy, while gpt-4o-mini only achieves 17.77\% accuracy. The results further reveal the weaknesses in diagram reasoning and visual relation grounding, highlighting a gap between current VLMs and the needs of design-stage software engineering. SADU provides a foundation for future research on diagram-aware AI systems and more faithful AI-assisted software engineering workflows.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

SADU gives a clean first benchmark on VLMs for architecture diagrams and the 70% ceiling looks real, but the 154-diagram set needs more checks before the real-world gap claim lands hard.

read the letter

The paper's main contribution is SADU, a new benchmark with 154 diagrams and 2431 questions aimed at counting, retrieval, and relation tasks on software architecture artifacts. They run 11 VLMs from the usual families and report that the strongest one, gemini-3-flash-preview, reaches only 70.18% while gpt-4o-mini sits at 17.77%. That performance spread is the clearest signal in the work and directly supports the claim that current models still struggle with diagram reasoning and visual relations in this domain. The construction looks straightforward: diagrams are split across behavioral, structural, and ER types with structured annotations, and the evaluation avoids post-hoc exclusions or parameter tuning in the reported results. No circular derivations or invented entities appear. The numbers are useful as a starting point for anyone building diagram-aware tools for design-stage software engineering. The soft spot is representativeness. The authors call the diagrams carefully curated, yet the text gives no quantitative breakdown of element counts, relation density, notation variants, or comparison against open-source repositories or industry examples. If the set skews toward simpler or more uniform cases than typical practitioner diagrams, the observed ceiling and the identified weaknesses in visual grounding may not generalize as far as the abstract suggests. That assumption is reasonable for an initial benchmark but remains untested in the provided details. This work is aimed at researchers who need concrete baselines for VLM performance on structured engineering diagrams rather than generic images. It is worth a serious referee because the benchmark itself is new, the evaluation is transparent, and the gap it documents is practically relevant even if later papers will need to tighten the sampling argument.

Referee Report

2 major / 2 minor

Summary. The paper introduces SADU, a benchmark for Software Architecture Diagram Understanding consisting of 154 carefully curated diagrams spanning behavioral, structural, and ER types, paired with 2,431 question-answer tasks focused on counting and retrieval reasoning. It evaluates 11 state-of-the-art VLMs from the Gemini, Claude, GPT, and Qwen families, reporting that the best model (Gemini-3-flash-preview) reaches only 70.18% accuracy while GPT-4o-mini reaches 17.77%, and concludes that current VLMs exhibit weaknesses in diagram reasoning and visual relation grounding, highlighting a gap for design-stage software engineering.

Significance. If the benchmark holds, the work is significant for providing the first dedicated empirical evaluation of VLMs on software architecture diagrams as structured SE artifacts rather than generic images. The multi-model comparison across 11 systems with no post-hoc exclusions or parameter fitting supplies a reproducible baseline that can guide future diagram-aware AI development in software engineering.

major comments (2)

[§3 (Dataset Construction)] §3 (Dataset Construction): The claim that the 154 diagrams sufficiently represent real-world software architecture tasks rests on the description of them as 'carefully curated' spanning behavioral/structural/ER types, but the section provides no quantitative validation such as distributions of element counts, relation density, notation variants, or direct comparison to external corpora (e.g., open-source GitHub repositories). This directly affects the generalizability of the reported performance ceiling and the identified weaknesses in visual relation grounding.
[§5 (Results)] §5 (Results): The interpretation that low accuracies reveal 'weaknesses in diagram reasoning and visual relation grounding' is plausible from the aggregate numbers, but the section lacks a per-question-type or per-diagram-type error breakdown that would isolate whether failures stem from visual grounding, counting, or relation extraction; without this, the precise nature of the gap remains underspecified.

minor comments (2)

[Abstract and §4] Abstract and §4: The mention of 'structured annotations' should be expanded with a brief description of their format (e.g., whether they include explicit relation graphs or bounding boxes) to allow readers to assess how the 2,431 tasks were derived.
[Results tables] Results tables: Adding 95% confidence intervals or standard deviations to the reported accuracy percentages would strengthen statistical interpretation of the model comparisons.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments and positive recommendation for minor revision. We address each major comment below and will incorporate the suggested improvements to strengthen the manuscript.

read point-by-point responses

Referee: §3 (Dataset Construction): The claim that the 154 diagrams sufficiently represent real-world software architecture tasks rests on the description of them as 'carefully curated' spanning behavioral/structural/ER types, but the section provides no quantitative validation such as distributions of element counts, relation density, notation variants, or direct comparison to external corpora (e.g., open-source GitHub repositories). This directly affects the generalizability of the reported performance ceiling and the identified weaknesses in visual relation grounding.

Authors: We agree that quantitative validation would improve the characterization of the benchmark's representativeness. In the revised manuscript, we will expand §3 with a new table and accompanying text providing summary statistics on element counts (nodes, edges, labels), relation densities, and notation variants across the 154 diagrams. Where feasible, we will also include a brief comparison to a sampled set of architecture diagrams from public GitHub repositories to support generalizability claims. revision: yes
Referee: §5 (Results): The interpretation that low accuracies reveal 'weaknesses in diagram reasoning and visual relation grounding' is plausible from the aggregate numbers, but the section lacks a per-question-type or per-diagram-type error breakdown that would isolate whether failures stem from visual grounding, counting, or relation extraction; without this, the precise nature of the gap remains underspecified.

Authors: We agree that a finer-grained error analysis would better isolate the sources of model failures. In the revision, we will augment §5 with per-question-type accuracy breakdowns (counting vs. retrieval) and per-diagram-type results (behavioral, structural, ER). We will also add a short qualitative subsection with representative error examples to clarify whether issues arise primarily from visual grounding, counting, or relation extraction. revision: yes

Circularity Check

0 steps flagged

No circularity: pure empirical benchmark with direct model evaluations

full rationale

The paper creates the SADU benchmark (154 diagrams, 2431 QA tasks) and reports accuracy numbers for 11 external VLMs (Gemini, Claude, GPT, Qwen families). No equations, derivations, fitted parameters, predictions, or self-citations are used to generate the central results; accuracies are measured outcomes on the curated test set. The work is self-contained against external models and does not reduce any claim to its own inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

No free parameters, axioms, or invented entities; the work rests on standard practices for benchmark curation and model evaluation.
