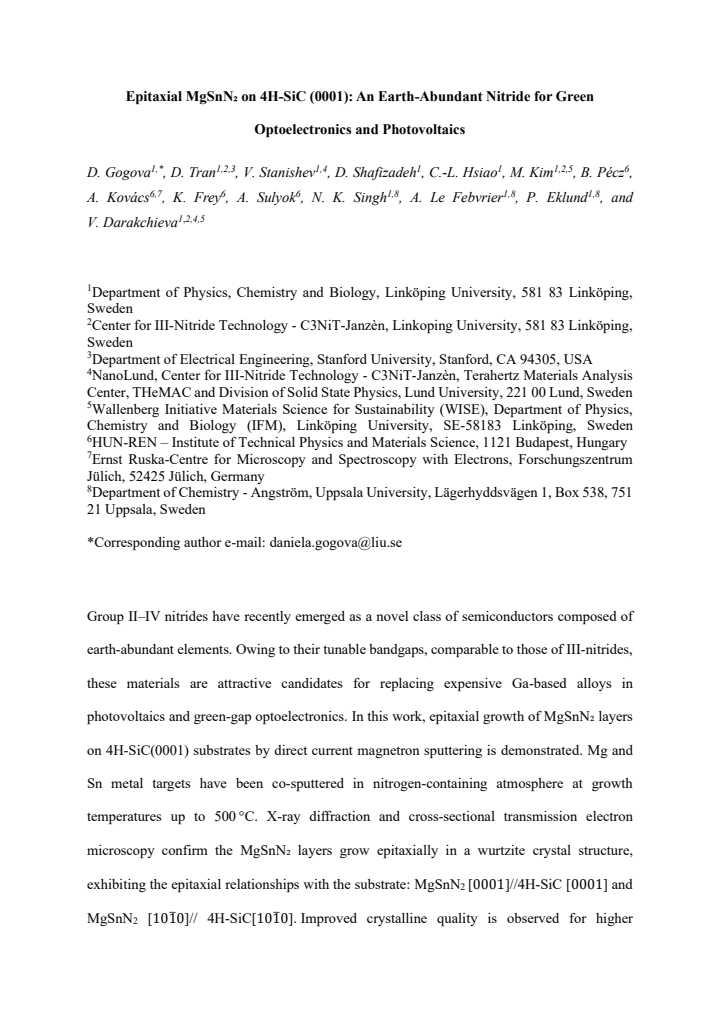

Epitaxial MgSnN2 on 4H-SiC (0001): An Earth-Abundant Nitride for Green Optoelectronics and Photovoltaics

D. Gogova , D. Tran , V. Stanishev , D. Shafizadeh , C.-L. Hsiao , M. Kim , B. P\'ecz , A. Kov\'acs
show 6 more authors
K. Frey A. Sulyok N. K. Singh A. Le Febvrier P. Eklund V. Darakchieva
Authors on Pith no claims yet

Pith reviewed 2026-05-10 20:38 UTC · model grok-4.3

classification ❄️ cond-mat.mtrl-sci
keywords MgSnN2epitaxial growthwurtziteearth-abundantnitride semiconductorsphotovoltaicsoptical propertiesgreen emission
0
0 comments X

The pith

Epitaxial MgSnN2 on 4H-SiC grows in wurtzite structure with high visible absorption and green photoluminescence.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper shows that MgSnN2 can be deposited epitaxially on 4H-SiC substrates using magnetron sputtering at temperatures up to 500 degrees Celsius. The films adopt a wurtzite crystal structure aligned with the substrate and achieve near-stoichiometric composition with improved quality at higher temperatures. Optical measurements indicate absorption coefficients reaching 10^5 per centimeter in the visible range, comparable to GaAs, along with photoluminescence centered around 2.4 electron volts. This combination suggests MgSnN2 could replace more expensive gallium-based materials in devices that need to operate efficiently in the green part of the spectrum for both light generation and solar energy conversion.

Core claim

Epitaxial MgSnN2 layers on 4H-SiC(0001) are grown by DC magnetron co-sputtering of Mg and Sn in a nitrogen atmosphere. The layers exhibit wurtzite structure with MgSnN2 [0001] parallel to 4H-SiC [0001] and MgSnN2 [10-10] parallel to 4H-SiC [10-10]. Higher growth temperatures narrow the rocking curve linewidths for better crystallinity in stoichiometric films. The material displays absorption coefficients of 10^5 cm^{-1} across the visible spectrum and a photoluminescence band at approximately 2.4 eV.

What carries the argument

Epitaxial wurtzite MgSnN2 thin films on 4H-SiC(0001) substrates, grown by co-sputtering, that enable the observed structural alignment and optical properties.

Load-bearing premise

The high absorption and photoluminescence are intrinsic properties of the MgSnN2 material rather than arising from substrate interactions or defects introduced during growth.

What would settle it

Growing MgSnN2 on a non-nitride substrate or measuring optical properties after removing the film from the SiC would show if the absorption and emission persist without the substrate.

Figures

Figures reproduced from arXiv: 2604.04508 by A. Kov\'acs, A. Le Febvrier, A. Sulyok, B. P\'ecz, C.-L. Hsiao, D. Gogova, D. Shafizadeh, D. Tran, K. Frey, M. Kim, N. K. Singh, P. Eklund, V. Darakchieva, V. Stanishev.

Figure 1
Figure 1. Figure 1: XRD measurements of stoichiometric MgSnN [PITH_FULL_IMAGE:figures/full_fig_p007_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: (a) 2/ scans of the wz-MgxSn2-xN2 layers grown at temperatures in the range of 350ºC - 500 ºC, the XRD spectrum theoretically calculated for stoichiometric MgSnN2 is also shown, (b) (101̅2) RCs of the corresponding layers reported in (a). At a growth temperature of 500 oC and Sn-rich layer composition, the main growth direction remains unchanged; however, the layer incorporates additional m-plane oriente… view at source ↗
read the original abstract

Group II-IV nitrides have recently emerged as a novel class of semiconductors composed of earth-abundant elements. Owing to their tunable bandgaps, comparable to those of III-nitrides, these materials are attractive candidates for replacing expensive Ga-based alloys in photovoltaics and green-gap optoelectronics. In this work, epitaxial growth of MgSnN2 layers on 4H-SiC(0001) substrates by direct current magnetron sputtering is demonstrated. Mg and Sn metal targets have been co-sputtered in nitrogen-containing atmosphere at growth temperatures up to 500 {\deg}C. X-ray diffraction and cross-sectional transmission electron microscopy confirm the MgSnN2 layers grow epitaxially in a wurtzite crystal structure, exhibiting the epitaxial relationships with the substrate: MgSnN2 [0001]//4H-SiC [0001] and MgSnN2 [10-10]//4H-SiC[10-10]. Improved crystalline quality is observed for higher deposition temperatures and near-stoichiometric composition, as evidenced by the narrowing of rocking curve linewidths. Optical characterization reveals high absorption coefficients (1e5 cm-1) in the visible spectrum, comparable to that of GaAs, highlighting the suitability of MgSnN2 for photovoltaic applications. A photoluminescence emission band at ~2.4 eV is detected, highly desirable for optoelectronic devices operating in the challenging green spectral region. These results establish MgSnN2 as an earth-abundant, environmentally friendly material, structurally compatible with III-nitrides, with potential for cost-efficient components in sustainable optoelectronics and photovoltaics.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 3 minor

Summary. The manuscript reports the epitaxial growth of MgSnN2 thin films on 4H-SiC(0001) substrates via DC magnetron co-sputtering of Mg and Sn targets in a nitrogen-containing atmosphere at temperatures up to 500°C. X-ray diffraction and cross-sectional TEM confirm wurtzite structure with the epitaxial relationships MgSnN2 [0001]//4H-SiC [0001] and MgSnN2 [10-10]//4H-SiC [10-10]. Higher growth temperatures and near-stoichiometric compositions yield improved crystalline quality via narrower rocking-curve linewidths. Optical data show absorption coefficients of 10^5 cm^{-1} in the visible and a photoluminescence band at ~2.4 eV, which the authors position as enabling green-gap optoelectronics and photovoltaics with an earth-abundant material structurally compatible with III-nitrides.

Significance. If the photoluminescence is confirmed to originate from band-edge recombination rather than defects, the work would be significant for establishing a sustainable, Ga-free nitride platform with high visible absorption and SiC compatibility, directly addressing the green spectral gap and offering integration pathways for cost-effective PV and LEDs. The structural evidence from XRD/TEM and the reported absorption strength provide a reproducible experimental foundation that could accelerate device studies on II-IV nitrides.

major comments (2)
  1. [Optical characterization] Optical characterization section (abstract and results): The statement that the ~2.4 eV PL band is 'highly desirable for optoelectronic devices operating in the challenging green spectral region' treats the emission as intrinsic band-to-band recombination. No excitation-power dependence (to test saturation), variable-temperature PL (to extract activation energies), or overlay of the PL peak with the absorption onset from the same samples is provided. This is load-bearing for the green-optics claim, since defect-related sub-bandgap luminescence is well-documented in sputtered nitrides grown at ≤500 °C.
  2. [Structural and optical results] Structural characterization and optical results: Absorption coefficients are given as 10^5 cm^{-1} without error bars, wavelength range specification, or details of the measurement method (transmission, ellipsometry, etc.). Similarly, rocking-curve linewidth narrowing is asserted for higher temperatures and near-stoichiometric films, yet no quantitative FWHM values or uncertainties are reported. These omissions weaken quantitative support for the photovoltaic and quality claims.
minor comments (3)
  1. [Abstract] Abstract: replace '1e5 cm-1' with scientific notation 10^5 cm^{-1}.
  2. [Methods/Results] Notation for Miller indices should be consistent (e.g., [10-10] vs. [10-1-0] or [10¯10]); add a brief methods paragraph detailing how near-stoichiometric composition was verified (EDX, RBS, XPS, etc.).
  3. [Optical characterization] Add a direct comparison of the PL spectrum to the absorption edge and include at least one baseline (e.g., bare substrate or off-stoichiometric film) to strengthen the optical claims.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive and detailed comments on our manuscript. We have carefully considered each point and provide point-by-point responses below. Where data or analysis were available, we have revised the manuscript to address the concerns; in cases where additional experiments were not performed, we have adjusted the claims and discussion accordingly to avoid overinterpretation.

read point-by-point responses

  1. Referee: [Optical characterization] Optical characterization section (abstract and results): The statement that the ~2.4 eV PL band is 'highly desirable for optoelectronic devices operating in the challenging green spectral region' treats the emission as intrinsic band-to-band recombination. No excitation-power dependence (to test saturation), variable-temperature PL (to extract activation energies), or overlay of the PL peak with the absorption onset from the same samples is provided. This is load-bearing for the green-optics claim, since defect-related sub-bandgap luminescence is well-documented in sputtered nitrides grown at ≤500 °C.

    Authors: We agree that the origin of the PL requires careful interpretation and that the manuscript's phrasing could be read as implying band-edge emission. The original text did not explicitly state that the ~2.4 eV band is band-to-band recombination; it simply reported the observed emission energy and noted its relevance to the green spectral region. Nevertheless, we acknowledge the referee's concern regarding possible defect contributions in low-temperature sputtered films. Since power-dependent and temperature-dependent PL measurements were not performed in this study, we cannot confirm the recombination mechanism. In the revised manuscript we have (i) toned down the language to describe the feature as 'an emission band at ~2.4 eV' without claiming intrinsic character, (ii) added a brief discussion of possible defect-related luminescence in sputtered II-IV nitrides, and (iii) included an overlay of the PL spectrum with the absorption edge from the same samples to allow readers to assess the energetic alignment. We believe these changes make the presentation more balanced while preserving the experimental observation. revision: partial

  2. Referee: [Structural and optical results] Structural characterization and optical results: Absorption coefficients are given as 10^5 cm^{-1} without error bars, wavelength range specification, or details of the measurement method (transmission, ellipsometry, etc.). Similarly, rocking-curve linewidth narrowing is asserted for higher temperatures and near-stoichiometric films, yet no quantitative FWHM values or uncertainties are reported. These omissions weaken quantitative support for the photovoltaic and quality claims.

    Authors: We thank the referee for pointing out these presentational shortcomings. In the revised manuscript we now specify that the absorption data were obtained via transmission spectroscopy on a UV-Vis spectrophotometer, report the wavelength range (300–800 nm), and include error bars derived from repeated measurements on multiple samples. For the structural quality, we have added quantitative rocking-curve FWHM values (with uncertainties) for the (0002) reflection at each growth temperature and composition, together with a table summarizing the trend. These additions provide the quantitative support requested and strengthen the claims regarding improved crystallinity and optical performance. revision: yes

Circularity Check

0 steps flagged

No circularity: purely experimental observations with no derivations or fitted predictions

full rationale

The manuscript reports direct experimental results from DC magnetron sputtering growth, XRD, TEM, absorption spectroscopy, and photoluminescence measurements on MgSnN2/4H-SiC. No equations, models, or parameter fits are presented that could reduce to self-defined inputs or self-citations. Epitaxial relationships, absorption coefficients (~1e5 cm^{-1}), and the ~2.4 eV PL band are stated as measured outcomes, not derived predictions. Self-citations (if present in the full text) concern prior growth literature and do not bear load on any claimed derivation chain. The work is self-contained against external benchmarks via standard characterization techniques.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The central claims rest on standard assumptions of thin-film epitaxy and optical characterization rather than new postulates. No free parameters are fitted to derive the result; growth temperatures and composition are experimental variables. No invented entities are introduced.

axioms (2)
  • standard math Wurtzite crystal structure identification from XRD and TEM is reliable for phase confirmation
    Invoked in the structural characterization paragraph; standard in materials science for nitride films.
  • domain assumption Epitaxial relationships can be determined from diffraction patterns and TEM images
    Stated directly in the results section describing orientation matching.
