arxiv: 2604.04525 · v1 · submitted 2026-04-06 · 💻 cs.RO · cs.CV

G-EDF-Loc: 3D Continuous Gaussian Distance Field for Robust Gradient-Based 6DoF Localization

Jos\'e E. Maese , Luc\'ia Coto-Elena , Luis Merino , Fernando Caballero This is my paper

Pith reviewed 2026-05-10 19:53 UTC · model grok-4.3

classification 💻 cs.RO cs.CV

keywords 3D distance fieldGaussian mixture model6DoF localizationgradient-based registrationEikonal consistencyscan-to-maprobotics localizationcontinuous map

0 comments

The pith

A block-sparse Gaussian mixture model creates a continuous 3D distance field that supports robust gradient-based 6DoF localization in real time.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents G-EDF-Loc, a localization system that represents the environment with a continuous Euclidean distance field built from a block-sparse Gaussian mixture model. This model uses adaptive spatial partitioning to ensure smooth transitions and provide analytical gradients that follow the Eikonal equation. These gradients drive a direct scan-to-map registration process on CPU, achieving real-time performance. The approach maintains accuracy even when odometry is heavily degraded or IMU information is unavailable, as shown in experiments on large datasets. Readers care because this reduces dependence on additional sensors and improves reliability for mobile robots in challenging conditions.

Core claim

G-EDF is a novel continuous and memory-efficient 3D distance field representation that models the Euclidean Distance Field using a Block-Sparse Gaussian Mixture Model with adaptive spatial partitioning. This ensures C1 continuity across block transitions and mitigates boundary artifacts. Analytical gradients of this map maintain Eikonal consistency, enabling high-fidelity spatial reconstruction and real-time gradient-based 6DoF localization that is resilient to odometry degradation without IMU priors.

What carries the argument

The Block-Sparse Gaussian Mixture Model with adaptive spatial partitioning for modeling the Euclidean Distance Field, which supplies C1-continuous analytical gradients consistent with the Eikonal equation for use in scan-to-map registration.

If this is right

The system achieves real-time localization on standard CPU hardware.
Performance remains competitive with state-of-the-art methods on large-scale datasets.
Localization is resilient under severe odometry degradation.
The framework operates effectively in the complete absence of IMU priors.
High-fidelity spatial reconstruction is obtained through the continuous map.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

This continuous representation could be applied to improve other tasks such as path planning or collision avoidance that benefit from smooth distance fields.
The memory-efficient design might enable larger-scale maps on embedded systems compared to dense voxel grids.
If the Eikonal consistency holds across blocks, the method may offer better numerical stability in optimization than discrete approximations.
Extensions to dynamic environments could test whether the Gaussian model adapts quickly to changing scenes.

Load-bearing premise

The assumption that the Block-Sparse Gaussian Mixture Model with adaptive spatial partitioning can guarantee C1 continuity across block transitions while maintaining Eikonal consistency in its analytical gradients.

What would settle it

Observing discontinuities in the distance field gradients at block boundaries or a significant drop in localization accuracy when IMU data is removed and odometry is corrupted would indicate the claim does not hold.

Figures

Figures reproduced from arXiv: 2604.04525 by Fernando Caballero, Jos\'e E. Maese, Luc\'ia Coto-Elena, Luis Merino.

**Figure 2.** Figure 2: Cross-section analysis on a local subset of the New [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗

**Figure 3.** Figure 3: Qualitative 2D trajectory comparison featuring the full [PITH_FULL_IMAGE:figures/full_fig_p007_3.png] view at source ↗

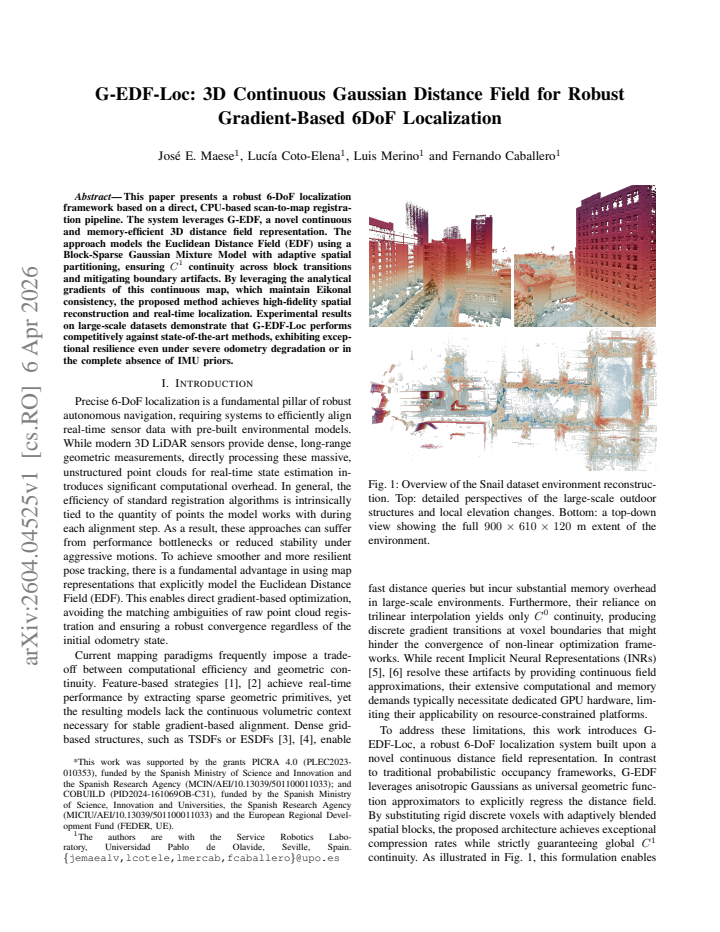

read the original abstract

This paper presents a robust 6-DoF localization framework based on a direct, CPU-based scan-to-map registration pipeline. The system leverages G-EDF, a novel continuous and memory-efficient 3D distance field representation. The approach models the Euclidean Distance Field (EDF) using a Block-Sparse Gaussian Mixture Model with adaptive spatial partitioning, ensuring $C^1$ continuity across block transitions and mitigating boundary artifacts. By leveraging the analytical gradients of this continuous map, which maintain Eikonal consistency, the proposed method achieves high-fidelity spatial reconstruction and real-time localization. Experimental results on large-scale datasets demonstrate that G-EDF-Loc performs competitively against state-of-the-art methods, exhibiting exceptional resilience even under severe odometry degradation or in the complete absence of IMU priors.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

The paper gives a workable block-sparse Gaussian mixture for a continuous distance field that supports gradient registration without heavy IMU dependence, but the C1 and Eikonal guarantees at block boundaries rest on construction details that need explicit verification.

read the letter

The main takeaway is that this work replaces discrete or voxel-based distance maps with a block-sparse Gaussian mixture that stays continuous enough for direct gradient-based 6DoF scan matching. The adaptive partitioning keeps memory use reasonable while the analytical gradients are meant to stay Eikonal-consistent, which in principle lets the system run on CPU and survive long stretches of bad odometry or no IMU at all.

Referee Report

3 major / 2 minor

Summary. The paper introduces G-EDF-Loc, a CPU-based 6-DoF localization system that represents the environment via G-EDF, a continuous Euclidean distance field constructed as a Block-Sparse Gaussian Mixture Model with adaptive spatial partitioning. The method claims that this representation guarantees C^1 continuity across block boundaries, mitigates artifacts, and yields analytical gradients that satisfy Eikonal consistency (|∇d|=1), enabling direct gradient-based scan-to-map registration that remains robust under severe odometry degradation or absent IMU priors. Experiments on large-scale datasets are reported to show competitive accuracy and real-time performance against state-of-the-art approaches.

Significance. If the continuity and Eikonal properties are rigorously established, the approach would offer a memory-efficient, CPU-friendly alternative to dense voxel grids or learned implicit fields for real-time localization, particularly valuable in resource-constrained robotics settings where gradient-based registration must tolerate poor initial poses.

major comments (3)

[§3, §3.2] §3 (G-EDF Construction) and §3.2 (Adaptive Partitioning): the manuscript asserts that the Block-Sparse GMM with adaptive partitioning “ensures C^1 continuity across block transitions” and that analytical gradients “maintain Eikonal consistency,” yet provides neither an explicit blending weight function nor a derivative-matching argument at partition interfaces. Without these, the registration objective may contain gradient discontinuities precisely in the degraded-odometry regime the method claims to handle.
[§3.3] §3.3 (Gradient Computation): the claim that the mixture yields |∇d|=1 everywhere is not accompanied by an analytic verification or numerical check (e.g., histogram of |∇d| on a held-out test set). If the Gaussian kernels are simply summed without a subsequent normalization or projection step, the Eikonal condition is violated by construction, undermining the “parameter-free” gradient-based registration advantage.
[§4] §4 (Experiments): the robustness claims under “severe odometry degradation” and “complete absence of IMU priors” rest on the continuity properties; however, the ablation or stress-test results that would isolate the contribution of the claimed C^1/Eikonal guarantees versus other implementation choices are not reported.

minor comments (2)

[§3] Notation: the symbol G-EDF is introduced without an explicit equation defining the mixture; a compact definition (e.g., Eq. (3)) would improve readability.
[Figure 2] Figure 2 (block partitioning illustration): the caption does not indicate whether the visualized boundaries reflect the final blended field or the raw per-block Gaussians; adding a zoomed inset of the gradient field across a boundary would clarify the continuity claim.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive and detailed feedback. We address each major comment below and will incorporate revisions to strengthen the manuscript where appropriate.

read point-by-point responses

Referee: [§3, §3.2] §3 (G-EDF Construction) and §3.2 (Adaptive Partitioning): the manuscript asserts that the Block-Sparse GMM with adaptive partitioning “ensures C^1 continuity across block transitions” and that analytical gradients “maintain Eikonal consistency,” yet provides neither an explicit blending weight function nor a derivative-matching argument at partition interfaces. Without these, the registration objective may contain gradient discontinuities precisely in the degraded-odometry regime the method claims to handle.

Authors: We agree that an explicit derivation is needed to substantiate the C^1 continuity claim. In the revised manuscript we will define the blending weight function w(b) for each block b and provide a derivative-matching argument showing that the partial derivatives of the mixture are identical from both sides of every partition interface due to the adaptive partitioning and the compact support of the Gaussian kernels. This addition will directly address the concern about potential gradient discontinuities. revision: yes
Referee: [§3.3] §3.3 (Gradient Computation): the claim that the mixture yields |∇d|=1 everywhere is not accompanied by an analytic verification or numerical check (e.g., histogram of |∇d| on a held-out test set). If the Gaussian kernels are simply summed without a subsequent normalization or projection step, the Eikonal condition is violated by construction, undermining the “parameter-free” gradient-based registration advantage.

Authors: The referee correctly notes that a plain summation of Gaussians does not guarantee |∇d|=1 exactly. Our construction approximates the distance field locally within each block and relies on the fitting procedure to keep the gradient norm close to unity; however, the current draft indeed lacks both analytic verification and a numerical check. We will add a histogram of |∇d| evaluated on held-out test points together with a brief discussion of the approximation quality in the revised §3.3. revision: yes
Referee: [§4] §4 (Experiments): the robustness claims under “severe odometry degradation” and “complete absence of IMU priors” rest on the continuity properties; however, the ablation or stress-test results that would isolate the contribution of the claimed C^1/Eikonal guarantees versus other implementation choices are not reported.

Authors: We acknowledge that the existing experiments do not isolate the specific contribution of the C^1 and Eikonal properties. We will add a targeted ablation in the revised §4 that compares the full G-EDF-Loc pipeline against a variant in which the blending weights are replaced by a hard partition (thereby removing C^1 continuity) while keeping all other components identical. This will quantify the robustness benefit attributable to the continuity guarantees. revision: yes

Circularity Check

0 steps flagged

No circularity: new representation validated by external experiments

full rationale

The paper introduces G-EDF as a Block-Sparse Gaussian Mixture Model with adaptive partitioning for the EDF, asserting C^1 continuity and Eikonal-consistent analytical gradients. These properties are presented as consequences of the construction rather than fitted or self-referentially defined. The central claims (high-fidelity reconstruction and robust localization) are supported by experimental results on large-scale datasets, not by any reduction of outputs to inputs via definition, parameter fitting, or self-citation chains. No load-bearing derivation step equates to its own premises by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 1 invented entities

The central claim rests on the unverified assumption that Gaussian mixtures can represent a true Euclidean distance field with the stated continuity and gradient properties; no independent evidence or derivation is supplied in the abstract.

axioms (1)

domain assumption A Block-Sparse Gaussian Mixture Model with adaptive partitioning produces a C^1 continuous Euclidean distance field that satisfies the Eikonal equation for analytical gradients.
Invoked to justify the use of gradients for scan-to-map registration without boundary artifacts.

invented entities (1)

G-EDF (Gaussian Euclidean Distance Field) no independent evidence
purpose: Continuous, memory-efficient 3D distance field representation for localization
New representation introduced to replace traditional discrete or non-smooth distance fields.

pith-pipeline@v0.9.0 · 5447 in / 1349 out tokens · 64686 ms · 2026-05-10T19:53:17.651125+00:00 · methodology

discussion (0)

Reference graph

Works this paper leans on

27 extracted references · 27 canonical work pages

[1]

Loam : Lidar odometry and mapping in real- time,

J. Zhang and S. Singh, “Loam : Lidar odometry and mapping in real- time,”Robotics: Science and Systems Conference (RSS), pp. 109–111, 01 2014

work page 2014
[2]

Fast-lio2: Fast direct lidar-inertial odometry,

W. Xu, Y . Cai, D. He, J. Lin, and F. Zhang, “Fast-lio2: Fast direct lidar-inertial odometry,” 2021. [Online]. Available: https://arxiv.org/abs/2107.06829

work page arXiv 2021
[3]

V oxblox: Incremental 3d euclidean signed distance fields for on-board mav planning,

H. Oleynikova, Z. Taylor, M. Fehr, R. Siegwart, and J. Nieto, “V oxblox: Incremental 3d euclidean signed distance fields for on-board mav planning,” in2017 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS). IEEE, sep 2017, p. 1366–1373. [Online]. Available: http://dx.doi.org/10.1109/IROS.2017.8202315

work page doi:10.1109/iros.2017.8202315 2017
[4]

Fiesta: Fast incremental euclidean distance fields for online motion planning of aerial robots,

L. Han, F. Gao, B. Zhou, and S. Shen, “Fiesta: Fast incremental euclidean distance fields for online motion planning of aerial robots,”

work page
[5]

Available: https://arxiv.org/abs/1903.02144

[Online]. Available: https://arxiv.org/abs/1903.02144

work page arXiv 1903
[6]

isdf: Real-time neural signed distance fields for robot perception,

J. Ortiz, A. Clegg, J. Dong, E. Sucar, D. Novotny, M. Zollhoefer, and M. Mukadam, “isdf: Real-time neural signed distance fields for robot perception,” 2022. [Online]. Available: https://arxiv.org/abs/2204.02296

work page arXiv 2022
[7]

Shine- mapping: Large-scale 3d mapping using sparse hierarchical implicit neural representations,

X. Zhong, Y . Pan, J. Behley, and C. Stachniss, “Shine- mapping: Large-scale 3d mapping using sparse hierarchical implicit neural representations,” 2023. [Online]. Available: https://arxiv.org/abs/2210.02299

work page arXiv 2023
[8]

Octomap: A probabilistic, flexible, and compact 3d map representa- tion for robotic systems,

K. Wurm, A. Hornung, M. Bennewitz, C. Stachniss, and W. Burgard, “Octomap: A probabilistic, flexible, and compact 3d map representa- tion for robotic systems,” vol. 2, 01 2010

work page 2010
[9]

Vdb: High-resolution sparse volumes with dynamic topology,

K. Museth, “Vdb: High-resolution sparse volumes with dynamic topology,”ACM Trans. Graph., vol. 32, pp. 27:1–27:22, 07 2013

work page 2013
[10]

Vdbfusion: Flexible and efficient tsdf integration of range sensor data,

I. Vizzo, T. Guadagnino, J. Behley, and C. Stachniss, “Vdbfusion: Flexible and efficient tsdf integration of range sensor data,”Sensors, vol. 22, p. 1296, 02 2022

work page 2022
[11]

Db-tsdf: Directional bitmask-based truncated signed distance fields for efficient volumetric mapping,

J. E. Maese, F. Caballero, and L. Merino, “Db-tsdf: Directional bitmask-based truncated signed distance fields for efficient volumetric mapping,” in2026 IEEE International Conference on Robotics and Automation (ICRA), 2026

work page 2026
[12]

DLL: Direct LIDAR Localization. A map-based localization approach for aerial robots,

F. Caballero and L. Merino, “DLL: Direct LIDAR Localization. A map-based localization approach for aerial robots,” inIEEE/RSJ International Conference on Intelligent Robots and Systems, 2021

work page 2021
[13]

Vdb-gpdf: Online gaussian process distance field with vdb structure,

L. Wu, C. L. Gentil, and T. Vidal-Calleja, “Vdb-gpdf: Online gaussian process distance field with vdb structure,” 2024. [Online]. Available: https://arxiv.org/abs/2407.09649

work page arXiv 2024
[14]

Hilbert maps: Scalable continuous occupancy mapping with stochastic gradient descent,

F. Ramos and L. Ott, “Hilbert maps: Scalable continuous occupancy mapping with stochastic gradient descent,”The International Journal of Robotics Research, vol. 35, pp. 1717–1730, 12 2016

work page 2016
[15]

The normal distributions transform: a new approach to laser scan matching,

P. Biber and W. Strasser, “The normal distributions transform: a new approach to laser scan matching,” inProceedings 2003 IEEE/RSJ International Conference on Intelligent Robots and Systems (IROS

work page 2003
[16]

No.03CH37453), vol

(Cat. No.03CH37453), vol. 3, 2003, pp. 2743–2748 vol.3

work page 2003
[17]

3d gaussian splatting for real-time radiance field rendering

B. Kerbl, G. Kopanas, T. Leimk ¨uhler, and G. Drettakis, “3d gaussian splatting for real-time radiance field rendering,” 2023. [Online]. Available: https://arxiv.org/abs/2308.04079

work page arXiv 2023
[18]

Sugar: Surface-aligned gaussian splatting for efficient 3d mesh reconstruction and high-quality mesh rendering,

A. Gu ´edon and V . Lepetit, “Sugar: Surface-aligned gaussian splatting for efficient 3d mesh reconstruction and high-quality mesh rendering,” in2024 IEEE/CVF Conference on Computer Vision and Pattern Recognition (CVPR), 2024, pp. 5354–5363

work page 2024
[19]

Multi- sensor three-dimensional Monte Carlo localization for long-term aerial robot navigation,

F. Perez-Grau, F. Caballero, A. Viguria, and A. Ollero, “Multi- sensor three-dimensional Monte Carlo localization for long-term aerial robot navigation,”International Journal of Advanced Robotic Systems, vol. 14, no. 5, 2017

work page 2017
[20]

Normal distributions transform monte-carlo localization (ndt-mcl),

J. Saarinen, H. Andreasson, T. Stoyanov, and A. J. Lilienthal, “Normal distributions transform monte-carlo localization (ndt-mcl),” in2013 IEEE/RSJ International Conference on Intelligent Robots and Systems, 2013, pp. 382–389

work page 2013
[21]

A method for registration of 3-d shapes,

P. Besl and N. D. McKay, “A method for registration of 3-d shapes,” IEEE Transactions on Pattern Analysis and Machine Intelligence, vol. 14, no. 2, pp. 239–256, 1992

work page 1992
[22]

A portable 3d lidar-based system for long-term and wide-area people behavior measurement,

K. Koide, J. Miura, and E. Menegatti, “A portable 3d lidar-based system for long-term and wide-area people behavior measurement,” International Journal of Advanced Robotic Systems, vol. 16, no. 2, 2019

work page 2019
[23]

Universal approximation using radial- basis-function networks,

J. Park and I. W. Sandberg, “Universal approximation using radial- basis-function networks,”Neural Computation, vol. 3, no. 2, pp. 246– 257, 1991

work page 1991
[24]

Ceres Solver,

S. Agarwal, K. Mierle, and T. C. S. Team, “Ceres Solver,” 10 2023. [Online]. Available: https://github.com/ceres-solver/ceres-solver

work page 2023
[25]

D. S. Ebert, F. K. Musgrave, D. Peachey, K. Perlin, and S. Worley, Texturing and modeling: a procedural approach. Elsevier, 2002

work page 2002
[26]

Multi-camera lidar inertial extension to the newer college dataset.arXiv preprint arXiv:2112.08854, 2021

L. Zhang, M. Camurri, D. Wisth, and M. Fallon, “Multi-camera lidar inertial extension to the newer college dataset,” 2022. [Online]. Available: https://arxiv.org/abs/2112.08854

work page arXiv 2022
[27]

Snail radar: A large-scale diverse benchmark for evaluating 4d-radar-based slam,

J. Huai, B. Wang, Y . Zhuang, Y . Chen, Q. Li, and Y . Han, “Snail radar: A large-scale diverse benchmark for evaluating 4d-radar-based slam,” 2025. [Online]. Available: https://arxiv.org/abs/2407.11705

work page arXiv 2025
