The pith

A bilinear MPC framework enables fixed and moving target tracking for a tendon-driven steerable stylet compatible with standard brachytherapy needles.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a control method for a steerable stylet that slides inside ordinary clinical needles used for brachytherapy. It builds a bilinear model that treats insertion speed and two bending rates as virtual inputs, then maps those to the actual tendon tensions a surgeon can apply. Simulations and experiments in phantom tissue show the closed-loop system can hold a fixed tip position to 1.45 mm error and follow moving targets, which would let needles curve around sensitive organs. Open-loop validation keeps tip-position error under 2 mm, or 3 percent of inserted length. The results establish that such control is feasible for commercial needle systems but also flag the need for better calibration and sensing to reduce errors in some bending directions.

Core claim

The authors formulate a geometric bilinear model for the tendon-driven OncoReach stylet with three virtual inputs (insertion speed and two bending rates) that map to physically realizable insertion speed and tendon tensions, then embed this model in a model predictive controller that achieves fixed-target positioning errors as low as 1.45 mm and moving-target trajectory tracking in tissue-mimicking phantoms, demonstrating feasibility for clinically compatible steerable brachytherapy systems while identifying calibration and sensing as areas for future improvement.

What carries the argument

The geometric bilinear model with three virtual inputs (insertion speed and two bending rates) mapped to physical insertion speed and tendon tensions, used inside a model predictive controller for real-time path correction.

If this is right

  • Curved needle trajectories become possible with standard clinical needles rather than requiring custom designs.
  • Image-based tip tracking combined with the MPC loop produces sub-2 mm accuracy for fixed targets in phantom material.
  • The same virtual-input mapping supports tracking of moving targets under the bilinear dynamics.
  • Position errors rise to 8.3 mm in certain bending directions, indicating the current sensing and calibration are not yet uniform.
  • The framework shows a practical route to steerable brachytherapy without replacing existing needle hardware.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If the model holds in living tissue, clinicians could reach tumors with fewer needle insertions by following curved paths.
  • Adding real-time ultrasound or electromagnetic sensing could directly address the calibration gaps noted in the phantom tests.
  • The virtual-input simplification may transfer to other tendon-driven tools where physical inputs are hard to model directly.

Load-bearing premise

The bilinear geometric model correctly predicts the stylet's bending and insertion behavior when it is inside a standard needle and surrounded by tissue-like material.

What would settle it

Repeated physical insertions in which measured tip positions deviate from model predictions by more than 8 mm across multiple bending directions and tissue densities would show the model does not capture the real dynamics.

Figures

Figures reproduced from arXiv: 2604.05111 by Behnam Moradkhani, Keith Sowards, Mir Masoud Ale Ali, Pejman Kheradmand, Scott R. Silva, Yash Chitalia.

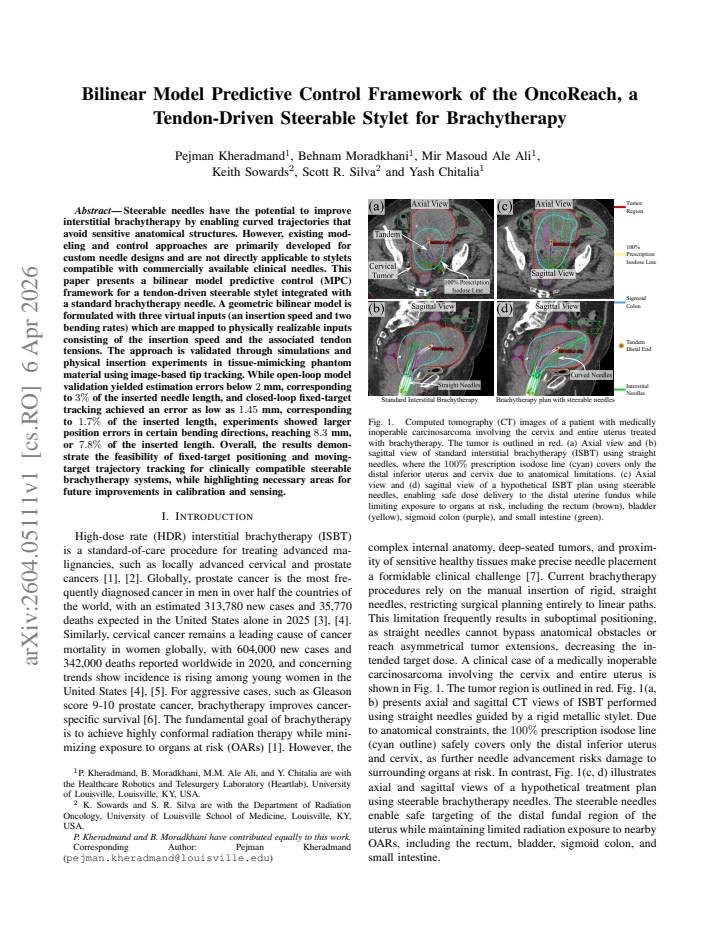

Figure 1
Figure 1. Figure 1: Computed tomography (CT) images of a patient with med [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Overview of the proposed modeling and control framew [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Experimental calibration of the curvature-tension [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Simulation results for fixed-target scenarios. (a) N [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Simulation results for trajectory-tracking scenar [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Experimental setup. (a) System overview showing the [PITH_FULL_IMAGE:figures/full_fig_p006_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: Model validation experimental results. (a) Needle tr [PITH_FULL_IMAGE:figures/full_fig_p006_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: Fixed-target experimental results. (a) Needle traj [PITH_FULL_IMAGE:figures/full_fig_p007_8.png] view at source ↗
Figure 9
Figure 9. Figure 9: Experimental trajectory-tracking results with MAT [PITH_FULL_IMAGE:figures/full_fig_p007_9.png] view at source ↗
read the original abstract

Steerable needles have the potential to improve interstitial brachytherapy by enabling curved trajectories that avoid sensitive anatomical structures. However, existing modeling and control approaches are primarily developed for custom needle designs and are not directly applicable to stylets compatible with commercially available clinical needles. This paper presents a bilinear model predictive control (MPC) framework for a tendon-driven steerable stylet integrated with a standard brachytherapy needle. \textcolor{black}{A geometric bilinear model is formulated with three virtual inputs (an insertion speed and two bending rates) which are mapped to physically realizable inputs consisting of the insertion speed and the associated tendon tensions.} The approach is validated through simulations and physical insertion experiments in tissue-mimicking phantom material using image-based tip tracking. While open-loop model validation yielded estimation errors below $2$~mm, corresponding to $3\%$ of the inserted needle length, and closed-loop fixed-target tracking achieved an error as low as $1.45$~mm, corresponding to $1.7\%$ of the inserted length, experiments showed larger position errors in certain bending directions, reaching $8.3$~mm, or $7.8\%$ of the inserted length. Overall, the results demonstrate the feasibility of fixed-target positioning and moving-target trajectory tracking for clinically compatible steerable brachytherapy systems, while highlighting necessary areas for future improvements in calibration and sensing.
