Enhanced enantiomer discrimination with chiral surface plasmons

Sang Hyun Park , Phaedon Avouris , Jennifer A. Dionne , Joshua D. Caldwell , Tony Low
Authors on Pith no claims yet

Pith reviewed 2026-05-10 18:46 UTC · model grok-4.3

classification ⚛️ physics.optics cond-mat.mes-hall
keywords chiral plasmonsenantiomer discriminationsurface plasmonschiral sensinglight-matter coupling2D materialsquantum electrodynamicschiral conductivity
0
0 comments X

The pith

Chiral surface plasmons discriminate enantiomers nearly ten times more effectively than the best chiral-mirror cavities through stronger field confinement and planar dipole coupling.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops a quantum-electrodynamic model to compare enantiomer discrimination by chiral surface plasmons on two-dimensional interfaces against traditional chiral optical cavities. It establishes that plasmons achieve higher discrimination factors primarily because their fields are more tightly confined and because they interact with the full planar projection of a molecule's electric and magnetic dipoles rather than a single polarization axis. This geometry supplies an orientation-averaged boost of square root of two, and the addition of a handedness-preserving reflector increases the advantage further. The result points to a practical path for improved chiral sensing on twisted-layer platforms.

Core claim

We show that the discrimination factor for a chiral plasmon can exceed that of the best chiral-mirror cavity by almost an order of magnitude due to stronger field confinement. In addition, surface plasmons couple to a dipole's projection onto an entire plane, whereas cavity (or free-space) modes couple only to a single polarization axis. This geometric difference produces a √2 orientation-averaged boost in chiral discrimination for chiral surface platforms. A handedness-preserving reflector further amplifies the enhancement, opening a practical route towards chiral sensing using twisted-layer platforms.

What carries the argument

The chiral surface plasmon mode on a two-dimensional interface that supports both electric and chiral conductivities, which interacts with the electric and magnetic dipole moments of a nearby molecule.

If this is right

  • The discrimination factor can reach nearly ten times the value of the best cavity-based approach.
  • Orientation-averaged performance receives a √2 boost from the planar coupling geometry.
  • Adding a handedness-preserving reflector produces further amplification of the discrimination.
  • Twisted-layer 2D platforms become a viable route for practical chiral sensing applications.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The planar geometry may allow integration of chiral discrimination directly onto surfaces or interfaces in microfluidic or nanoscale sensors.
  • Tuning the electric and chiral conductivities in layered materials could provide additional control over the discrimination factor without changing cavity dimensions.
  • The same confinement advantage might extend to other light-matter phenomena that rely on electric-magnetic dipole interference.

Load-bearing premise

The quantum-electrodynamic treatment accurately models the interaction between the molecule's electric and magnetic dipole moments and the plasmon modes on the 2D interface without significant unaccounted losses or fabrication imperfections.

What would settle it

An experimental measurement in which the enantiomer discrimination factor achieved with a fabricated chiral plasmon platform falls below or equals the value obtained with the best chiral-mirror cavity would disprove the claimed superiority.

Figures

Figures reproduced from arXiv: 2604.05207 by Jennifer A. Dionne, Joshua D. Caldwell, Phaedon Avouris, Sang Hyun Park, Tony Low.

Figure 1
Figure 1. Figure 1: FIG. 1. General setup for coupling between chiral surface [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2. Properties of the chiral plasmon. [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗

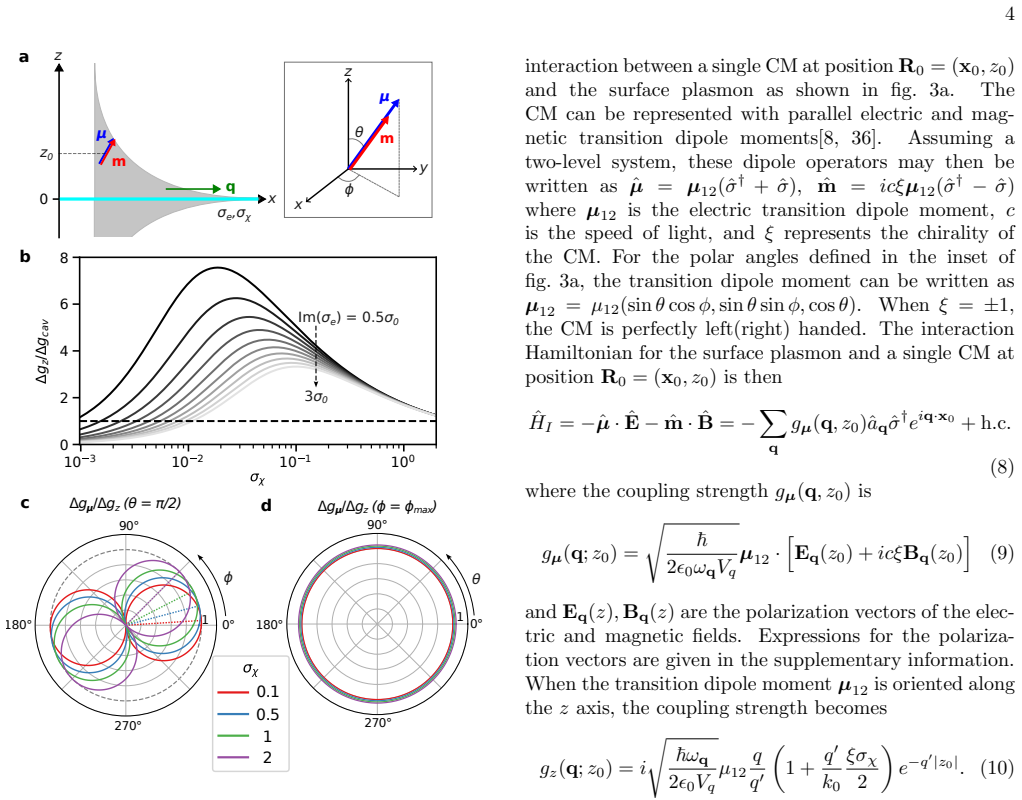

Figure 3
Figure 3. Figure 3: FIG. 3. Coupling of the chiral surface plasmon with a sin [PITH_FULL_IMAGE:figures/full_fig_p004_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4. Coupling of the chiral surface plasmon with an ensem [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗

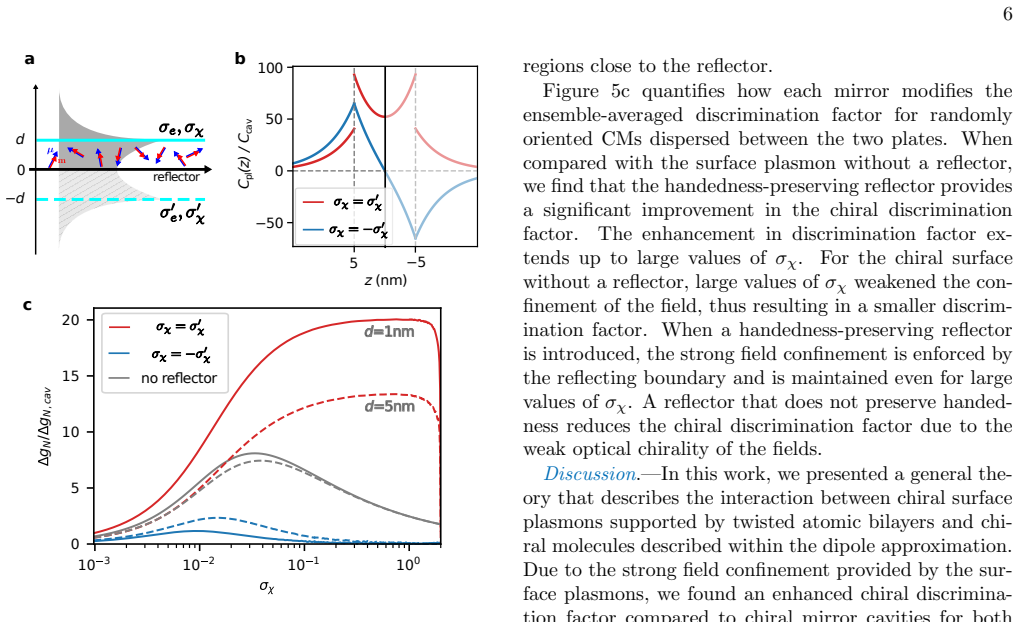

Figure 5
Figure 5. Figure 5: FIG. 5. Chiral surface plasmons with a reflector. [PITH_FULL_IMAGE:figures/full_fig_p006_5.png] view at source ↗

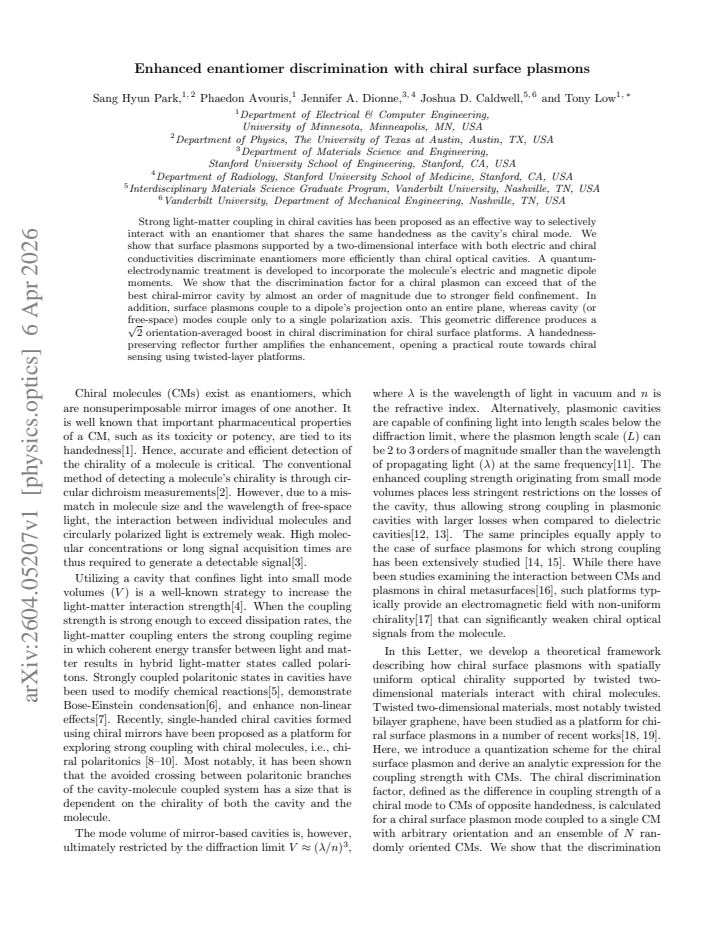

read the original abstract

Strong light-matter coupling in chiral cavities has been proposed as an effective way to selectively interact with an enantiomer that shares the same handedness as the cavity's chiral mode. We show that surface plasmons supported by a two-dimensional interface with both electric and chiral conductivities discriminate enantiomers more efficiently than chiral optical cavities. A quantum-electrodynamic treatment is developed to incorporate the molecule's electric and magnetic dipole moments. We show that the discrimination factor for a chiral plasmon can exceed that of the best chiral-mirror cavity by almost an order of magnitude due to stronger field confinement. In addition, surface plasmons couple to a dipole's projection onto an entire plane, whereas cavity (or free-space) modes couple only to a single polarization axis. This geometric difference produces a $\sqrt{2}$ orientation-averaged boost in chiral discrimination for chiral surface platforms. A handedness-preserving reflector further amplifies the enhancement, opening a practical route towards chiral sensing using twisted-layer platforms.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

0 major / 3 minor

Summary. The manuscript develops a quantum-electrodynamic treatment for the interaction between chiral molecules (via their electric and magnetic dipole moments) and surface plasmons supported by a two-dimensional interface with both electric and chiral conductivities. It claims that these chiral surface plasmons achieve an enantiomer discrimination factor nearly an order of magnitude higher than the best chiral-mirror cavities, primarily due to stronger field confinement, with an additional √2 orientation-averaged boost arising from the geometric difference between planar coupling (to the full dipole projection) and axial coupling in cavities or free space. A handedness-preserving reflector is shown to provide further amplification, suggesting a route to practical chiral sensing with twisted-layer platforms.

Significance. If the central QED derivation and mode-normalization results hold under realistic conditions, the work offers a theoretically grounded path to substantially enhanced chiral discrimination without requiring high-Q cavities. The explicit separation of confinement effects from the geometric √2 factor, together with the comparison to established chiral-mirror benchmarks, provides a clear, falsifiable prediction that could guide experimental efforts in plasmonic chiral sensing.

minor comments (3)
  1. The abstract states that the discrimination factor 'can exceed that of the best chiral-mirror cavity by almost an order of magnitude,' but the main text should explicitly identify which cavity benchmark (including its specific parameters such as mirror reflectivity or mode volume) is used for this comparison.
  2. The geometric √2 boost is attributed to planar versus axial coupling; a short appendix or supplementary note deriving the orientation average explicitly (including the integration measure over dipole orientations) would improve reproducibility.
  3. The manuscript mentions 'twisted-layer platforms' as a practical implementation; a brief discussion of how the required chiral conductivity is realized in such structures (e.g., via specific twist angles or material choices) would strengthen the experimental outlook.

Simulated Author's Rebuttal

0 responses · 0 unresolved

We thank the referee for their positive evaluation of our work on chiral surface plasmons and for recommending minor revision. The referee's summary accurately reflects the central claims regarding the QED treatment, the order-of-magnitude enhancement from field confinement, and the additional √2 geometric factor from planar versus axial coupling. We will incorporate any minor clarifications in the revised manuscript.

Circularity Check

0 steps flagged

Derivation is self-contained from QED Hamiltonian and geometry

full rationale

The central results follow from an explicit quantum-electrodynamic interaction Hamiltonian coupling electric and magnetic dipoles to quantized modes of a 2D interface with electric plus chiral conductivities. The order-of-magnitude enhancement is obtained by direct comparison of mode normalization (field confinement) against external chiral-mirror cavity benchmarks, while the √2 orientation-averaged boost is produced by integrating the planar projection of the dipole moment versus the single-axis coupling of cavity modes. No equation reduces to a fitted parameter renamed as prediction, no uniqueness theorem is imported from self-citation, and no ansatz is smuggled in; the derivation remains independent of its own outputs.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

Based solely on the abstract; the model rests on a quantum-electrodynamic treatment and assumptions about 2D interface properties. No explicit free parameters or invented entities are named in the provided text.

axioms (2)
  • domain assumption A two-dimensional interface supports both electric and chiral conductivities enabling the described surface plasmon modes.
    Invoked to define the chiral plasmon platform in the abstract.
  • standard math Quantum-electrodynamic treatment incorporates the molecule's electric and magnetic dipole moments.
    Standard framework for light-matter coupling stated in the abstract.

pith-pipeline@v0.9.0 · 5476 in / 1442 out tokens · 44078 ms · 2026-05-10T18:46:36.371579+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Reference graph

Works this paper leans on

47 extracted references · 47 canonical work pages · 1 internal anchor

  1. [1]

    A. J. Hutt and S. C. Tan, Drug Chirality and its Clinical Significance, Drugs52, 1 (1996)

    work page 1996

  2. [2]

    Rodger and B

    A. Rodger and B. Norden,Circular Dichroism and Linear Dichroism(Oxford University PressOxford, 1997)

    work page 1997

  3. [3]

    S. M. Kelly, T. J. Jess, and N. C. Price, How to study proteins by circular dichroism, Biochimica et Biophysica Acta (BBA) - Proteins and Proteomics1751, 119 (2005)

    work page 2005

  4. [4]

    Walther, B

    H. Walther, B. T. Varcoe, B. G. Englert, and T. Becker, Cavity quantum electrodynamics, Reports on Progress in Physics69, 1325 (2006)

    work page 2006

  5. [5]

    Thomas, L

    A. Thomas, L. Lethuillier-Karl, K. Nagarajan, R. M. Vergauwe, J. George, T. Chervy, A. Shalabney, E. De- vaux, C. Genet, J. Moran, and T. W. Ebbesen, Tilting a ground-state reactivity landscape by vibrational strong coupling, Science363, 615 (2019)

    work page 2019

  6. [6]

    Kasprzak, M

    J. Kasprzak, M. Richard, S. Kundermann, A. Baas, P. Jeambrun, J. M. Keeling, F. M. Marchetti, M. H. Szym´ anska, R. Andr´ e, J. L. Staehli, V. Savona, P. B. Lit- tlewood, B. Deveaud, and L. S. Dang, Bose-Einstein con- densation of exciton polaritons, Nature443, 409 (2006)

    work page 2006

  7. [7]

    K´ ena-Cohen and S

    S. K´ ena-Cohen and S. R. Forrest, Room-temperature po- lariton lasing in an organic single-crystal microcavity, Na- ture Photonics4, 371 (2010)

    work page 2010

  8. [9]

    R. R. Riso, L. Grazioli, E. Ronca, T. Giovannini, and H. Koch, Strong Coupling in Chiral Cavities: Nonpertur- bative Framework for Enantiomer Discrimination, Phys- ical Review X13, 31002 (2023), arXiv:2209.01987

    work page arXiv 2023

  9. [10]

    R. R. Riso, E. Ronca, and H. Koch, Strong Coupling to Circularly Polarized Photons: Toward Cavity-Induced Enantioselectivity, Journal of Physical Chemistry Letters 15, 8838 (2024), arXiv:2308.06181

    work page arXiv 2024

  10. [11]

    D. A. Iranzo, S. Nanot, E. J. Dias, I. Epstein, C. Peng, D. K. Efetov, M. B. Lundeberg, R. Parret, J. Osmond, J. Y. Hong, J. Kong, D. R. Englund, N. M. Peres, and F. H. Koppens, Probing the ultimate plasmon confine- ment limits with a van der Waals heterostructure, Science 360, 291 (2018), arXiv:1804.01061

    work page arXiv 2018

  11. [12]

    Chikkaraddy, B

    R. Chikkaraddy, B. De Nijs, F. Benz, S. J. Barrow, O. A. Scherman, E. Rosta, A. Demetriadou, P. Fox, O. Hess, and J. J. Baumberg, Single-molecule strong coupling at room temperature in plasmonic nanocavities, Nature 535, 127 (2016)

    work page 2016

  12. [13]

    D. G. Baranov, M. Wers¨ all, J. Cuadra, T. J. Antosiewicz, and T. Shegai, Novel Nanostructures and Materials for Strong Light-Matter Interactions, ACS Photonics5, 24 (2018)

    work page 2018

  13. [14]

    Gonz´ alez-Tudela, P

    A. Gonz´ alez-Tudela, P. A. Huidobro, L. Mart´ ın-Moreno, C. Tejedor, and F. J. Garc´ ıa-Vidal, Theory of Strong Coupling between Quantum Emitters and Propagating Surface Plasmons, Physical Review Letters110, 126801 (2013), arXiv:1205.3938

    work page arXiv 2013

  14. [15]

    T¨ orm¨ a and W

    P. T¨ orm¨ a and W. L. Barnes, Strong coupling between surface plasmon polaritons and emitters: A review, Re- ports on Progress in Physics78, 013901 (2015)

    work page 2015

  15. [16]

    Y. Zhao, A. N. Askarpour, L. Sun, J. Shi, X. Li, and A. Al` u, Chirality detection of enantiomers using twisted optical metamaterials, Nature Communications 8, 6 (2017)

    work page 2017

  16. [17]

    Sch¨ aferling, D

    M. Sch¨ aferling, D. Dregely, M. Hentschel, and H. Giessen, Tailoring enhanced optical chirality: Design principles for chiral plasmonic nanostructures, Physical Review X2, 1 (2012)

    work page 2012

  17. [18]

    X. Lin, Z. Liu, T. Stauber, G. G´ omez-Santos, F. Gao, H. Chen, B. Zhang, and T. Low, Chiral Plasmons with Twisted Atomic Bilayers, Physical Review Letters125, 77401 (2020), arXiv:2006.10474

    work page arXiv 2020

  18. [19]

    Stauber, T

    T. Stauber, T. Low, and G. G´ omez-Santos, Plasmon- Enhanced Near-Field Chirality in Twisted van der Waals Heterostructures, Nano Letters20, 8711 (2020), arXiv:2009.00478

    work page arXiv 2020

  19. [20]

    Stauber, T

    T. Stauber, T. Low, and G. G´ omez-Santos, Chiral Re- sponse of Twisted Bilayer Graphene, Physical Review Letters120, 46801 (2018), arXiv:1708.06116

    work page arXiv 2018

  20. [21]

    Pfeiffer and A

    C. Pfeiffer and A. Grbic, Bianisotropic Metasurfaces for Optimal Polarization Control: Analysis and Synthesis, Physical Review Applied2, 044011 (2014)

    work page 2014

  21. [23]

    Shalabney, J

    A. Shalabney, J. George, J. Hutchison, G. Pupillo, C. Genet, and T. W. Ebbesen, Coherent coupling of molecular resonators with a microcavity mode, Nature Communications6, 5981 (2015)

    work page 2015

  22. [24]

    Kurouski, Advances of Vibrational Circular Dichroism (VCD) in bioanalytical chemistry

    D. Kurouski, Advances of Vibrational Circular Dichroism (VCD) in bioanalytical chemistry. A review, Analytica Chimica Acta990, 54 (2017)

    work page 2017

  23. [25]

    T. Low, A. Chaves, J. D. Caldwell, A. Kumar, N. X. Fang, P. Avouris, T. F. Heinz, F. Guinea, L. Martin- Moreno, and F. Koppens, Polaritons in layered two- dimensional materials, Nature Materials16, 182 (2017)

    work page 2017

  24. [26]

    C. J. Kim, A. S´ anchez-Castillo, Z. Ziegler, Y. Ogawa, C. Noguez, and J. Park, Chiral atomically thin films, Na- ture Nanotechnology11, 520 (2016)

    work page 2016

  25. [27]

    Stauber, T

    T. Stauber, T. Low, and G. G´ omez-Santos, Linear re- sponse of twisted bilayer graphene: Continuum versus tight-binding models, Physical Review B98, 195414 (2018), arXiv:1809.03465

    work page arXiv 2018

  26. [28]

    B. Kim, J. Jin, Z. Wang, L. He, T. Christensen, E. J. Mele, and B. Zhen, Three-dimensional nonlinear optical materials from twisted two-dimensional van der Waals interfaces, Nature Photonics18, 91 (2024)

    work page 2024

  27. [29]

    G. Hu, Q. Ou, G. Si, Y. Wu, J. Wu, Z. Dai, A. Kras- nok, Y. Mazor, Q. Zhang, Q. Bao, C.-W. Qiu, and A. Al` u, Topological polaritons and photonic magic angles in twistedα-MoO3 bilayers, Nature582, 209 (2020)

    work page 2020

  28. [30]

    M. T. Enders, M. Sarkar, E. Klironomou, M. F. Picardi, R. Bertini, A. Deeva, and G. T. Papadakis, Mid-infrared chirality and chiral thermal emission from twistedα- MoO3, Nature Communications16, 11086 (2025)

    work page 2025

  29. [31]

    Rivera and I

    N. Rivera and I. Kaminer, Light–matter interactions with photonic quasiparticles, Nature Reviews Physics2, 538 (2020), arXiv:2004.07748

    work page arXiv 2020

  30. [33]

    Jablan, H

    M. Jablan, H. Buljan, and M. Soljaˇ ci´ c, Plasmonics in graphene at infrared frequencies, Physical Review B80, 8 245435 (2009), arXiv:0910.2549

    work page arXiv 2009

  31. [34]

    Tang and A

    Y. Tang and A. E. Cohen, Optical Chirality and Its Inter- action with Matter, Physical Review Letters104, 163901 (2010)

    work page 2010

  32. [35]

    K. Y. Bliokh and F. Nori, Characterizing optical chirality, Physical Review A83, 021803 (2011), arXiv:1012.4176

    work page arXiv 2011

  33. [36]

    J. Mun, M. Kim, Y. Yang, T. Badloe, J. Ni, Y. Chen, C. W. Qiu, and J. Rho, Electromagnetic chirality: From fundamentals to nontraditional chiroptical phenomena, Light: Science and Applications9, 139 (2020)

    work page 2020

  34. [37]

    G. X. Ni, A. S. McLeod, Z. Sun, L. Wang, L. Xiong, K. W. Post, S. S. Sunku, B.-Y. Jiang, J. Hone, C. R. Dean, M. M. Fogler, and D. N. Basov, Fundamental lim- its to graphene plasmonics, Nature557, 530 (2018)

    work page 2018

  35. [38]

    Alonso-Gonz´ alez, A

    P. Alonso-Gonz´ alez, A. Y. Nikitin, Y. Gao, A. Woessner, M. B. Lundeberg, A. Principi, N. Forcellini, W. Yan, S. V´ elez, A. J. Huber, K. Watanabe, T. Taniguchi, F. Casanova, L. E. Hueso, M. Polini, J. Hone, F. H. Kop- pens, and R. Hillenbrand, Acoustic terahertz graphene plasmons revealed by photocurrent nanoscopy, Nature Nanotechnology12, 31 (2017), ar...

    work page arXiv 2017

  36. [39]

    I.-H. Lee, D. Yoo, P. Avouris, T. Low, and S.-H. Oh, Graphene acoustic plasmon resonator for ultrasensitive infrared spectroscopy, Nature Nanotechnology14, 313 (2019)

    work page 2019

  37. [40]

    D. B. Chrisey, A. Piqu´ e, R. A. McGill, J. S. Horwitz, B. R. Ringeisen, D. M. Bubb, and P. K. Wu, Laser De- position of Polymer and Biomaterial Films, Chemical Re- views103, 553 (2003)

    work page 2003

  38. [41]

    Plum and N

    E. Plum and N. I. Zheludev, Chiral mirrors, Applied Physics Letters106, 221901 (2015)

    work page 2015

  39. [42]

    Voronin, A

    K. Voronin, A. S. Taradin, M. V. Gorkunov, and D. G. Baranov, Single-Handedness Chiral Optical Cavi- ties, ACS Photonics9, 2652 (2022), arXiv:2104.14230

    work page arXiv 2022

  40. [43]

    F. H. Koppens, D. E. Chang, and F. J. Garc´ ıa De Abajo, Graphene plasmonics: A platform for strong light- matter interactions, Nano Letters11, 3370 (2011), arXiv:1104.2068

    work page arXiv 2011

  41. [44]

    Rodrigo, O

    D. Rodrigo, O. Limaj, D. Janner, D. Etezadi, F. J. Garc´ ıa De Abajo, V. Pruneri, and H. Altug, Mid-infrared plas- monic biosensing with graphene, Science349, 165 (2015)

    work page 2015

  42. [45]

    ϵ0 ∂(ωϵ) ∂ω |Eqν(z)|2 +µ 0 ∂(ωµ) ∂ω |Hqν(z)|2 + 2 c0 ∂(ωκ) ∂ω Im(E∗ qν(z)·H qν(z)) # = 1 2 α∗ qναqν +α qνα∗ qν Z dz

    T. Huang, X. Tu, C. Shen, B. Zheng, J. Wang, H. Wang, K. Khaliji, S. H. Park, Z. Liu, T. Yang, Z. Zhang, L. Shao, X. Li, T. Low, Y. Shi, and X. Wang, Observation of chiral and slow plasmons in twisted bilayer graphene, Nature 605, 63 (2022). Supplementary Information: Enhanced enantiomer discrimination with chiral surface plasmons Sang Hyun Park, 1, 2 Pha...

    work page 2022

  43. [46]

    B. A. Ferreira, B. Amorim, A. J. Chaves, and N. M. R. Peres, Physical Review A101, 033817 (2020), ISSN 2469-9926, 1905.11521

    work page arXiv 2020

  44. [47]

    Tretyakov, I

    S. Tretyakov, I. Nefedov, A. Sihvola, S. Maslovski, and C. Simovski, Journal of Electromagnetic Waves and Applications 17, 695 (2003), ISSN 09205071, cond-mat/0211012

    work page internal anchor Pith review arXiv 2003

  45. [48]

    Loudon,The Quantum Theory of Light(Oxford University Press, 2000)

    R. Loudon,The Quantum Theory of Light(Oxford University Press, 2000)

    work page 2000

  46. [49]

    S. A. Mikhailov and K. Ziegler, Physical Review Letters99, 016803 (2007), ISSN 0031-9007, cond-mat/0703406

    work page arXiv 2007

  47. [50]

    Sch¨ afer and D

    C. Sch¨ afer and D. G. Baranov, Journal of Physical Chemistry Letters14, 3777 (2023), ISSN 19487185, 2209.07177

    work page arXiv 2023
