arxiv: 2604.05216 · v1 · submitted 2026-04-06 · ❄️ cond-mat.quant-gas · cond-mat.supr-con· quant-ph

Approximate vortex lattices of atomic Fermi superfluid on a spherical surface

Keshab Sony , Yan He , Chih-Chun Chien This is my paper

Pith reviewed 2026-05-10 18:43 UTC · model grok-4.3

classification ❄️ cond-mat.quant-gas cond-mat.supr-conquant-ph
keywords Fermi superfluidvortex latticespherical geometryAbrikosov parametermonopole fieldGinzburg-Landau theoryultracold atomsapproximate lattices
0
0 comments X

The pith

Approximate vortex lattices on a sphere have Abrikosov parameters approaching the planar value as vortex number increases.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Planar Fermi superfluids form regular Abrikosov vortex lattices under magnetic fields, but spherical surfaces prevent perfect lattices for more than 20 vortices. The paper constructs approximate vortex arrangements for atomic Fermi superfluids on a sphere under an effective monopole field using the Ginzburg-Landau approach. One method places the order parameter on scaffolds like the Fibonacci lattice using degenerate monopole harmonics, while the other numerically minimizes the free energy to find the lowest Abrikosov parameter. Both approaches show that the Abrikosov parameters approach the known value for flat geometry when the number of vortices becomes large. This provides insight into realizing vortex lattices in curved geometries relevant to ultracold atom experiments.

Core claim

Using two constructions based on the Ginzburg-Landau theory, the approximate vortex structures of atomic Fermi superfluids under an effective monopole field on a spherical surface are characterized as an analogue of the planar vortex-lattice problem. The geometric construction uses random, geodesic-dome, and Fibonacci lattices as scaffolds to build the order parameter from degenerate monopole harmonics, while the numerical construction adjusts coefficients to minimize the free energy and find the solution with the minimal Abrikosov parameter. The vortices in both cases are zeros of the order parameter with circulating currents around the cores. As the number of vortices increases, the Abrik

What carries the argument

The Abrikosov parameter, which quantifies the excess free energy due to vortices, computed for order parameters constructed from linear combinations of monopole harmonics on spherical lattice scaffolds or via free-energy minimization.

If this is right

  • The spherical vortex configurations become increasingly similar to planar Abrikosov lattices at high vortex densities.
  • Both geometric and variational methods yield consistent results that converge to the same planar limit.
  • These models can guide experiments with ultracold atoms in spherical shell traps to observe vortex formation.
  • The circulating currents around vortex cores are preserved in the approximate structures.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • One could test the approach by comparing the predicted vortex positions in the Fibonacci construction with actual observations in spherical superfluids for moderate vortex numbers.
  • The convergence implies that for sufficiently dense vortices, curvature-induced deviations become small, potentially allowing use of planar theory approximations in mildly curved systems.
  • Similar scaffold-based constructions might extend to other topologically constrained geometries, such as tori or higher-genus surfaces.

Load-bearing premise

The Ginzburg-Landau framework remains quantitatively accurate for the Fermi superfluid on the sphere under the effective monopole field, especially when constructing the order parameter from degenerate monopole harmonics.

What would settle it

Computing or measuring the Abrikosov parameter for configurations with several hundred vortices on the sphere and verifying whether it matches the extrapolated planar value to within a few percent.

Figures

Figures reproduced from arXiv: 2604.05216 by Chih-Chun Chien, Keshab Sony, Yan He.

Figure 2
Figure 2. Figure 2: FIG. 2. Current circulation (indicated by the arrows) around [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗

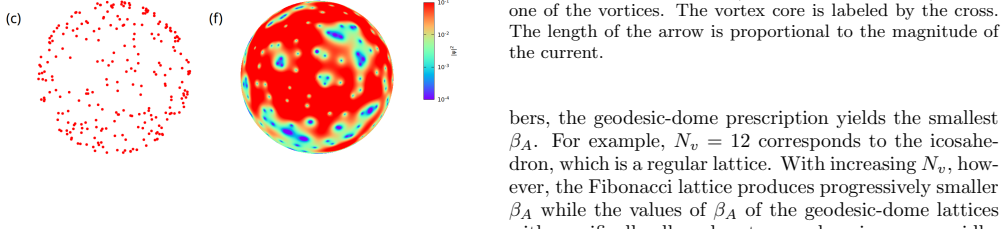

Figure 1
Figure 1. Figure 1: FIG. 1. Left column: Illustrations of the (a) geodesic-dome, [PITH_FULL_IMAGE:figures/full_fig_p005_1.png] view at source ↗
Figure 3
Figure 3. Figure 3: FIG. 3. Abrikosov parameter [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗

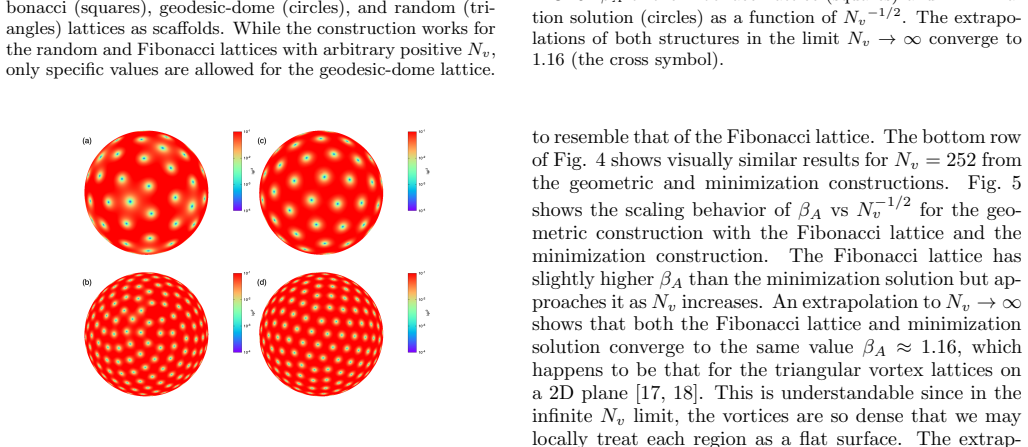

Figure 4
Figure 4. Figure 4: FIG. 4. Comparison of geometrically constructions [(a) and [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗
read the original abstract

While planar Fermi superfluids form Abrikosov vortex lattices under magnetic or effective gauge fields, spherical geometry forbids perfect lattices above 20 vortices. We characterize approximate vortex structures of atomic Fermi superfluids under an effective monopole field on a spherical surface as an analogue of the planar vortex-lattice problem by two constructions based on the Ginzburg-Landau theory. The first one is geometric and uses the random, geodesic-dome, and Fibonacci lattices as scaffolds to construct the order parameter from the degenerate monopole harmonics. The second one minimizes the free energy by numerically adjusting the coefficients to find the solution with the minimal Abrikosov parameter. We have verified the vortices from both constructions are zeros of the order parameter with circulating currents around the vortex cores. As the number of vortices increases, the Abrikosov parameters of both the Fibonacci-lattice and minimization solutions extrapolate to the planar value. We briefly discuss implications for ultracold atoms in thin spherical-shell geometry.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

1 major / 3 minor

Summary. The paper claims that approximate vortex lattices of atomic Fermi superfluids on a spherical surface under an effective monopole field can be constructed within Ginzburg-Landau theory using two approaches: a geometric construction that expands the order parameter in degenerate monopole harmonics based on scaffolds such as random, geodesic-dome, and Fibonacci lattices, and a numerical minimization of the free energy by adjusting expansion coefficients to minimize the Abrikosov parameter. Both constructions are verified to produce vortices as zeros of the order parameter with circulating supercurrents, and the Abrikosov parameters from the Fibonacci and minimization solutions are shown to extrapolate toward the known planar triangular-lattice value as the vortex number N increases.

Significance. If the central claim holds, the work is significant because it supplies explicit constructions and a numerical check that spherical vortex structures recover the planar Abrikosov lattice in the large-N continuum limit on a curved manifold. The dual geometric-plus-variational methodology and the explicit verification of phase winding and currents provide a concrete bridge between monopole-harmonic expansions and known flat-space results, with direct relevance to proposed ultracold-atom experiments in thin spherical shells.

major comments (1)
  1. The central extrapolation result (that Abrikosov parameters approach the planar value with increasing N) is presented without reported error bars, basis-size convergence tests, or quantitative fit details for the numerical minimization procedure. This absence directly affects in the load-bearing claim that the spherical solutions recover the planar limit.
minor comments (3)
  1. The Abrikosov parameter should be defined explicitly (including its relation to the free-energy functional) at first use rather than assumed known from the planar literature.
  2. The manuscript would benefit from a brief statement of the range of N examined and the number of monopole harmonics retained in the expansion for each construction.
  3. Figure captions or the main text should specify how the circulating currents around vortex cores are computed (e.g., via the supercurrent expression derived from the order-parameter phase).

Simulated Author's Rebuttal

1 responses · 0 unresolved

We thank the referee for the positive evaluation of our work and the recommendation for minor revision. The single major comment is addressed below; we will incorporate the requested details to strengthen the presentation of the extrapolation.

read point-by-point responses

  1. Referee: The central extrapolation result (that Abrikosov parameters approach the planar value with increasing N) is presented without reported error bars, basis-size convergence tests, or quantitative fit details for the numerical minimization procedure. This absence directly affects in the load-bearing claim that the spherical solutions recover the planar limit.

    Authors: We agree that the numerical details of the minimization and extrapolation can be presented more rigorously. In the revised manuscript we will add: (i) error bars on the Abrikosov parameter obtained from the spread over multiple independent minimizations started from different random initial coefficient sets; (ii) a basis-size convergence test showing that the minimized value stabilizes once the monopole-harmonic cutoff exceeds the vortex number N by a fixed margin; and (iii) the explicit linear fit (Abrikosov parameter versus 1/N) together with the fitted intercept, slope, and their uncertainties. These additions will appear in the main text and in an updated figure, confirming that the approach to the planar limit remains robust under the reported numerical controls. revision: yes

Circularity Check

0 steps flagged

No significant circularity identified

full rationale

The paper's central derivation uses the Ginzburg-Landau functional on the sphere with monopole flux to construct order parameters via two independent routes: (1) geometric scaffolds (Fibonacci, geodesic) expanded in degenerate monopole harmonics, and (2) numerical coefficient adjustment to minimize the free-energy functional. The Abrikosov parameter is evaluated on the resulting solutions and shown numerically to approach the known planar triangular-lattice value for large vortex number N. This limit is an emergent numerical observation from the model equations, not a redefinition of the input parameters or a fitted quantity renamed as a prediction. No load-bearing step reduces by construction to a self-citation, ansatz smuggled via prior work, or uniqueness theorem supplied by the authors themselves; the framework is standard GL theory applied to a new geometry, and the large-N check is externally falsifiable against the planar benchmark.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The central constructions rest on the standard Ginzburg-Landau free-energy functional and the known properties of monopole harmonics; the only adjustable elements are the numerical coefficients tuned during minimization. No new particles or forces are introduced.

free parameters (1)
  • coefficients of the order-parameter expansion
    Numerically varied to minimize the free energy (Abrikosov parameter) for each vortex number.
axioms (1)
  • domain assumption Ginzburg-Landau theory applies to the atomic Fermi superfluid on the sphere under an effective monopole field
    Invoked to construct the order parameter from degenerate monopole harmonics and to define the free-energy functional.
