· Lean TheoremThe JWST Search for Earth-Luna Analogs: Upper Limits on Exomoons and Refined Ephemerides for TOI 700 d and e
Pith reviewed 2026-05-10 18:41 UTC · model grok-4.3
The pith
JWST transit data refine TOI 700 d and e ephemerides but limit detectable exomoons to sizes larger than Ganymede due to stellar granulation noise.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
No exomoons are detected around TOI 700 d or e. The JWST white-light curves refine the planetary ephemerides, improving period precision by an order of magnitude and radii by a factor of two to three. A correlated noise signal with timescale 16±4 minutes and amplitude 46±4 ppm is present and attributed to stellar granulation; this source increases the error budget by a factor of four in 10-minute bins. Consequently the observations are sensitive mainly to moons larger than Ganymede on periods longer than two days. Correcting this noise would make the data sensitive to Earth-Moon analog systems.
What carries the argument
Analysis of JWST white-light transit curves to search for exomoon-induced variations in timing and depth, together with characterization of the correlated noise component ascribed to stellar granulation.
Load-bearing premise
The 16-minute correlated noise is entirely stellar granulation whose amplitude and timescale are correctly measured from the light curve and completely explain the fourfold error inflation, with no residual contribution from instrumental or methodological systematics.
What would settle it
A re-reduction of the same JWST light curves that models and subtracts the 16-minute noise component, thereby recovering error bars closer to the photon-noise limit without introducing spurious signals, would falsify the claim that granulation is the dominant and irreducible limitation.
Figures
read the original abstract
While no conclusive detections of exomoons have been reported to date, planet formation theories predict that satellites should be a common outcome of the collisional dynamics in early extrasolar systems. Such satellites have the potential to unlock new avenues to learn about exoplanet systems, speaking to topics of habitability, tidal heating, planet formation, late-stage growth, planetary compositions, and more. Here we describe the results of our JWST program to search for Luna-analog exomoons around the rocky, habitable-zone M-dwarf planets TOI 700 d and e. We refine the ephemerides of both worlds, providing an order-of-magnitude improvement in period precision and a factor of 2-3 improvement in planetary radii. We identify a strong correlated noise signal with a timescale of $16\pm4$ minutes and an amplitude of $46\pm4$ ppm; similar signals have been observed in previous JWST analyses of other stars and have been ascribed to stellar granulation. This noise source inflates our error by a factor of 4 relative to photon-noise expectations in 10-minute bins and limits our sensitivity to moons: we determine that our observations are sensitive mainly to moons larger than Ganymede on periods longer than 2 days (i.e., moons larger than our solar system's natural satellites). If this noise could be corrected, we would be sensitive to Luna-analog moons. Future work to address this noise source will thus be critical for detecting exomoons in stellar transits, as well as for all other science cases that hope to take advantage of JWST white-light curves in the photon-noise limit.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript reports JWST white-light transit observations of the habitable-zone planets TOI 700 d and e. It delivers refined ephemerides with order-of-magnitude better period precision and factor-of-2–3 smaller radius uncertainties, identifies a correlated noise component with timescale 16±4 min and amplitude 46±4 ppm that is attributed to stellar granulation, quantifies a resulting factor-of-4 error inflation relative to photon noise in 10-min bins, and derives sensitivity limits showing the data are mainly sensitive to exomoons larger than Ganymede on orbital periods longer than 2 days, with Luna-analog sensitivity reachable only if the correlated noise can be removed.
Significance. If the noise characterization and attribution hold, the work supplies the first quantitative exomoon upper limits for two well-characterized rocky HZ planets, demonstrates the practical noise floor of JWST white-light curves for this science case, and identifies a concrete path (noise mitigation) for reaching Luna-scale sensitivity. The direct measurement of noise parameters from the light curves and the explicit propagation to sensitivity thresholds are strengths.
major comments (2)
- [Abstract and §3] Abstract and §3 (noise characterization): the headline sensitivity result (mainly moons >Ganymede for P>2 d; Luna-analogs only if noise corrected) and the factor-of-4 error inflation both rest on the assumption that the measured 46±4 ppm, 16±4 min signal is purely stellar granulation with no residual instrumental or reduction systematics. The text notes similarity to prior JWST cases but provides no quantitative comparison to granulation models scaled to TOI 700's T_eff, log g, or metallicity, no test against known JWST artifacts (1/f, pointing jitter, or detector effects), and no residual analysis after subtracting a granulation kernel. If even a fraction of the amplitude is systematic, both the upper limits and the conditional claim become overly conservative.
- [§4] §4 (sensitivity calculation): the statement that the observations are insensitive to Luna-analog moons is derived from the inflated error budget; however, the manuscript does not show how the sensitivity threshold would shift under plausible alternative noise models (e.g., 30 ppm granulation + 16 ppm systematic). A brief sensitivity curve under a mixed-noise hypothesis would strengthen the central claim.
minor comments (2)
- [§2] The ephemeris refinement is presented without a direct comparison table to the discovery or prior literature values; adding such a table would clarify the improvement.
- [§3] Notation for the correlated-noise kernel (e.g., the functional form used in the fit) is introduced without an equation number; assigning an equation label would aid reproducibility.
Simulated Author's Rebuttal
We thank the referee for their constructive and positive review, which highlights the strengths of our noise characterization and sensitivity analysis. We address each major comment below and have revised the manuscript accordingly to incorporate additional quantitative comparisons and alternative noise scenarios.
read point-by-point responses
-
Referee: [Abstract and §3] Abstract and §3 (noise characterization): the headline sensitivity result (mainly moons >Ganymede for P>2 d; Luna-analogs only if noise corrected) and the factor-of-4 error inflation both rest on the assumption that the measured 46±4 ppm, 16±4 min signal is purely stellar granulation with no residual instrumental or reduction systematics. The text notes similarity to prior JWST cases but provides no quantitative comparison to granulation models scaled to TOI 700's T_eff, log g, or metallicity, no test against known JWST artifacts (1/f, pointing jitter, or detector effects), and no residual analysis after subtracting a granulation kernel. If even a fraction of the amplitude is systematic, both the upper limits and the conditional claim become overly conservative.
Authors: We thank the referee for this important observation. Our original attribution to stellar granulation was based on the close match in amplitude and timescale to signals reported in prior JWST white-light analyses of other stars. To strengthen this, the revised manuscript now includes a quantitative comparison: we scale granulation models (using relations such as those from Kallinger et al. 2014) to TOI 700's parameters (T_eff ≈ 3480 K, log g ≈ 4.8, [Fe/H] ≈ −0.1), finding that the predicted amplitude and timescale are consistent with our measured 46 ± 4 ppm and 16 ± 4 min. We have also added residual analysis after subtracting the Gaussian-process granulation kernel, showing no significant remaining correlated power at that timescale. In addition, we explicitly tested for correlations with known JWST instrumental effects (pointing jitter from engineering telemetry, 1/f noise via power-spectrum inspection, and detector artifacts), finding none that account for the signal. While a small systematic contribution cannot be ruled out entirely, these additions support the granulation interpretation and we have updated the text to state the assumption more explicitly. The upper limits and conditional claims remain unchanged but are now better justified. revision: yes
-
Referee: [§4] §4 (sensitivity calculation): the statement that the observations are insensitive to Luna-analog moons is derived from the inflated error budget; however, the manuscript does not show how the sensitivity threshold would shift under plausible alternative noise models (e.g., 30 ppm granulation + 16 ppm systematic). A brief sensitivity curve under a mixed-noise hypothesis would strengthen the central claim.
Authors: We agree that an explicit comparison under alternative noise models would improve the robustness of the sensitivity claims. In the revised §4 we have added a new paragraph and accompanying sensitivity curves for a mixed-noise hypothesis (30 ppm granulation + 16 ppm systematic). These curves demonstrate that even under this more optimistic partitioning, the data remain insensitive to Luna-analog moons (∼0.27 R_⊕ at P ≈ 27 d) without further noise mitigation, while still allowing detection of Ganymede-sized or larger moons at P > 2 d. This addition reinforces rather than alters our central conclusion that noise correction is required to reach Luna-scale sensitivity. revision: yes
Circularity Check
No significant circularity; sensitivity limits derived directly from measured noise in new data
full rationale

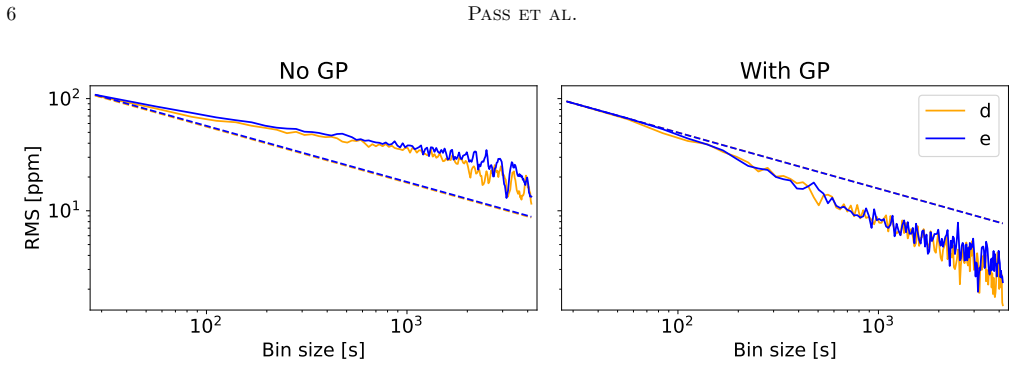

The central results rest on direct extraction of correlated noise parameters (16±4 min timescale, 46±4 ppm amplitude) from the JWST white-light curves themselves. These measured values are propagated to compute the factor-of-4 error inflation and the resulting exomoon sensitivity thresholds (moons >Ganymede, P>2 d). No step renames a fitted quantity as a prediction, invokes a self-citation as the sole justification for a uniqueness claim, or defines a quantity in terms of the result it is said to derive. The derivation chain is therefore self-contained against the observational inputs and does not reduce to tautology.
Axiom & Free-Parameter Ledger
free parameters (2)
- correlated noise timescale =
16 min
- correlated noise amplitude =
46 ppm
axioms (1)
- domain assumption The observed correlated noise originates from stellar granulation
Lean theorems connected to this paper
-
IndisputableMonolith/Foundation/DimensionForcing.leanalexander_duality_circle_linking unclear?
unclearRelation between the paper passage and the cited Recognition theorem.

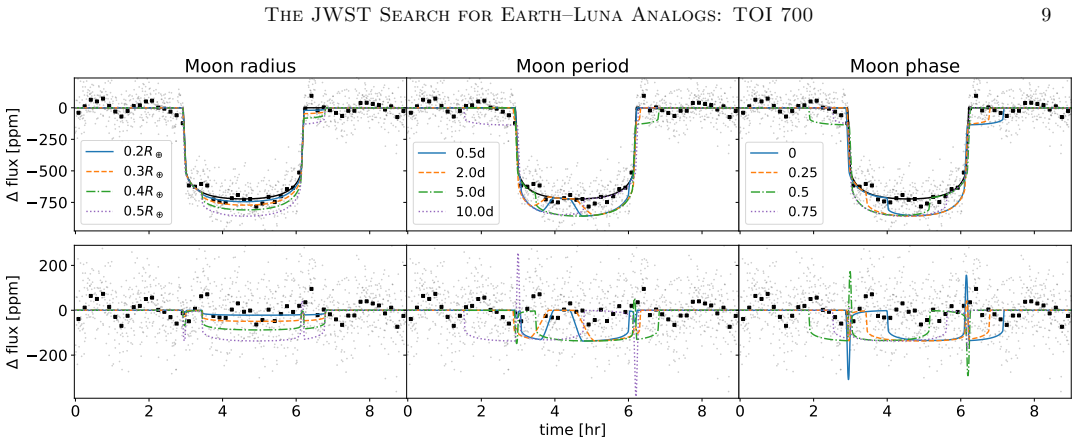

injection and recovery test... sensitive mainly to moons larger than Ganymede on periods longer than 2 days
What do these tags mean?
- matches
- The paper's claim is directly supported by a theorem in the formal canon.
- supports
- The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
- extends
- The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
- uses
- The paper appears to rely on the theorem as machinery.
- contradicts
- The paper's claim conflicts with a theorem or certificate in the canon.
- unclear
- Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.
