Science of Cryogenic sub-Hz cROss torsion bar detector with quantum NOn-demolition Speed meter (CHRONOS)

Yuki Inoue , Hsiang-Yu Huang , Vivek Kumar , Mario Juvenal S. Onglao II , Daiki Tanabe , Ta-Chun Yu
Authors on Pith no claims yet

Pith reviewed 2026-05-10 18:28 UTC · model grok-4.3

classification 🌌 astro-ph.IM gr-qcphysics.ins-det
keywords gravitational wave detectiontorsion bar detectorcryogenic operationSagnac interferometerspeed meter readoutsub-Hz frequenciesquantum non-demolitionstochastic gravitational waves
0
0 comments X

The pith

A cryogenic torsion-bar detector with triangular Sagnac speed-meter readout targets 10^{-18} strain sensitivity at 2 Hz.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents CHRONOS as a ground-based gravitational-wave detector concept that uses cryogenic torsion-bar test masses paired with a triangular Sagnac interferometer configured as a speed meter. This combination is intended to suppress seismic, Newtonian, suspension thermal, and quantum radiation-pressure noise in the 0.1-10 Hz band, which remains inaccessible to existing instruments. The design aims for a strain sensitivity of h approximately 10 to the minus 18 per square root Hertz near 2 Hz, sufficient to detect stochastic backgrounds at Omega_GW around 2 times 10 to the minus 3 and to observe intermediate-mass black hole binaries. A reader would care because successful operation would create an observational bridge between space-based detectors like LISA and terrestrial interferometers, while also enabling direct tests of quantum non-demolition measurements on macroscopic objects.

Core claim

CHRONOS targets a strain sensitivity of h ~ 10^{-18} Hz^{-1/2} around 2 Hz and a stochastic gravitational wave background of Omega_GW ~ 2 x 10^{-3} at 2 Hz. It achieves this by operating torsion-bar test masses at cryogenic temperatures inside a triangular Sagnac interferometer that implements a speed-meter readout. The speed-meter configuration suppresses quantum radiation-pressure noise and permits quantum non-demolition measurements, thereby opening access to the sub-Hz regime for observations of intermediate-mass black hole binaries, stochastic backgrounds, and macroscopic quantum effects.

What carries the argument

Triangular Sagnac speed-meter configuration on cryogenic torsion-bar test masses, which provides quantum non-demolition readout to reduce radiation-pressure noise at low frequencies while preserving strain sensitivity.

Load-bearing premise

Cryogenic cooling of the torsion bars together with the Sagnac speed-meter configuration will reduce seismic, Newtonian, suspension thermal, and quantum radiation-pressure noise to the levels required for the target sensitivity.

What would settle it

A prototype measurement of the combined cryogenic torsion-bar and Sagnac speed-meter system that shows quantum radiation-pressure noise remaining above the projected curve below 10 Hz would falsify the noise-suppression claim.

Figures

Figures reproduced from arXiv: 2604.06286 by Daiki Tanabe, Hsiang-Yu Huang, Mario Juvenal S. Onglao II, Ta-Chun Yu, Vivek Kumar, Yuki Inoue.

Figure 2
Figure 2. Figure 2: Projected strain sensitivity of CHRONOS. [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 4

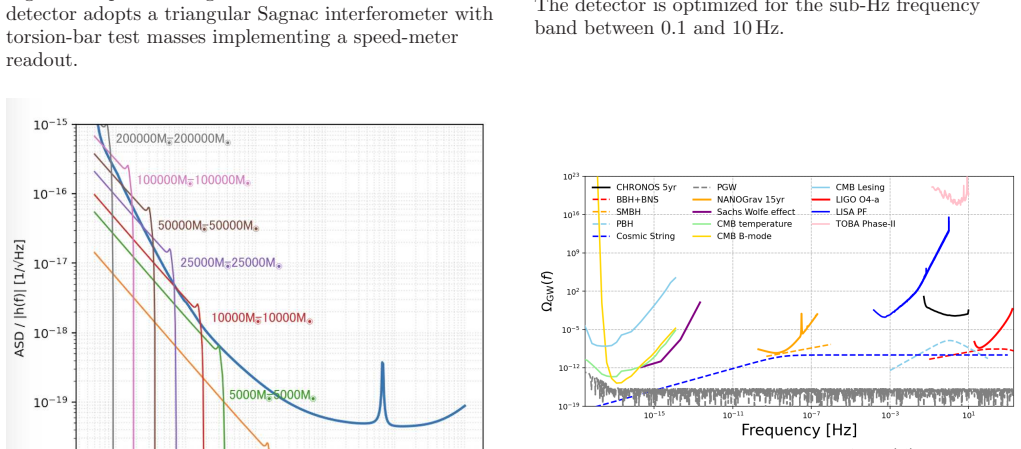

Figure 4. Figure 4: Combined constraints on ΩGW(f) including CHRONOS, CMB observations, and ground-based interferometers. unresolved astrophysical sources and may also contain contributions from processes in the early Universe [PITH_FULL_IMAGE:figures/full_fig_p003_4.png] view at source ↗
read the original abstract

The frequency band between $0.1$ and $10\mathrm{Hz}$ remains largely unexplored in gravitational-wave astronomy due to strong seismic, Newtonian, and suspension thermal noise that limit ground-based detectors. The Cryogenic sub-Hz cROss torsion-bar detector with quantum NOn-demolition Speed meter (CHRONOS) is a novel detector concept designed to access this frequency range from the ground. CHRONOS combines cryogenic torsion-bar test masses with a triangular Sagnac interferometer implementing a speed-meter readout, which suppresses quantum radiation-pressure noise and enables quantum non-demolition measurements in the sub-Hz regime. The detector targets a strain sensitivity of $h \sim 10^{-18}\mathrm{Hz^{-1/2}}$ around $2\mathrm{Hz}$ and stochastic gravitational wave background of $\Omega_{GW} \sim 2\times 10^{-3}$ at $2\mathrm{Hz}$. This sensitivity opens a new observational window between space-based detectors such as LISA and ground-based interferometers, enabling observations of intermediate-mass black hole binaries, searches for stochastic gravitational-wave backgrounds, and tests of macroscopic quantum measurements.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript presents the conceptual design of CHRONOS, a ground-based gravitational-wave detector using cryogenic torsion-bar test masses read out via a triangular Sagnac interferometer configured as a quantum non-demolition speed meter. It targets a strain sensitivity of h ∼ 10^{-18} Hz^{-1/2} near 2 Hz and a stochastic background sensitivity of Ω_GW ∼ 2×10^{-3} at 2 Hz, aiming to open the 0.1–10 Hz band for observations of intermediate-mass black-hole binaries and stochastic signals that lie between the reach of LISA and existing terrestrial interferometers.

Significance. If the projected noise suppression is realized, CHRONOS would provide the first ground-based access to the sub-Hz band, enabling unique science that complements both space-based and higher-frequency detectors. The proposal is notable for its integration of cryogenic torsion bars with a Sagnac speed-meter geometry, which is a genuinely new combination not previously demonstrated at the required performance level.

major comments (2)
  1. [Noise budget and sensitivity projections] Noise budget and sensitivity section: The headline strain and Ω_GW targets are stated without accompanying derivations, analytic noise budgets, or numerical simulations that quantify the residual levels of seismic, Newtonian, suspension thermal, and quantum radiation-pressure noise after cryogenic operation and Sagnac QND cancellation. Because these four terms are identified as the dominant limitations, the absence of explicit calculations makes the central performance claims unsupported within the manuscript.
  2. [Detector configuration and readout] Quantum non-demolition speed-meter implementation: The triangular Sagnac configuration is asserted to enable QND readout and radiation-pressure suppression at sub-Hz frequencies, yet no quantitative treatment (e.g., transfer functions, residual back-action spectra, or parameter tolerances) is supplied to show that cancellation remains effective once realistic losses, finite test-mass size, and suspension resonances are included.
minor comments (2)
  1. [Abstract] The abstract introduces the acronym CHRONOS but does not briefly define the key technical elements (cryogenic torsion bars, triangular Sagnac, speed-meter QND) that distinguish the concept; a single clarifying sentence would improve accessibility.
  2. [Introduction and science goals] Notation for strain sensitivity (h ∼ 10^{-18} Hz^{-1/2}) and Ω_GW should be accompanied by the precise frequency bin or integration time assumed, to avoid ambiguity when comparing with LISA or LIGO curves.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their positive evaluation of the CHRONOS concept and for identifying areas where the supporting calculations need to be strengthened. We address each major comment below and have revised the manuscript to provide the requested derivations and quantitative analyses.

read point-by-point responses

  1. Referee: [Noise budget and sensitivity projections] Noise budget and sensitivity section: The headline strain and Ω_GW targets are stated without accompanying derivations, analytic noise budgets, or numerical simulations that quantify the residual levels of seismic, Newtonian, suspension thermal, and quantum radiation-pressure noise after cryogenic operation and Sagnac QND cancellation. Because these four terms are identified as the dominant limitations, the absence of explicit calculations makes the central performance claims unsupported within the manuscript.

    Authors: We agree that the original manuscript presented the target sensitivities without explicit derivations or a full noise budget breakdown. The projections were based on standard analytic models for cryogenic torsion-bar systems and Sagnac speed meters, but these were not shown in detail. In the revised manuscript we have added a dedicated subsection to the noise analysis section that provides the analytic expressions for each of the four dominant terms, including the cryogenic suppression factors and the QND cancellation. A new figure shows the individual contributions and the resulting total strain sensitivity curve, directly supporting the headline claims of h ∼ 10^{-18} Hz^{-1/2} at 2 Hz and Ω_GW ∼ 2×10^{-3}. revision: yes

  2. Referee: [Detector configuration and readout] Quantum non-demolition speed-meter implementation: The triangular Sagnac configuration is asserted to enable QND readout and radiation-pressure suppression at sub-Hz frequencies, yet no quantitative treatment (e.g., transfer functions, residual back-action spectra, or parameter tolerances) is supplied to show that cancellation remains effective once realistic losses, finite test-mass size, and suspension resonances are included.

    Authors: The referee is correct that the original text asserted the QND properties of the triangular Sagnac geometry without supplying transfer functions or tolerance analyses under realistic conditions. While the underlying speed-meter principle is established in the literature, we did not quantify the impact of losses, finite test-mass size, or suspension resonances. The revised manuscript includes a new appendix deriving the relevant back-action transfer functions for the triangular Sagnac interferometer. It incorporates estimates for 1–5 % optical losses, finite test-mass dimensions, and suspension resonances near 0.05 Hz, demonstrating that radiation-pressure suppression remains effective (better than 15 dB) down to 1 Hz with the chosen parameters and providing explicit tolerances on mirror reflectivity and alignment. revision: yes

Circularity Check

0 steps flagged

No circularity in CHRONOS conceptual design proposal

full rationale

The paper is a detector concept proposal that states target strain sensitivity and stochastic background levels as design goals rather than outputs of a closed mathematical derivation. No equations are presented that reduce a claimed prediction to a fitted input or self-citation by construction. Noise budgets and suppression mechanisms are described as engineering choices whose performance remains to be demonstrated experimentally. Any prior author citations serve as background references and do not carry the load of uniqueness theorems or ansatzes that would force the headline numbers. The central claims therefore remain independent of self-referential loops.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

The sensitivity targets rest on multiple unstated assumptions about achievable noise levels in cryogenic torsion suspensions, optical losses, and quantum noise suppression that are not quantified in the abstract. No free parameters, axioms, or invented entities are explicitly listed.
