Massive modes on magnetized blow-up manifold of T²/mathbb{Z}_N
Pith reviewed 2026-05-10 18:38 UTC · model grok-4.3
The pith
Smooth massive mode connections in magnetized orbifold blow-ups require invariant effective flux on connecting lines.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
To ensure a smooth connection between the massive modes on magnetized T²/Z_N orbifold and those on magnetized S², it is required that not only the total magnetic flux as well as the total curvature but also the effective magnetic flux on the connected line remain invariant under the blow-up procedure. Furthermore, we find that the number of the localized modes at each orbifold singular point increases by one for each unit increment of the mass level.
What carries the argument
The blow-up replacement of orbifold singularities by S² patches that preserves the effective magnetic flux on the connecting lines, permitting continuous matching of massive mode wavefunctions across the geometry change.
If this is right
- The massive mode spectrum can be tracked continuously from the singular orbifold to the resolved smooth manifold.
- Localization at orbifold points persists after blow-up but with a multiplicity that grows linearly with the mass level.
- Invariance of total flux and curvature alone is not enough; the effective flux condition on connecting lines is also necessary for mode continuity.
- The resolved geometry admits the same total number of modes as the orbifold once the flux invariants are matched.
Where Pith is reading between the lines
- The same invariance requirement may apply when resolving singularities in higher-dimensional magnetized compactifications.
- Higher-mass modes could contribute additional localized states that affect effective four-dimensional theories built on these geometries.
- One could test the result by constructing explicit solutions for wavefunctions on a specific blown-up manifold and checking overlap integrals.
Load-bearing premise
The blow-up of singularities by S² patches can be performed so the effective magnetic flux along each connecting line stays exactly the same, with no extra corrections from the geometry change.
What would settle it
An explicit wavefunction calculation for a concrete magnetized T²/Z_N model in which the effective flux on the connecting line is deliberately altered, showing a discontinuity in the mode profiles or a mismatch in the count of localized states.
Figures
read the original abstract

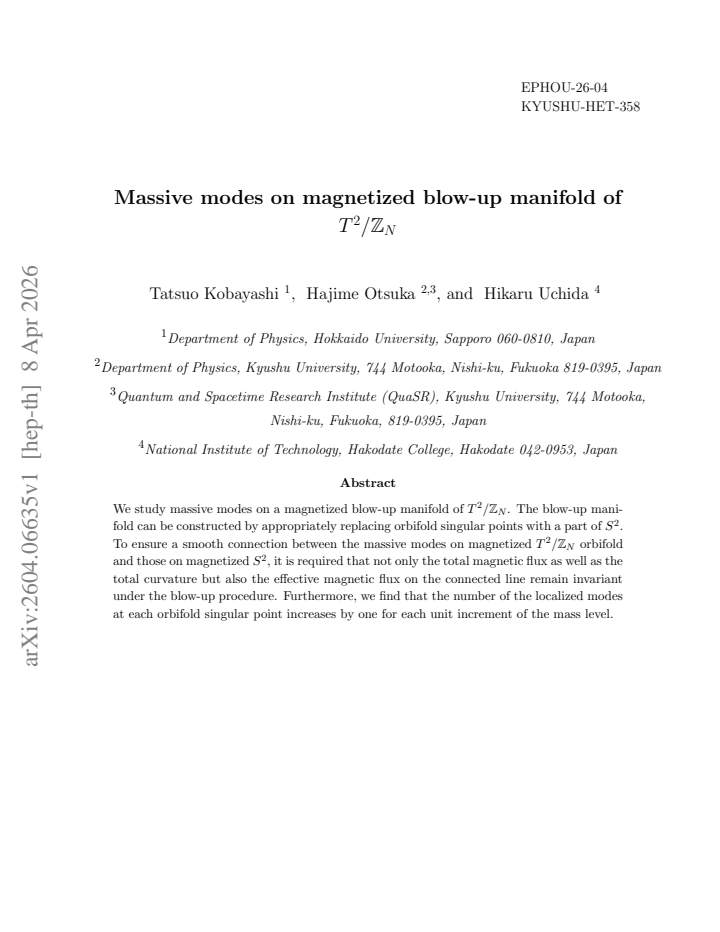

We study massive modes on a magnetized blow-up manifold of $T^2/\mathbb{Z}_N$. The blow-up manifold can be constructed by appropriately replacing orbifold singular points with a part of $S^2$. To ensure a smooth connection between the massive modes on magnetized $T^2/\mathbb{Z}_N$ orbifold and those on magnetized $S^2$, it is required that not only the total magnetic flux as well as the total curvature but also the effective magnetic flux on the connected line remain invariant under the blow-up procedure. Furthermore, we find that the number of the localized modes at each orbifold singular point increases by one for each unit increment of the mass level.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The paper studies massive modes on the magnetized blow-up manifold of T²/Z_N, constructed by replacing orbifold singularities with S² patches. It claims that smooth connection of modes between the orbifold and resolved geometries requires invariance not only of total magnetic flux and total curvature but also of the effective magnetic flux along the connecting line under the blow-up. It further reports that the number of localized modes at each singular point increases by one for each unit increase in the mass level.
Significance. If the invariance conditions and mode-counting result are established rigorously, the work provides a concrete bridge between orbifold and resolved geometries for massive modes in magnetized compactifications. This could aid in constructing consistent wavefunction profiles across resolutions, with potential applications to localization and phenomenology in string-derived models. The explicit counting result, if verified, offers a falsifiable prediction for mode spectra.
major comments (1)
- [Blow-up construction and mode-matching discussion] The requirement that the effective magnetic flux on the connecting line remains invariant is stated as necessary for smooth mode matching, but no derivation is supplied showing that this follows from the standard blow-up geometry (local metric deformation controlled by the blow-up parameter). If the resolution alters the integrated flux through the connecting cycle or the local field-strength profile, the mode equations on the orbifold and S² sides will not join continuously, undermining the central claim of smooth connection. This is load-bearing for both the invariance statement and the subsequent mode-counting result.
minor comments (1)
- The abstract and summary statements would benefit from explicit reference to the relevant equations or sections where the mode equations on T²/Z_N and S² are written and matched.
Simulated Author's Rebuttal
We thank the referee for the careful reading of our manuscript and the constructive major comment. We agree that the derivation of the effective magnetic flux invariance requires more explicit justification from the blow-up geometry, and we will revise the paper to include this.
read point-by-point responses
-
Referee: [Blow-up construction and mode-matching discussion] The requirement that the effective magnetic flux on the connecting line remains invariant is stated as necessary for smooth mode matching, but no derivation is supplied showing that this follows from the standard blow-up geometry (local metric deformation controlled by the blow-up parameter). If the resolution alters the integrated flux through the connecting cycle or the local field-strength profile, the mode equations on the orbifold and S² sides will not join continuously, undermining the central claim of smooth connection. This is load-bearing for both the invariance statement and the subsequent mode-counting result.
Authors: We agree that an explicit derivation is needed. In the revised manuscript we will add a dedicated paragraph in Section 2 (or a new subsection) that starts from the standard blow-up metric ds² = dr² + r² dθ² + ε² f(r/ε) dϕ² on the S² patch, with the blow-up parameter ε controlling the local deformation. We will then impose continuity of the gauge potential A across the gluing circle (the connecting line) at r = r0. Because the orbifold side has a constant magnetic field, the line integral ∮ A · dl along this circle equals the effective flux Φ_eff. Matching this integral to the S²-side solution (where F is adjusted to satisfy the Bianchi identity and the total flux constraint) forces Φ_eff to be invariant. This ensures the Dirac operator coefficients are continuous, so the massive mode solutions join smoothly. The total flux and curvature remain unchanged by the global topology of the blow-up, but the local effective flux is an independent matching condition required for massive (as opposed to massless) modes. With this derivation in place, the subsequent counting argument—that each unit increase in mass level adds one localized mode per singularity—follows directly from the degeneracy of the Landau levels on the resolved patch. revision: yes
Circularity Check
No circularity: geometric invariance conditions and mode counting follow from manifold construction without reduction to inputs by definition
full rationale
The paper constructs the blow-up manifold by replacing T²/Z_N singularities with S² patches and states the invariance of total flux, curvature, and effective flux on connecting lines as a requirement for smooth mode matching. It then reports that localized modes increase by one per mass level. No quoted equation or step shows a result (such as the mode count) being equivalent to a fitted parameter, self-defined quantity, or self-citation chain by construction. The derivation applies standard magnetized mode equations to the resolved geometry and remains self-contained against external benchmarks like known orbifold and sphere spectra.
Axiom & Free-Parameter Ledger
axioms (1)
- domain assumption The blow-up replacement of orbifold singularities by S² patches can be performed such that total magnetic flux, total curvature, and effective magnetic flux on connecting lines remain invariant.
Reference graph
Works this paper leans on
-
[1]
Candelas, G.T
P. Candelas, G.T. Horowitz, A. Strominger and E. Witten,Vacuum configurations for superstrings,Nucl. Phys. B258(1985) 46
1985
-
[2]
Dixon, J.A
L.J. Dixon, J.A. Harvey, C. Vafa and E. Witten,Strings on Orbifolds,Nucl. Phys. B261 (1985) 678
1985
-
[3]
Dixon, J.A
L.J. Dixon, J.A. Harvey, C. Vafa and E. Witten,Strings on Orbifolds. 2.,Nucl. Phys. B 274(1986) 285
1986
-
[4]
Bachas,A Way to break supersymmetry,arXiv:hep-th/9503030
C. Bachas,A Way to break supersymmetry,hep-th/9503030
-
[5]
Noncom mutative compactifications of type I strings on tori with magnetic background flux,
R. Blumenhagen, L. Goerlich, B. Kors and D. Lust,Noncommutative compactifications of type I strings on tori with magnetic background flux,JHEP10(2000) 006 [hep-th/0007024]
-
[6]
C. Angelantonj, I. Antoniadis, E. Dudas and A. Sagnotti,Type I strings on magnetized orbifolds and brane transmutation,Phys. Lett. B489(2000) 223 [hep-th/0007090]
-
[7]
R. Blumenhagen, B. Kors and D. Lust,Type I strings with F flux and B flux,JHEP02 (2001) 030 [hep-th/0012156]
-
[8]
D. Cremades, L.E. Ibanez and F. Marchesano,Computing Yukawa couplings from magnetized extra dimensions,JHEP05(2004) 079 [hep-th/0404229]. 26
- [9]
- [10]
- [11]
-
[12]
T. Kobayashi and S. Nagamoto,Zero-modes on orbifolds : magnetized orbifold models by modular transformation,Phys. Rev. D96(2017) 096011 [1709.09784]
-
[13]
M. Sakamoto, M. Takeuchi and Y. Tatsuta,Zero-mode counting formula and zeros in orbifold compactifications,Phys. Rev. D102(2020) 025008 [2004.05570]
-
[14]
S. Kikuchi, T. Kobayashi, K. Nasu and H. Uchida,Classifications of magnetized T 4 and T4/Z2 orbifold models,JHEP08(2022) 256 [2203.01649]
-
[15]
S. Kikuchi, T. Kobayashi, K. Nasu, S. Takada and H. Uchida,Number of zero-modes on magnetized T4/ZN orbifolds analyzed by modular transformation,JHEP06(2023) 013 [2211.07813]
-
[16]
S. Kikuchi, T. Kobayashi, K. Nasu, S. Takada and H. Uchida,Zero-modes in magnetized T6/ZN orbifold models through Sp(6,Z) modular symmetry,Phys. Rev. D108(2023) 036005 [2305.16709]
- [17]
- [18]
-
[19]
K. Hoshiya, S. Kikuchi, T. Kobayashi, Y. Ogawa and H. Uchida,Classification of three-generation models by orbifolding magnetizedT 2 ×T 2,PTEP2021(2021) 033B05 [2012.00751]
-
[20]
Y. Fujimoto, T. Kobayashi, K. Nishiwaki, M. Sakamoto and Y. Tatsuta,Comprehensive analysis of Yukawa hierarchies onT 2/ZN with magnetic fluxes,Phys. Rev. D94(2016) 035031 [1605.00140]
- [21]
-
[22]
T. Kobayashi, Y. Tatsuta and S. Uemura,Majorana neutrino mass structure induced by rigid instantons on toroidal orbifold,Phys. Rev. D93(2016) 065029 [1511.09256]
-
[23]
K. Hoshiya, S. Kikuchi, T. Kobayashi, K. Nasu, H. Uchida and S. Uemura,Majorana neutrino masses by D-brane instanton effects in magnetized orbifold models,PTEP2022 (2022) 013B04 [2103.07147]
- [24]
- [25]
- [26]
-
[27]
T. Kobayashi, K. Nishiwaki and Y. Tatsuta,CP-violating phase on magnetized toroidal orbifolds,JHEP04(2017) 080 [1609.08608]
-
[28]
Flavor mixings in flux co mpactifications,
W. Buchmuller and J. Schweizer,Flavor mixings in flux compactifications,Phys. Rev. D 95(2017) 075024 [1701.06935]
-
[29]
W. Buchmuller and K.M. Patel,Flavor physics without flavor symmetries,Phys. Rev. D 97(2018) 075019 [1712.06862]
-
[30]
S. Kikuchi, T. Kobayashi, Y. Ogawa and H. Uchida,Yukawa textures in modular symmetric vacuum of magnetized orbifold models,PTEP2022(2022) 033B10 [2112.01680]
-
[31]
S. Kikuchi, T. Kobayashi, M. Tanimoto and H. Uchida,Mass matrices with CP phase in modular flavor symmetry,PTEP2022(2022) 113B07 [2206.08538]
-
[32]
K. Hoshiya, S. Kikuchi, T. Kobayashi and H. Uchida,Quark and lepton flavor structure in magnetized orbifold models at residual modular symmetric points,Phys. Rev. D106 (2022) 115003 [2209.07249]
-
[33]
T. Kobayashi, S. Nagamoto, S. Takada, S. Tamba and T.H. Tatsuishi,Modular symmetry and non-Abelian discrete flavor symmetries in string compactification,Phys. Rev. D97 (2018) 116002 [1804.06644]
-
[34]
S. Kikuchi, T. Kobayashi, S. Takada, T.H. Tatsuishi and H. Uchida,Revisiting modular symmetry in magnetized torus and orbifold compactifications,Phys. Rev. D102(2020) 105010 [2005.12642]. 28
-
[35]
S. Kikuchi, T. Kobayashi and H. Uchida,Modular flavor symmetries of three-generation modes on magnetized toroidal orbifolds,Phys. Rev. D104(2021) 065008 [2101.00826]
-
[36]
T. Kobayashi and S. Tamba,Modular forms of finite modular subgroups from magnetized D-brane models,Phys. Rev. D99(2019) 046001 [1811.11384]
-
[37]
S. Kikuchi, T. Kobayashi, K. Nasu, H. Uchida and S. Uemura,Modular symmetry anomaly and nonperturbative neutrino mass terms in magnetized orbifold models,Phys. Rev. D105(2022) 116002 [2202.05425]
-
[38]
S. Kikuchi, T. Kobayashi, K. Nasu, H. Otsuka, S. Takada and H. Uchida,Remark on modular weights in low-energy effective field theory from type II string theory,JHEP04 (2023) 003 [2301.10356]
-
[39]
S. Kikuchi, T. Kobayashi, K. Nasu, S. Takada and H. Uchida,Modular symmetry in magnetized T2g torus and orbifold models,Phys. Rev. D109(2024) 065011 [2309.16447]
-
[40]
T. Kobayashi, K. Nasu, R. Nishida, H. Otsuka and S. Takada,Flavor symmetries from modular subgroups in magnetized compactifications,JHEP12(2024) 128 [2409.02458]
-
[41]
T. Kobayashi, H. Otsuka, S. Takada and H. Uchida,Modular symmetry of localized modes,Phys. Rev. D110(2024) 125013 [2410.05788]
- [42]
- [43]
-
[44]
Non-invertible flavor symmetries in magnetized extra dimensions,
T. Kobayashi and H. Otsuka,Non-invertible flavor symmetries in magnetized extra dimensions,JHEP11(2024) 120 [2408.13984]
-
[45]
Non-Abelian discrete gauge symmetries in 4d string models
M. Berasaluce-Gonzalez, P.G. Camara, F. Marchesano, D. Regalado and A.M. Uranga, Non-Abelian discrete gauge symmetries in 4d string models,JHEP09(2012) 059 [1206.2383]
work page Pith review arXiv 2012
-
[46]
Y. Hamada and T. Kobayashi,Massive Modes in Magnetized Brane Models,Prog. Theor. Phys.128(2012) 903 [1207.6867]
-
[47]
S. Groot Nibbelink, M. Trapletti and M. Walter,Resolutions of C**n/Z(n) Orbifolds, their U(1) Bundles, and Applications to String Model Building,JHEP03(2007) 035 [hep-th/0701227]
-
[48]
P. Leung and H. Otsuka,Heterotic Stringy Corrections to Metrics of Toroidal Orbifolds and Their Resolutions,Phys. Rev. D99(2019) 126011 [1903.12144]. 29
-
[49]
Eguchi and A.J
T. Eguchi and A.J. Hanson,Asymptotically Flat Selfdual Solutions to Euclidean Gravity, Phys. Lett. B74(1978) 249
1978
-
[50]
T. Kobayashi, H. Otsuka and H. Uchida,Wavefunctions and Yukawa couplings on resolutions of T 2/ZN orbifolds,JHEP08(2019) 046 [1904.02867]
-
[51]
T. Kobayashi, H. Otsuka and H. Uchida,Flavor structure of magnetizedT 2/Z2 blow-up models,JHEP03(2020) 042 [1911.01930]
-
[52]
T. Kobayashi, H. Otsuka, M. Sakamoto, M. Takeuchi, Y. Tatsuta and H. Uchida,Index theorem on magnetized blow-up manifold of T2/ZN,Phys. Rev. D107(2023) 075032 [2211.04595]
- [53]
-
[54]
B.P. Dolan and A. Hunter-McCabe,Ground state wave functions for the quantum Hall effect on a sphere and the Atiyah-Singer index theorem,J. Phys. A53(2020) 215306 [2001.02208]
-
[55]
B.P. Dolan,The Spectrum of the Dirac operator on coset spaces with homogeneous gauge fields,JHEP05(2003) 018 [hep-th/0304037]
-
[56]
Dixon, V
L.J. Dixon, V. Kaplunovsky and J. Louis,Moduli dependence of string loop corrections to gauge coupling constants,Nucl. Phys. B355(1991) 649
1991
-
[57]
I. Antoniadis, E. Gava, K.S. Narain and T.R. Taylor,Superstring threshold corrections to Yukawa couplings,Nucl. Phys. B407(1993) 706 [hep-th/9212045]
- [58]
-
[59]
W. Buchmuller, M. Dierigl, F. Ruehle and J. Schweizer,Chiral fermions and anomaly cancellation on orbifolds with Wilson lines and flux,Phys. Rev. D92(2015) 105031 [1506.05771]
-
[60]
W. Buchmuller, M. Dierigl and Y. Tatsuta,Magnetized orbifolds and localized flux, Annals Phys.401(2019) 91 [1810.06362]
-
[61]
J. Polchinski,String theory. Vol. 1: An introduction to the bosonic string, Cambridge Monographs on Mathematical Physics, Cambridge University Press (12, 2007), 10.1017/CBO9780511816079
-
[62]
Choi and J.E
K.-S. Choi and J.E. Kim,Quarks and Leptons From Orbifolded Superstring,Lect. Notes Phys.954(2020) pp. 30
2020
-
[63]
G. Aldazabal, S. Franco, L.E. Ibanez, R. Rabadan and A.M. Uranga,Intersecting brane worlds,JHEP02(2001) 047 [hep-ph/0011132]
- [64]
-
[65]
Are neutrino masses modular forms?
F. Feruglio,Are neutrino masses modular forms?, inFrom My Vast Repertoire ...: Guido Altarelli’s Legacy, A. Levy, S. Forte and G. Ridolfi, eds., pp. 227–266 (2019), DOI [1706.08749]
work page Pith review arXiv 2019
-
[66]
Neutrino mixing from finite modular groups
T. Kobayashi, K. Tanaka and T.H. Tatsuishi,Neutrino mixing from finite modular groups,Phys. Rev. D98(2018) 016004 [1803.10391]
work page Pith review arXiv 2018
-
[67]
Lepton Masses and Mixing from Modular $S_4$ Symmetry
J.T. Penedo and S.T. Petcov,Lepton Masses and Mixing from ModularS 4 Symmetry, Nucl. Phys. B939(2019) 292 [1806.11040]
work page Pith review arXiv 2019
-
[68]
Modular A 5 symmetry for flavour model building,
P.P. Novichkov, J.T. Penedo, S.T. Petcov and A.V. Titov,Modular A 5 symmetry for flavour model building,JHEP04(2019) 174 [1812.02158]
-
[69]
T. Kobayashi, N. Omoto, Y. Shimizu, K. Takagi, M. Tanimoto and T.H. Tatsuishi, Modular A4 invariance and neutrino mixing,JHEP11(2018) 196 [1808.03012]
-
[70]
T. Kobayashi and M. Tanimoto,Modular flavor symmetric models,Int. J. Mod. Phys. A 39(2024) 2441012 [2307.03384]
-
[71]
Neutrino mass and mixing with modular symmetry,
G.-J. Ding and S.F. King,Neutrino mass and mixing with modular symmetry,Rept. Prog. Phys.87(2024) 084201 [2311.09282]
-
[72]
Goddard and D.I
P. Goddard and D.I. Olive,Kac-Moody and Virasoro Algebras in Relation to Quantum Physics,Int. J. Mod. Phys. A1(1986) 303
1986
-
[73]
M. Cvetic and I. Papadimitriou,Conformal field theory couplings for intersecting D-branes on orientifolds,Phys. Rev. D68(2003) 046001 [hep-th/0303083]
-
[74]
S.A. Abel and A.W. Owen,Interactions in intersecting brane models,Nucl. Phys. B663 (2003) 197 [hep-th/0303124]
-
[75]
Hamidi and C
S. Hamidi and C. Vafa,Interactions on Orbifolds,Nucl. Phys. B279(1987) 465
1987
-
[76]
Dixon, D
L.J. Dixon, D. Friedan, E.J. Martinec and S.H. Shenker,The Conformal Field Theory of Orbifolds,Nucl. Phys. B282(1987) 13. 31
1987
