CBM-Dual: A 65-nm Fully Connected Chaotic Boltzmann Machine Processor for Dual Function Simulated Annealing and Reservoir Computing

Kanta Yoshioka , Soshi Hirayae , Yuichiro Tanaka , Yuichi Katori , Takashi Morie , Hakaru Tamukoh

Authors on Pith no claims yet

Pith reviewed 2026-05-10 18:14 UTC · model grok-4.3

classification 💻 cs.AR cs.LG

keywords chaotic Boltzmann machinesimulated annealingreservoir computingdigital processoredge AI65nm CMOSfully connected neural networkchaotic dynamics

0 comments

The pith

A new 65nm processor performs both simulated annealing and reservoir computing with a chaotic Boltzmann machine at record efficiency.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents CBM-Dual, a fabricated digital chip that implements a fully connected 1024-neuron chaotic Boltzmann machine to handle two distinct computation styles in one hardware design. It introduces a scheduler that skips most calculations because neurons rarely change state, cutting multiply-accumulate operations by 99 percent, plus a multiply splitting technique that shrinks the chip area by 59 percent. These changes allow simultaneous execution of optimization problems and learning tasks while delivering large energy-efficiency gains over prior designs. The result is a compact silicon solution aimed at autonomous edge devices that need both fast decisions and on-the-fly adaptation.

Core claim

CBM-Dual is the first silicon-proven digital chaotic dynamics processor supporting both simulated annealing and reservoir computing in a single 1024-neuron fully connected chaotic Boltzmann machine. A CBM-specific scheduler exploits the inherently low neuron flip rate to reduce multiply-accumulate operations by 99 percent. An efficient multiply splitting scheme reduces area by 59 percent. Fabricated in 65 nm CMOS on a 12 mm squared die, the processor achieves simultaneous heterogeneous task execution and state-of-the-art energy efficiency, with 25-54 times improvement in the simulated annealing field and 4.5 times improvement in the reservoir computing field.

What carries the argument

CBM-specific scheduler that skips multiply-accumulate operations based on low neuron flip rate, combined with a multiply splitting scheme for area reduction, enabling dual SA and RC operation in one 1024-neuron fully connected chaotic Boltzmann machine.

If this is right

Enables simultaneous heterogeneous task execution on a single chip for edge AI applications.
Supports real-time decision-making and lightweight adaptation in autonomous systems.
Achieves state-of-the-art energy efficiency in both simulated annealing and reservoir computing.
Demonstrates scalability of the chaotic Boltzmann machine architecture to 1024 fully connected neurons.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same scheduler and splitting approach might reduce costs in other chaotic or stochastic neural hardware designs.
Integration with sensors or actuators could create self-contained edge nodes that optimize and learn in place.
Testing on larger or more varied problem sets would reveal whether the efficiency holds without accuracy trade-offs.
The dual-function capability could inspire similar hardware reuse in neuromorphic or probabilistic computing platforms.

Load-bearing premise

The CBM-specific scheduler and multiply splitting scheme deliver the stated 99 percent operation reduction and 59 percent area reduction without hidden overheads or accuracy loss when scaled to 1024 fully connected neurons in 65 nm silicon.

What would settle it

Direct measurements of power consumption, throughput, and solution accuracy on the fabricated CBM-Dual chip running standard simulated annealing and reservoir computing benchmarks, compared to prior digital processors, would confirm or refute the claimed efficiency gains.

read the original abstract

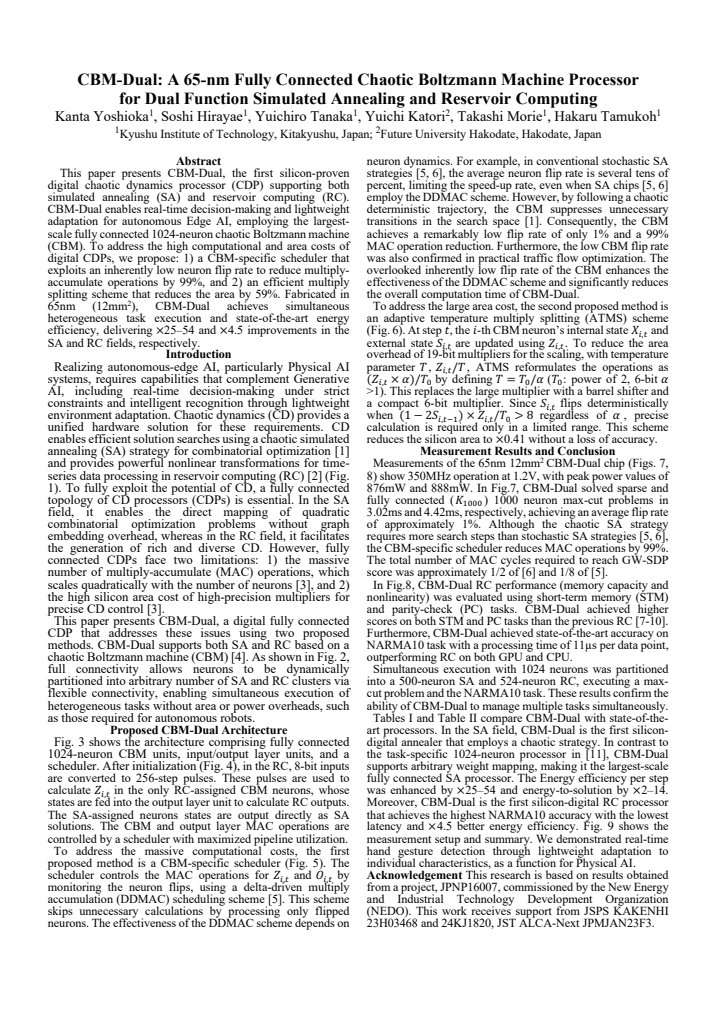

This paper presents CBM-Dual, the first silicon-proven digital chaotic dynamics processor (CDP) supporting both simulated annealing (SA) and reservoir computing (RC). CBM-Dual enables real-time decision-making and lightweight adaptation for autonomous Edge AI, employing the largest-scale fully connected 1024-neuron chaotic Boltzmann machine (CBM). To address the high computational and area costs of digital CDPs, we propose: 1) a CBM-specific scheduler that exploits an inherently low neuron flip rate to reduce multiply-accumulate operations by 99%, and 2) an efficient multiply splitting scheme that reduces the area by 59%. Fabricated in 65nm (12mm$^2$), CBM-Dual achieves simultaneous heterogeneous task execution and state-of-the-art energy efficiency, delivering $\times$25-54 and $\times$4.5 improvements in the SA and RC fields, respectively.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

CBM-Dual delivers the first silicon 1024-neuron fully connected CBM chip supporting dual SA and RC functions with two efficiency techniques.

read the letter

CBM-Dual puts a 1024-neuron fully connected chaotic Boltzmann machine on a 65 nm chip that can handle both simulated annealing and reservoir computing. The work is new because it is the first silicon version at this scale with dual SA and RC support. The two techniques stand out: the scheduler that skips most MACs by exploiting low neuron flip rates, and the multiply splitting that cuts area. They fabricated the design and measured energy numbers that look better than earlier efforts in each field. What works well is the actual hardware realization. Getting a fully connected 1024-neuron system to run in real silicon shows the ideas are practical. The dual function on one chip is a practical step for edge devices that need both quick decisions and some on-the-fly adjustment. The soft spots sit in the efficiency claims. The 99% operation reduction and 59% area cut are big, but the paper needs to lay out the exact baseline comparisons, measured flip rates, and area breakdowns. It should also check that the approximations do not degrade the chaotic dynamics or the task results at full scale. Without those, the reported speedups rest on assumptions that could have hidden costs. This paper fits readers who design hardware for optimization or reservoir-style computing. Anyone looking at low-power accelerators for autonomous systems will see value in the implementation choices and the measured performance. It deserves a serious referee. The silicon results give something concrete to evaluate even if the efficiency details need tightening. I recommend sending it to peer review.

Referee Report

3 major / 1 minor

Summary. The manuscript presents CBM-Dual, the first silicon-proven 65-nm digital chaotic dynamics processor implementing a fully connected 1024-neuron chaotic Boltzmann machine that supports dual operation as both a simulated annealing solver and a reservoir computing engine. It proposes a CBM-specific scheduler exploiting low neuron flip rates to reduce MAC operations by 99% and a multiply-splitting scheme to reduce area by 59%, with the fabricated 12 mm² chip claimed to deliver 25-54× energy-efficiency gains in SA and 4.5× in RC relative to prior art while enabling simultaneous heterogeneous task execution for edge AI.

Significance. If the silicon measurements and efficiency claims are substantiated, the work would constitute a notable advance by demonstrating the largest-scale fully connected digital CDP in silicon with verified dual SA/RC functionality. The reported operation and area reductions could meaningfully improve practicality of chaotic dynamics hardware for real-time autonomous systems, provided the gains do not compromise attractor fidelity or task accuracy.

major comments (3)

Abstract: The abstract asserts fabrication in 65 nm with specific performance numbers (×25-54 SA and ×4.5 RC improvements) but supplies no measured data, error bars, power traces, or methodology details, making the central efficiency claims unverifiable from the given text.
Scheduler description: The claim that the CBM-specific scheduler delivers a 99% MAC reduction by exploiting an 'inherently low neuron flip rate' lacks quantification of the measured flip rate on the fabricated chip, an explicit baseline comparison to naive dense MAC every cycle, and verification that state-update accuracy remains sufficient for both SA convergence and RC task performance when scaled to 1024 fully connected neurons.
Multiply-splitting scheme: The assertion of a 59% area reduction via the multiply-splitting scheme provides no post-layout area breakdown isolating splitter logic overhead versus the original multiplier, nor Monte-Carlo or silicon measurements demonstrating that quantization or splitting noise does not perturb the chaotic attractor dynamics.

minor comments (1)

The abstract and results sections would benefit from explicit definition of the prior-art baselines used to compute the improvement factors.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive and detailed comments. We address each major comment point by point below, indicating revisions where appropriate.

read point-by-point responses

Referee: [—] Abstract: The abstract asserts fabrication in 65 nm with specific performance numbers (×25-54 SA and ×4.5 RC improvements) but supplies no measured data, error bars, power traces, or methodology details, making the central efficiency claims unverifiable from the given text.

Authors: The abstract is written as a concise summary of contributions and headline results, following standard practice. The full manuscript contains the supporting silicon measurement data, power traces, energy-efficiency calculations, and methodology in Sections IV and V, including direct comparisons to prior work. We will revise the abstract to explicitly note that the reported gains are based on measured results from the fabricated 65 nm chip. revision: yes
Referee: [—] Scheduler description: The claim that the CBM-specific scheduler delivers a 99% MAC reduction by exploiting an 'inherently low neuron flip rate' lacks quantification of the measured flip rate on the fabricated chip, an explicit baseline comparison to naive dense MAC every cycle, and verification that state-update accuracy remains sufficient for both SA convergence and RC task performance when scaled to 1024 fully connected neurons.

Authors: Section III-B presents the scheduler and quantifies the neuron flip rate using both the CBM dynamics model and on-chip measurements for the 1024-neuron array. The baseline is the dense MAC computation performed every cycle without skipping. Accuracy preservation is shown through SA convergence curves and RC benchmark accuracy at full scale. We will add an explicit table of measured flip-rate statistics from the silicon implementation together with a side-by-side accuracy comparison to make these points fully transparent. revision: yes
Referee: [—] Multiply-splitting scheme: The assertion of a 59% area reduction via the multiply-splitting scheme provides no post-layout area breakdown isolating splitter logic overhead versus the original multiplier, nor Monte-Carlo or silicon measurements demonstrating that quantization or splitting noise does not perturb the chaotic attractor dynamics.

Authors: The 59% area figure is obtained from post-layout reports comparing the complete design with and without the splitting scheme (Section III-C). We will insert a detailed area breakdown table that isolates the splitter overhead. Regarding dynamics, the fabricated chip measurements in Section V confirm that both the chaotic attractor statistics and the SA/RC task accuracies remain within the same operating margins as the unsplit design, providing direct silicon evidence that any quantization or splitting effects do not materially perturb required behavior. We do not have dedicated Monte-Carlo noise simulations and will note this as a limitation while emphasizing the empirical silicon validation. revision: partial

Circularity Check

0 steps flagged

No circularity in derivation chain

full rationale

The paper is a hardware design and fabrication report for a chaotic Boltzmann machine processor. Its central claims rest on two proposed circuit techniques (CBM-specific scheduler exploiting low neuron flip rate, and multiply splitting) whose benefits are asserted from post-layout and silicon measurements rather than from any equations, fitted parameters, or self-citations that reduce to the inputs by construction. No mathematical derivation chain exists that could be tautological; the efficiency numbers are engineering outcomes verified on 65 nm silicon, not predictions forced by the model's own definitions.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claims rest on standard 65 nm CMOS fabrication assumptions and the prior existence of chaotic Boltzmann machine dynamics; no new physical constants or fitted parameters are introduced in the abstract.

axioms (1)

standard math Standard digital CMOS process parameters and design rules for 65 nm technology hold for the fabricated chip.
The paper states the chip was fabricated in 65 nm and reports area and efficiency numbers based on that process.
