What's Missing in Screen-to-Action? Towards a UI-in-the-Loop Paradigm for Multimodal GUI Reasoning

Songze Li , Xiaoke Guo , Tianqi Liu , Biao Yi , Zhaoyan Gong , Zhiqiang Liu , Huajun Chen , Wen Zhang

Authors on Pith no claims yet

Pith reviewed 2026-05-10 17:40 UTC · model grok-4.3

classification 💻 cs.AI

keywords GUI reasoningMultimodal Large Language ModelsUI understandingUI-in-the-LoopUI element localizationbenchmarkinterpretable reasoning

0 comments

The pith

Treating GUI reasoning as a cyclic Screen-UI-Action process lets MLLMs explicitly learn element localization, semantics, and usage for more precise and interpretable decisions.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

Current methods decide actions directly from screen images and therefore miss detailed understanding of individual UI elements, which causes failures that are hard to diagnose. The paper proposes UI-in-the-Loop, a repeating cycle in which the model must first locate and analyze key UI elements before selecting the next action. This explicit intermediate step is presented as the fix that yields accurate element discovery together with reasoning steps that humans can follow. The authors also define a dedicated UI Comprehension task and release a 26,000-sample benchmark to measure how well models master element functions and practical use. If the cycle works as claimed, GUI agents could complete complex interface tasks more reliably across different apps and devices.

Core claim

UILoop reframes GUI reasoning as a cyclic Screen-UI elements-Action process. By training Multimodal Large Language Models to explicitly learn the localization, semantic functions, and practical usage of key UI elements, the approach achieves precise element discovery and interpretable reasoning. It further introduces a UI Comprehension task with three evaluation metrics and contributes the UI Comprehension-Bench containing 26K samples to test mastery of UI elements. Experiments show state-of-the-art UI understanding performance along with superior results on GUI reasoning tasks.

What carries the argument

The UI-in-the-Loop (UILoop) paradigm, which structures the reasoning task as a cyclic Screen-UI elements-Action process that inserts explicit learning of UI element localization, semantics, and usage.

If this is right

UILoop reaches state-of-the-art performance on UI understanding tasks.
GUI reasoning tasks obtain superior results compared with direct screen-based methods.
The UI Comprehension task with its three metrics provides a standardized test of how well models grasp element functions and usage.
The 26K-sample UI Comprehension-Bench enables comprehensive measurement of existing methods' mastery of UI elements.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same cyclic structure could be tested on other multimodal tasks that require fine-grained localization of interface objects.
Explicit element steps may make it easier to debug why a GUI agent chose a wrong action.
Training data that annotates UI element locations and functions will become more important if the loop approach scales.

Load-bearing premise

Inserting an explicit UI-element learning step into the cyclic Screen-UI-Action process will raise both accuracy and interpretability without creating new failure modes or requiring impractical amounts of supervision.

What would settle it

A side-by-side evaluation on the UI Comprehension-Bench in which UILoop models show no accuracy gain over direct screen-to-action baselines or produce reasoning traces that humans rate no more interpretable.

Figures

Figures reproduced from arXiv: 2604.06995 by Biao Yi, Huajun Chen, Songze Li, Tianqi Liu, Wen Zhang, Xiaoke Guo, Zhaoyan Gong, Zhiqiang Liu.

**Figure 1.** Figure 1: Left: Evaluation of existing methods on UI element localization, semantic function description, and practical usage. Middle: Performance gains with correct vs. misleading UI info compared to without UI info. Right: Comparison of UILoop against existing “Screen-to-Action" methods on SR metric for Android Control-High. Instruction 𝓘: In the Office Suite Pro app, rename the 'PPT on Management Training' docume… view at source ↗

**Figure 2.** Figure 2: Compared to the existing “Screen-to-Action" paradigm, our UI-in-the-Loop reframes GUI reasoning as “Screen-UI Elements-Action". on correct UI elements. Leveraging reinforcement learning’s strength in handling complex sequential decisions (Shao et al., 2024), we design UI-Element-Driven Reinforcement Fine-Tuning, which teaches UILoop to locate key UI elements, infer their semantic functions, and master th… view at source ↗

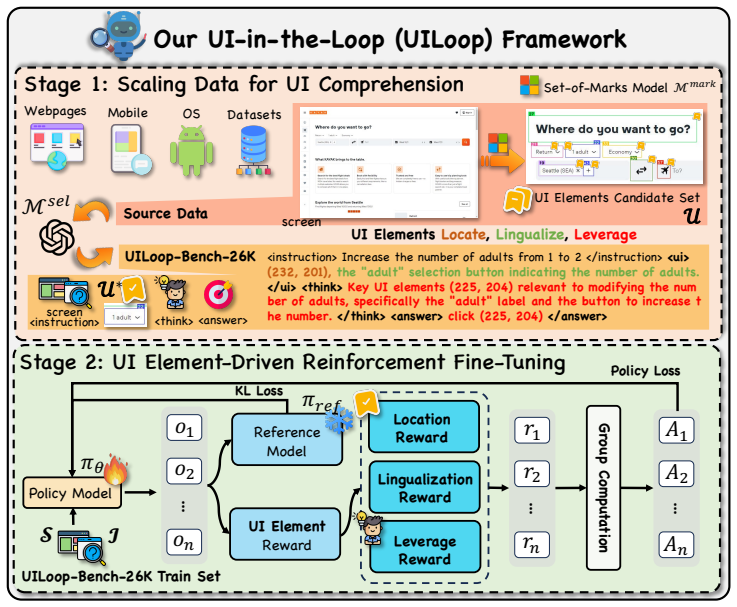

**Figure 3.** Figure 3: Overview of our UI-in-the-Loop (UILoop) framework. (Kapoor et al., 2024), GUI-Act (Chen et al., 2025), ScreenSpot (Cheng et al., 2024), ScreenSpot-Pro (Li et al., 2025), and OS-Atlas (Wu et al., 2024) as source data, whose original data format is presented as (I, S, a). Based on this, we apply the set-of-marks model Mmark to S (e.g., OmniParser V2 (Yu et al., 2025)) to mark the locations of all identifiab… view at source ↗

**Figure 4.** Figure 4: Statistics of Our UI Comprehension-Bench. [PITH_FULL_IMAGE:figures/full_fig_p005_4.png] view at source ↗

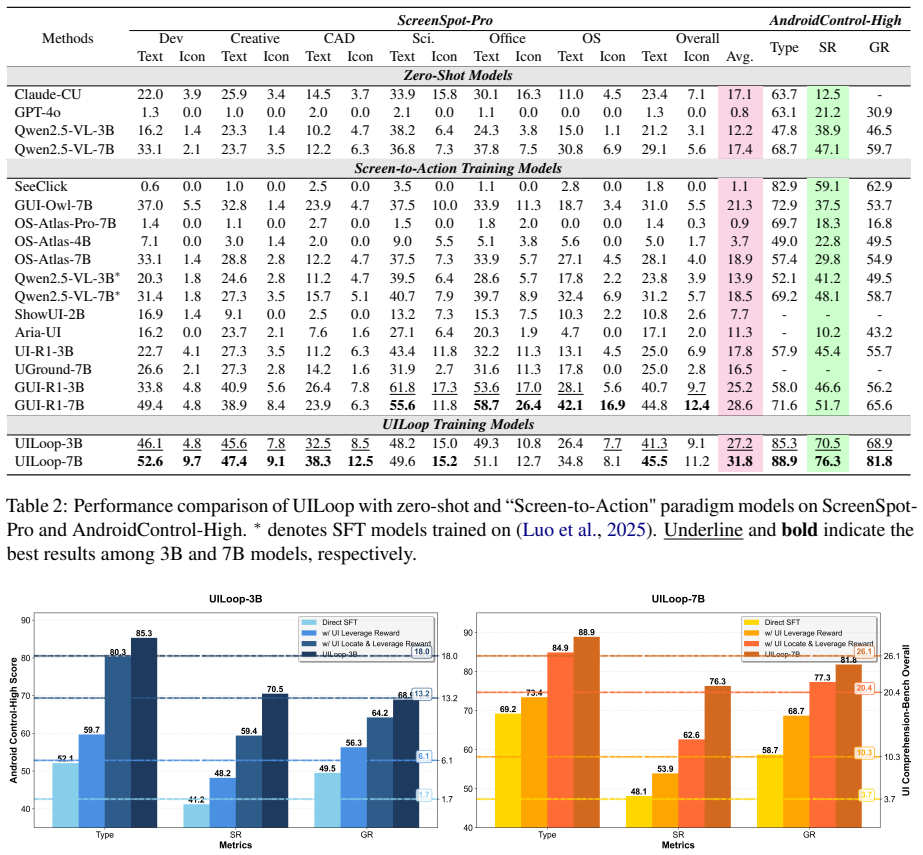

**Figure 5.** Figure 5: Ablation Study on Android Control-High and UI Comprehension-Bench. We demonstrate the individual [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗

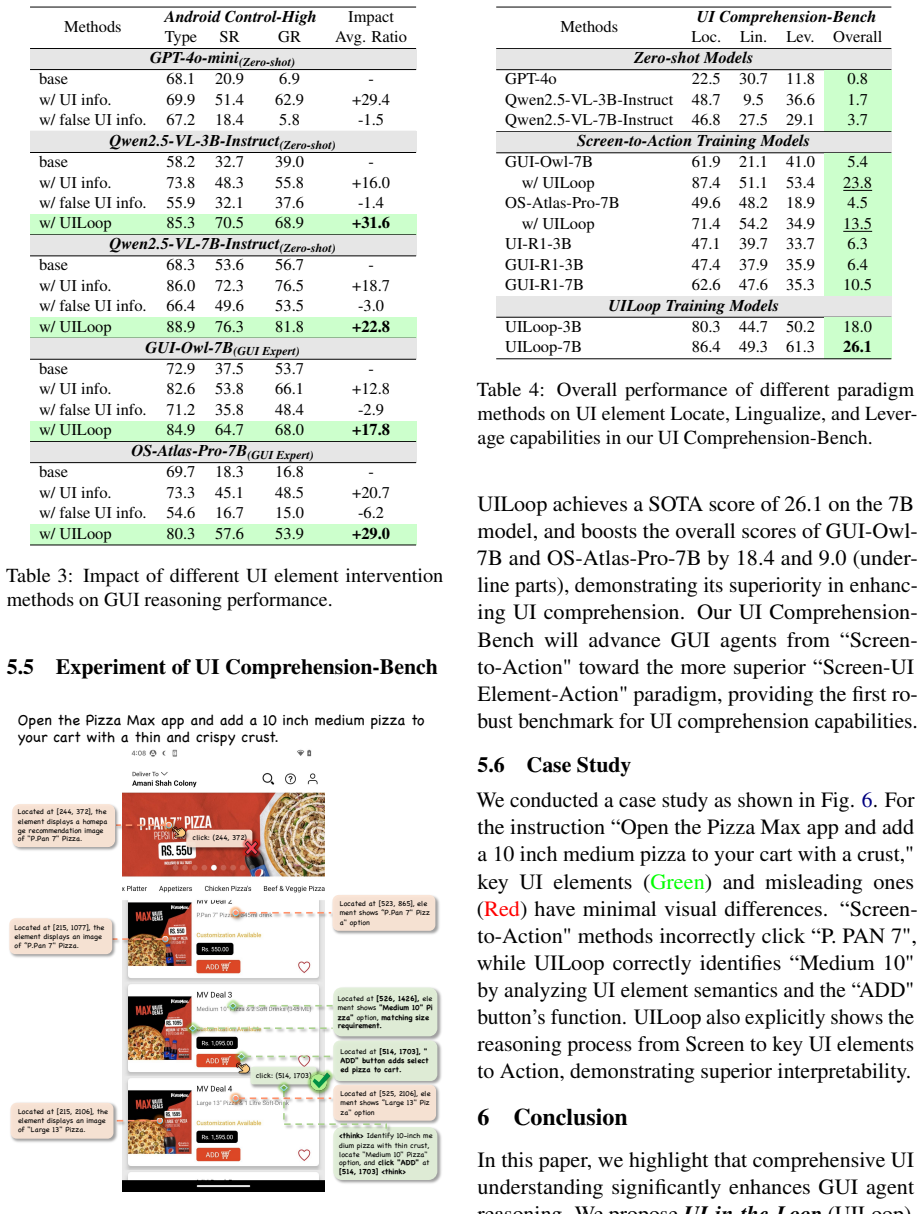

**Figure 6.** Figure 6: Comparative Case Study between UILoop and [PITH_FULL_IMAGE:figures/full_fig_p008_6.png] view at source ↗

**Figure 7.** Figure 7: Case with open_app actions in our UI Comprehension-Bench. Instruction Browse Leonardo Da Vinci Mona lisa's painting for me on the Artsy app. image <Image data - type: dict> gt_action type gt_bbox [-100, -100] gt_input_text Leonardo history Step 1: Open the artsy app. Step 2: Click on the search icon at the bottom. image_size [1080, 2400] group android Key UI Elements [ "Located at [508, 263], this element … view at source ↗

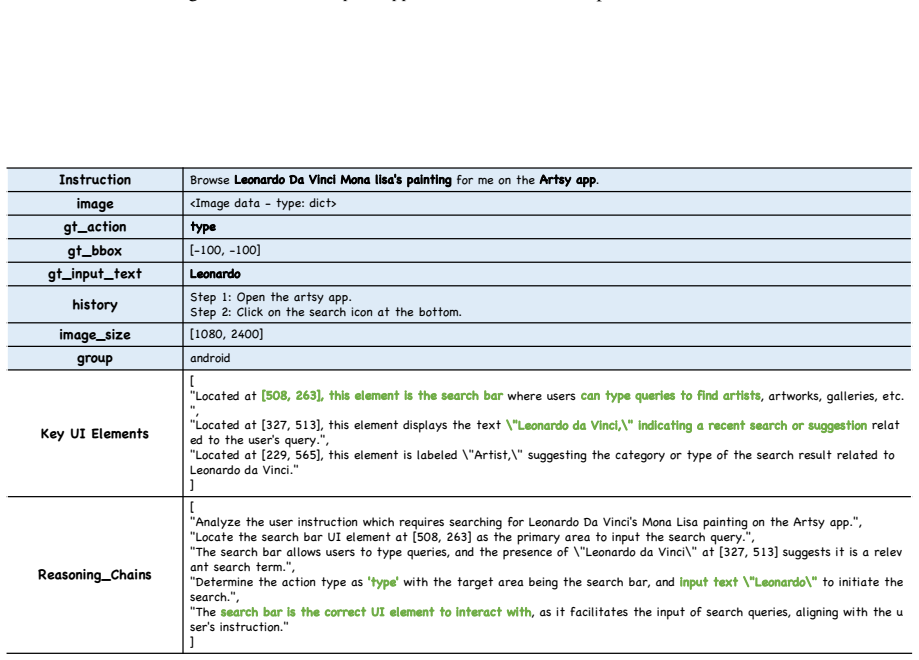

**Figure 8.** Figure 8: Case with type actions in our UI Comprehension-Bench [PITH_FULL_IMAGE:figures/full_fig_p013_8.png] view at source ↗

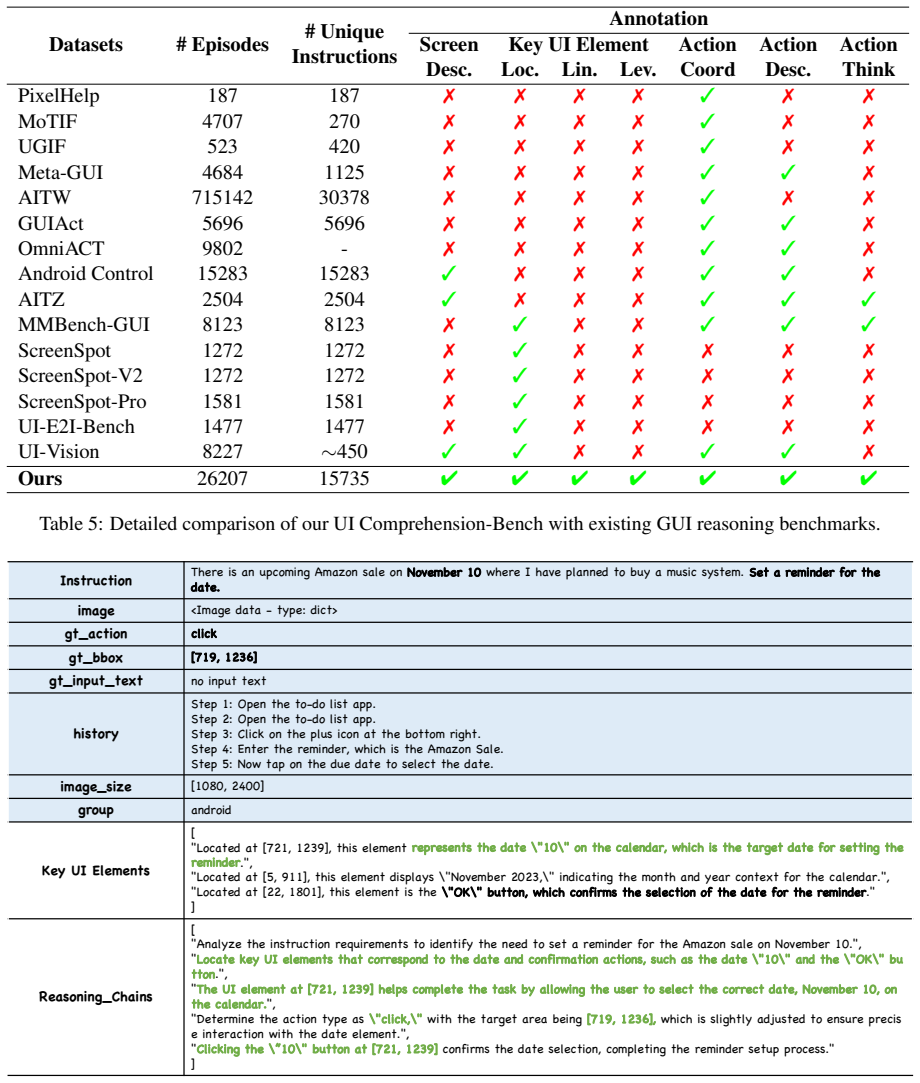

**Figure 9.** Figure 9: Case with click actions in our UI Comprehension-Bench. Prompt for Grounding You are UILoop, a reasoning GUI Agent Assistant. In this UI screenshot <image>, I want you to continue executing the command ’text’, with the action history being ’history’. Please provide the action to perform (enumerate from [’click’]), the point where the cursor is moved to (integer) if a click is performed, and any input text … view at source ↗

**Figure 10.** Figure 10: Error analysis of “Screen-to-Action" paradigm methods UI-R1-3B, GUI-R1-7B, GUI-OWL-7B and our [PITH_FULL_IMAGE:figures/full_fig_p015_10.png] view at source ↗

read the original abstract

Existing Graphical User Interface (GUI) reasoning tasks remain challenging, particularly in UI understanding. Current methods typically rely on direct screen-based decision-making, which lacks interpretability and overlooks a comprehensive understanding of UI elements, ultimately leading to task failure. To enhance the understanding and interaction with UIs, we propose an innovative GUI reasoning paradigm called UI-in-the-Loop (UILoop). Our approach treats the GUI reasoning task as a cyclic Screen-UI elements-Action process. By enabling Multimodal Large Language Models (MLLMs) to explicitly learn the localization, semantic functions, and practical usage of key UI elements, UILoop achieves precise element discovery and performs interpretable reasoning. Furthermore, we introduce a more challenging UI Comprehension task centered on UI elements with three evaluation metrics. Correspondingly, we contribute a benchmark of 26K samples (UI Comprehension-Bench) to comprehensively evaluate existing methods' mastery of UI elements. Extensive experiments demonstrate that UILoop achieves state-of-the-art UI understanding performance while yielding superior results in GUI reasoning tasks.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

UILoop adds an explicit UI comprehension step to GUI reasoning but the cyclic structure risks error propagation with no shown fixes.

read the letter

The paper introduces a cyclic Screen-UI-Action loop for multimodal GUI agents, where the model must explicitly handle localization, semantic function, and practical usage of UI elements before deciding on actions. It also defines a new UI Comprehension task and releases a 26K-sample benchmark for it. These are the concrete additions relative to prior direct screen-to-action work. The framing aims at better interpretability, and the benchmark could help measure whether models actually grasp UI elements rather than just completing tasks. If the reported SOTA results on understanding and reasoning hold with solid baselines and ablations, that would be useful data for the field. The main soft spot is the lack of any recovery mechanism in the loop. A mis-localized or mis-semanticized element in the middle step directly affects the action output, and nothing in the setup appears to verify or backtrack on that. This could make performance worse than simpler baselines on dynamic or ambiguous interfaces. The paper is for people building or evaluating GUI agents and multimodal models for interfaces. Readers working on structured reasoning or UI benchmarks might get value from the task definition and data, but the central claim needs the full experimental details to assess. It deserves peer review so the benchmark construction and actual gains can be checked.

Referee Report

2 major / 1 minor

Summary. The manuscript proposes UI-in-the-Loop (UILoop), a new paradigm for GUI reasoning that treats the task as a cyclic Screen-UI elements-Action process. MLLMs are trained to explicitly learn localization, semantic functions, and practical usage of key UI elements for precise discovery and interpretable reasoning. It introduces a UI Comprehension task with three metrics and the UI Comprehension-Bench dataset of 26K samples, with experiments showing SOTA performance on UI understanding and GUI reasoning tasks.

Significance. This paradigm could improve the robustness and interpretability of multimodal GUI agents by incorporating explicit UI element understanding, addressing limitations in direct screen-to-action methods. The contributed benchmark may serve as a standard for evaluating UI comprehension in future work, potentially influencing the development of more reliable interface-interacting AI systems.

major comments (2)

[Abstract] Abstract: The assertion of state-of-the-art results on UI understanding and GUI reasoning supplies no experimental details, baselines, error bars, dataset construction method, or splits, which is load-bearing because the central claim of superior performance cannot be assessed or reproduced from the given information.
[UILoop paradigm] UILoop paradigm (method section): The cyclic Screen-UI-Action process contains no described recovery mechanism, verification step, confidence thresholding, or backtracking for errors in UI localization or semantic assignment. This directly undermines the claim of improved accuracy and interpretability, as localization failures propagate unchecked into the Action step and may create new failure modes on ambiguous or dynamic UIs.

minor comments (1)

[Abstract] Abstract: The three evaluation metrics for the new UI Comprehension task are named but not defined or motivated, which reduces clarity even if they are detailed later.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We sincerely thank the referee for their thorough and constructive review of our manuscript. Their comments identify key areas for improving clarity and robustness, and we address each point below with specific responses and planned revisions where appropriate.

read point-by-point responses

Referee: [Abstract] Abstract: The assertion of state-of-the-art results on UI understanding and GUI reasoning supplies no experimental details, baselines, error bars, dataset construction method, or splits, which is load-bearing because the central claim of superior performance cannot be assessed or reproduced from the given information.

Authors: We agree that the abstract's brevity limits inclusion of full experimental details, which are essential for assessing the central claims. The full manuscript details the UI Comprehension-Bench (26K samples), three metrics, baselines, dataset construction, splits, and results with error bars in Section 4. In the revised version, we will expand the abstract to include a concise statement on the benchmark scale, key baselines compared, and quantitative SOTA improvements on both tasks. This provides better context while keeping the abstract concise; complete reproducibility information remains in the experiments section. revision: partial
Referee: [UILoop paradigm] UILoop paradigm (method section): The cyclic Screen-UI-Action process contains no described recovery mechanism, verification step, confidence thresholding, or backtracking for errors in UI localization or semantic assignment. This directly undermines the claim of improved accuracy and interpretability, as localization failures propagate unchecked into the Action step and may create new failure modes on ambiguous or dynamic UIs.

Authors: The UILoop design prioritizes explicit UI element localization and semantic learning in the cyclic loop to reduce initial errors compared to direct screen-to-action methods, with the iteration intended to support refinement. We acknowledge that the current method description does not detail explicit recovery mechanisms such as confidence thresholding or backtracking. In the revision, we will add a dedicated paragraph in the method section discussing error propagation risks and outlining how confidence scores from the UI comprehension step can enable verification, with optional re-localization on low-confidence cases. This strengthens the interpretability claims without altering the core paradigm. revision: yes

Circularity Check

0 steps flagged

No circularity: new paradigm proposal with independent benchmark and experiments

full rationale

The paper introduces UILoop as a methodological paradigm (cyclic Screen-UI-Action process) plus a new UI Comprehension task and 26K-sample benchmark, then reports experimental results. No equations, fitted parameters renamed as predictions, or derivations appear in the provided text. Claims rest on contributed external data and SOTA comparisons rather than self-definitional loops, self-citation chains, or ansatzes smuggled from prior author work. The central argument is therefore self-contained against the new benchmark and does not reduce to its own inputs by construction.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

Abstract-only review supplies no explicit free parameters, axioms, or invented entities; the central claim rests on the unstated assumption that MLLMs can be trained to internalize the cyclic process effectively.
