Quasicrystal Architected Nanomechanical Resonators via Data-Driven Design

Kawen Li , Hangjin Cho , Richard Norte , Dongil Shin This is my paper

Pith reviewed 2026-05-10 18:36 UTC · model grok-4.3

classification ❄️ cond-mat.mes-hall cs.LGphysics.app-ph
keywords quasicrystalsnanomechanical resonatorssoft clampingphononic stopbandsdata-driven designquality factorforce sensitivityaperiodic structures
0
0 comments X

The pith

Quasicrystals enable soft clamping for high-Q nanomechanical resonators via data-driven design.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper establishes that by moving from periodic to aperiodic quasicrystal structures, soft clamping via phononic stopbands can be realized for nanomechanical resonators, and this can be systematically achieved using data-driven design. This matters to a sympathetic reader because it breaks the reliance on well-established periodic crystal engineering, potentially allowing better performance in force sensing and mass detection by achieving quality factors of around 10 million. The demonstration with a 12-fold QC resonator shows sub-nanogram effective mass at MHz frequencies and force sensitivity of 26.4 aN per square root Hertz, outperforming previous 2D phononic crystals. Readers would care as it opens a new regime inspired by aperiodic order in nature.

Core claim

Here we demonstrate that soft clamping can be realized in quasicrystal architectures and that high-Q_m nanomechanical resonators can be systematically achieved through a data-driven design framework. As a representative demonstration, the 12-fold QC-based resonator exhibits a quality factor Q_m ∼ 10^7 and an effective mass of sub-nanograms at MHz frequencies, corresponding to an exceptional force sensitivity of 26.4 aN/√Hz compared to previous 2D phononic crystals. These results establish QCs as a robust platform for next-generation nanomechanical resonators and open a new design regime beyond periodic order.

What carries the argument

Data-driven design framework applied to 12-fold quasicrystal architectures to identify patterns that produce phononic stopbands for soft clamping of resonator modes.

If this is right

  • The 12-fold QC resonator reaches Q_m of approximately 10^7 at MHz frequencies.
  • Effective mass is reduced to sub-nanogram levels.
  • Force sensitivity improves to 26.4 aN/√Hz.
  • Aperiodic structures become viable for high-performance nanomechanical devices.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • This method could extend to designing resonators for complex or confined geometries where periodic patterns cannot be easily implemented.
  • Further optimization might achieve even higher Q or lower mass for applications in quantum sensing.
  • Testing other quasicrystal symmetries could identify which aperiodic orders yield the best stopband properties for specific frequency ranges.
  • The approach suggests that data-driven methods might replace or supplement traditional band engineering for a wider class of aperiodic materials.

Load-bearing premise

That phononic stopbands capable of soft clamping can be systematically found and exploited in quasicrystal designs using data-driven methods without conventional periodic band structure techniques.

What would settle it

Direct measurement of the quality factor in a fabricated 12-fold quasicrystal nanomechanical resonator falling well below 10^7 would indicate the absence of effective soft clamping.

Figures

Figures reproduced from arXiv: 2604.07379 by Dongil Shin, Hangjin Cho, Kawen Li, Richard Norte.

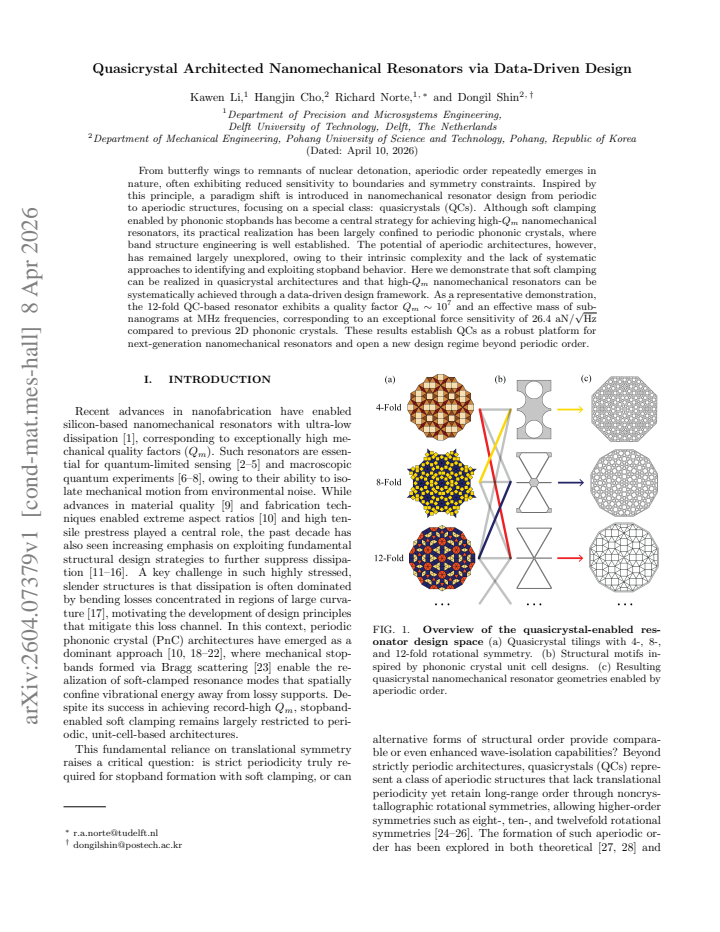

Figure 1
Figure 1. Figure 1: FIG. 1 [PITH_FULL_IMAGE:figures/full_fig_p001_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2 [PITH_FULL_IMAGE:figures/full_fig_p002_2.png] view at source ↗

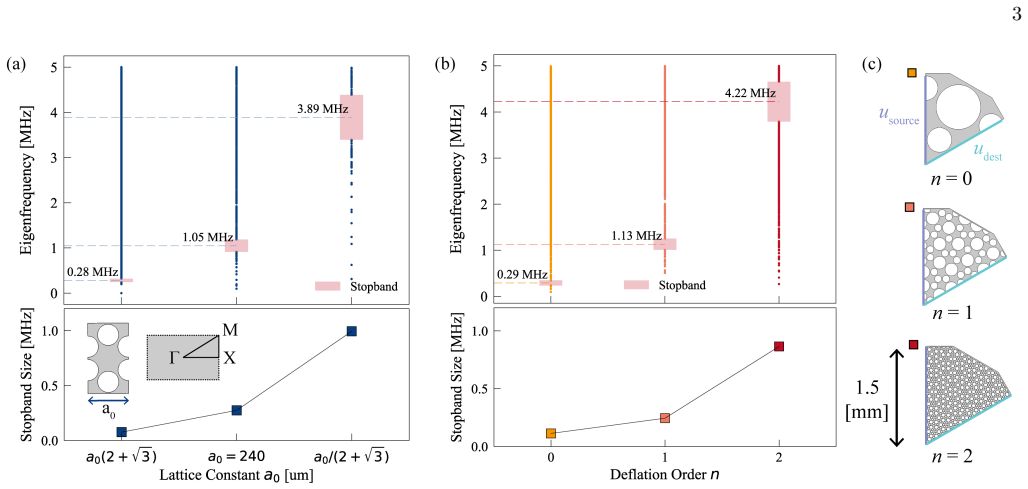

Figure 3
Figure 3. Figure 3: FIG. 3 [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4 [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: FIG. 5 [PITH_FULL_IMAGE:figures/full_fig_p005_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: FIG. 6 [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: FIG. 7 [PITH_FULL_IMAGE:figures/full_fig_p008_7.png] view at source ↗
read the original abstract

From butterfly wings to remnants of nuclear detonation, aperiodic order repeatedly emerges in nature, often exhibiting reduced sensitivity to boundaries and symmetry constraints. Inspired by this principle, a paradigm shift is introduced in nanomechanical resonator design from periodic to aperiodic structures, focusing on a special class: quasicrystals (QCs). Although soft clamping enabled by phononic stopbands has become a central strategy for achieving high-$Q_m$ nanomechanical resonators, its practical realization has been largely confined to periodic phononic crystals, where band structure engineering is well established. The potential of aperiodic architectures, however, has remained largely unexplored, owing to their intrinsic complexity and the lack of systematic approaches to identifying and exploiting stopband behavior. Here we demonstrate that soft clamping can be realized in quasicrystal architectures and that high-$Q_m$ nanomechanical resonators can be systematically achieved through a data-driven design framework. As a representative demonstration, the 12-fold QC-based resonator exhibits a quality factor $Q_m \sim 10^7$ and an effective mass of sub-nanograms at MHz frequencies, corresponding to an exceptional force sensitivity of $26.4$~aN/$\sqrt{\text{Hz}}$ compared to previous 2D phononic crystals. These results establish QCs as a robust platform for next-generation nanomechanical resonators and open a new design regime beyond periodic order.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript introduces a data-driven design framework to realize soft clamping in aperiodic quasicrystal (QC) nanomechanical resonators, extending beyond periodic phononic crystals. It demonstrates a 12-fold QC-based resonator achieving Q_m ∼ 10^7, sub-nanogram effective mass at MHz frequencies, and force sensitivity of 26.4 aN/√Hz, claimed to outperform prior 2D phononic crystal designs.

Significance. If the central claims hold, the work opens a new regime for high-Q nanomechanical resonators by showing that data-driven methods can systematically exploit stopband behavior in quasicrystals, which lack translational periodicity. This could enable more flexible architectures with reduced boundary sensitivity for precision force sensing and related applications.

major comments (2)
  1. [Methods and Results (simulation framework)] The attribution of soft clamping and the reported Q_m ∼ 10^7 to phononic stopbands in the 12-fold QC architecture rests on finite-element eigenmode or transmission simulations of finite patches. Without an explicit control (e.g., comparison to a non-QC reference structure with identical boundaries and tapers, or an approach to the infinite-structure limit), it is unclear whether the localization arises from a bulk aperiodic gap or from optimizer-induced features and boundary conditions.
  2. [Methods (data-driven design)] The data-driven optimization procedure is described at a high level in the abstract and methods, but the manuscript does not report whether the discovered QC geometries were cross-validated against independent band-structure proxies or whether the optimizer was constrained to avoid trivial solutions that mimic stopbands only in finite domains.
minor comments (2)
  1. [Abstract] The abstract states the headline metrics but omits any mention of simulation cell size, mesh convergence, or how effective mass was extracted; these details should be added for reproducibility.
  2. [Figures] Figure captions and legends would benefit from explicit statements of whether the plotted modes are eigenmodes or transmission spectra and what frequency range corresponds to the claimed stopband.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive and detailed feedback, which has helped us improve the clarity and rigor of our manuscript. We address each major comment below and have revised the manuscript to incorporate additional controls, expanded methods descriptions, and supporting analyses.

read point-by-point responses

  1. Referee: [Methods and Results (simulation framework)] The attribution of soft clamping and the reported Q_m ∼ 10^7 to phononic stopbands in the 12-fold QC architecture rests on finite-element eigenmode or transmission simulations of finite patches. Without an explicit control (e.g., comparison to a non-QC reference structure with identical boundaries and tapers, or an approach to the infinite-structure limit), it is unclear whether the localization arises from a bulk aperiodic gap or from optimizer-induced features and boundary conditions.

    Authors: We agree that explicit controls are essential to confirm the origin of the observed soft clamping. In the revised manuscript, we have added finite-element simulations of a non-QC reference structure with identical boundaries, tapers, and overall geometry but lacking the aperiodic quasicrystal pattern. This control yields Q_m values more than an order of magnitude lower, indicating that the high Q_m arises from the QC stopband rather than boundary effects or optimizer artifacts. We have also included results from simulations on successively larger patches to demonstrate convergence toward the infinite-structure limit, further supporting the bulk-gap contribution. revision: yes

  2. Referee: [Methods (data-driven design)] The data-driven optimization procedure is described at a high level in the abstract and methods, but the manuscript does not report whether the discovered QC geometries were cross-validated against independent band-structure proxies or whether the optimizer was constrained to avoid trivial solutions that mimic stopbands only in finite domains.

    Authors: We thank the referee for this observation. The revised Methods section now provides a more detailed description of the data-driven framework, explicitly stating the constraints imposed on the optimizer to preclude trivial finite-domain solutions that do not correspond to true stopbands. We have also added cross-validation results: band-structure calculations performed on periodic approximants of the 12-fold quasicrystal, together with transmission spectra computed on extended domains, both of which independently confirm the presence of the relevant stopbands and their consistency with the finite-resonator performance. revision: yes

Circularity Check

0 steps flagged

No significant circularity; derivation remains self-contained

full rationale

The paper introduces a data-driven framework to realize soft clamping in quasicrystal resonators and reports measured/simulated performance metrics (Q_m ~10^7, 26.4 aN/√Hz). No load-bearing step reduces by construction to its own inputs: the abstract and available text present the QC architecture and optimization outcomes as independent results of the design process rather than re-labeling fitted parameters or self-citing unverified uniqueness theorems. Finite-size simulation concerns affect verifiability but do not create definitional or self-referential circularity in the reported chain. The central claim therefore retains independent content from the data-driven search.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the domain assumption about quasicrystals exhibiting stopband behavior and the effectiveness of data-driven design in identifying such structures. No free parameters or invented entities are explicitly mentioned in the abstract.

axioms (1)
  • domain assumption Aperiodic quasicrystal structures can support phononic stopbands for soft clamping in mechanical resonators
    This is the core premise allowing the paradigm shift from periodic to aperiodic designs.

pith-pipeline@v0.9.0 · 5559 in / 1320 out tokens · 176238 ms · 2026-05-10T18:36:33.394662+00:00 · methodology
