Optomagnetic non-thermal modification of the ferromagnetic resonance
Pith reviewed 2026-05-15 06:45 UTC · model grok-4.3
The pith
Linearly polarized light shifts ferromagnetic resonance frequency via the inverse Cotton-Mouton effect in a way that can exceed thermal contributions.
A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.
Core claim
The FMR frequency depends on the polarization angle and propagation direction of linearly polarized light because the inverse Cotton-Mouton effect adds a term to the effective magnetic field or anisotropy, producing a frequency shift that can dominate over thermal effects in appropriate materials.
What carries the argument
The inverse Cotton-Mouton effect (ICME), a magneto-optical interaction in which the electric field of linearly polarized light induces an effective anisotropy or field that alters the magnetization precession frequency.
If this is right
- The resonance frequency can be tuned by changing the polarization angle or propagation direction of the incident light.
- The ICME-induced frequency shift can exceed the shift caused by laser heating in suitable materials.
- Closed-form expressions exist for the shifted resonance frequency in both in-plane and out-of-plane equilibrium states.
- The analytical results reproduce numerical micromagnetic simulations and published data on bismuth-substituted yttrium iron garnet.
Where Pith is reading between the lines
- This approach could support all-optical, low-heating modulation of magnon frequencies in integrated magnonic circuits.
- The same polarization-dependent shift should appear in other transparent magneto-optical films where the ICME coefficient can be independently calibrated.
- Varying both polarization and light intensity together might allow separate control of effective anisotropy and damping without net temperature rise.
Load-bearing premise
The inverse Cotton-Mouton effect coefficient in the chosen material is large enough that its contribution to the FMR shift exceeds thermal shifts from light absorption.
What would settle it
Measure the FMR frequency while rotating the linear polarization angle at constant light intensity and fixed sample temperature; a clear angular dependence that matches the derived formula and persists after thermal corrections would confirm the claim.

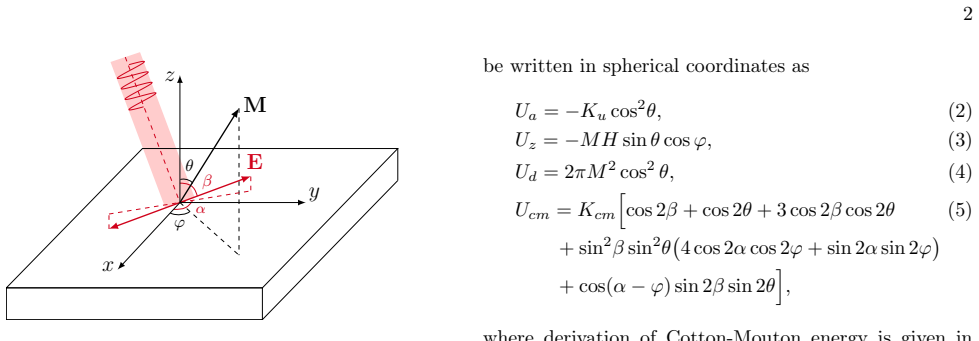

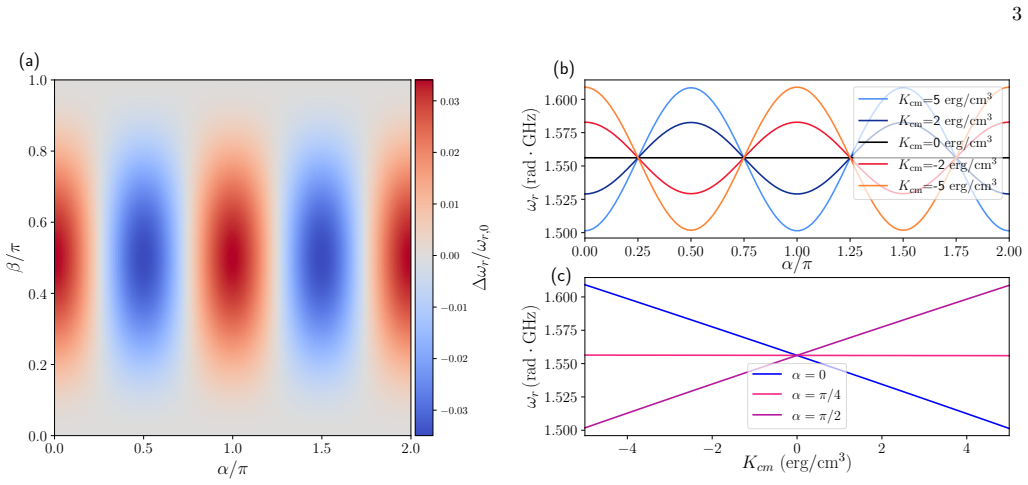

Figures

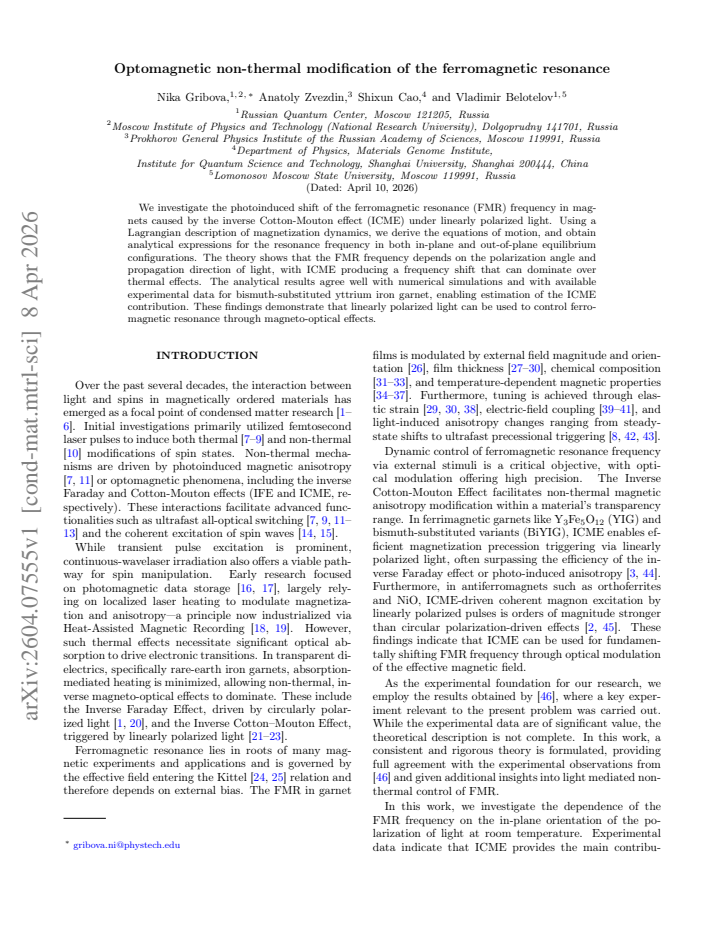

read the original abstract
We investigate the photoinduced shift of the ferromagnetic resonance (FMR) frequency in magnets caused by the inverse Cotton-Mouton effect (ICME) under linearly polarized light. Using a Lagrangian description of magnetization dynamics, we derive the equations of motion, and obtain analytical expressions for the resonance frequency in both in-plane and out-of-plane equilibrium configurations. The theory shows that the FMR frequency depends on the polarization angle and propagation direction of light, with ICME producing a frequency shift that can dominate over thermal effects. The analytical results agree well with numerical simulations and with available experimental data for bismuth-substituted yttrium iron garnet, enabling estimation of the ICME contribution. These findings demonstrate that linearly polarized light can be used to control ferromagnetic resonance through magneto-optical effects.
Editorial analysis
A structured set of objections, weighed in public.
Referee Report
Summary. The manuscript uses a Lagrangian description of magnetization dynamics to derive analytical expressions for the ferromagnetic resonance (FMR) frequency under linearly polarized light, incorporating the inverse Cotton-Mouton effect (ICME). It shows that the FMR frequency depends on light polarization angle and propagation direction, claims that the resulting non-thermal frequency shift can dominate thermal contributions in Bi:YIG, and reports agreement with numerical simulations and available experimental data, allowing estimation of the ICME contribution.
Significance. If the ICME coefficient magnitude is confirmed, the work supplies a compact analytical route to non-thermal, polarization-controlled tuning of FMR that could be useful for ultrafast magnonics. The provision of closed-form in-plane and out-of-plane frequency expressions together with direct numerical validation is a clear strength.
major comments (2)
- [parameter estimation / ICME coefficient] Parameter estimation section: the ICME coefficient is obtained by fitting earlier Bi:YIG literature rather than by a measurement performed under the illumination conditions and intensities used here; no error bars, sensitivity analysis, or propagation of uncertainty on this fitted value are supplied, yet the headline claim that the non-thermal shift “can dominate over thermal effects” rests directly on the coefficient exceeding a threshold set by specific heat and intensity.
- [experimental comparison] Comparison with experiment: the statement of agreement with Bi:YIG data is given without quantitative metrics (e.g., rms deviation, reported frequency shifts with uncertainties) or discussion of how thermal versus non-thermal contributions were separated in the reference experiments.
minor comments (2)
- [theory section] Notation: the definition and units of the ICME coefficient should be stated explicitly in the main text (not only in supplementary material) to allow immediate reproduction of the frequency expressions.
- [figures] Figure clarity: the polarization-angle dependence plots would benefit from an inset or separate panel showing the thermal contribution on the same scale for direct visual comparison.
Simulated Author's Rebuttal
We thank the referee for the careful reading and constructive comments on our manuscript. We address each major comment below and indicate the revisions we will make.
read point-by-point responses
-
Referee: Parameter estimation section: the ICME coefficient is obtained by fitting earlier Bi:YIG literature rather than by a measurement performed under the illumination conditions and intensities used here; no error bars, sensitivity analysis, or propagation of uncertainty on this fitted value are supplied, yet the headline claim that the non-thermal shift “can dominate over thermal effects” rests directly on the coefficient exceeding a threshold set by specific heat and intensity.
Authors: We acknowledge that the ICME coefficient was extracted via fitting to prior Bi:YIG literature rather than measured under the specific illumination conditions of our study. This is inherent to the theoretical nature of the work. In the revised manuscript we will add a sensitivity analysis in which the coefficient is varied over the range of values reported in the literature, include error estimates derived from the scatter in those literature values, and qualify the dominance claim to make its dependence on the coefficient explicit. Propagation of uncertainty will be discussed where the input parameters allow it. revision: partial
-
Referee: Comparison with experiment: the statement of agreement with Bi:YIG data is given without quantitative metrics (e.g., rms deviation, reported frequency shifts with uncertainties) or discussion of how thermal versus non-thermal contributions were separated in the reference experiments.
Authors: We agree that quantitative metrics and clarification on thermal/non-thermal separation would strengthen the comparison. In the revision we will report RMS deviations between the analytical curves and the experimental data points together with the uncertainties quoted in the original experiments. We will also add a paragraph explaining that the reference experiments did not explicitly isolate the two contributions; our model estimates the non-thermal ICME shift by subtracting the purely thermal contribution (obtained by setting the ICME coefficient to zero) from the total shift, thereby providing an indirect separation that can be compared with the data. revision: yes
- Direct experimental determination of the ICME coefficient under the precise illumination conditions and intensities used in the simulations.
Circularity Check
Lagrangian derivation of angle-dependent FMR shift is independent of fitted ICME coefficient
full rationale
The core derivation starts from the Lagrangian for magnetization dynamics and produces closed-form expressions for resonance frequency in in-plane and out-of-plane geometries that explicitly depend on light polarization and propagation angles plus the ICME coefficient. The coefficient itself is taken from prior experimental literature on Bi:YIG rather than fitted to the present data set or derived from a self-citation chain. Comparison with numerical simulations and existing measurements serves only as validation; the analytic dependence on angles and the possibility of non-thermal dominance are not forced by any internal fit or renaming. No load-bearing step reduces to a self-definition or to a parameter estimated from the same observations being explained.
Axiom & Free-Parameter Ledger
free parameters (1)
- ICME coefficient =
estimated from prior data
axioms (1)
- domain assumption Lagrangian description accurately captures magnetization dynamics under linearly polarized light
Reference graph
Works this paper leans on
-
[1]
Optomagnetic non-thermal modification of the ferromagnetic resonance
modifications of spin states. Non-thermal mecha- nisms are driven by photoinduced magnetic anisotropy [7, 11] or optomagnetic phenomena, including the inverse Faraday and Cotton-Mouton effects (IFE and ICME, re- spectively). These interactions facilitate advanced func- tionalities such as ultrafast all-optical switching [7, 9, 11– 13] and the coherent exc...
work page internal anchor Pith review Pith/arXiv arXiv 2026
-
[2]
+κ 1κ6(κ3 +κ 4) i ω2 r =κ 1κ2 − (κ3 −κ 4)2 4 ,(C5) whereξ 2 1 =κ 1κ2 +κ 3κ4,ξ 2 2 =κ 2κ5 −κ 3κ6 andξ 2 3 =κ 4κ5 +κ 1κ6. The resonant frequency for this case can be represented as an analytical function: ω2 r =κ 1κ2 − (κ3 −κ 4)2 4 ,(C6)
-
[3]
Ultrafast non-thermal control of magnetization by instantaneous photomagnetic pulses
AVKimel, AKirilyuk, PAUsachev, RVPisarev, AMBal- bashov, and Th Rasing. Ultrafast non-thermal control of magnetization by instantaneous photomagnetic pulses. Nature, 435(7042):655–657, 2005
work page 2005
-
[4]
AM Kalashnikova, AV Kimel, RV Pisarev, VN Gridnev, Andrei Kirilyuk, and Th Rasing. Impulsive generation of coherent magnons by linearly polarized light in the easy-plane antiferromagnet febo 3.Physical review let- ters, 99(16):167205, 2007
work page 2007
-
[5]
Isao Yoshimine, Takuya Satoh, Ryugo Iida, Andrzej Stu- pakiewicz, Andrzej Maziewski, and Tsutomu Shimura. Phase-controllable spin wave generation in iron garnet by linearly polarized light pulses.Journal of applied physics, 116(4), 2014
work page 2014
-
[6]
A Stupakiewicz, Krzysztof Szerenos, MD Davydova, KA Zvezdin, AK Zvezdin, Andrei Kirilyuk, and AV Kimel. Selection rules for all-optical magnetic record- ing in iron garnet.Nature communications, 10(1):612, 2019
work page 2019
-
[7]
Denis M Krichevsky, Vladislav A Ozerov, Alexandra V Bel’kova, Daria A Sylgacheva, Andrey N Kalish, Svet- lana A Evstigneeva, Alexander S Pakhomov, Tatiana V Mikhailova, Sergey D Lyashko, Alexander L Kudryashov, et al. Spatially inhomogeneous inverse faraday effect pro- vides tunable nonthermal excitation of exchange domi- nated spin waves.Nanophotonics, 1...
work page 2024
-
[8]
Nika Gribova, Anatoly Zvezdin, and Vladimir Belotelov. Peculiarities of spin dynamics excitation by magnetic field of a high-frequency electromagnetic pulse.arXiv preprint arXiv:2509.26528, 2025
-
[9]
TA Ostler, J Barker, RFL Evans, RW Chantrell, U Atxi- tia, O Chubykalo-Fesenko, S El Moussaoui, LBPJ Le Guyader, E Mengotti, LJ Heyderman, et al. Ultrafast heating as a sufficient stimulus for magnetization rever- sal in a ferrimagnet.Nature communications, 3(1):666, 2012
work page 2012
-
[10]
LucileSoumah, DavideBossini, AbdelmadjidAnane, and Stefano Bonetti. Optical frequency up-conversion of the ferromagnetic resonance in an ultrathin garnet mediated by magnetoelastic coupling.Physical Review Letters, 127(7):077203, 2021
work page 2021
-
[11]
A. Frej, I. Razdolski, A. Maziewski, and A. Stupakiewicz. Nonlinear subswitching regime of magnetization dynam- ics in photomagnetic garnets.Phys. Rev. B, 107:134405, Apr 2023
work page 2023
-
[12]
Savelii V Lutsenko, Anastasia E Khramova, Daria O Ig- natyeva, Daniil V Konkov, Natalia S Kaurova, Anatoly A Syrov, Alexander L Kudryashov, Grigory N Goltsman, Vladimir N Berzhansky, and Vladimir I Belotelov. Mag- netophotonic waveguide nanostructure for selective ul- trafast optical excitation of high-k spin dynamics.arXiv preprint arXiv:2408.08710, 2024
-
[13]
C. D. Stanciu, F. Hansteen, A. V. Kimel, A. Kirilyuk, A. Tsukamoto, A. Itoh, and Th. Rasing. All-optical mag- netic recording with circularly polarized light.Phys. Rev. Lett., 99:047601, Jul 2007
work page 2007
-
[14]
K Vahaplar, AM Kalashnikova, AV Kimel, Denise Hinzke, Ulrich Nowak, R Chantrell, A Tsukamoto, A Itoh, A Kirilyuk, and Th Rasing. Ultrafast path for optical magnetization reversal via a strongly nonequilib- rium state.Physical review letters, 103(11):117201, 2009
work page 2009
-
[15]
The prospects of nonthermal magnetization switching in near-compensated rare earth iron garnets
NI Gribova, DO Ignatyeva, NA Gusev, AK Zvezdin, and VI Belotelov. Optomagnonic logic based on optical non- thermal magnetization switching in near-compensated iron-garnets.arXiv preprint arXiv:2602.06844, 2026
work page internal anchor Pith review Pith/arXiv arXiv 2026
-
[16]
Takuya Satoh, Yuki Terui, Rai Moriya, Boris Ivanov, Kazuya Ando, Eiji Saitoh, Tsutomu Shimura, and Kazuo Kuroda. Directional control of spin-wave emission by spatially shaped light.Nature Photonics, 6:662–666, 10 2012
work page 2012
-
[17]
IV Savochkin, M J¨ ackl, VI Belotelov, IA Akimov, MA Kozhaev, DA Sylgacheva, AI Chernov, AN Shaposh- nikov, AR Prokopov, VN Berzhansky, et al. Generation of spin waves by a train of fs-laser pulses: a novel ap- 7 proach for tuning magnon wavelength.Scientific reports, 7(1):5668, 2017
work page 2017
-
[18]
Yipeng Jiao and R. H. Victora. Dependence of predicted arealdensityoncommonoptimizationstrategiesforheat- assisted magnetic recording.IEEE Magnetics Letters, 8:1–4, 2017
work page 2017
-
[19]
H. J. Richter, Gregory Parker, Matteo Staffaroni, Michael Grobis, and Barry C. Stipe. Heat assisted mag- netic recording with laser pulsing.IEEE Transactions on Magnetics, 50(11):1–7, 2014
work page 2014
-
[20]
Christoph Vogler, Claas Abert, Florian Bruckner, Di- eter Suess, and Dirk Praetorius. Heat-assisted magnetic recording of bit-patterned media beyond 10 tb/in2.Ap- plied Physics Letters, 108(10), 2016
work page 2016
-
[21]
A hamr media technology roadmap to an areal density of 4 tbit/in2/in2.IEEE Trans
Dieter Weller, Gregory Parker, Oleksandr Mosendz, Eric Champion, BC Stipe, X Wang, T Klemmer, G Ju, and A Ajan. A hamr media technology roadmap to an areal density of 4 tbit/in2/in2.IEEE Trans. Magn, 50:3100108, 2014
work page 2014
-
[22]
Nonlinear optical properties of solids: en- ergy considerations.Physical Review, 130(3):919, 1963
PS Pershan. Nonlinear optical properties of solids: en- ergy considerations.Physical Review, 130(3):919, 1963
work page 1963
-
[23]
BA Zon, V Ya Kupershmidt, GV Pakhomov, and TT Urazbaev. Observation of inverse cotton-mouton ef- fect in the magnetically ordered crystal (lu, bi) 3 (fe, ga) 5 o 12.ZhETF Pisma Redaktsiiu, 45:219, 1987
work page 1987
-
[24]
Daria Popova, Andreas Bringer, and Stefan Bl¨ ugel. The- ory of the inverse faraday effect in view of ultrafast mag- netization experiments.Physical Review B—Condensed Matter and Materials Physics, 84(21):214421, 2011
work page 2011
-
[25]
Anatolii Konstantinovich Zvezdin, Roman Mikhailovich Dubrovin, and Alexey Vol’demarovich Kimel. Giant parametric amplification of the inverse cotton–mouton effect in antiferromagnetic crystals.JETP Letters, 119(5):363–371, 2024
work page 2024
-
[26]
On the theory of ferromagnetic resonance absorption.Physical review, 73(2):155, 1948
Charles Kittel. On the theory of ferromagnetic resonance absorption.Physical review, 73(2):155, 1948
work page 1948
-
[27]
Ferromagnetic resonance.Journal de Physique et le Radium, 12(3):291–302, 1951
Charles Kittel. Ferromagnetic resonance.Journal de Physique et le Radium, 12(3):291–302, 1951
work page 1951
-
[28]
Seongjae Lee, Scott Grudichak, Joseph Sklenar, CC Tsai, Moongyu Jang, Qinghui Yang, Huaiwu Zhang, and John B Ketterson. Ferromagnetic resonance of a yig film in the low frequency regime.Journal of Applied Physics, 120(3), 2016
work page 2016
-
[29]
Ying Liu, Peng Zhou, Rao Bidthanapally, Jitao Zhang, Wei Zhang, Michael R Page, Tianjin Zhang, and Gopalan Srinivasan. Strain control of magnetic anisotropy in yt- trium iron garnet films in a composite structure with yt- trium aluminum garnet substrate.Journal of Composites Science, 6(7):203, 2022
work page 2022
-
[30]
Yiheng Rao, Dainan Zhang, Huaiwu Zhang, Lichuan Jin, Qinghui Yang, Zhiyong Zhong, Mingming Li, Caiyun Hong, and Bo Ma. Thickness dependence of magnetic properties in submicron yttrium iron garnet films.Jour- nal of Physics D: Applied Physics, 51(43):435001, 2018
work page 2018
-
[31]
Jinjun Ding, Chuanpu Liu, Yuejie Zhang, Uppalaiah Erugu, ZhiyongQuan, RuiYu, EthanMcCollum, Songyu Mo, Sheng Yang, Haifeng Ding, et al. Nanometer-thick yttrium iron garnet films with perpendicular anisotropy andlowdamping.Physical Review Applied, 14(1):014017, 2020
work page 2020
-
[32]
Adam Krysztofik, Sevgi ¨Ozo˘ glu, Robert D McMichael, and Emerson Coy. Effect of strain-induced anisotropy on magnetization dynamics in y3fe5o12 films recrystal- lized on a lattice-mismatched substrate.Scientific re- ports, 11(1):14011, 2021
work page 2021
-
[33]
VV Randoshkin, VI Kozlov, V Yu Mochar, NV Vasil’eva, NA Es’ kov, and Yu A Durasova. Characteristic features of ferromagnetic resonance in iron-garnet films with or- thorhombic magnetic anisotropy.Physics of the Solid State, 41(7):1144–1148, 1999
work page 1999
-
[34]
EthanRRosenberg, KaiLitzius, JustinMShaw, GrantA Riley, Geoffrey SD Beach, Hans T Nembach, and Car- oline A Ross. Magnetic properties and growth-induced anisotropy in yttrium thulium iron garnet thin films.Ad- vanced Electronic Materials, 7(10):2100452, 2021
work page 2021
-
[35]
Perpendicular magnetic anisotropy in bi-substituted yttrium iron garnet films
Sreeveni Das, Rhodri Mansell, Luk´ aˇ s Flajˇ sman, Lide Yao, and Sebastiaan Van Dijken. Perpendicular magnetic anisotropy in bi-substituted yttrium iron garnet films. Journal of Applied Physics, 134(24), 2023
work page 2023
-
[36]
CL Jermain, SV Aradhya, ND Reynolds, RA Buhrman, JT Brangham, MR Page, PC Hammel, FY Yang, and DC Ralph. Increased low-temperature damping in yttrium iron garnet thin films.Physical Review B, 95(17):174411, 2017
work page 2017
-
[37]
M Haidar, M Ranjbar, M Balinsky, RK Dumas, Sergiy Khartsev, and Johan ˚Akerman. Thickness-and temperature-dependent magnetodynamic properties of yttrium iron garnet thin films.Journal of Applied Physics, 117(17), 2015
work page 2015
-
[38]
MI Panin, NE Kupchinskaya, MV Bakhmetiev, RB Morgunov, VN Berzhansky, VI Belotelov, SN Polulyakh, and AI Chernov. Exploring mag- netic anisotropy in garnet films at low temperatures using ferromagnetic resonance.Journal of Applied Physics, 137(4), 2025
work page 2025
-
[39]
I Laulicht, JT Suss, and J Barak. The temperature de- pendence of the ferromagnetic and paramagnetic reso- nance spectra in thin yttrium-iron-garnet films.Journal of applied physics, 70(4):2251–2258, 1991
work page 1991
-
[40]
Marwan Deb, Elena Popova, Michel Hehn, Niels Keller, St´ ephane Mangin, and Gregory Malinowski. Picosec- ond acoustic-excitation-driven ultrafast magnetization dynamics in dielectric bi-substituted yttrium iron garnet. Physical Review B, 98(17):174407, 2018
work page 2018
-
[41]
Rui Yu, Kang He, Qi Liu, Xucheng Gan, Bingfeng Miao, Liang Sun, Jun Du, Hongling Cai, Xiaoshan Wu, Mingzhong Wu, et al. Nonvolatile electric-field control of ferromagnetic resonance and spin pumping in pt/yig at room temperature.Advanced Electronic Materials, 5(3):1800663, 2019
work page 2019
-
[42]
IV Zavislyak, MA Popov, G Sreenivasulu, and G Srini- vasan. Electric field tuning of domain magnetic reso- nances in yttrium iron garnet films.Applied Physics Let- ters, 102(22), 2013
work page 2013
-
[43]
Xufeng Zhang, Tianyu Liu, Michael E Flatt´ e, and Hong X Tang. Electric-field coupling to spin waves in a centrosymmetric ferrite.Physical review letters, 113(3):037202, 2014
work page 2014
-
[44]
Light-induced magnetic anisotropy in co- doped garnet films.Physical Review B, 64(6):064405, 2001
A Stupakiewicz, A Maziewski, I Davidenko, and V Zablotskii. Light-induced magnetic anisotropy in co- doped garnet films.Physical Review B, 64(6):064405, 2001
work page 2001
-
[45]
F Atoneche, AM Kalashnikova, AV Kimel, A Stu- pakiewicz, A Maziewski, Andrei Kirilyuk, and Th Ras- ing. Large ultrafast photoinduced magnetic anisotropy in a cobalt-substituted yttrium iron garnet.Physi- cal Review B—Condensed Matter and Materials Physics, 81(21):214440, 2010. 8
work page 2010
-
[46]
LQ Shen, LF Zhou, JY Shi, M Tang, Z Zheng, D Wu, SM Zhou, LY Chen, and HB Zhao. Dominant role of inverse cotton-mouton effect in ultrafast stimulation of magnetization precession in undoped yttrium iron gar- net films by 400-nm laser pulses.Physical Review B, 97(22):224430, 2018
work page 2018
-
[47]
Ryugo Iida, Takuya Satoh, Tsutomu Shimura, Kazuo Kuroda, BA Ivanov, Yusuke Tokunaga, and Yoshinori Tokura. Spectral dependence of photoinduced spin pre- cession in dyfeo 3.Physical Review B—Condensed Matter and Materials Physics, 84(6):064402, 2011
work page 2011
-
[48]
SergeiNikolaevichPolulyakh, EYuSemuk, AnatoliiKon- stantinovich Zvezdin, Vladimir Naumovich Berzhanskii, and Vladimir Igorevich Belotelov. Light-induced modi- fication of the fmr spectra of a bismuth-substituted yt- trium ferrite garnet film.JETP Letters, 115(4):196–201, 2022
work page 2022
-
[49]
Magneticbirefringenceoflightinirongarnets.Sov
RVPisarev, IGSinii, NNKolpakova, andYuMYakovlev. Magneticbirefringenceoflightinirongarnets.Sov. Phys. JETP, 33:1175, 1971
work page 1971
-
[50]
HSuhl. Ferromagneticresonanceinnickelferritebetween one and two kilomegacycles.Physical Review, 97(2):555, 1955
work page 1955
-
[51]
Morton Hamermesh.Group theory and its application to physical problems. Courier Corporation, 2012
work page 2012
-
[52]
Shaskolskaya M.P Sirotin YuI.Fundamentals of Crystal Physics. Mir Publishers, Moscow, 1982
work page 1982
