arxiv: 2604.08293 · v1 · submitted 2026-04-09 · 💻 cs.SE · cs.AI

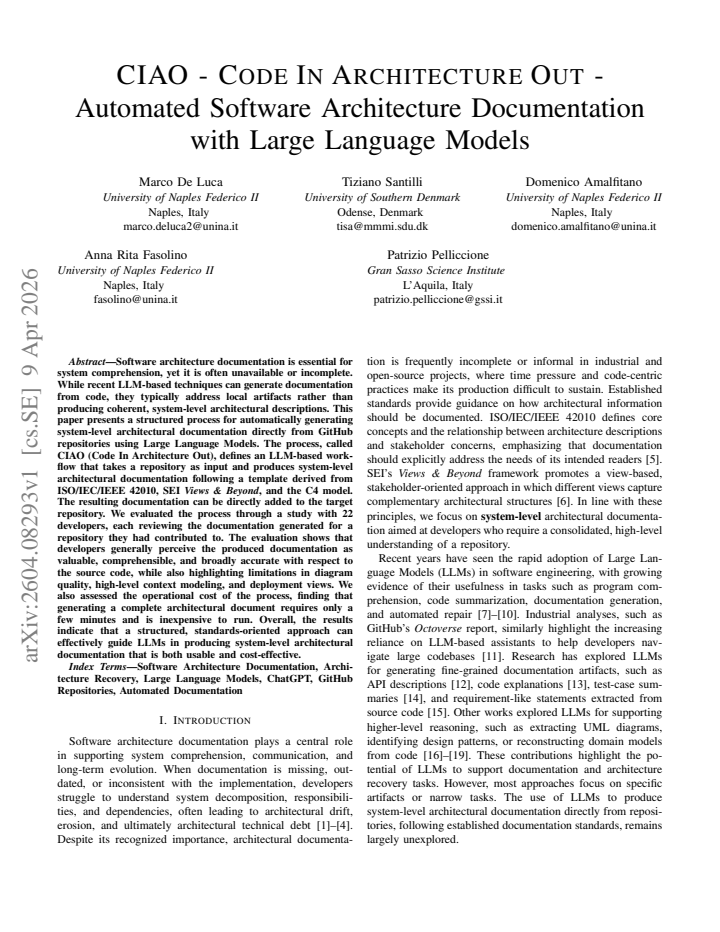

CIAO - Code In Architecture Out - Automated Software Architecture Documentation with Large Language Models

Marco De Luca , Tiziano Santilli , Domenico Amalfitano , Anna Rita Fasolino , Patrizio Pelliccione This is my paper

Pith reviewed 2026-05-10 17:20 UTC · model grok-4.3

classification 💻 cs.SE cs.AI
keywords software architecture documentationlarge language modelsautomated documentationsystem-level architectureISO 42010C4 modelGitHub repositoriesdeveloper evaluation
0
0 comments X

The pith

A structured standards-based workflow lets LLMs generate usable system-level architecture documentation directly from GitHub repositories.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper presents CIAO as a defined process that feeds a repository into large language models and produces coherent architectural documentation following a template drawn from ISO/IEC/IEEE 42010, SEI Views & Beyond, and the C4 model. This addresses the frequent absence of system-wide descriptions that help teams understand overall structure rather than isolated code pieces. Developers who contributed to the evaluated projects reviewed the output and found it generally valuable, comprehensible, and aligned with the source code. The process completes in minutes and incurs low cost, showing that guided LLMs can deliver practical documentation without heavy manual effort.

Core claim

By following a standards-derived template through a repeatable LLM workflow, the CIAO process produces system-level architectural documentation that contributors to the original repositories judge as valuable, comprehensible, and broadly accurate with respect to the code, while operating in only a few minutes at modest expense.

What carries the argument

The CIAO workflow, a sequenced LLM process that ingests a GitHub repository and assembles documentation according to a template combining ISO/IEC/IEEE 42010, SEI Views & Beyond, and the C4 model.

Load-bearing premise

That LLMs following the defined workflow and templates will output documentation that accurately captures the system architecture without major omissions or inaccuracies, as judged by subjective review from contributing developers.

What would settle it

Independent verification by several developers of the same project showing systematic mismatches between the generated documentation and the actual codebase structure or behavior.

Figures

Figures reproduced from arXiv: 2604.08293 by Anna Rita Fasolino, Domenico Amalfitano, Marco De Luca, Patrizio Pelliccione, Tiziano Santilli.

Figure 1

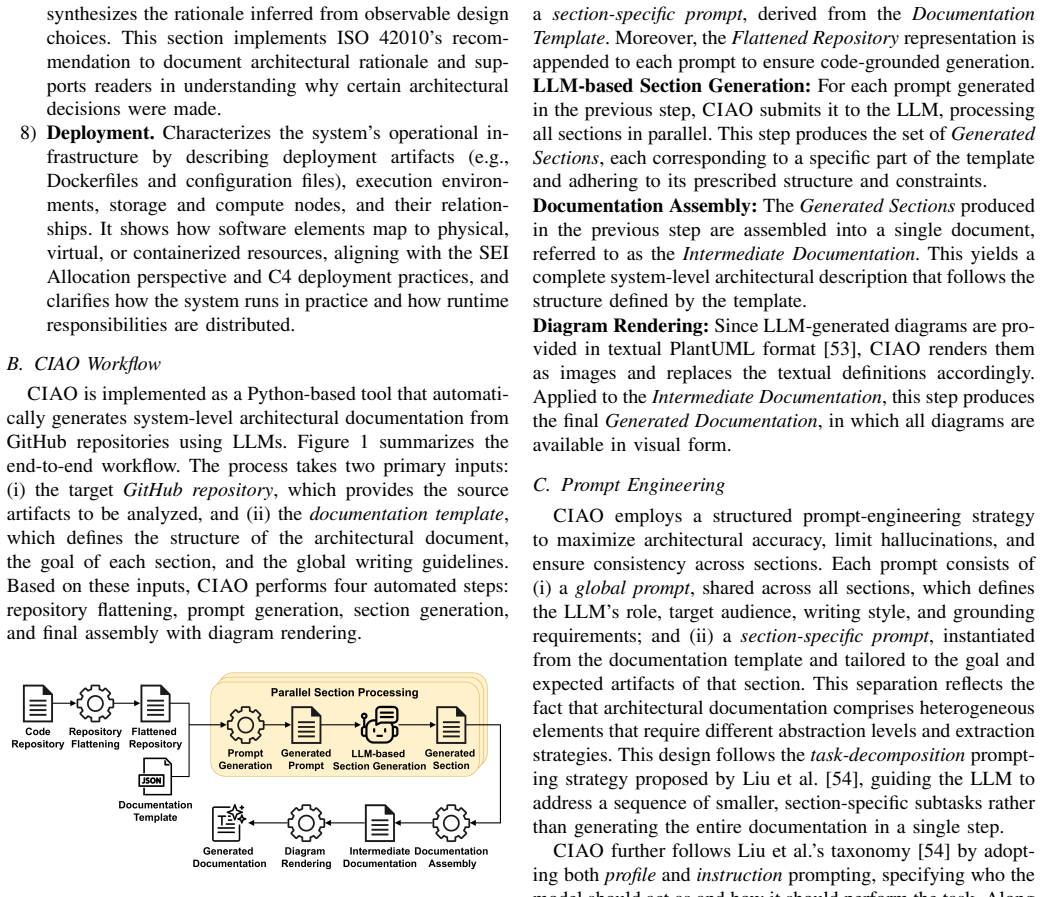

Figure 1. Figure 1: Overview of the CIAO automated documentation workflow. [PITH_FULL_IMAGE:figures/full_fig_p004_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Distribution of participants’ Likert-scale ratings for RQ1 [PITH_FULL_IMAGE:figures/full_fig_p007_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Distribution of participants’ Likert-scale ratings for RQ2 [PITH_FULL_IMAGE:figures/full_fig_p008_3.png] view at source ↗
Figure 4

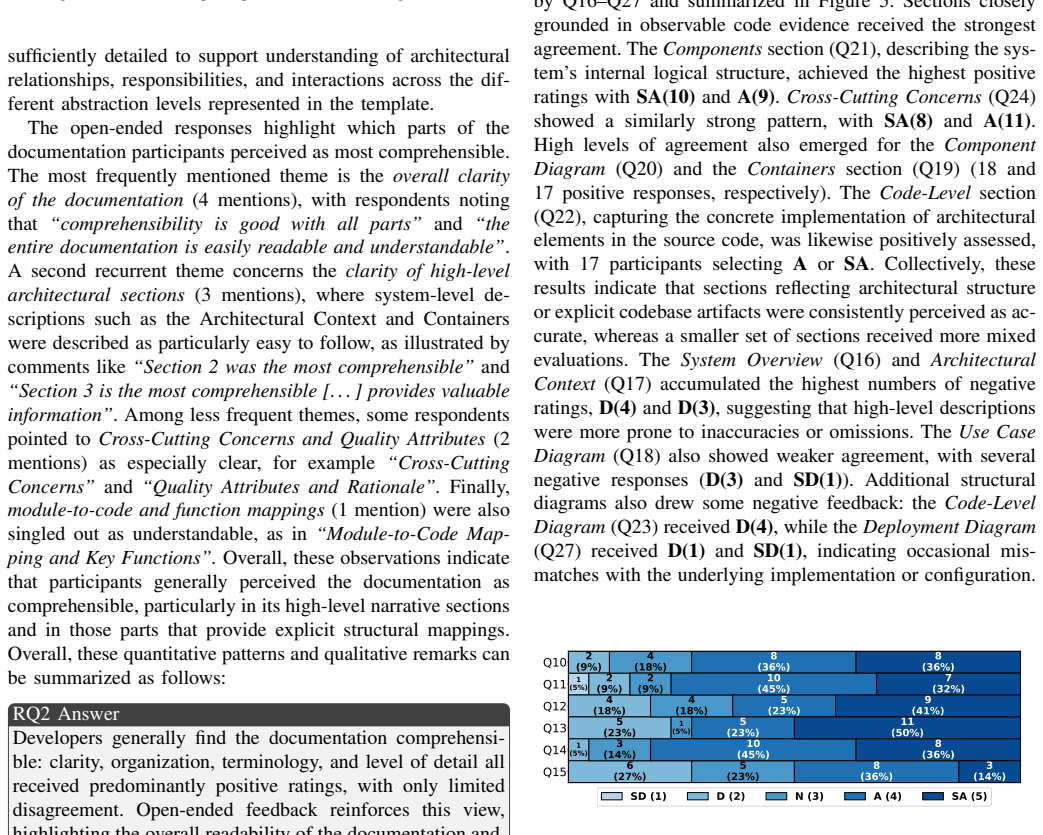

Figure 4. Figure 4: Distribution of participants’ Likert-scale ratings for RQ3 - General [PITH_FULL_IMAGE:figures/full_fig_p008_4.png] view at source ↗
Figure 5

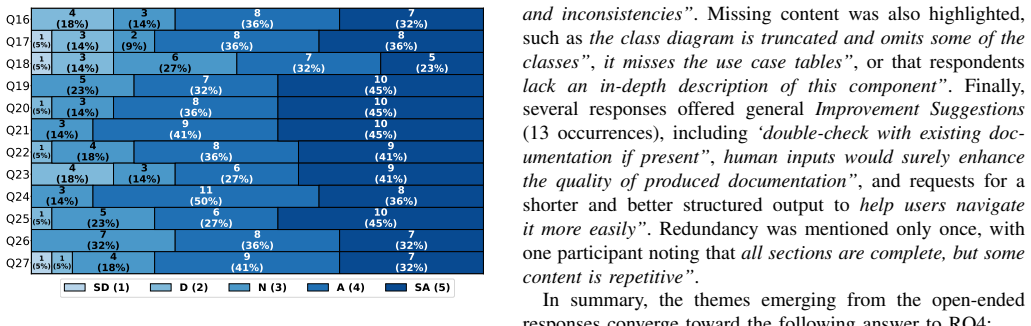

Figure 5. Figure 5: Distribution of participants’ Likert-scale ratings for RQ3 - Section [PITH_FULL_IMAGE:figures/full_fig_p009_5.png] view at source ↗
read the original abstract

Software architecture documentation is essential for system comprehension, yet it is often unavailable or incomplete. While recent LLM-based techniques can generate documentation from code, they typically address local artifacts rather than producing coherent, system-level architectural descriptions. This paper presents a structured process for automatically generating system-level architectural documentation directly from GitHub repositories using Large Language Models. The process, called CIAO (Code In Architecture Out), defines an LLM-based workflow that takes a repository as input and produces system-level architectural documentation following a template derived from ISO/IEC/IEEE 42010, SEI Views \& Beyond, and the C4 model. The resulting documentation can be directly added to the target repository. We evaluated the process through a study with 22 developers, each reviewing the documentation generated for a repository they had contributed to. The evaluation shows that developers generally perceive the produced documentation as valuable, comprehensible, and broadly accurate with respect to the source code, while also highlighting limitations in diagram quality, high-level context modeling, and deployment views. We also assessed the operational cost of the process, finding that generating a complete architectural document requires only a few minutes and is inexpensive to run. Overall, the results indicate that a structured, standards-oriented approach can effectively guide LLMs in producing system-level architectural documentation that is both usable and cost-effective.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 3 minor

Summary. The paper introduces CIAO, a structured LLM workflow that ingests a GitHub repository and outputs system-level architectural documentation following a template derived from ISO/IEC/IEEE 42010, SEI Views & Beyond, and the C4 model. The central claim is that this standards-oriented process produces documentation that 22 contributing developers perceive as valuable, comprehensible, and broadly accurate, while being inexpensive (a few minutes and low cost) to generate.

Significance. If the results hold, the work shows a practical, template-guided method for automating system-level architecture documentation, an area where manual effort is high and coverage is often poor. Strengths include the explicit use of established standards for structure, the direct developer usability study, and the operational cost assessment. These elements support the claim that such an approach can be both usable and cost-effective for real repositories.

major comments (2)
  1. [§4 and §5] §4 (Developer Study) and §5 (Results): The accuracy and completeness claims rest on subjective ratings from 22 developers who contributed to the evaluated repositories. No ground-truth architecture documents, independent architect reviews, inter-rater reliability statistics, or objective metrics (e.g., component coverage, view completeness scores) are reported. This setup risks confirmation bias, as reviewers may accept LLM outputs that align with their existing mental models while missing high-level omissions or hallucinations.
  2. [§3 and §4.2] §3 (CIAO Process) and §4.2: The workflow relies on LLM prompting with the defined templates to ensure system-level fidelity, yet no mechanism is described for detecting or correcting code-to-document mismatches (e.g., incorrect component boundaries or missing deployment views). The paper notes limitations in diagram quality and deployment views but does not quantify how often these occur or provide mitigation beyond post-generation review.
minor comments (3)
  1. [Abstract and §1] The abstract and §1 could more explicitly distinguish the contribution from prior LLM-based documentation generators that focus on local artifacts (e.g., method-level comments) versus system-level views.
  2. [Figures and §5] Figure captions and the description of generated diagrams should clarify which C4 levels are produced and how visual quality issues were assessed by participants.
  3. [§4.1] The paper would benefit from a table summarizing the 22 repositories (size, domain, languages) and the exact prompts/templates used in the workflow for reproducibility.

Simulated Author's Rebuttal

2 responses · 2 unresolved

We thank the referee for their insightful comments on our manuscript. We have carefully considered the points raised regarding the evaluation methodology and the robustness of the CIAO process. Our responses to the major comments are provided below, and we indicate where revisions will be made to the manuscript.

read point-by-point responses

  1. Referee: [§4 and §5] §4 (Developer Study) and §5 (Results): The accuracy and completeness claims rest on subjective ratings from 22 developers who contributed to the evaluated repositories. No ground-truth architecture documents, independent architect reviews, inter-rater reliability statistics, or objective metrics (e.g., component coverage, view completeness scores) are reported. This setup risks confirmation bias, as reviewers may accept LLM outputs that align with their existing mental models while missing high-level omissions or hallucinations.

    Authors: We acknowledge the limitations of relying solely on subjective ratings from contributing developers, which may indeed introduce confirmation bias. Our rationale for this study design was to assess the practical value and perceived accuracy from the perspective of those most familiar with the codebases, as external reviewers would lack this context. Ground-truth architecture documents are not available for the selected repositories, which underscores the motivation for our work. We did not compute inter-rater reliability because each participant evaluated a unique repository. However, we agree that additional objective measures would strengthen the claims. In the revised manuscript, we will expand the discussion in §5 to explicitly address potential biases and include suggestions for future objective evaluations, such as component coverage metrics. We will also report any available statistics from the study on specific issues raised. revision: partial

  2. Referee: [§3 and §4.2] §3 (CIAO Process) and §4.2: The workflow relies on LLM prompting with the defined templates to ensure system-level fidelity, yet no mechanism is described for detecting or correcting code-to-document mismatches (e.g., incorrect component boundaries or missing deployment views). The paper notes limitations in diagram quality and deployment views but does not quantify how often these occur or provide mitigation beyond post-generation review.

    Authors: The CIAO workflow is intentionally positioned as a generation aid rather than a fully autonomous system, with the expectation that generated documentation undergoes human review before integration into the repository. No automated mismatch detection is included because current LLM capabilities do not reliably identify high-level semantic errors without external verification tools, which would add significant overhead. Regarding quantification, the developer study collected feedback on specific limitations, and we can extract and report the prevalence of comments related to diagram quality and deployment views in the results section. We will revise §4.2 and §5 to include this quantification and clarify that post-generation review is the primary mitigation strategy, consistent with standard practices in software architecture documentation. revision: yes

standing simulated objections not resolved
  • We cannot provide ground-truth architecture documents since they were not present in the evaluated open-source repositories.
  • Independent architect reviews were not feasible within the scope and resources of this study.

Circularity Check

0 steps flagged

No significant circularity in derivation chain

full rationale

The paper presents an LLM workflow guided by external standards (ISO/IEC/IEEE 42010, SEI Views & Beyond, C4 model) and evaluates it via a new study with 22 developers reviewing generated docs for repositories they contributed to. No equations, fitted parameters, or predictions appear. No self-citations are load-bearing for the central claim; templates and process are defined directly in the paper without reducing to prior self-work by construction. Evaluation uses subjective reviews against developer knowledge of the code, which is independent of any fitted inputs or self-definitional loops. This is a standard empirical software engineering study with no reduction of results to inputs.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on the domain assumption that LLMs can synthesize coherent system-level views from raw code when given structured prompts and standards-based templates. No free parameters or invented entities are introduced.

axioms (1)
  • domain assumption LLMs can be effectively guided by templates derived from ISO/IEC/IEEE 42010, SEI Views & Beyond, and C4 model to produce usable system-level architecture documentation
    This assumption underpins the entire CIAO workflow and its claim of effectiveness.

pith-pipeline@v0.9.0 · 5546 in / 1182 out tokens · 36932 ms · 2026-05-10T17:20:36.070394+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Lean theorems connected to this paper

Citations machine-checked in the Pith Canon. Every link opens the source theorem in the public Lean library.

What do these tags mean?
matches
The paper's claim is directly supported by a theorem in the formal canon.
supports
The theorem supports part of the paper's argument, but the paper may add assumptions or extra steps.
extends
The paper goes beyond the formal theorem; the theorem is a base layer rather than the whole result.
uses
The paper appears to rely on the theorem as machinery.
contradicts
The paper's claim conflicts with a theorem or certificate in the canon.
unclear
Pith found a possible connection, but the passage is too broad, indirect, or ambiguous to say the theorem truly supports the claim.

Forward citations

Cited by 1 Pith paper

Reviewed papers in the Pith corpus that reference this work. Sorted by Pith novelty score.

  1. Towards LLM-Assisted Architecture Recovery for Real-World ROS~2 Systems: An Agent-Based Multi-Level Approach to Hierarchical Structural Architecture Reconstruction

    cs.SE 2026-05 unverdicted novelty 4.0

    An enhanced LLM-assisted pipeline with refined prompting and multi-level staged representations improves consistency, scalability, and robustness when recovering hierarchical architectures from a real-world ROS 2 disa...

Reference graph

Works this paper leans on

81 extracted references · 81 canonical work pages · cited by 1 Pith paper · 1 internal anchor
