arxiv: 2604.08722 · v1 · submitted 2026-04-09 · 💻 cs.CV · cs.AI

Recognition: unknown

AI Driven Soccer Analysis Using Computer Vision

Adrian Manchado , Tanner Cellio , Jonathan Keane , Yiyang Wang

Authors on Pith no claims yet

Pith reviewed 2026-05-10 17:25 UTC · model grok-4.3

classification 💻 cs.CV cs.AI

keywords soccer analysiscomputer visionplayer detectionhomographySAM2 segmentationkeypoint detectiontactical metrics

0 comments

The pith

A computer vision system maps soccer players from any camera view to real field positions using homography.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper builds a pipeline that detects players in soccer video, segments and tracks them, then converts their locations into actual distances on the field. It starts with object detectors such as YOLO or Faster R-CNN, adds SAM2 for masks and tracking, and uses a CNN to locate fixed field points. Those points drive a homography calculation that works even when the camera moves or tilts. Once positions are in real-world coordinates, the system can compute player speeds, distances run, and heatmaps automatically.

Core claim

The system combines object detection models, SAM2 segmentation and tracking, and CNN keypoint detection so that homography can transform segmented player masks from camera perspective to real-world field coordinates, regardless of camera angle or movement, and thereby produce tactical metrics such as speed and positioning heatmaps.

What carries the argument

Homography transformation driven by CNN-detected field keypoints that converts camera-view player positions into real-world field coordinates.

If this is right

Coaches receive calculated player speeds and total distances covered during matches.
Positioning heatmaps and basic team statistics become available directly from video.
Tactical insights that are hard to obtain from raw footage can be generated automatically.
Performance data can inform coaching decisions and player training plans.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same keypoint-plus-homography step could be reused for other rectangular-field sports.
If run in real time the pipeline might support live coaching dashboards.
Pairing the position data with jersey-number recognition would allow per-player tracking across games.

Load-bearing premise

The object detection models will reach high accuracy on the custom soccer videos and the homography will correctly map positions despite changes in camera movement and angle.

What would settle it

Independent measurements of player positions and speeds on test videos, for example from GPS data, that show large consistent mismatches with the transformed coordinates produced by the system.

Figures

Figures reproduced from arXiv: 2604.08722 by Adrian Manchado, Jonathan Keane, Tanner Cellio, Yiyang Wang.

**Figure 1.** Figure 1: The set of all keypoints to predict in the field (left) and an example labeled frame from game footage (right). 4 Methodology Since creating a soccer computer vision system is a complex task, we define several workflows to process the game footage to produce meaningful results that can be used for further game analysis, as seen in [PITH_FULL_IMAGE:figures/full_fig_p006_1.png] view at source ↗

**Figure 2.** Figure 2: Full workflow for transforming video feed into a 2D representation of the feed. Core model pieces are defined with colors while different states of the data are defined in white. 5 [PITH_FULL_IMAGE:figures/full_fig_p006_2.png] view at source ↗

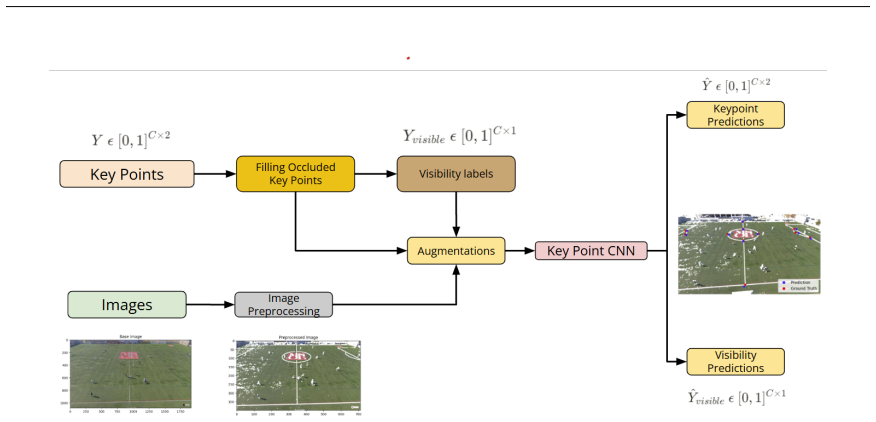

**Figure 3.** Figure 3: Keypoint prediction model workflow. consistency across samples. The enhanced image was then converted to RGB, resized to 710×400 pixels, to speed up neural network training, and normalized to [0, 1], as seen in the second image of [PITH_FULL_IMAGE:figures/full_fig_p008_3.png] view at source ↗

**Figure 4.** Figure 4: Team assignment based on pixel color clustering of player bounding boxes. This example uses player detections from YOLOv8. 5 Results 5.1 Player Detection Model Performance In evaluating different object detection models for identifying soccer players as prompts for SAM2, F1-score, IoU (Intersection over Union), recall, and precision each play a crucial role in determining effectiveness. Of these metrics, F… view at source ↗

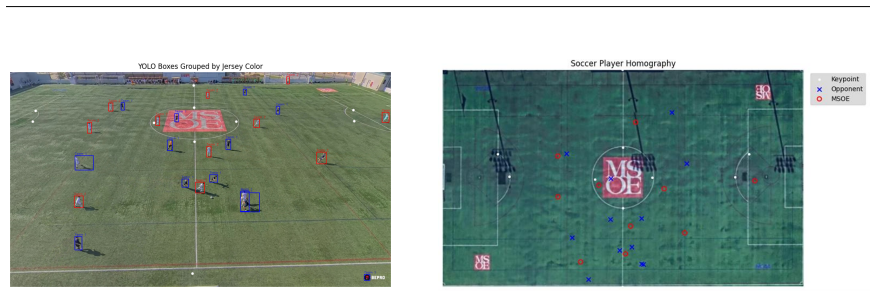

**Figure 5.** Figure 5: An example frame with player detection/keypoint predictions (left) and then applying homography to create a 2D field representation (right). algorithm mistakes players when they are affected by the glare or shadows, assigning them to the opposite team. Furthermore, our keypoint detection model is not perfect, which can lead to innaccurate positions in the top down perspective or misleading stats. These are… view at source ↗

read the original abstract

Sport analysis is crucial for team performance since it provides actionable data that can inform coaching decisions, improve player performance, and enhance team strategies. To analyze more complex features from game footage, a computer vision model can be used to identify and track key entities from the field. We propose the use of an object detection and tracking system to predict player positioning throughout the game. To translate this to positioning in relation to the field dimensions, we use a point prediction model to identify key points on the field and combine these with known field dimensions to extract actual distances. For the player-identification model, object detection models like YOLO and Faster R-CNN are evaluated on the accuracy of our custom video footage using multiple different evaluation metrics. The goal is to identify the best model for object identification to obtain the most accurate results when paired with SAM2 (Segment Anything Model 2) for segmentation and tracking. For the key point detection model, we use a CNN model to find consistent locations in the soccer field. Through homography, the positions of points and objects in the camera perspective will be transformed to a real-ground perspective. The segmented player masks from SAM2 are transformed from camera perspective to real-world field coordinates through homography, regardless of camera angle or movement. The transformed real-world coordinates can be used to calculate valuable tactical insights including player speed, distance covered, positioning heatmaps, and more complex team statistics, providing coaches and players with actionable performance data previously unavailable from standard video analysis.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

This is a standard CV pipeline paper for soccer stats that combines known models but shows no results and leans on unproven assumptions about homography under camera motion.

read the letter

The paper outlines a pipeline using YOLO or Faster R-CNN for player detection, SAM2 for masks and tracking, a CNN for field keypoints, and homography to map everything to real-world field coordinates. From there it aims to compute speed, distance covered, and heatmaps for coaching use. That practical goal is clear and the choice to test a couple of detectors on their own footage is sensible enough for an applied project. The abstract also correctly notes that these steps can turn raw video into numbers coaches might actually use. Beyond that, there is little new. The components are all established, and the work does not claim or demonstrate any improvements to them. The abstract promises evaluation with multiple metrics yet provides none, no error bars, and no discussion of how the system behaves on real broadcast footage with pans, zooms, or occlusions. The claim that positions map correctly “regardless of camera angle or movement” rests on the keypoint detector working reliably every frame, but the text gives no details on visibility checks, outlier rejection, or measured reprojection error. The stress-test note on that point holds up from what is shown. This is the sort of write-up that might interest someone already building sports analytics tools and looking for a concrete example to adapt. It will not interest readers looking for advances in detection or tracking methods. If the full paper contains actual quantitative results and some robustness tests, it could be worth sending out for review so the experiments get proper scrutiny. On the current evidence it is thin, but not incoherent.

Referee Report

3 major / 2 minor

Summary. The paper proposes a computer vision pipeline for soccer analysis that evaluates YOLO and Faster R-CNN for player detection on custom footage, pairs the best performer with SAM2 for segmentation and tracking, and uses a CNN keypoint detector to compute homography matrices that map camera-view player positions to real-world field coordinates. The transformed coordinates are then used to derive metrics including player speed, distance covered, and positioning heatmaps.

Significance. If the pipeline were shown to produce accurate real-world positions under broadcast conditions, it would offer coaches quantitative tactical insights directly from standard video without specialized hardware. The approach builds on established components (YOLO, SAM2, homography) but currently presents only a high-level plan rather than validated performance.

major comments (3)

[Abstract] Abstract: The claim that 'the segmented player masks from SAM2 are transformed from camera perspective to real-world field coordinates through homography, regardless of camera angle or movement' lacks any description of per-frame keypoint detection robustness, RANSAC outlier handling, reprojection-error thresholds, or temporal smoothing. Broadcast soccer footage routinely features panning, zooming, and partial occlusions, so the 'regardless' qualifier requires explicit validation that is absent.
[Abstract] Abstract: The manuscript states that object-detection models 'are evaluated on the accuracy of our custom video footage using multiple different evaluation metrics' and that the goal is 'to identify the best model,' yet supplies no numerical results, confusion matrices, precision-recall curves, or comparisons. Without these data the central claim that the pipeline yields 'actionable performance data' cannot be assessed.
[Abstract] Abstract: The keypoint-based homography step is described only at the level of 'a CNN model to find consistent locations in the soccer field' combined with 'known field dimensions.' No mention is made of the minimum number of non-collinear points required per frame, visibility criteria, or measured coordinate error on the authors' footage; these omissions directly affect the reliability of all downstream speed and heatmap calculations.

minor comments (2)

[Abstract] The abstract refers to 'our custom video footage' without providing dataset size, camera specifications, or annotation protocol, which would be needed for reproducibility.
[Abstract] No citations to prior soccer-analysis or sports-homography literature appear in the provided text, making it difficult to situate the contribution relative to existing work.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the constructive feedback on our manuscript. We address each major comment below and will incorporate the suggested clarifications and results into a revised version of the paper.

read point-by-point responses

Referee: [Abstract] Abstract: The claim that 'the segmented player masks from SAM2 are transformed from camera perspective to real-world field coordinates through homography, regardless of camera angle or movement' lacks any description of per-frame keypoint detection robustness, RANSAC outlier handling, reprojection-error thresholds, or temporal smoothing. Broadcast soccer footage routinely features panning, zooming, and partial occlusions, so the 'regardless' qualifier requires explicit validation that is absent.

Authors: We agree that the abstract is high-level and omits key technical details on homography robustness. In the revised manuscript we will expand both the abstract and methods section to describe the per-frame keypoint detection pipeline, including RANSAC for outlier rejection, reprojection-error thresholds, and temporal smoothing across frames to handle panning, zooming, and occlusions. revision: yes
Referee: [Abstract] Abstract: The manuscript states that object-detection models 'are evaluated on the accuracy of our custom video footage using multiple different evaluation metrics' and that the goal is 'to identify the best model,' yet supplies no numerical results, confusion matrices, precision-recall curves, or comparisons. Without these data the central claim that the pipeline yields 'actionable performance data' cannot be assessed.

Authors: The current abstract summarizes the evaluation intent without presenting the actual metrics. We will add the numerical results, confusion matrices, precision-recall curves, and direct comparisons between YOLO and Faster R-CNN on the custom footage to the revised results section, thereby supporting the claim of actionable performance data. revision: yes
Referee: [Abstract] Abstract: The keypoint-based homography step is described only at the level of 'a CNN model to find consistent locations in the soccer field' combined with 'known field dimensions.' No mention is made of the minimum number of non-collinear points required per frame, visibility criteria, or measured coordinate error on the authors' footage; these omissions directly affect the reliability of all downstream speed and heatmap calculations.

Authors: We acknowledge the need for greater specificity on the homography step. The revision will specify the minimum number of non-collinear points required, visibility criteria for keypoint selection, and report measured coordinate/reprojection errors on our test footage to substantiate the reliability of the derived speed, distance, and heatmap metrics. revision: yes

Circularity Check

0 steps flagged

No circularity: descriptive pipeline using standard CV components

full rationale

The manuscript proposes an application pipeline: evaluate YOLO/Faster R-CNN on custom soccer footage, pair the best detector with SAM2 for segmentation/tracking, run a separate CNN for field keypoints, then apply homography to map camera coordinates to real-world field positions. No equations, fitted parameters, or first-principles derivations appear. No self-citations are invoked to justify uniqueness theorems, ansatzes, or load-bearing claims. The homography step is presented as a standard geometric transform once keypoints are detected; it is not shown to reduce to its own inputs by construction, nor are any downstream metrics (speed, heatmaps) claimed to be predictions that are statistically forced by the fitting process. The work is therefore self-contained as an engineering description rather than a circular derivation.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 0 invented entities

The abstract relies on domain assumptions about model transfer to soccer footage and geometric invariance of homography; no free parameters or new entities are explicitly introduced or fitted in the provided text.

axioms (2)

domain assumption Object detection models such as YOLO and Faster R-CNN can be evaluated and selected for accurate player identification on custom soccer video footage.
Invoked when stating that multiple models will be tested for the best results when paired with SAM2.
domain assumption Keypoint detection followed by homography can map camera-view positions to real-world field coordinates independently of camera angle or movement.
Central premise for transforming segmented masks and obtaining distance/speed metrics.

pith-pipeline@v0.9.0 · 5565 in / 1334 out tokens · 53917 ms · 2026-05-10T17:25:07.991727+00:00 · methodology

discussion (0)

Reference graph

Works this paper leans on

13 extracted references · 13 canonical work pages · 2 internal anchors

[1]

doi: 10.3390/electronics14050876

ISSN 2079-9292. doi: 10.3390/electronics14050876. URL https://www.mdpi.com/2079-9292/14/5/876. Y.-J. Chu, J.-W. Su, K.-W. Hsiao, C.-Y. Lien, S.-H. Fan, M.-C. Hu, R.-R. Lee, C.-Y. Yao, and H.-K. Chu. Sports field registration via keypoints-aware label condition. In 2022 IEEE/CVF Conference on Computer Vision and Pattern Recognition Work- shops (CVPRW), pag...

work page doi:10.3390/electronics14050876 2079
[2]

doi: 10.1109/CVPRW56347.2022.00396. P. J. Claasen and J. P. de Villiers. Video-based sequential bayesian homography 13 estimation for soccer field registration.Expert Systems with Applications, 252: 124156, Oct

work page doi:10.1109/cvprw56347.2022.00396 2022
[3]

doi: 10.1016/j.eswa.2024.124156

ISSN 0957-4174. doi: 10.1016/j.eswa.2024.124156. URL http://dx.doi.org/10.1016/j.eswa.2024.124156. N. S. Falaleev and R. Chen. Enhancing soccer camera calibration through keypoint exploitation. InProceedings of the 7th ACM International Workshop on Multi- media Content Analysis in Sports, MM ’24, page 65–73. ACM, Oct

work page doi:10.1016/j.eswa.2024.124156 2024
[4]

URLhttp://dx.doi.org/10.1145/3689061.3689074

doi: 10.1145/3689061.3689074. URLhttp://dx.doi.org/10.1145/3689061.3689074. M. Guti´ errez-P´ erez and A. Agudo. Pnlcalib: Sports field registration via points and lines optimization,

work page doi:10.1145/3689061.3689074
[5]

URLhttps://arxiv.org/abs/2404.08401. N. Jegham, C. Y. Koh, M. Abdelatti, and A. Hendawi. Evaluating the evolution of yolo (you only look once) models: A comprehensive benchmark study of yolo11 and its predecessors, 10

work page arXiv
[6]

doi: https://doi.org/10.1016/j.engappai.2013.11.015

ISSN 0952-1976. doi: https://doi.org/10.1016/j.engappai.2013.11.015. URL https://www.sciencedirect.com/science/article/pii/S0952197613002327. Special Issue: Advances in Evolutionary Optimization Based Image Processing. R. Khanam and M. Hussain. Yolov11: An overview of the key architectural enhance- ments,

work page doi:10.1016/j.engappai.2013.11.015 1976
[7]

URLhttps://arxiv.org/abs/2410.17725. N. Ravi, V. Gabeur, Y.-T. Hu, R. Hu, C. Ryali, T. Ma, H. Khedr, R. R¨ adle, C. Rol- land, L. Gustafson, E. Mintun, J. Pan, K. V. Alwala, N. Carion, C.-Y. Wu, R. Gir- shick, P. Doll´ ar, and C. Feichtenhofer. Sam 2: Segment anything in images and videos,

work page internal anchor Pith review arXiv
[8]

URLhttps://arxiv.org/abs/2408.00714. J. Redmon, S. Divvala, R. Girshick, and A. Farhadi. You only look once: Unified, real-time object detection,

work page internal anchor Pith review Pith/arXiv arXiv
[9]

URLhttps://arxiv.org/abs/1506.02640. S. Ren, K. He, R. Girshick, and J. Sun. Faster r-cnn: Towards real-time object detection with region proposal networks,

work page arXiv
[10]

URL https://arxiv.org/abs/1506.01497. J. Theiner and R. Ewerth. Tvcalib: Camera calibration for sports field registration in soccer,

work page arXiv
[11]

URLhttps://arxiv.org/abs/2207.11709. N. Wojke, A. Bewley, and D. Paulus. Simple online and realtime tracking with a deep association metric,

work page arXiv
[12]

URLhttps://arxiv.org/abs/1703.07402. D. Zhang, C. Wu, J. Zhou, W. Zhang, Z. Lin, K. Polat, and F. Alenezi. Ro- bust underwater image enhancement with cascaded multi-level sub-networks and triple attention mechanism.Neural Networks, 169:685–697,

work page arXiv
[13]

doi: https://doi.org/10.1016/j.neunet.2023.11.008

ISSN 0893-6080. doi: https://doi.org/10.1016/j.neunet.2023.11.008. URL https://www.sciencedirect.com/science/article/pii/S0893608023006317. 14

work page doi:10.1016/j.neunet.2023.11.008 2023
