Tracing the Chain: Deep Learning for Stepping-Stone Intrusion Detection

Nate Mathews , Nicholas Hopper , Matthew Wright
Authors on Pith no claims yet

Pith reviewed 2026-05-10 16:47 UTC · model grok-4.3

classification 💻 cs.CR cs.LG
keywords stepping-stone intrusion detectiondeep learningflow correlationnetwork securitytransformer modelssynthetic dataintrusion detectiontunneling protocols
0
0 comments X

The pith

A deep learning model called ESPRESSO detects stepping-stone intrusions by correlating network flows with over 99 percent true positive rate at very low false positives.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper aims to establish that deep learning can reliably detect stepping-stone intrusions, in which attackers route sessions through chains of compromised hosts to hide their origin. This matters because classical statistical methods cannot achieve the extremely low false positive rates needed for operational network defense. ESPRESSO combines a transformer-based feature extractor, time-aligned multi-channel interval features, and online triplet metric learning to correlate incoming and outgoing flows at relay hosts. The authors built a synthetic data generator covering five tunneling protocols and show that the model outperforms the prior DeepCoFFEA baseline in both host-mode and network-mode settings. They also demonstrate chain-length prediction for spotting malicious pivoting and identify timing perturbations as the main vulnerability.

Core claim

ESPRESSO substantially outperforms the state-of-the-art DeepCoFFEA baseline across all five protocols and both host-mode and network-mode detection scenarios, achieving a true positive rate exceeding 0.99 at a false positive rate of 10^{-3} for standard bursty protocols in network-mode.

What carries the argument

ESPRESSO, a flow correlation model that combines transformer-based feature extraction, time-aligned multi-channel interval features, and online triplet metric learning to match incoming and outgoing network flows.

If this is right

  • Reliable detection at the low false positive rates required for operational use becomes feasible.
  • Chain length prediction offers a way to distinguish malicious pivoting from benign activity.
  • Timing-based perturbations are revealed as the primary vulnerability, pointing to where robustness improvements are needed.
  • The method works across SSH, SOCAT, ICMP, DNS, and mixed multi-protocol chains in both host and network modes.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The synthetic data generator could serve as a public benchmark for testing other flow correlation techniques.
  • Incorporating adversarial training against timing changes might strengthen similar deep learning detectors in the future.
  • This line of work could extend to analyzing traffic in anonymity systems where flow correlation is also a core challenge.
  • Real-time deployment of such models would require addressing computational costs of transformer inference on high-speed links.

Load-bearing premise

The synthetic data collection tool generates traffic whose statistical and timing properties sufficiently match those of real-world stepping-stone intrusions.

What would settle it

Evaluating ESPRESSO on a dataset of real captured stepping-stone flows from actual compromised hosts would determine whether the reported detection rates hold beyond the synthetic examples.

Figures

Figures reproduced from arXiv: 2604.08800 by Matthew Wright, Nate Mathews, Nicholas Hopper.

Figure 1
Figure 1. Figure 1: The standard stepping-stone intrusion detection model [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 2
Figure 2. Figure 2: Convolutional projection during transformer self [PITH_FULL_IMAGE:figures/full_fig_p004_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: N P A N P A margin Learning margin Easy Negatives Hard Negatives Semi-hard Negatives [PITH_FULL_IMAGE:figures/full_fig_p005_3.png] view at source ↗

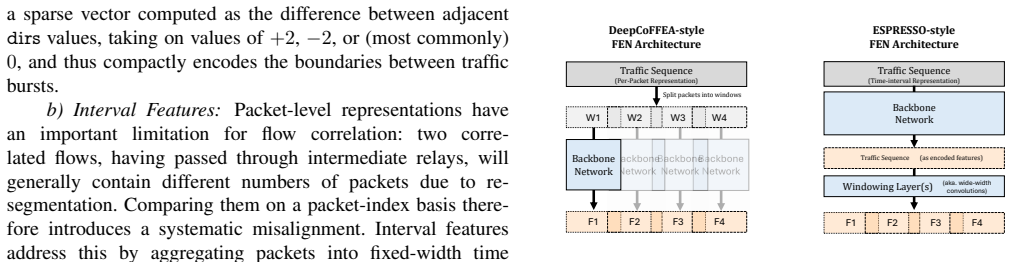

Figure 4
Figure 4. Figure 4: Architecture comparison between DCF and ESPRESSO. ESPRESSO generates a global feature sequence first and then applies windowing, whereas DCF performs windowing before feature extraction. computation. The self-attention layer is followed by a position￾wise feed-forward (MLP) sublayer. By processing the full traffic sequence before any windowing operation, the FEN can capture global temporal context that wou… view at source ↗

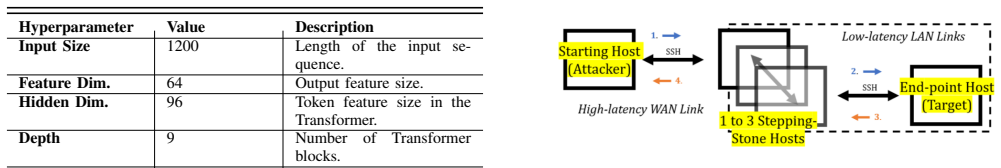

Figure 5
Figure 5. Figure 5: Diagram of synthetic stepping stone data collection [PITH_FULL_IMAGE:figures/full_fig_p007_5.png] view at source ↗
Figure 6
Figure 6. Figure 6: Illustration of the network traffic correlation scenarios [PITH_FULL_IMAGE:figures/full_fig_p009_6.png] view at source ↗
Figure 7
Figure 7. Figure 7: ROC curves presenting correlation efficacy of (a) [PITH_FULL_IMAGE:figures/full_fig_p009_7.png] view at source ↗
Figure 8
Figure 8. Figure 8: ROC curves presenting correlation efficacy of (a) [PITH_FULL_IMAGE:figures/full_fig_p011_8.png] view at source ↗
Figure 10
Figure 10. Figure 10: ROC curves demonstrating correlation performance on [PITH_FULL_IMAGE:figures/full_fig_p015_10.png] view at source ↗
Figure 11
Figure 11. Figure 11: Comparison of window feature similarity of ESPRESSO trained with different loss strategies on one randomly chosen [PITH_FULL_IMAGE:figures/full_fig_p027_11.png] view at source ↗
Figure 12
Figure 12. Figure 12: ROC comparison of ESPRESSO trained using single [PITH_FULL_IMAGE:figures/full_fig_p028_12.png] view at source ↗
Figure 13
Figure 13. Figure 13: ROC results for additional benchmarks on the Multi [PITH_FULL_IMAGE:figures/full_fig_p028_13.png] view at source ↗
Figure 15
Figure 15. Figure 15: ROC curves for (a) ESPRESSO and (b) DCF on [PITH_FULL_IMAGE:figures/full_fig_p028_15.png] view at source ↗
Figure 14
Figure 14. Figure 14: Full chain correlation accuracy as a function of FPR [PITH_FULL_IMAGE:figures/full_fig_p028_14.png] view at source ↗
Figure 16
Figure 16. Figure 16: ROC curves for (a) ESPRESSO and (b) DCF on the [PITH_FULL_IMAGE:figures/full_fig_p029_16.png] view at source ↗

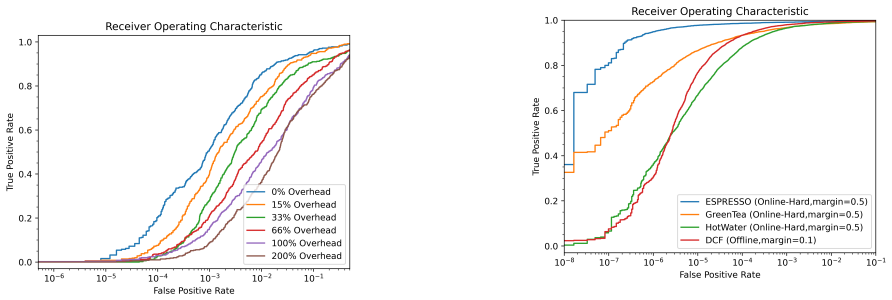

Figure 20
Figure 20. Figure 20: ROC curves comparing ESPRESSO, GreenTea, [PITH_FULL_IMAGE:figures/full_fig_p030_20.png] view at source ↗

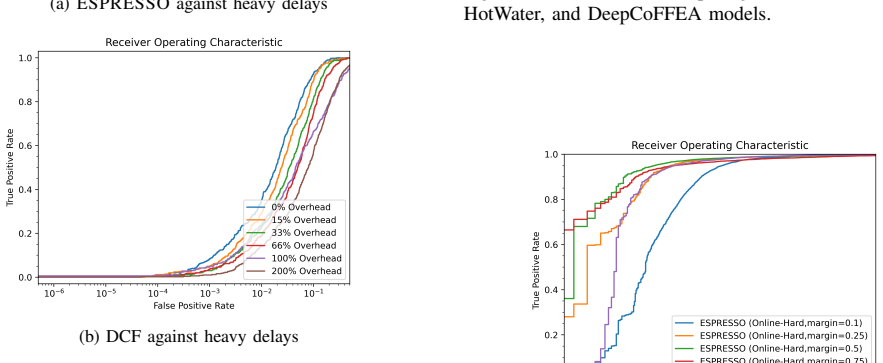

Figure 18
Figure 18. Figure 18: ROC curves for (a) ESPRESSO and (b) DCF on [PITH_FULL_IMAGE:figures/full_fig_p030_18.png] view at source ↗

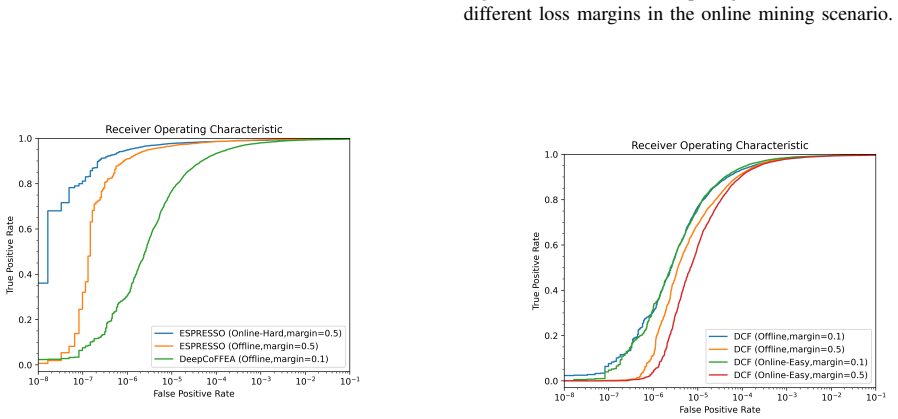

Figure 19
Figure 19. Figure 19: ROC curves comparing ESPRESSO (online mining), [PITH_FULL_IMAGE:figures/full_fig_p030_19.png] view at source ↗

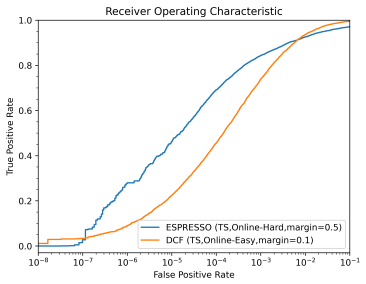

Figure 23
Figure 23. Figure 23: ROC curves comparing ESPRESSO and DeepCoF [PITH_FULL_IMAGE:figures/full_fig_p031_23.png] view at source ↗

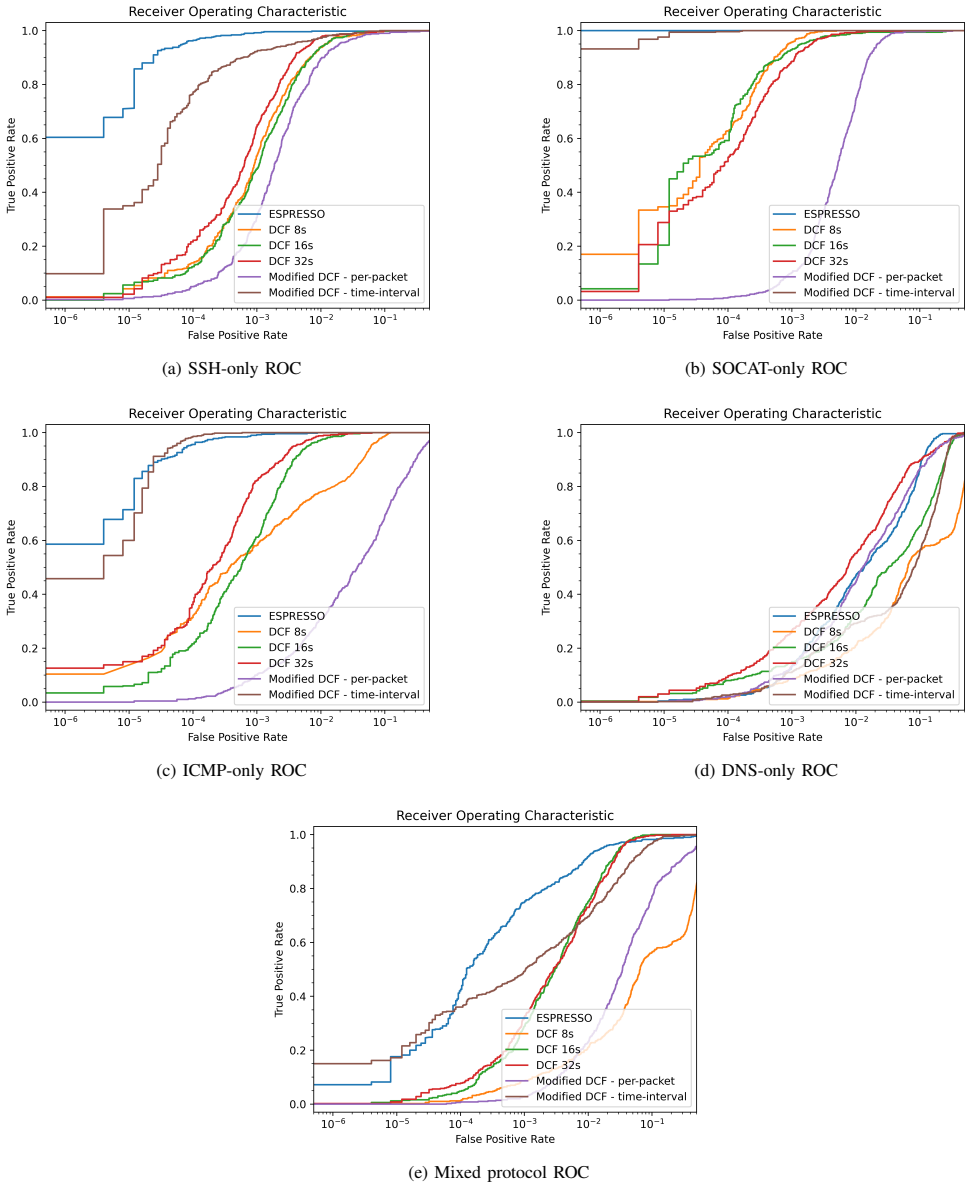

Figure 24
Figure 24. Figure 24: ROC curves presenting correlation efficacy across five datasets in the [PITH_FULL_IMAGE:figures/full_fig_p032_24.png] view at source ↗
Figure 25
Figure 25. Figure 25: ROC curves demonstrating correlation performance of [PITH_FULL_IMAGE:figures/full_fig_p033_25.png] view at source ↗
read the original abstract

Stepping-stone intrusions (SSIs) are a prevalent network evasion technique in which attackers route sessions through chains of compromised intermediate hosts to obscure their origin. Effective SSI detection requires correlating the incoming and outgoing flows at each relay host at extremely low false positive rates -- a stringent requirement that renders classical statistical methods inadequate in operational settings. We apply ESPRESSO, a deep learning flow correlation model combining a transformer-based feature extraction network, time-aligned multi-channel interval features, and online triplet metric learning, to the problem of stepping-stone intrusion detection. To support training and evaluation, we develop a synthetic data collection tool that generates realistic stepping-stone traffic across five tunneling protocols: SSH, SOCAT, ICMP, DNS, and mixed multi-protocol chains. Across all five protocols and in both host-mode and network-mode detection scenarios, ESPRESSO substantially outperforms the state-of-the-art DeepCoFFEA baseline, achieving a true positive rate exceeding 0.99 at a false positive rate of $10^{-3}$ for standard bursty protocols in network-mode. We further demonstrate chain length prediction as a tool for distinguishing malicious from benign pivoting, and conduct a systematic robustness analysis revealing that timing-based perturbations are the primary vulnerability of correlation-based stepping-stone detectors.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The manuscript presents ESPRESSO, a deep learning model for stepping-stone intrusion detection that combines a transformer-based feature extractor, time-aligned multi-channel interval features, and online triplet metric learning. The authors introduce a synthetic data collection tool to generate stepping-stone traffic across five protocols (SSH, SOCAT, ICMP, DNS, and mixed chains). They report that ESPRESSO substantially outperforms the DeepCoFFEA baseline in both host-mode and network-mode scenarios, achieving TPR > 0.99 at FPR = 10^{-3} for standard bursty protocols in network mode. The work also includes chain-length prediction for distinguishing malicious pivoting and a robustness analysis highlighting timing perturbations as the primary vulnerability.

Significance. If the synthetic traces prove representative of real-world stepping-stone flows, the results would advance network security by demonstrating that modern deep learning techniques can achieve the stringent low false-positive rates required for operational SSI detection, where classical statistical methods are inadequate. The explicit comparison to an external baseline, the systematic robustness study, and the use of triplet learning constitute concrete strengths. The synthetic generator enables reproducible controlled experiments, but its unvalidated fidelity to live traffic is the key limiting factor for translating these findings into practice.

major comments (2)
  1. [Abstract] Abstract: All headline performance claims (TPR exceeding 0.99 at FPR of 10^{-3} across protocols in network mode) rest exclusively on flows produced by the authors' synthetic collection tool. No external validation—such as statistical distance metrics to real pivoting traces, comparison against public datasets, or sensitivity analysis to generator hyperparameters—is reported. Because the central claim is that the model is suitable for operational SSI detection, the absence of evidence that the synthetic distribution reproduces real timing jitter, burst structure, and protocol artifacts is load-bearing and must be addressed.
  2. [Evaluation] Evaluation and data-generation sections: The manuscript provides insufficient detail on data-generation parameters, training procedures (including triplet-loss margin and transformer hyperparameters), statistical tests for performance differences, and measures against overfitting beyond standard train-test splits. These omissions prevent independent assessment of whether the reported gains over DeepCoFFEA are robust or merely in-distribution artifacts of the synthetic generator.
minor comments (1)
  1. [Abstract] The abstract refers to 'time-aligned multi-channel interval features' without a concise definition or diagram; a short methods subsection or figure would improve clarity for readers unfamiliar with the feature construction.

Simulated Author's Rebuttal

2 responses · 1 unresolved

We thank the referee for the constructive review and for highlighting both the strengths of our work and areas for improvement. We appreciate the acknowledgment of our baseline comparison, robustness analysis, and the value of the synthetic generator for controlled experiments. We address the major comments below with commitments to revisions that improve reproducibility and transparency. We note that while we can substantially expand methodological details, direct validation against real-world stepping-stone traces remains constrained by data availability.

read point-by-point responses

  1. Referee: [Abstract] Abstract: All headline performance claims (TPR exceeding 0.99 at FPR of 10^{-3} across protocols in network mode) rest exclusively on flows produced by the authors' synthetic collection tool. No external validation—such as statistical distance metrics to real pivoting traces, comparison against public datasets, or sensitivity analysis to generator hyperparameters—is reported. Because the central claim is that the model is suitable for operational SSI detection, the absence of evidence that the synthetic distribution reproduces real timing jitter, burst structure, and protocol artifacts is load-bearing and must be addressed.

    Authors: We acknowledge that the performance claims are derived from synthetic traces and that external validation would further support operational relevance. Real pivoting datasets are not publicly available due to privacy and ethical constraints, which is why we developed a controllable synthetic generator. In the revision we will add a new subsection on data fidelity that includes: (1) sensitivity analysis sweeping generator hyperparameters (jitter variance, burst length, inter-packet timing distributions); (2) statistical comparisons (e.g., Kolmogorov-Smirnov tests on inter-arrival times and packet-size distributions) against publicly available non-pivoting traces from CAIDA and MAWI; and (3) an explicit limitations paragraph discussing the gap between synthetic and live traffic. These additions will clarify the scope of our claims without overstating generalizability to arbitrary real-world conditions. revision: partial

  2. Referee: [Evaluation] Evaluation and data-generation sections: The manuscript provides insufficient detail on data-generation parameters, training procedures (including triplet-loss margin and transformer hyperparameters), statistical tests for performance differences, and measures against overfitting beyond standard train-test splits. These omissions prevent independent assessment of whether the reported gains over DeepCoFFEA are robust or merely in-distribution artifacts of the synthetic generator.

    Authors: We agree that additional implementation details are required for reproducibility. The revised manuscript will expand both sections as follows: data-generation parameters will list all protocol-specific settings, chain-length distributions, delay ranges, and packet-size models; training details will specify the online triplet loss margin (1.0), transformer configuration (6 layers, 8 heads, 512-dimensional embeddings, 0.1 dropout), optimizer (Adam, lr=1e-4), batch size, and epoch count; statistical significance will be reported via paired Wilcoxon signed-rank tests on TPR/FPR across five independent runs with different seeds; and overfitting controls will include early stopping on a held-out validation set, L2 regularization, and explicit train/validation/test splits with no overlap in generated chains. We will also release the full data-generation tool and training code upon acceptance. revision: yes

standing simulated objections not resolved
  • Direct empirical validation of synthetic traces against real-world stepping-stone pivoting flows, as no suitable public datasets exist and ethical considerations preclude new collection of live attack traffic.

Circularity Check

0 steps flagged

No significant circularity detected in derivation or evaluation chain

full rationale

The paper trains and evaluates ESPRESSO on held-out synthetic flows generated by its own collection tool, then compares against the external DeepCoFFEA baseline using standard metrics (TPR at low FPR). No equations, parameters, or predictions reduce to the inputs by construction; the reported performance is an empirical result on a fixed dataset split rather than a tautology. No load-bearing self-citations, uniqueness theorems, or ansatzes imported from prior author work are present in the provided text. The central claim remains an independent empirical comparison even if the synthetic data's fidelity to real traffic is separately questioned.

Axiom & Free-Parameter Ledger

1 free parameters · 1 axioms · 0 invented entities

The performance claims rest primarily on the domain assumption that synthetic traffic captures essential real-world characteristics of stepping-stone chains; model hyperparameters are fitted during training but do not define the reported metrics by construction.

free parameters (1)
  • triplet loss margin and transformer hyperparameters
    These are tuned during model training on the synthetic dataset to achieve the reported correlation performance.
axioms (1)
  • domain assumption Synthetic data generated by the custom tool accurately reproduces timing, burstiness, and protocol behaviors of real stepping-stone intrusions.
    All training, evaluation, and robustness results depend on this generated dataset.
