arxiv: 2604.09999 · v1 · submitted 2026-04-11 · 💻 cs.CV

Recognition: no theorem link

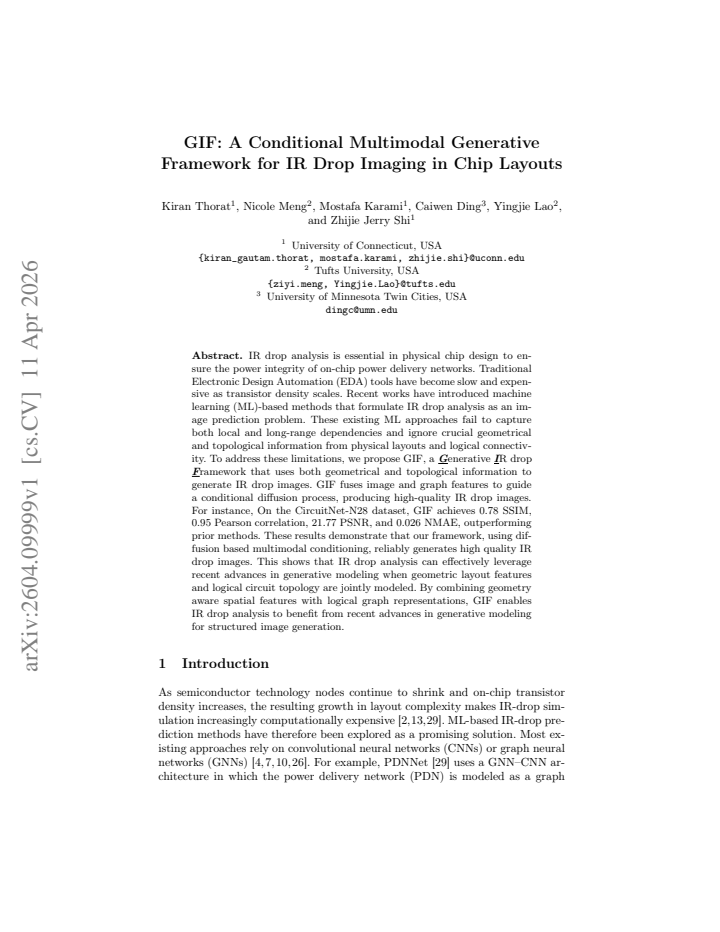

GIF: A Conditional Multimodal Generative Framework for IR Drop Imaging in Chip Layouts

Kiran Thorat , Nicole Meng , Mostafa Karami , Caiwen Ding , Yingjie Lao , Zhijie Jerry Shi

Authors on Pith no claims yet

Pith reviewed 2026-05-10 16:11 UTC · model grok-4.3

classification 💻 cs.CV

keywords IR drop predictionchip layoutconditional diffusionmultimodal fusiongraph featurespower integritygenerative modelingphysical design

0 comments

The pith

Fusing layout images and circuit graphs in a diffusion model generates accurate IR drop images for chips.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

IR drop analysis verifies power integrity in chip designs but grows slow and costly with higher transistor density. Earlier machine learning methods recast the task as image prediction yet overlook long-range dependencies and the geometrical and topological details of actual layouts and netlists. GIF addresses this by extracting features from both the layout image and the circuit graph, then using their fusion to condition a diffusion model that synthesizes the IR drop map. On the CircuitNet-N28 benchmark the method records 0.78 SSIM, 0.95 Pearson correlation, 21.77 PSNR and 0.026 NMAE, surpassing previous approaches. The result indicates that generative image models can be made useful for structured physical-design tasks once spatial geometry and logical connectivity are supplied together as conditioning signals.

Core claim

GIF fuses image and graph features to guide a conditional diffusion process, producing high-quality IR drop images. On the CircuitNet-N28 dataset, GIF achieves 0.78 SSIM, 0.95 Pearson correlation, 21.77 PSNR, and 0.026 NMAE, outperforming prior methods. These results demonstrate that IR drop analysis can effectively leverage recent advances in generative modeling when geometric layout features and logical circuit topology are jointly modeled.

What carries the argument

GIF, the conditional diffusion framework that extracts spatial features from the layout image and connectivity features from the circuit graph, then fuses them to steer the denoising process that produces the IR drop image.

If this is right

IR drop maps become available early in the design flow without repeated full-scale electrical simulations.
Both local power-grid geometry and distant netlist connectivity influence the generated voltage-drop pattern.
Diffusion-based generators can be conditioned on multimodal engineering data rather than images alone.
Existing EDA pipelines can replace slow traditional solvers with a trained generative step for routine checks.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

The same image-plus-graph conditioning pattern could be tested on related layout tasks such as thermal or electromigration map prediction.
If the graph encoder is extended to carry workload-dependent current distributions, the framework might produce dynamic IR drop estimates under varying activity.
Efficiency at larger designs will depend on whether the fused conditioning can be computed without quadratic growth in graph size.

Load-bearing premise

The assumption that fusing geometrical layout features with logical circuit topology inside the conditional diffusion process will reliably capture both local and long-range dependencies needed for accurate IR drop prediction across diverse chip designs.

What would settle it

Running GIF on a new collection of chip layouts whose topology or scale differs markedly from the training set and finding that its SSIM, PSNR or NMAE no longer exceeds the scores of simpler image-only baselines.

Figures

Figures reproduced from arXiv: 2604.09999 by Caiwen Ding, Kiran Thorat, Mostafa Karami, Nicole Meng, Yingjie Lao, Zhijie Jerry Shi.

**Figure 1.** Figure 1: Overview of the proposed framework. (a) Geometric features creation from DEF/LEF files and power reports, (b) Topological features creation, and (c) A diffusion-based UNet predicts the noise ϵ, conditioned on features via AdaGN+FiLM and on graph tokens via gated cross-attention, (d) Generated IR drop map. Transformers and generative models. Transformers capture global spatial interactions [6,16], and layou… view at source ↗

**Figure 2.** Figure 2: Visualization of additional features and ground-truth IR-drop map for the RISCY design from the N14 technology dataset. From left to right: (a) Cell Density, (b) RUDY Short, (c) Global Routing Vertical Overflow, and (d) IR-drop Ground Truth. Timing window reports contains possible switching time domain of the instance in a clock period from a static timing analysis for each pin. The clock period is decomp… view at source ↗

**Figure 3.** Figure 3: Graph construction: (a) Gate level netlist and graph construction attributes, (b) Instance (GCell) placement information, each instance is placed on grid (cx, cy), annotated with its bounding-box coordinates (l, b, r, t), and pin count p, (c) Constructed graph representation with node feature vector xv = [cx, cy, l, b, r, t, p]. Two instances are connected by an edge if they appear together on at least one… view at source ↗

**Figure 4.** Figure 4: Qualitative IR-drop generation on CircuitNet-N28: (a) noise xT , (b) conditioning features (3-channels shown), (c) generated IR-drop xˆ0, (d) ground truth. showing all channels is not visually interpretable. For the sample design zeroriscy (zero-riscy-b-3-c2-u0.85-m1-p6-f1), the model outputs a PSNR of 19.625, an SSIM of 0.811, an MAE of 0.0333, an RMSE of 0.1044, a Pearson correlation of 0.9320, and a … view at source ↗

**Figure 5.** Figure 5: Qualitative IR-drop generation on CircuitNet-N14: (a) noise xT , (b) conditioning features (3-channels shown), (c) generated IR-drop xˆ0, (d) ground truth. Qualitative Visualization on CircuitNet-N14. To complement the quantitative evaluation, we provide a representative N14 test instance generated by our image-only model (34-channel conditioning with ControlNet and a classifier-free dropout rate of 0.1)… view at source ↗

read the original abstract

IR drop analysis is essential in physical chip design to ensure the power integrity of on-chip power delivery networks. Traditional Electronic Design Automation (EDA) tools have become slow and expensive as transistor density scales. Recent works have introduced machine learning (ML)-based methods that formulate IR drop analysis as an image prediction problem. These existing ML approaches fail to capture both local and long-range dependencies and ignore crucial geometrical and topological information from physical layouts and logical connectivity. To address these limitations, we propose GIF, a Generative IR drop Framework that uses both geometrical and topological information to generate IR drop images. GIF fuses image and graph features to guide a conditional diffusion process, producing high-quality IR drop images. For instance, On the CircuitNet-N28 dataset, GIF achieves 0.78 SSIM, 0.95 Pearson correlation, 21.77 PSNR, and 0.026 NMAE, outperforming prior methods. These results demonstrate that our framework, using diffusion based multimodal conditioning, reliably generates high quality IR drop images. This shows that IR drop analysis can effectively leverage recent advances in generative modeling when geometric layout features and logical circuit topology are jointly modeled. By combining geometry aware spatial features with logical graph representations, GIF enables IR drop analysis to benefit from recent advances in generative modeling for structured image generation.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Desk Editor's Note private letter to a colleague

GIF fuses layout images with circuit graphs inside a conditional diffusion model for IR drop maps and reports better numbers than priors on one dataset, but the abstract gives no ablations or fusion details so the source of the gains stays unclear.

read the letter

The paper's main contribution is a conditional diffusion model called GIF that takes both image features from the physical chip layout and graph features from the logical circuit connectivity to generate IR drop images. On the CircuitNet-N28 dataset it reports 0.78 SSIM, 0.95 Pearson correlation, 21.77 PSNR and 0.026 NMAE, beating earlier ML baselines. The authors argue that prior image-only methods miss long-range topological dependencies and that adding the graph branch fixes this. That framing is reasonable for the EDA setting where power integrity checks grow expensive with density. The work does a clean job stating the practical problem and positioning recent generative techniques as a potential fix. If the full implementation works as described, the idea could shorten iteration time in physical design flows. The soft spot is exactly the one the stress-test flags: the abstract claims the multimodal fusion drives the improvement but shows no ablation that removes the graph branch, no image-only diffusion baseline, and no description of how the two feature types are injected into the diffusion process. Without those controls it is impossible to tell whether the lift comes from the proposed conditioning or from the diffusion backbone, training choices, or dataset quirks. The soundness numbers in the reader's report look fair given what is visible. If the full manuscript contains those experiments and they hold, the claim strengthens; if not, the central assumption about reliable long-range capture remains untested. This is a paper for people working on ML for physical design and EDA tools. A reader already familiar with diffusion models applied to structured engineering data could extract the conditioning pattern and try it elsewhere. It deserves peer review because the target problem is real and the proposal is coherent on its face, even though the current evidence is thin on attribution.

Referee Report

2 major / 1 minor

Summary. The paper proposes GIF, a conditional multimodal generative framework for IR drop imaging in chip layouts. It fuses image-based geometrical layout features with graph-based logical circuit topology to condition a diffusion process, claiming this enables capture of both local and long-range dependencies. On the CircuitNet-N28 dataset, GIF reports 0.78 SSIM, 0.95 Pearson correlation, 21.77 PSNR, and 0.026 NMAE, outperforming prior ML-based IR drop prediction methods.

Significance. If the multimodal fusion is shown to be the source of the gains, the work could advance ML-assisted EDA by demonstrating how generative diffusion models conditioned on both spatial geometry and graph topology improve power integrity analysis, potentially reducing reliance on slow traditional simulation tools.

major comments (2)

[§4] §4 (Experiments): No ablation study isolates the contribution of the graph topology branch. The manuscript reports strong metrics but provides no image-only diffusion baseline or removal of the graph feature fusion (e.g., via cross-attention or FiLM injection), leaving open whether gains arise from the diffusion backbone, training details, or the claimed multimodal conditioning.
[§3] §3 (Method): The description of how image and graph features are fused into the conditional diffusion process lacks sufficient detail on the injection mechanism, conditioning strength, and architecture hyperparameters, making it impossible to assess whether long-range dependencies are reliably captured as claimed.

minor comments (1)

[Abstract] The abstract and introduction could more clearly distinguish the proposed fusion from prior image-only ML approaches for IR drop.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive comments and suggestions. We address each major comment point by point below, and will revise the manuscript accordingly to improve clarity and completeness.

read point-by-point responses

Referee: [§4] §4 (Experiments): No ablation study isolates the contribution of the graph topology branch. The manuscript reports strong metrics but provides no image-only diffusion baseline or removal of the graph feature fusion (e.g., via cross-attention or FiLM injection), leaving open whether gains arise from the diffusion backbone, training details, or the claimed multimodal conditioning.

Authors: We agree that an ablation study is necessary to isolate the contribution of the graph topology branch. In the revised manuscript, we will add an ablation study including an image-only diffusion baseline and a variant without the graph feature fusion module. This will demonstrate that the performance gains are attributable to the multimodal conditioning rather than other factors such as the diffusion backbone or training details. revision: yes
Referee: [§3] §3 (Method): The description of how image and graph features are fused into the conditional diffusion process lacks sufficient detail on the injection mechanism, conditioning strength, and architecture hyperparameters, making it impossible to assess whether long-range dependencies are reliably captured as claimed.

Authors: We acknowledge the need for more detailed description of the fusion mechanism. In the revised version of the paper, we will expand the method section (§3) with precise details on the injection mechanism (e.g., cross-attention or FiLM), the conditioning strength, and all relevant architecture hyperparameters such as feature dimensions, number of attention layers, and conditioning scales. This will enable readers to better evaluate how long-range dependencies are captured through the multimodal fusion. revision: yes

Circularity Check

0 steps flagged

No circularity; empirical validation on external dataset with no self-referential reductions.

full rationale

The paper proposes GIF as a multimodal conditional diffusion model fusing image (geometrical) and graph (topological) features for IR drop image generation. Central claims rest on reported metrics (0.78 SSIM, 0.95 Pearson, etc.) on the held-out CircuitNet-N28 dataset and comparisons to prior methods. No equations, predictions, or first-principles results are presented that reduce by construction to fitted inputs, self-definitions, or self-citation chains. The architecture description and performance numbers constitute independent empirical content rather than tautological renaming or load-bearing self-reference. No uniqueness theorems or ansatzes are invoked in a self-referential manner.

Axiom & Free-Parameter Ledger

0 free parameters · 0 axioms · 0 invented entities

No explicit free parameters, axioms, or invented entities are stated in the abstract. The approach implicitly relies on standard assumptions of conditional diffusion models and the representativeness of the named benchmark dataset.
