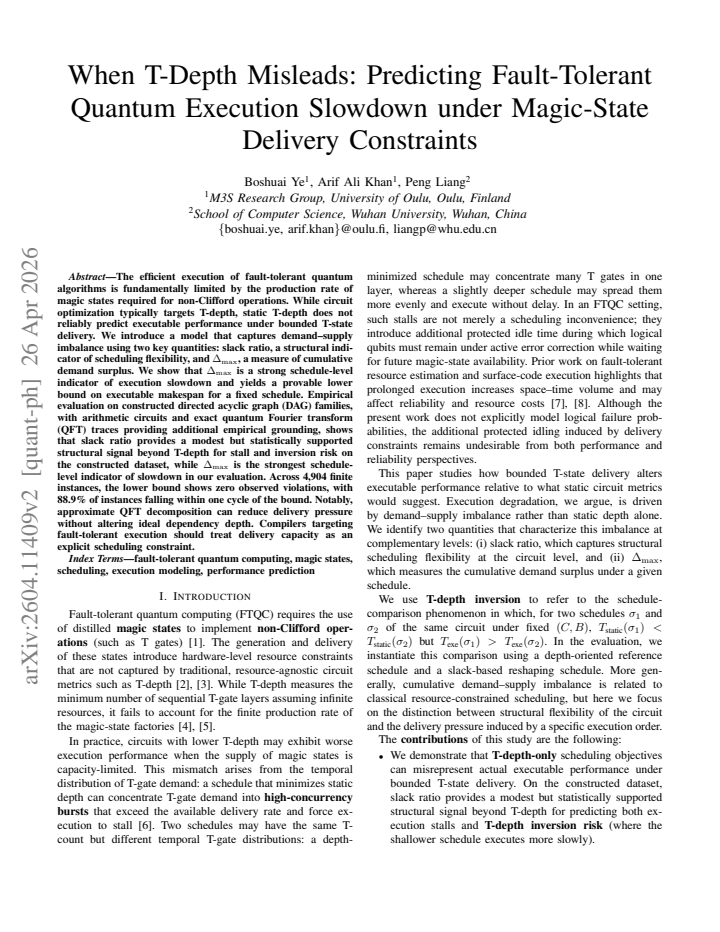

When T-Depth Misleads: Predicting Fault-Tolerant Quantum Execution Slowdown under Magic-State Delivery Constraints

Boshuai Ye , Arif Ali Khan , Peng Liang
Authors on Pith no claims yet

Pith reviewed 2026-05-10 16:39 UTC · model grok-4.3

classification 🪐 quant-ph
keywords quantum compilationmagic statesfault-tolerant quantum computingschedulingT-depthmakespanDelta_maxquantum Fourier transform
0
0 comments X

The pith

Delta_max provides a provable lower bound on quantum circuit makespan under limited magic-state delivery and predicts slowdown better than T-depth.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper demonstrates that traditional T-depth optimization falls short for fault-tolerant quantum algorithms when magic-state production is rate-limited. By modeling the imbalance between demand and supply of T-states using slack ratio for flexibility and Delta_max for cumulative surplus, it reveals that Delta_max serves as a reliable indicator of how much the execution will slow down. This is supported by a mathematical lower bound on the makespan for any fixed schedule and validated across thousands of circuit instances where the bound is tight. Understanding this helps in designing better schedulers that account for hardware delivery constraints rather than just circuit depth.

Core claim

For any fixed schedule of non-Clifford gates, Delta_max—the maximum value of the cumulative difference between demanded and supplied magic states over time—establishes a lower bound on the actual number of cycles needed to execute the circuit when magic states are delivered at a bounded rate. This bound is never violated in the evaluated cases and closely matches the simulated slowdown in most instances, outperforming static T-depth as a predictor.

What carries the argument

Delta_max, the peak cumulative demand surplus in the magic-state demand-supply model, which quantifies the worst-case backlog that forces stalls in execution.

If this is right

  • Slack ratio outperforms T-depth in predicting risks of stalls and schedule inversions.
  • The lower bound from Delta_max is within one cycle for 88.9% of 4,904 instances.
  • Explicitly modeling delivery constraints is necessary for accurate performance prediction in fault-tolerant compilation.
  • Constructed DAG families and real traces like arithmetic and QFT confirm the trends.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Compilers could incorporate Delta_max minimization as an objective instead of or in addition to T-depth.
  • Hardware designs might prioritize higher magic-state production rates for circuits with high Delta_max.
  • The model could be extended to optimize magic-state factory placement and routing in conjunction with circuit scheduling.

Load-bearing premise

The demand patterns in the constructed DAG families and the arithmetic and QFT circuit traces are representative of those in practical large-scale fault-tolerant quantum algorithms.

What would settle it

A counterexample where a real-world large quantum algorithm under constrained magic-state delivery executes with a makespan significantly larger than the Delta_max lower bound, or where the bound is violated.

Figures

Figures reproduced from arXiv: 2604.11409 by Arif Ali Khan, Boshuai Ye, Peng Liang.

Figure 1
Figure 1. Figure 1: Cumulative T-state demand Aσ(t), production line Ct, and bounded available supply Ct + B. Here ∆max denotes the maximum gap between Aσ(t) and Ct, whereas the buffer-adjusted backlog above Ct + B is max(0, ∆max − B). states per logical time step. Under this model, the cumulative supply available up to time step t is bounded by S(t) = Ct + B. (2) If the cumulative demand exceeds the cumulative supply, the sc… view at source ↗
Figure 3
Figure 3. Figure 3: Incremental predictive gain from adding structural and system-level [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 4
Figure 4. Figure 4: Empirical validation of the structure–system–execution chain in a [PITH_FULL_IMAGE:figures/full_fig_p006_4.png] view at source ↗

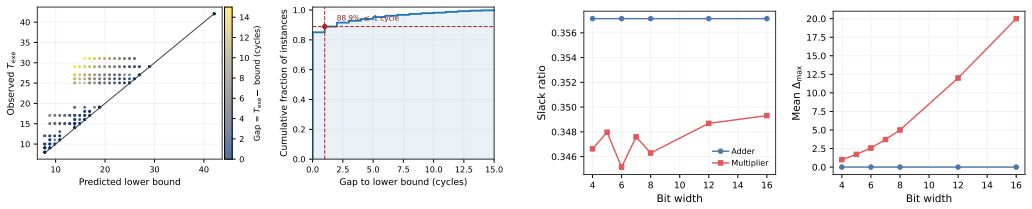

Figure 5
Figure 5. Figure 5: Predicted lower bound versus observed Texe across all 4,904 finite executable instances. Left: all points lie on or above the identity line, showing zero observed violations. Right: empirical cumulative distribution of the gap Texe − bound; 88.9% of finite instances fall within one cycle of the lower bound. Adder n=8 Multiplier n=8 QFT n=8 0.0 0.1 0.2 0.3 0.4 0.5 0.6 0.7 Slack ratio 0.36 0.35 0.63 Structur… view at source ↗

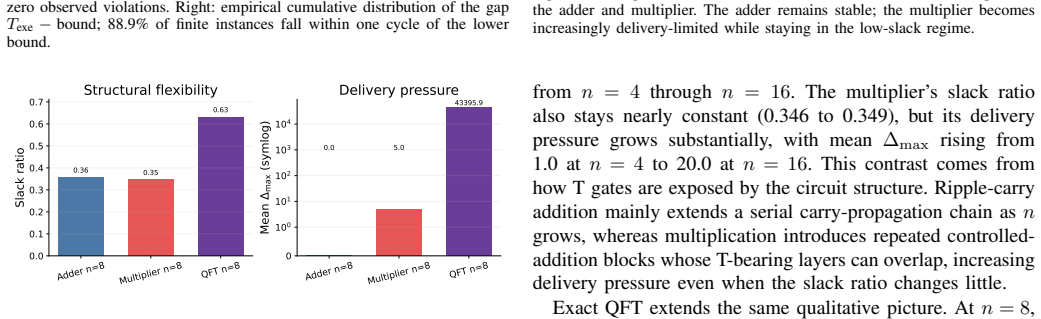

Figure 6
Figure 6. Figure 6: Representative real workloads in structural–system space at [PITH_FULL_IMAGE:figures/full_fig_p007_6.png] view at source ↗

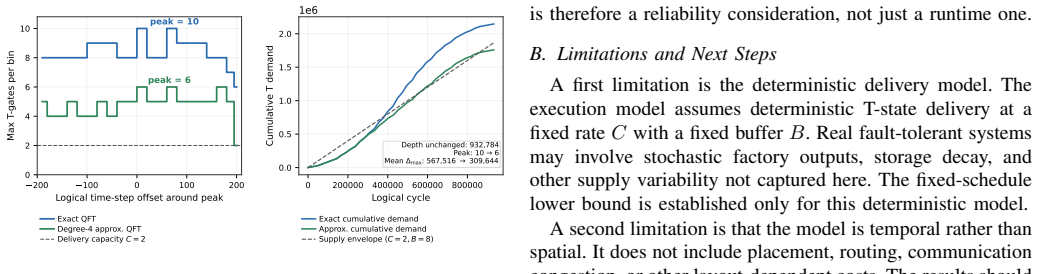

Figure 8
Figure 8. Figure 8: Exact versus degree-4 approximate QFT at [PITH_FULL_IMAGE:figures/full_fig_p008_8.png] view at source ↗

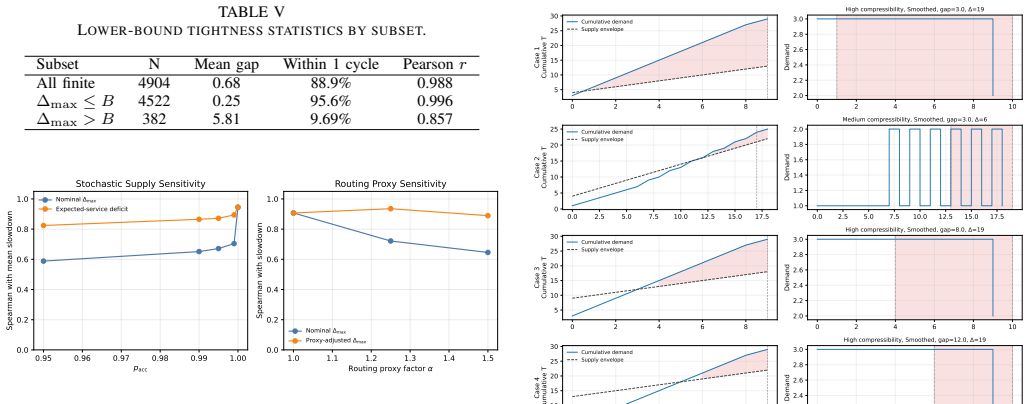

Figure 9
Figure 9. Figure 9: Sensitivity of delivery-pressure predictors beyond the deterministic [PITH_FULL_IMAGE:figures/full_fig_p010_9.png] view at source ↗
read the original abstract

The efficient execution of fault-tolerant quantum algorithms is fundamentally limited by the production rate of magic states required for non-Clifford operations. While circuit optimization typically targets T-depth, static T-depth does not reliably predict executable performance under bounded T-state delivery. We introduce a model that captures demand-supply imbalance using two key quantities: slack ratio, a structural indicator of scheduling flexibility, and Delta_max, a measure of cumulative demand surplus. We show that Delta_max is a strong schedule-level indicator of execution slowdown and yields a provable lower bound on executable makespan for a fixed schedule. Empirical evaluation on constructed directed acyclic graph (DAG) families, with arithmetic circuits and exact quantum Fourier transform (QFT) traces providing additional grounding, shows that slack ratio is a stronger structural predictor than T-depth for stall and inversion risk, while Delta_max is the strongest predictor of slowdown. Across 4,904 instances, the lower bound shows zero violations, with 88.9% of cases within one cycle. These results highlight the importance of explicitly modeling delivery constraints in fault-tolerant quantum compilation.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 1 minor

Summary. The paper claims that static T-depth is an unreliable predictor of execution slowdown in fault-tolerant quantum computing under bounded magic-state delivery. It introduces slack ratio (a structural measure of scheduling flexibility) and Delta_max (a measure of cumulative demand surplus) to model demand-supply imbalance, proves that Delta_max yields a lower bound on executable makespan for any fixed schedule, and reports that Delta_max is the strongest empirical predictor of slowdown while slack ratio outperforms T-depth for stall/inversion risk. These claims are supported by zero bound violations and 88.9% of cases within one cycle across 4,904 instances drawn from constructed DAG families, arithmetic circuits, and QFT traces.

Significance. If the lower bound and empirical correlations hold, the work supplies a concrete, schedule-level metric that could improve fault-tolerant compilation by explicitly incorporating magic-state production constraints rather than relying on T-depth. The provable bound is a clear strength, as is the scale of the evaluation (4,904 instances). This could influence how compilers handle non-Clifford operations in resource-constrained FTQC settings.

major comments (2)
  1. [Model and Definitions] The precise definition of Delta_max (maximum cumulative demand surplus) and the full derivation of the claimed provable lower bound on makespan are not shown in the manuscript text, leaving the central theoretical claim only partially verifiable despite the reported zero violations.
  2. [Empirical Evaluation] The 4,904 instances are generated from constructed DAG families engineered for controlled slack and surplus, augmented by arithmetic and QFT traces. This testbed may not reproduce the irregular, data-dependent T-gate distributions or adaptive rescheduling opportunities present in practical large-scale algorithms (e.g., lattice-surgery implementations of Shor or QPE), so the reported superiority of Delta_max over T-depth and slack ratio risks being an artifact of the chosen families rather than a general property.
minor comments (1)
  1. [Abstract] The abstract states that 88.9% of cases are 'within one cycle' but does not define the exact distance metric or report the distribution of instances across the different DAG families and circuit types.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the constructive feedback and for recognizing the potential impact of our schedule-level metrics for magic-state constrained fault-tolerant compilation. We address each major comment below with clarifications and proposed revisions.

read point-by-point responses

  1. Referee: [Model and Definitions] The precise definition of Delta_max (maximum cumulative demand surplus) and the full derivation of the claimed provable lower bound on makespan are not shown in the manuscript text, leaving the central theoretical claim only partially verifiable despite the reported zero violations.

    Authors: We acknowledge that while Section 3 defines Delta_max as the maximum cumulative demand surplus (max_t (D(t) - S(t)) where D(t) is cumulative T-demand and S(t) is cumulative supply up to time t) and Section 4 sketches the lower-bound argument, the full formal derivation is not expanded in the main text. In the revised manuscript we will insert a dedicated subsection in Section 4 containing the complete inductive proof that any executable schedule must have makespan at least Delta_max / r (where r is the per-cycle magic-state delivery rate), together with the exact mathematical definition and all intermediate lemmas. This will make the central theoretical claim fully verifiable while preserving the reported zero-violation empirical result. revision: yes

  2. Referee: [Empirical Evaluation] The 4,904 instances are generated from constructed DAG families engineered for controlled slack and surplus, augmented by arithmetic and QFT traces. This testbed may not reproduce the irregular, data-dependent T-gate distributions or adaptive rescheduling opportunities present in practical large-scale algorithms (e.g., lattice-surgery implementations of Shor or QPE), so the reported superiority of Delta_max over T-depth and slack ratio risks being an artifact of the chosen families rather than a general property.

    Authors: We agree that no static testbed can fully capture adaptive, data-dependent rescheduling that may arise in large-scale lattice-surgery implementations of Shor or QPE. Our constructed DAG families were deliberately parameterized to isolate slack-ratio and Delta_max effects across a wide range of demand-supply imbalances, and the arithmetic and QFT traces supply additional grounding in non-engineered structures. The fact that the Delta_max lower bound holds with zero violations on all 4,904 instances—including the real traces—provides evidence that the bound is not an artifact. In the revision we will add an explicit limitations paragraph in Section 5 acknowledging that future work should evaluate larger, adaptive circuits once they are available, while retaining the current results as a controlled demonstration that Delta_max is the strongest predictor within the evaluated families. revision: partial

Circularity Check

0 steps flagged

Delta_max defined directly from demand vector; provable lower bound is mathematical, not fitted

full rationale

The paper introduces slack ratio and Delta_max as direct functions of a fixed schedule and its per-cycle demand vector, then derives a provable lower bound on makespan from the model. This is definitional but not circular because the bound follows from standard cumulative-surplus arguments rather than being fitted or renamed. Empirical superiority claims rest on 4,904 constructed DAG instances plus arithmetic/QFT traces; these are external test data, not reductions of the definitions themselves. No self-citation chains, ansatzes, or uniqueness theorems are invoked as load-bearing. Overall low circularity consistent with a model-building paper whose central claim remains independently verifiable.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 2 invented entities

The work rests on standard assumptions about circuit scheduling and introduces two new derived quantities without external validation of their predictive power outside the tested instances.

axioms (2)
  • domain assumption Quantum circuits can be represented as directed acyclic graphs for scheduling analysis.
    Standard modeling choice in quantum compilation literature.
  • domain assumption Magic-state delivery occurs at a fixed bounded rate independent of circuit execution.
    Core modeling assumption that creates the demand-supply imbalance studied.
invented entities (2)
  • slack ratio no independent evidence
    purpose: Structural indicator of scheduling flexibility under magic-state constraints
    Newly defined metric; no independent evidence supplied in abstract.
  • Delta_max no independent evidence
    purpose: Measure of cumulative demand surplus used to bound makespan
    Newly defined metric; claimed to yield a provable lower bound.

pith-pipeline@v0.9.0 · 5492 in / 1336 out tokens · 47753 ms · 2026-05-10T16:39:10.720272+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

19 extracted references · 4 canonical work pages · 2 internal anchors

  1. [1]

    Universal quantum computation with ideal clifford gates and noisy ancillas,

    S. Bravyi and A. Kitaev, “Universal quantum computation with ideal clifford gates and noisy ancillas,”Physical Review A—Atomic, Molecu- lar , and Optical Physics, vol. 71, no. 2, p. 022316, 2005

    2005

  2. [2]

    Polynomial-time t-depth optimiza- tion of clifford+ t circuits via matroid partitioning,

    M. Amy, D. Maslov, and M. Mosca, “Polynomial-time t-depth optimiza- tion of clifford+ t circuits via matroid partitioning,”IEEE Transactions on Computer-Aided Design of Integrated Circuits and Systems, vol. 33, no. 10, pp. 1476–1489, 2014

    2014

  3. [3]

    Quantum circuits of t-depth one,

    P. Selinger, “Quantum circuits of t-depth one,”Physical Review A—Atomic, Molecular , and Optical Physics, vol. 87, no. 4, p. 042302, 2013

    2013

  4. [4]

    Quantum computation with realistic magic-state factories,

    J. O’Gorman and E. T. Campbell, “Quantum computation with realistic magic-state factories,”Physical Review A, vol. 95, no. 3, p. 032338, 2017

    2017

  5. [5]

    Assessing requirements to scale to practical quantum advantage

    M. E. Beverland, P. Murali, M. Troyer, K. M. Svore, T. Hoefler, V . Kliuchnikov, G. H. Low, M. Soeken, A. Sundaram, and A. Vaschillo, “Assessing requirements to scale to practical quantum advantage,”arXiv preprint arXiv:2211.07629, 2022

    work page internal anchor Pith review arXiv 2022

  6. [6]

    Clifford gate optimisation and t gate scheduling: Using queueing models for topological assemblies,

    A. Paler and R. Basmadjian, “Clifford gate optimisation and t gate scheduling: Using queueing models for topological assemblies,” inPro- ceedings of the 15th IEEE/ACM International Symposium on Nanoscale Architectures (NANOARCH). IEEE, 2019, pp. 1–5

    2019

  7. [7]

    Surface codes: Towards practical large-scale quantum computation,

    A. G. Fowler, M. Mariantoni, J. M. Martinis, and A. N. Cleland, “Surface codes: Towards practical large-scale quantum computation,”Physical Review A—Atomic, Molecular , and Optical Physics, vol. 86, no. 3, p. 032324, 2012

    2012

  8. [8]

    A game of surface codes: Large-scale quantum computing with lattice surgery,

    D. Litinski, “A game of surface codes: Large-scale quantum computing with lattice surgery,”Quantum, vol. 3, p. 128, 2019

    2019

  9. [9]

    Demonstrating the viability of universal quantum computation using teleportation and single-qubit operations,

    D. Gottesman and I. L. Chuang, “Demonstrating the viability of universal quantum computation using teleportation and single-qubit operations,”Nature, vol. 402, no. 6760, pp. 390–393, 1999

    1999

  10. [10]

    Magic-state distillation with low overhead,

    S. Bravyi and J. Haah, “Magic-state distillation with low overhead,” Physical Review A—Atomic, Molecular , and Optical Physics, vol. 86, no. 5, p. 052329, 2012

    2012

  11. [11]

    T-count optimization and reed–muller codes,

    M. Amy and M. Mosca, “T-count optimization and reed–muller codes,” IEEE Transactions on Information Theory, vol. 65, no. 8, pp. 4771– 4784, 2019

    2019

  12. [12]

    Lower t-count with faster algorithms,

    V . Vandaele, “Lower t-count with faster algorithms,”Quantum, vol. 9, p. 1860, 2025

    2025

  13. [13]

    Optimizing multi- level magic state factories for fault-tolerant quantum architectures,

    A. Silva, A. Scherer, Z. Webb, A. Khalid, B. Kulchytskyy, M. Kramer, K. Nguyen, X. Kong, G. A. Dagnew, Y . Wanget al., “Optimizing multi- level magic state factories for fault-tolerant quantum architectures,” arXiv preprint arXiv:2411.04270, 2024

    work page arXiv 2024

  14. [14]

    Using azure quantum resource estimator for assessing performance of fault tolerant quantum computation,

    W. van Dam, M. Mykhailova, and M. Soeken, “Using azure quantum resource estimator for assessing performance of fault tolerant quantum computation,” inProceedings of the SC’23 Workshops of the Interna- tional Conference on High Performance Computing, Network, Storage, and Analysis (SC-W). ACM, 2023, pp. 1414–1419

    2023

  15. [15]

    A survey of variants and extensions of the resource-constrained project scheduling problem,

    S. Hartmann and D. Briskorn, “A survey of variants and extensions of the resource-constrained project scheduling problem,”European Journal of Operational Research, vol. 207, no. 1, pp. 1–14, 2010. [Online]. Available: https://www.sciencedirect.com/science/article/pii/ S0377221709008558

    2010

  16. [16]

    Quantum computing with Qiskit

    A. Javadi-Abhari, M. Treinish, K. Krsulich, C. J. Wood, J. Lishman, J. Gacon, S. Martiel, P. D. Nation, L. S. Bishop, A. W. Crosset al., “Quantum computing with qiskit,”arXiv preprint arXiv:2405.08810, 2024. TABLE IV PREDICTOR STABILITY ACROSS SUBGROUP ANALYSES. STALL IS REPORTED ASAUCAND SLOWDOWN ASSPEARMAN|ρ|;BOLDFACE MARKS THE BEST PREDICTOR IN EACH RO...

    work page internal anchor Pith review arXiv 2024

  17. [17]

    t|ket⟩: a retargetable compiler for nisq devices,

    S. Sivarajah, S. Dilkes, A. Cowtan, W. Simmons, A. Edgington, and R. Duncan, “t|ket⟩: a retargetable compiler for nisq devices,”Quantum Science & Technology, vol. 6, no. 1, p. 014003, 2021

    2021

  18. [18]

    Magic-state functional units: Mapping and scheduling multi- level distillation circuits for fault-tolerant quantum architectures,

    Y . Ding, A. Holmes, A. Javadi-Abhari, D. Franklin, M. Martonosi, and F. Chong, “Magic-state functional units: Mapping and scheduling multi- level distillation circuits for fault-tolerant quantum architectures,” in 2018 51st Annual IEEE/ACM International Symposium on Microarchi- tecture (MICRO). IEEE, 2018, pp. 828–840

    2018

  19. [19]

    Optimal ancilla-free Clifford+T approximation of z-rotations

    N. J. Ross and P. Selinger, “Optimal ancilla-free clifford+ t approxima- tion of z-rotations,”arXiv preprint arXiv:1403.2975, 2014. APPENDIXA ADDITIONALANALYSES ANDROBUSTNESSRESULTS This appendix supplements the main text with subgroup predictor stability results, lightweight sensitivity analyses, and representative positive-gap cases for the executable-m...

    work page Pith review arXiv 2014
