arxiv: 2604.11534 · v1 · submitted 2026-04-13 · 🪐 quant-ph

Quantum circuit optimization for arbitrary high-dimensional bipartite quantum computation

Gui-Long Jiang , Hai-Rui Wei This is my paper

Pith reviewed 2026-05-10 15:59 UTC · model grok-4.3

classification 🪐 quant-ph
keywords quantum circuitshigh-dimensional quantum computationquNit-quMit gatescontrolled-increment gatescircuit synthesisuniversal gate setsquantum gate decomposition
0
0 comments X

The pith

Controlled-increment gates plus local operations form a universal set that realizes any quNit-quMit gate with an O(n²) upper bound on CINC count.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper develops an explicit decomposition that builds the circuit for an arbitrary unitary acting on one n-level system and one m-level system from controlled-increment gates and single-qudit local gates. This construction proves the two families together are universal for bipartite high-dimensional quantum computation. The resulting bound of O(n²) CINC gates improves the best previously known count, and the special case of a controlled quNit-quMit unitary collapses to exactly two CINC gates rather than 2n. A reader would care because fewer non-local gates directly lower the experimental cost of running high-dimensional algorithms on physical hardware.

Core claim

We exhibit a synthesis procedure showing that controlled-increment gates together with local gates are universal for any bipartite quNit-quMit unitary. The procedure produces a circuit using at most O(n²) controlled-increment gates for a general gate and only two controlled-increment gates when the target is itself a controlled quNit-quMit operation.

What carries the argument

The synthesis scheme that systematically decomposes an arbitrary quNit-quMit unitary into a sequence of controlled-increment (CINC) gates interleaved with local single-qudit operations.

If this is right

  • Any unitary on an n-by-m qudit pair admits a circuit of quadratic CINC complexity.
  • Controlled operations between high-dimensional systems become especially cheap, requiring only two CINC gates.
  • High-dimensional quantum algorithms gain a concrete universal gate library whose non-local cost scales quadratically rather than linearly in dimension.
  • The previous linear-factor overhead for controlled high-dimensional gates is eliminated.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • If CINC gates prove easier to implement than generic two-qudit gates in ion-trap or superconducting platforms, the quadratic bound could translate into measurable resource savings.
  • The same decomposition pattern might extend to multi-partite high-dimensional systems with comparable scaling.
  • Certain high-dimensional quantum algorithms whose bottlenecks involve controlled operations could see their resource estimates revised downward.

Load-bearing premise

Controlled-increment gates and local gates can be realized physically with acceptable overhead and the decomposition sequence incurs no hidden non-local costs for arbitrary dimensions n and m.

What would settle it

An explicit example for small n and m whose minimal CINC count exceeds O(n²), or a concrete physical platform where the proposed CINC sequence cannot be executed without additional entangling operations beyond those counted.

Figures

Figures reproduced from arXiv: 2604.11534 by Gui-Long Jiang, Hai-Rui Wei.

Figure 1
Figure 1. Figure 1: Quantum circuit symbols. (a) Controlled unitary gate with the control system state [PITH_FULL_IMAGE:figures/full_fig_p003_1.png] view at source ↗
Figure 2

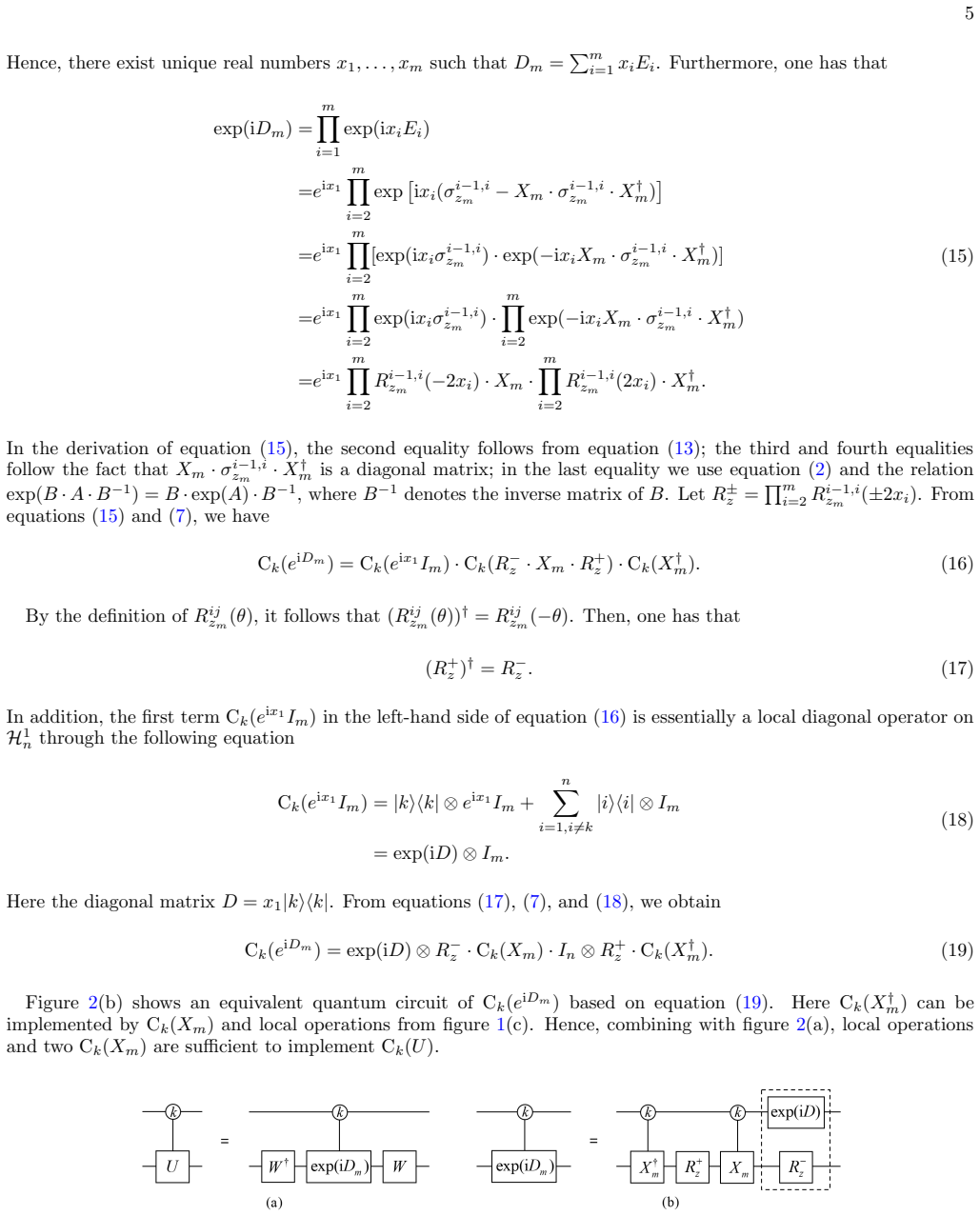

Figure 2. Figure 2: (b) shows an equivalent quantum circuit of Ck(e iDm) based on equation (19). Here Ck(X† m) can be implemented by Ck(Xm) and local operations from figure 1(c). Hence, combining with figure 2(a), local operations and two Ck(Xm) are sufficient to implement Ck(U) [PITH_FULL_IMAGE:figures/full_fig_p005_2.png] view at source ↗
Figure 3

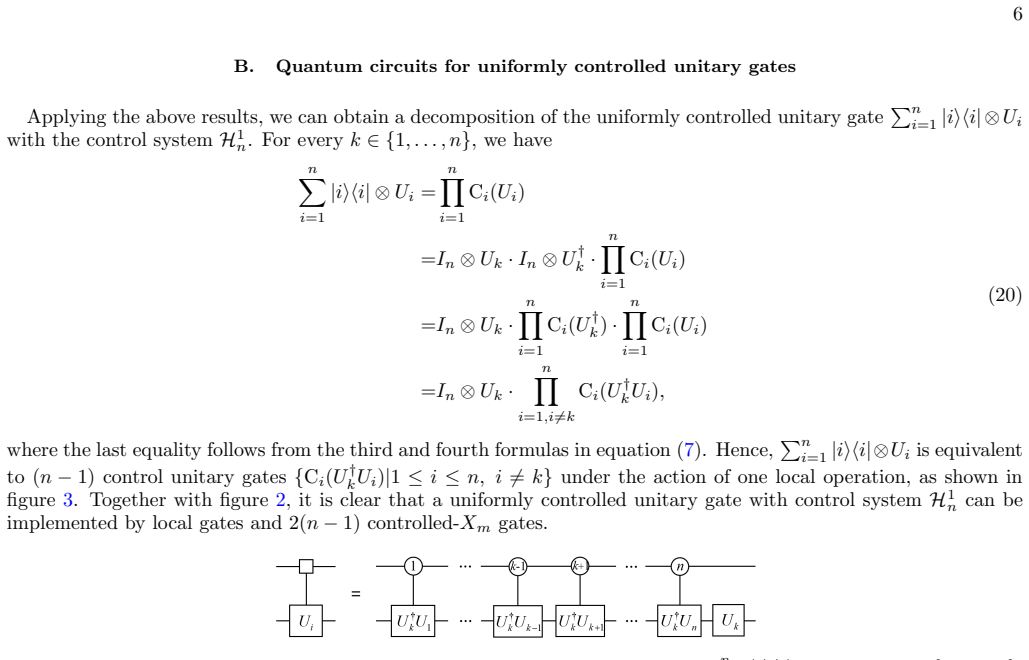

Figure 3. Figure 3: Equivalent quantum circuit for the uniformly controlled unitary gate [PITH_FULL_IMAGE:figures/full_fig_p006_3.png] view at source ↗
Figure 4

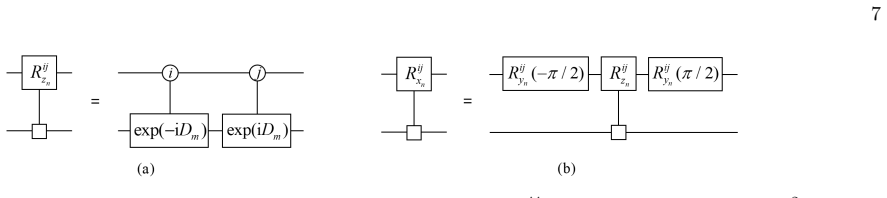

Figure 4. Figure 4: (a) Equivalent quantum circuit for the uniformly controlled [PITH_FULL_IMAGE:figures/full_fig_p007_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: Quantum circuit for the non-local operation [PITH_FULL_IMAGE:figures/full_fig_p008_5.png] view at source ↗
Figure 6

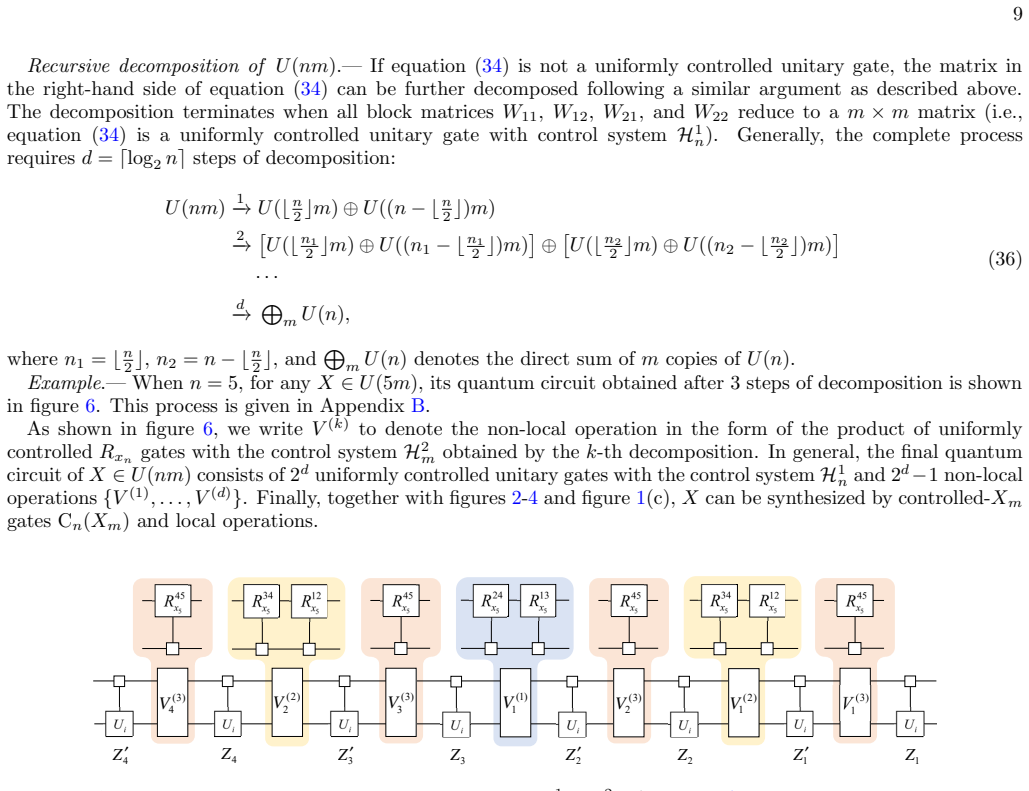

Figure 6. Figure 6: Quantum circuit for general unitary operations on [PITH_FULL_IMAGE:figures/full_fig_p009_6.png] view at source ↗
Figure 7

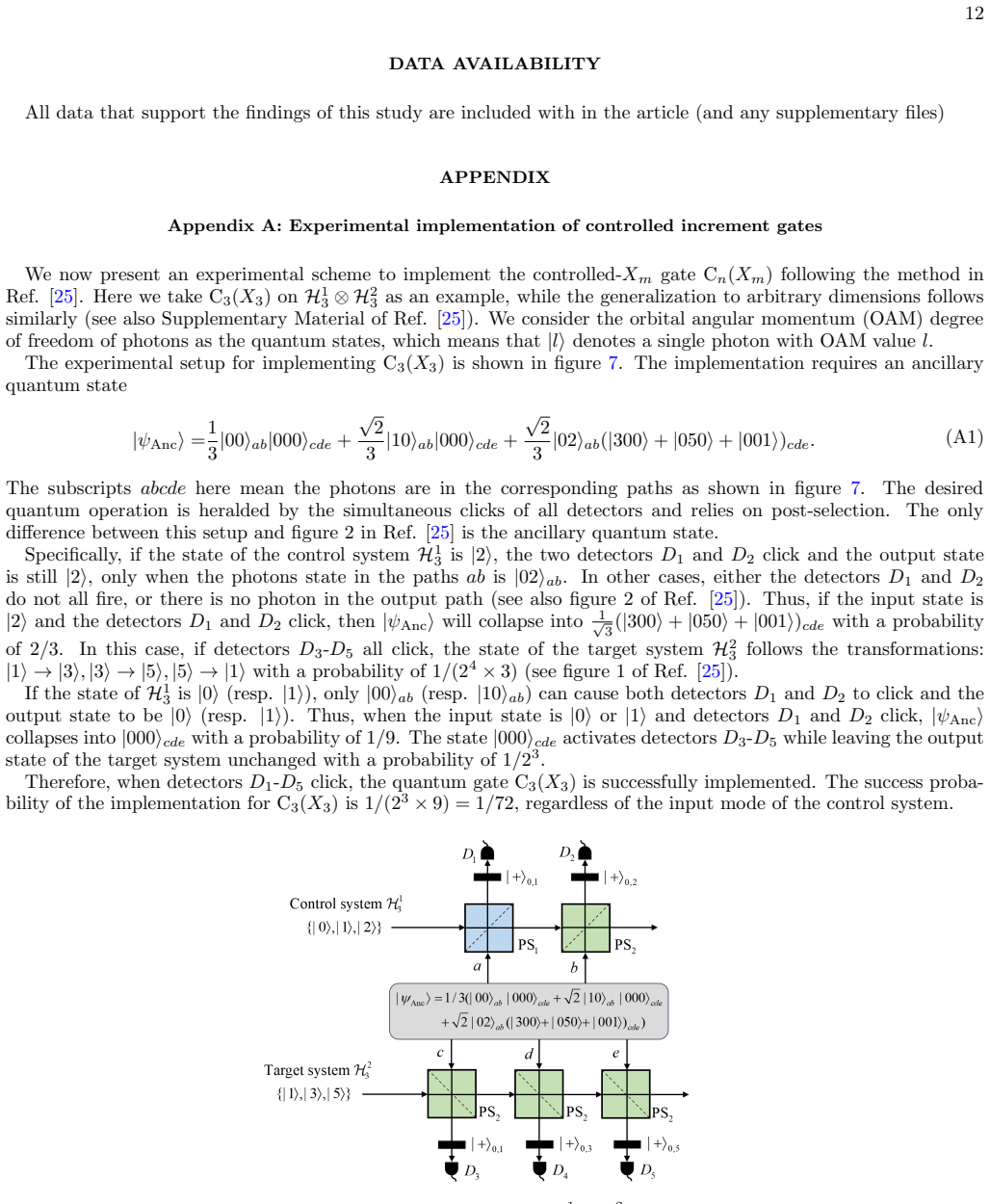

Figure 7. Figure 7: Experimental setup of controlled increment gates for [PITH_FULL_IMAGE:figures/full_fig_p012_7.png] view at source ↗
Figure 8

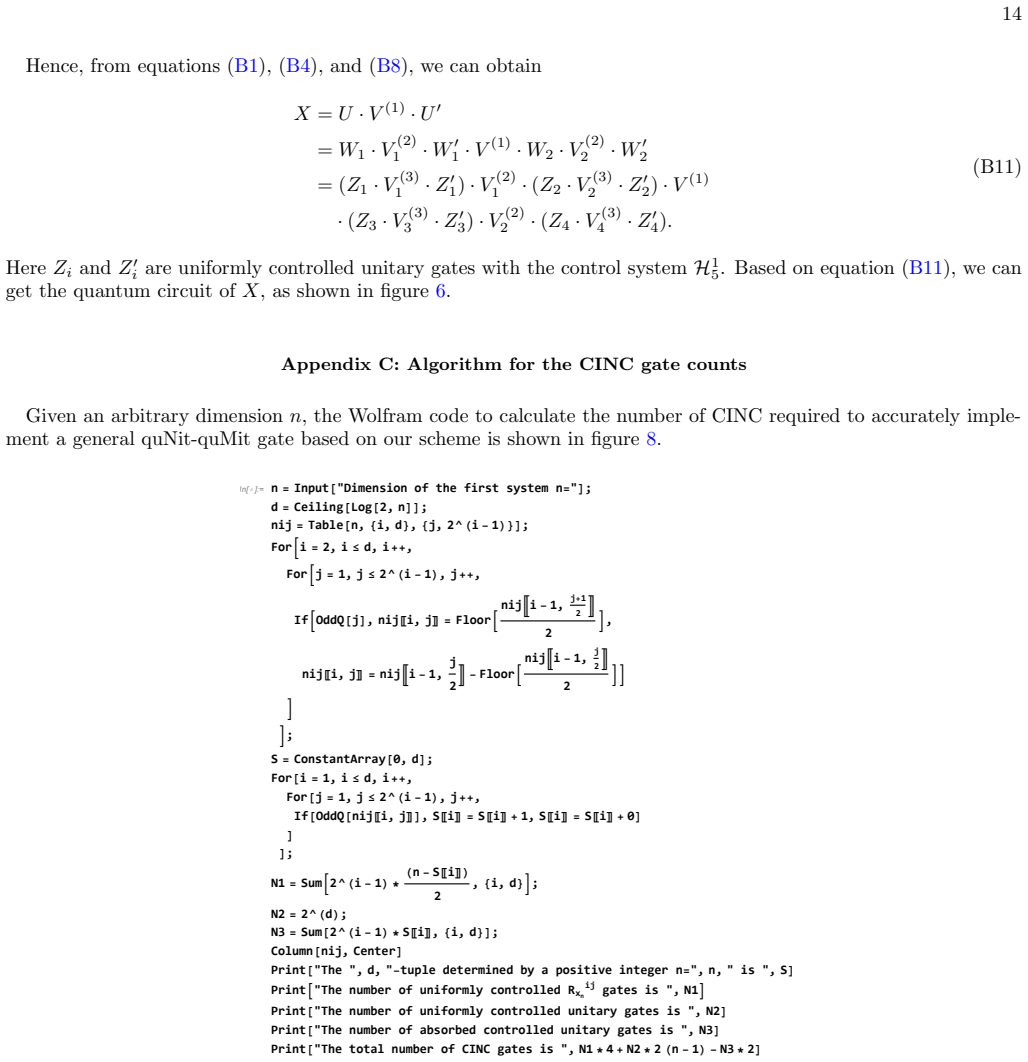

Figure 8. Figure 8: Code for calculating CINC gate counts in Wolfram Mathematica. [PITH_FULL_IMAGE:figures/full_fig_p014_8.png] view at source ↗
read the original abstract

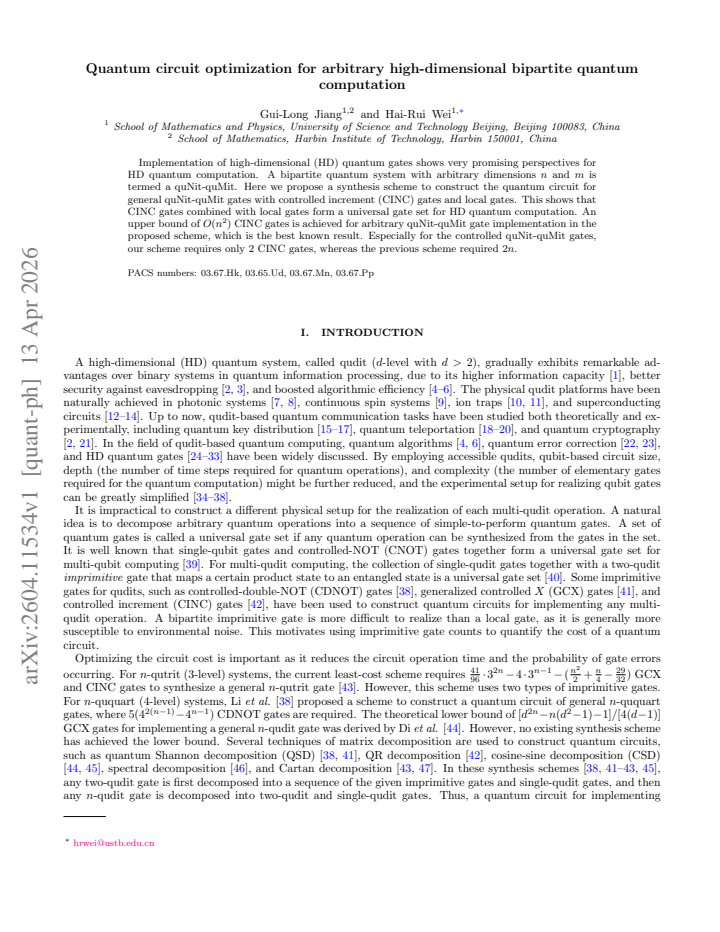

Implementation of high-dimensional (HD) quantum gates shows very promising perspectives for HD quantum computation. A bipartite quantum system with arbitrary dimensions $n$ and $m$ is termed a quNit-quMit. Here we propose a synthesis scheme to construct the quantum circuit for general quNit-quMit gates with controlled increment (CINC) gates and local gates. This shows that CINC gates combined with local gates form a universal gate set for HD quantum computation. An upper bound of $O(n^2)$ CINC gates is achieved for arbitrary quNit-quMit gate implementation in the proposed scheme, which is the best known result. Especially for the controlled quNit-quMit gates, our scheme requires only 2 CINC gates, whereas the previous scheme required $2n$.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 2 minor

Summary. The manuscript proposes a synthesis scheme to implement arbitrary unitaries on bipartite quNit-quMit systems using controlled-increment (CINC) gates together with local gates. It asserts that this combination forms a universal gate set for high-dimensional quantum computation and derives a constructive upper bound of O(n²) CINC gates for any such unitary, with the special case that every controlled quNit-quMit gate can be realized with exactly two CINC gates (improving on a prior 2n bound).

Significance. If the explicit, uniform construction holds for every unitary, the result would supply the tightest published CINC-count upper bound for arbitrary high-dimensional bipartite operations and a particularly efficient controlled-gate decomposition. The constructive character of the bound and the claimed universality constitute the primary strengths.

major comments (2)
  1. [Main synthesis construction (section containing the general-gate theorem)] The general decomposition that is asserted to achieve the O(n²) CINC upper bound for arbitrary unitaries is not supplied with an explicit, uniform sequence or algorithm whose gate count can be verified to remain O(n²) independently of the entries of the target matrix U. Without this, the headline bound cannot be confirmed to apply to every unitary on the n-by-m space rather than to a dense subset.
  2. [Controlled-gate construction subsection] The claim that any controlled quNit-quMit gate requires only two CINC gates (abstract and controlled-gate subsection) rests on a two-gate sequence that must be shown to work uniformly for every possible controlled operation; the manuscript does not demonstrate that the same two CINC plus locals suffice when the controlled unitary is arbitrary rather than diagonal or otherwise special.
minor comments (2)
  1. A side-by-side comparison table of CINC counts versus prior schemes for representative (n,m) pairs would clarify the improvement.
  2. The notation quNit-quMit and the precise definition of the CINC gate should be stated explicitly in the preliminaries before the main claims.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for the careful reading and constructive comments on our manuscript. We address the major comments point by point below. Where the presentation can be strengthened by additional explicit details, we will revise the manuscript accordingly.

read point-by-point responses

  1. Referee: [Main synthesis construction (section containing the general-gate theorem)] The general decomposition that is asserted to achieve the O(n²) CINC upper bound for arbitrary unitaries is not supplied with an explicit, uniform sequence or algorithm whose gate count can be verified to remain O(n²) independently of the entries of the target matrix U. Without this, the headline bound cannot be confirmed to apply to every unitary on the n-by-m space rather than to a dense subset.

    Authors: We appreciate the referee's emphasis on uniformity. The synthesis proceeds by first decomposing an arbitrary unitary on the n-by-m space into a product of at most O(n m) controlled unitaries (via a fixed-basis decomposition that holds for every matrix), followed by the two-CINC implementation of each controlled gate. Because the number of controlled gates in this decomposition is bounded by O(n m) independently of the specific entries of U, the total CINC count remains O(n²) for all unitaries (taking m ≤ n without loss of generality). To make the algorithm fully explicit and verifiable, we will insert a pseudocode description of the full procedure in the revised general-gate theorem section. revision: yes

  2. Referee: [Controlled-gate construction subsection] The claim that any controlled quNit-quMit gate requires only two CINC gates (abstract and controlled-gate subsection) rests on a two-gate sequence that must be shown to work uniformly for every possible controlled operation; the manuscript does not demonstrate that the same two CINC plus locals suffice when the controlled unitary is arbitrary rather than diagonal or otherwise special.

    Authors: We thank the referee for this observation. The two-CINC construction relies on using one CINC to align the control basis state and a second CINC (with appropriately chosen local unitaries on the target) to apply the arbitrary target unitary in the selected subspace; the same sequence works for any unitary on the target because the local gates are chosen to realize that unitary exactly when the control is active. We acknowledge that the current subsection presents the argument primarily through examples and does not contain a fully general proof for non-diagonal cases. We will revise the subsection to include an explicit general argument and circuit diagram that confirms the construction holds uniformly for every controlled unitary. revision: yes

Circularity Check

0 steps flagged

No significant circularity; bound follows from explicit construction

full rationale

The paper advances an explicit synthesis scheme that decomposes arbitrary unitaries on the n-by-m space into CINC gates plus local operations, directly yielding the O(n^2) CINC upper bound and the 2-CINC controlled case as consequences of the decomposition sequence itself. No self-definitional loops, fitted parameters renamed as predictions, or load-bearing self-citations are present; the universality statement and gate-count claims rest on the constructive algorithm rather than on any prior result by the same authors or on tautological re-labeling. The derivation is therefore self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The central claim rests on standard quantum-information assumptions about gate universality and decomposition; no new free parameters or invented entities are introduced.

axioms (1)
  • domain assumption CINC gates together with local gates form a universal gate set for high-dimensional quantum computation.
    Invoked to establish that the proposed scheme can implement any quNit-quMit gate.
