Step-Edge Anomaly in Topological Metals

Oskar Schweizer , Virginia Gali , Adam Y. Chaou , Gal Lemut , Piet W. Brouwer , Maxim Breitkreiz This is my paper

Pith reviewed 2026-05-10 15:13 UTC · model grok-4.3

classification ❄️ cond-mat.mes-hall
keywords topological metalsstep edgesbulk-boundary correspondenceconductance anomalysurface statesgapless topologyWeyl semimetalsDirac semimetals
0
0 comments X

The pith

Step edges on surfaces of three-dimensional topological metals carry a robust conductance K e²/h where K is non-integer and fixed by the bulk.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper extends bulk-boundary correspondence from gapped two-dimensional systems to gapless three-dimensional topological metals by considering step edges on their surfaces. It predicts that these steps support one-dimensional conducting channels whose conductance equals K times e²/h, with the coefficient K set entirely by the bulk band topology and allowed to take non-integer values. A reader should care because this turns ordinary surface imperfections into protected transport channels whose strength can be predicted from bulk properties alone, without relying on perfect edges or integer quantization. The argument rests on the topology of gapless systems, is checked in an explicit lattice model, and matches recent observations of enhanced density of states at steps.

Core claim

Bulk-boundary correspondence guarantees the presence of robust, anomalous states on the boundary of topological matter. The edges of a two-dimensional Chern insulator harbor one-dimensional chiral states, which have a conductance n e²/h, where n is an integer that is solely determined by the bulk. In this work we show that step edges on the surface of three-dimensional topological metals have a robust conductance K e²/h, where K is also fixed by the bulk and assumes non-integer values. We explain this prediction on the basis of the topology of gapless systems, exemplify it on a lattice model, and connect to recent experimental observations of enhanced density of states at step-edges in topo

What carries the argument

Topology of gapless systems, which fixes a bulk-determined non-integer coefficient K for the conductance of surface step edges in three-dimensional topological metals.

If this is right

  • The conductance along step edges stays quantized and insensitive to local perturbations as long as the bulk topology remains unchanged.
  • K can take fractional values, unlike the strictly integer conductance of chiral edge states in two-dimensional Chern insulators.
  • Enhanced density of states observed experimentally at step edges is a direct signature of these anomalous conducting channels.
  • The effect occurs in any three-dimensional topological metal whose bulk topology supports it, including Weyl and Dirac semimetals.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • Local conductance measurements along individual steps could extract the bulk topological invariant without requiring a clean cleaved surface.
  • Engineered steps on surfaces might be used to create controllable, topology-protected conducting paths in devices.
  • Analogous anomalies could appear for other line defects or surface terraces in gapless topological phases.
  • The result suggests that common surface roughness does not destroy but instead hosts protected transport in three-dimensional topological metals.

Load-bearing premise

The topology of gapless systems applies directly to step edges in three-dimensional topological metals such that K is robust and non-integer independent of microscopic details.

What would settle it

Conductance measured along an isolated step edge that either depends on local atomic details or fails to match a specific non-integer multiple of e²/h predicted from the bulk band structure would falsify the claim.

Figures

Figures reproduced from arXiv: 2604.11654 by Adam Y. Chaou, Gal Lemut, Maxim Breitkreiz, Oskar Schweizer, Piet W. Brouwer, Virginia Gali.

Figure 1
Figure 1. Figure 1: FIG. 1: (a) Weyl semimetal with two Weyl nodes sep [PITH_FULL_IMAGE:figures/full_fig_p002_1.png] view at source ↗
Figure 3

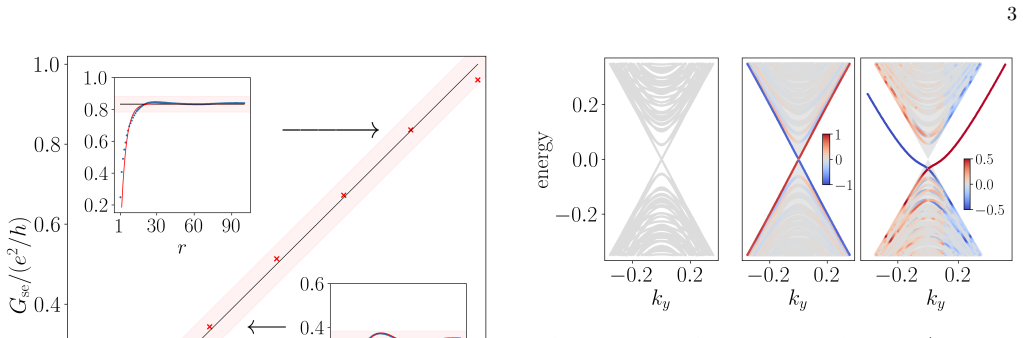

Figure 3. Figure 3: FIG. 3: Dispersion for lattice model for [PITH_FULL_IMAGE:figures/full_fig_p003_3.png] view at source ↗
Figure 2
Figure 2. Figure 2: FIG. 2: Step edge conductance (red crosses) as defined [PITH_FULL_IMAGE:figures/full_fig_p003_2.png] view at source ↗
Figure 4
Figure 4. Figure 4: FIG. 4: (Left) Two slabs with [PITH_FULL_IMAGE:figures/full_fig_p004_4.png] view at source ↗
Figure 5
Figure 5. Figure 5: FIG. 5: Schematics of possible experimental setups to [PITH_FULL_IMAGE:figures/full_fig_p004_5.png] view at source ↗

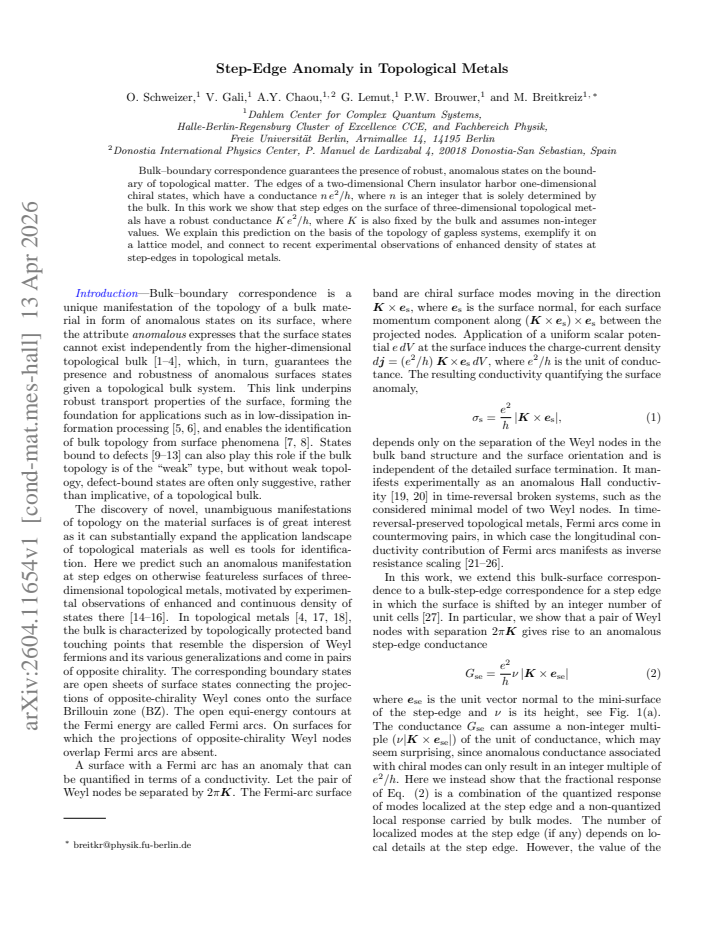

read the original abstract

Bulk-boundary correspondence guarantees the presence of robust, anomalous states on the boundary of topological matter. The edges of a two-dimensional Chern insulator harbor one-dimensional chiral states, which have a conductance $n\, e^2/h$, where $n$ is an integer that is solely determined by the bulk. In this work we show that step edges on the surface of three-dimensional topological metals have a robust conductance $K\, e^2/h$, where $K$ is also fixed by the bulk and assumes non-integer values. We explain this prediction on the basis of the topology of gapless systems, exemplify it on a lattice model, and connect to recent experimental observations of enhanced density of states at step-edges in topological metals.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

3 major / 2 minor

Summary. The manuscript claims that step edges on the surfaces of three-dimensional topological metals host robust one-dimensional conducting modes with conductance K e²/h, where the (generally non-integer) factor K is fixed by the bulk topology of the gapless system via an extension of bulk-boundary correspondence. The prediction is derived from the topology of gapless systems, illustrated with an explicit lattice model, and connected to experimental reports of enhanced local density of states at step edges.

Significance. If substantiated, the result would constitute a genuine extension of topological protection to line defects in gapless 3D metals, offering a mechanism for non-integer quantized conductance that is independent of microscopic details and potentially observable in transport or STM experiments on materials such as Weyl or Dirac semimetals.

major comments (3)
  1. [§2] §2 (topology of gapless systems): the argument that bulk invariants of the 3D gapless metal directly quantize the step-edge conductance to a non-integer K must be accompanied by an explicit formula or invariant expression for K; without it, the claim that K is 'fixed by the bulk' remains formal rather than operational.
  2. [§3] §3 (lattice model): the numerical or analytic transport calculation for the step-edge conductance must demonstrate that the value remains K e²/h when the Fermi energy is varied within the surface-state continuum and that hybridization with Fermi-arc states does not renormalize the conductance; a single-parameter example is insufficient to establish robustness.
  3. [§4] §4 (connection to experiment): the link between the predicted step-edge conductance and the observed enhanced density of states is qualitative; a quantitative estimate of the expected conductance enhancement or a proposed transport geometry is needed to make the experimental connection falsifiable.
minor comments (2)
  1. [§3] Define the precise geometry and lead configuration used to extract the step-edge conductance (e.g., whether it is a local two-terminal measurement or a four-terminal setup) to avoid confusion with ordinary surface conductance.
  2. [§3] Add a short table or paragraph comparing the predicted K values for representative lattice parameters with the integer Chern numbers of gapped 2D analogs.

Simulated Author's Rebuttal

3 responses · 0 unresolved

We thank the referee for the careful reading and constructive comments, which help strengthen the manuscript. We address each major comment below and will incorporate revisions to make the claims more explicit and operational.

read point-by-point responses

  1. Referee: §2 (topology of gapless systems): the argument that bulk invariants of the 3D gapless metal directly quantize the step-edge conductance to a non-integer K must be accompanied by an explicit formula or invariant expression for K; without it, the claim that K is 'fixed by the bulk' remains formal rather than operational.

    Authors: We agree that an explicit expression for K strengthens the result. The manuscript derives K via the topology of gapless systems, but we will add in the revision an explicit formula expressing K as a Brillouin-zone integral of the Berry curvature (or equivalent topological index) of the 3D bulk, directly linking it to the bulk invariants and rendering the quantization operational. revision: yes

  2. Referee: §3 (lattice model): the numerical or analytic transport calculation for the step-edge conductance must demonstrate that the value remains K e²/h when the Fermi energy is varied within the surface-state continuum and that hybridization with Fermi-arc states does not renormalize the conductance; a single-parameter example is insufficient to establish robustness.

    Authors: We acknowledge the need for broader demonstration. While the original lattice model illustrates the effect, we will expand the revision with additional parameter sets and explicit plots of conductance versus Fermi energy across the surface-state continuum. We will also include an analysis showing that Fermi-arc hybridization does not renormalize the value, as topological protection forbids backscattering. revision: yes

  3. Referee: §4 (connection to experiment): the link between the predicted step-edge conductance and the observed enhanced density of states is qualitative; a quantitative estimate of the expected conductance enhancement or a proposed transport geometry is needed to make the experimental connection falsifiable.

    Authors: We agree the experimental link can be sharpened. In the revision we will propose a concrete four-terminal transport geometry across a surface step edge and supply a quantitative estimate of the step-edge contribution K e²/h relative to bulk and surface channels, allowing direct falsifiable comparison with transport or STM data on Weyl/Dirac semimetals. revision: yes

Circularity Check

0 steps flagged

No circularity: derivation grounded in external topology of gapless systems plus independent lattice verification

full rationale

The paper's central prediction of non-integer bulk-fixed K for step-edge conductance is presented as following from the established topology of gapless systems, with explicit exemplification via a separate lattice model and connection to external experiments. No quoted steps reduce by construction to fitted parameters, self-definitions, or load-bearing self-citations whose validity depends on the present work. The derivation chain remains self-contained and externally benchmarkable.

Axiom & Free-Parameter Ledger

0 free parameters · 1 axioms · 0 invented entities

The claim rests on extending bulk-boundary correspondence from gapped to gapless systems; no free parameters or invented entities are mentioned in the abstract.

axioms (1)
  • domain assumption Bulk-boundary correspondence holds for gapless topological systems
    Invoked to guarantee robust anomalous states at step edges with non-integer K.
