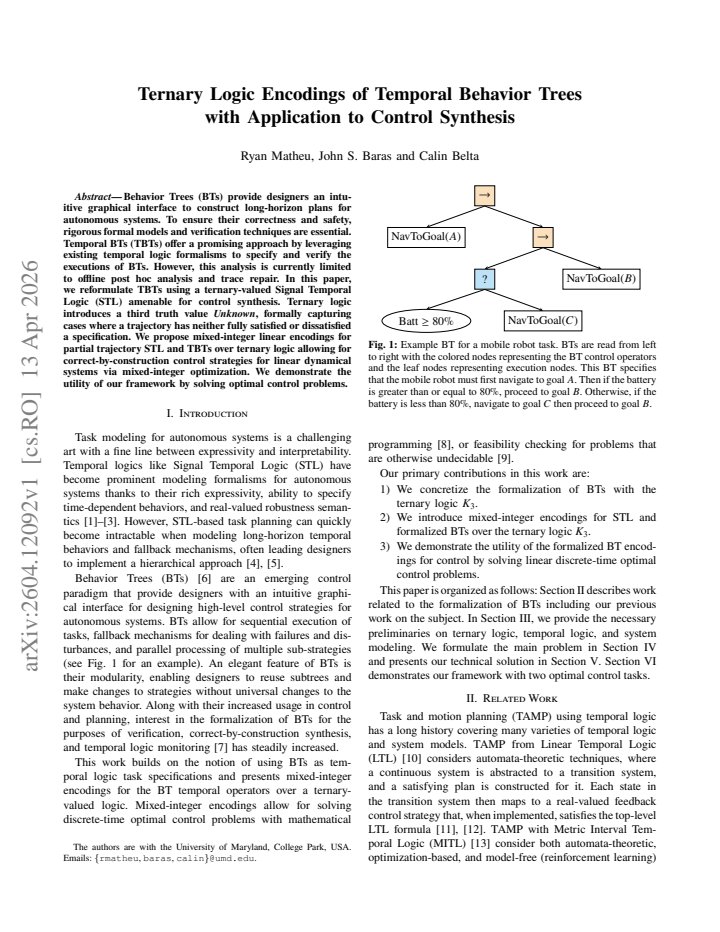

Ternary Logic Encodings of Temporal Behavior Trees with Application to Control Synthesis

Ryan Matheu , John S. Baras , Calin Belta This is my paper

Pith reviewed 2026-05-10 14:57 UTC · model grok-4.3

classification 💻 cs.RO cs.SYeess.SY
keywords behavior treessignal temporal logiccontrol synthesismixed-integer programmingternary logictemporal specificationslinear dynamical systemsrobotics
0
0 comments X p. Extension

The pith

Ternary logic encodings turn temporal behavior trees into mixed-integer programs that synthesize correct controllers for linear systems.

A machine-rendered reading of the paper's core claim, the machinery that carries it, and where it could break.

The paper seeks to make behavior trees usable for automated control synthesis rather than just offline verification. It introduces a ternary extension of signal temporal logic that treats undecided partial trajectories as having an unknown truth value instead of forcing premature true or false labels. This reformulation is then encoded as mixed-integer linear constraints so that optimal control problems for linear dynamical systems can be solved directly while respecting the original tree structure and temporal requirements. A sympathetic reader would care because it promises to let engineers draw intuitive long-horizon plans and obtain guaranteed safe trajectories without manual translation into low-level constraints.

Core claim

We reformulate temporal behavior trees using a ternary-valued signal temporal logic that captures partial trajectories with an unknown truth value. Mixed-integer linear encodings of both the partial-trajectory STL formulas and the tree compositions are derived, allowing correct-by-construction control strategies for linear dynamical systems to be obtained via mixed-integer optimization.

What carries the argument

Mixed-integer linear encodings of ternary-valued partial-trajectory STL specifications for temporal behavior trees.

If this is right

  • Graphical behavior-tree designs become directly usable as inputs to online optimal controllers for linear plants.
  • Partial information about future trajectories can be handled without prematurely declaring satisfaction or violation.
  • Safety and temporal requirements expressed in the tree are enforced by construction during the optimization step.
  • Optimal control problems that respect long-horizon BT structure can be solved with standard MILP solvers.

Where Pith is reading between the lines

These are editorial extensions of the paper, not claims the author makes directly.

  • The same ternary encoding pattern could be tested on systems whose dynamics are approximated by piecewise-linear models.
  • Online replanning might reuse the partial-trajectory encoding when new sensor data updates the unknown portions.
  • The approach suggests a route to hybrid synthesis where learned sub-policies are inserted as leaves inside the encoded tree.

Load-bearing premise

The ternary encodings can be written as mixed-integer linear constraints without creating semantic gaps that would permit unsafe or incorrect control solutions.

What would settle it

A concrete linear system and TBT specification for which the synthesized control input satisfies the MILP encoding yet violates the original ternary TBT semantics on the executed trajectory.

Figures

Figures reproduced from arXiv: 2604.12092 by Calin Belta, John S. Baras, Ryan Matheu.

Figure 1
Figure 1. Figure 1: Example BT for a mobile robot task. BTs are read from left to right with the colored nodes representing the BT control operators and the leaf nodes representing execution nodes. This BT specifies that the mobile robot must first navigate to goal 𝐴. Then if the battery is greater than or equal to 80%, proceed to goal 𝐵. Otherwise, if the battery is less than 80%, navigate to goal 𝐶 then proceed to goal 𝐵. p… view at source ↗
Figure 2
Figure 2. Figure 2: B. Multi-Agent Planning We consider a multi-agent mobile robot system with each agent’s dynamics modeled as a discrete-time double integrator. The overall dynamics for the multi-agent system are modeled via the system matrices: 𝐴 = BlockDiag(𝐴1, . . . , 𝐴𝑁 ) and −1 0 1 2 3 0 1 2 3 O1 O2 A B C (a) Batt ≥ 80% −1 0 1 2 3 O1 O2 A B C (b) Batt < 80% [PITH_FULL_IMAGE:figures/full_fig_p007_2.png] view at source ↗
Figure 3
Figure 3. Figure 3: Synthesized trajectories for three agents satisfying the TBT formula (11) with the maximum finite horizon is set to 𝑇 = 20 time steps with a time interval 𝛿𝑡 = 0.5s. Sub-level formula 𝜑1 constrains eventually agent 1 (blue) shall reach goal 𝐶, agent 2 (red) shall reach goal 𝐴, and agent 3 (green) shall reach goal 𝐵. Sub-level formula 𝜑2 constrains eventually agent 1 shall reach goal 𝐵, agent 2 shall reach … view at source ↗
Figure 4
Figure 4. Figure 4: The synthesized multi-agent trajectories elicit a queuing phenomena when passing through the obstacles. References [1] O. Maler and D. Nickovic, “Monitoring temporal properties of con￾tinuous signals,” in International symposium on formal techniques in real-time and fault-tolerant systems. Springer, 2004, pp. 152–166. [2] G. E. Fainekos and G. J. Pappas, “Robustness of temporal logic spec￾ifications for co… view at source ↗
read the original abstract

Behavior Trees (BTs) provide designers an intuitive graphical interface to construct long-horizon plans for autonomous systems. To ensure their correctness and safety, rigorous formal models and verification techniques are essential. Temporal BTs (TBTs) offer a promising approach by leveraging existing temporal logic formalisms to specify and verify the executions of BTs. However, this analysis is currently limited to offline post hoc analysis and trace repair. In this paper, we reformulate TBTs using a ternary-valued Signal Temporal Logic (STL) amenable for control synthesis. Ternary logic introduces a third truth value \textit{Unknown}, formally capturing cases where a trajectory has neither fully satisfied or dissatisfied a specification. We propose mixed-integer linear encodings for partial trajectory STL and TBTs over ternary logic allowing for correct-by-construction control strategies for linear dynamical systems via mixed-integer optimization. We demonstrate the utility of our framework by solving optimal control problems.

Editorial analysis

A structured set of objections, weighed in public.

Desk editor's note, referee report, simulated authors' rebuttal, and a circularity audit. Tearing a paper down is the easy half of reading it; the pith above is the substance, this is the friction.

Referee Report

2 major / 3 minor

Summary. The paper claims to reformulate Temporal Behavior Trees (TBTs) using a ternary-valued Signal Temporal Logic (STL) that includes an 'Unknown' truth value for partial trajectories. It introduces mixed-integer linear encodings for these ternary STL formulas and TBTs, enabling correct-by-construction control synthesis for linear dynamical systems via mixed-integer optimization, and demonstrates the approach by solving optimal control problems.

Significance. If the encodings prove semantically faithful, the work would meaningfully advance integration of intuitive behavior-tree designs with formal synthesis methods in robotics. It extends temporal logic approaches to handle uncertainty in incomplete trajectories, moving TBT analysis from offline verification to online control for linear systems. The MILP formulation offers a practical route to synthesis using standard solvers.

major comments (2)
  1. [§4] §4, ternary STL encodings: the manuscript presents MILP constraints for operators including 'Until' and 'Always' over partial trajectories but supplies no derivation or proof establishing semantic equivalence to the ternary logic definition in §3. Without this, relaxation gaps for the 'Unknown' value cannot be ruled out, undermining the central 'correct-by-construction' claim for synthesized controls.
  2. [§5] §5, experimental results: the optimal control demonstrations report feasible solutions but contain no validation that the resulting trajectories satisfy the original ternary STL specifications (e.g., via post-hoc monitoring) or any comparison to binary STL baselines, leaving the practical correctness of the encodings unverified.
minor comments (3)
  1. [§2] The ternary domain {True, False, Unknown} and its partial-order semantics should be restated explicitly in the preliminaries for readers unfamiliar with three-valued logic.
  2. [Figure 2] Figure 2 (trajectory plots) lacks axis labels and legend entries distinguishing satisfied, unsatisfied, and unknown segments.
  3. [§4] Notation for the big-M constants and binary variables in the MILP encodings is introduced without a consolidated table, making cross-referencing between equations cumbersome.

Simulated Author's Rebuttal

2 responses · 0 unresolved

We thank the referee for their constructive comments, which help improve the rigor of our work on ternary STL encodings for TBTs. We address each major comment below and commit to revisions that strengthen the manuscript's theoretical and experimental foundations.

read point-by-point responses

  1. Referee: [§4] §4, ternary STL encodings: the manuscript presents MILP constraints for operators including 'Until' and 'Always' over partial trajectories but supplies no derivation or proof establishing semantic equivalence to the ternary logic definition in §3. Without this, relaxation gaps for the 'Unknown' value cannot be ruled out, undermining the central 'correct-by-construction' claim for synthesized controls.

    Authors: We agree that an explicit derivation and proof of semantic equivalence is essential to support the 'correct-by-construction' claim and to rule out relaxation gaps for the 'Unknown' value. Although the encodings were constructed to align with the ternary definitions, the current manuscript does not provide this formal link. In the revised version, we will add a dedicated subsection (or appendix) in §4 that derives the MILP constraints from the ternary STL semantics in §3 and proves equivalence for all operators, including 'Until' and 'Always', with explicit analysis of the 'Unknown' case. revision: yes

  2. Referee: [§5] §5, experimental results: the optimal control demonstrations report feasible solutions but contain no validation that the resulting trajectories satisfy the original ternary STL specifications (e.g., via post-hoc monitoring) or any comparison to binary STL baselines, leaving the practical correctness of the encodings unverified.

    Authors: The demonstrations in §5 focus on showing that the MILP formulation yields feasible controls for linear systems under TBT specifications. We acknowledge that explicit verification of the synthesized trajectories and baseline comparisons would strengthen the practical validation. In the revised manuscript, we will extend §5 to include post-hoc monitoring of the trajectories against the original ternary STL formulas and add comparisons to equivalent binary STL encodings to demonstrate the benefits of handling partial trajectories. revision: yes

Circularity Check

0 steps flagged

No significant circularity in proposed ternary STL encodings

full rationale

The paper introduces new mixed-integer linear encodings for partial-trajectory ternary STL and TBTs as a reformulation enabling control synthesis. No load-bearing steps reduce by construction to self-defined quantities, fitted parameters renamed as predictions, or self-citation chains whose cited results themselves depend on the target claim. The central contribution is the proposal of the encodings themselves; their semantic faithfulness is asserted as part of the new framework rather than derived tautologically from prior inputs. The derivation chain remains self-contained against external benchmarks.

Axiom & Free-Parameter Ledger

0 free parameters · 2 axioms · 1 invented entities

The central claim rests on the assumption that ternary STL semantics for partial trajectories admit faithful MILP encodings and that linear system dynamics are compatible with those encodings.

axioms (2)
  • ad hoc to paper Ternary logic extension of STL correctly captures partial trajectory satisfaction
    Introduced in the paper to handle 'unknown' cases; no external justification supplied in abstract.
  • domain assumption Mixed-integer linear constraints can encode the ternary TBT semantics without loss of correctness
    Standard assumption for MILP-based control synthesis but must hold for the new ternary case.
invented entities (1)
  • Ternary-valued partial-trajectory STL for TBTs no independent evidence
    purpose: To represent unknown satisfaction states during control synthesis
    New encoding proposed by the authors; no independent falsifiable evidence outside the paper is mentioned.

pith-pipeline@v0.9.0 · 5465 in / 1402 out tokens · 83045 ms · 2026-05-10T14:57:55.805590+00:00 · methodology

discussion (0)

Sign in with ORCID, Apple, or X to comment. Anyone can read and Pith papers without signing in.

Reference graph

Works this paper leans on

32 extracted references · 32 canonical work pages · 1 internal anchor
